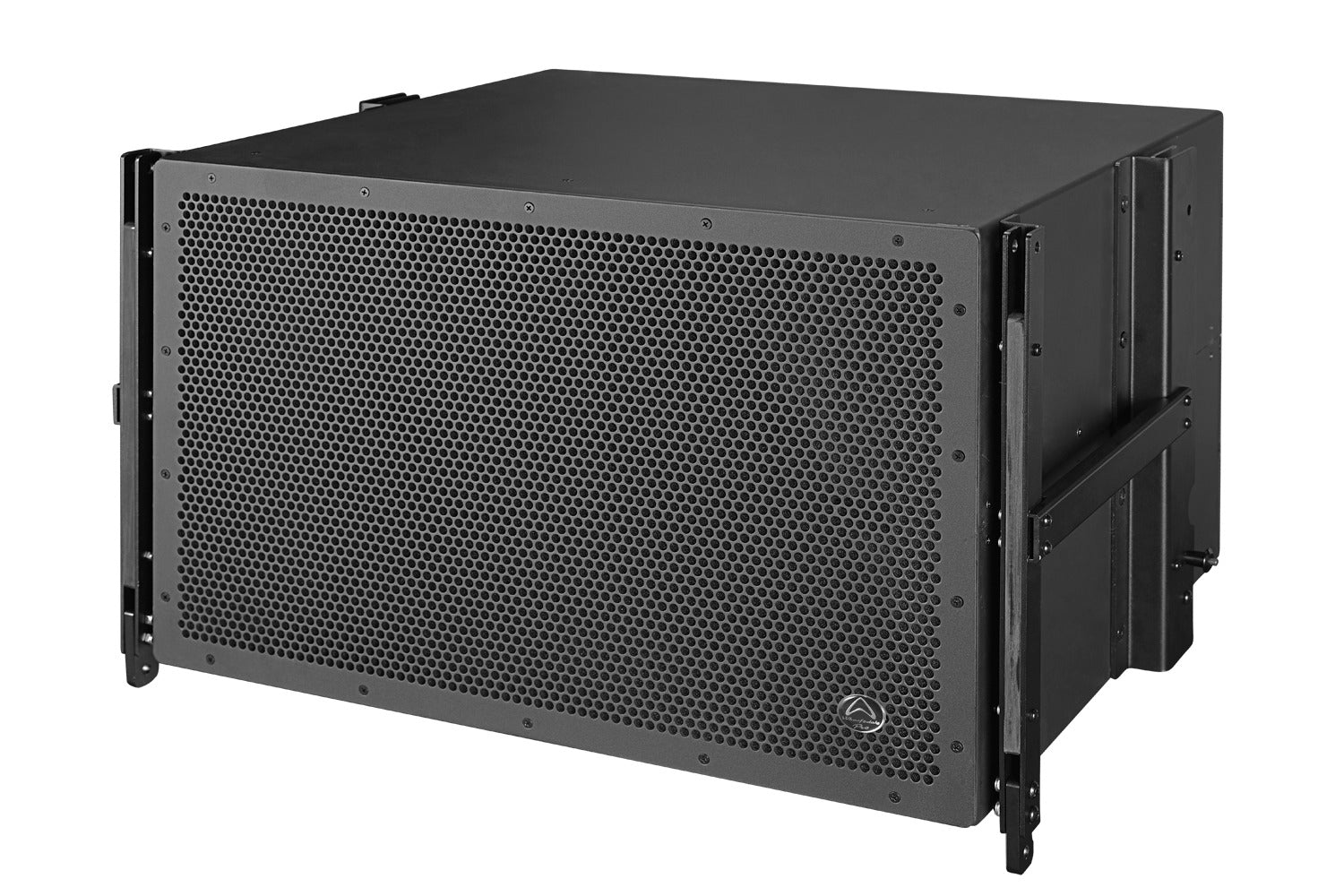

Wharfedale Pro WLA-210XSUBF - IPX6 waterproof line array subwoofer

Regular price



  • IPX6 Waterproof Line array
  • Wax wrapped components
  • Anti-corrosion stainless steel hardware
  • Waterproof input connectors
  • Plywood construction in aluminium cabinets
  • 2 x 10″ element – WLA-210XF
  • 2 x 15″ flying subwoofer element – WLA-210XSUBF
  • 2 x 18″ subwoofer – WLA-218BXF


  • 2 x 15″ LF drivers with 4.0″ voice coils
  • 145 dB Max SPL
  • 18 mm Birch plywood construction
  • Integral rigging system
  • 1200 watts AES (RMS)
  • 2400 watts Programme
  • 4800 watts Peak
  • 4 Ω impedance


WLA-210XF rigging doubles up as an optimised ground stacking system, using the WLA-210FXSUB subwoofer as a base.

Arrays of WLA-210XF line array elements can be aimed downwards by as much as 10° to cover audience areas close to a stage, as well as upward by as much as 10° in order to better cover distant balcony seating areas.

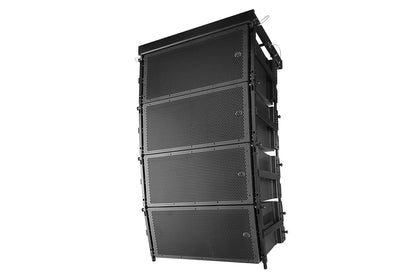

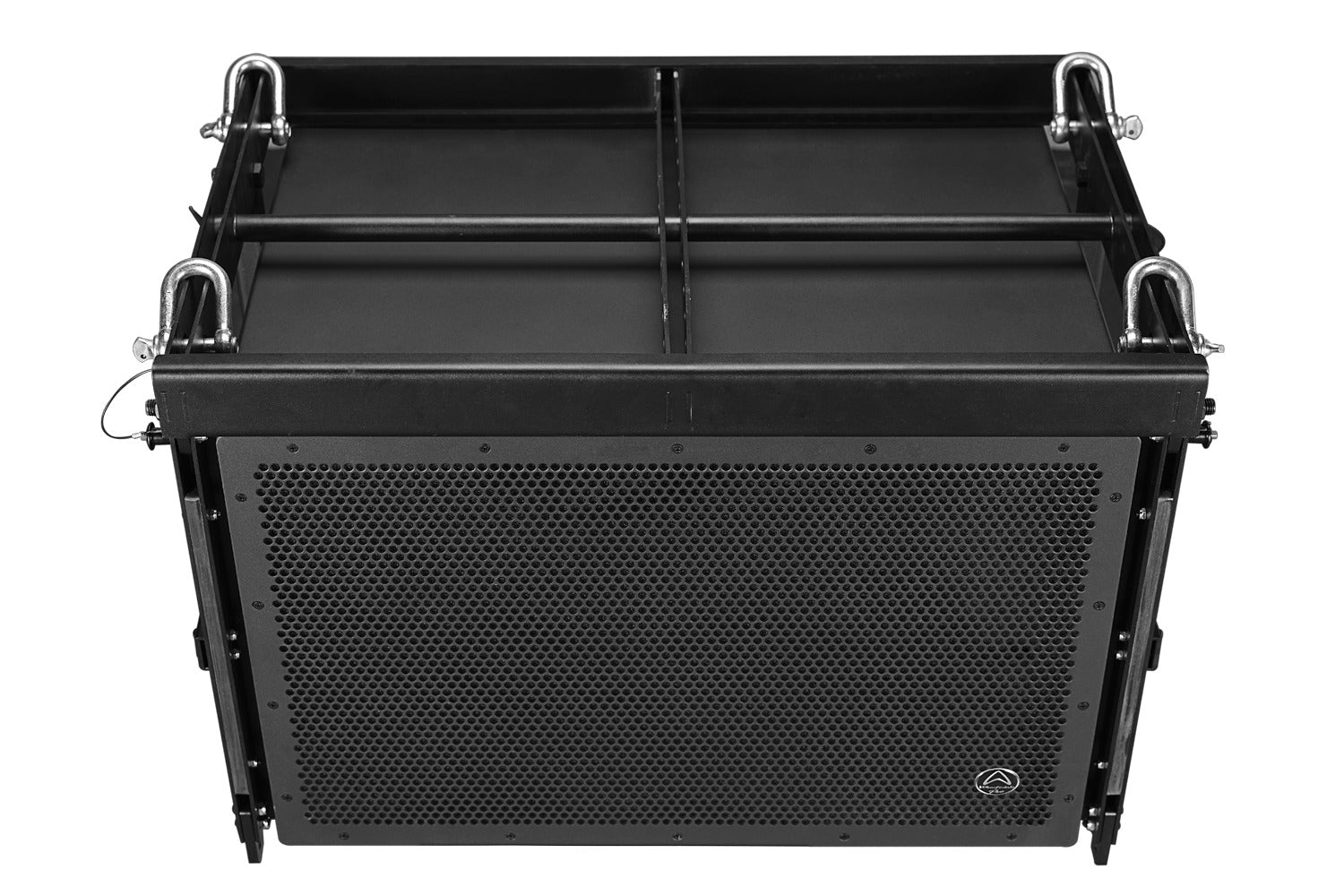

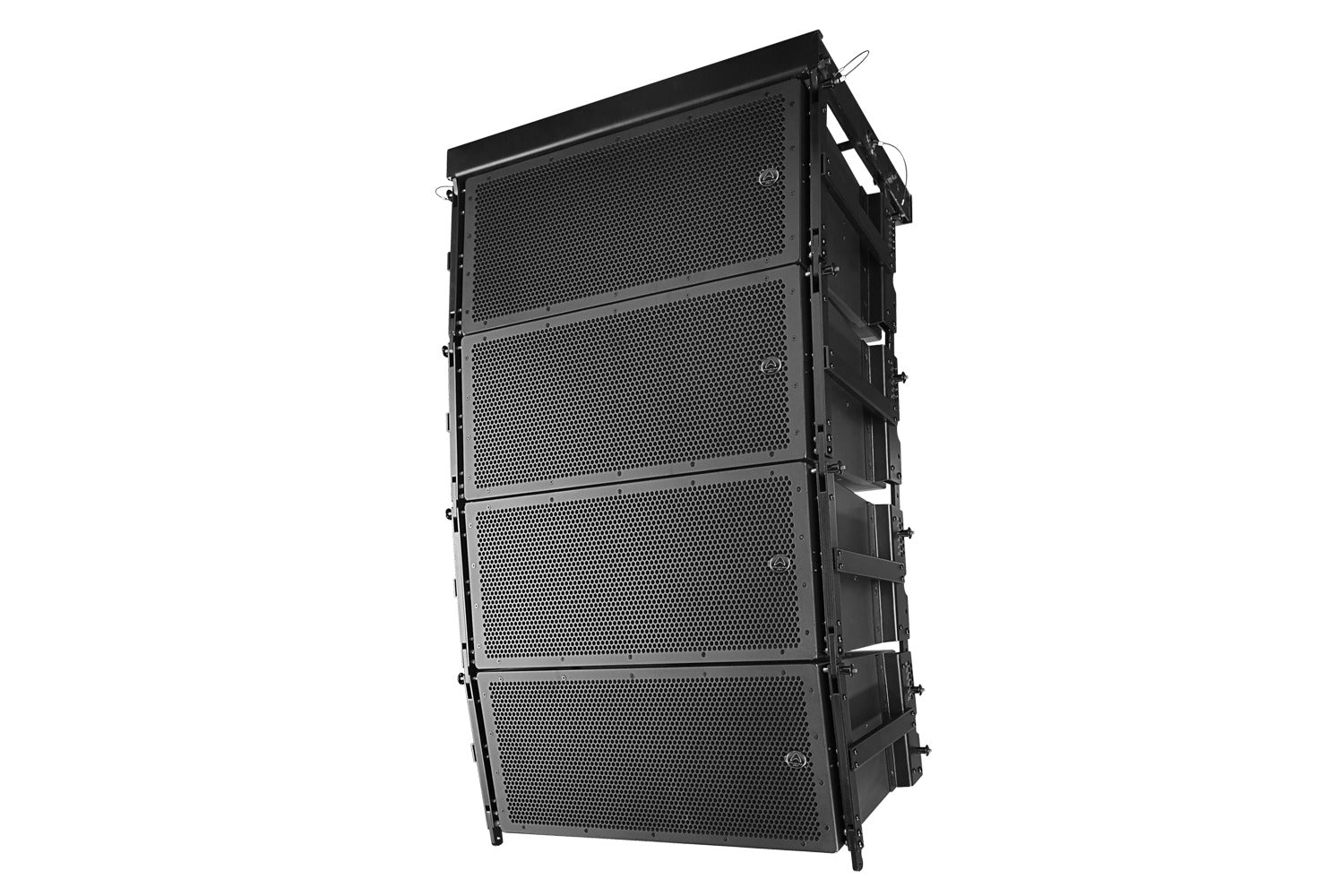

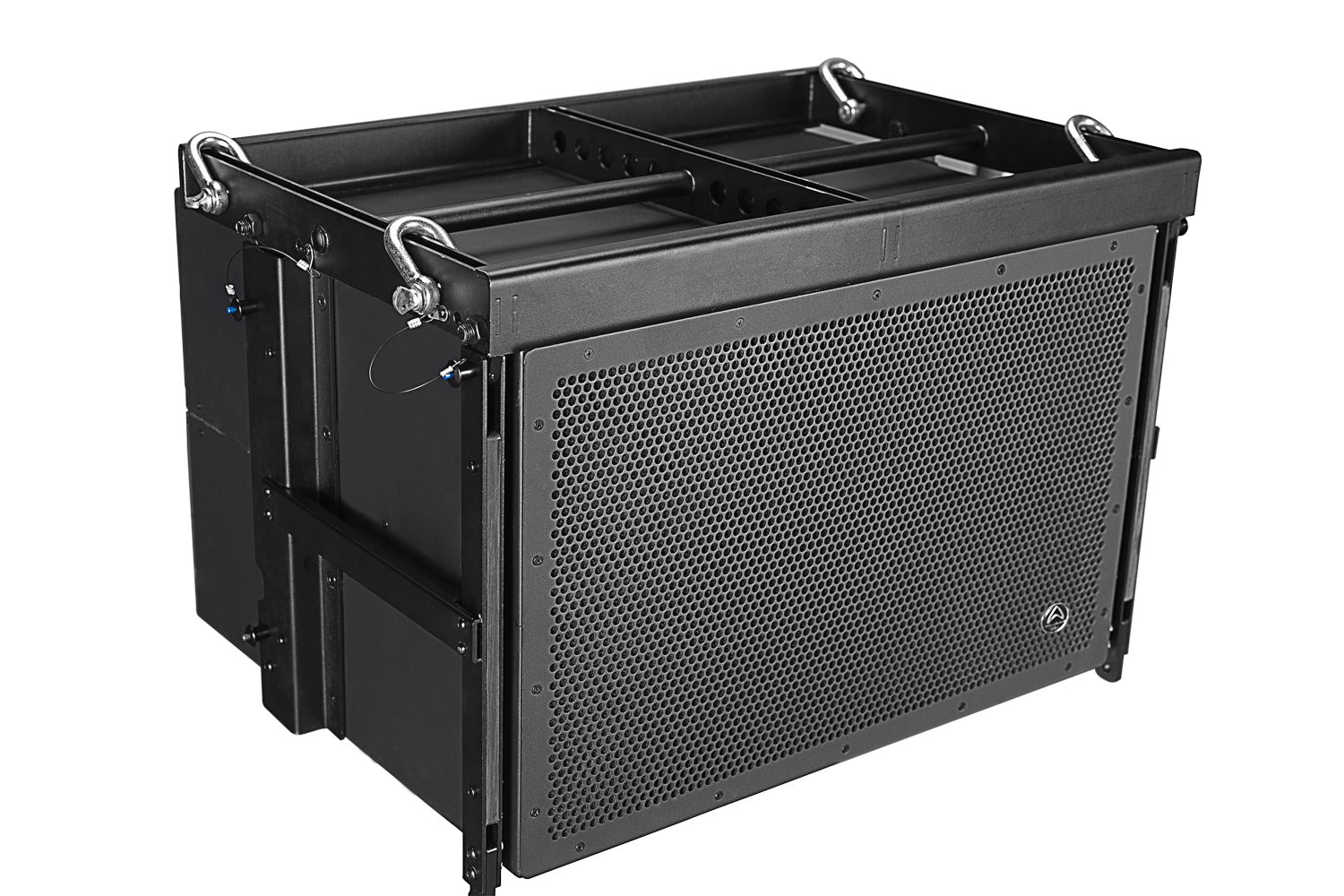

The optional WLA-XF Common Fly Frame supports up to 8 WLA-210XF elements plus a WLA-210XSUBF.

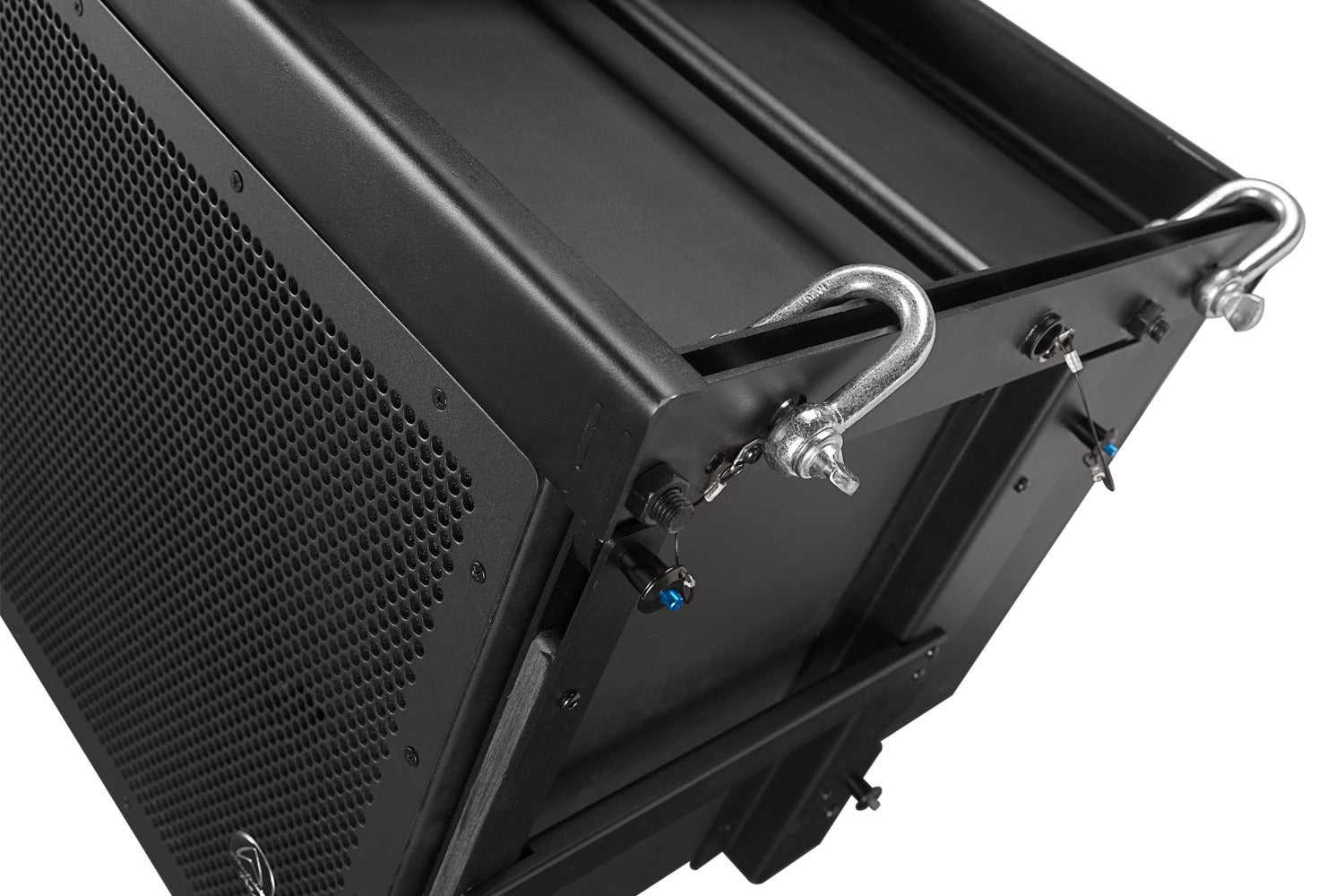

Stainless steel construction  /   Anti-rust materials  /    For flying……or ground stacking


WLA-210XF system is supported inside EASE Focus.

Download the .glls here….


All models of the WLA-210XF system use certified input connectors.

Inside the carton box there are also the cable connectors needed for easy system setup.


With the same reliability and high performance characteristics as the original ‘non-F’ models, these WLA-210X ‘F’ models are IPX6 Certified.

This certification states that there should be no harmful effects when “Water is projected in powerful jets (12.5mm nozzle) against the enclosure from any direction”

With rust-proof aluminium grilles, components wrapped in wax and anti-corrosion stainless and aluminium screws and hardware, the F models are made for the rain and long-term environmental exposure.

In addition, to reduce any risk of standing water, and to help rental companies with storage, the front grille has been flattened.


A Versadrive DSP (such as SC-48 FIR) or a DP-N series amplifier with internal FIR filtering is highly recommended to get the most from the system.  Phase, EQ and filtering should be applied and this way, the physics of the system can be truly optimised – delivering that sub-bass, power and clarity that this system can deliver.


Model Name WLA-210XSUBF
System Type IPX6 waterproof
Configuration 2 x 15″ subwoofer
Freq Response (+/-3 dB) 39 Hz – 900 Hz
Freq Range (-10 dB) 35 Hz – 1.5 KHz
Sensitivity (2.83 v / 1 m) 108 dB
Calc Max SPL @1 m 145 dB
System Impedance 4 Ω
LF Transducer
Size 2 x 381 mm / 15”
Voice Coil Size  100 mm / 4.0”
Rated Impedance 2 x 8 Ω
LF Power (re:AES2-2012) 2 x 600 W
HF Transducer
Compression driver
Voice Coil Size
Exit Size
Diaphragm Material
Rated Impedance
HF (re:AES2-2012)
Coverage (H x V)
Continuous Power 1200 W
Programme Power 2400 W
Peak Power 4800 W
Crossover frequency No
Operational Modes: No
Input Connector 1 x WY-24K4Z (waterproof)
Hardware Integral
non adjustable
Enclosure Material 15 mm, 18 mm Ply
Finish Waterproof Paint
Grille Material 3.0 mm Aluminium
Dims- (Unpacked)
Height Front 494 mm / 19.4″
Height Rear 494 mm / 19.4″
Width 845 mm / 33.3″
Depth 653 mm / 25.7″
Dims – (Packed)
Height 933 mm / 36.7″
Width Front 723 mm / 28.5″
Width Rear 723 mm / 28.5″
Depth 584 mm / 23.0″
Net Weight 81.0 kg / 178.2 lbs
Gross Weight 86.4 kg / 190.1 lbs


Download user manual
