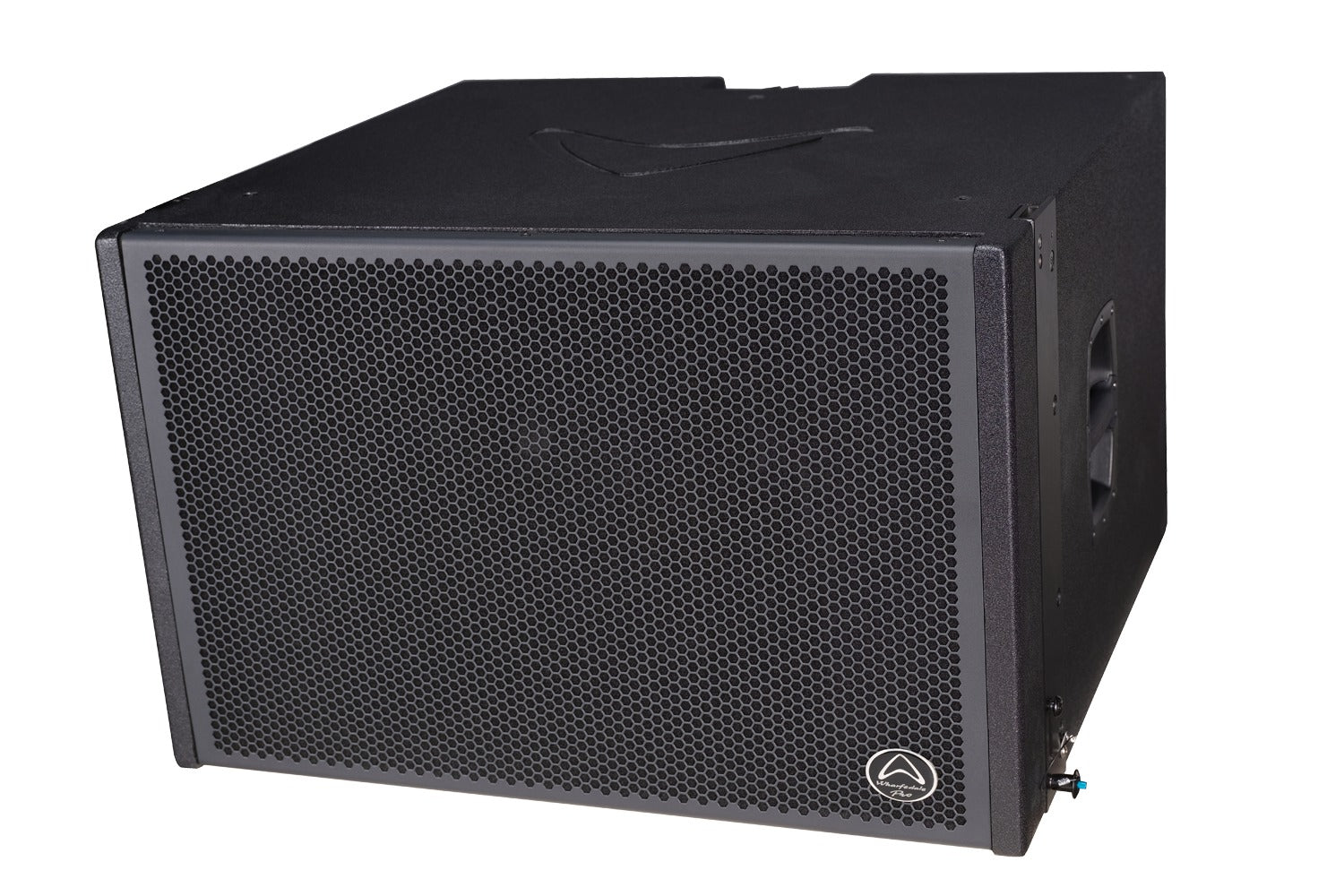

Wharfedale Pro WLA-210XSUB - 2 x 15" passive subwoofer
Wharfedale Pro WLA-210XSUB - 2 x 15" passive subwoofer
WLA-210XSUB is a dual 15″ subwoofer from our WLA-210X System, designed to deliver powerful, controlled low-end reinforcement for touring and installation environments.
It features two custom Wharfedale Pro 15″ LF drivers with 4.0″ voice coils, delivering a maximum SPL of 145 dB @ 1 m. Precision-engineered for extended low-frequency response, WLA-210XSUB provides 1200 W AES (RMS), 2400 W Programme, and 4800 W Peak power handling, ensuring exceptional output with clarity and punch.

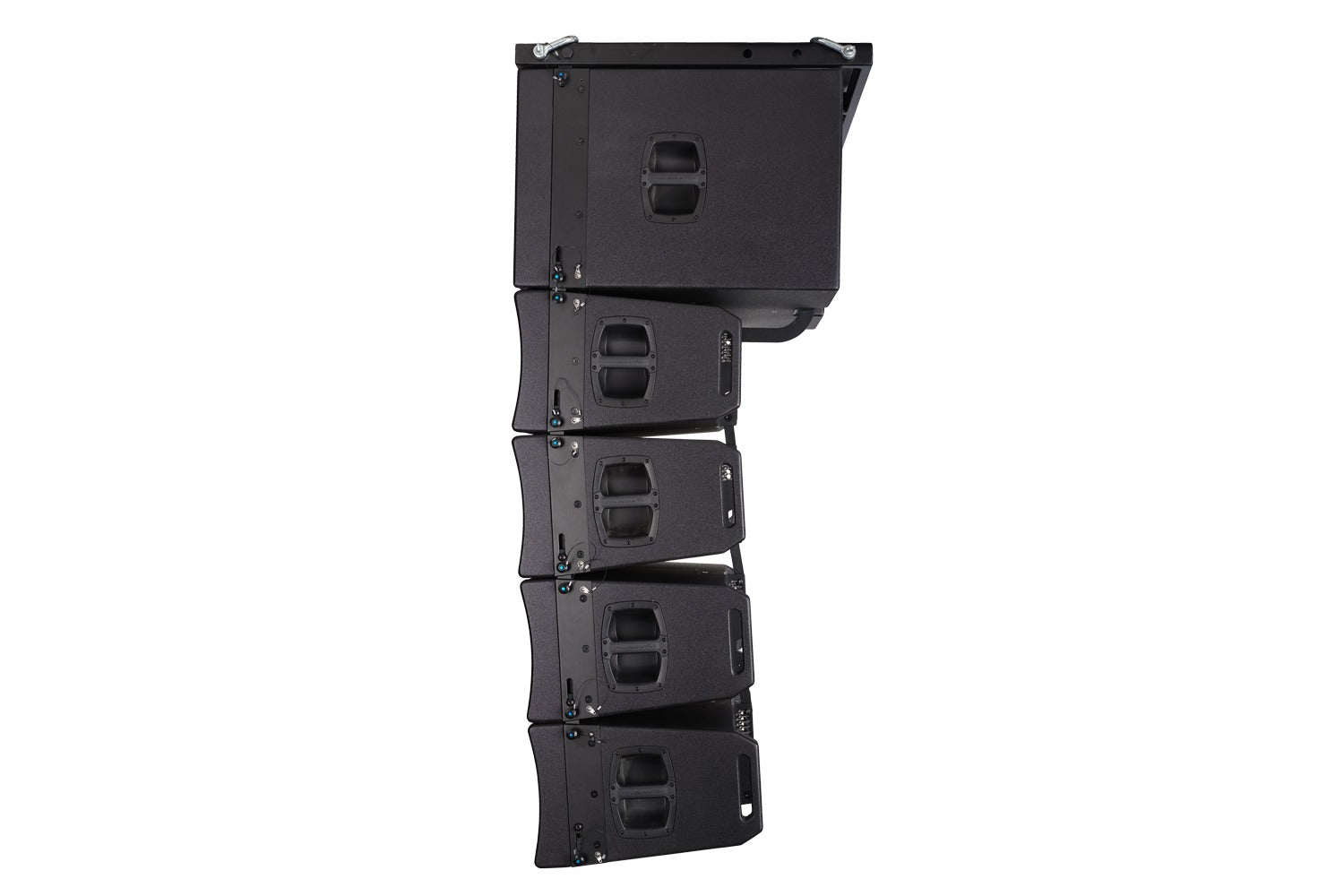

Constructed from 18 mm birch plywood and finished in our durable Tough-Tone paint, it’s built to withstand the rigours of touring. Integral aluminium rigging hardware allows for flexible deployment — flown above, below, or ground-stacked with WLA-210X elements using the optional Common Fly Frame.
With its rugged design and precise low-frequency delivery, WLA-210XSUB forms the foundation of a complete WLA-210X system, bringing depth and authority to every performance.
| Specification | Value |
|---|---|
| Active or Passive | Passive |
| System Type | Subwoofer |
| Configuration | Bass-reflex |
| System Continuous Power | 1200 W |
| System Programme Power | 2400 W |
| System Peak Power | 4800 W |
| Max SPL @ 1m | 145 dB (Half Space) |
| Freq Range (-10 dB) | 35 Hz -1.5 KHz |
| Freq Response (+/-3 dB) | 39 Hz – 900 Hz |
| Bi-amp Mode Switch | Yes |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 2 x 15" |
| LF Magnet Material | Ferrite |
| LF Frame Material | Aluminium |
| LF Voice Coil Size | 4” |
| LF Rated Impedance | 2 x 8 Ω |
| LF Power (RE:AES2-2012) | 2 x 600 W |
| Preset | Yes |
| Input Connector | 2 x 4 Pole Speaker Connector |
| Enclosure Material | Birch Plywood |
| Grille Material and Finish | Steel Black |
| Finish | Black Tough-Tone |
| Handles | 4 |
| Deployment | Flying, Ground |
| Pole Mount | None |
| Rigging | Yes |
| Sensitivity 2.83v / 1m | 108 dB |
| System Rated Impedance | 4 Ω |
| Crossover Frequency | Preset Dependent |
| Recommended HPF = BW 18 dB/OCT. | 35 Hz |
| Included Accessory | User Manual |
| Unpacked - Front Height (mm) | 485 |
| Unpacked - Rear Height (mm) | 485 |
| Unpacked - Width Front (mm) | 760 |
| Unpacked - Width Rear (mm) | 760 |
| Unpacked - Depth (mm) | 716 |
| Packed - Height (mm) | 575 |
| Packed - Width Front (mm) | 850 |
| Packed - Width Rear (mm) | 850 |
| Packed - Depth (mm) | 806 |
| Weight - Net (kg) | 63 |
| Weight - Gross (kg) | 68 |
