Wharfedale Pro WLA-210X - passive line array element
Wharfedale Pro WLA-210X - passive line array element

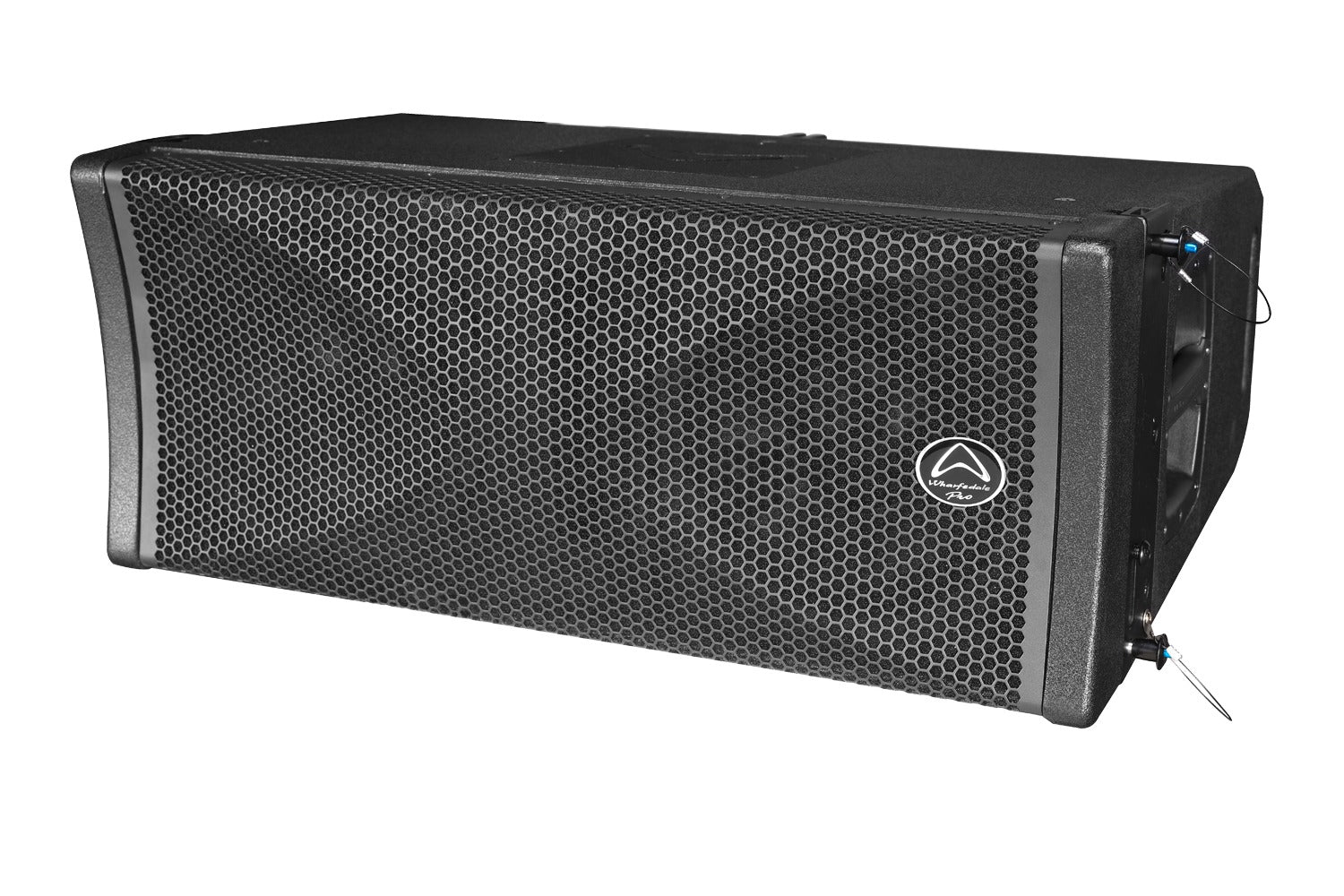

WLA-210X is a dual 10″ line array element from our WLA-210X System, designed for touring and fixed installations that demand high output, precision, and flexibility.

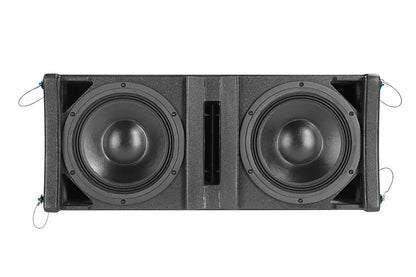

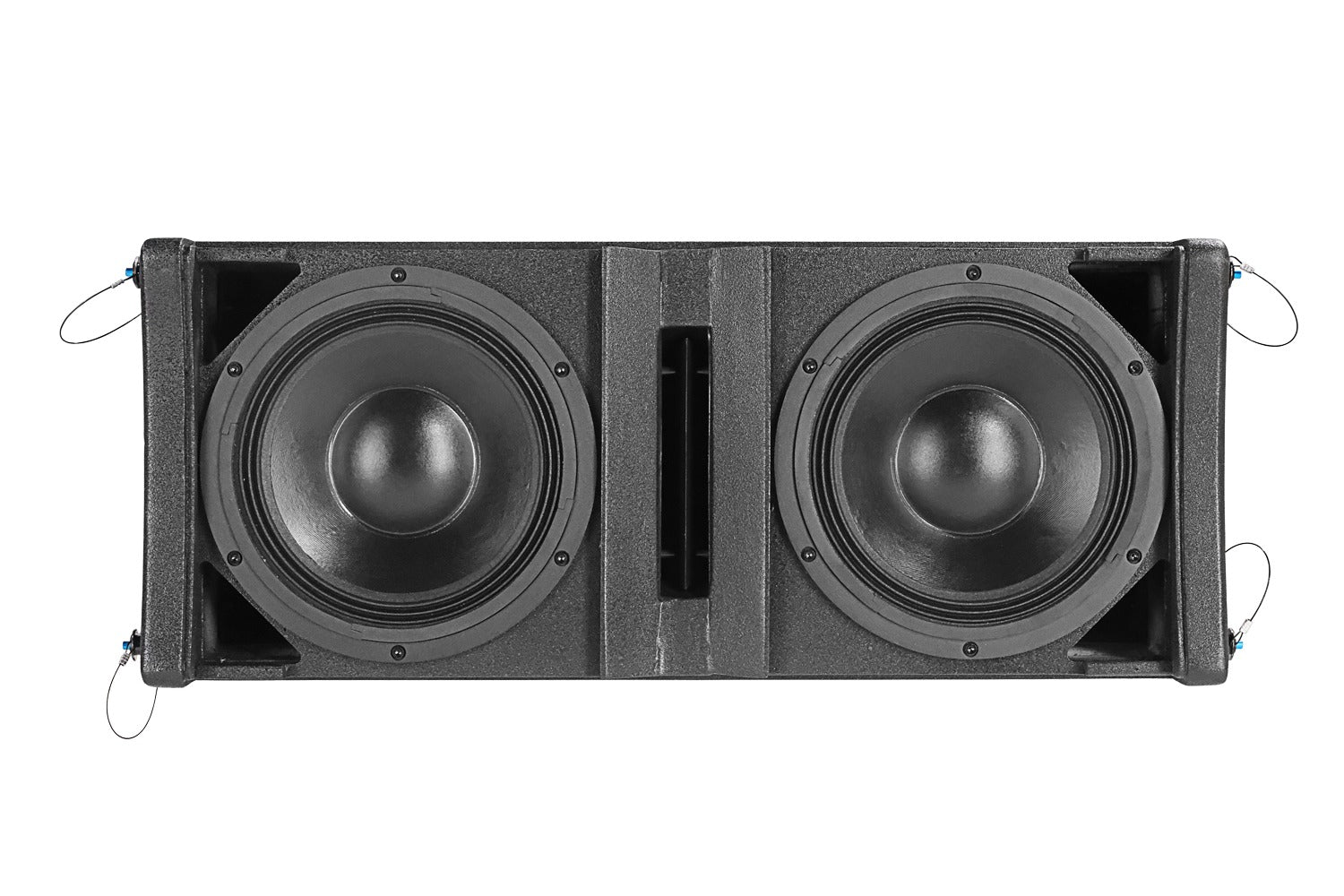

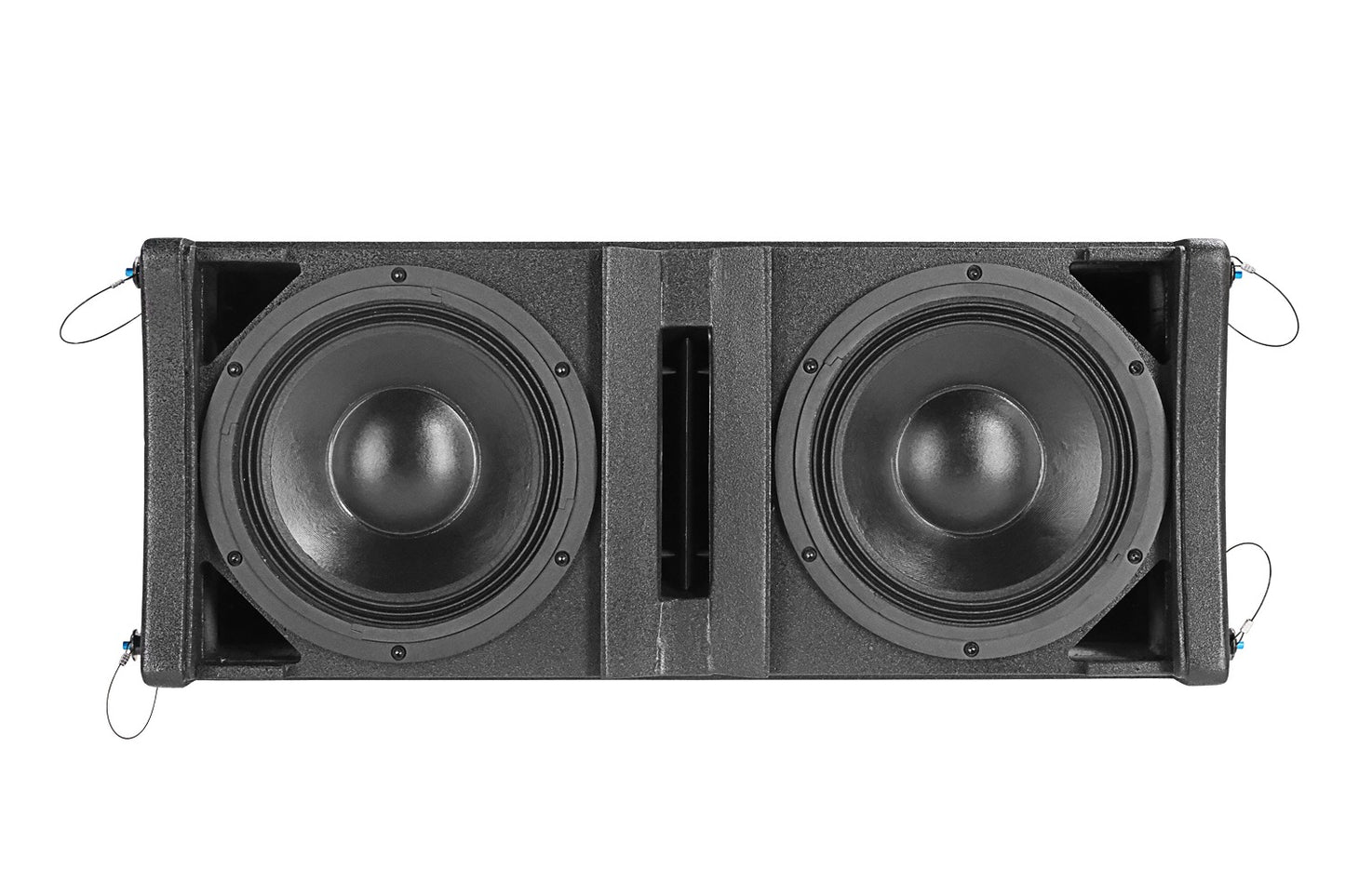

Each enclosure features two custom Wharfedale Pro 10″ LF drivers and a 3″ titanium diaphragm neodymium compression driver, coupled to a 100° x 10° waveguide.
Built for versatility, WLA-210X offers both Passive and Bi-amp modes for system optimisation and versatility. When paired with external processing, such as our XC series management controllers, engineers gain precise control and tuning options.

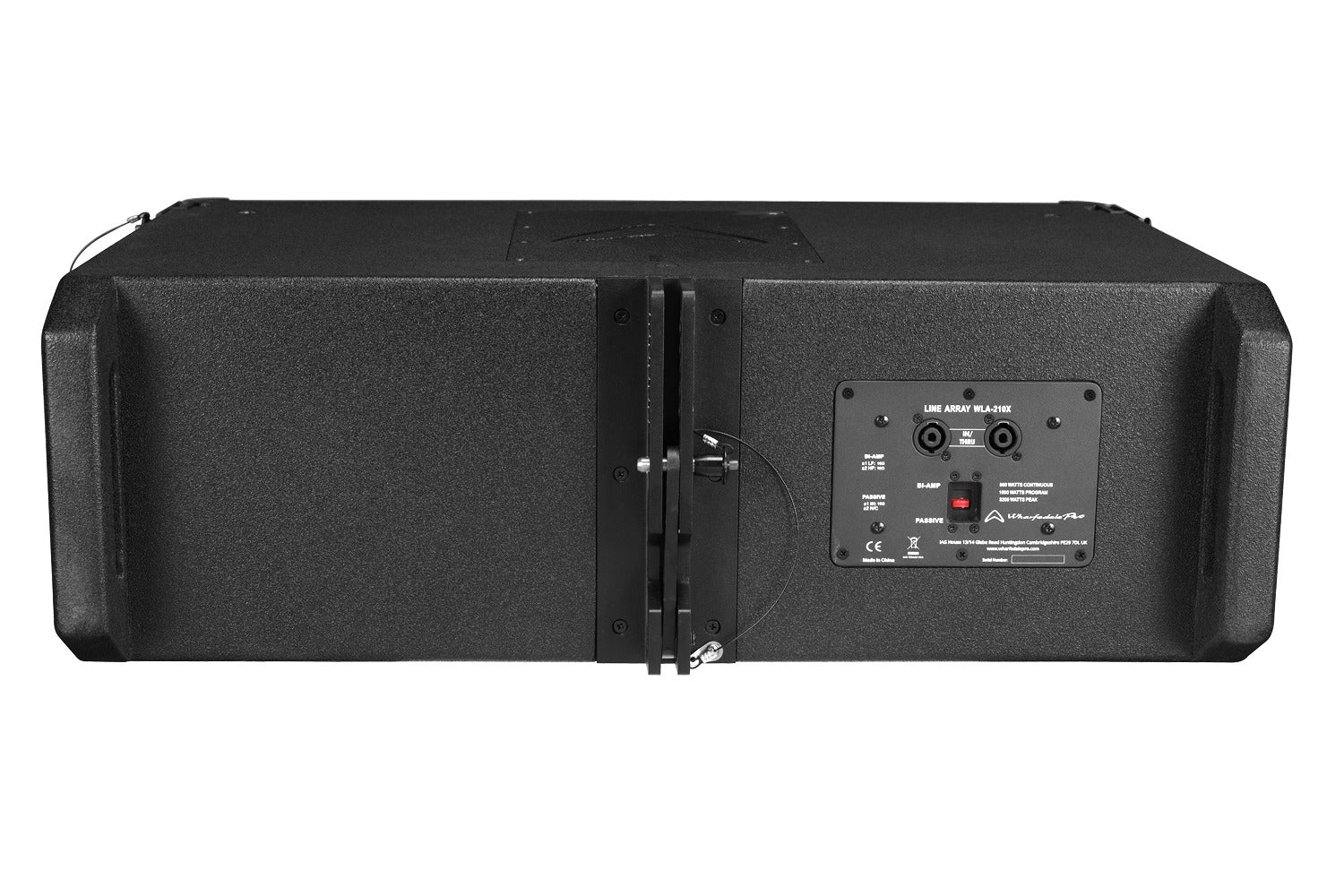

Crafted from 15 mm / 18 mm birch plywood with a durable Tough-Tone finish, WLA-210X includes integral aluminium side-plate rigging for easy flying or ground-stacking configurations. Delivering a maximum SPL of 138 dB @ 1 m, it’s a powerful, efficient, and dependable line array solution for professional applications.
| Specification | Value |
|---|---|
| Active or Passive | Passive |
| System Type | Array Element |
| Configuration | 2-way |
| System Continuous Power | LF: 800 W / HF: 90 W |
| System Programme Power | LF: 1600 W / HF: 180 W |
| System Peak Power | LF: 3200 W / HF: 360 W |
| Max SPL @ 1m | 138 dB |
| Freq Range (-10 dB) | 60 Hz – 20 KHz |
| Freq Response (+/-3 dB) | 65 Hz – 20 KHz |
| Bi-amp Mode Switch | Yes |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 2 x 10" |
| LF Magnet Material | Ferrite |
| LF Frame Material | Aluminium |
| LF Voice Coil Size | 2.5” |
| LF Rated Impedance | 2 x 8 Ω |
| LF Power (RE:AES2-2012) | 2 x 400 W |
| HF Driver Type | Compression Driver – Neo |
| HF Voice Coil Size | 3” |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1.4” |
| HF Power (RE:AES2-2012) | 80 W |
| HF Rated Impedance | 8 Ω |
| HF Nominal Coverage (H x V) | 100° x 10° |
| Preset | Yes |
| Input Connector | 2 x 4 Pole Speaker Connector |
| Waveguide Type | Constant Directivity |
| Enclosure Material | Birch Plywood |
| Grille Material and Finish | Steel Black |
| Finish | Black Tough-Tone |
| Handles | 2 |
| Deployment | Flying, Ground |
| Pole Mount | None |
| Rigging | Yes |
| Sensitivity 2.83v / 1m | 102 dB |
| System Rated Impedance | 16 Ω |
| Crossover Frequency | 1.5 KHz |
| Recommended HPF = BW 18 dB/OCT. | 60 Hz |
| Included Accessory | User Manual |
| Unpacked - Front Height (mm) | 314 |
| Unpacked - Rear Height (mm) | 240.2 |
| Unpacked - Width Front (mm) | 760 |
| Unpacked - Width Rear (mm) | 760 |
| Unpacked - Depth (mm) | 504 |
| Packed - Height (mm) | 404 |
| Packed - Width Front (mm) | 855 |
| Packed - Width Rear (mm) | 855 |
| Packed - Depth (mm) | 594 |
| Weight - Net (kg) | 34.8 |
| Weight - Gross (kg) | 38.5 |
