Wharfedale Pro

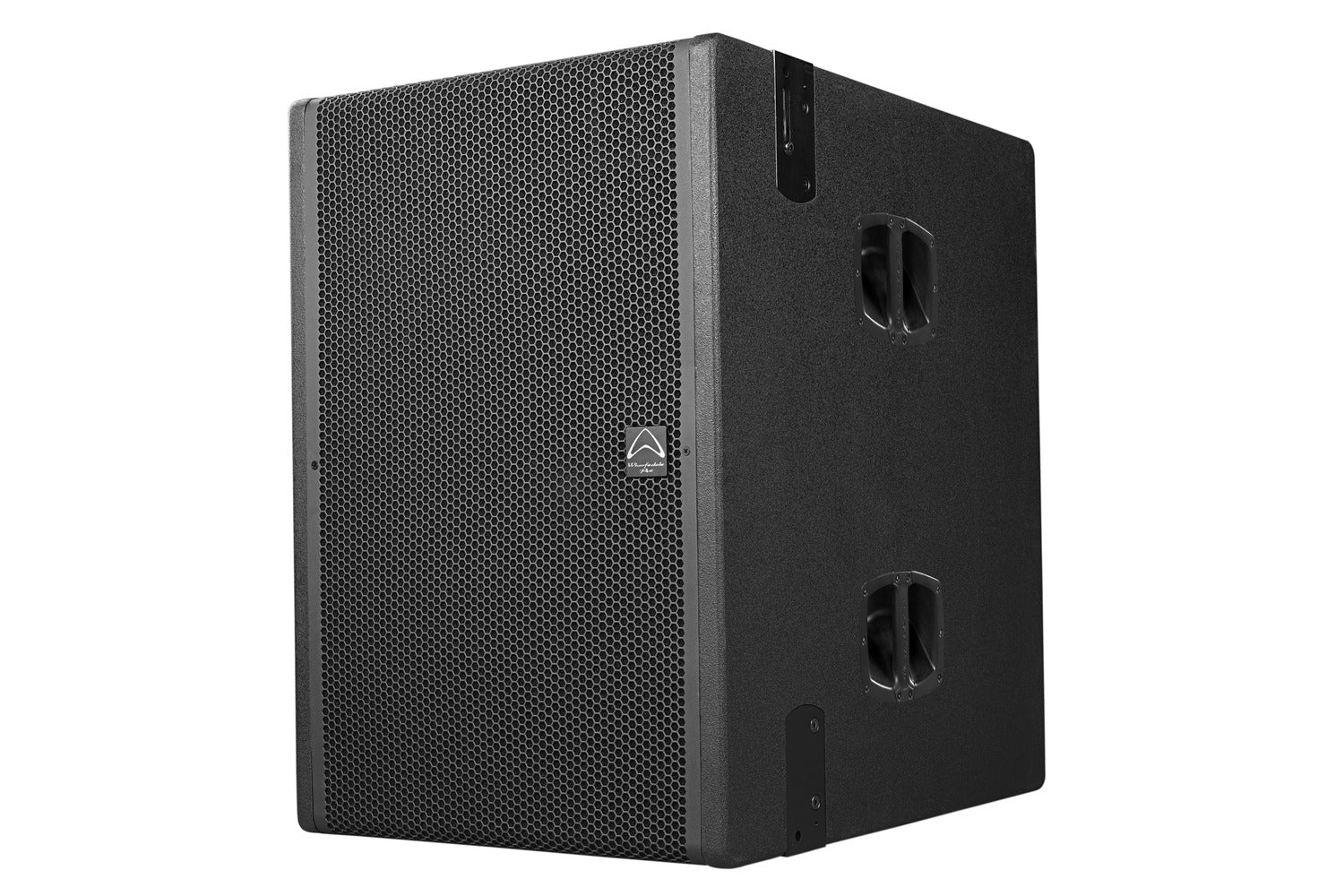

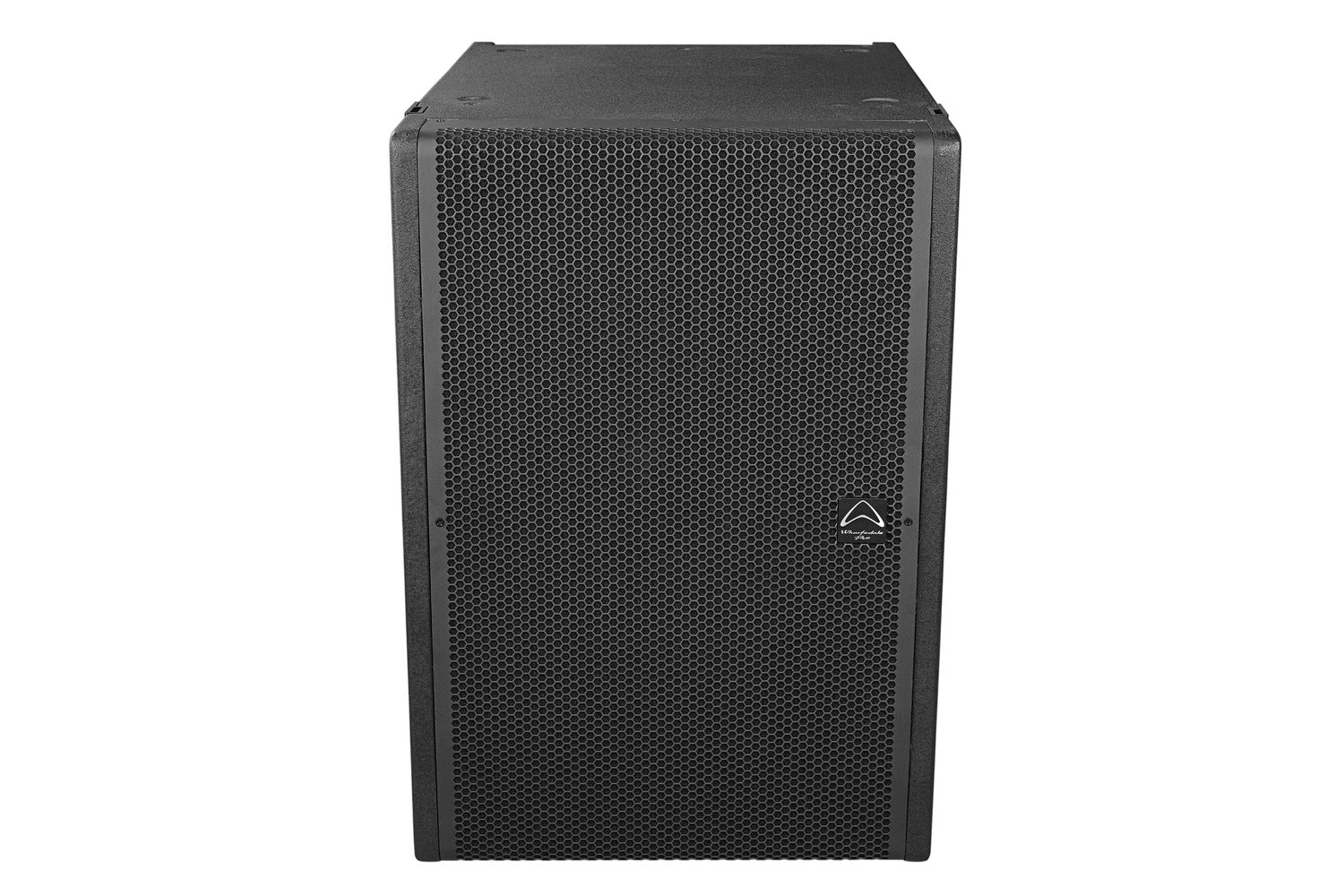

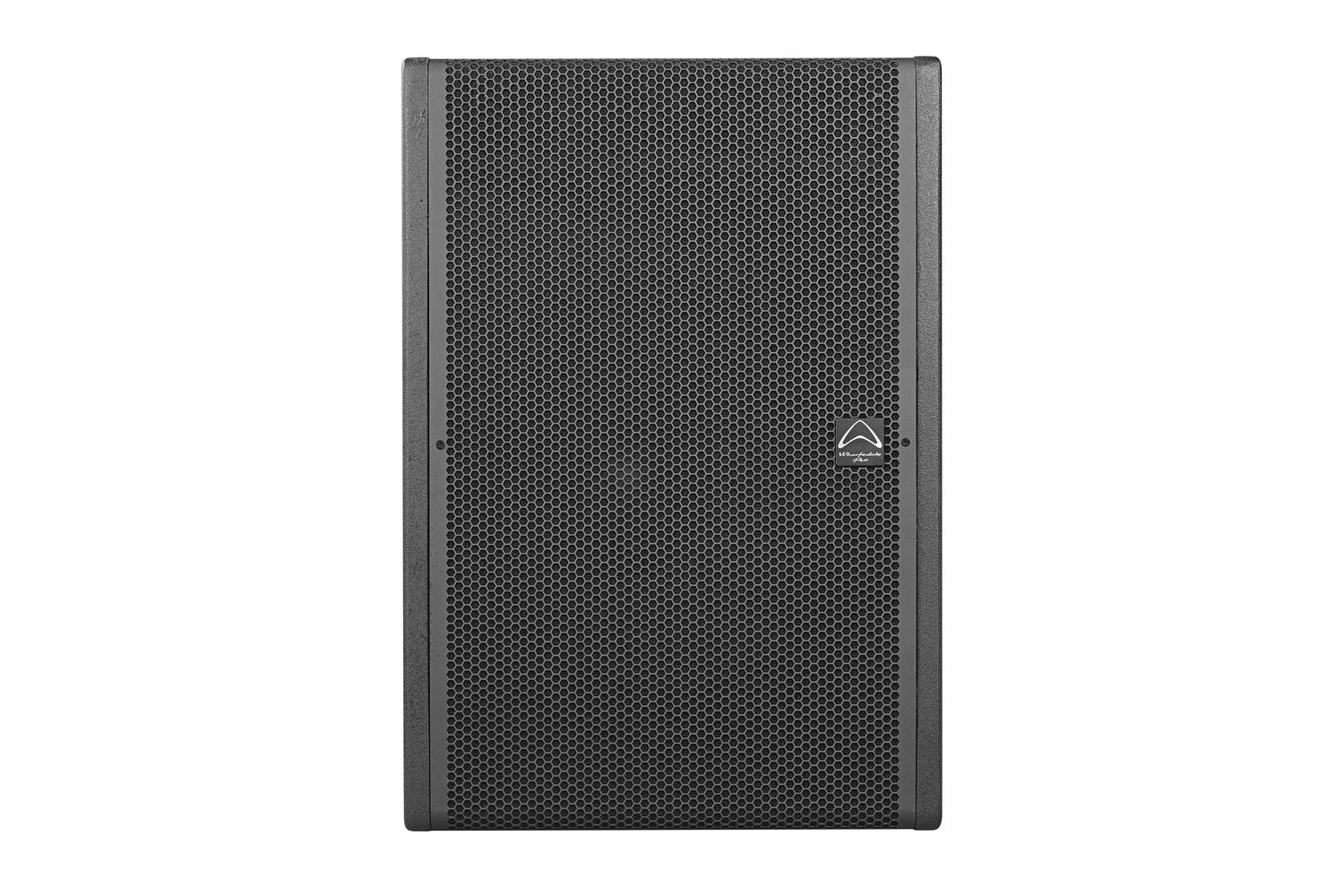

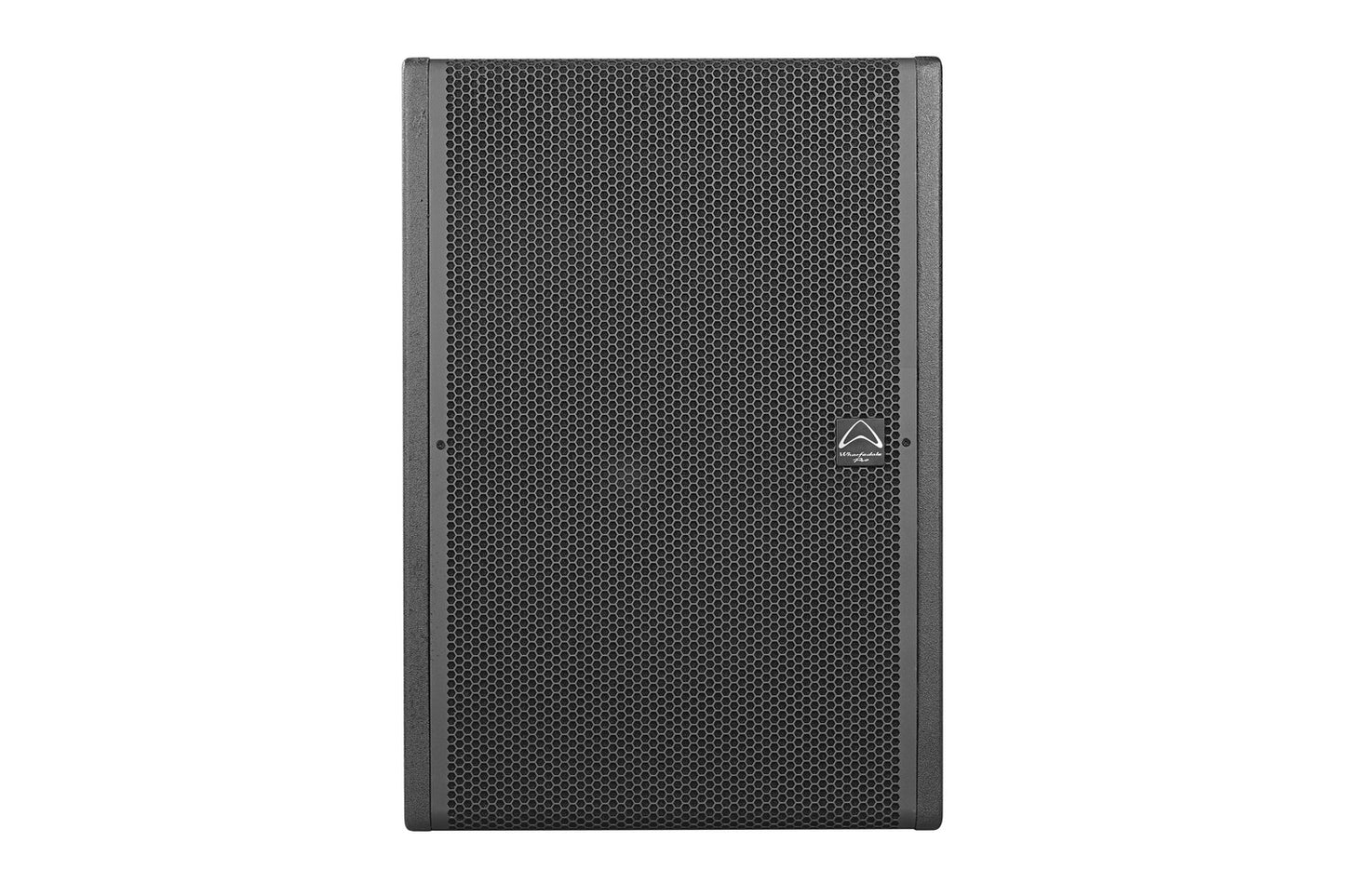

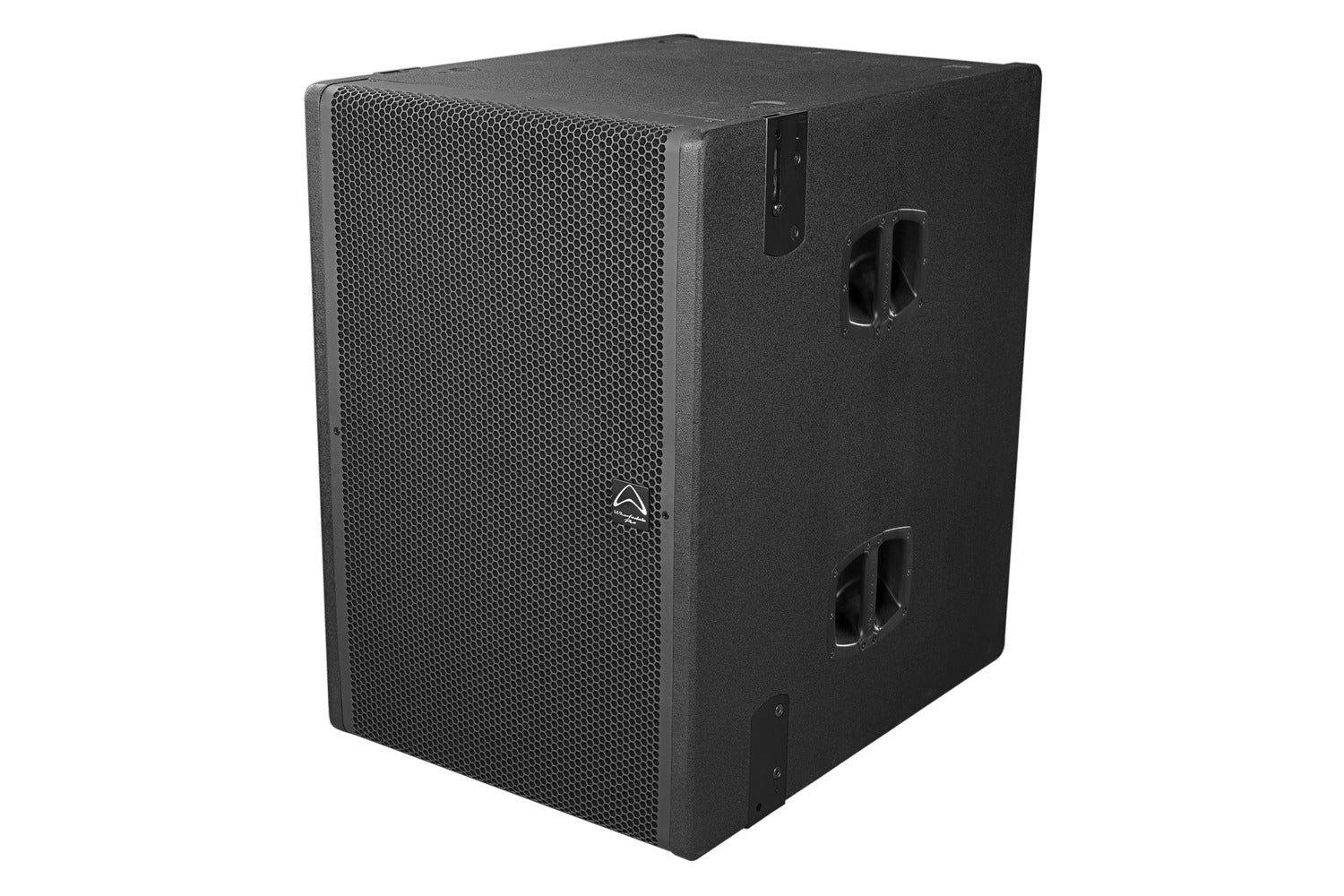

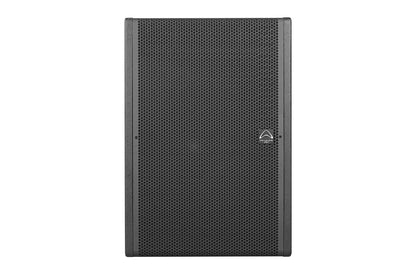

Wharfedale Pro WLA-121SUBA - active hybrid curvature subwoofer

Wharfedale Pro WLA-121SUBA - active hybrid curvature subwoofer

Regular price $2,949.00
Regular price Sale price $2,949.00
Sale Contact Us for Availability

WLA-1A ACTIVE

HYBRID CURVATURE ARRAY

The WLA-1 Hybrid Curvature Array system…..is now…..ACTIVE.

The WLA-1A active system incorporates all the incredible hardware features of its passive brother – the WLA-1 System.

The EVO-Fold waveguides, the drivers created by Beyma in Europe and the Hybrid Curvature Array configuration are all included….but the new WLA-1A Active now brings powerful internal amplification and refined internal DSP processing to the party.

It has never been this easy to achieve stunning sonic results in a huge variety of venues.

WLA-121SUBA

  • Active with DSP
  • 21″ Beyma driver
  • 2200 W Continuous
  • 4400 W Peak
  • 4.0″ Quattro LF voice coil (4 layers)
  • 147 dB System Peak SPL





Competitive traditional constant curvature two way systems do not have consistent coverage in one axis at least by design.

HYBRID CURVATURE ARRAY

With a traditional 2-way array….arrays of 6 elements or more are simply not practical.

With the WLA-1 Hybrid Curvature design, arrays of up to 6 elements can be configured.

EVO-FOLD

EVO-Fold reduces the usual phase issues that traditional 2-way line arrays have due to them having the drive units physically some distance apart in the array. One specially-designed coaxial mid-high frequency driver is loaded to a unique EVO-Fold horn. The EVO-Fold horn combines a unique folded and manifold design. The most advanced FEM technology has been used to create this.

The high-mid energy exits produce a uniphasic sound in the widest range of frequencies. And visually, the detail of the EVO-Fold waveguide is a work of art.

21". YES - REALLY!

The 21″ subwoofer driver is manufactured by Beyma in Europe.

Extreme features… for extreme (and controllable) sub sound pressure levels.

DEPLOYMENT CHOICES

1

Configure vertically and deploy as a ‘traditional’ flying array.

The optional WLA-1 Common Fly Frame ensures stability and that flying is easy.

2

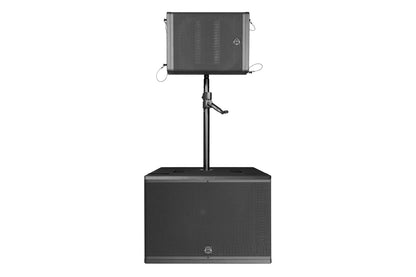

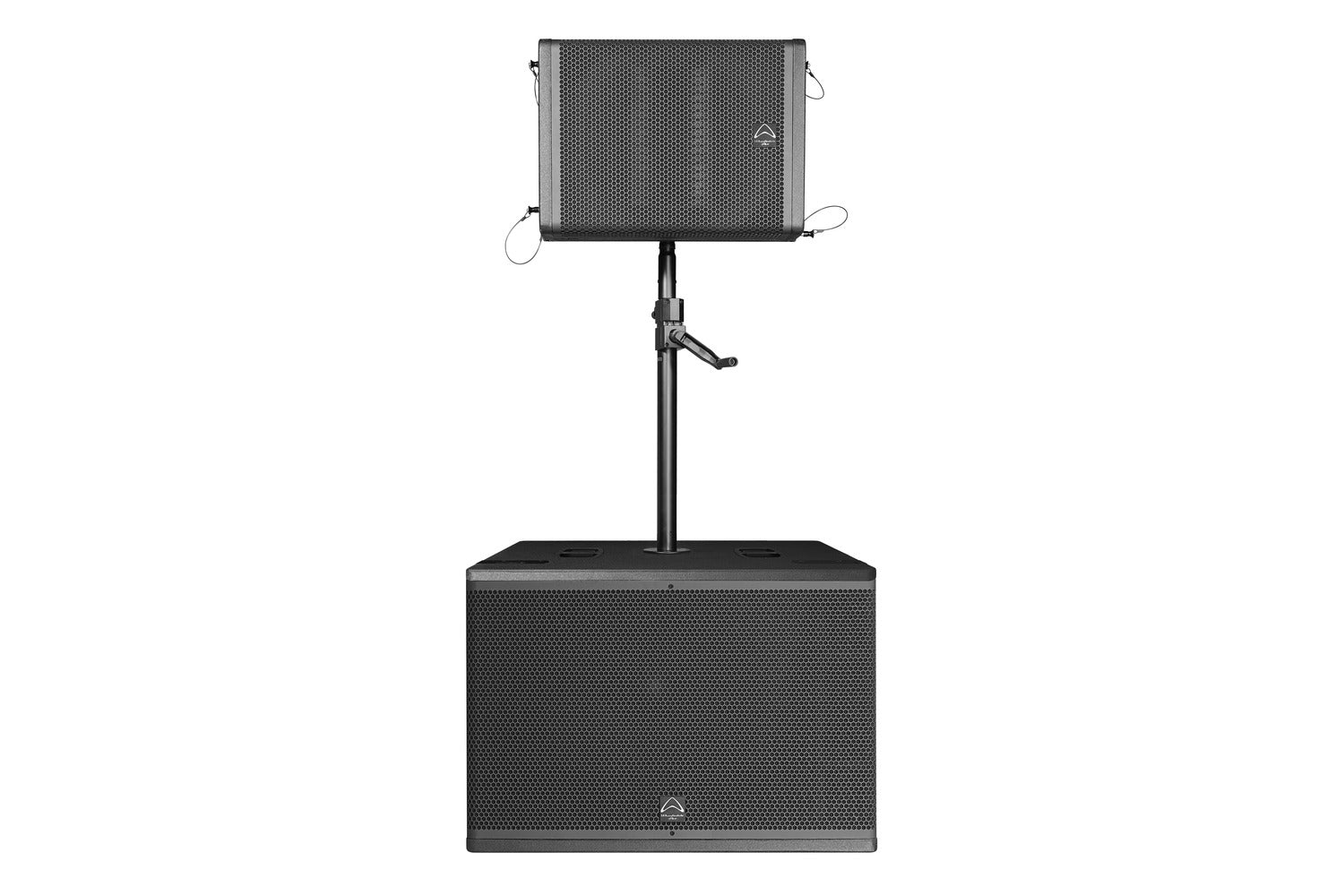

Configure on the ground.

The optional SP-4 pole easily connects the 21″ sub to the tops.  Dual angle 35 mm pole sockets in the full range elements makes angle adjustments safe and easy.

3

Configure a horizontal flying array.

The optional WLA-1 Link hardware connects three elements of either WLA-112A or WLA-115A to create a 3 unit horizontal array with 60 H x 100 V dispersion

EASE FOCUS SUPPORT

WLA-1A Series have gll files available for EASE FOCUS 3.

POWERCON ™

When interconnecting WLA series active line array elements, quality, certified power cabling should be used.


Wharfedale Pro distributors also can supply Neutrik ™ powerCON cables as an accessory for sale.



These certified AC interconnecting cables use genuine Neutrik ™ NAC3FCA and NAC3FCB connectors for the ultimate in reliability and safety.


2 meters in length allows for system configuration flexibility while keeping excess cabling to a minimum.

A tidy solution for any Wharfedale Pro Active Line Array.


TALK ABOUT ANGLES

WLA-1A introduces a new Hybrid concept giving variable angles of 0, 5, 10 and 15 degrees.

Easily adjusted using the integral rigging brackets.

OPTIONAL COMMON FLY FRAME

Configure the system how you like with the WLA-1 Common Fly Frame.

Subs at the top ?  WLA-115A’s or WLA-112A’s.  The Common Fly Frame supports all the different models in the WLA-1A series.




SPECIFICATIONS

Model Name WLA-121SUBA
System Typology Subwoofer
System Type Active 21″ Subwoofer
Configuration Single Subwoofer
Frequency Response (+/-3 dB) 25 Hz – 100 Hz
Frequency Range (- 10 dB) 18 Hz – 125 Hz
Sensitivity 2.83 V/1 m 103 dB*
Calculated Maximum SPL @ 1 m 140 dB*
System Peak SPL 147 dB**
* level at 1 m under half space conditions using pink noise with crest factor 2, with dedicated preset.
** level at 1 m under half space conditions using pink noise with crest factor 4, with dedicated preset.
Waveguide Type /
Nominal Coverage (H x V) /
Signal Processing DSP based,8 presets
Preset list A) 1 SPKR 80 Hz LPF
B) 1 SPKR 100 Hz LPF
C) >2 SPKR 80 Hz LPF
D) >2 SPKR 100 Hz LPF
E) CARDIOID AUDIENCE
F) CARDIOID STAGE
G) CUSTOM
H) CUSTOM
Amplifiers
Amplifier Design Class D
Power Rating: 4400 W Peak,
2200 W Continuous
Thermal Protection Amplifier Shut Down. Auto Reset
Low Line Voltage Shut Down 60% Nominal Line Voltage
Driver Protection RMS, Peak Limiters and DC
DC and Short Protection Yes
Clip Limiter Yes
Limiter Indicator Red LED
Signal Indicator Green LED
Power/Active Indicator White LED
Find Function Indicator Blue LED
Input Sensitivity +4 dBu
Maximum Input Level +18 dBu
Input Impedance Balanced:10 KΩ
AC Power details – Power Supply High Efficiency Dual Switching Mode Power Supply
Connectors
Input Connector Balanced socket XLR
Link Connector Balanced pin XLR
UPDATE USB Type B
NETWORK (RS485) RJ45
AC Power Options AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic
Special Features Aluminium demodulating ring
  Waterproof LF cone
  Malt Cross® TCS
Rigging & Hardware: 3 points for rigging
Vertical Splay angle range: /
Horizontal Splay angle /
Accessories: WLA-1 FLY FRAME
Stand pole: M20 Pole mount
Handles: 2 side(4 pcs) + 2 (top / bottom)
Enclosure
Cabinet Type Rectangular
Enclosure Material and finish 18 mm plywood / Rhino Rock
Colour Black paint
Grille Material & Finish Powder coated perforated steel
Dimensions – Unpacked:
Height Front 820 mm / 32.3″
Height Rear /
Width 566 mm / 23.4″
Depth 760 mm / 29.9″
Dimensions – Packed:
Height 895 mm / 35.2″
Width Front 656 mm / 25.8″
Width Rear /
Depth 850 mm/33.5″
Weight
Net Weight 74.0 kg / 162.8 lbs
Gross Weight 80.0 kg / 176 lbs



Specs Sheet Download
