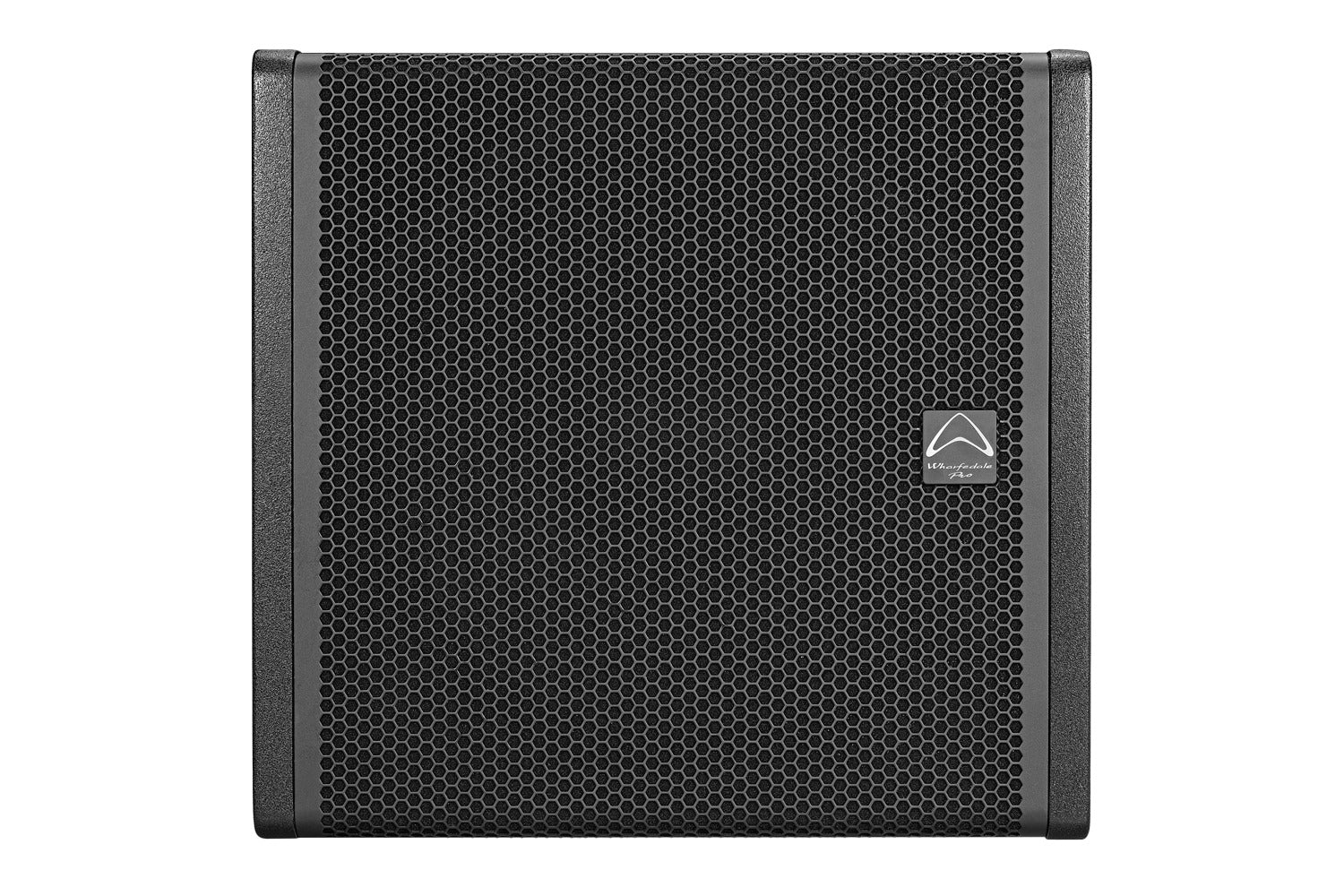

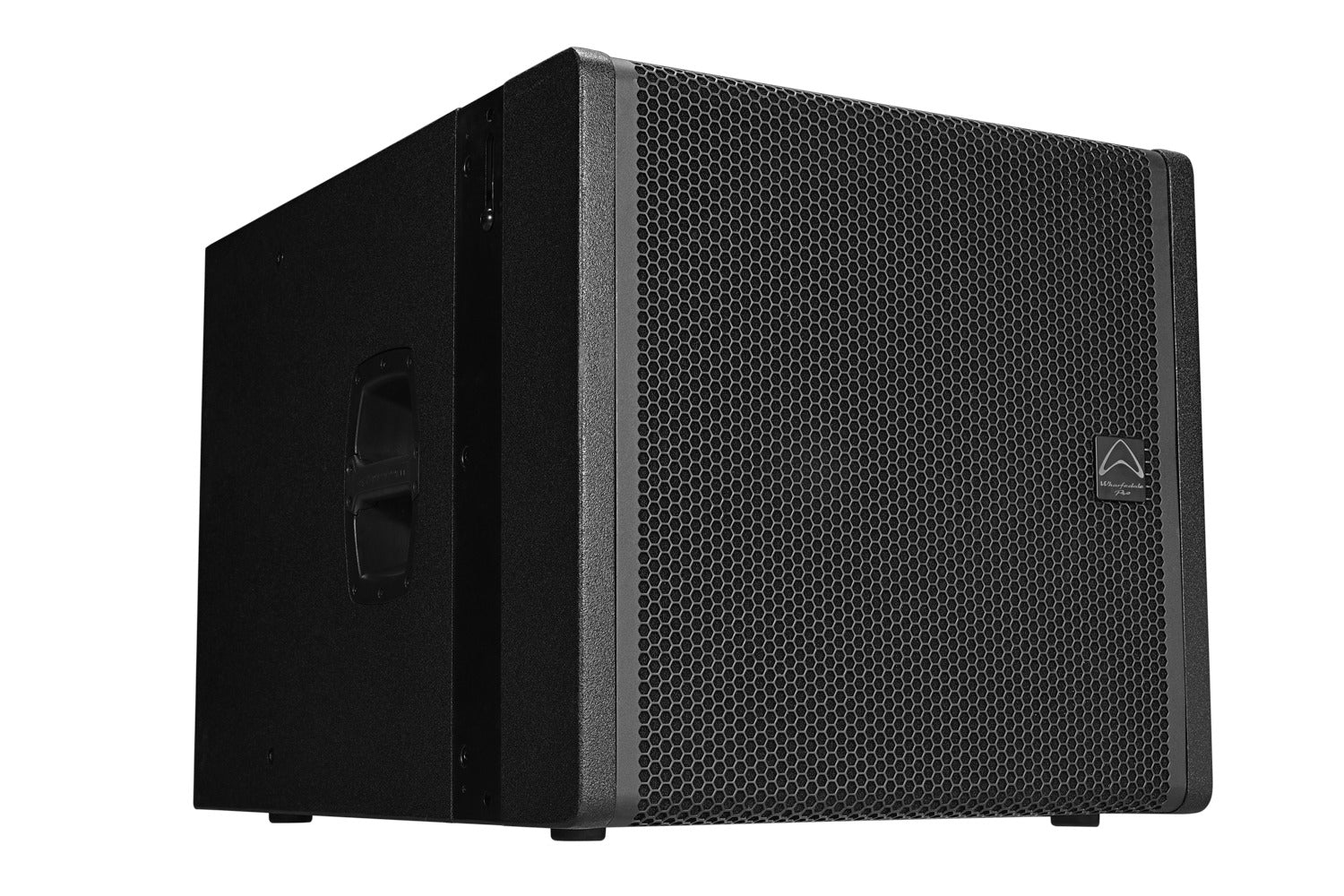

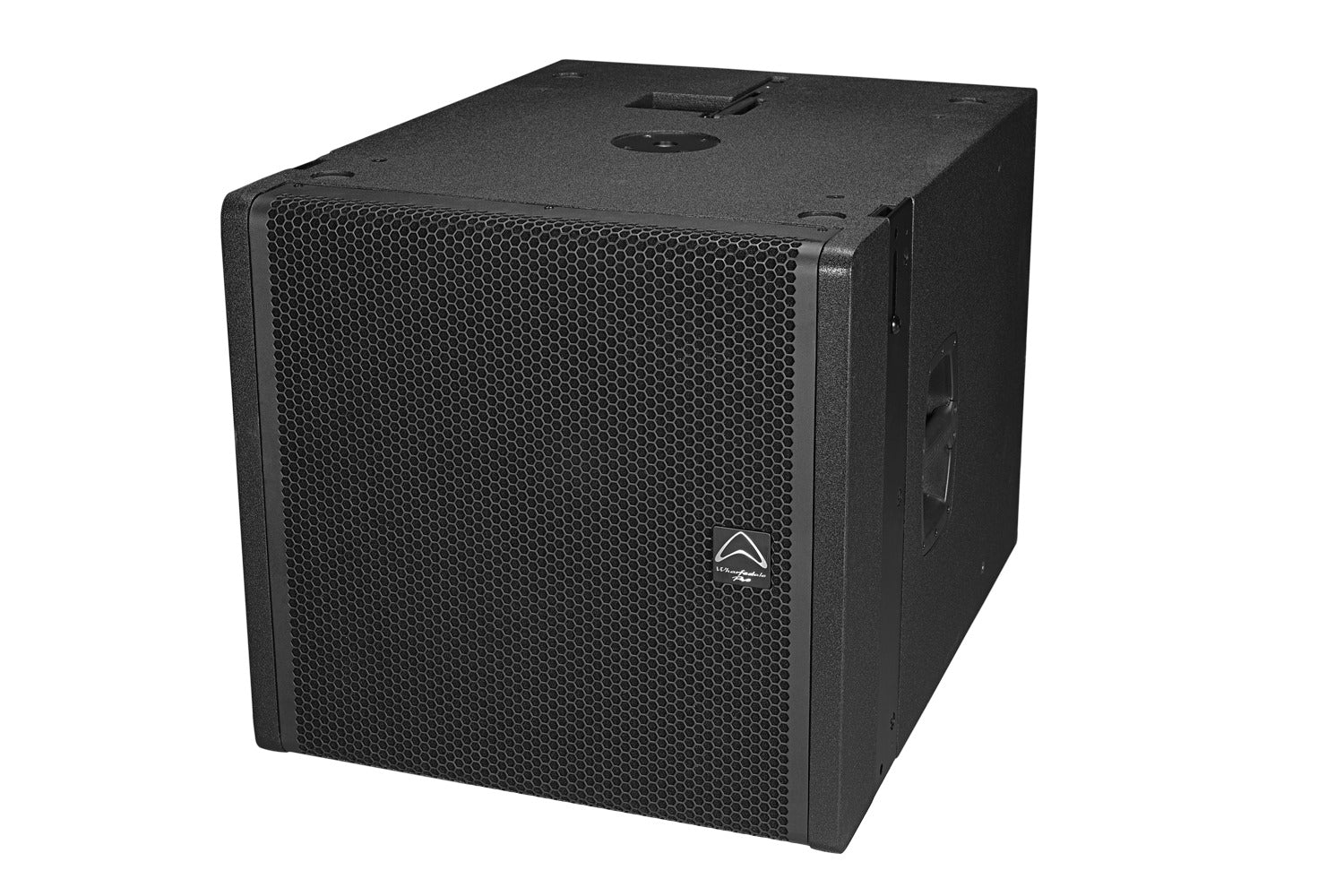

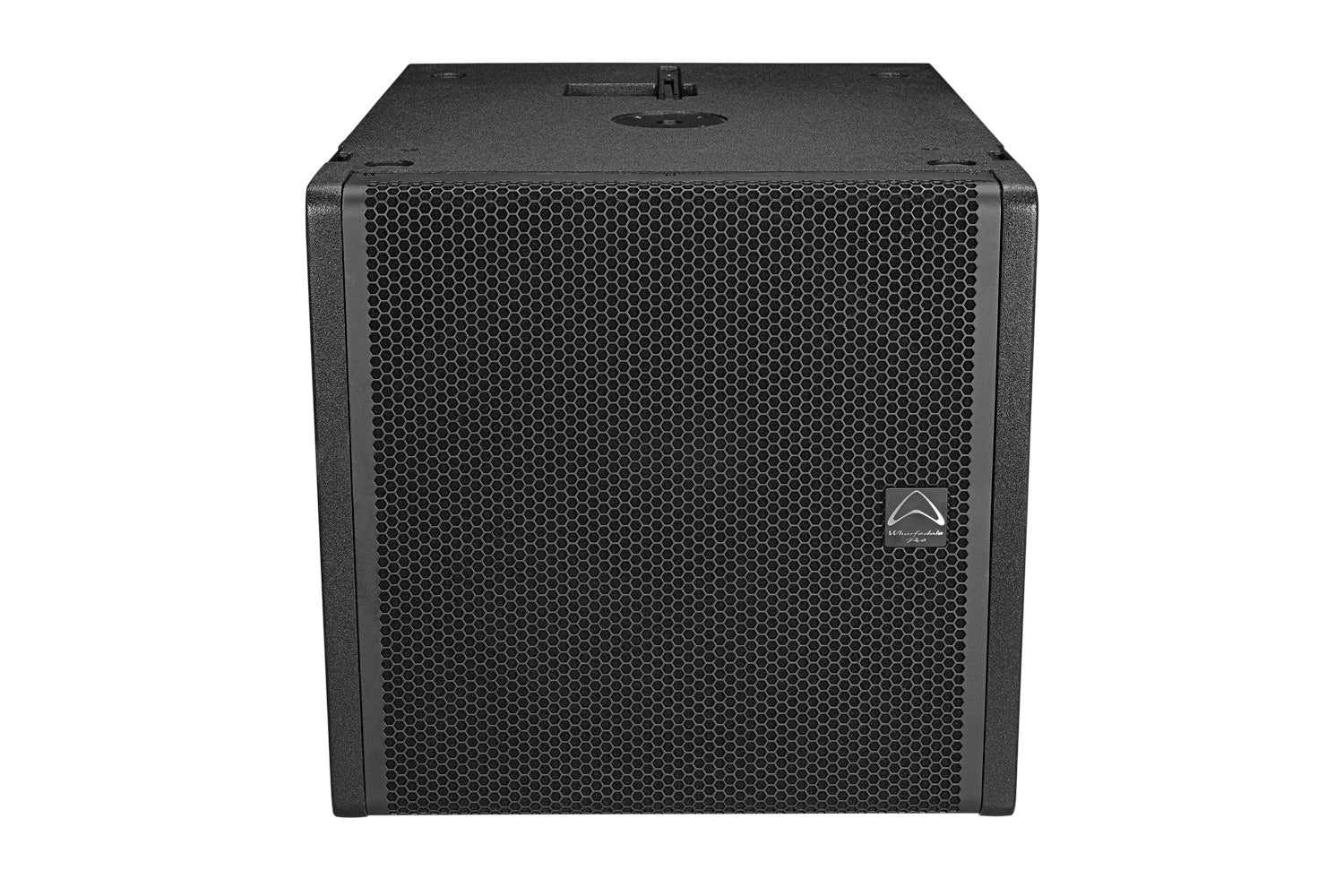

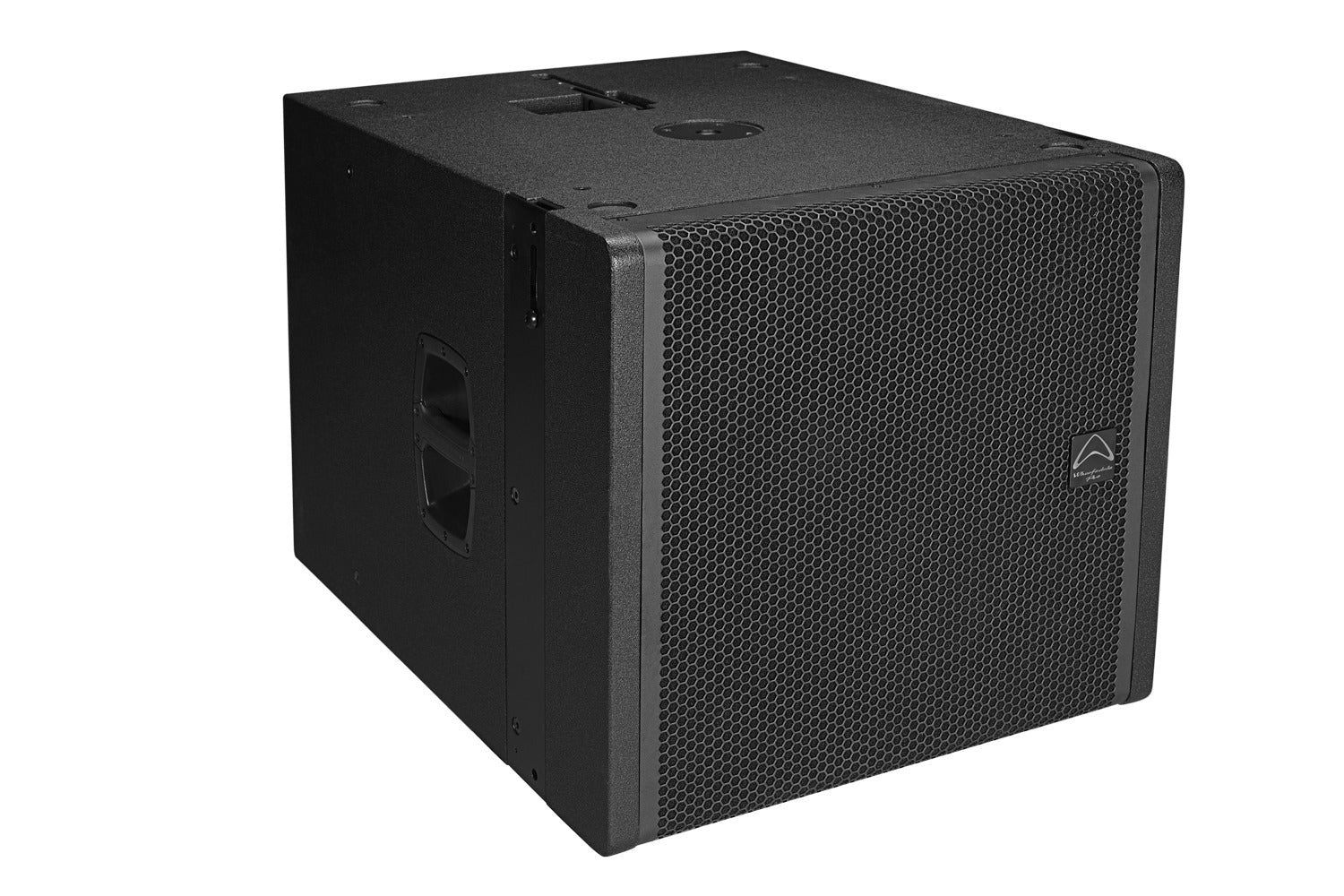

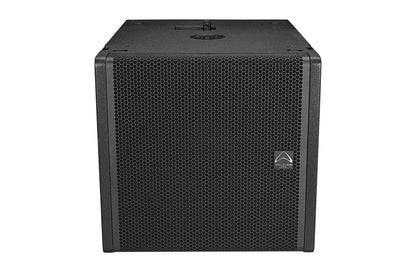

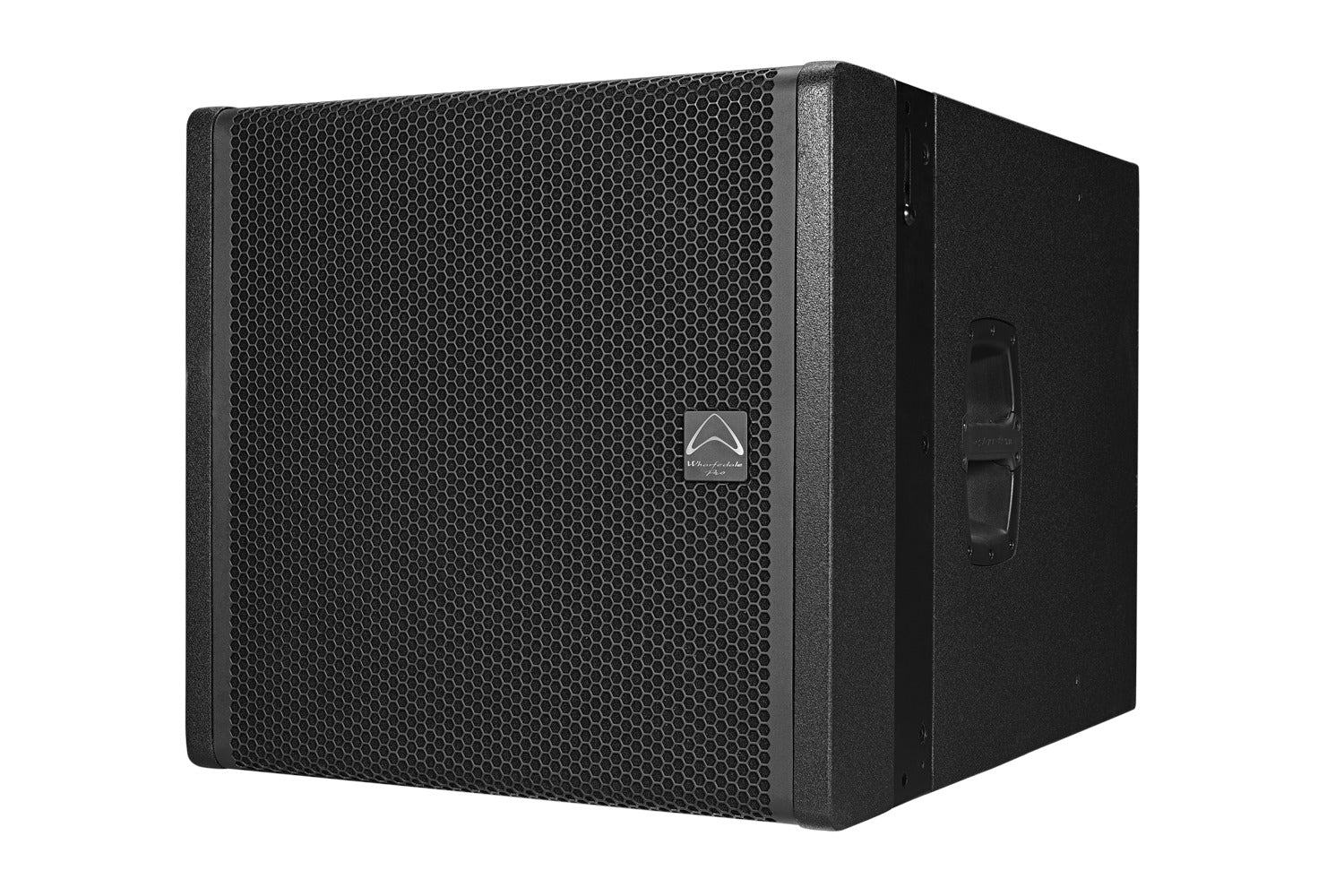

Wharfedale Pro WLA-118SUBA - 18" active subwoofer

Name: Wharfedale Pro WLA-118SUBA - 18" active subwoofer
Brand: Wharfedale Pro
SKU: EP7248
Price: 2589.0 AUD
Availability: OutOfStock

$2,589.00

Sale Contact for Availability

WLA-118SUBA

WLA-118SUBA - WLA-1A Series 18" Active Subwoofer with Beyma Driver, 4" Voice Coil, 2200W Continuous/4400W Peak Power, 146 dB Max SPL

Active with DSP
18″ Beyma driver
2200 W Continuous
4400 W Peak
4.0″ Duo in/out LF voice coil
142 dB System Peak SPL

18" Driver

The 18″ subwoofer driver is manufactured by Beyma in Europe.

Extreme features… for extreme (and controllable) sub sound pressure levels.

SPECIFICATIONS

Model Name	WLA-118SUBA
System Typology	Subwoofer
System Type	Active 18″ Subwoofer
Configuration	Single Subwoofer
Frequency Response (+/-3 dB)	35 Hz – 125 Hz
Frequency Range (- 10 dB)	28 Hz – 160 Hz
Sensitivity 2.83 V/1 m	103 dB*
Calculated Maximum SPL @ 1 m	136 dB*
System Peak SPL	142 dB**
*	level at 1 m under half space conditions using pink noise with crest factor 2, with dedicated preset.
**	level at 1 m under half space conditions using pink noise with crest factor 4, with dedicated preset.
Waveguide Type	/
Nominal Coverage (H x V)	/
Signal Processing	DSP based,8 presets
Preset list	A) 1 SPKR 80 Hz LPF B) 1 SPKR 100 Hz LPF C) >2 SPKR 80 Hz LPF D) >2 SPKR 100 Hz LPF E) CARDIOID AUDIENCE F) CARDIOID STAGE G) CUSTOM H) CUSTOM
Amplifiers
Amplifier Design	Class D
Power Rating:	4400 W Peak, 2200 W Continuous
Thermal Protection	Amplifier Shut Down. Auto Reset
Low Line Voltage Shut Down	60% Nominal Line Voltage
Driver Protection	RMS, Peak Limiters and DC
DC and Short Protection	Yes
Clip Limiter	Yes
Limiter Indicator	Red LED
Signal Indicator	Green LED
Power/Active Indicator	White LED
Find Function Indicator	Blue LED
Input Sensitivity	+4 dBu
Maximum Input Level	+18 dBu
Input Impedance	Balanced:10 KΩ
AC Power details – Power Supply	High Efficiency Dual Switching Mode Power Supply

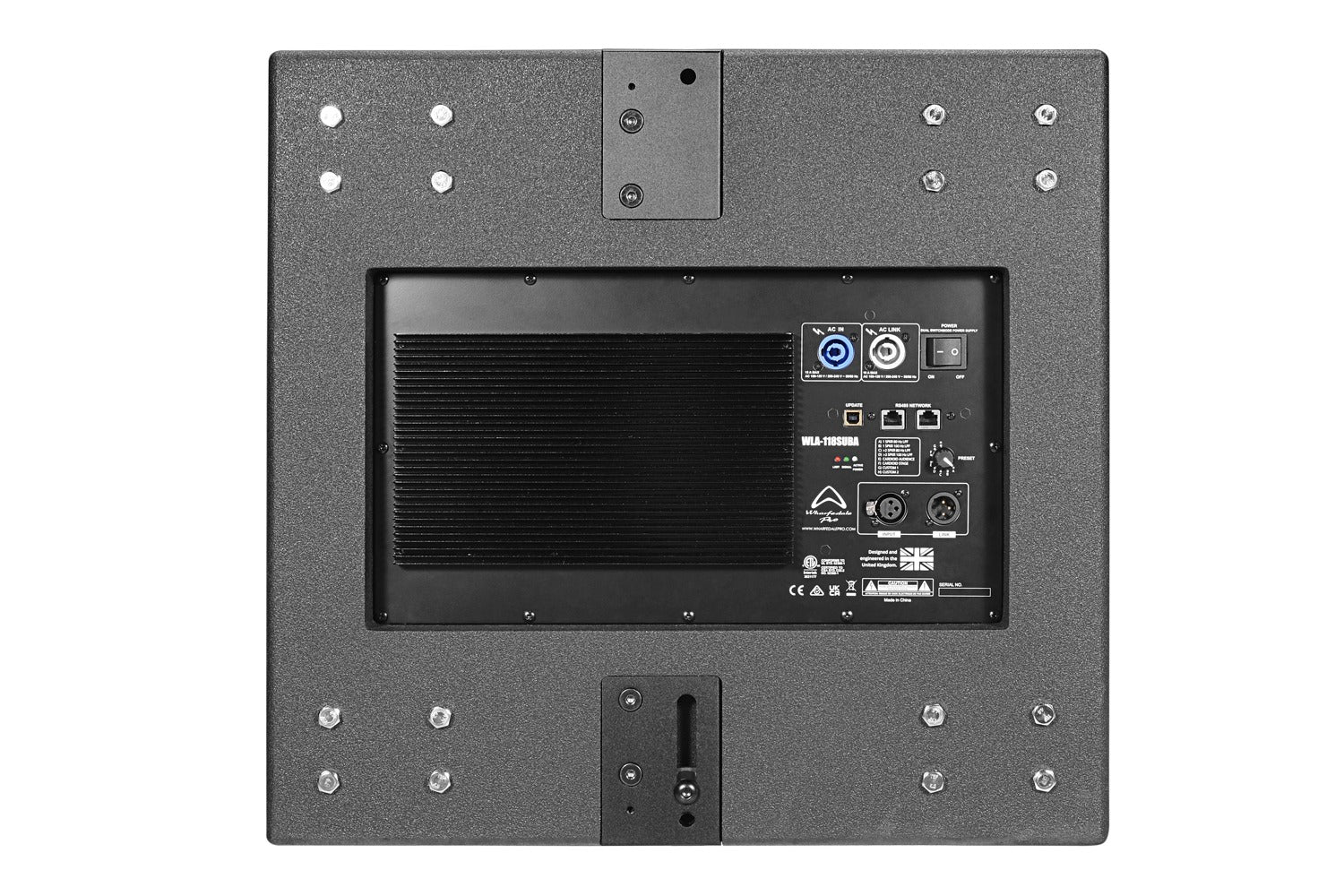

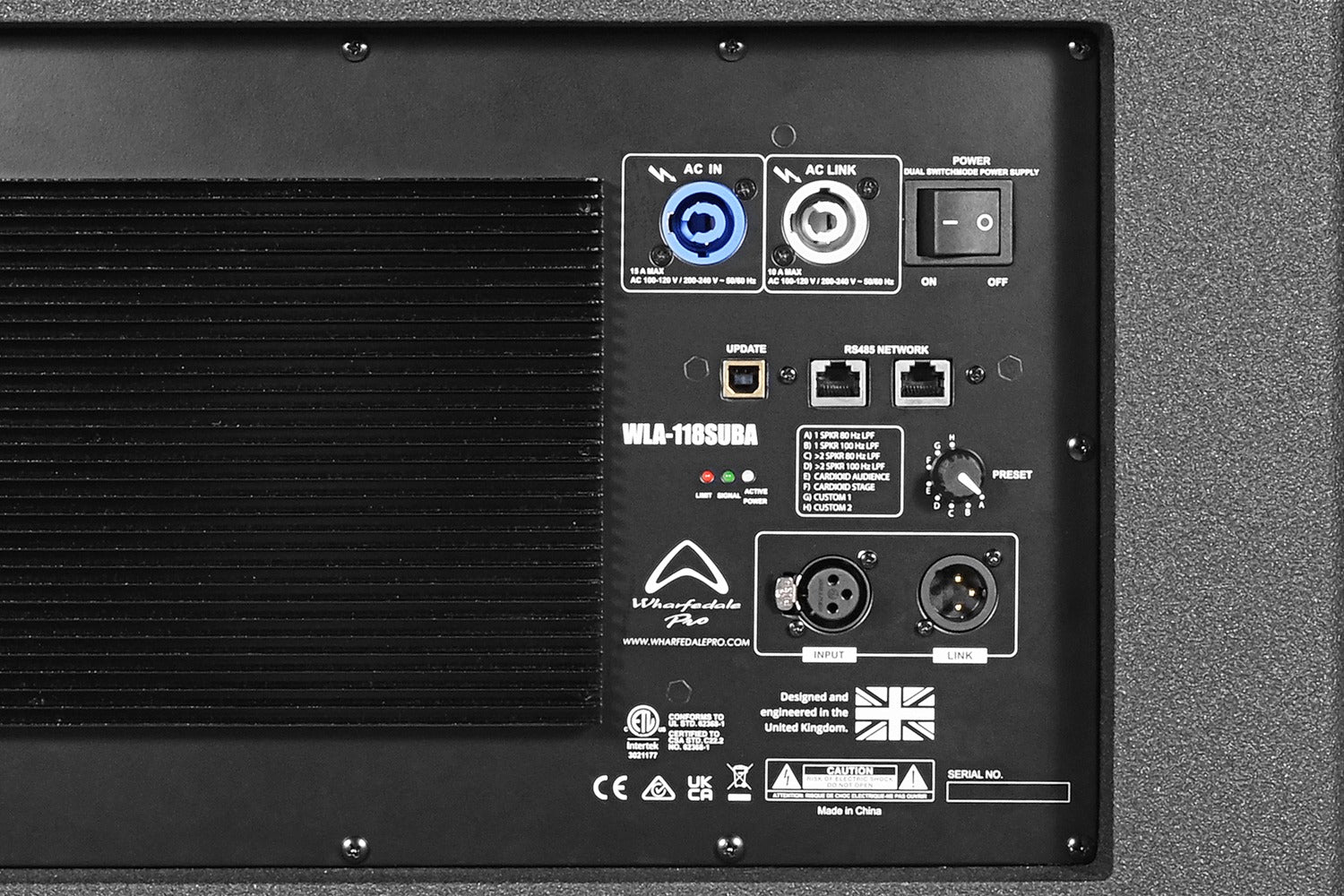

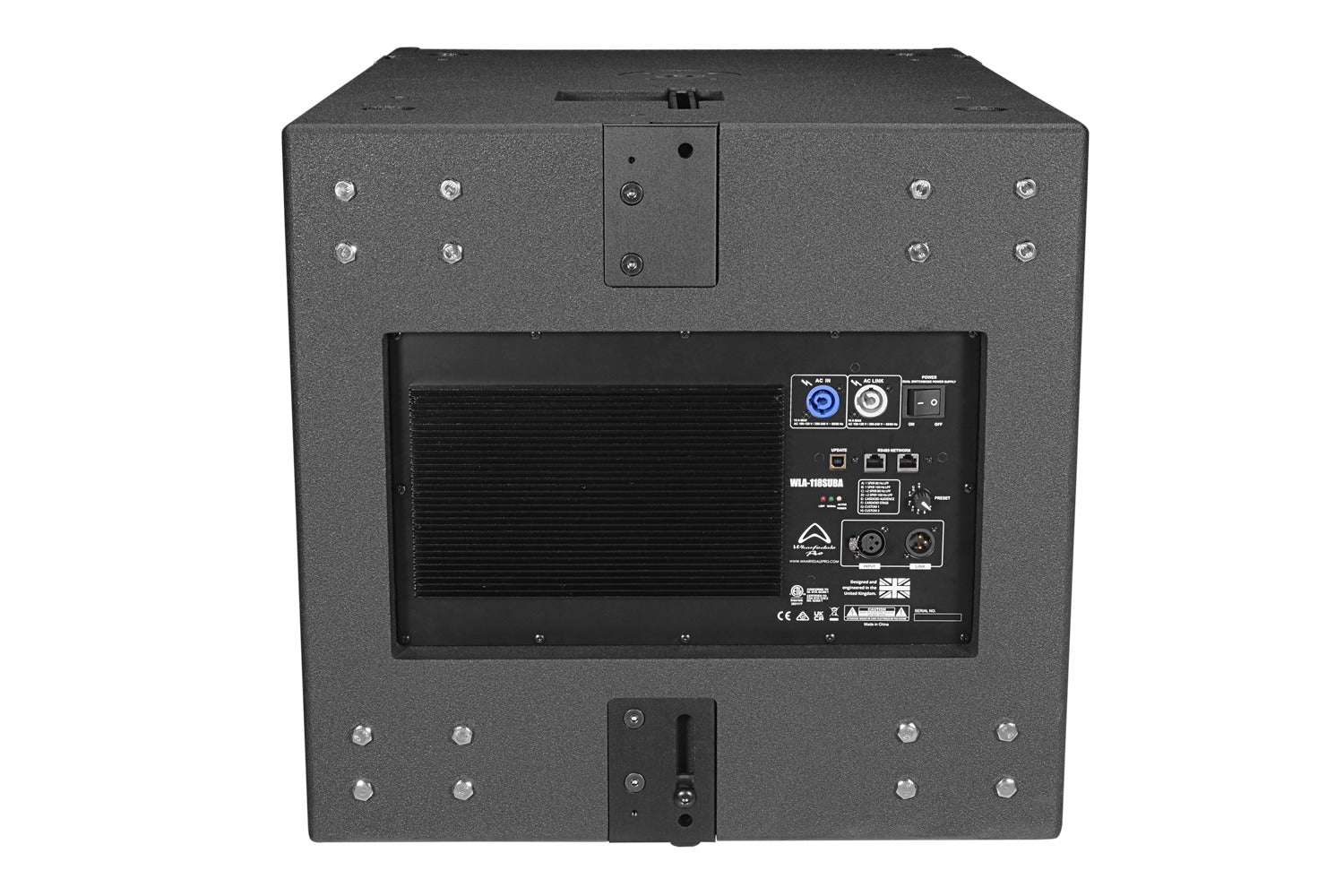

Connectors
Input Connector	Balanced socket XLR
Link Connector	Balanced pin XLR
UPDATE	USB Type B

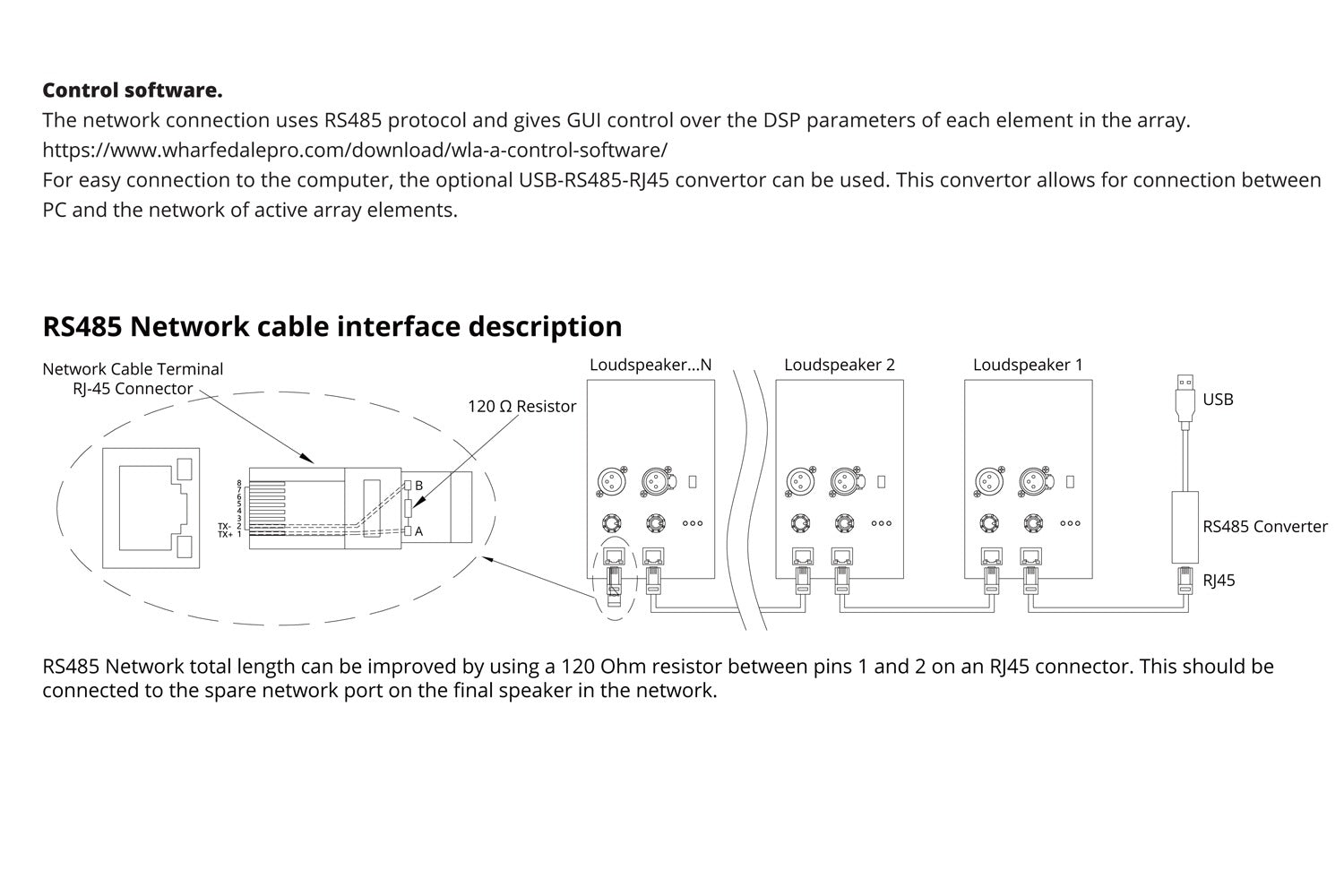

NETWORK (RS485)	RJ45
AC Power Options	AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic
Special Features	Aluminium demodulating ring
	Waterproof LF cone
	Malt Cross® TCS
Rigging & Hardware:	3 points for rigging
Vertical Splay angle range:	/
Horizontal Splay angle	/
Accessories:	WLA-1 FLY FRAME
Stand pole:	M20 Pole mount
Handles:	1 side（2 pcs)
Enclosure
Cabinet Type	Rectangular
Enclosure Material and finish	18 mm plywood / TOUGH-TONE
Colour	Black paint
Grille Material & Finish	Powder coated perforated steel

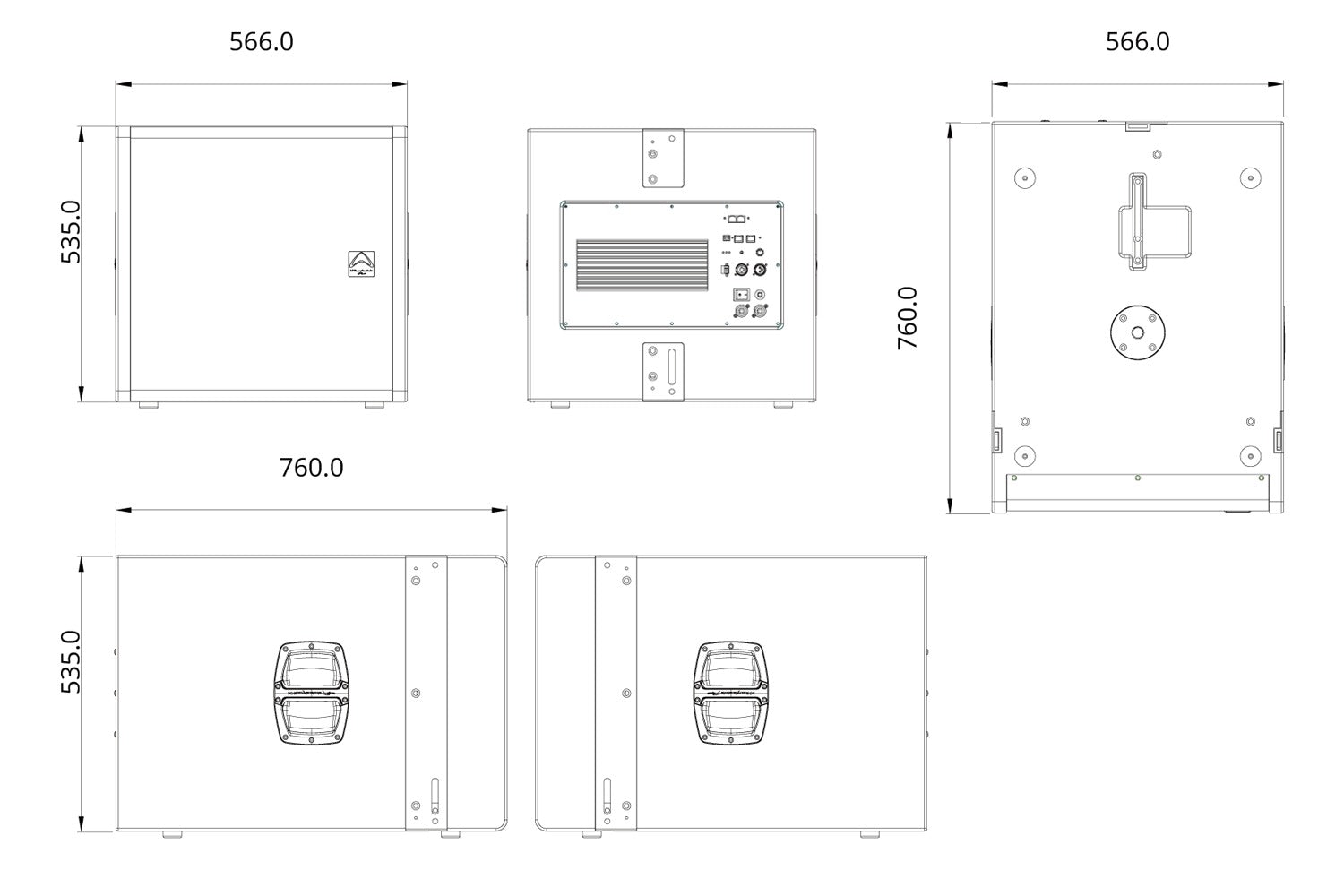

Dimensions – Unpacked:
Height Front	535 mm / 21.1″
Height Rear	/
Width	566 mm / 23.4″
Depth	760 mm / 29.9″
Dimensions – Packed:
Height	630 mm / 24.8″
Width Front	656 mm / 25.8″
Width Rear	/
Depth	850 mm / 33.5″
Weight
Net Weight	59.8 Kg
Gross Weight	68 Kg
