Wharfedale Pro

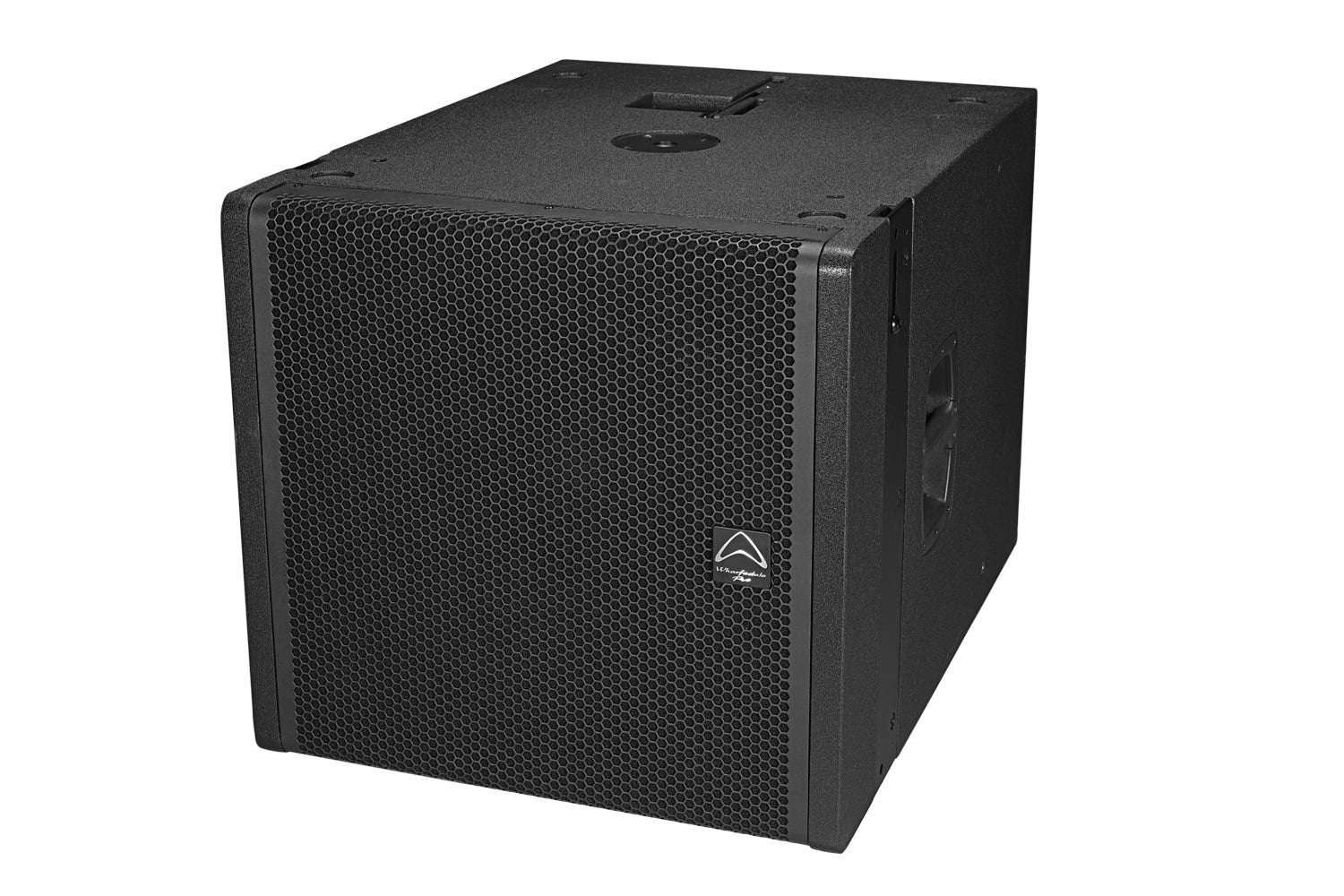

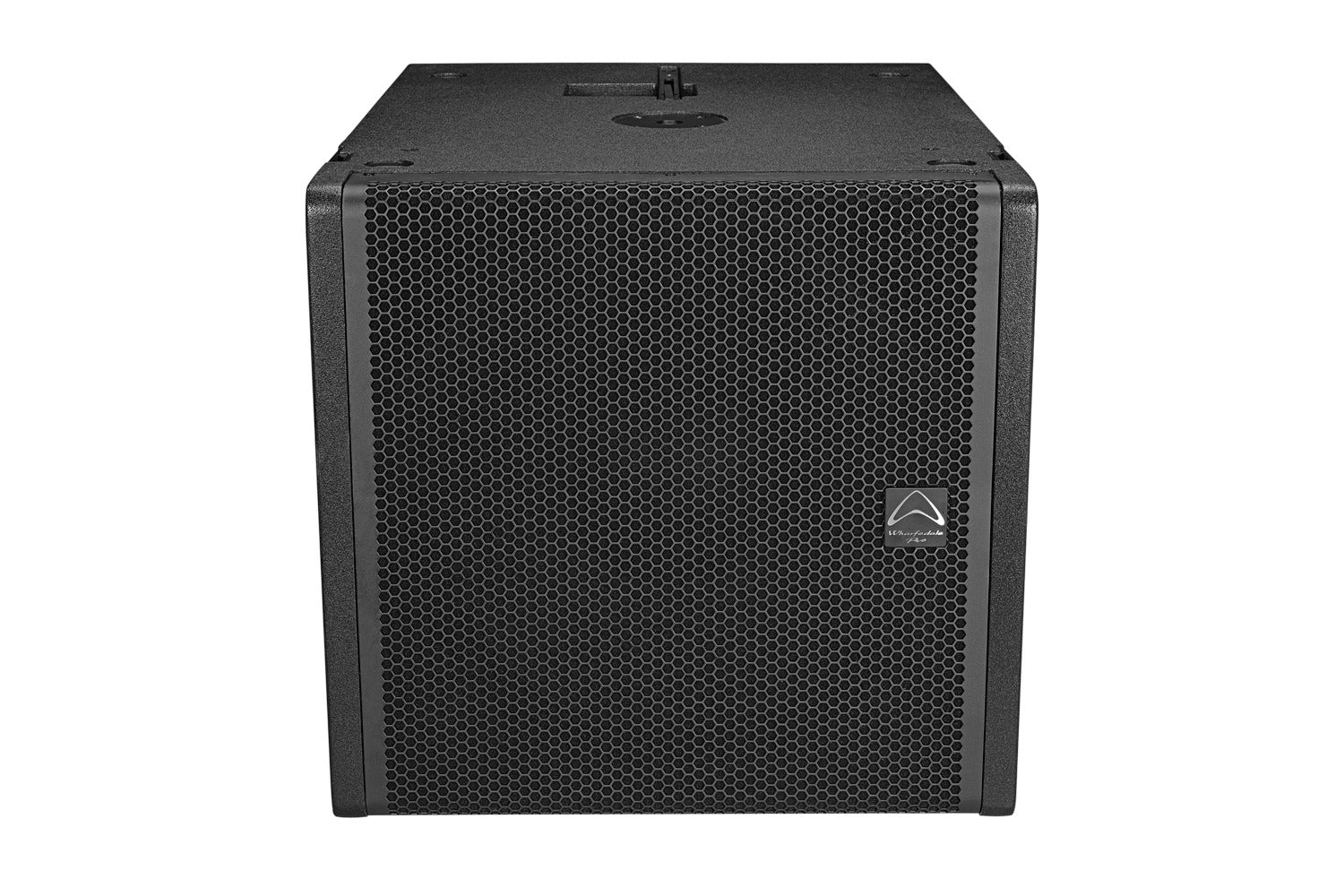

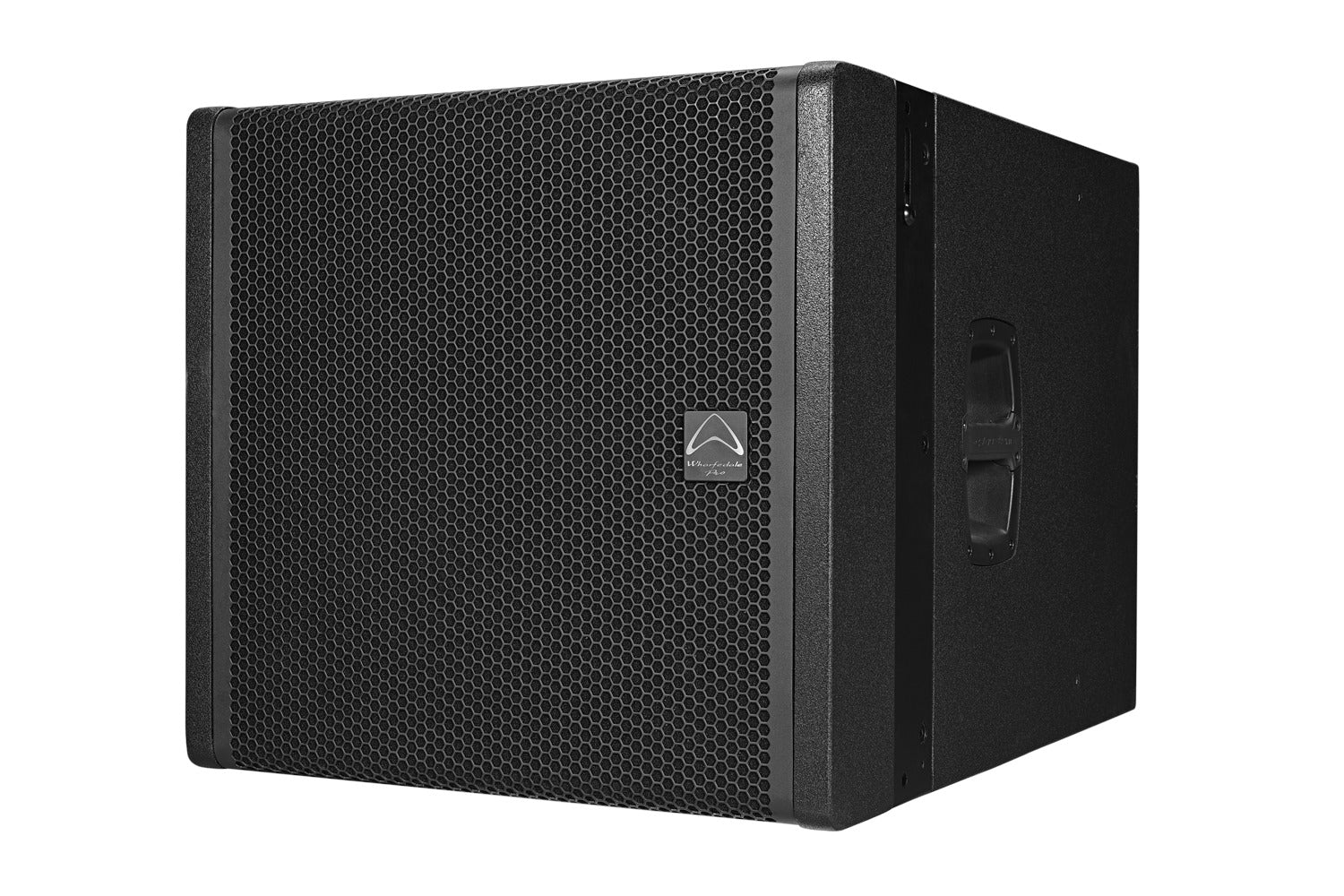

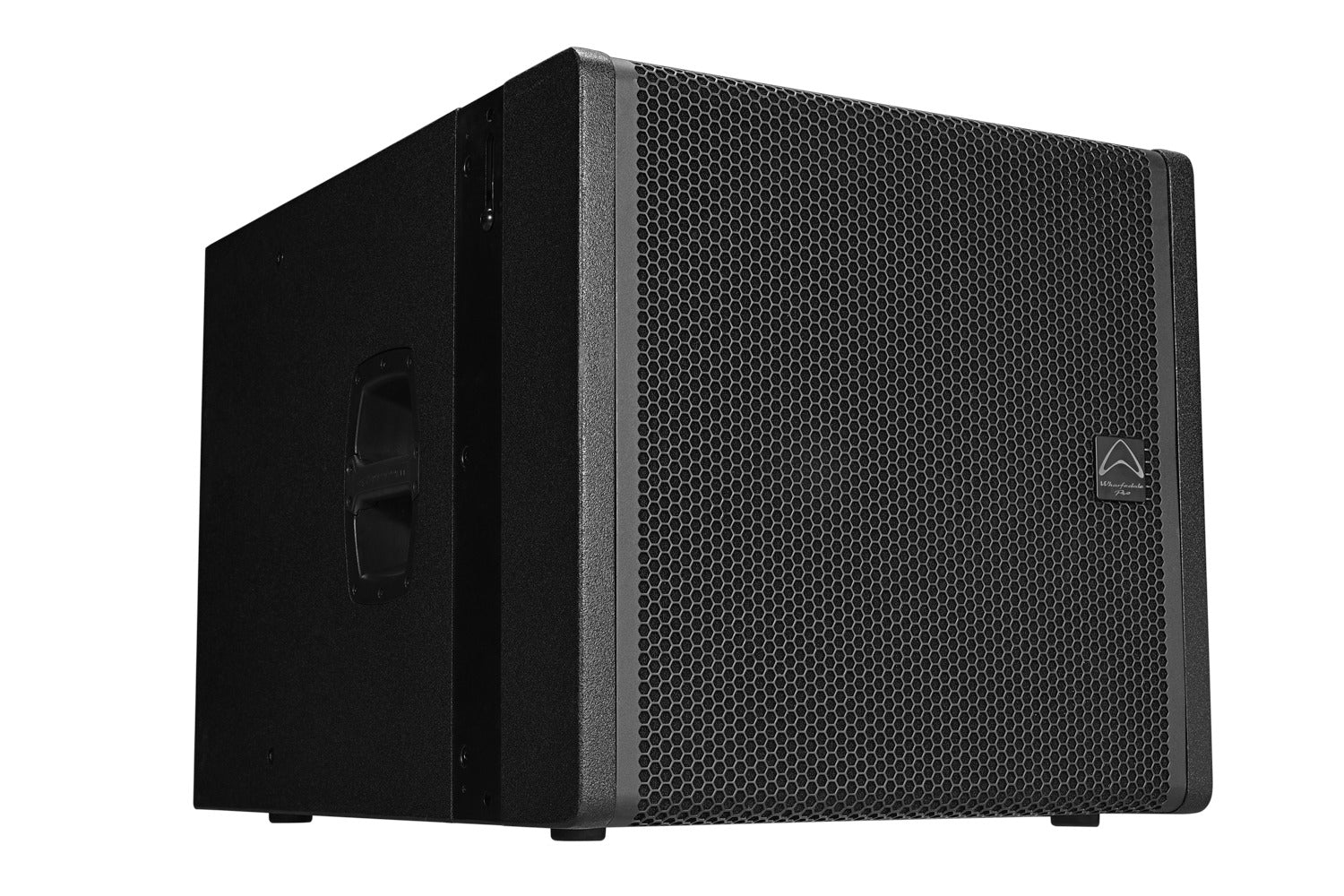

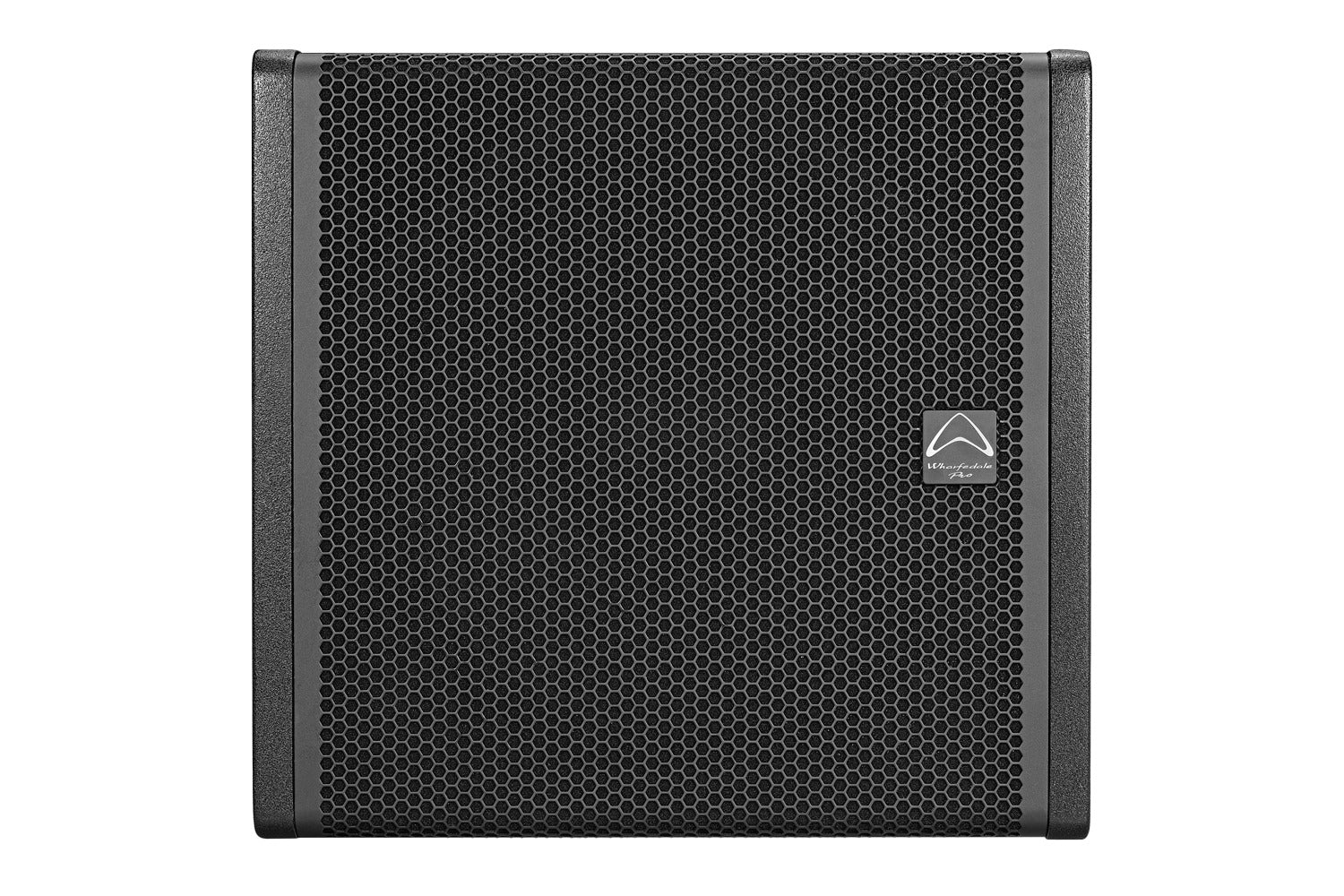

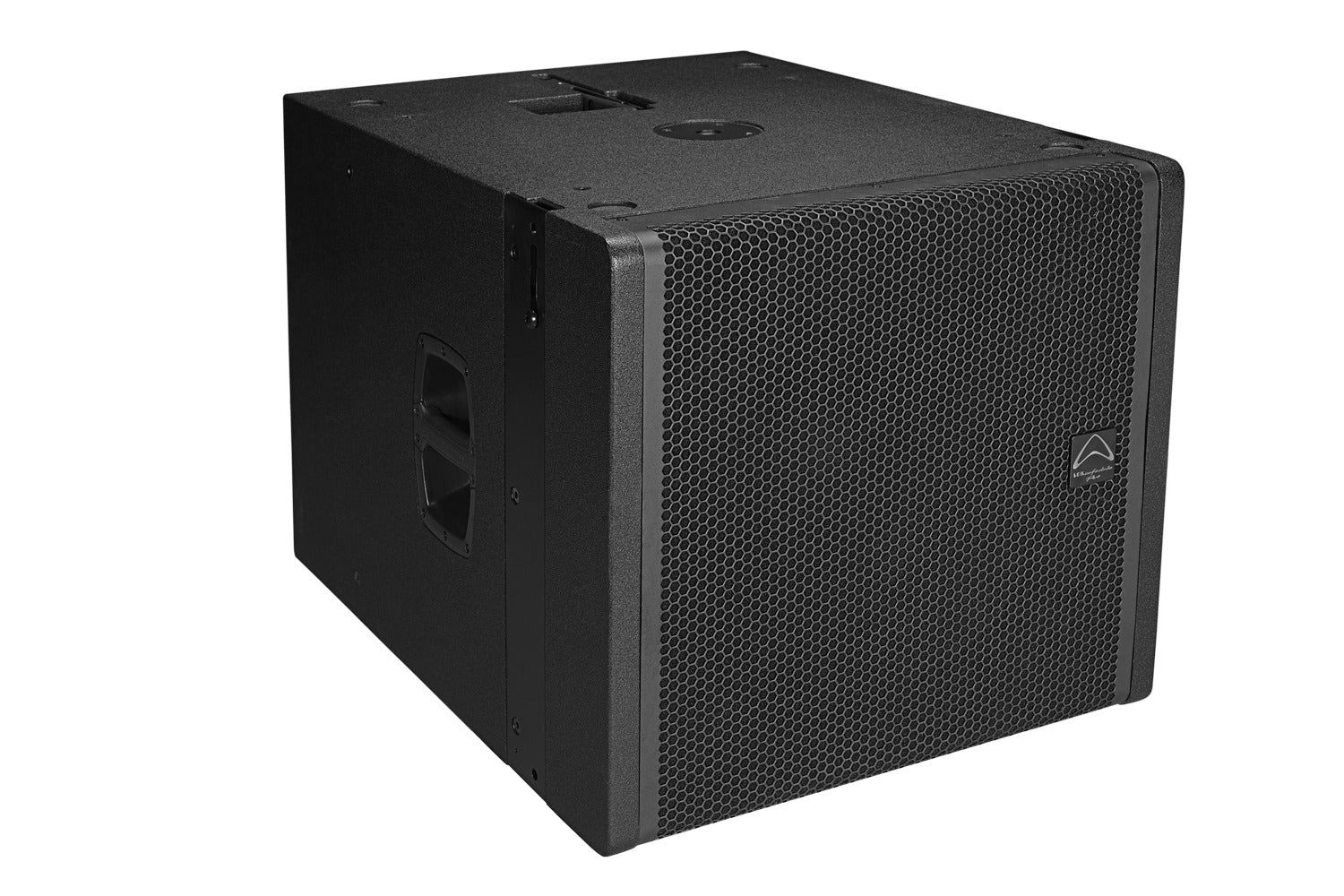

Wharfedale Pro WLA-118SUB - 18" passive subwoofer

Wharfedale Pro WLA-118SUB - 18" passive subwoofer

$1,989.00
$1,989.00
Sale Contact for Availability

WLA-118SUB

WLA-118SUB - 18" Passive Subwoofer to suit Hybrid Curvature Array - 3200W Programme with 4.0" Quattro LF Voice coil, 147 dB system peak SPL



  • 18″ Beyma driver
  • 1600 W Continuous
  • 3200 W Programme
  • 6400 W Peak
  • 4.0″ Quattro LF voice coil (4 layers)
  • 147 dB System Peak SPL



    18" Driver

    The 18″ subwoofer driver is manufactured by Beyma in Europe.

    Extreme features… for extreme (and controllable) sub sound pressure levels.




    SPECIFICATIONS

    Model Name WLA-118SUB
    Design Subwoofer
    System Type 18″ Subwoofer
    Configuration Single Subwoofer

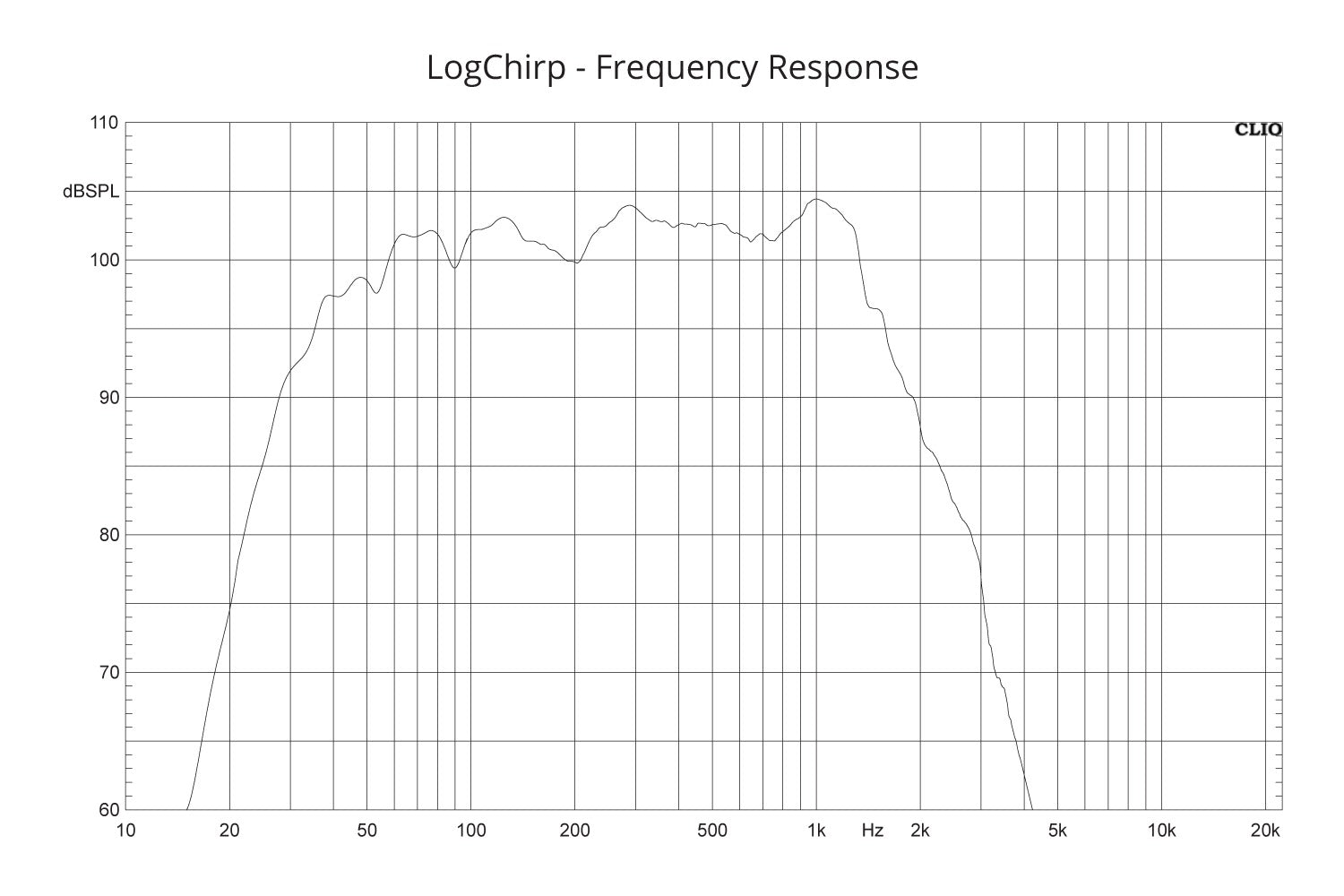

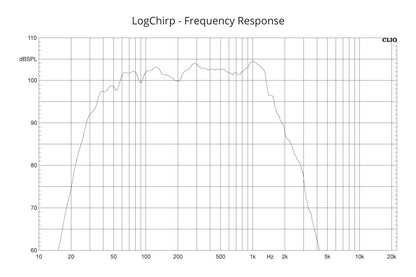

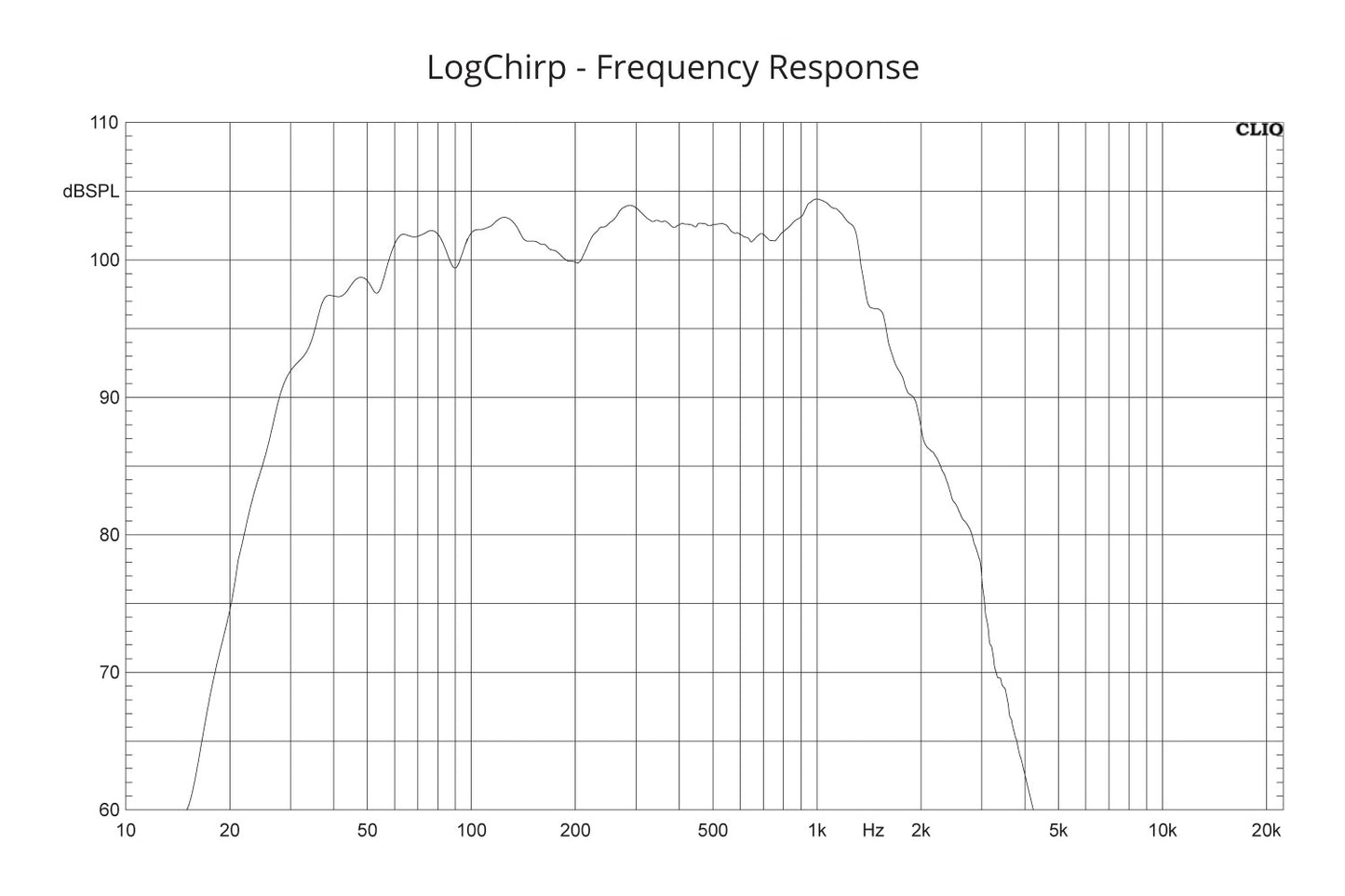

    Frequency Response (+/-3 dB) 35 Hz – 125 Hz
    Frequency Range (- 10 dB) 28 Hz – 160 Hz
    Sensitivity 2.83 V/1 m 103 dB*
    Calculated Maximum SPL @ 1 m 141 dB*
    System Peak SPL 147 dB**
    System Rated Impedance 4 Ω
    * level at 1 m under half space conditions using pink noise with crest factor 2, with dedicated preset.
    ** level at 1 m under free field conditions using pink noise with crest factor 4, with dedicated preset.
    Low Frequency Transducer
    Size 470 mm / 18″
    Voice Coil Size 101.6 mm / 4.0″ DUO in/out voice coil
    LF Frame Material Aluminium
    High Frequency Transducer
    HF Driver Type /
    Coil Size (mm / inches) /
    Exit Size (mm / inches) /
    Diaphragm Material /
    Waveguide Type /
    Nominal Coverage (HxV) /
    Special Features Aluminium demodulating ring
    Waterproof LF cone
    Malt Cross® TCS
    Power(AES2)
    System Continuous Power (W) 1600
    System Programme Power (W) 3200
    System Peak Power (W) 6400
    Crossover Frequency 100 Hz
    Recommended HPF = BW 18 dB/oct. 30 Hz

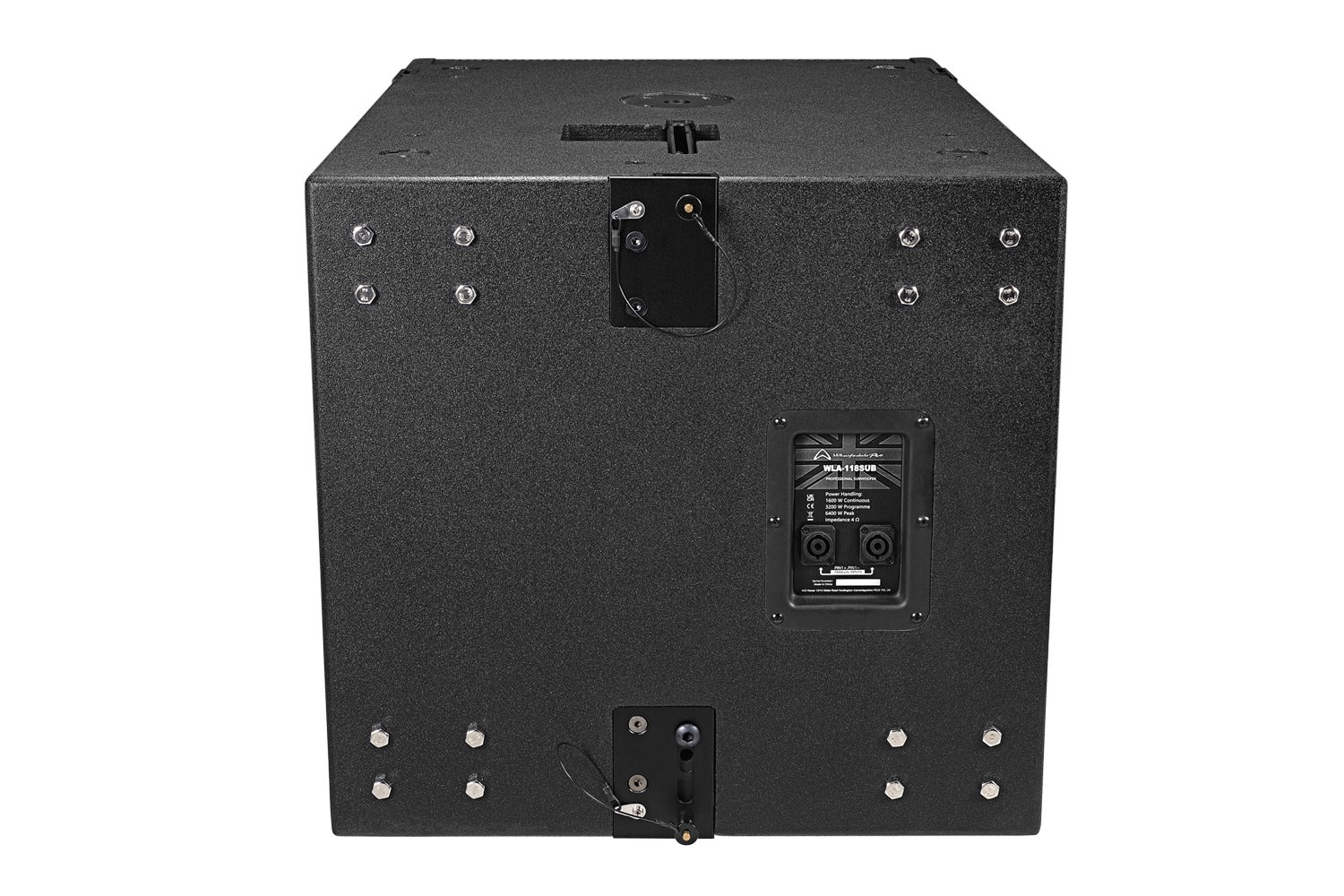

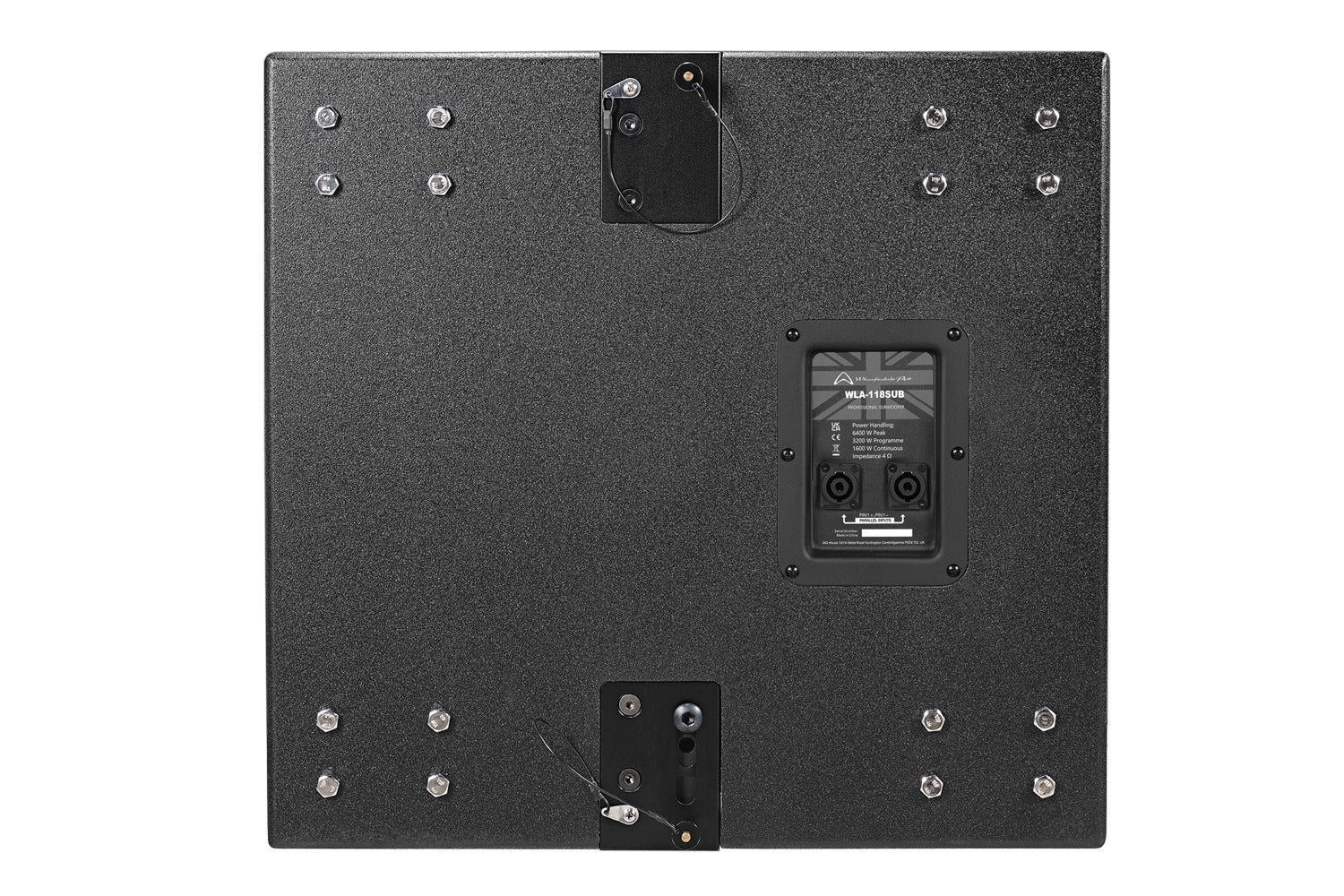

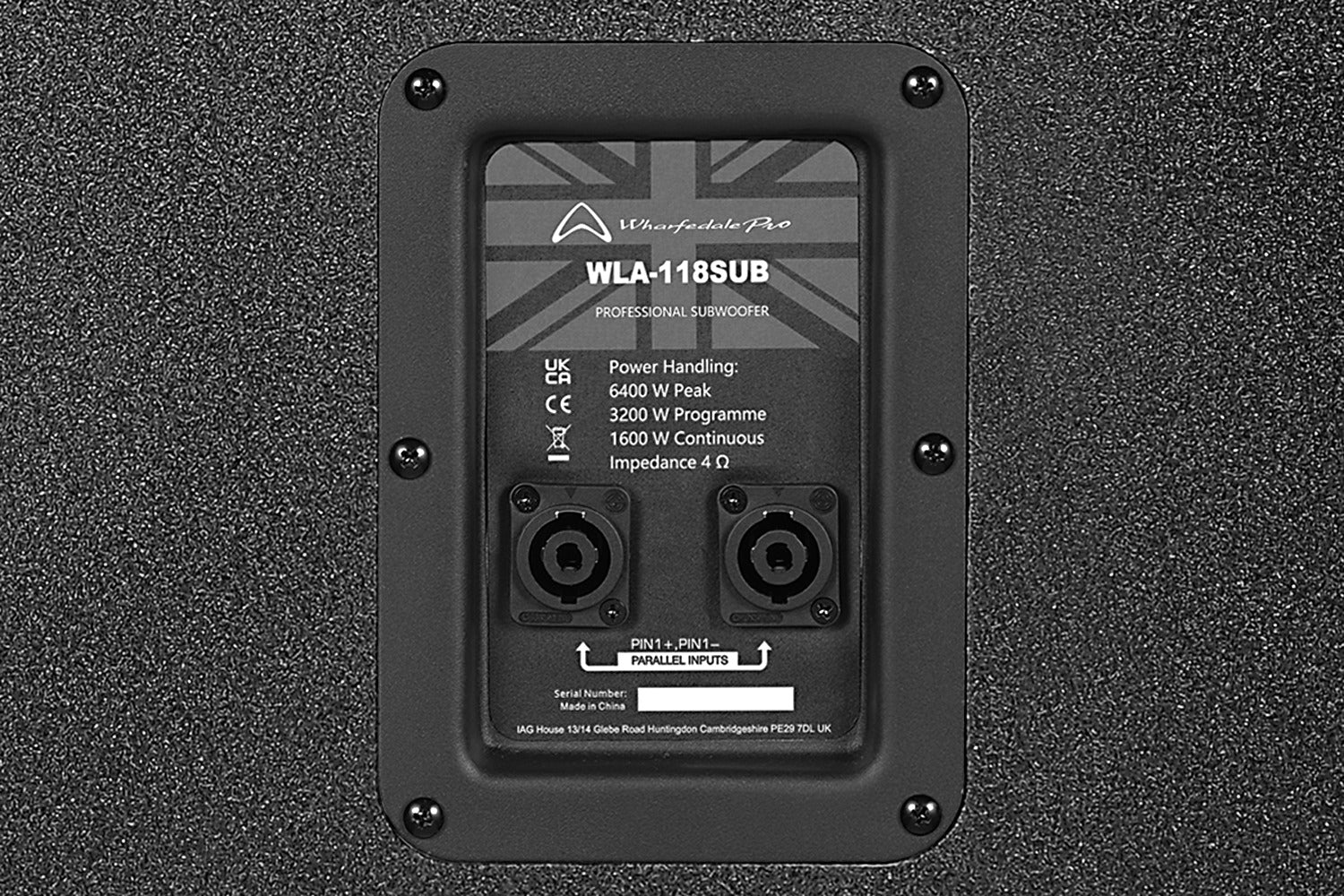

    Input Connector 2 x speakON compatible
    Rigging & Hardware: 3 points for rigging
    Vertical Splay angle range: /
    Horizontal Splay angle /
    Optional Accessories WLA-1 Common Fly Frame
    Hardware –
    Stand pole: M20 Pole mount
    Handles: 1 side（2 pcs)
    Enclosure
    Cabinet Type Rectangular
    Enclosure Material and finish 18 mm plywood / Tough-Tone
    Colour Black paint
    Grille Material & Finish Powder coated perforated steel

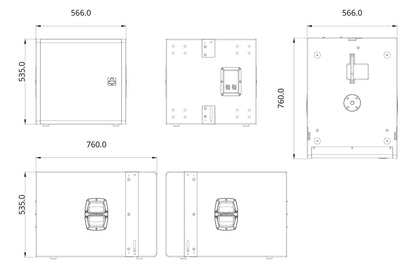

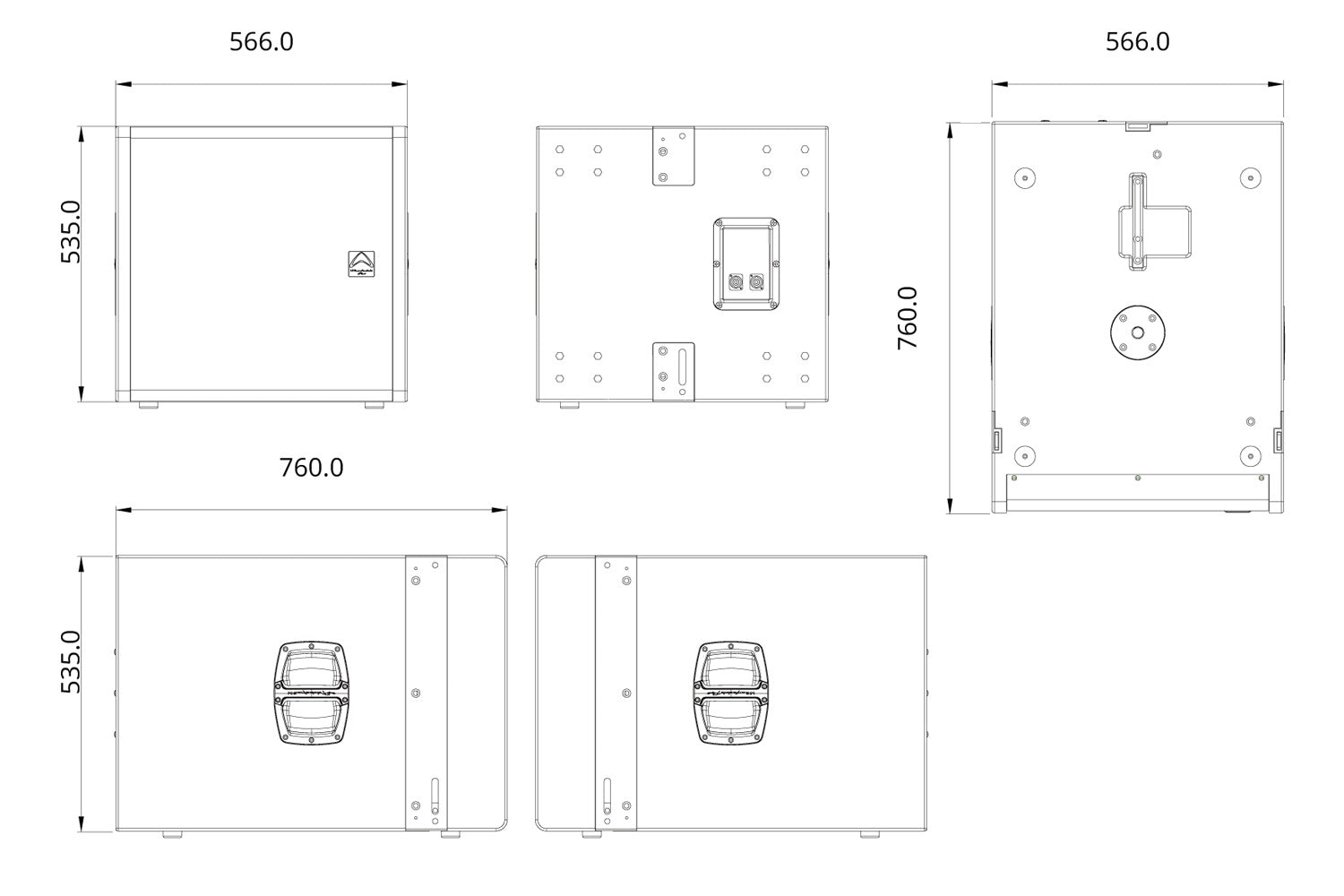

    Dimensions – Unpacked:
    Height Front 535 mm / 21.1″
    Height Rear /
    Width 566 mm / 23.4″
    Depth 760 mm / 29.9″
    Dimensions – Packed:
    Height 630 mm / 24.8″
    Width Front 656 mm / 25.8″
    Width Rear /
    Depth 850 mm / 33.5″
    Weight
    Net Weight 57.8 Kg
    Gross Weight 69.0 Kg

    Optional Accessories:
