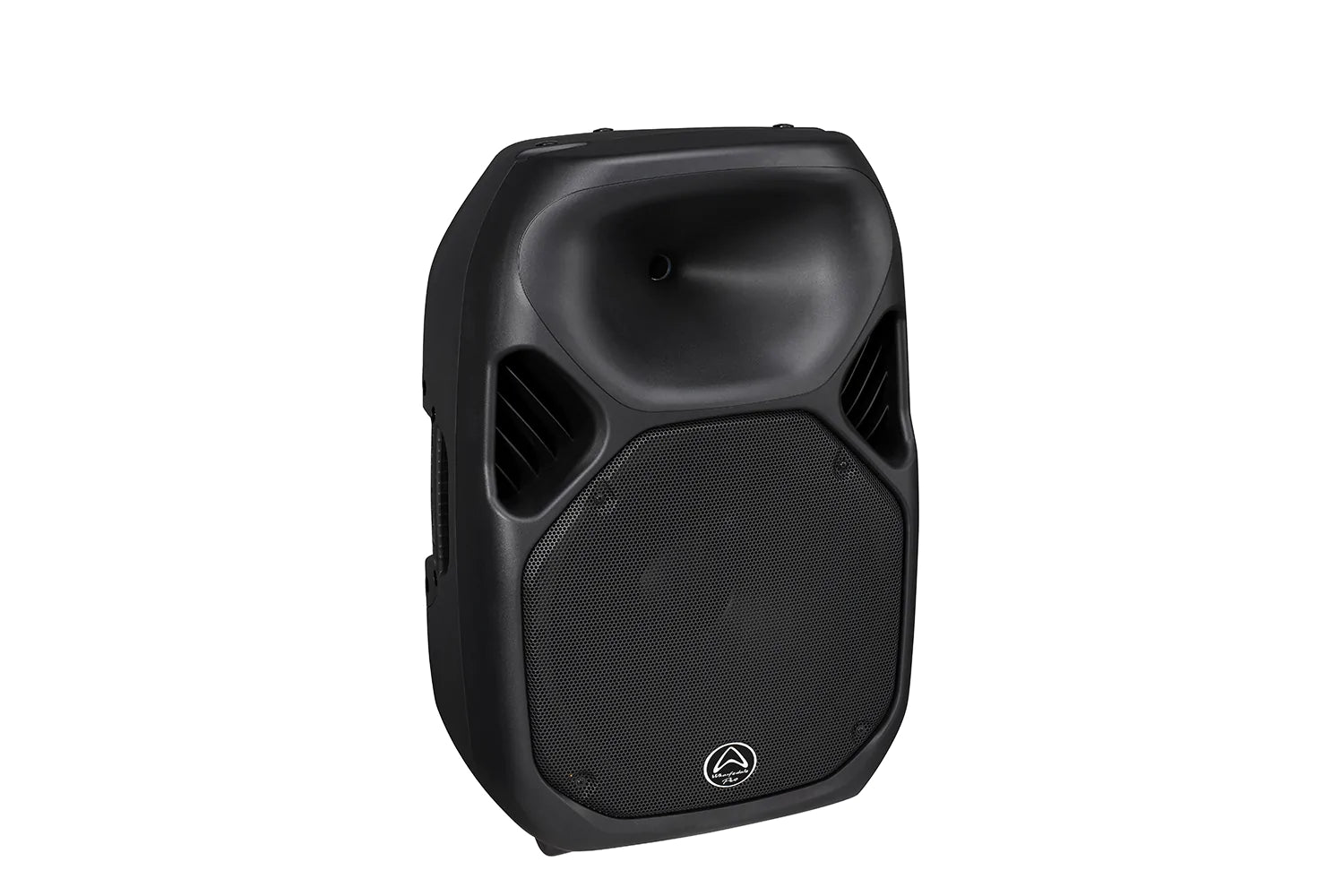

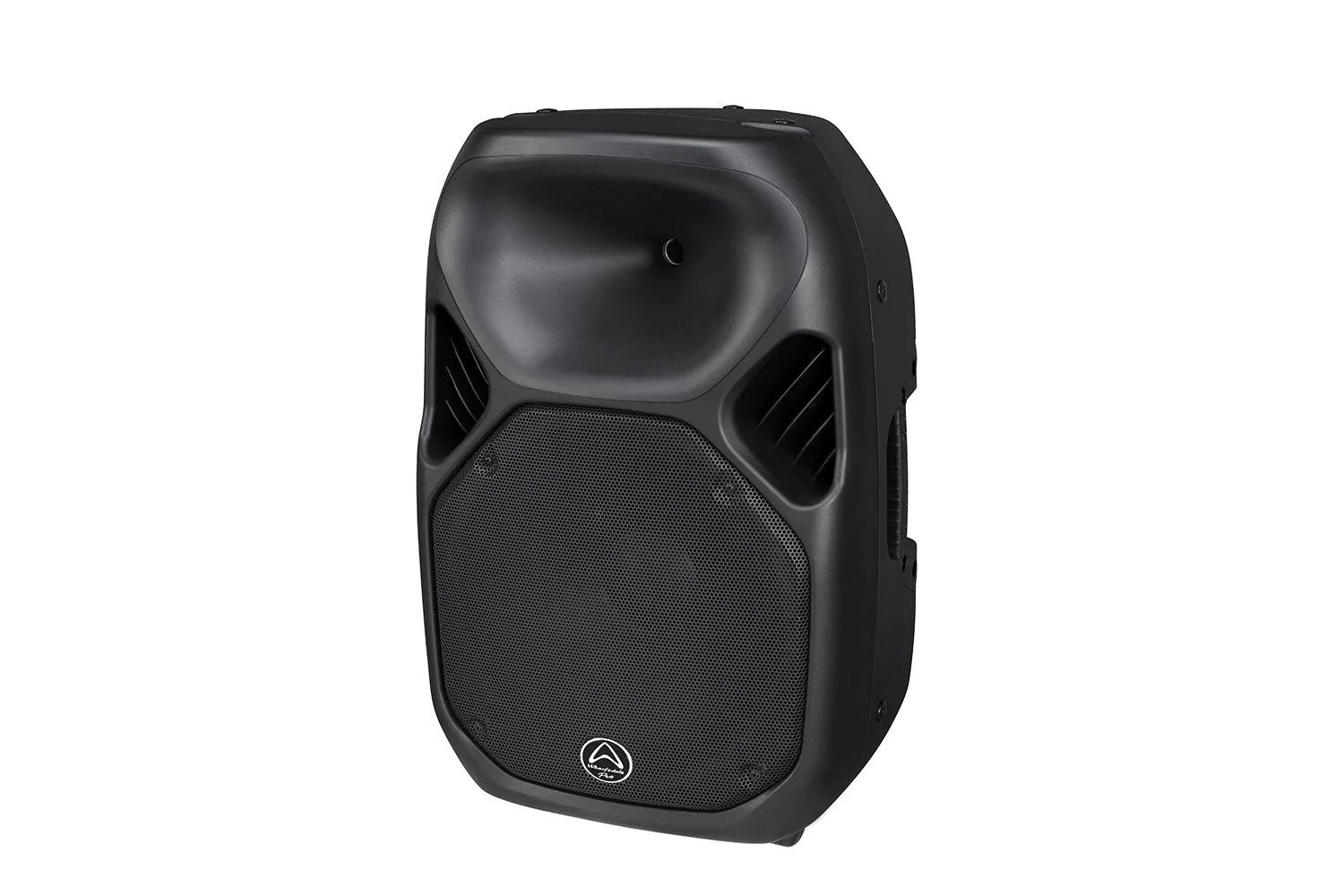

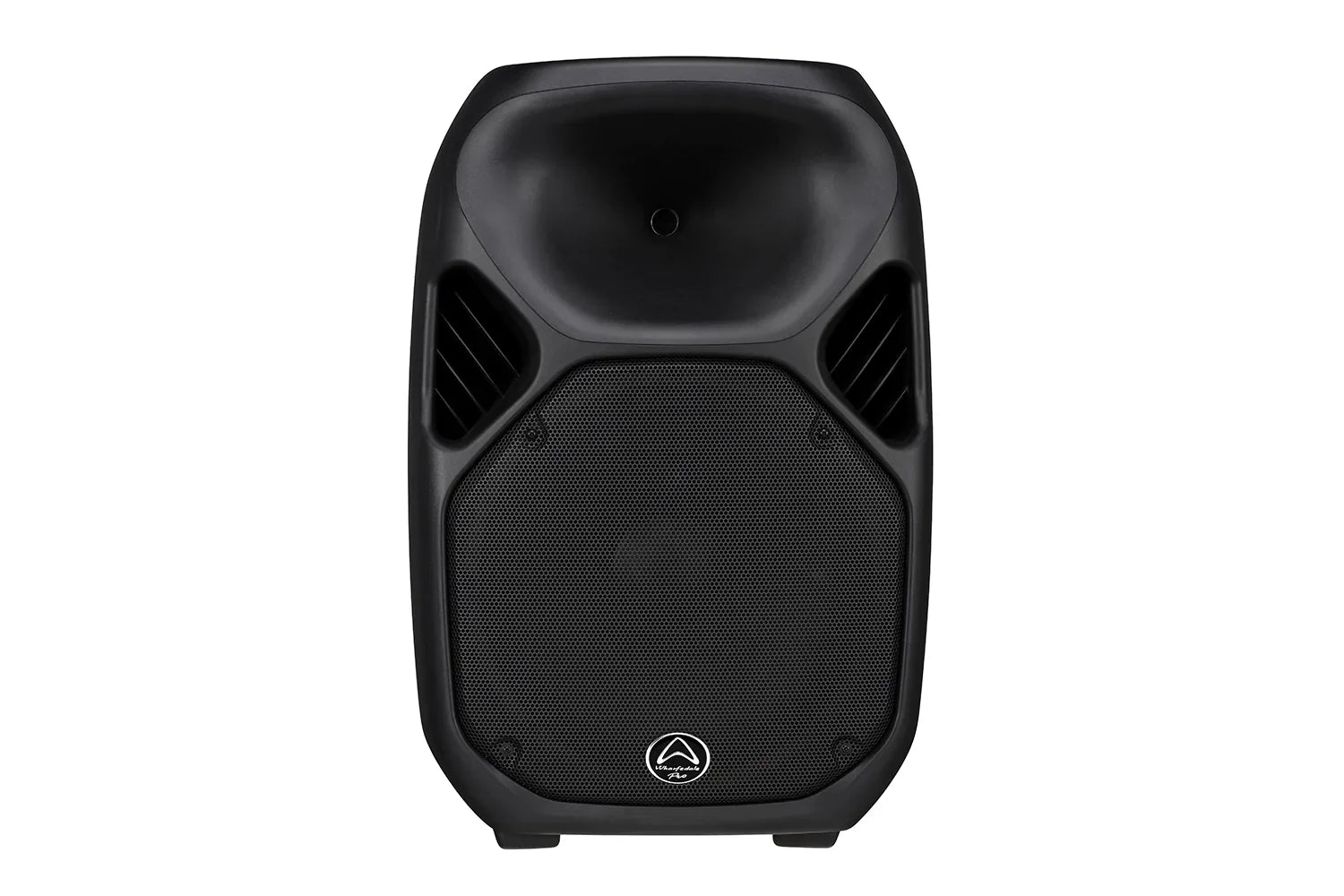

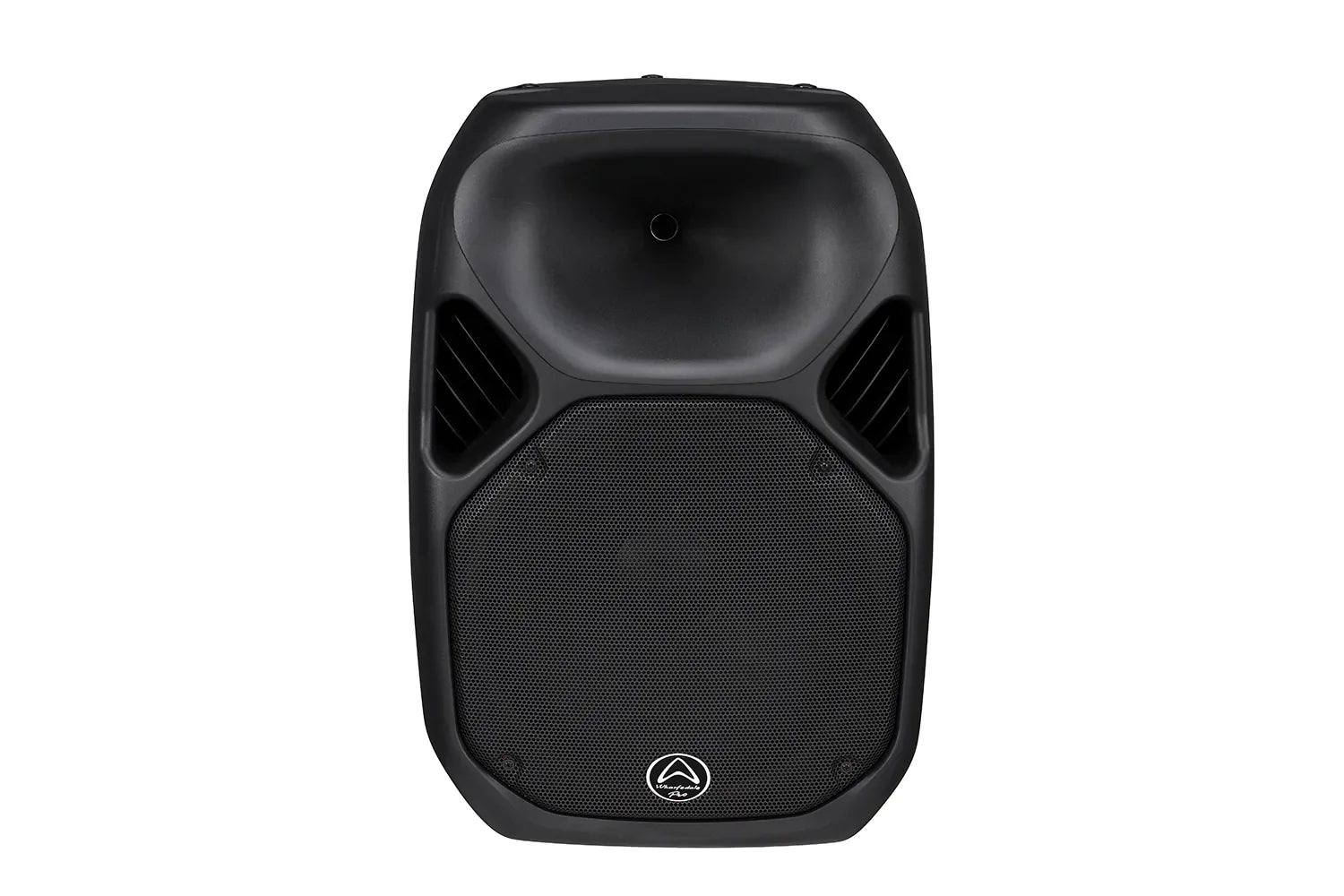

Wharfedale Pro TITAN-X15 Passive Speaker
TITAN PASSIVES
VERSATILE LEGENDS
- IP54 Certified
- Installation, DJs, bands and performance
- Wharfedale Pro drivers
- Portable and powerful
- M8 rigging points
- Optional wall brackets
- Optional tour bags
- Versatile !
TITAN X15
- 15″ passive
- 1.75″ HF compression driver
- 3.0″ LF voice coil
- 400 watts AES (RMS)
- 800 watts Programme
- 1600 watts Peak
- 129 dB Max SPL @ 1 meter
LETS LOOK INSIDE
Titan loudspeakers pride themselves on custom Wharfedale Pro drivers. The IRIS-X HF compression driver used in Titan-X12, Titan-12Z and Titan-X15 feature a 1.75″ voice coil and is unique at this price point.
IRIS-X
The coil size and electrical sensitivity of a loudspeaker transducer is critical to its performance. Titan AX loudspeakers now include our proprietary IRIS X design which delivers Increased coil Radius and Increased electrical Sensitivity. The radius of the coil ensures smooth heat dissipation during prolonged high volume use, while the increased electrical sensitivity ensures that the transducer converts as much electrical power into sound output as the laws of physics allow.
A hot transducer wastes energy, risks damage and distorts. IRIS X reduces this through improved heat dissipation and improved efficiency.
In real-world terms, IRIS X transducers deliver higher SPL with less distortion. They lead the market with specifications and are designed and built entirely within Wharfedale Pro.
Increased Radius Increased Sensitivity
IP54 CERTIFIED
IP54 certification assures that the product has
- Limited protection against dust ingress.
- Protection against splash water from any direction.
WHAT GOES ON TOUR...
Protect a Titan in an optional padded tourbag.
Wharfedale Pro Titan Tourbags add exceptional protection for Active or Passive Titans, and to keep the same ergonomics and convenience the bag has been conveniently designed with removable front covers, rear panels, side panels and speaker pole sections so you can move and install your speaker without ever having to take the tourbags off.
The front cover removes to show a unique mesh material, which adds additional protection and leaves the sound unfettered.
EASY INSTALL
All Titan loudspeakers are versatile. For on stage, or for an installation, there are fixtures and fittings to suit.
WPB-1, WPB-2 are compatible with TITAN X15.
| Model Name | Titan-X15 |
| System Type | Passive |
| Configuration | 15″ 2-way |
| Frequency Response (+/-3 dB) | 55 Hz-20 KHz |
| Frequency Range (-10 dB) | 40 Hz-20 KHz |
| Sensitivity (2.83 v / 1 m) | 97 dB |
| Calculated Maximum SPL @1 m | 129 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size | 381 mm / 15″ |
| Voice Coil Size | 75 mm / 3.0″ |
| Rated Impedance | 8 Ω |
| LF Power (re:AES2-2012) | 400 w |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Voice Coil Size | 44 mm / 1.75” |
| Exit Size | 25 mm / 1” |
| Diaphragm Material | Titanium |
| Rated Impedance | 8 Ω |
| HF Power (re:AES2-2012) | 40 w |
| Nominal Coverage (H x V) | Hybrid Symmetry Horn 100°x80° |
| Power | |
| System Power AES (RMS) | 400 w |
| System Programme Power | 800 w |
| System Peak Power | 1600 w |
| Crossover frequency | 2.7 KHz |
| Input Connector | |
| 2 x 1/4″ Jack | |
| Hardware | |
| Pole Mount | 35 mm with lock screw |
| Handles | 2 on sides |
| Mounting points | M8 * 10 |
| Enclosure | |
| Enclosure Material | Trapezoidal / Polypropylene |
| Finish | Black / white |
| Grille Material & Finish | 1.2 steel |
| Dimensions – Unpacked | |
| Height | 728.5 mm / 28.7″ |
| Width Front | 480.6 mm / 18.9″ |
| Width Rear | 480.6 mm / 18.9″ |
| Depth | 395.6 mm / 15.6″ |
| Dimensions – Packed | |
| Height | 830 mm / 32.7″ |
| Width Front | 514 mm / 20.2″ |
| Width Rear | 514 mm / 20.2″ |
| Depth | 489 mm / 19.3″ |
| Weight | |
| Net Weight (kg / lbs) | 22.0 kg / 48.4 lbs |
| Gross Weight (kg / lbs) | 26.8 kg / 59.0 lbs |
