Wharfedale Pro

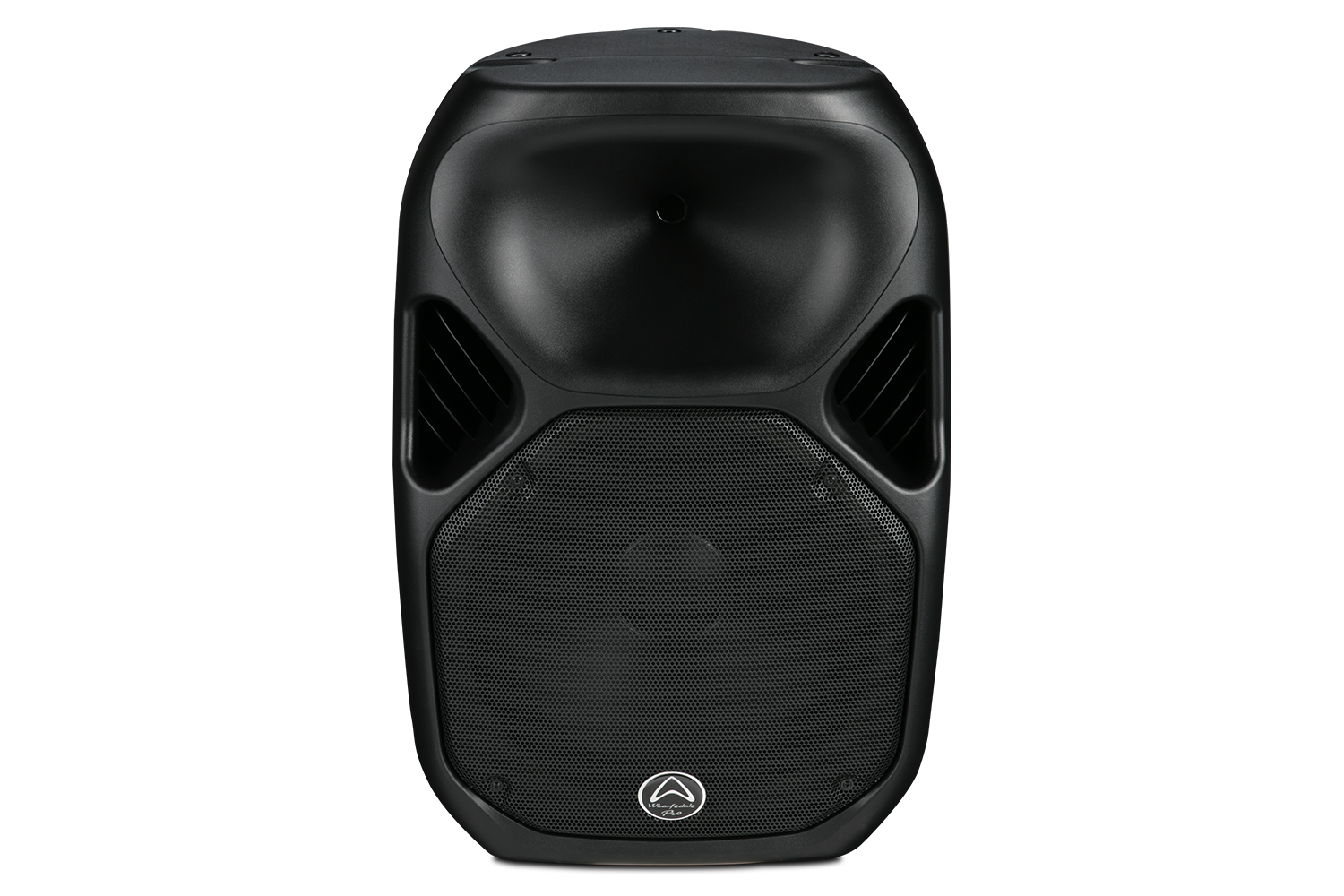

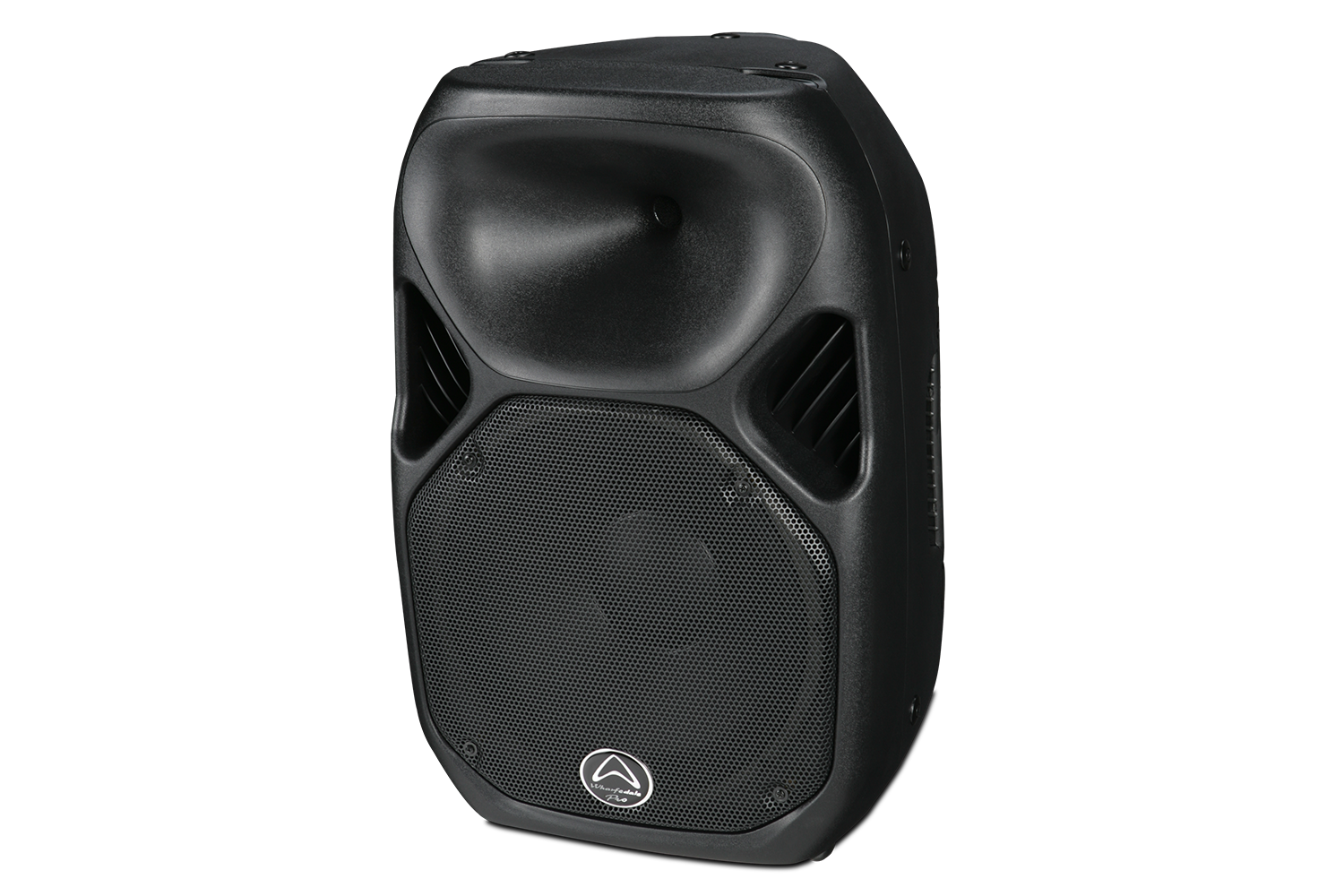

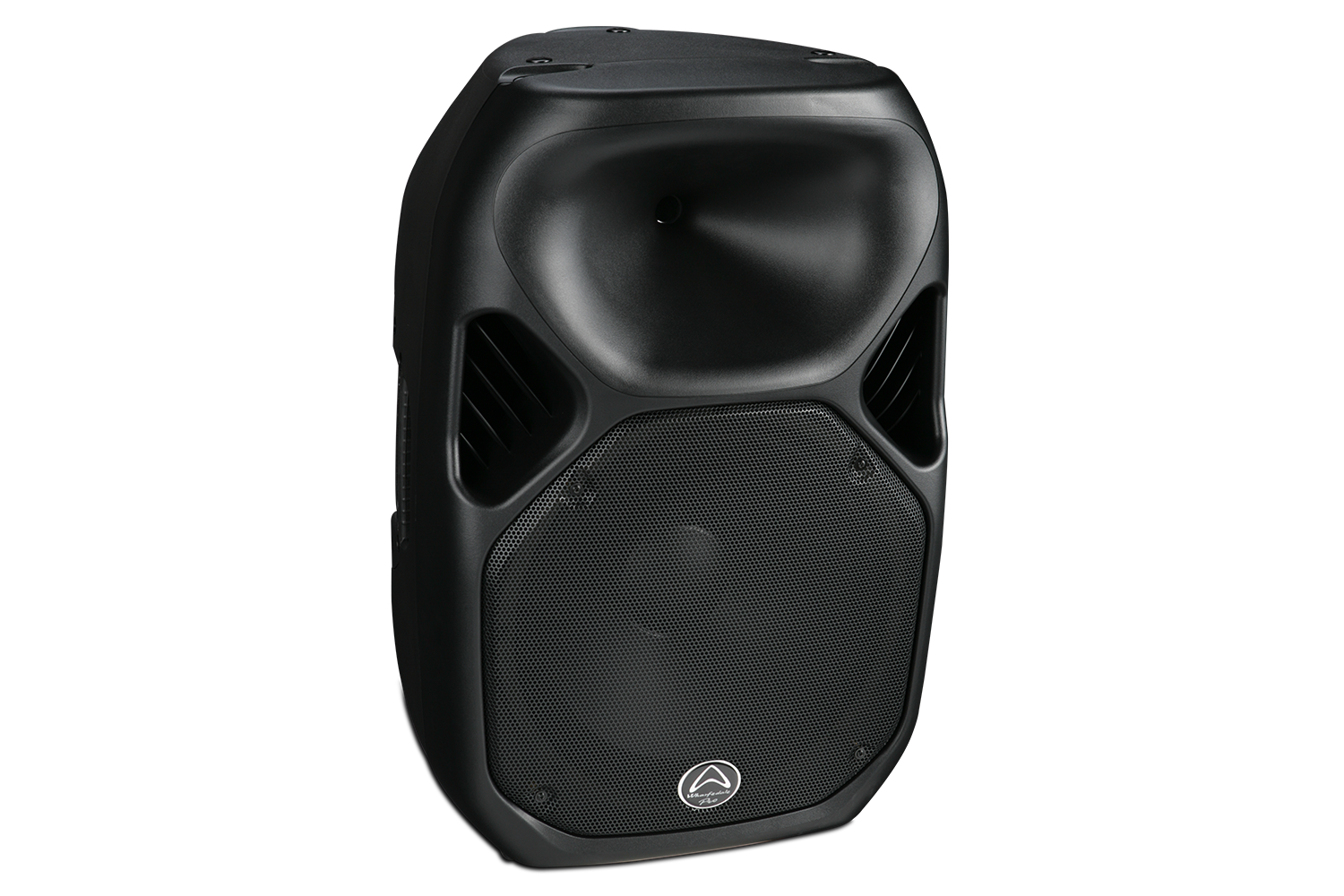

Wharfedale Pro TITAN AX15 Active Speaker

Wharfedale Pro TITAN AX15 Active Speaker

Regular price $759.00
Regular price Sale price $759.00
Sale Contact for Availability



TITAN ACTIVES

THE LEGENDS

  • IP54 Certified
  • On stage, DJ, bands and performance
  • Bi-amplified
  • Wharfedale Pro drivers
  • Portable and powerful
  • DSP models – AX12 / AX15
  • M8 rigging points
  • Optional tour bags

TITAN AX12

  • 12″ Bi-amplified active loudspeaker
  • 1.75″ HF compression driver
  • 2.5″ LF voice coil
  • 300 w Continuous
  • 600 w Peak
  • Internal 6-position DSP

LETS LOOK INSIDE

Titan loudspeakers pride themselves on custom Wharfedale Pro drivers. The IRIS-X HF compression driver used in Titan-AX12 and Titan-AX15 features a 1.75″ voice coil and is unique at this price point.

All Titan Active models are bi-amplified.  The internal amplifiers have been tuned specifically for the HF and LF drivers that we have chosen. This makes for perfect power and frequency transfer, resulting in the sonic experience that you’d expect from a Wharfedale Pro active loudspeaker.

TITAN-AX MODELS WITH IRIS-X

The coil size and electrical sensitivity of a loudspeaker transducer is critical to its performance.  Titan AX loudspeakers now include our proprietary IRIS X design which delivers Increased coil Radius and Increased electrical Sensitivity.  The radius of the coil ensures smooth heat dissipation during prolonged high volume use, while the increased electrical sensitivity ensures that the transducer converts as much electrical power into sound output as the laws of physics allow.

A hot transducer wastes energy, risks damage and distorts.  IRIS X reduces this through improved heat dissipation and improved efficiency.

In real-world terms, IRIS X transducers deliver higher SPL with less distortion.  They lead the market with specifications and are designed and built entirely within Wharfedale Pro.

Increased Radius Increased Sensitivity

WE ARE NOT FANS...OF FANS

ssssssh !     The two amplifiers inside all Titan Active models are extremely efficient.

So efficient that they can use convection cooling. This means that there are no fans!

Fans inside loudspeakers can add to operational noise, weight, price and can lead to reliability issues. Titan actives have no fans!         Ssssssh! – Silent and reliable operation.

IP54 CERTIFIED

IP54 certification assures that the product has

  • Limited protection against dust ingress.
  • Protection against splash water from any direction.
The picture shows some of the extreme testing that goes into the Titan series IP54 certification.

All of this means that you can have full confidence installing a TITAN in extreme conditions.

WHAT GOES ON TOUR...

Protect a Titan in an optional padded tourbag.

Wharfedale Pro Titan Tourbags add exceptional protection for Active or Passive Titans, and to keep the same ergonomics and convenience the bag has been conveniently designed with removable front covers, rear panels, side panels and speaker pole sections so you can move and install your speaker without ever having to take the tourbags off.

The front cover removes to show a unique mesh material, which adds additional protection and leaves the sound unfettered.

EASY INSTALL

All Titan loudspeakers are versatile.  For on stage, or for an installation, there are fixtures and fittings to suit.

WPB-1, WPB-2 are suitable for TITAN AX12.

PERFECT PAIRINGS

A perfect partner for a Titan active is the 15″, 700 watts continuous, T-Sub-AX15B.

Used with a Tourus, a Titan or our flagship Typhon models, T-Sub-AX15B completes the system – bringing new levels of bass to the setup.

Model Name Titan-AX15
System Type Active 15” 2-way Bi-Amplified
Frequency Response (+/-3 dB) 50 Hz-20 KHz
Frequency Range (-10 dB) 40 Hz-20 KHz
Calculated Maximum SPL @1 m 129 dB
LF Transducer Size (mm / inches) 381 mm / 15”
Coil Size (mm / inches) 75 mm / 3.0″
HF Transducer Type Compression Driver
Coil Size (mm / inches) 44 mm / 1.75″
Exit Size (mm / inches) 25 mm / 1”
Diaphragm Material Titanium
Nominal Coverage (H x V) Hybrid Symmetry Horn 100° x 80°
Amplifiers
Low-Frequency Power Amplifier
RMS/Peak Watts 350/700 W (Class D)
High-Frequency Power Amplifier RMS/Peak Watts 70/140 W (Class D)
Controls—EQ
Low (±10 dB) 100 Hz Shelving
DSP 6 user presets
Hi Pass switch 90 Hz
Amplifier Protection / Thermal protection Yes
Low Line Voltage Shut Down 60% Nominal line voltage
Driver Protection Independent LF and HF limiters
DC Protection / Short Protection Yes
Clip Limiter Turns on ~350 W output
Limiter Indicator / Power Indicator Red LED / Green LED

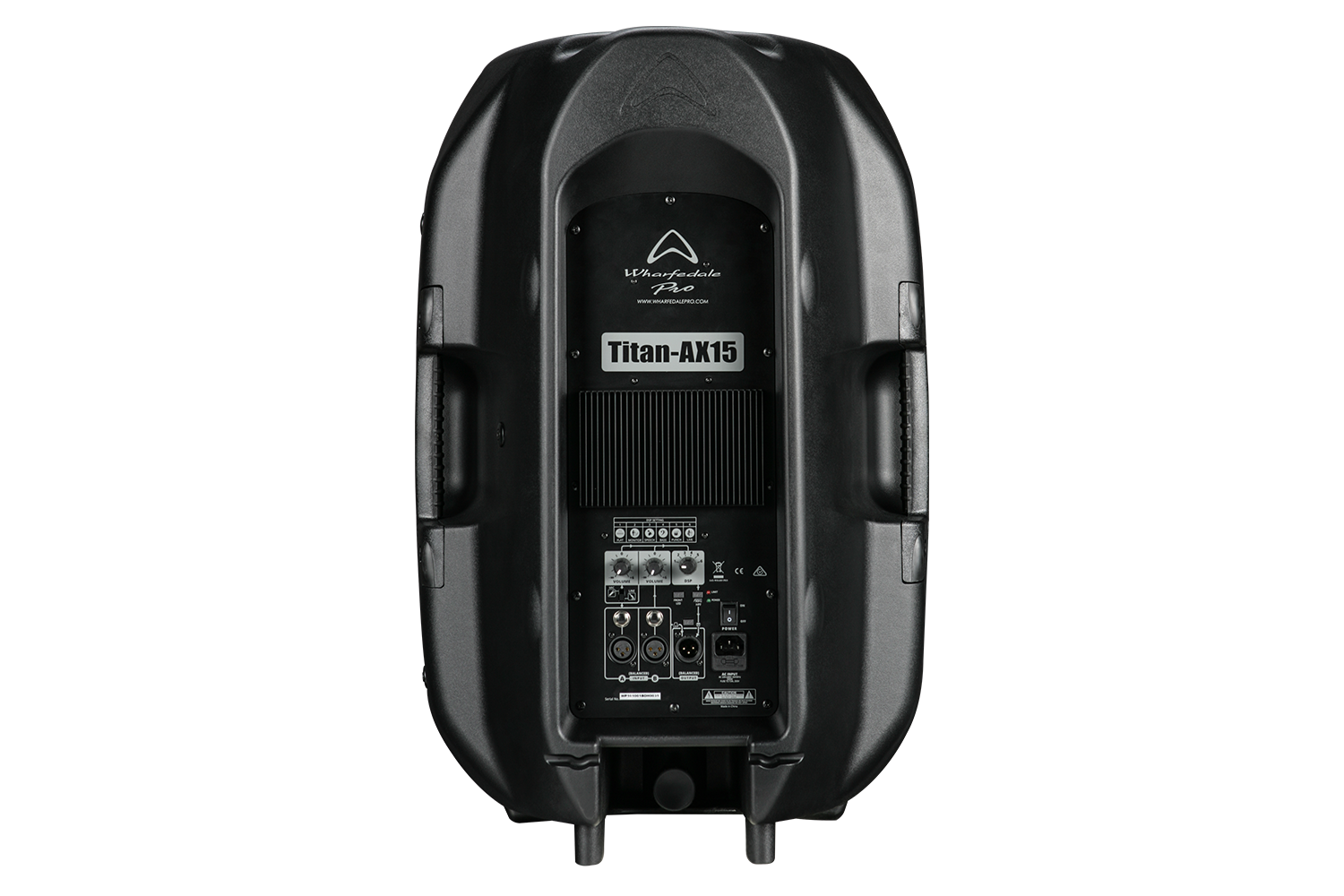

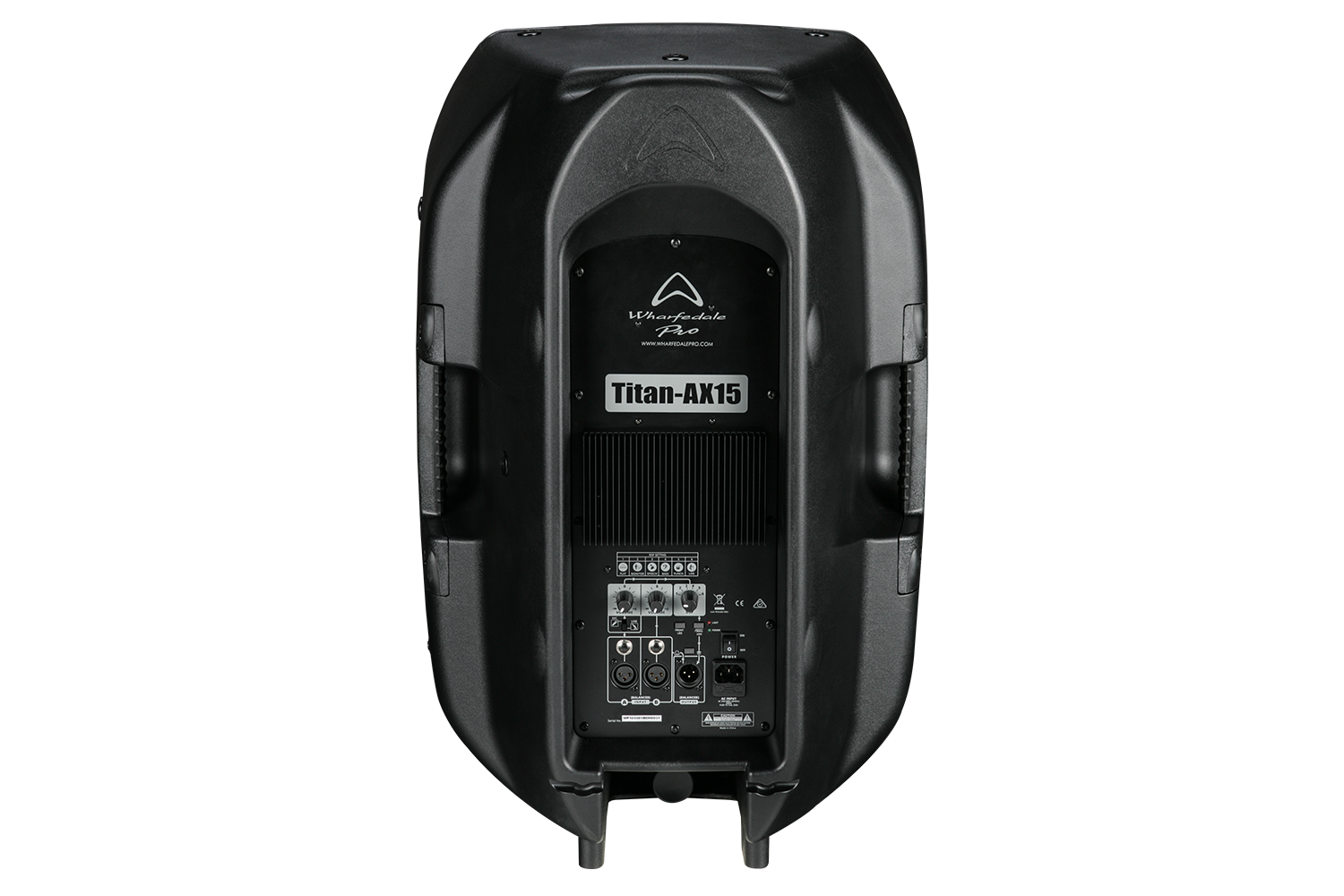

Connectors
Input – type Switchable balanced mic/line level (Chan 1)
Input Connector 2 * XLR & 2 * 1/4″ jack (Chan 1 Line/MIC)
Line Output Connector Switchable LOOP/MIX Balanced Female XLR
AC Power Supply SMPS
AC Power Options AC100-120 V/220-240 V~ 50/60 Hz
Hardware
Rigging / Bracket / Mounting Options 10 M8 threaded inserts including 4 M8 threaded inserts on bottom in OmniMount 30.0-type footprint
35 mm with lock screw
1 carry handle on side
Optional wall-mount bracket
LED Horn lighting (On/Off switch) Yes
Enclosure Material and finish Injection Moulded Polypropylene
Colour Options Black / White
Grille Material & Finish 1.2 mm steel
Dimensions – Unpacked  – Height 728.5 mm / 28.7″
Width Front 480.6 mm / 18.9″
Depth 395.6 mm / 15.6″
Dimensions – packed  – Height 830 mm / 32.7″
Width Front 514 mm / 20.2″
Depth 489 mm / 19.3″
Net Weight (kg / lbs) 22.94 kg / 50.3 lbs
Gross Weight (kg / lbs) 27.7 kg / 60.9 lbs


Download user manual
