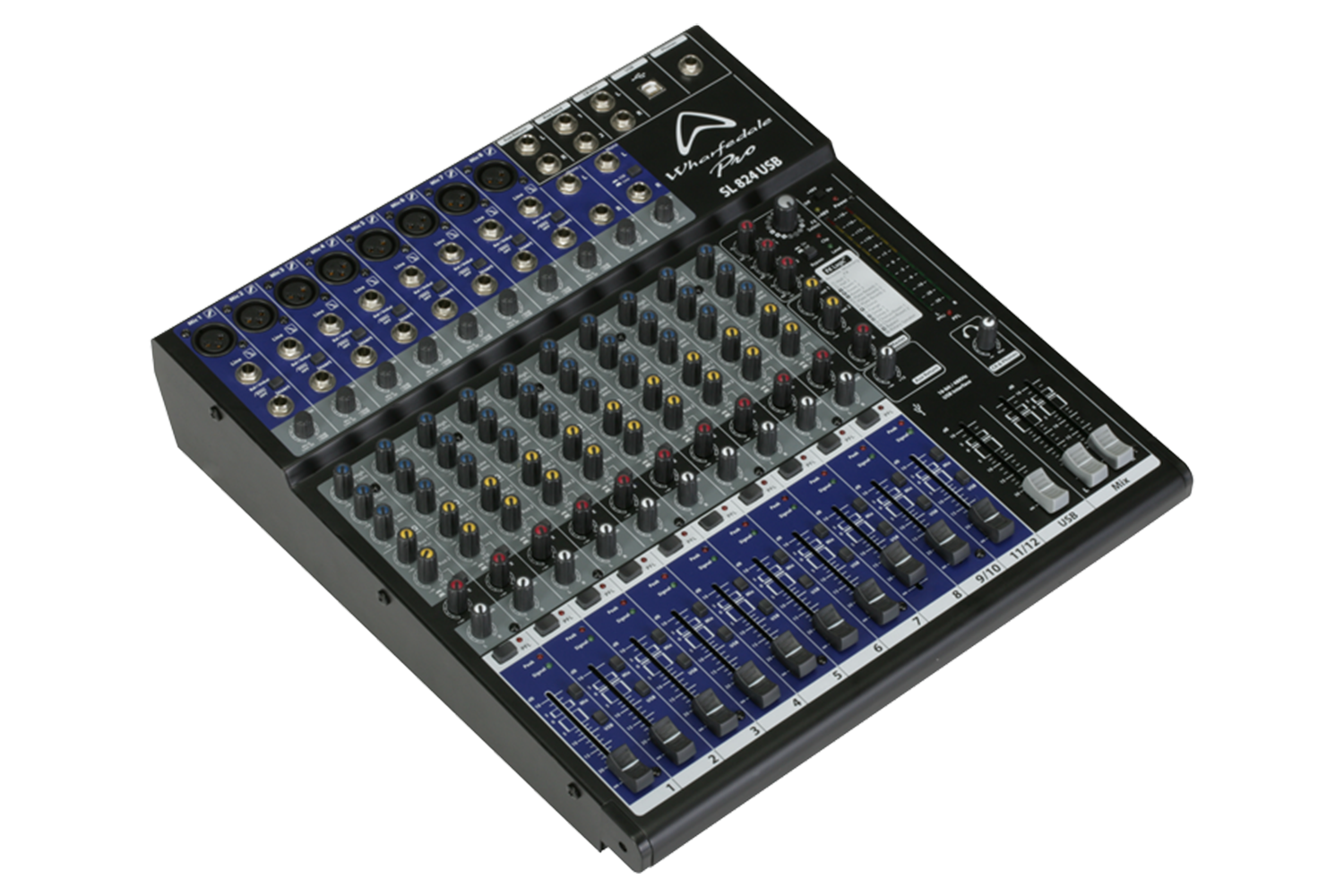

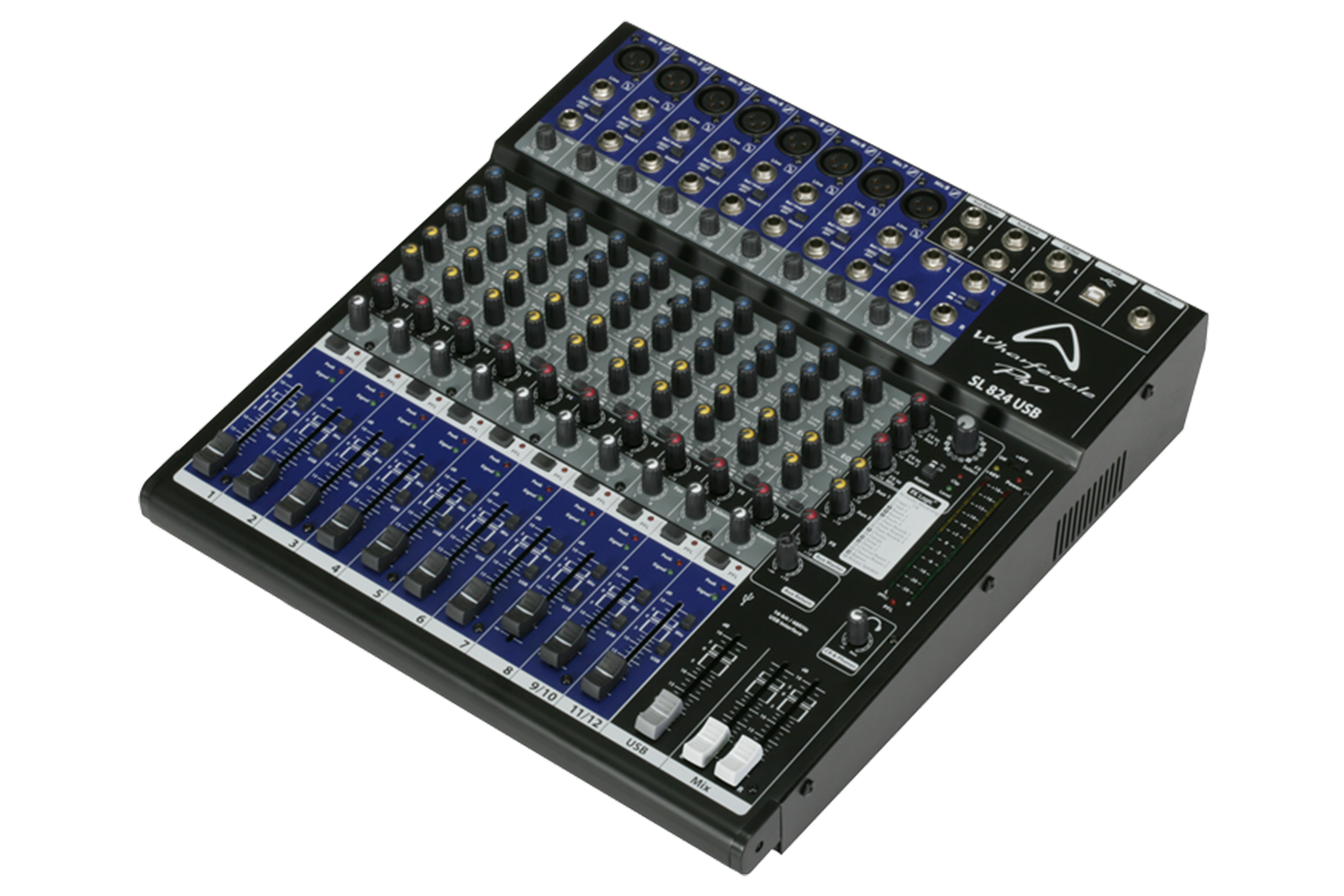

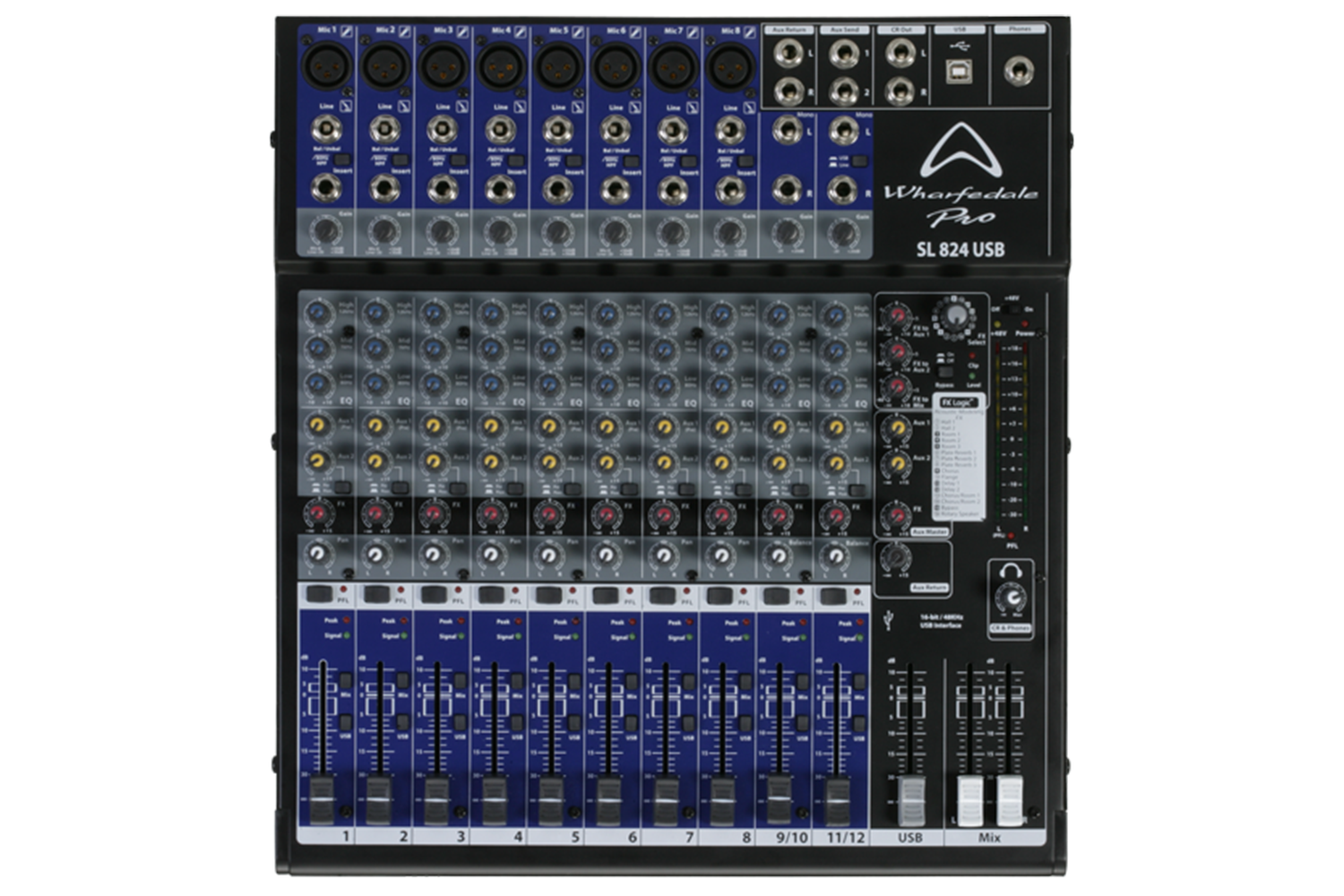

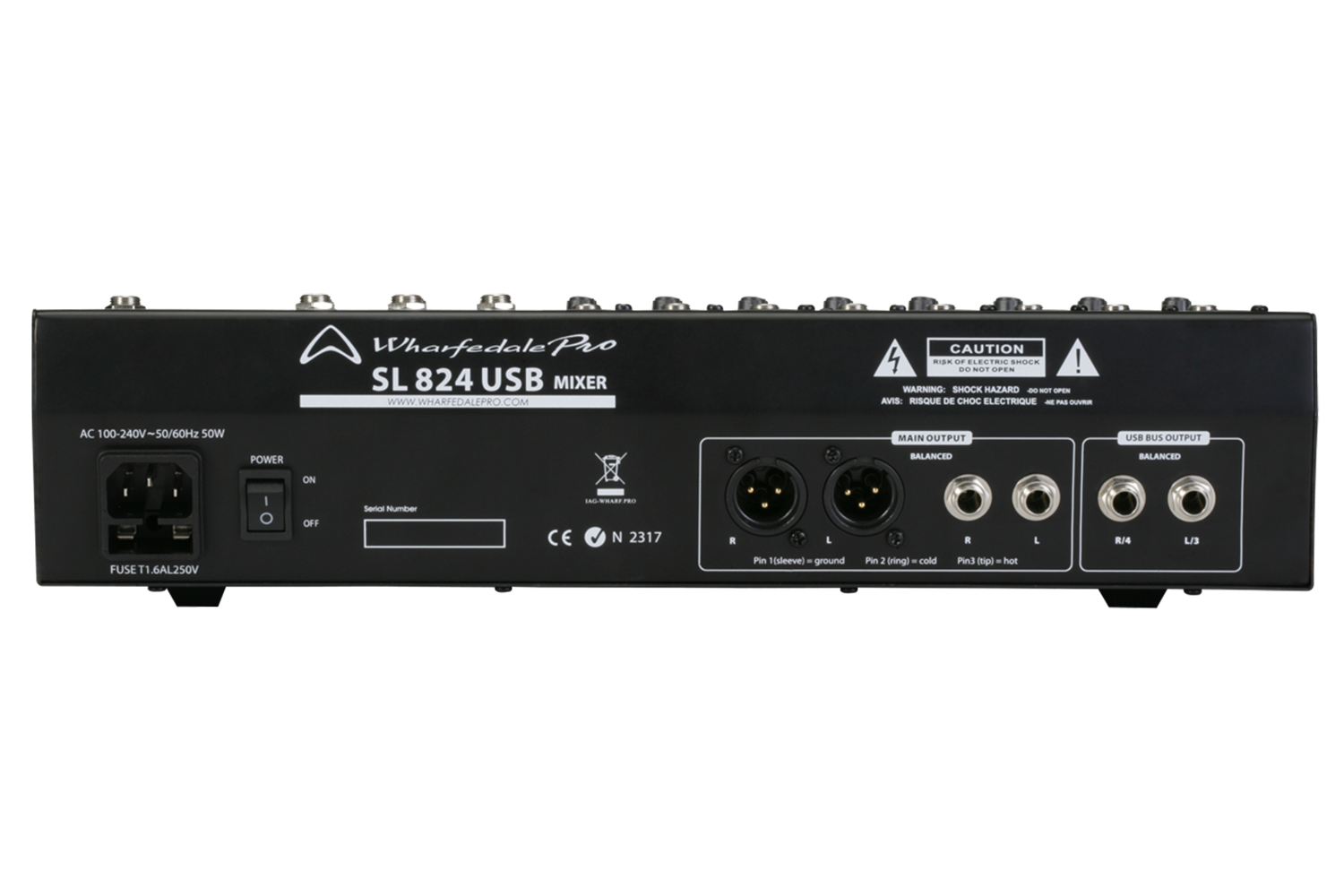

Wharfedale SL824USB - 8 channel Mixing Console
Wharfedale SL824USB - 8 channel Mixing Console
Wharfedale SL824USB - 8 channel Mixing Console
Wharfedale SL824USB - 8 channel Mixing Console
Wharfedale

Wharfedale SL824USB - 8 channel Mixing Console

Regular price

SL SERIES

STUDIO / LIVE MIXERS WITH BUILT IN USB INTERFACE

  • Full Duplex 2 In/2 Out 16-Bit 48 KHz USB Interface
  • Dedicated USB Recording Bus
  • Switchable Line/USB Return Channels
  • Studio Grade Phantom Powered Microphone Pre-Amps
  • Headphone output
  • PFL for All Channels
  • Control Room and Headphone Outputs
  • Ultra Musical 3-Band EQ with High Pass Filters
  • Digital FX
  • 2 Auxiliary Sends
  • Stereo Return with Level Control
  • Pan and Balance Controls
  • Master Output XLR & TRS Connectors

SL824SUSB

  • 8 x XLR input
  • 12 x 6.3mm line input
  • 3-band EQ
  • Insert points
  • 2 x 6.3mm outputs
  • 2 x XLR balanced outputs
  • USB Interface
  • 16 x internal FX

PLUG AND PLAY

You don’t need any special ‘Wharfedale Pro’ driver software to make an SL mixer work perfectly with a Windows, Mac or Linux computer.

Simply connect the SL mixer to the computer with the USB cable and, because the mixer is a ‘Class Compliant’ USB audio device, it will simply use the internal driver software of your host computer.  With the mixer connected and turned on, just select the USB audio driver in your system settings/device manager and suddenly you’ve got a digital audio connection to and from your computer.

2-channels into the computer and 2-channels out.  All over the supplied USB cable.

MUSICAL EQ

An ultra musical 3-band EQ is available on all channels, with dedicated FX send and auxiliaries.

USB AUDIO INTERFACE

With a built-in USB audio interface, the SL series enables a stereo in/out which can be used for playback of audio files from your PC or Mac, and can also record the master output of your mixing desk.

16-bit / 48 KHz recording ensures 2-channel CD quality audio, whether working in a live or studio environment.

16 DIGITAL FX

SL824USB and SL1224USB feature the FX logic DSP processor which delivers a total of 16 effects. These include a variety of delays, reverbs, chorus, and rotary speaker algorithms, achieving a professional touch on your mix and lending itself to more creative sound engineering styles.

By name, the 16 FX are……

(1)Hall1 (2)Hall2 (3)Room1 (4)Room2 (5)Room3(6)Plate reverb1 (7)Plate reverb2 (8)Plate reverb3 (9)Chorus (10)Flange (11)Delay1 (12)Delay2 (13)Chorus/Room1 (14)Chorus/Room2 (15)Bypass (16)Rotary speaker.

All very useable, in the real-world!

AC POWER

SL series do not use a ‘wall wart’ external power supply.  The AC cable is included and the internal transformer ensures smooth power delivery to the internal electronics.

Model Name

SL824USB

Channels

12

Inputs

10 x XLR, 12 x 6.3 mm jack

Outputs

2 x XLR, 2 x 6.3 mm jack

Headphone Output

6.3 mm jack

Auxiliary sends

2

FX

16x Effects: (1)Hall1 (2)Hall2 (3)Room1 (4)Room2

(5)Room3 (6)Platereverb1 (7)Platereverb2

(8)Platereverb3 (9)Chorus (10)Flange (11)Delay1

(12)Delay2 (13)Chorus/Room1 (14)Chorus/Room2 (15)Bypass (16)Rotaryspeaker

EQ

3 Band with HPF

Phantom Power

Yes

USB

16 bit / 48 KHz

Signal To Noise Ratio

-127 dBu ±5 dBu Mic Pre Equivalent Input Noise

Frequency Response

20 Hz – 20 KHz ±2 dB

Display

12 Segment Level LED with power and Phantom Power indicator

Dimensions: (H x W x D)

80 x 400 x 369 mm

Weight

INCLUDES RACK MOUNT KIT

5.2 kg / 11.46 lbs
