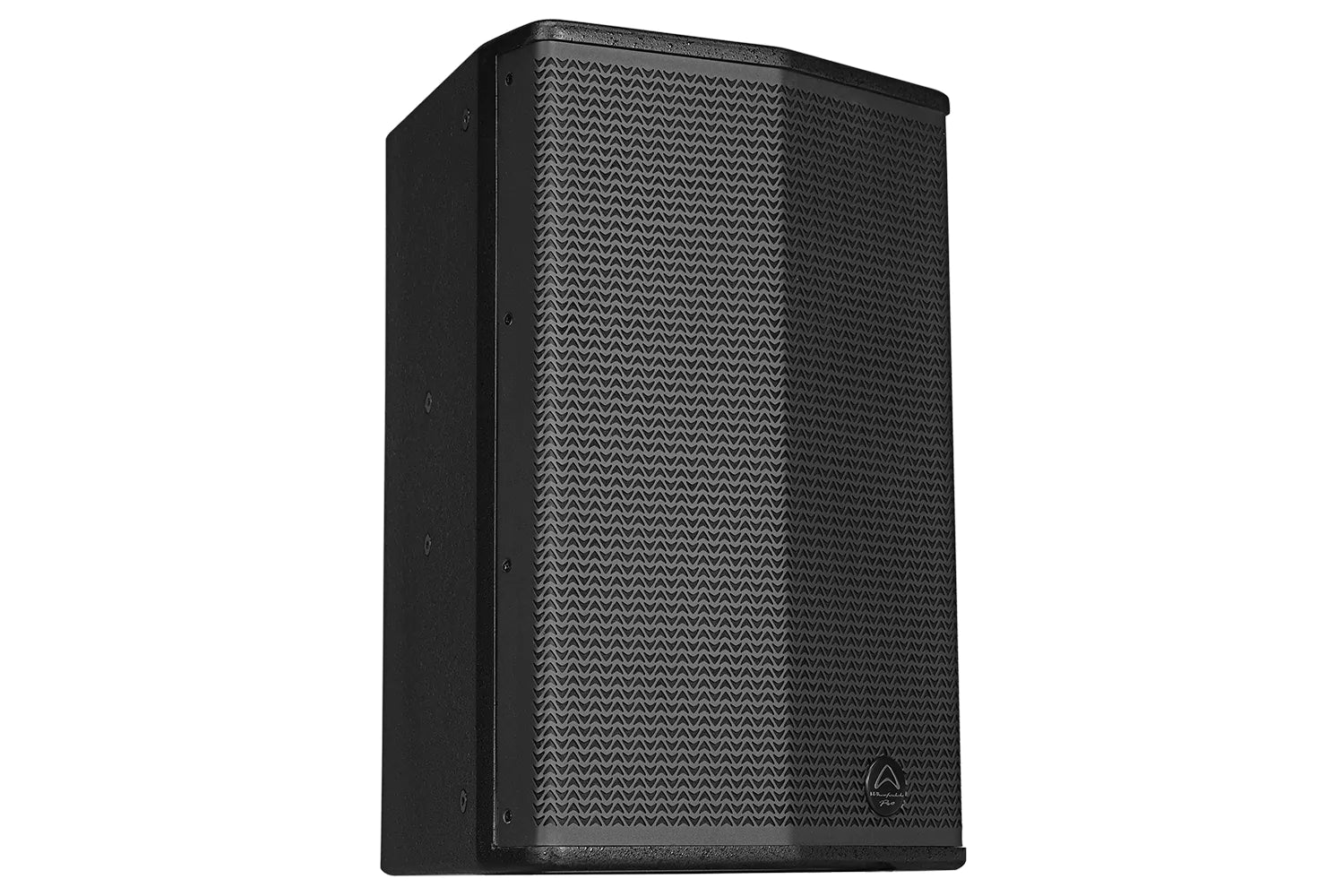

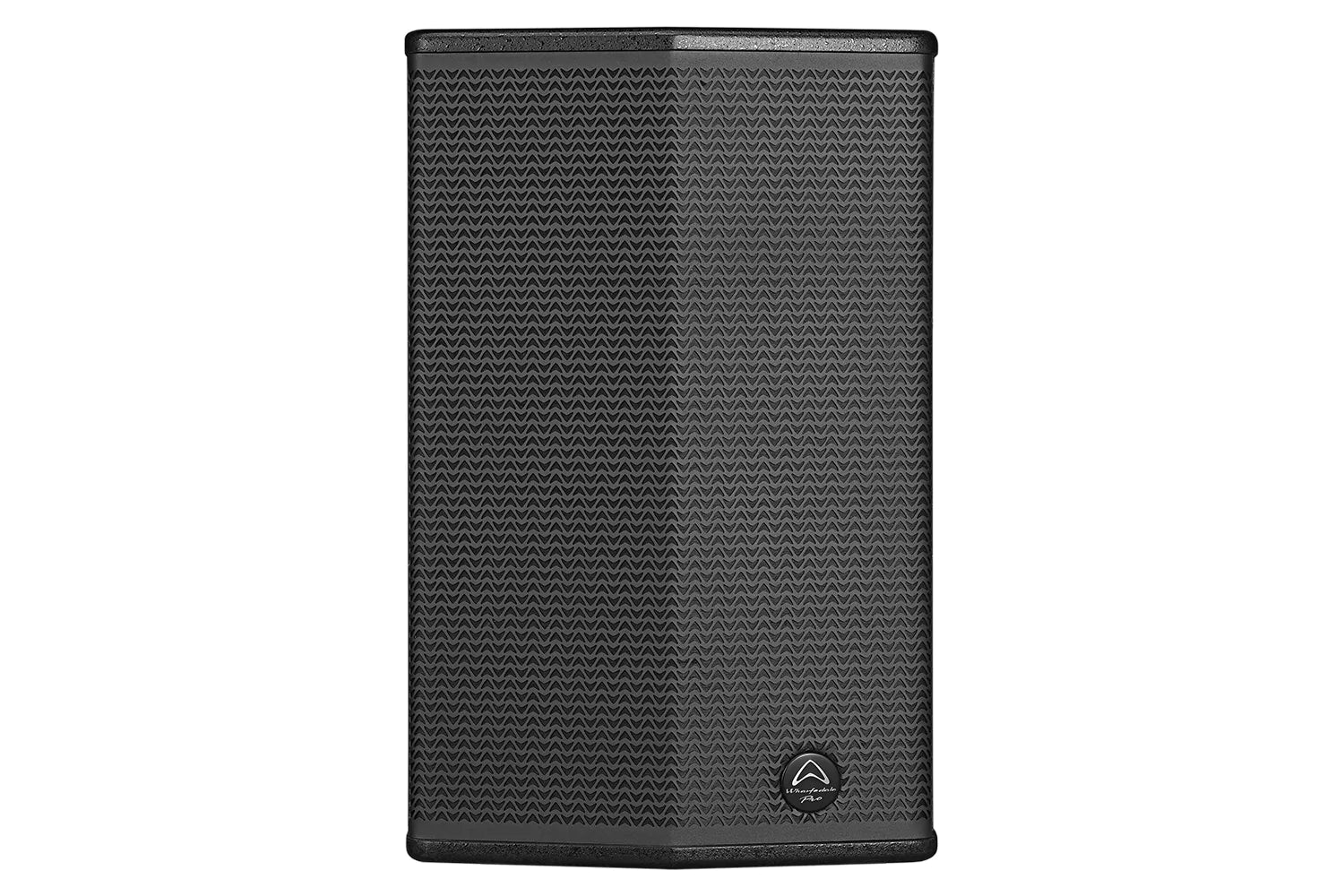

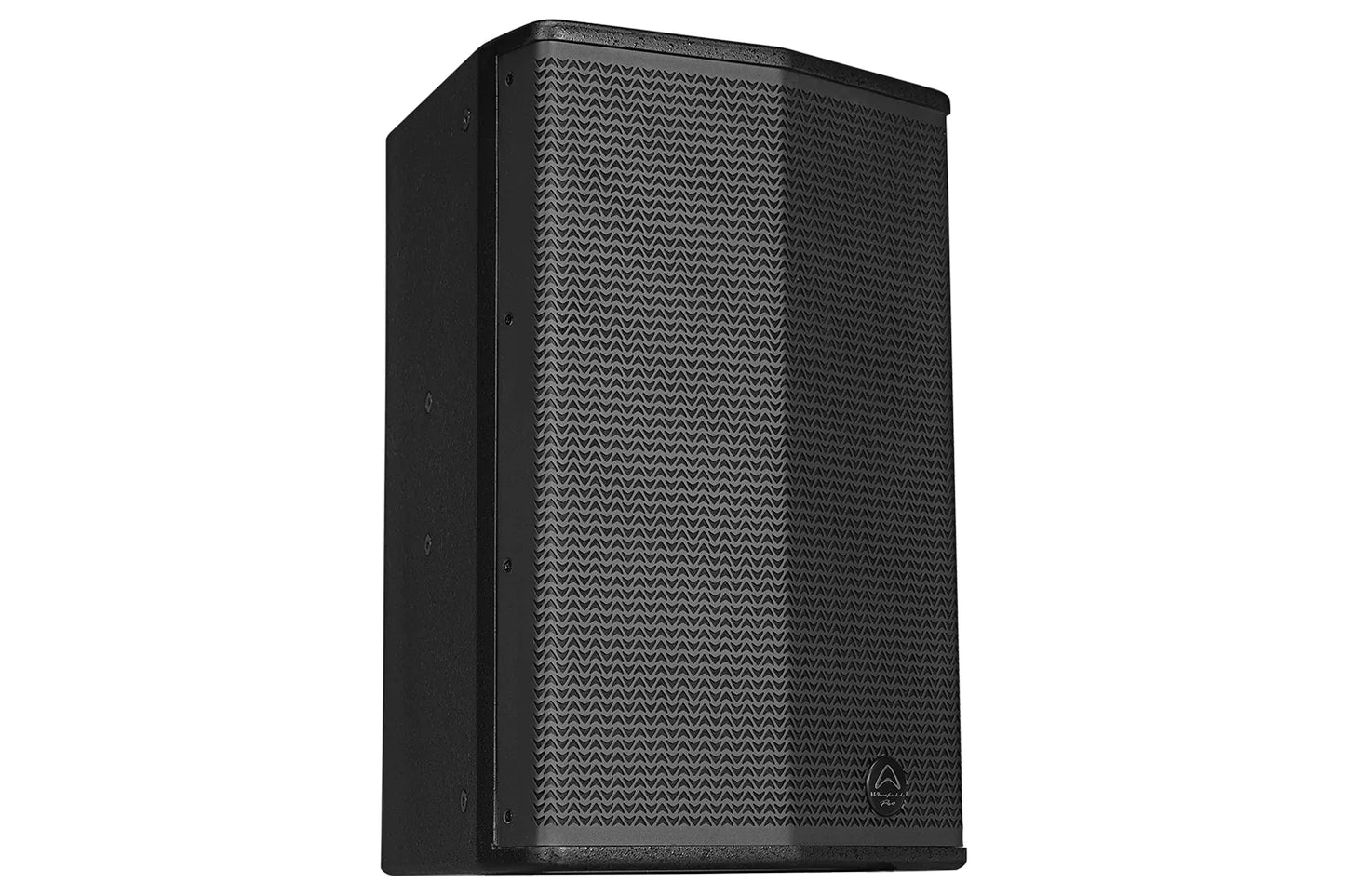

Wharfedale Sigma-X12 Installation Speakers

Regular price

SIGMA-X

EASY INSTALL

Newly designed cosmetics

  • Rotatable HF waveguides
  • Re-evaluated performance
  • Updated column models with HF drivers
  • Column models with mini EVO-Fold waveguides
  • 70 V / 100 V Hi-Z Column models
  • EASE gll files available for download
  • Supported with system diagrams
  • Supported with downloadable FIR presets
  • Easy fixings and brackets
  • Available in black or white durable paint finishes

SIGMA-X12

  • 300 W AES (Continuous)
  • 600 W Programme
  • 1200 W Peak
  • 129 dB Max SPL @ 1 m

COLUMNS WITH MINI EVO-FOLD

SIGMA-XV models feature the highly refined mini EVO-Fold waveguide along with HF compression drivers.  For the SIGMA-XV5 there is one, while the SIGMA-XV9 features two compression drivers, each with a mini EVO-Fold waveguide.

This mini EVO-Fold design provides consistent dispersion coverage on both the horizontal and vertical planes with the sound radiating from one, singular and coherent, source.

EASY INSTALL

Installations can be complicated enough, so we have made SIGMA-X series as easy as possible.

For the SIGMA-XV Column array, either use the included U bracket, or for even more adjustment, use the optional WPB-SV which gives up to 15° tilt and 180° of rotation.

SIGMA-X full range cabinet models all have 17 x M8 rigging points, PLUS 35 mm pole sockets. Fly or wall bracket! SIGMA-X8, X10, X12 and X15 can use the optional WPB-1 or WPB-2 wall brackets.

EASY CONNECTION

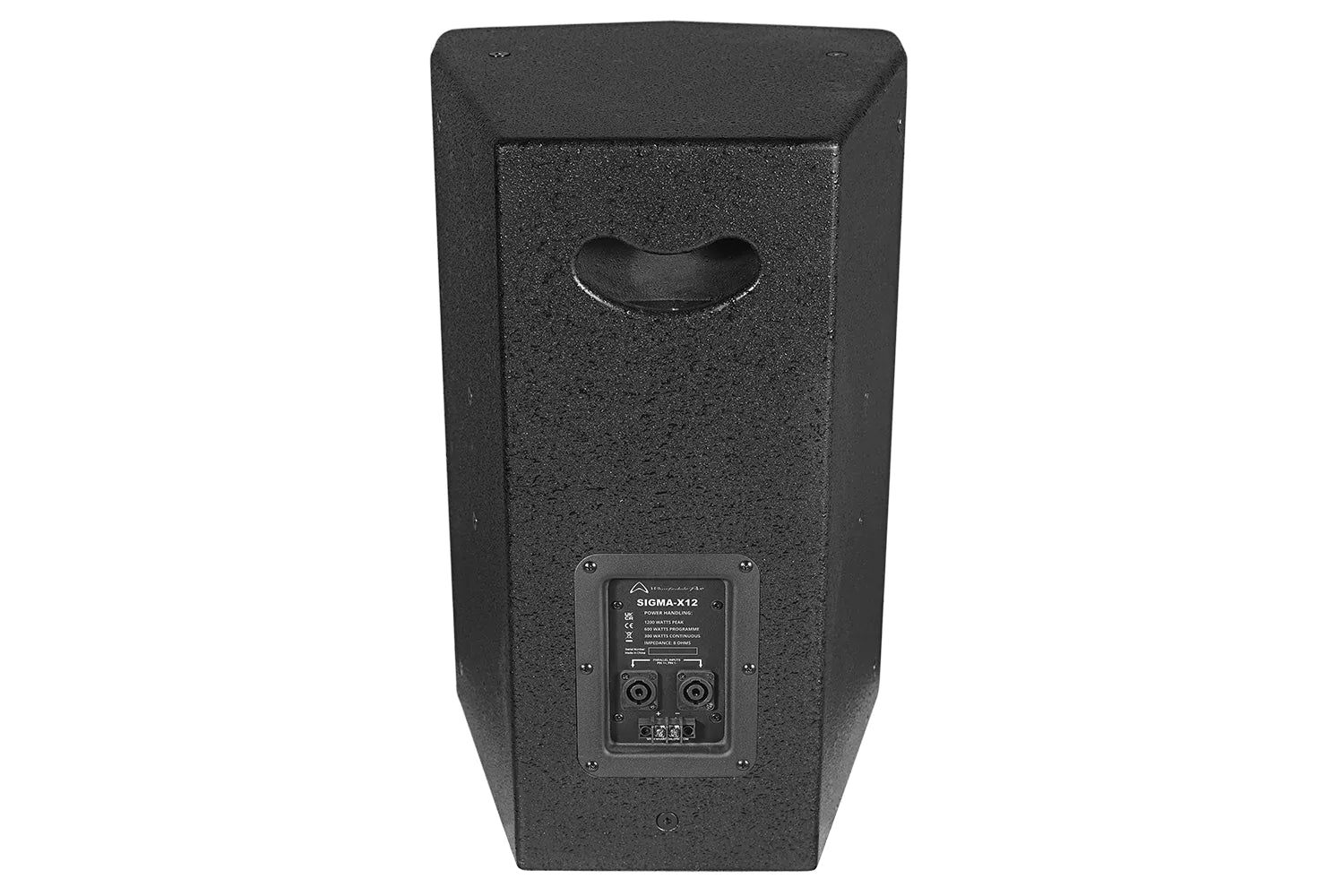

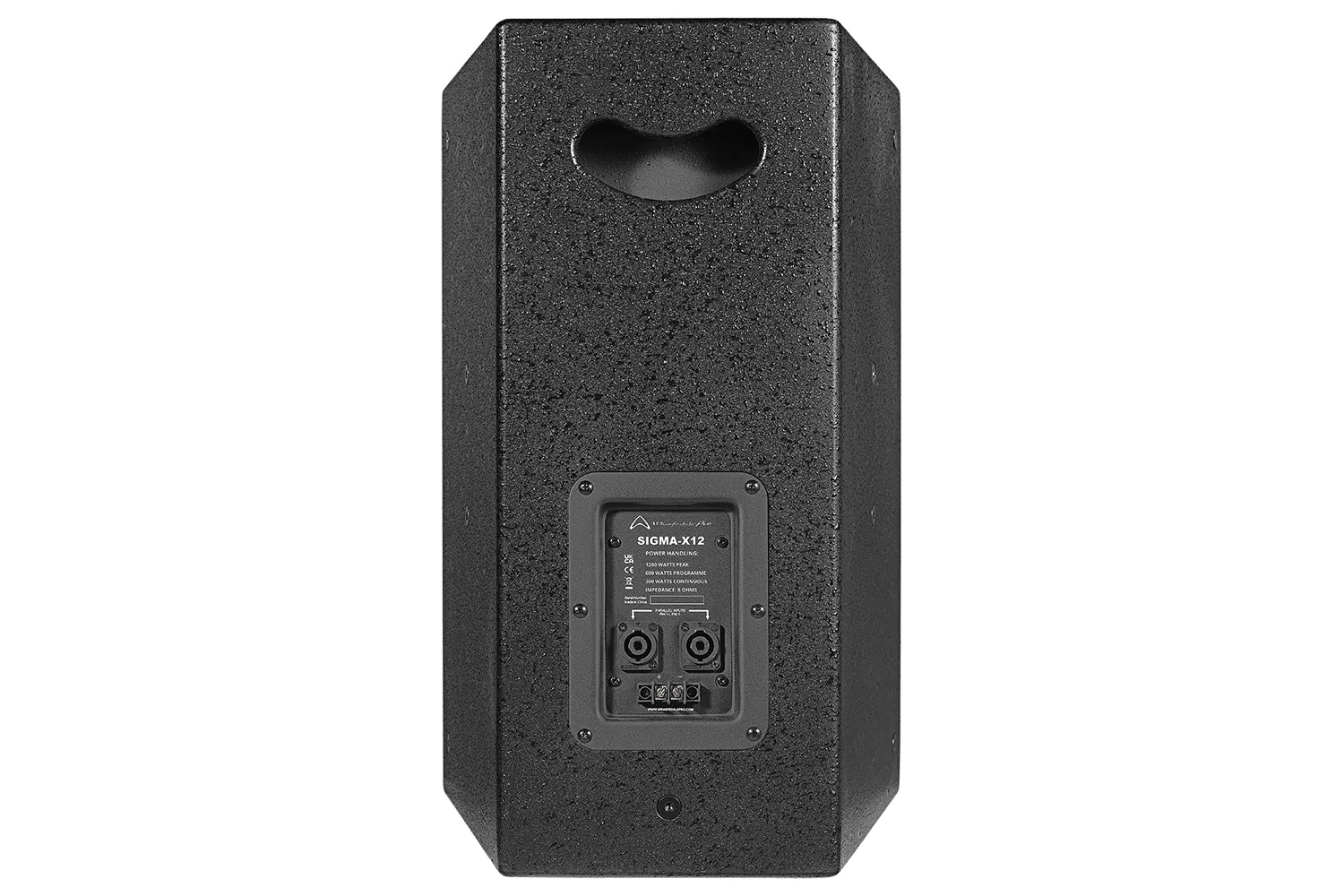

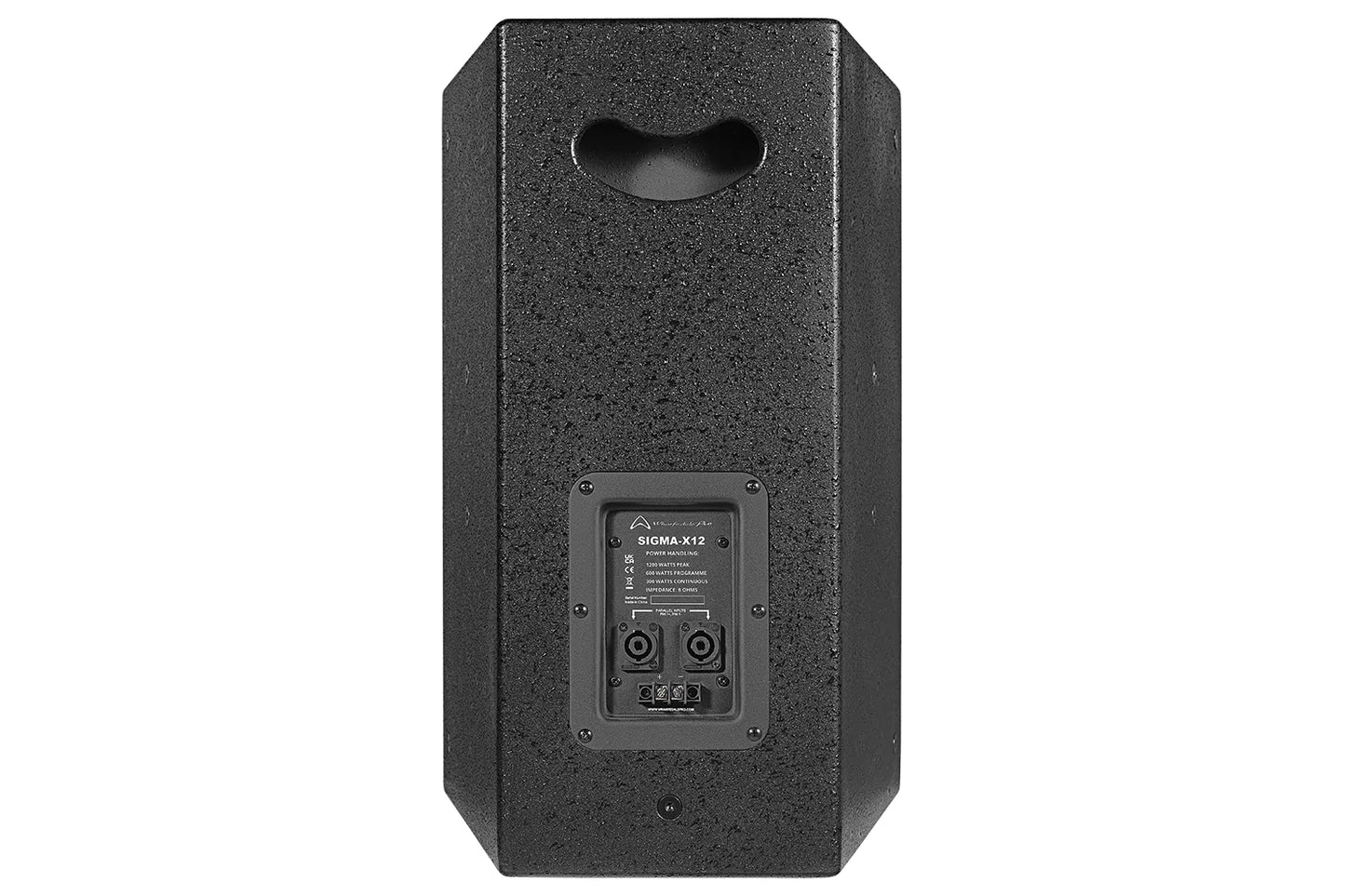

All SIGMA-X models (with the exception of the 70 V / 100 V T models) are equipped with both speakON compatible and barrier strip inputs.  It is another small step that makes the installation easy.

ROTATABLE WAVEGUIDES

SIGMA-X8, SIGMA-X10, SIGMA-X12 AND SIGMA-X15 feature a rotatable waveguide.

90° x 60° or 60° x 90°….you decide.

SUPPORT WITH EASE

All full range models in the SIGMA-X series are supported with EASE 3 .gll files.

SPECIFICATIONS

Model Name

SIGMA-X12

System Type

Passive

Configuration

Two-Way

Frequency Response (+/-3 dB)

60 Hz – 18 KHz

Frequency Range (-10 dB)

55 Hz – 20 KHz

Sensitivity 2.83 V / 1 m

98 dB

Calculated Maximum SPL @1 m

129 dB

System Rated Impedance

8 Ω

Low Frequency Transducer


Size (mm / inches)

305 mm / 12”

Voice Coil Size (mm / inches)

64 mm / 2.5”

Rated Impedance

8 Ω

LF Power re:AES2-2012

300 W

High Frequency Transducer


HF Driver Type

Compression Driver

Coil Size (mm / inches)

44 mm / 1.75”

Exit Size (mm / inches)

1″

Diaphragm Material

Titanium

Rated Impedance

8 Ω

HF Power re:AES2-2012

40 W

Waveguide Type

Constant Directivity /

Rotatable

Nominal Coverage (H x V)

90˚ x 60˚

LF Driver

1 x 12″

HF Driver

1 x 1.75″ Titanium Compression Driver

Power


System Continuous Power

300 W

System Programme Power

600 W

System Peak Power

1200 W

Crossover frequency

2.2 KHz

Input Connector

2 x speakON / 1x Barrier Strip

Hardware

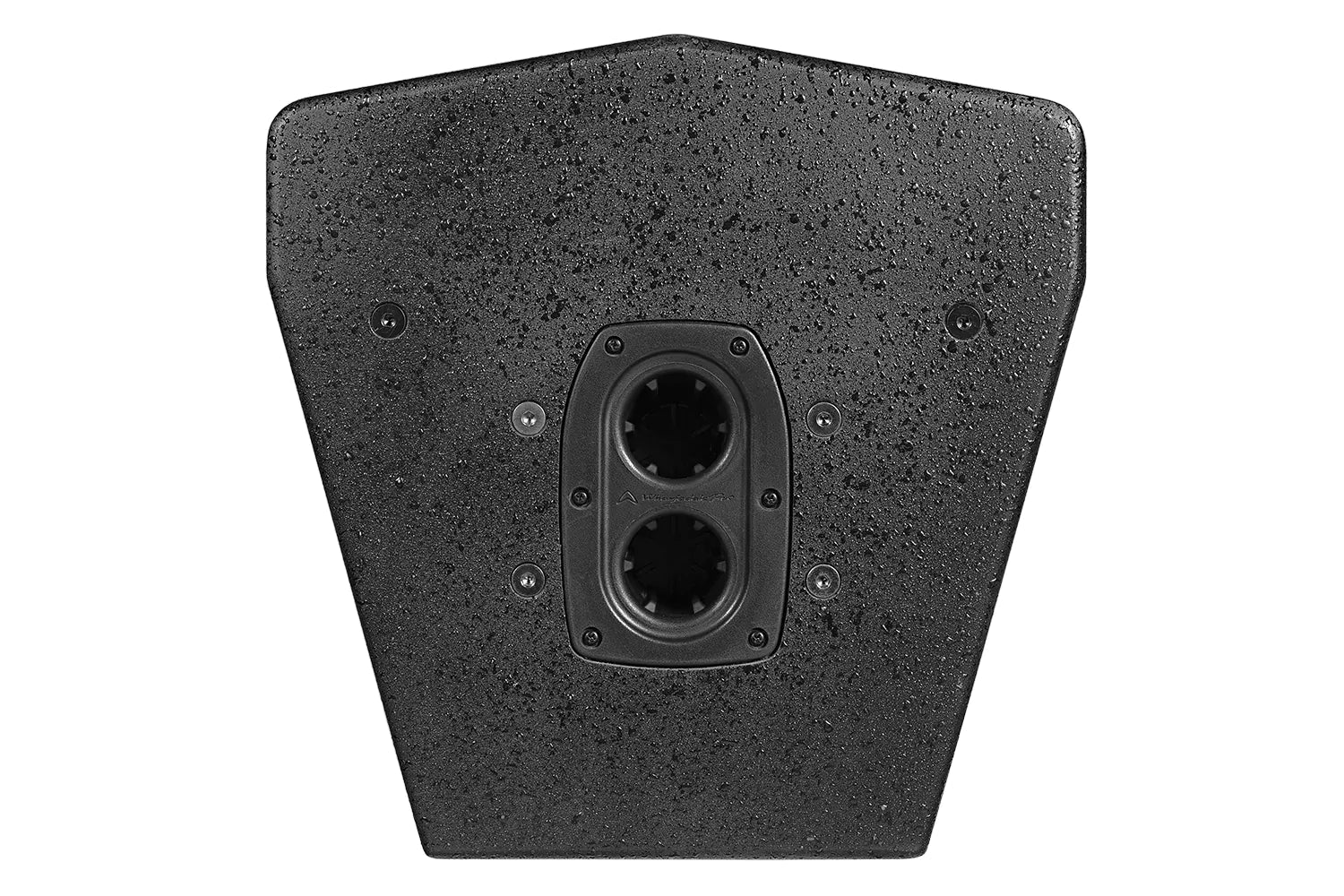

Dual-angle (0° / 10°) 35 mm socket


M8 x 17


1 handle on back

Enclosure


Enclosure Material

15 mm MDF

Finish

Black Paint / White Paint

Grille Material & Finish

1.2 mm steel, painted

Dimensions – Unpacked


Height

551 mm / 21.7″

Width Front

354 mm / 14″

Width Rear

218 mm / 8″

Depth

359 mm / 14″

Dimensions – Packed


Height

616 mm / 24.3″

Width Front

468 mm / 18.4″

Width Rear

260 mm / 10.2″

Depth

404 mm / 15.9″

Weight


Net Weight

19.1 kg / 42.02 lbs

Gross Weight

20.74 kg / 48.2 lbs

Optional Wall-mount bracket

WPB-1 / WPB-2
