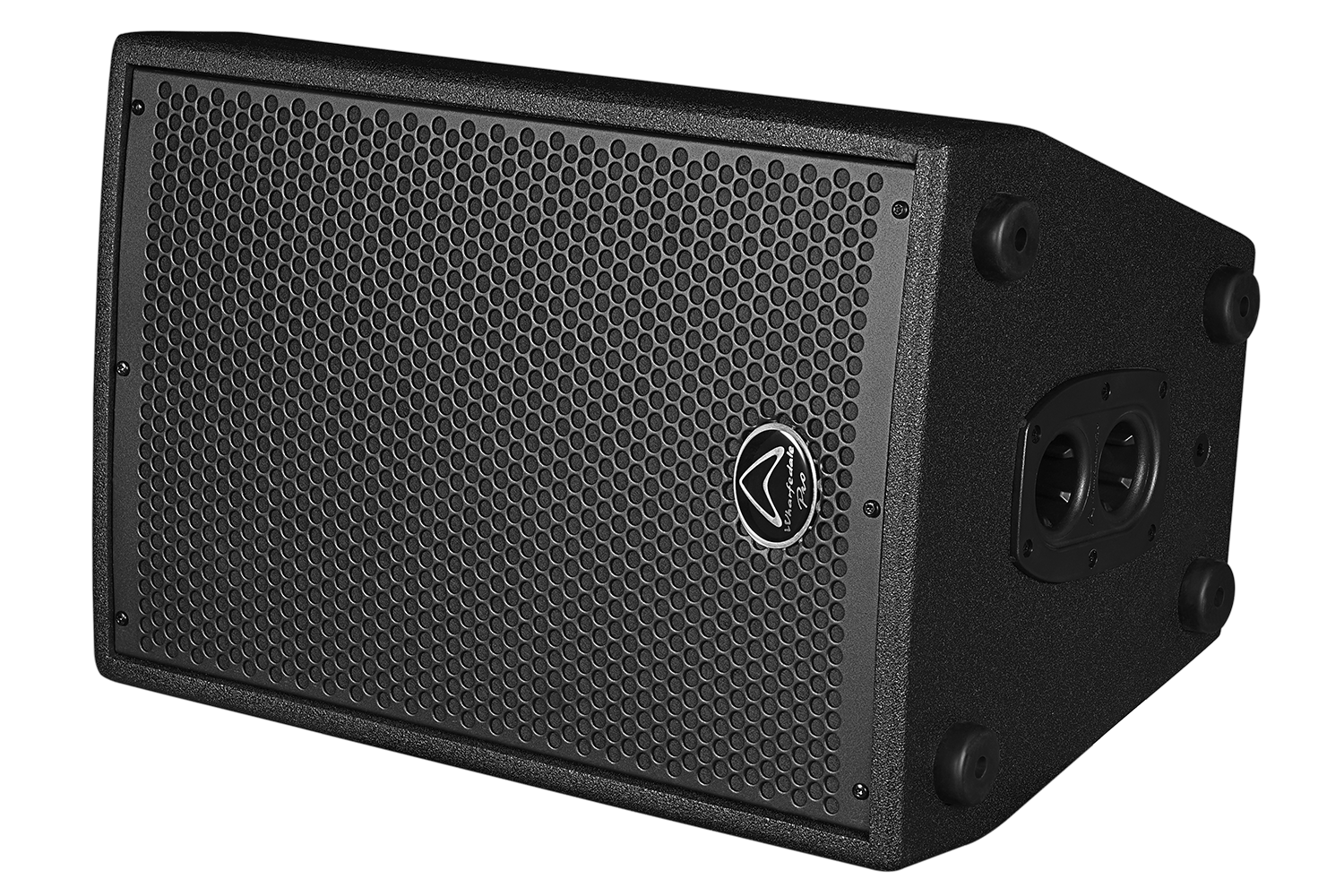

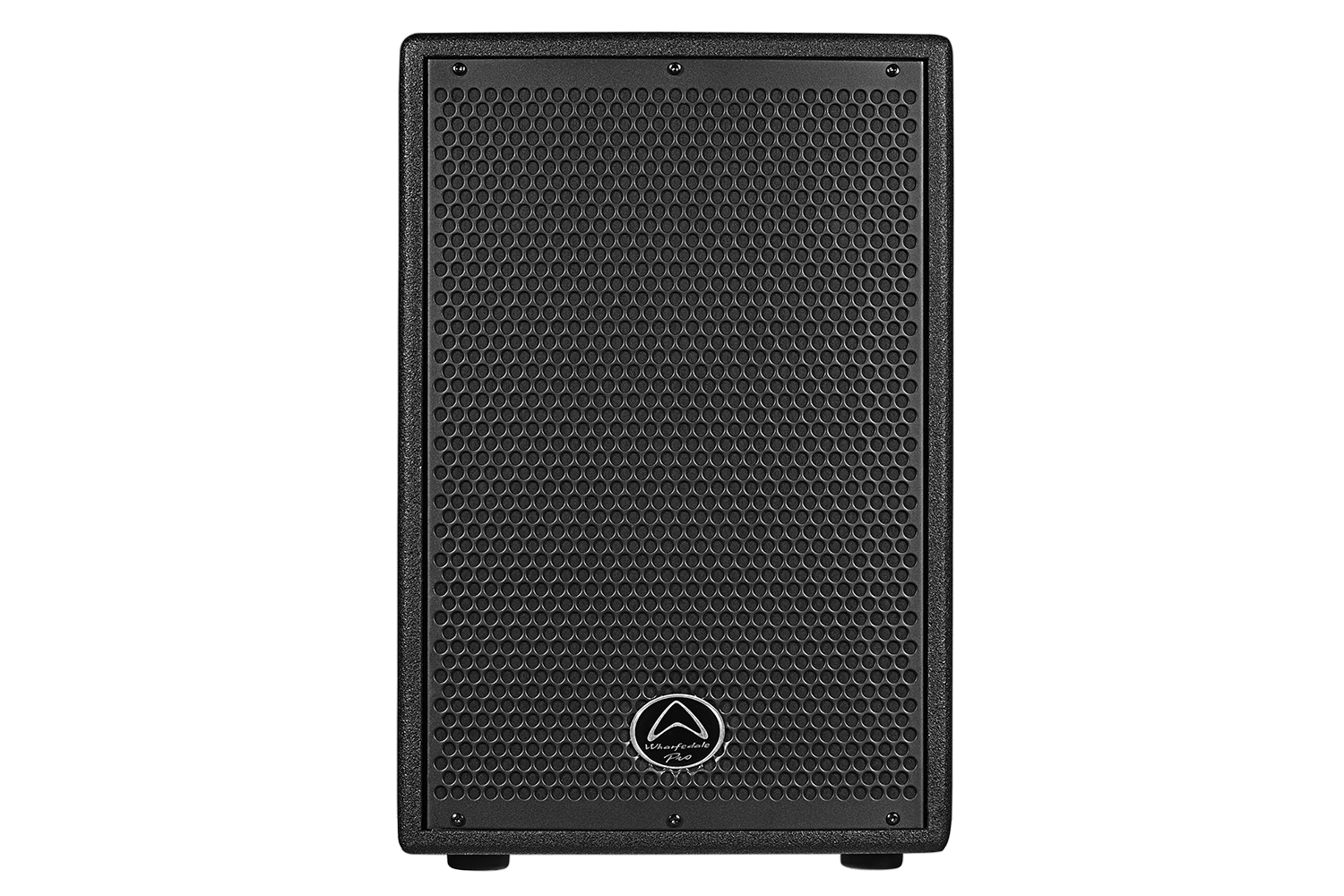

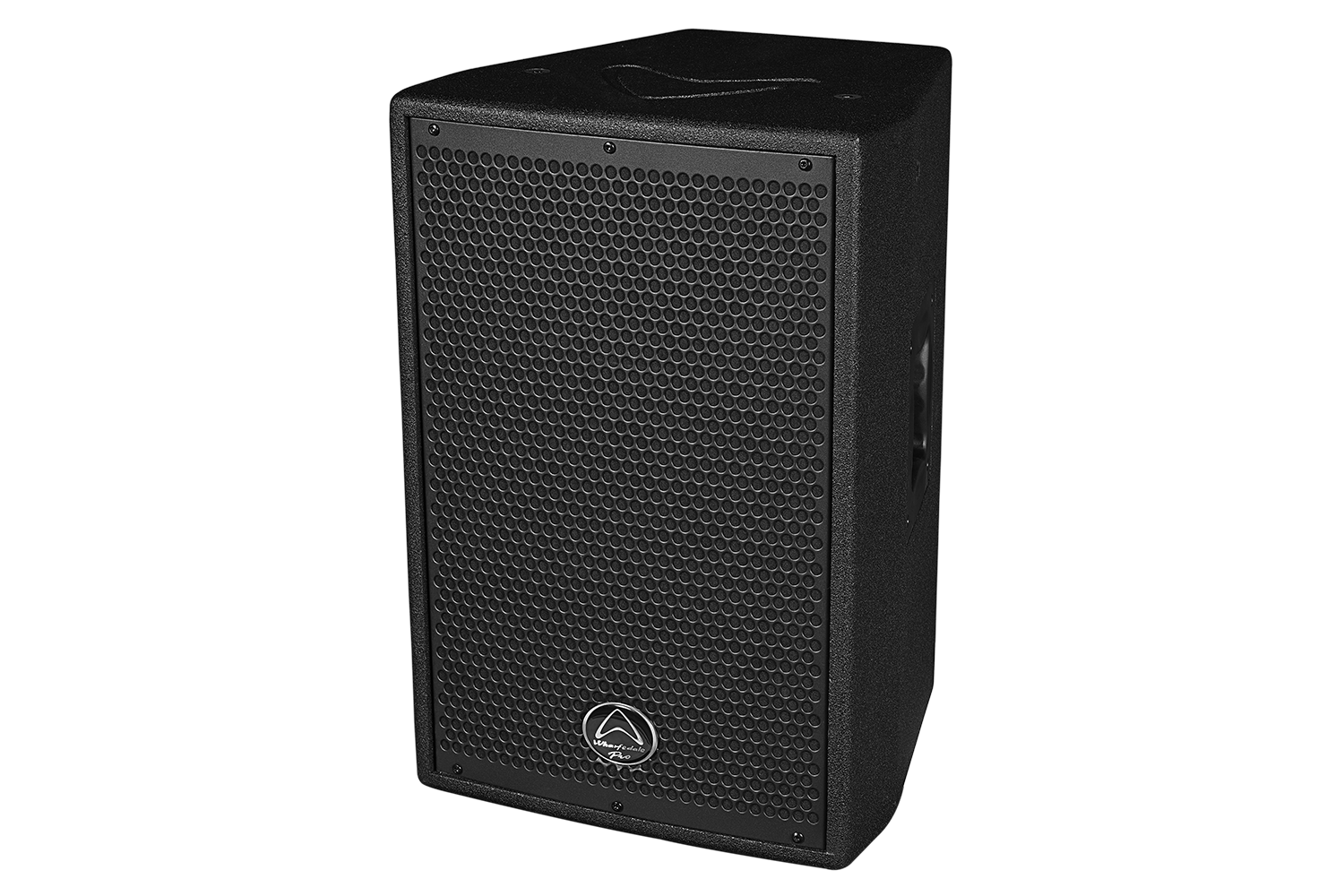

Wharfedale Pro Delta-X10 Passive Speaker

Regular price
  • Birch plywood construction
  • Re-engineered robust crossover design
  • Suitable for touring, rental and installation
  • 1.4″ Exit, 2″ Titanium Diaphragm Compression Drivers
  • Proprietary 90° x 60° Elliptical Wave Guide Horn design
  • Bi-amp and Passive mode switching
  • Extremely durable Rhino Rock finished cabinets
  • Multiple M6, M8 & M10 rigging points and integral tripod stand adapter
  • Trapezoid shape for arrays and stage monitoring
  • Dual spider technology on 18″ woofers
  • Rubberised 4-way handles
  • 10″ 2-way passive
  • 1.75″ voice coil HF driver
  • 2.5″ LF voice coil
  • 300 watts AES (RMS)
  • 600 watts Programme
  • 1200 watts Peak
  • 129 dB Max SPL @ 1 meter

BIRCH PLYWOOD

All Delta-X models use premium Baltic birch plywood construction.

Not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character.

Delta-X is also covered in our most durable and hard wearing Rhino Rock paint finish. This ensures that a Delta-X will always look as good as the day you unboxed it.

SOLID AS A ROCK

As with all Wharfedale Pro PA systems, years of expertise is behind a loudspeaker built to last, with thanks to our high standards of quality control.

The Delta-X series are coated in the highest quality Rhino Rock paint finish – a chip resistant texture with a professional, discrete aesthetic whilst being prepared for the rigours of life on the road.

ROUTED LOGO

Delta-X features a routed Wharfedale Pro logo.

It is a logo to be proud of. A logo that lets your audience know that the sound of your even will be of the highest possible quality.

NEW CROSSOVER DESIGN

Internally Delta-X models have a new crossover design and construction.

Using new component positioning and bracing, the sensitive crossover electronics have been re-engineered to improve long term performance and reliability – even at the highest of volumes.

BI-AMP & PASSIVE MODES

In BI-AMP mode, two power amplifiers can be used. This gives you the advantage of being able to select the best power amplifier specifications for each driver inside the loudspeaker. In a BI-AMP configuration, an external crossover is used to separate the frequencies and this splits the signal to the dedicated LF amplifier and the HF amplifier. This way, each amplifier is only working on the given frequency range and, in turn, is powering the corresponding driver inside the loudspeaker.

In PASSIVE mode, a single amplifier can be used to power all drivers inside the loudspeaker. The full frequency range is put into the loudspeaker and the loudspeakers’ internal crossover separates the frequencies, delivering the right frequencies to the right driver. In the example of a 2-way passive loudspeaker, this means that the single amplifier is powering both the HF compression driver and the LF transducer. The internal crossover takes care of both the frequency and power separation.





Model Name

Delta X10

System Type

Passive

Configuration

Two-way

Frequency Response (+/-3 dB)

65 Hz-20 KHz

Frequency Range (-10 dB)

60 Hz-20 KHz

Sensitivity (2.83 v / 1 m)

97 dB

Calculated Maximum SPL @1 m

128 dB

System Rated Impedance

8 Ω

Low Frequency Transducer


Size

288 mm / 10″

Voice Coil Size

63.5 mm / 2.5″

Rated Impedance

8 Ω

LF Power (re:AES2-2012)

300 w

High Frequency Transducer


HF Driver Type

Compression Driver

Voice Coil Size

44.5 mm / 1.75″ Titanium

Exit Size

25.4 mm / 1″

Diaphragm Material

Titanium

Rated Impedance

8 Ω

HF Power (re:AES2-2012)

40 w

Nominal Coverage (H x V)

90⁰ x 60⁰

Power


System Continuous Power

300 w

System Programme Power

600 w

System Peak Power

1200 w

Crossover frequency

2.8 KHz

Input Connector

2 x NL4 (speakON Compatible)

Hardware


Pole Mount

Dual Angle (0⁰/10⁰) 35 mm

Handles

2 on Sides

Enclosure


Enclosure Material

15 mm Plywood

Finish

Rhino Rock

Grille Material & Finish

1.5 mm Steel Black or White

Dimensions – Unpacked


Height

500 mm / 19.7”

Width Front

338 mm / 13.3”

Width Rear

212.4 mm / 8.4”

Depth

330 mm / 13”

Dimensions – Packed


Height

575 mm / 22.6″

Width Front

400 mm / 15.7″

Width Rear

300 mm / 11.8″

Depth

386 mm / 15.2″

Weight


Net Weight (kg / lbs)

16.58 kg / 36.5 lbs

Gross Weight (kg / lbs)

19.6 kg / 43.0 lbs
