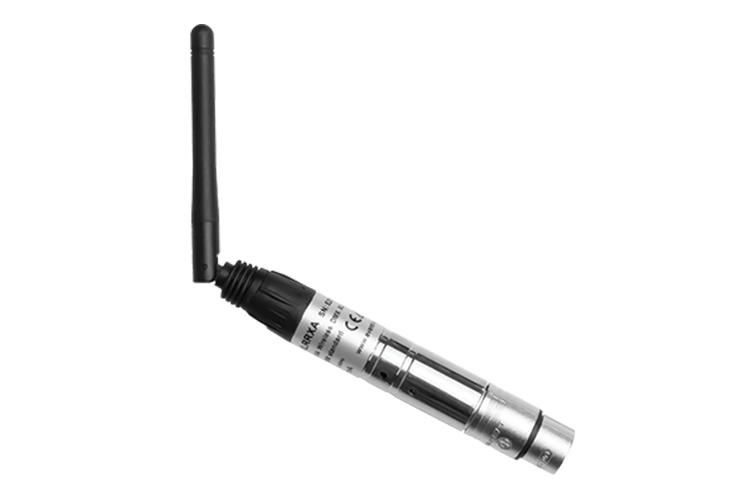

WDMX5XLRRXA - Wireless DMX 5-pin XLR plug receiver 2.4Ghz W DMX protocol

This product has been discontinued.

See updated model - CRMX5XLRRXA

Wireless DMX is the ideal solution for fast setups, temporary installations, touring and production duties or places where you are physically unable to run DMX cables. WDMXXLRRXA operates as a receiver to communicate WDMX signals.

Specifications：

• Maximum Transmission power: 102dBm
• Receiver Sensitivity: -94dBm

• Band: 2.402Ghz – 2.480Ghz, ISM, 79 channels
• Spread Spectrum: FHSS, 1100 hops/s
• Modulation GFSK
• ARM processor: 32-bit
• 5-pin Female XLR
• Channel Groups: 6 in ELDMX mode
• Protocols: ELDMX, WDMX, GZ
• Automatic Reboot Trigger: Built-in WDT (watchdog timer)

Dimensions

• Size:125x18x18mm
• Weight: 110 g

Environmental Limits

• Operating Temperature: -40 ~ 85 °C
• Storage Temperature: -65 ~ 150 °C
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Power Requirements

• Power supply: 5VDC

Warranty: 3 years
