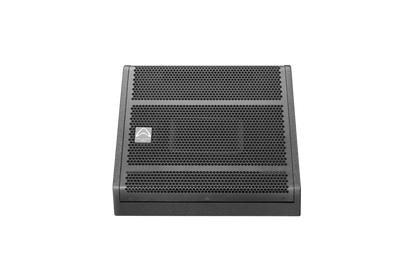

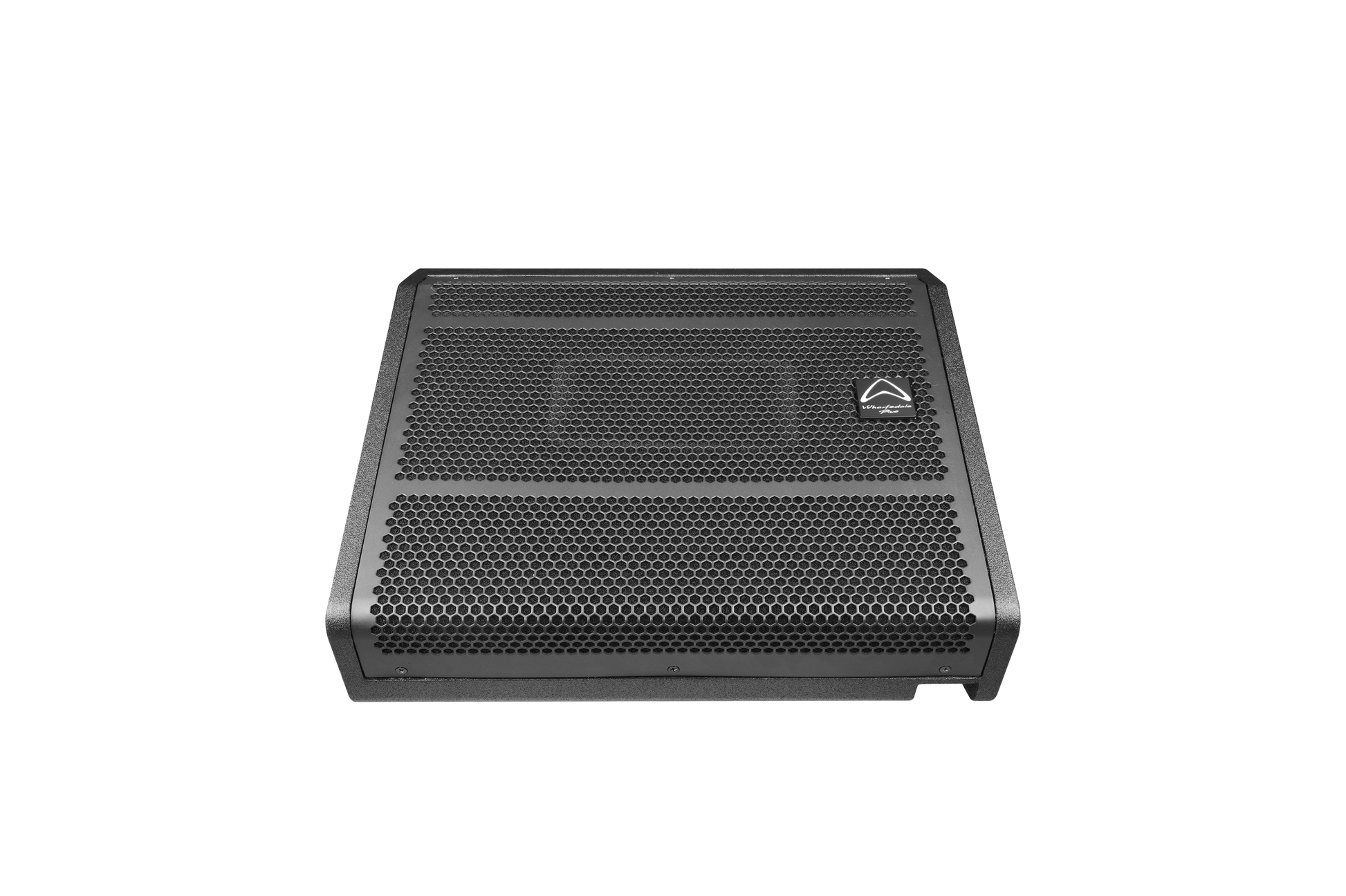

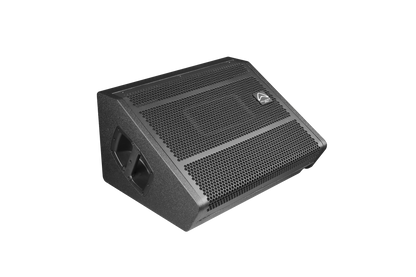

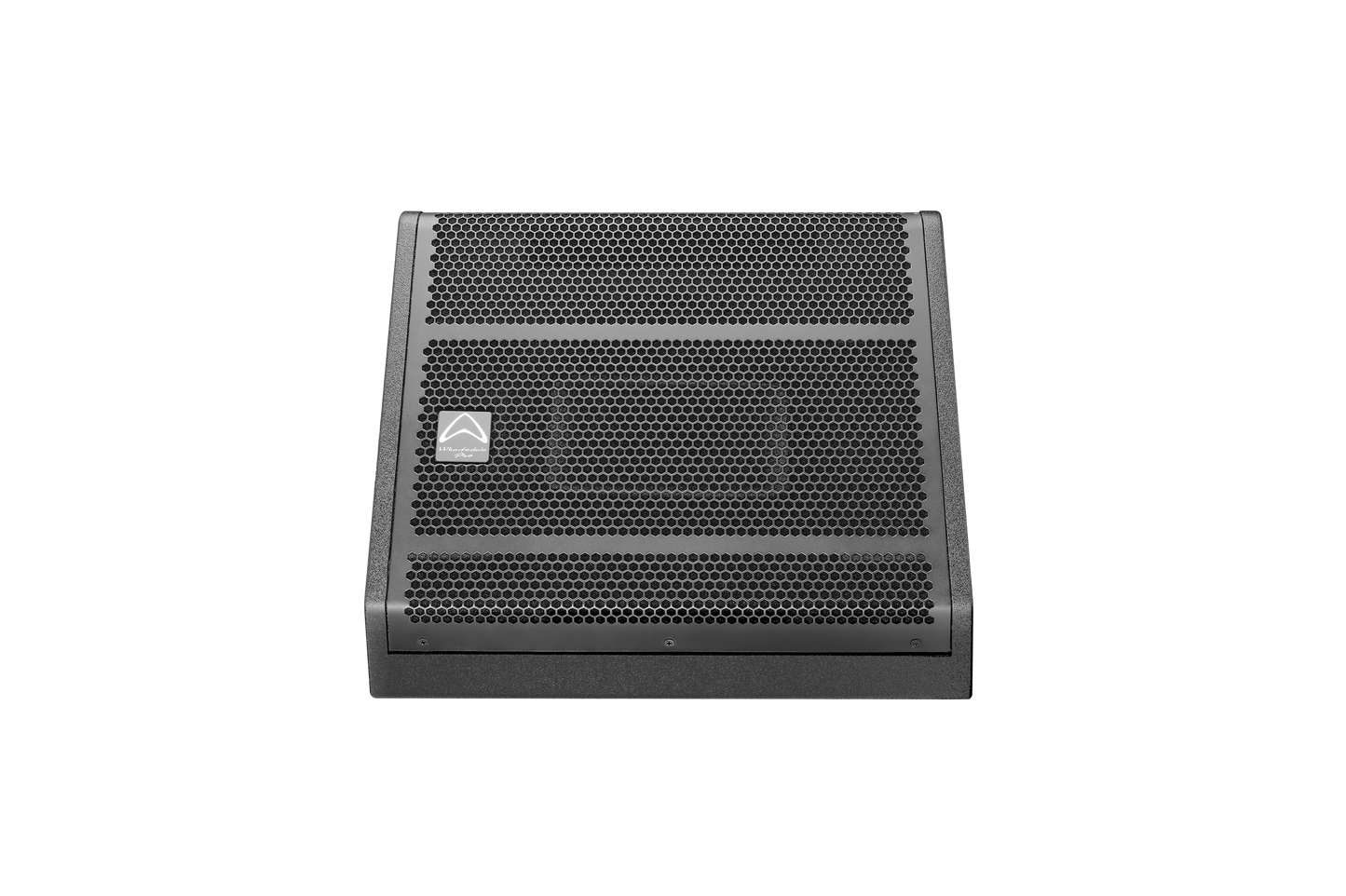

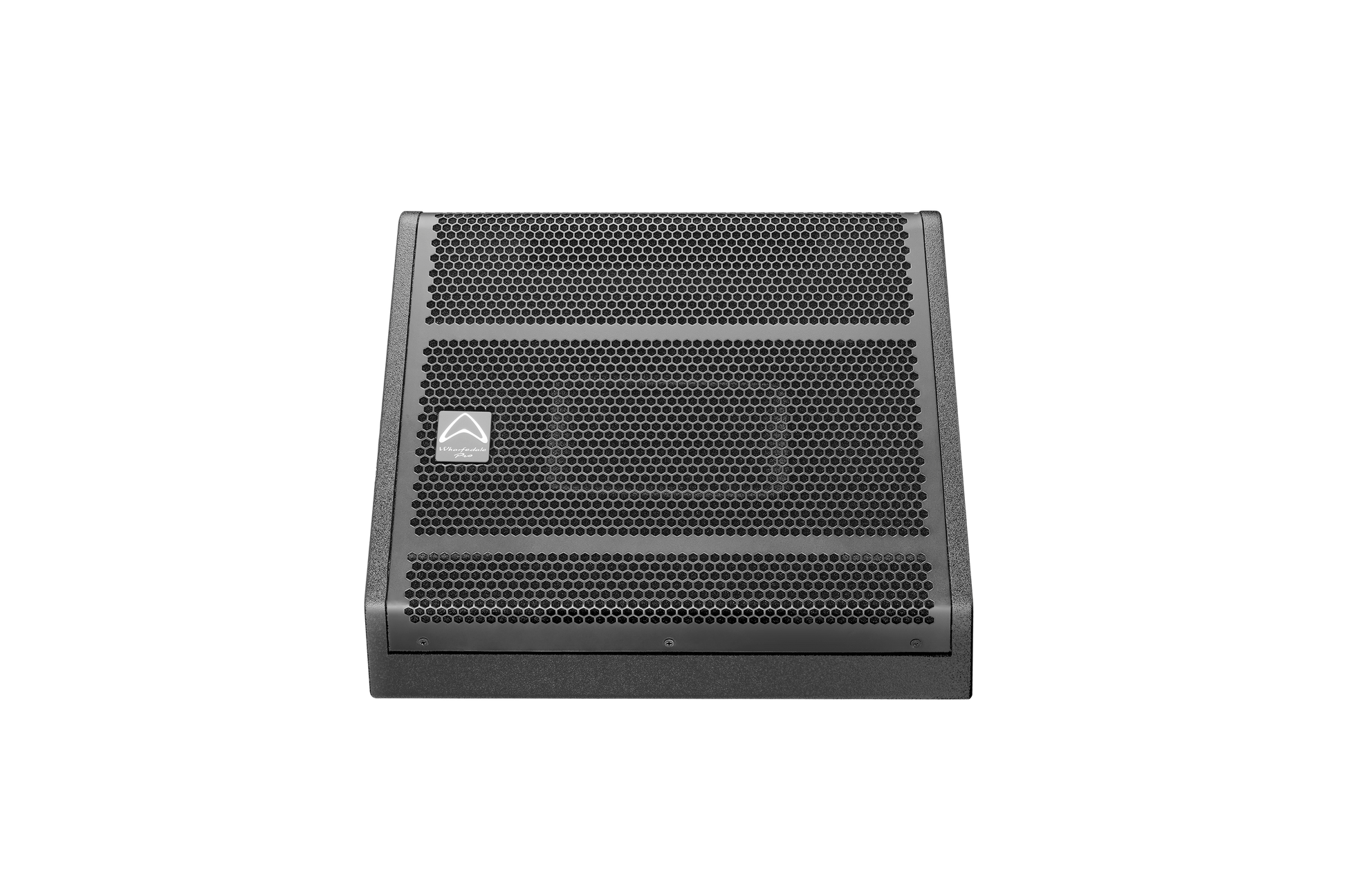

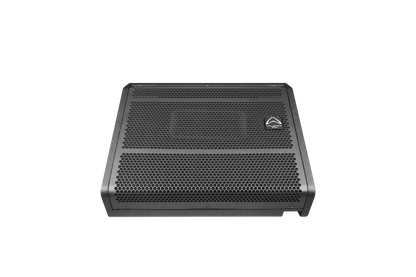

Wharfedale Pro WDG-X12 - Passive 12" Coaxial Wedge Monitor
Wharfedale Pro WDG-X12 - Passive 12" Coaxial Wedge Monitor
WDG-X Series
The Professional Choice for Stage Monitoring
The WDG-X series re-defines the traditional floor monitor by incorporating premium Beyma coaxial drivers. Engineered for high-performance stage applications, the WDG-X12 offers superior clarity, increased power handling, and a refined rotatable waveguide.

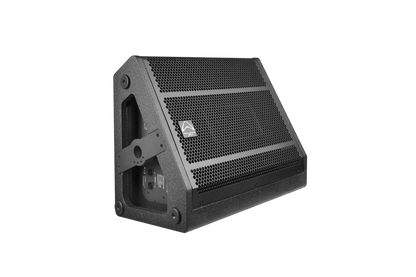

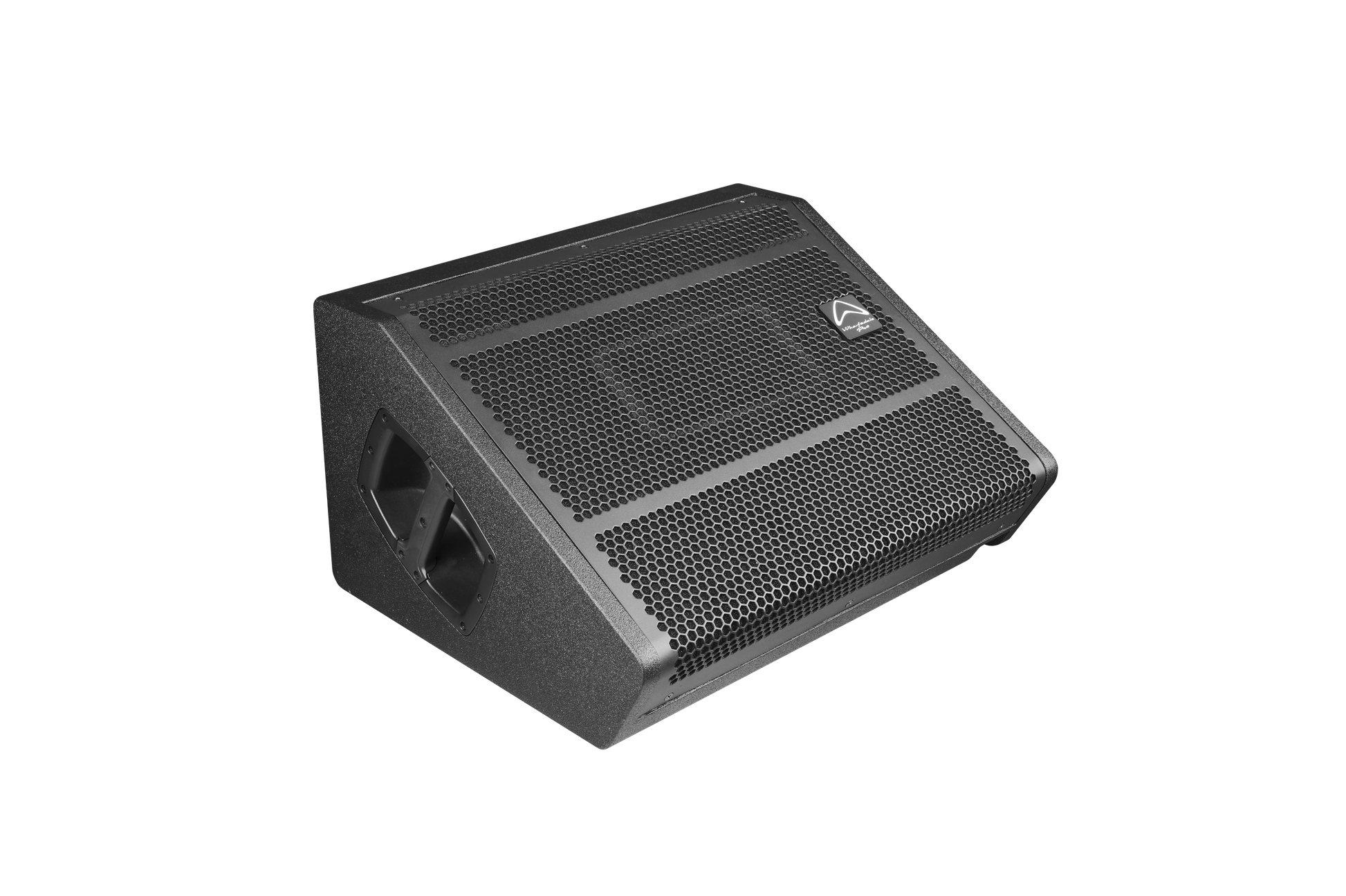

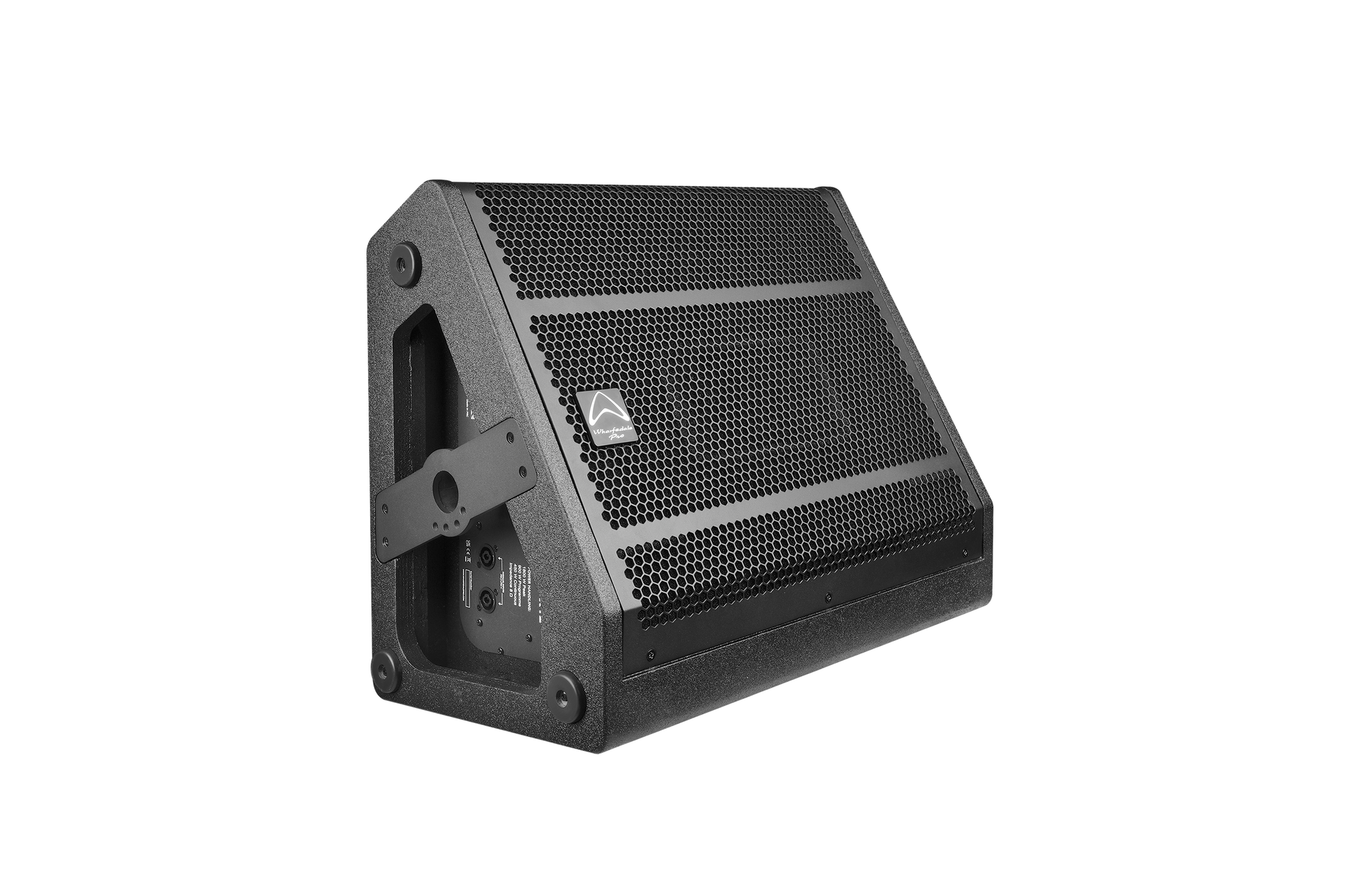

The WDG-X12 features a 12” Beyma coaxial driver and a rotatable constant directivity waveguide delivering 80° x 40° coverage. The cabinet design remains versatile, allowing for deployment at 25° for far-field or 60° for near-field applications. It also includes a 35mm pole socket and is compatible with optional WPB-7 or U-brackets for wall mounting.
Built for the road, the WDG-X12 is housed in a 15mm Birch Plywood enclosure finished in durable Tough-Tone paint.
FEATURES
- Premium Beyma Coaxial Design
- Improved Power: 450 W Continuous / 1800 W Peak
- Rotatable 80° x 40° Constant Directivity Waveguide
- Versatile deployment: 25° or 60° monitor angles

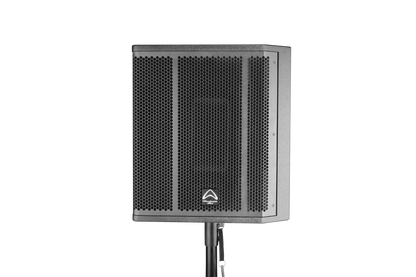

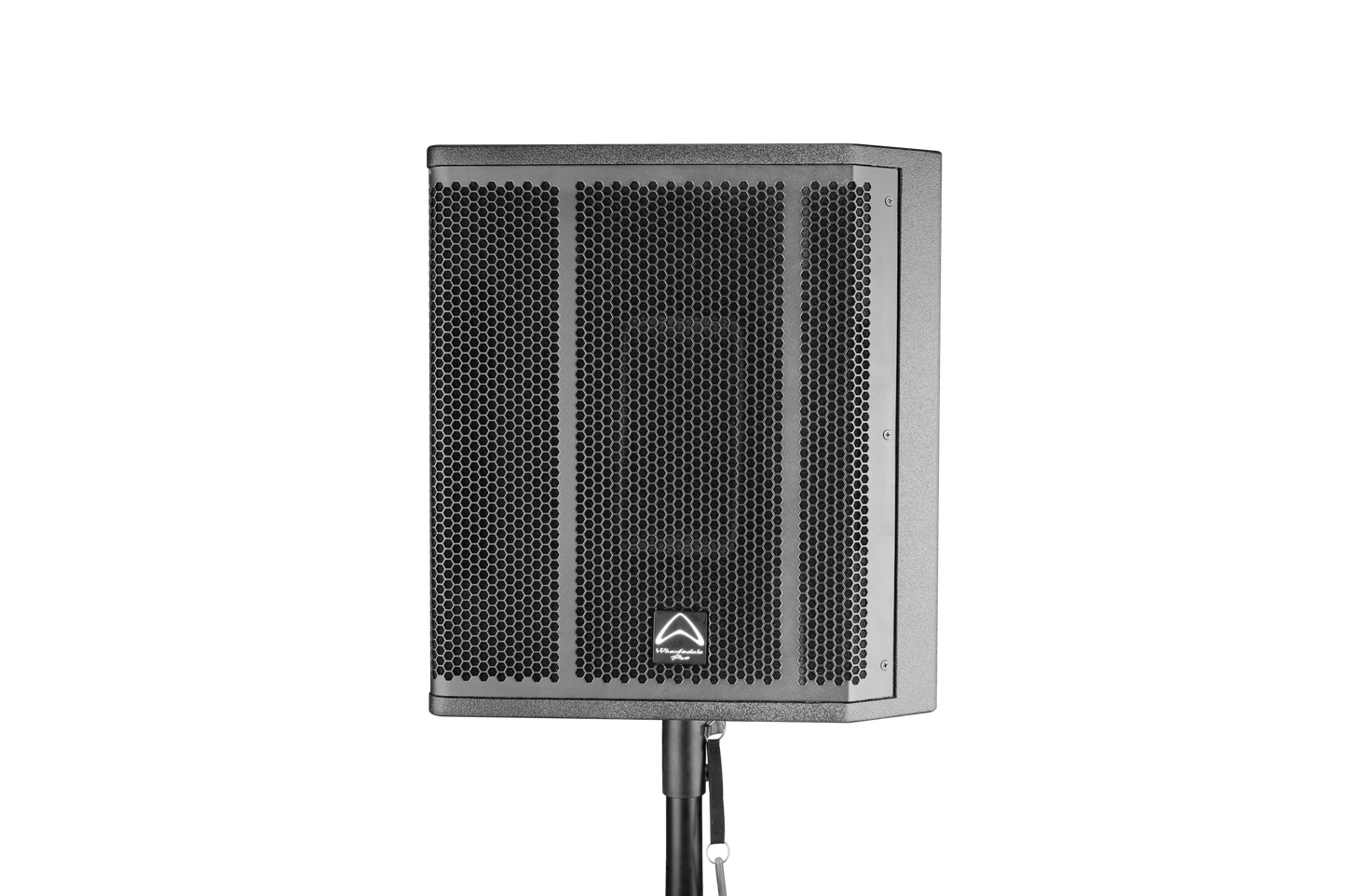

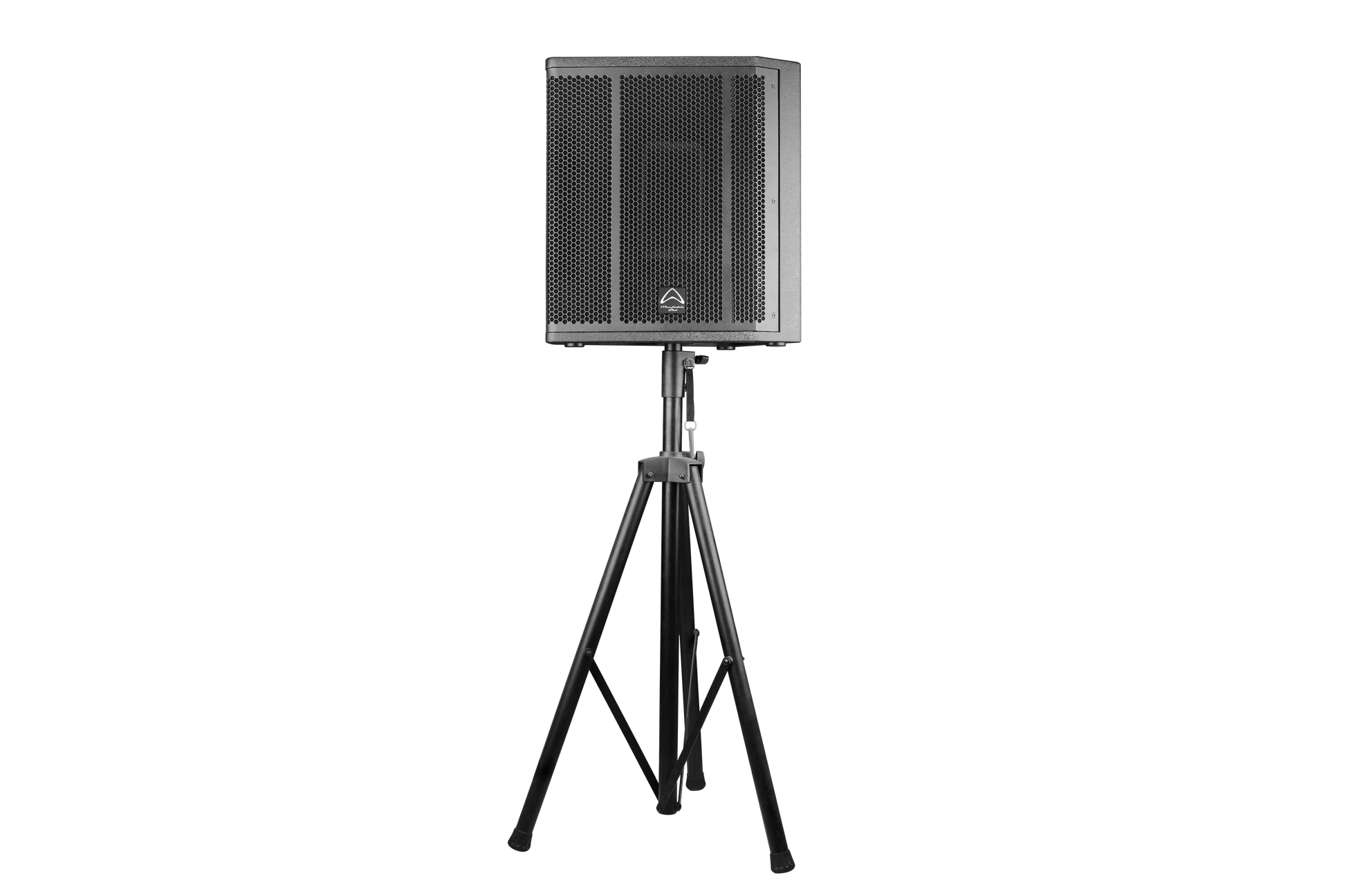

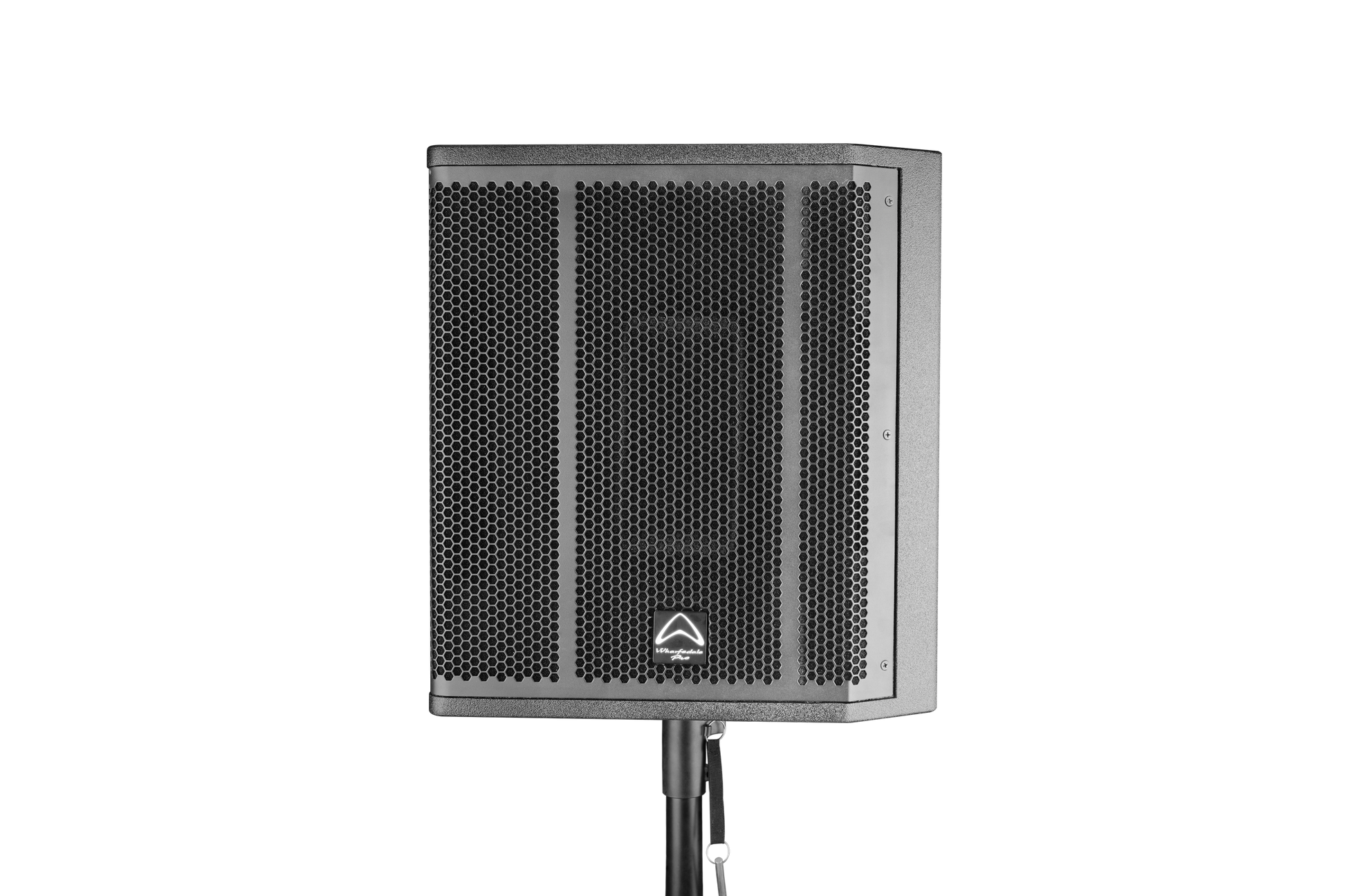

- 35mm Pole mount for FOH use
- Durable 15mm Birch Plywood construction with Tough-Tone finish
VERSATILE DESIGN
PRODUCT DIMENSIONS
SPECIFICATIONS
Model Name |
WDG-X12 |
|
System Type |
12” Coaxial Passive Floor Monitor |
|
Configuration |
Coaxial 2-way |
|
Frequency Response (+/-3 dB) |
55 Hz - 20 kHz |
|
Frequency Range (-10 dB) |
35 Hz - 25 kHz |
|
Sensitivity (2.83 v / 1 m) |
98 dB |
|
Calculated Maximum SPL @1 m |
131 dB |
|
System Peak SPL |
133 dB* |
|
System Rated Impedance |
8 Ω |
|
* level at 1m using pink noise with crest factor 4, with dedicated preset |
|
Drivers |
|
|
LF Size |
304.8mm / 12” |
|
LF Voice Coil Size |
101.6mm / 4.0” |
|
LF Frame Material |
Aluminium |
|
HF Driver Type |
Compression Driver |
|
HF Voice Coil Size |
72.2mm / 2.87” |
|
HF Exit Size |
38.1mm / 1.5” |
|
Diaphragm Material |
Titanium |
|
Waveguide Type |
Spherical |
|
Nominal Coverage (H x V) |
80° x 40° (Rotatable) |
|
Driver Brand |
Beyma |
Power |
|
|
System Continuous Power |
450 W |
|
System Programme Power |
900 W |
|
System Peak Power |
1800 W |
|
Crossover frequency |
1.2 kHz |
|
Recommended HPF = BW 18dB/oct. |
35 Hz |
Construction |
|
|
Input Connector |
2 x speakON in/out |
|
Rigging & Hardware |
35mm Pole Mount 4 x M8 Threaded points |
|
Vertical Splay Angle Range |
N/A |
|
Handles |
1 on top |
|
Enclosure |
Polygonal shape |
|
Enclosure Material |
15 mm Birch Plywood |
|
Finish |
Tough-Tone Finish |
|
Colour |
Black |
|
Grille Material & Finish |
Powder coated steel |
|
Monitor Angle (degrees) |
60° - 25° |
Dimensions – (Unpacked) |
|
|
Height |
310mm / 12.2” |
|
Width |
540 mm / 21.3” |
|
Depth |
471.7 mm / 18.6” |
Dimensions – (Packed) |
|
|
Height |
635 mm / 24.9” |
|
Width |
560 mm / 22.1” |
|
Depth |
398 mm / 15.7” |
Weight |
|
|
Net Weight (kg / lbs) |
25.1 kg / 55.2 lbs |
|
Gross Weight (kg / lbs) |
28.1 kg / 61.8 lbs |
