Wharfedale Pro WDG-AX12 - Active 12" Coaxial Wedge Monitor
Wharfedale Pro WDG-AX12 - Active 12" Coaxial Wedge Monitor

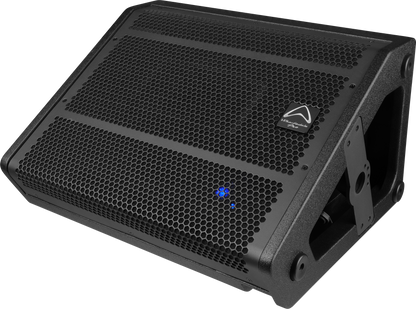

WDG-AX Series
Professional Active Coaxial Monitoring
The WDG-AX series re-defines the traditional floor monitor by combining premium Beyma coaxial drivers with high-efficiency Class D amplification. Engineered for demanding stage environments, the WDG-AX12 offers superior clarity, low-latency DSP, and a refined rotatable waveguide.

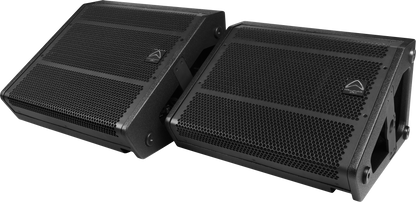

The WDG-AX12 features a 12” Beyma coaxial driver and a rotatable constant directivity waveguide delivering 80° x 40° coverage. The cabinet design remains versatile, allowing for deployment at 25° for far-field or 60° for near-field applications.
Advanced Control & Connectivity The active models feature 8 built-in DSP presets (including FIR filters) for instant optimisation. For advanced users, the system is fully controllable via the RS485 protocol using Wharfedale Pro PRO=LINK software. It also includes a practical HF Output EQ knob for real-time tweaks on stage.
Built for the road, the WDG-AX12 is housed in a 15mm Birch Plywood enclosure finished in durable Black Tough-Tone paint.
FEATURES
- Premium Beyma Coaxial Design
- Internal Class D Amplification: 600 W Continuous / 1200 W Peak
- 8 x DSP Presets including FIR filters
- RS485 PRO=LINK software control
- Rotatable 80° x 40° Constant Directivity Waveguide
- Versatile deployment: 25° or 60° monitor angles
- 35mm Pole mount for FOH use
- Durable 15mm Birch Plywood with Tough-Tone finish

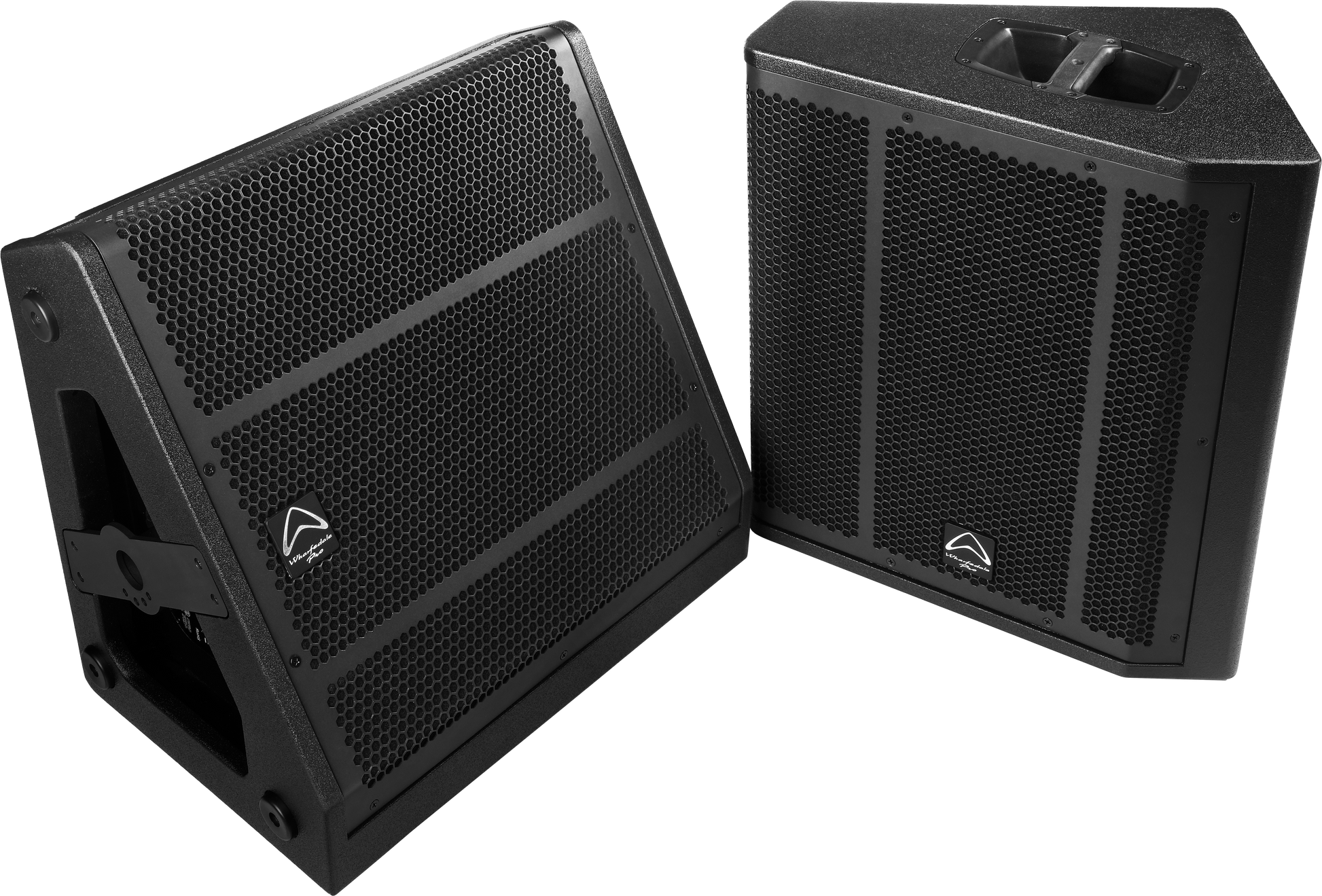

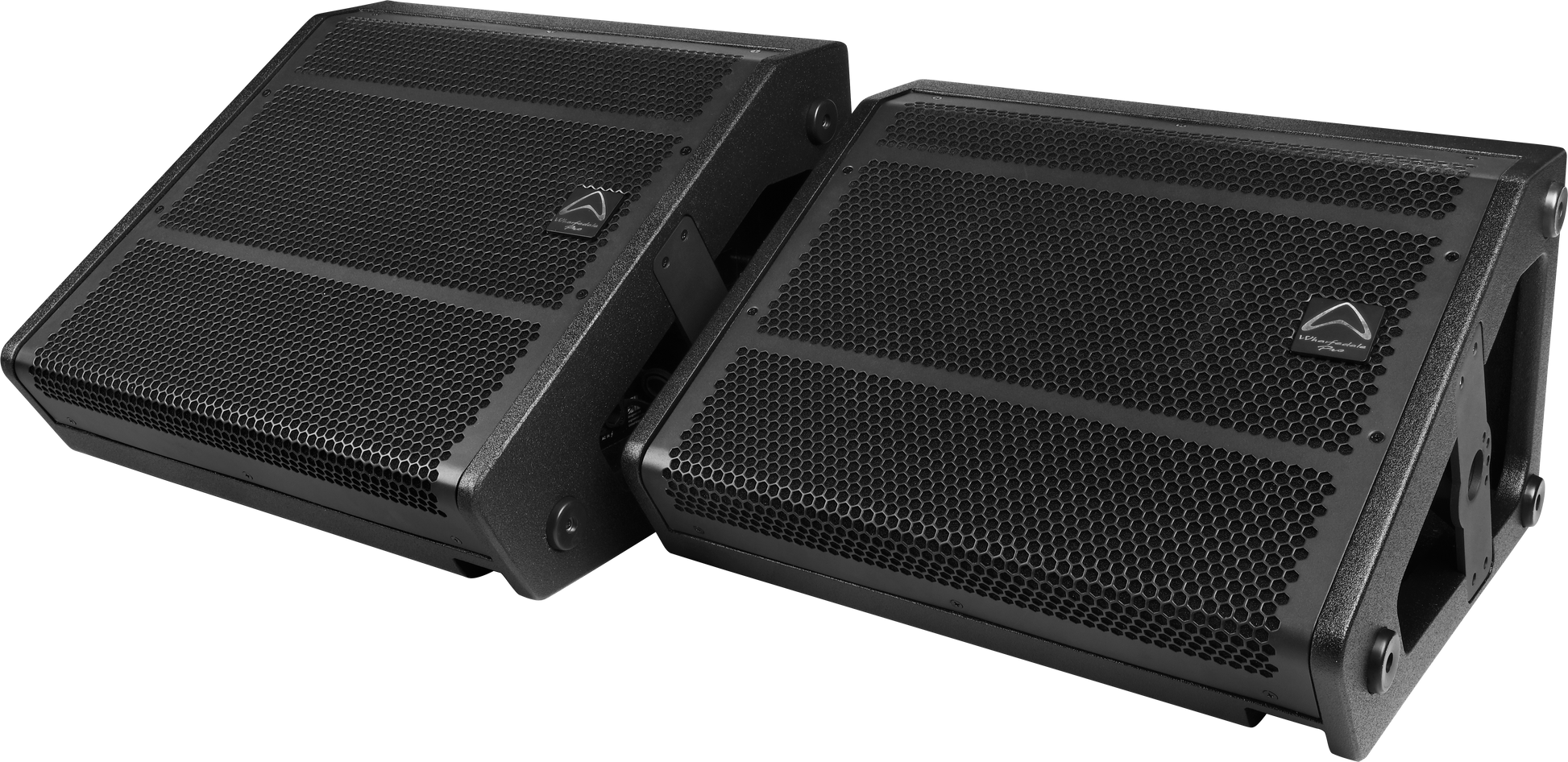

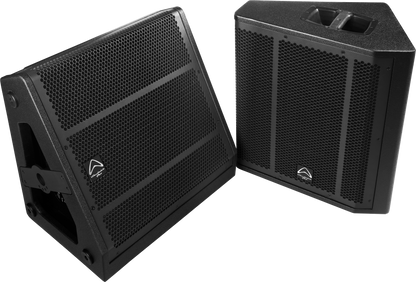

VERSATILE DESIGN
![]()

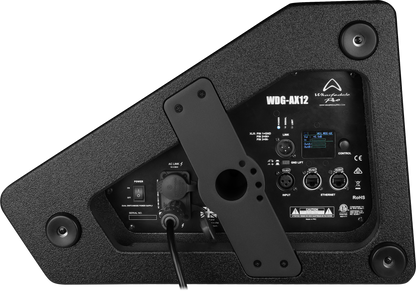

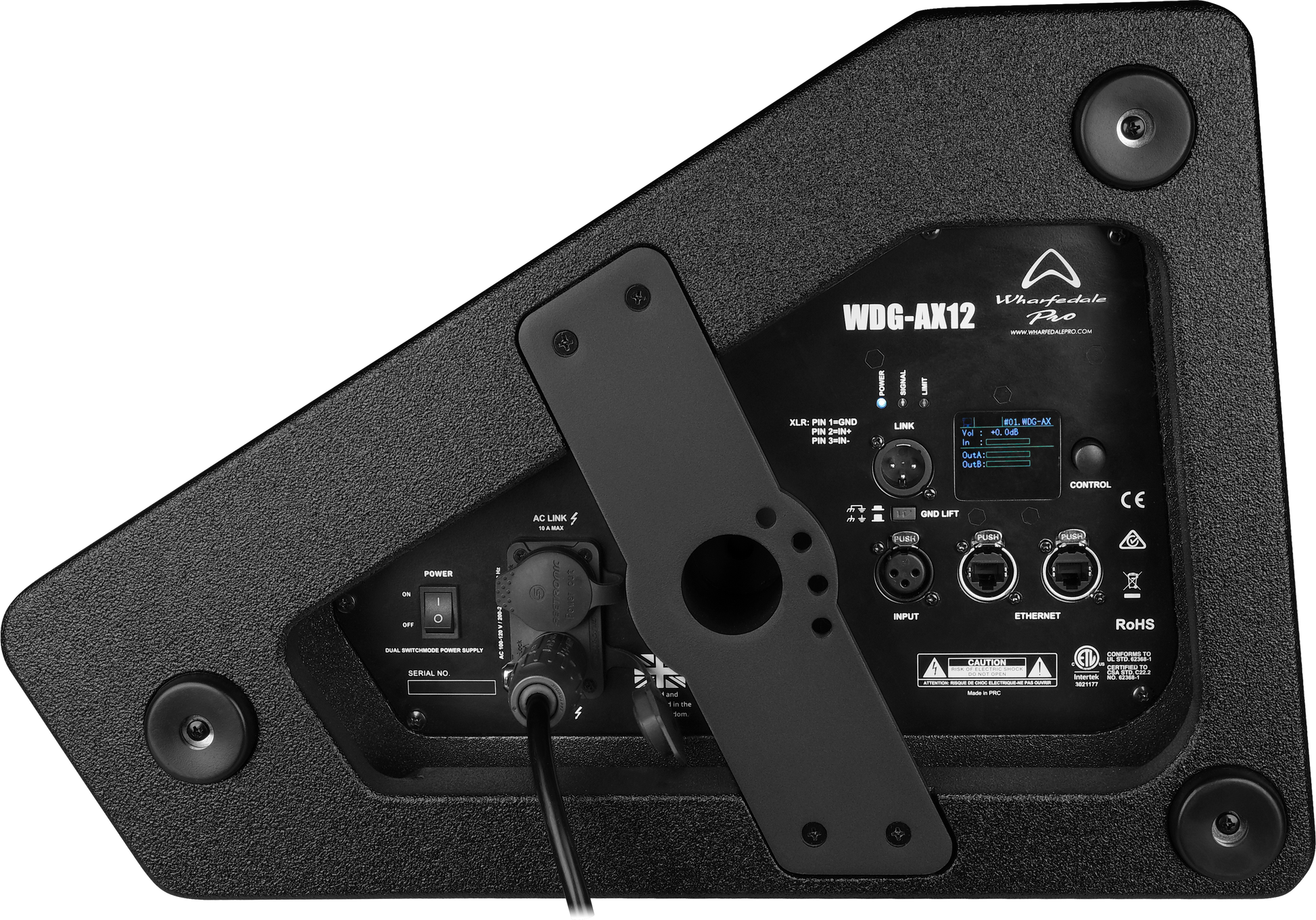

ACTIVE CONTROL
Active models (WDG-AX12 and WDG-AX15) include 8 presets with or without FIR, for critical low-latency applications, but the system is also fully controllable using the RS485 protocol through our Wharfedale Pro PRO=LINK control software.
Active models also feature Ground Lift and a handy HF Output EQ allowing for real-time tweaks.

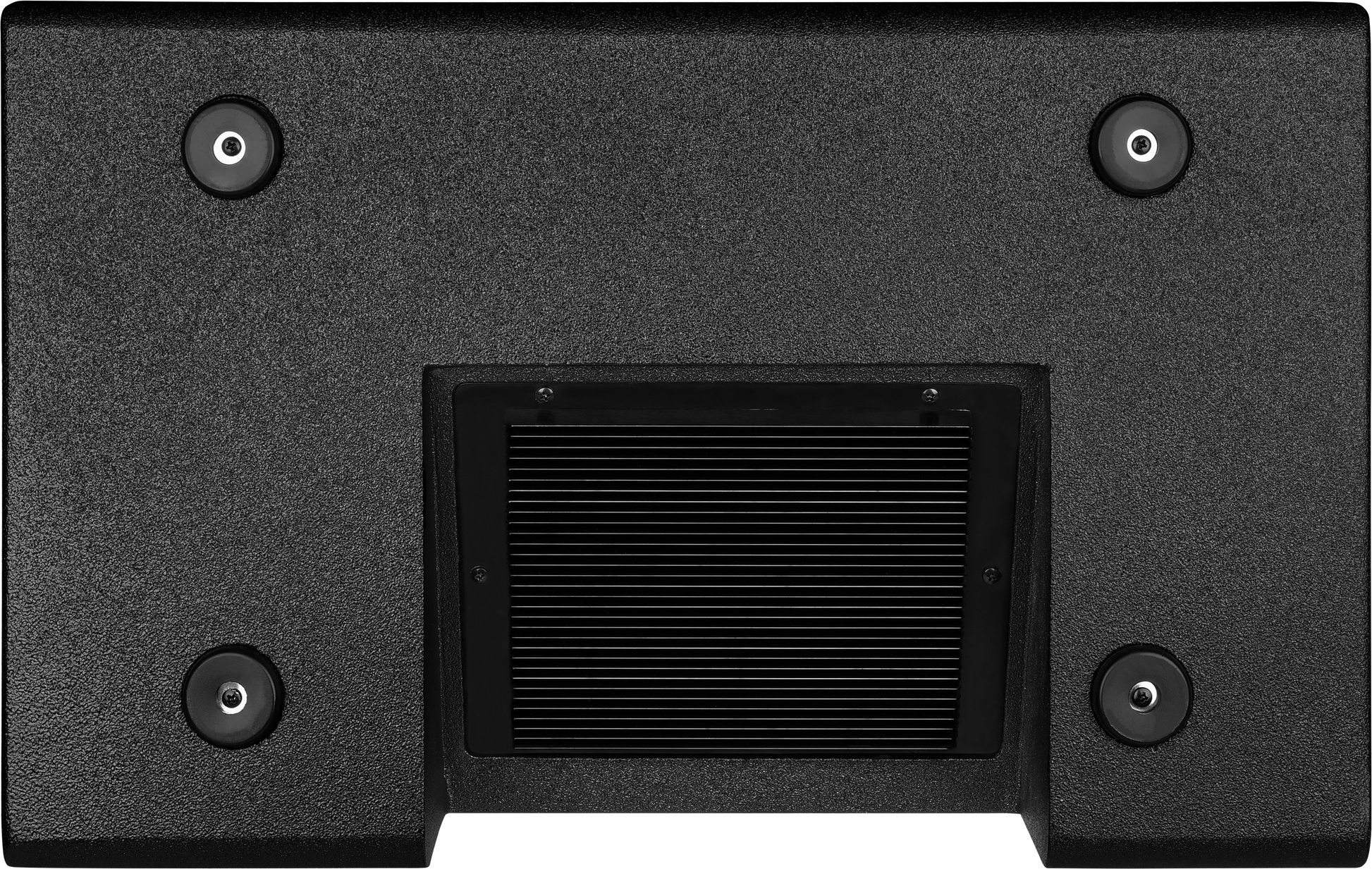

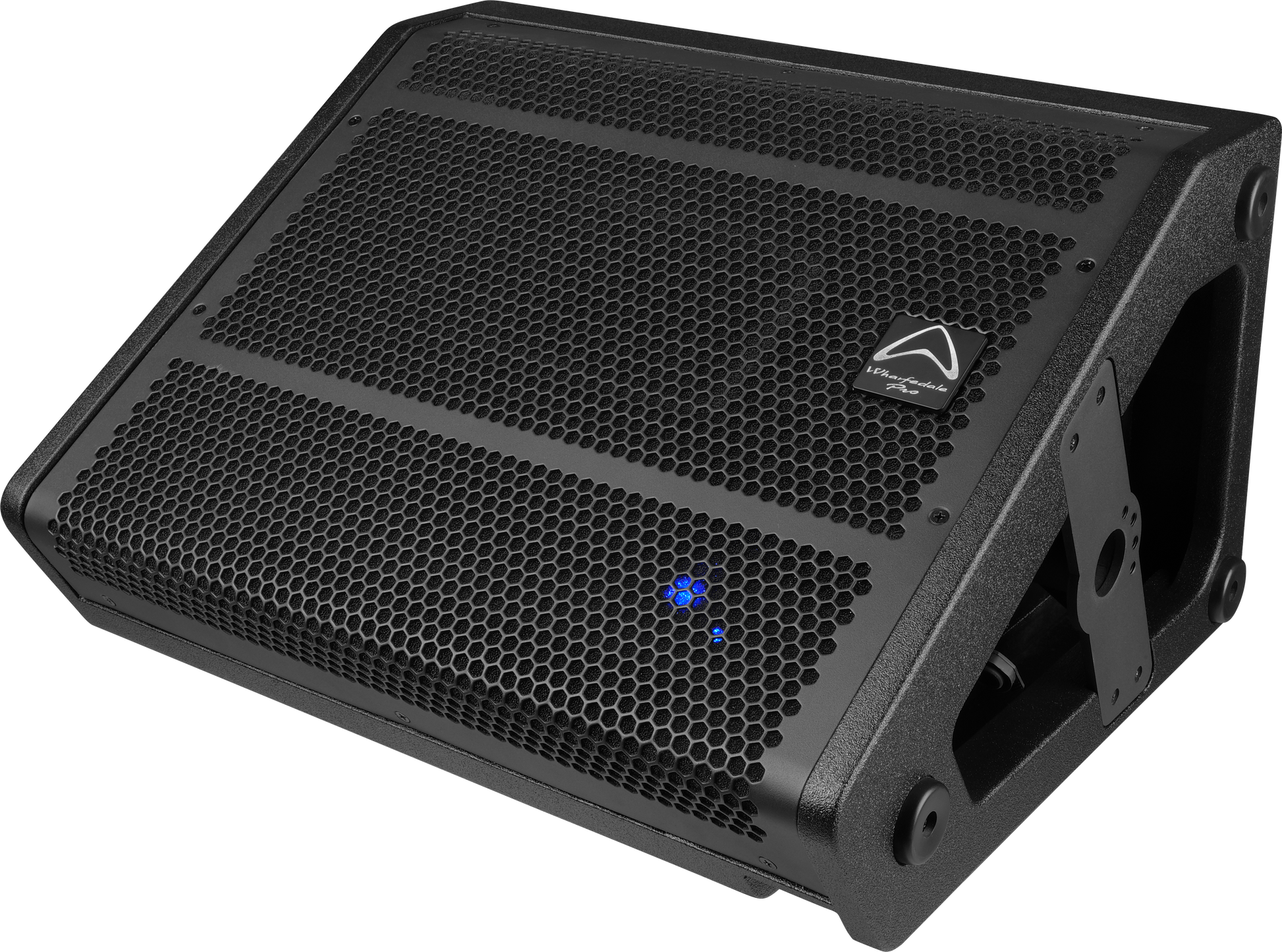

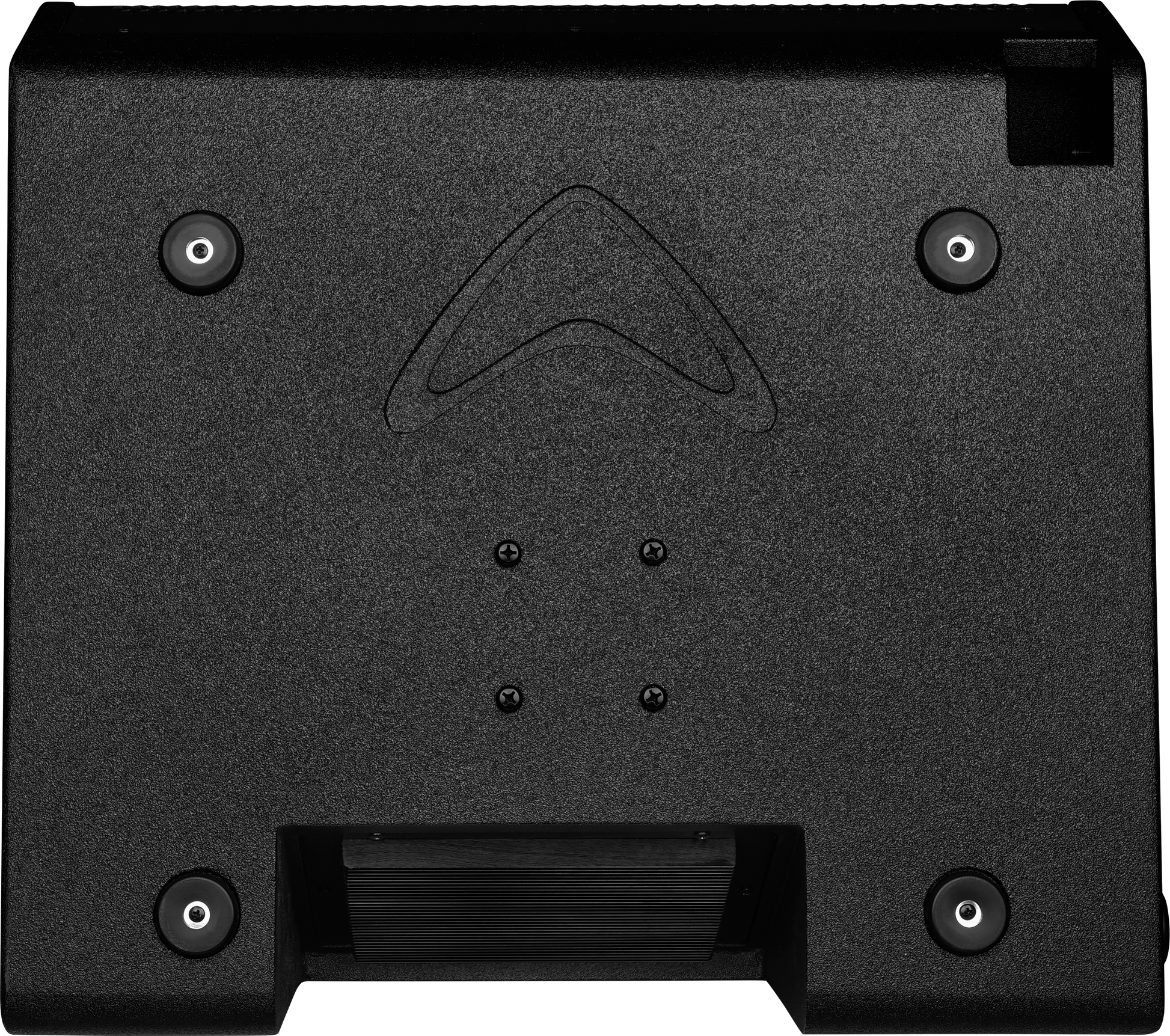

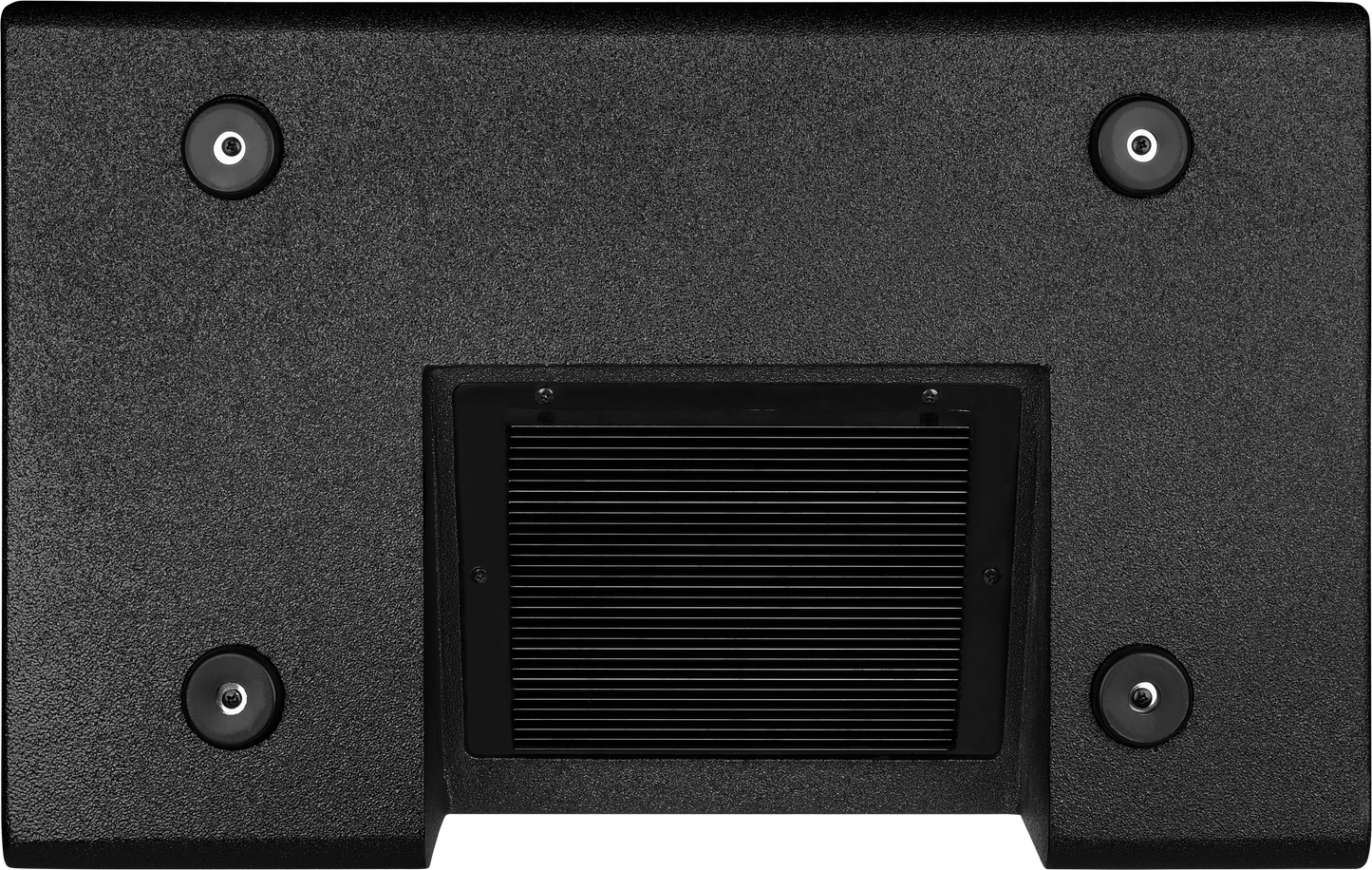

MAKING IT EASIER WITH PICTURES
PRODUCT DIMENSIONS
SPECIFICATIONS
Model Name |
WDG-AX12 |
|
System Type |
12” Coaxial Active Floor Monitor |
|
Configuration |
Coaxial 2-way |
|
Frequency Response (+/-3 dB) |
55 Hz – 20 kHz |
|
Frequency Range (-10 dB) |
35 Hz – 25 kHz |
|
Sensitivity (2.83 v / 1 m) |
98 dB |
|
Calculated Maximum SPL @1 m |
131 dB |
|
System Peak SPL |
137 dB* |
|
* level at 1m using pink noise with crest factor 4, with dedicated preset |
|
Drivers |
|
|
LF Size |
304.8mm / 12” |
|
LF Voice Coil Size |
101.6mm / 4.0” |
|
LF Frame Material |
Aluminium |
|
HF Driver Type |
Compression Driver |
|
HF Voice Coil Size |
72.2mm / 2.87” |
|
HF Exit Size |
38.1mm / 1.5” |
|
Waveguide Type |
Constant Directivity |
|
Nominal Coverage (H x V) |
80° x 40° (Rotatable) |
|
Driver Brand |
Beyma |
Amplifiers |
|
|
Amplifier Design |
Class D |
|
Power Rating |
1200W Peak / 600W Continuous
|
|
Thermal Protection |
Amplifier Shut Down. Auto Reset |
|
Low Line Voltage Shut Down |
60% Nominal Line Voltage |
|
Driver Protection |
Independent LF/HF RMX and Peak Limiters |
|
DC and Short Protection |
Yes |
|
Clip Limiter |
Yes |
|
Limiter Indicator |
Red LED |
|
Signal Indicator |
Green LED |
|
Power/Active Indicator |
White LED |
|
Find Function Indicator |
Blue LED |
|
Input Sensitivity |
+4 dBu |
|
Maximum Input Level |
+18 dBu |
|
Input Impedance |
Balanced: 10 KΩ |
|
AC Power details - Power Supply |
AC 100-120V~ and 220-240 V~, 50/60 Hz Automatic |
|
Input |

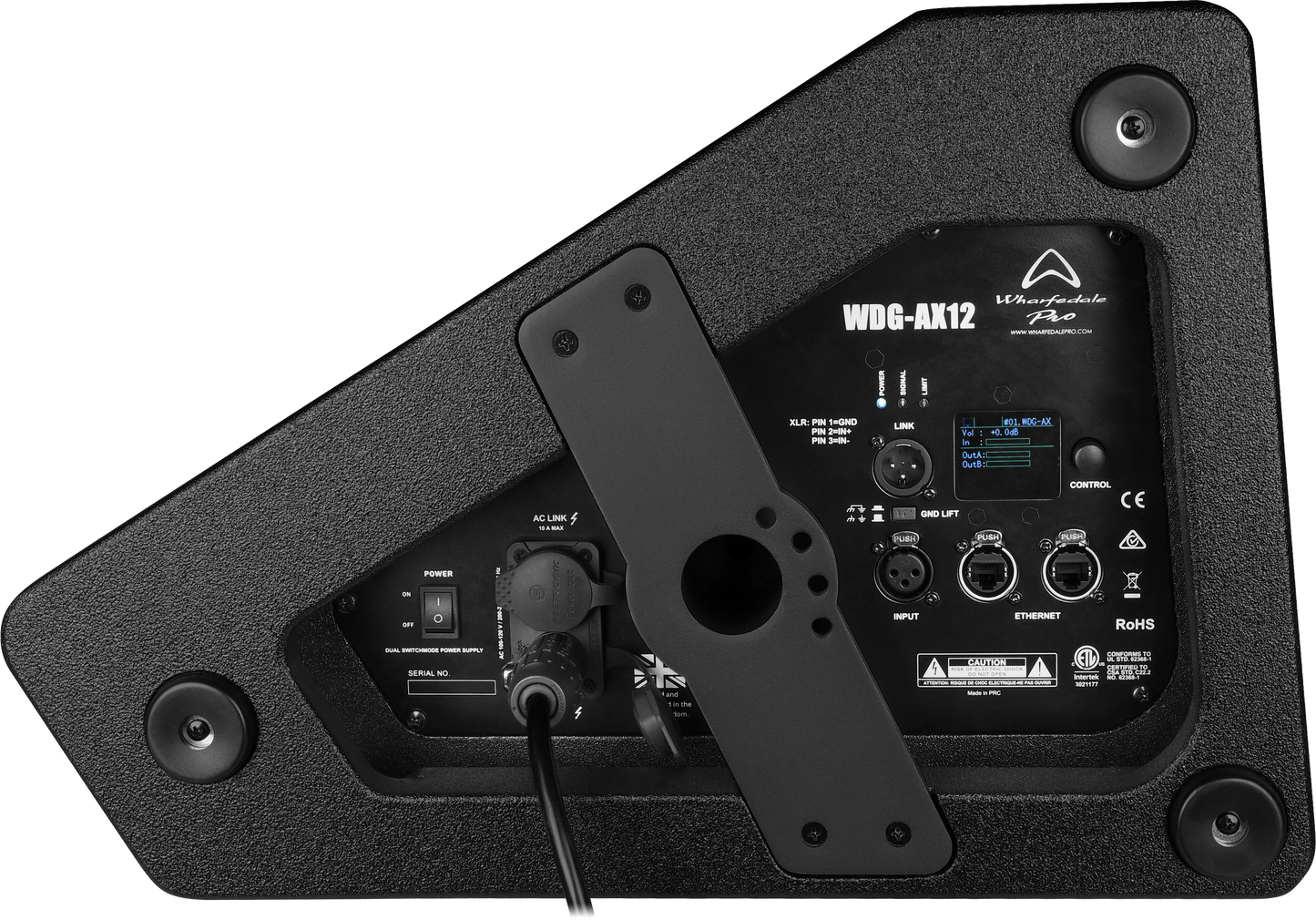

Balanced socket XLR |
|
AC Power |
PowerCon In/Out |
Construction |
|
|
Rigging & Hardware |
35mm Pole Mount 4 x M8 Threaded points for WPB-7 or PowerdriverTM Series 100 products |
|
Optional Accessories |
Heavy Duty transport soft Cover WDG-W12 Horizontal Flying Yoke |
|
Vertical Splay Angle Range |
N/A |
|
Handles |
1 on top |
|
Enclosure |
Polygonal |
|
Enclosure Material |
15 mm Birch Plywood |
|
Finish |
Black Tough-Tone Paint |
|
Colour |
Black |
|
Grille Material & Finish |
Powder coated steel |
|
Monitor Angle (degrees) |
60° - 25° |
Dimensions – (Unpacked) |
|
|
Height |
310mm / 12.2” |
|
Width |
540 mm / 21.3” |
|
Depth |
471.7 mm / 18.6” |
Dimensions – (Packed) |
|
|
Height |
635 mm / 24.9” |
|
Width |
560 mm / 22.1” |
|
Depth |
398 mm / 15.7” |
Weight |
|
|
Net Weight (kg / lbs) |
25.8 kg / 56.8 lbs |
|
Gross Weight (kg / lbs) |
28.8 kg / 63.4 lbs |
