Antari

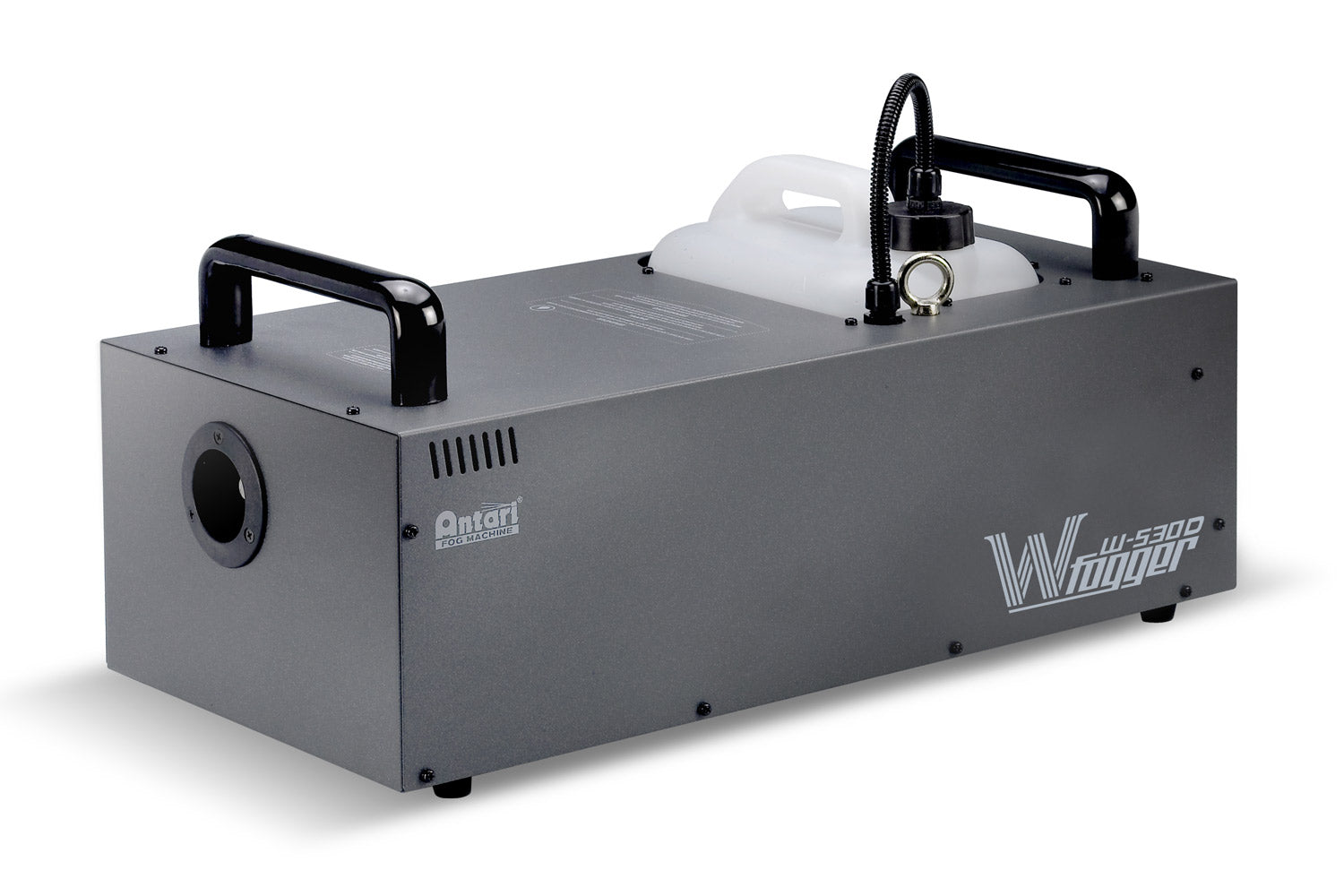

W530D - Wireless Control Fog Machine

The cutting-edge wireless control system gives the Antari W series a simple settings and operation interface. Additionally, the state-of-the-art heater design improves the W Series fog machines' quality and energy efficiency. In conclusion, the Antari W Series makes it easy for users to create a professional scene.

Features

Intelligent Wireless Control System. Each machine comes with a set of wireless receiver and transmitter as standard controller. The working distance of wireless control is 50 meters in open area.

Opto-electronic Fluid Sensor. When the fluid recipient runs dry, the fluid sensor stops pumping automatically to protect pump from burning.

New, More Efficient Heat Exchanger Design which allows the Antari W series to generate fog with smaller particles, thereby reducing its fog fluid consumption. When compared to equivalent power consumption heat exchangers, the same quantity of fog fluid in W series can produce up to 20% more fog.

New Advanced PCB (Printed Circuit Board). Design The new system can control temperature precisely and rule out the influence from outside environments as much as possible to make W series fog machines be able to work stably between -20 and +60 degrees Celsius.

Specification

Voltage : AC 240V, 50Hz
Rated power : 2500 W
Warm-up time : 12 minutes (approx.)
Fluid consumption rate : 160 ml/min
Tank capacity : 6 liters
Liquid used : Antari FLR / FLG Liquid
Operating time : 30 mins at max. output
Ambient temp. range : 0°C - 40°C
Output 1133 m³ /min
Control : DMX512, Timer, Manual, Wireless, Wireless DMX
DMX channels : 1 channel
Connection : Neutrik Powercon (Power)
Optional accessories : XLR 3-pin and 5-pin (DMX), FX-5 Flightcase, W-515-HB Hanging Bracket
Weight : 19.1 Kg
Dimensions (mm) : L 581 W 278 H 265

Optional Accessories:

Antari Cleaning solution C300

For more information, please visit the manufacturer's website

Warranty: 1 year
