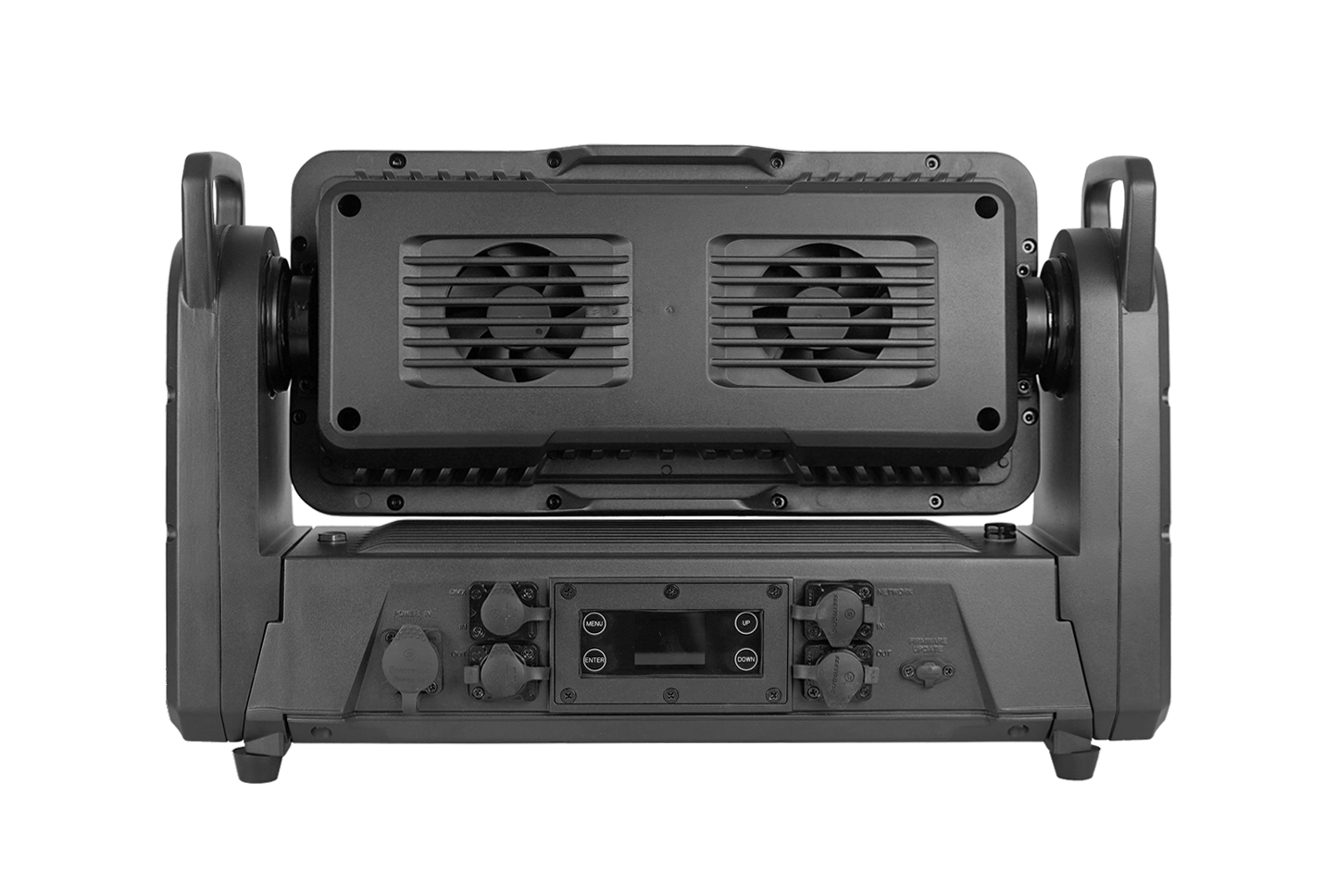

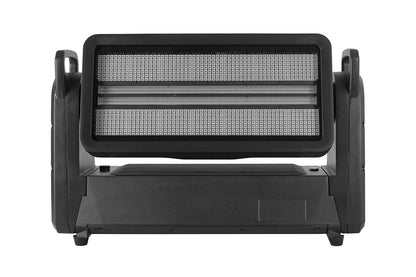

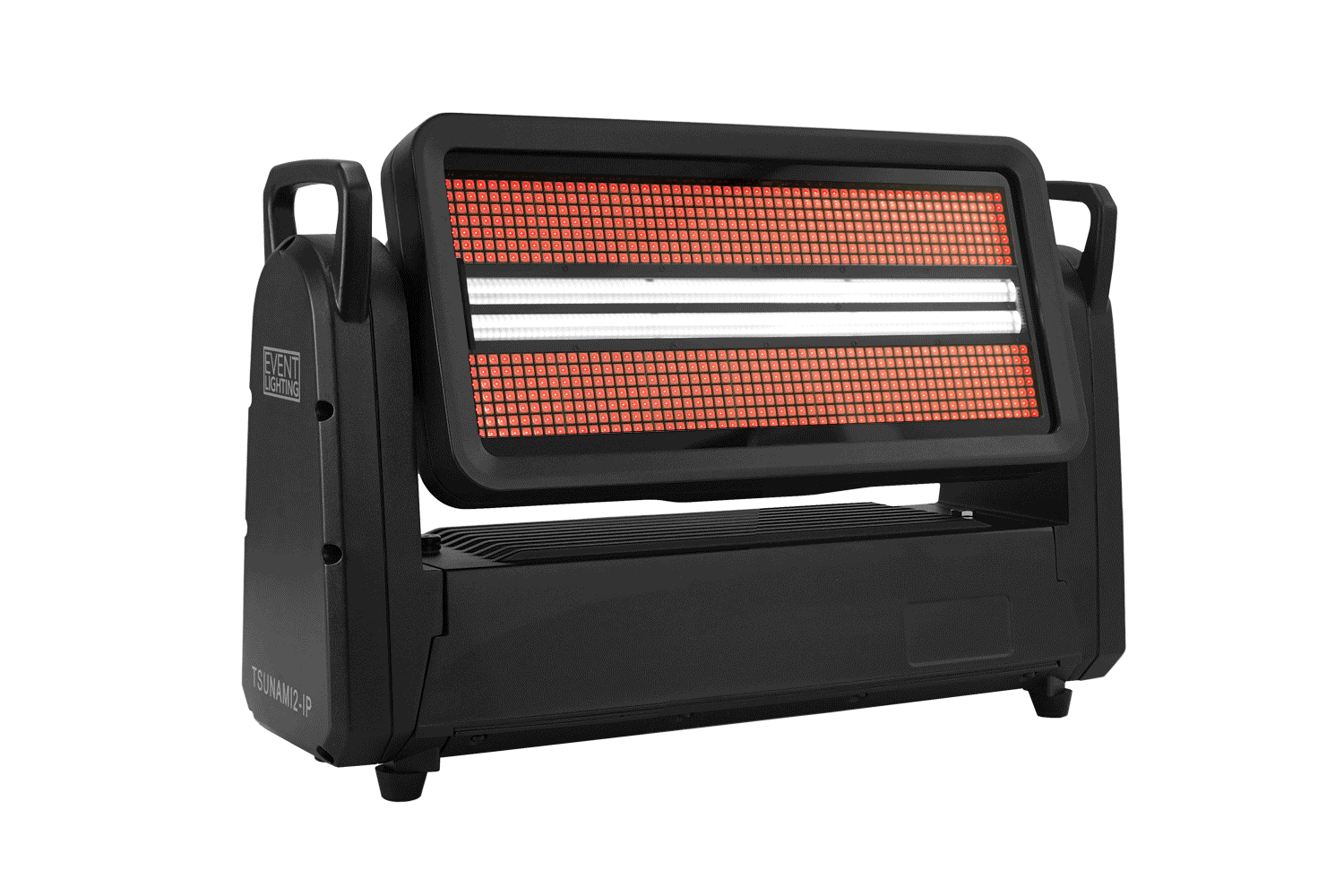

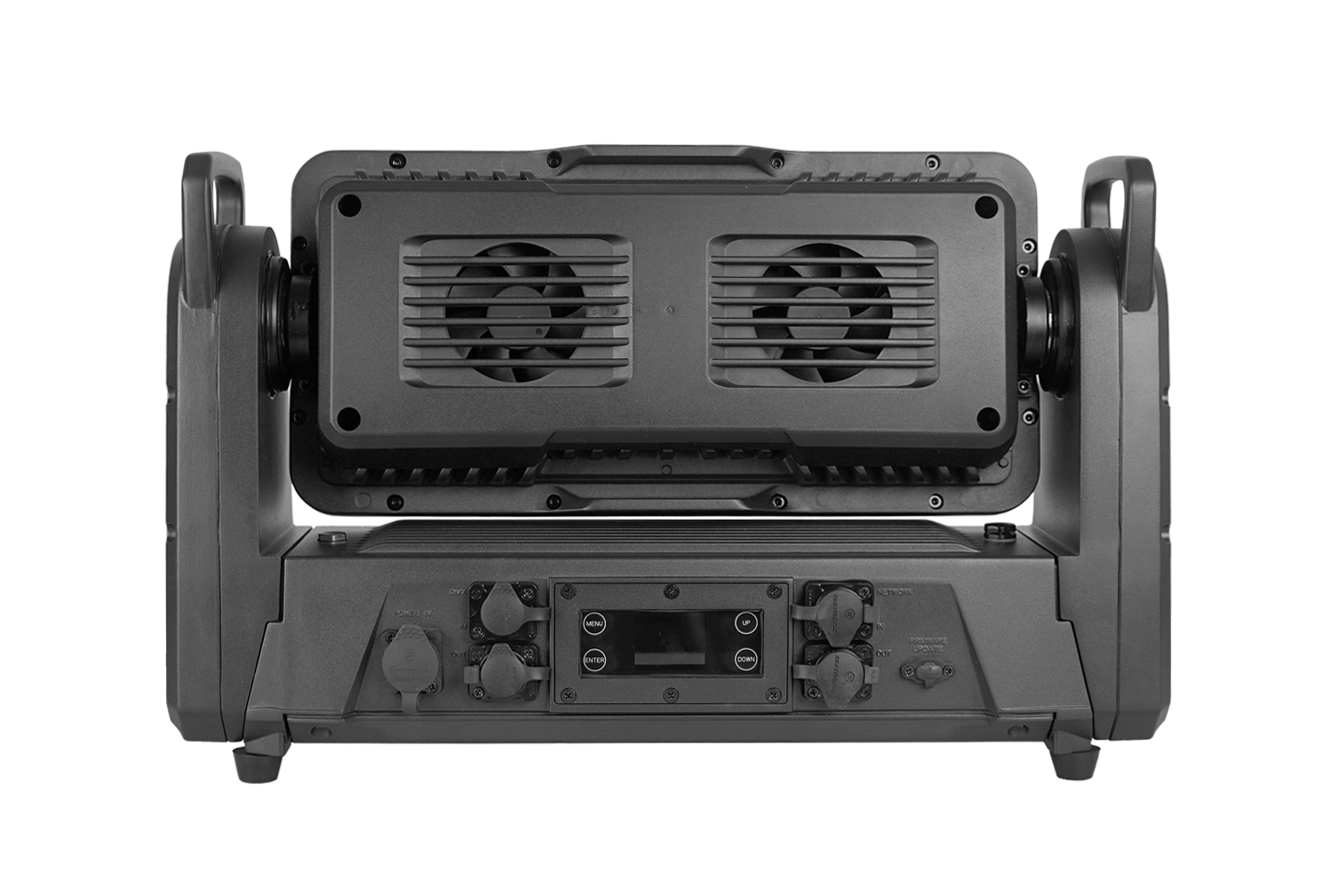

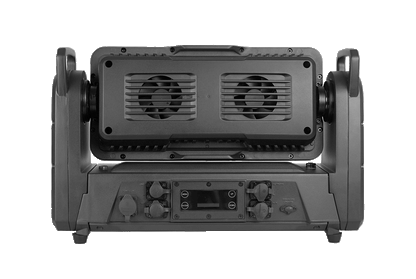

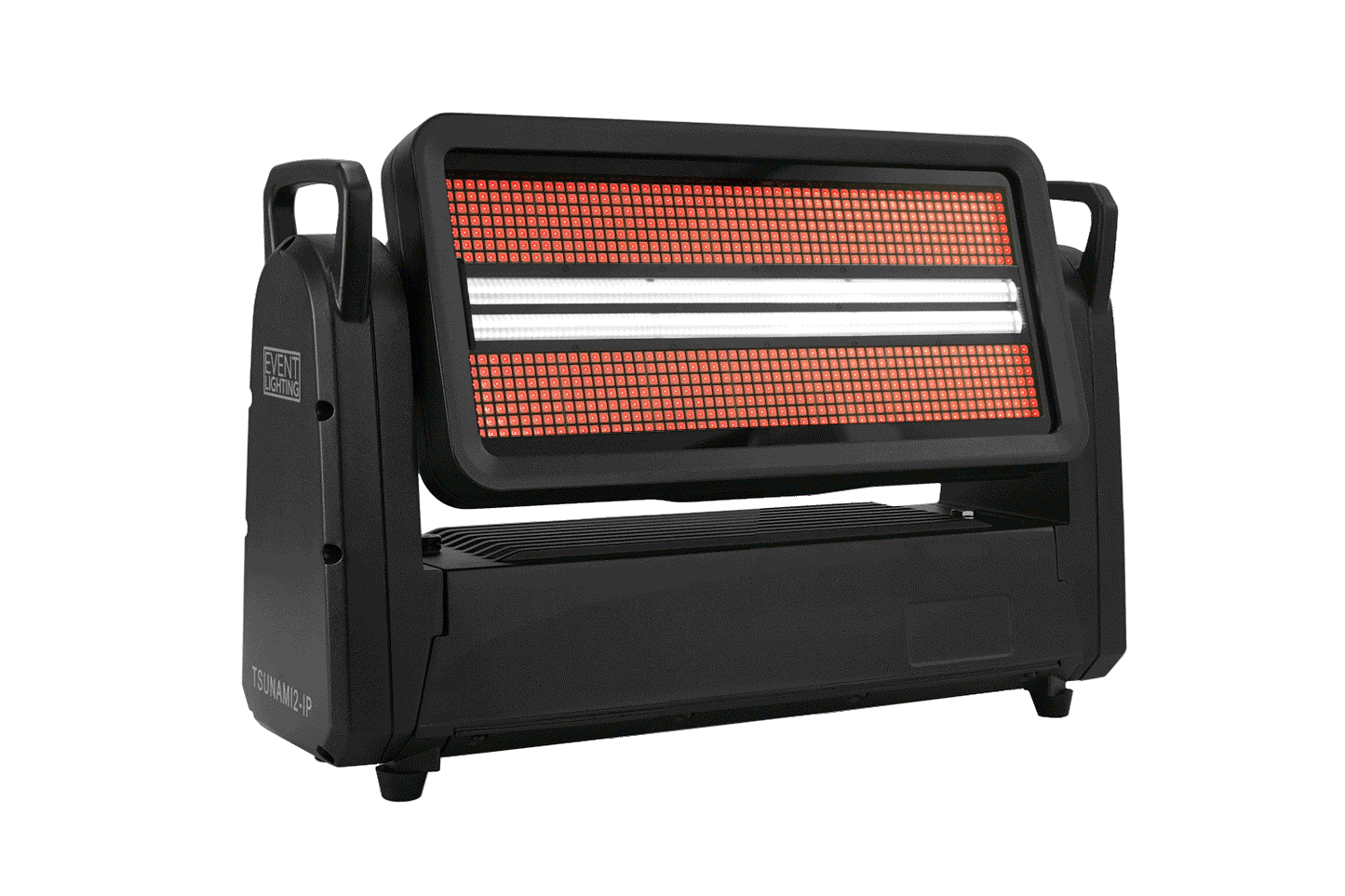

TSUNAMI2-IP - Outdoor LED Tilt Moving Head

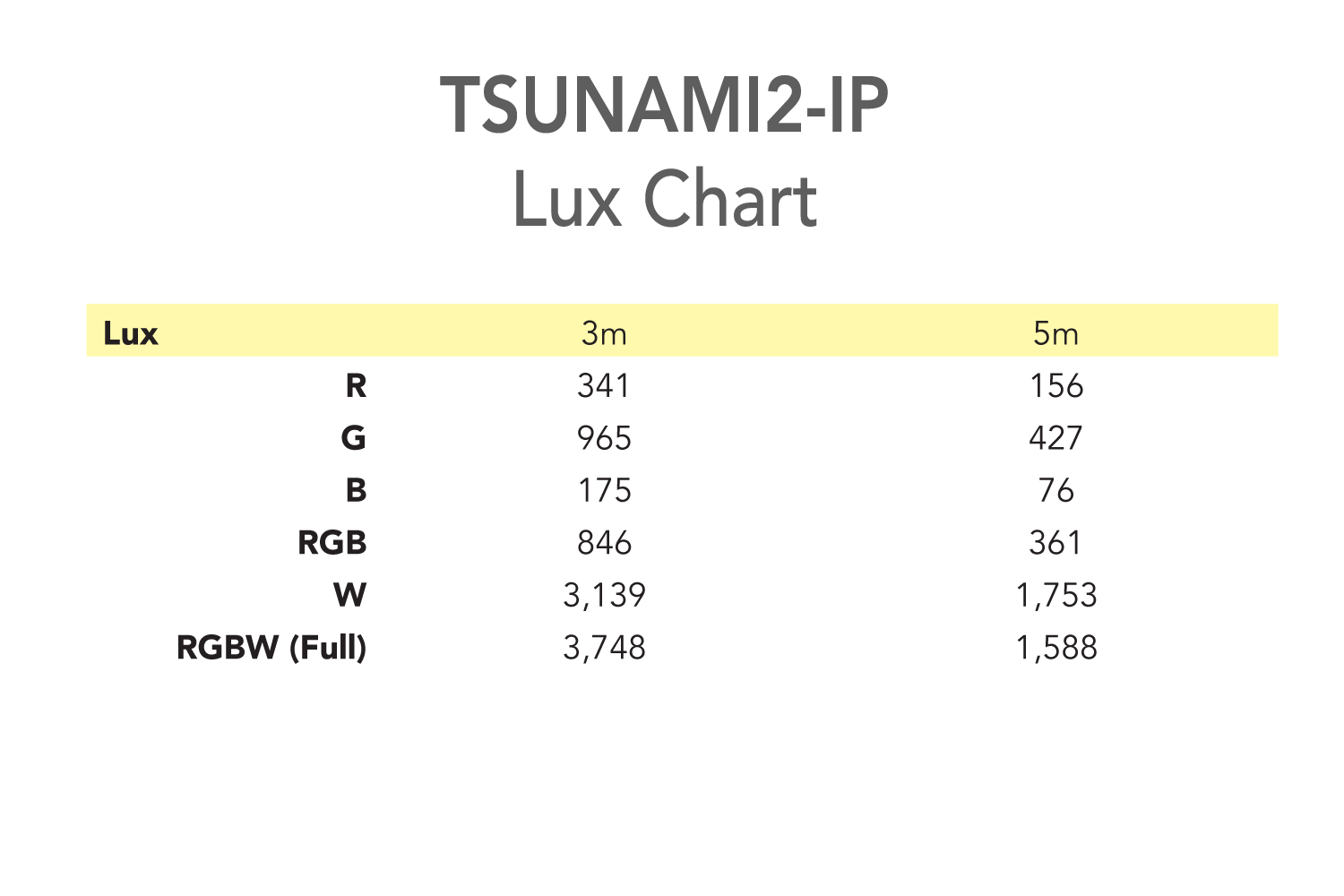

Photometrics

• Light Source:
  - Strobe: 392pcs White 1.5W LEDs
  - Surface effect: 784pcs RGB 0.8W RGB 3in1 LEDs
• Beam angle: 117°
• Output: 72,600 Lm
• Colour rendering index: RA≥80
• Led Lifespan: 50,000 hours

Effects

• RGBW color mixing system
• Pixel control: 28-segment strobe,  14-segment colour RGB
• Refresh frequency: ﹥25KHz camera image is flicker-free
• Dimming: 0-100% linear dimming; 4 dimming modes
• Strobe: 0.5-20 Hz
• Vertical scanning: 180°

Control

• DMX512, Art-Net, RDM
• DMX Channels: 8 / 11 / 13 / 24 / 30 /74 / 97

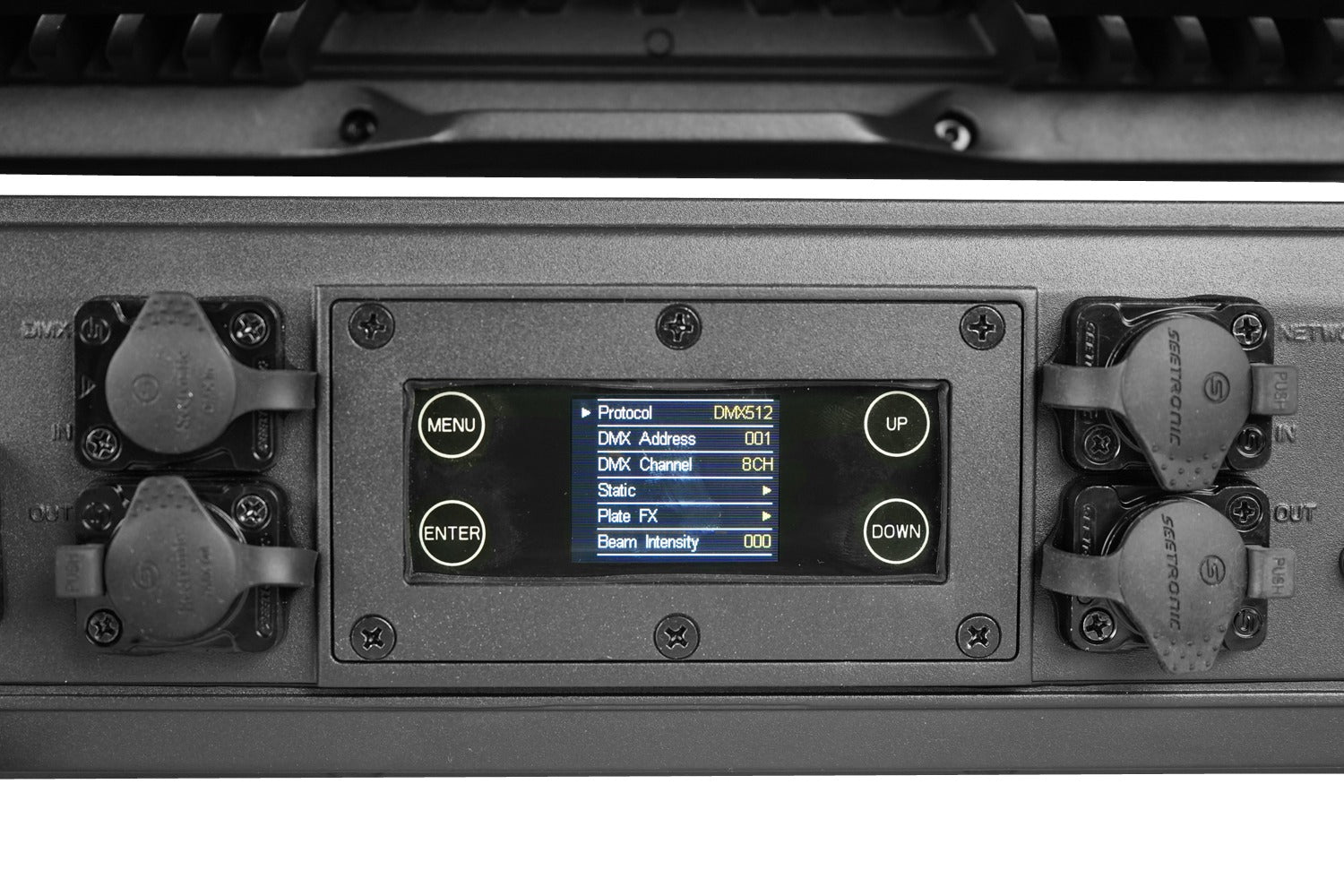

• Display: TFT, 4 - button control

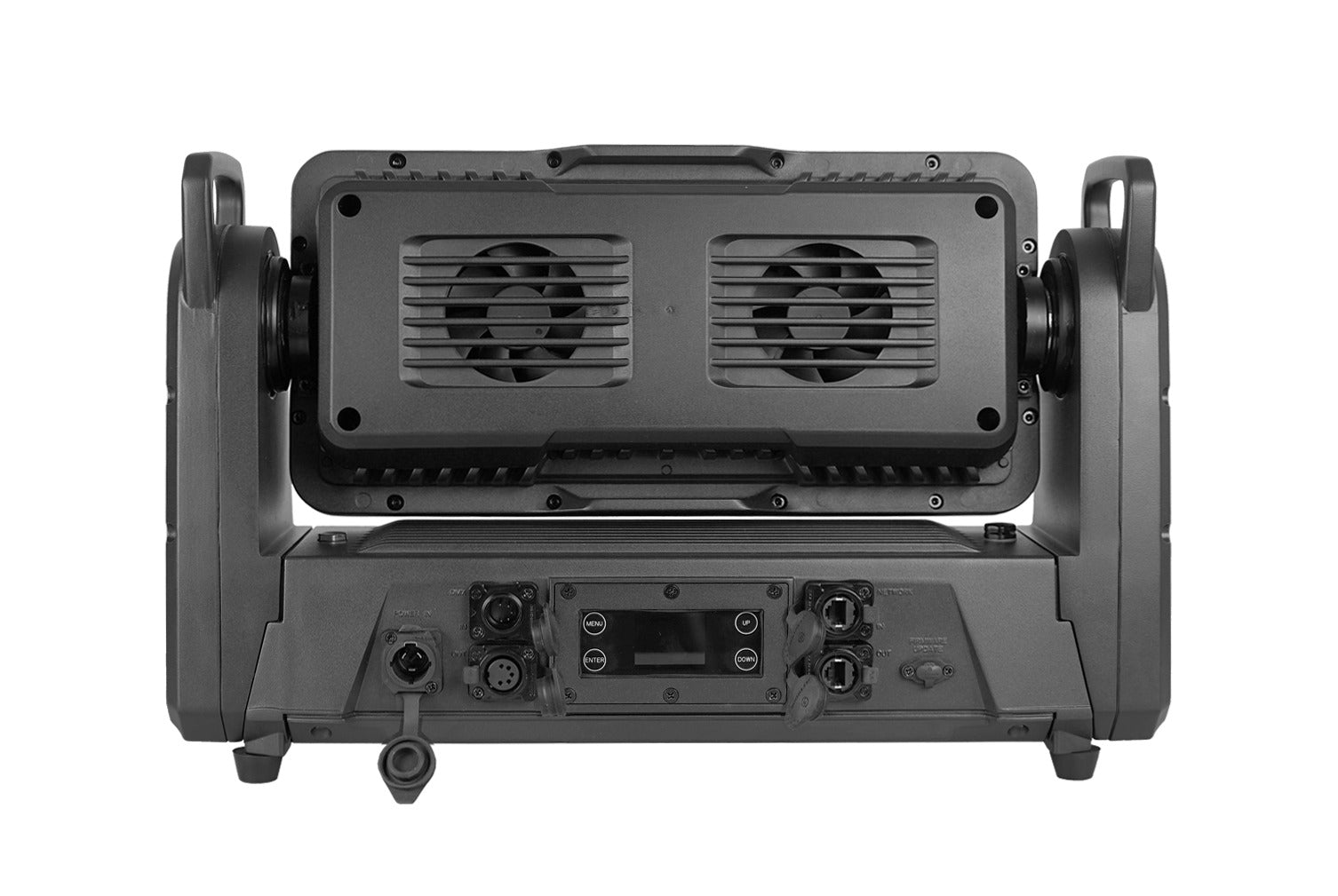

• Interface:
  - DMX: 5-pin in / out
  - Art-net: RJ45 in / out

Power

• Input Voltage: 100-240V AC, 50/60Hz
• Strobe power: 1,250W
• Rated power: 720W
• Connector: True1 in/out

Housing

• High strength casting aluminum alloy, black
• Working temperature: -10°C ~ 45°C
• IP rating: IP65
• Rigging: 2 Omega Brackets Included

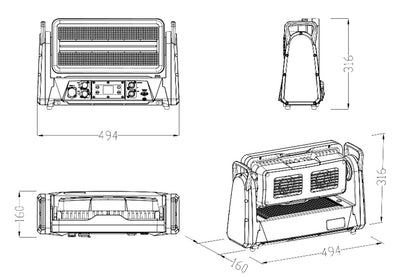

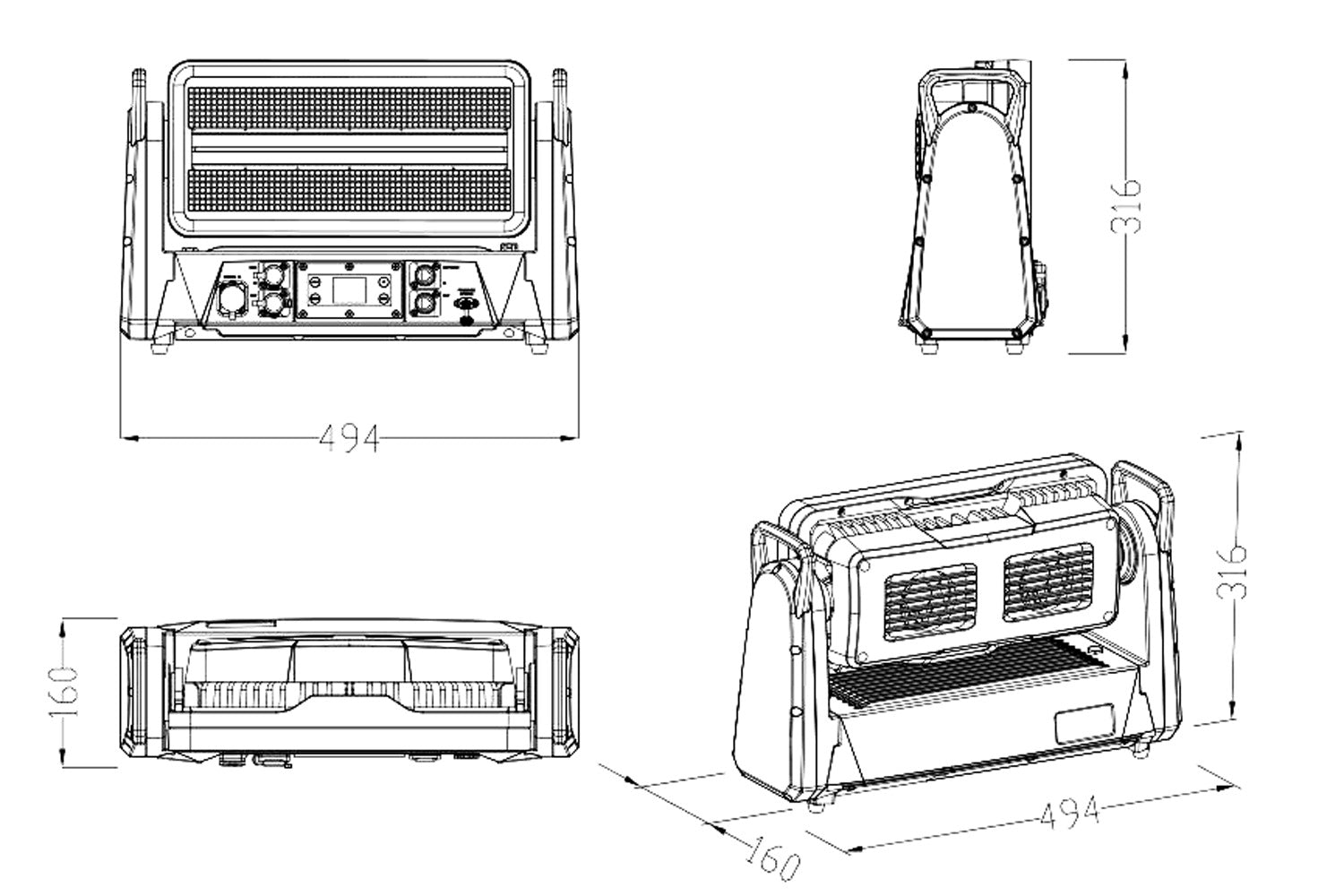

• Dimensions: 494 x 316 x 160mm / 19.4" x 12.4" x 6.3"
• Weight: 15 kg / 33 lbs

Download Product Datasheet

Download the User Manual

Warranty: 3 years
