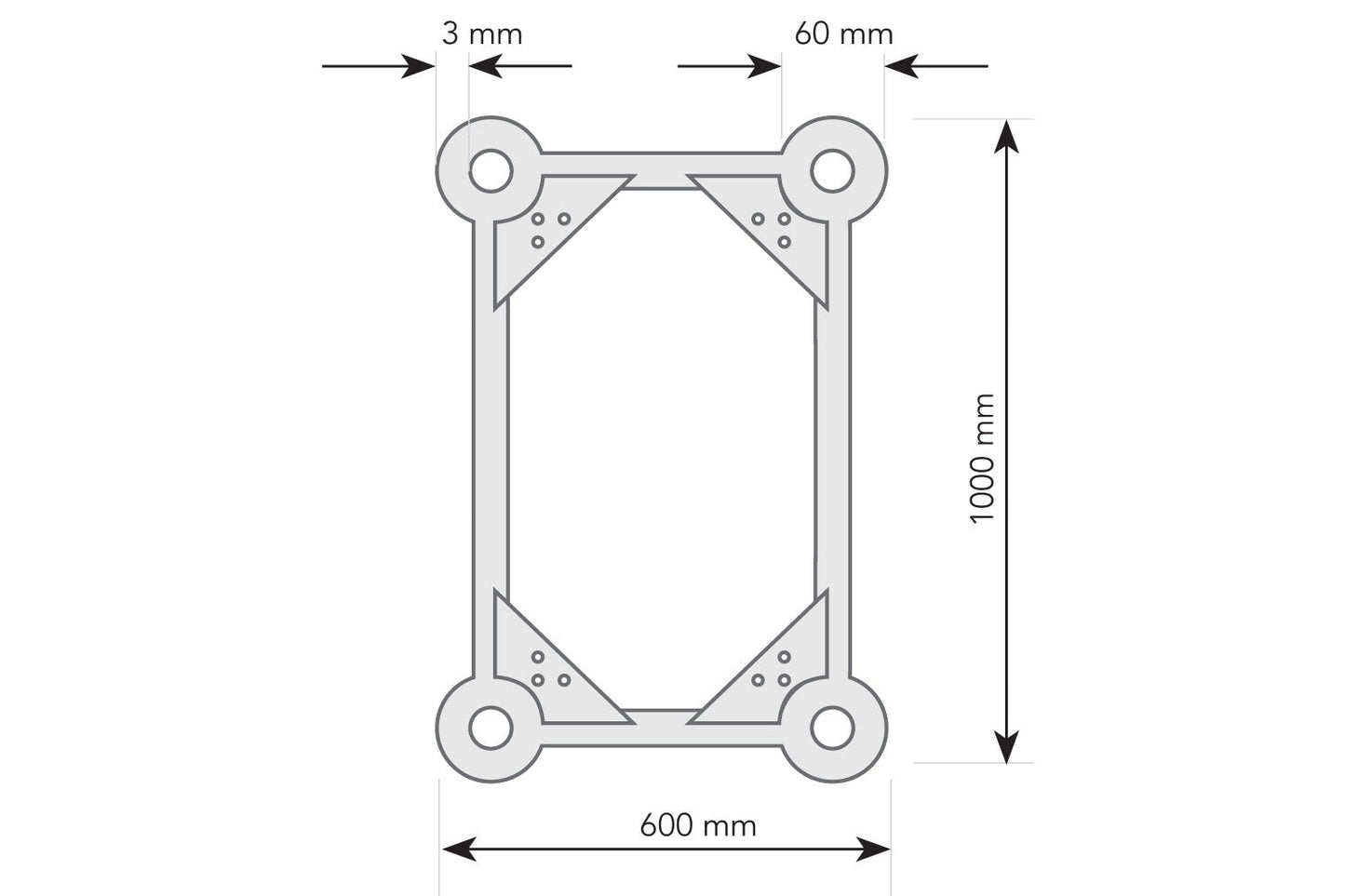

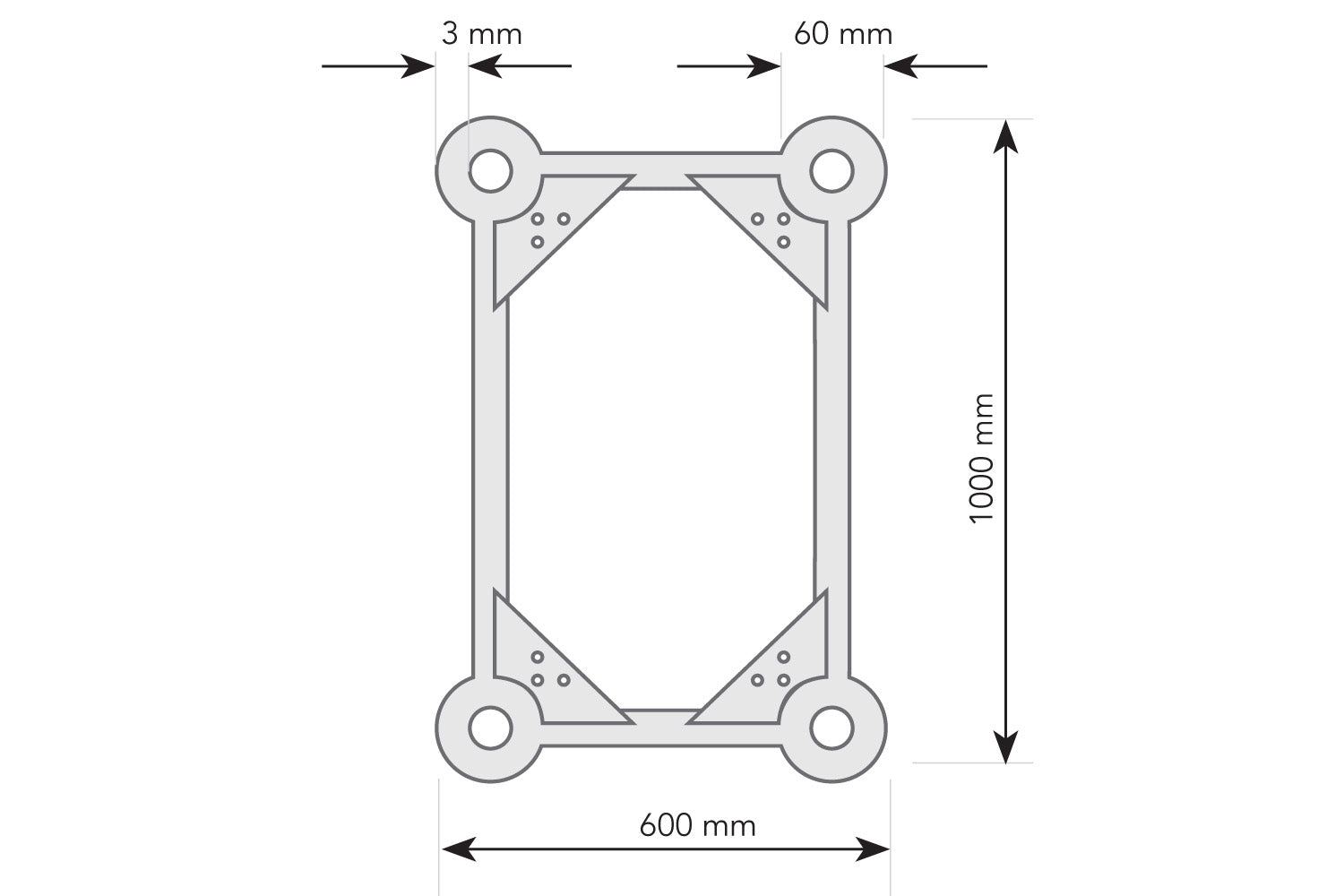

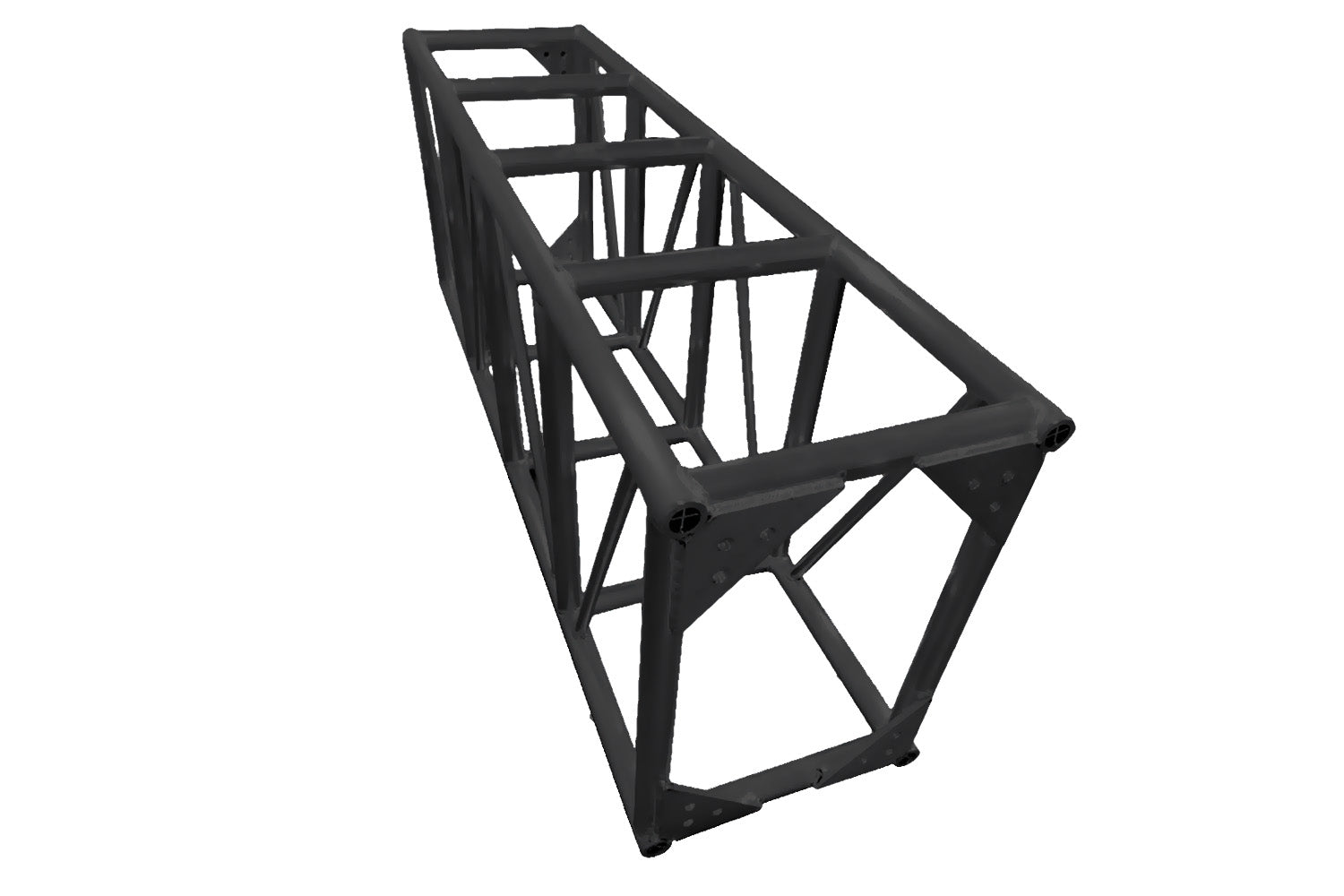

T610BBBK - 600x1000mm Bolt Rectangular Truss - Black
T610BBBK - 600x1000mm Bolt Rectangular Truss - Black
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
400x600mm Aluminium Bolt Rectangular Truss, 3mm wall thickness
- Main Tube: 60mm x 3mm
- Diagonal Brace: 25mm x 2mm
- Materials: Aluminum alloy 6061-T6
- Finishing: Black
- Rating: TUV
- Length available: 0.5 / 1 / 1.5 / 2 / 2.5 / 3 m
|
SPAN (M)
|
4m
|
6m
|
8m
|
10m
|
12m
|
14m
|
16m
|
18m
|
20m
|
22m
|
24m
|
26m
|
28m
|
30m
|
32m
|
34m
|
|
Centre Point Load (kg)
|
9662
|
7230
|
5392
|
4282
|
3534
|
2996
|
2587
|
2266
|
2006
|
1788
|
1604
|
1448
|
1309
|
1186
|
1078
|
980
|
|
Deflection (mm)
|
5
|
12
|
20
|
26
|
40
|
50
|
68
|
82
|
101
|
125
|
145
|
169
|
195
|
221
|
253
|
286
|
|
Uniform Load (kg)
|
11192
|
10974
|
8951
|
7106
|
5868
|
4973
|
4298
|
3764
|
3330
|
2970
|
2665
|
2403
|
2174
|
1971
|
1791
|
1626
|
|
Deflection (mm)
|
5
|
8
|
16
|
23
|
30
|
45
|
55
|
68
|
80
|
100
|
115
|
138
|
156
|
177
|
200
|
229
|
The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings
Warranty: 3 years
