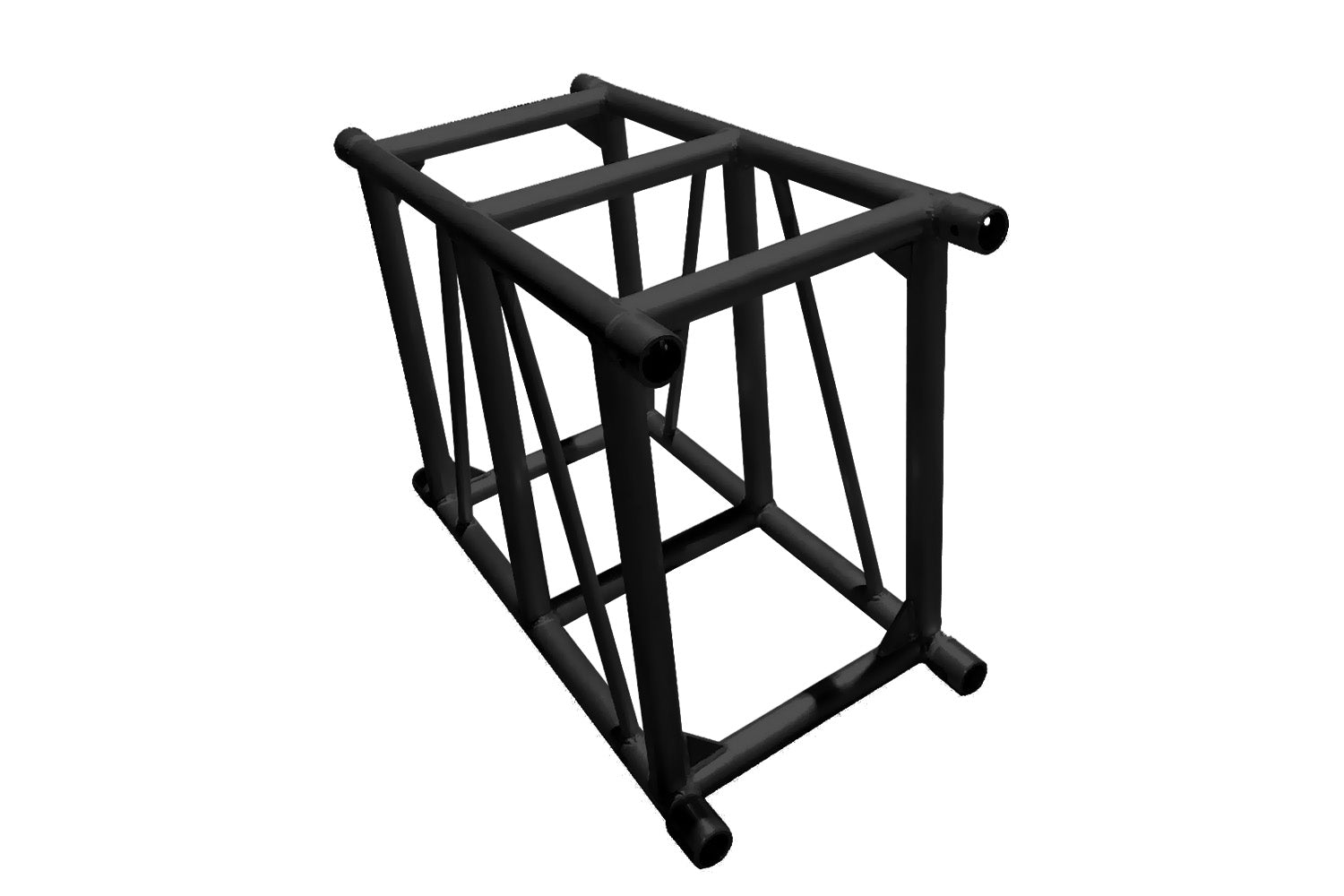

T57BLBK - 520x760mm Spigot Rectangular Truss - Black
T57BLBK - 520x760mm Spigot Rectangular Truss - Black
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per

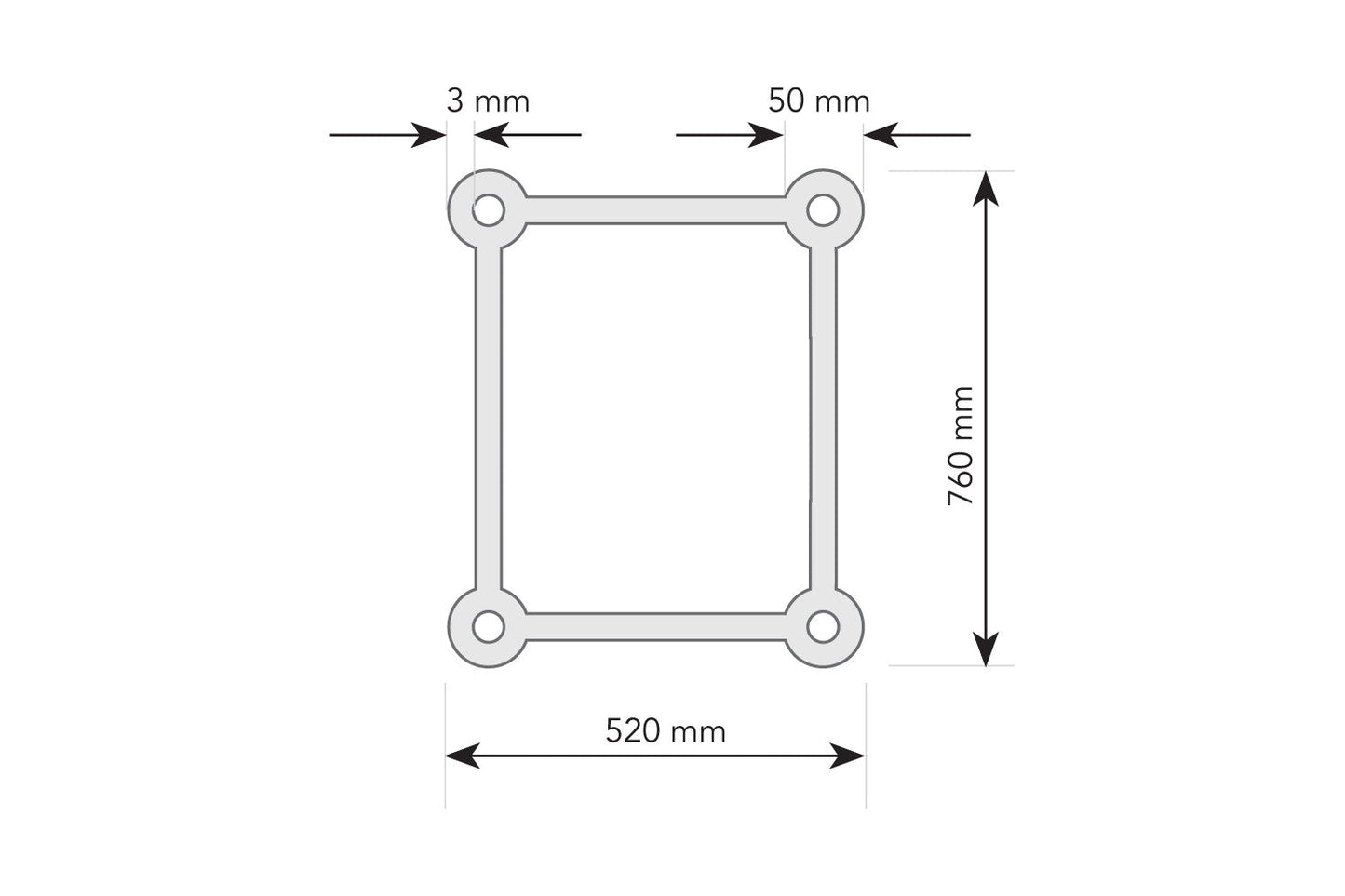

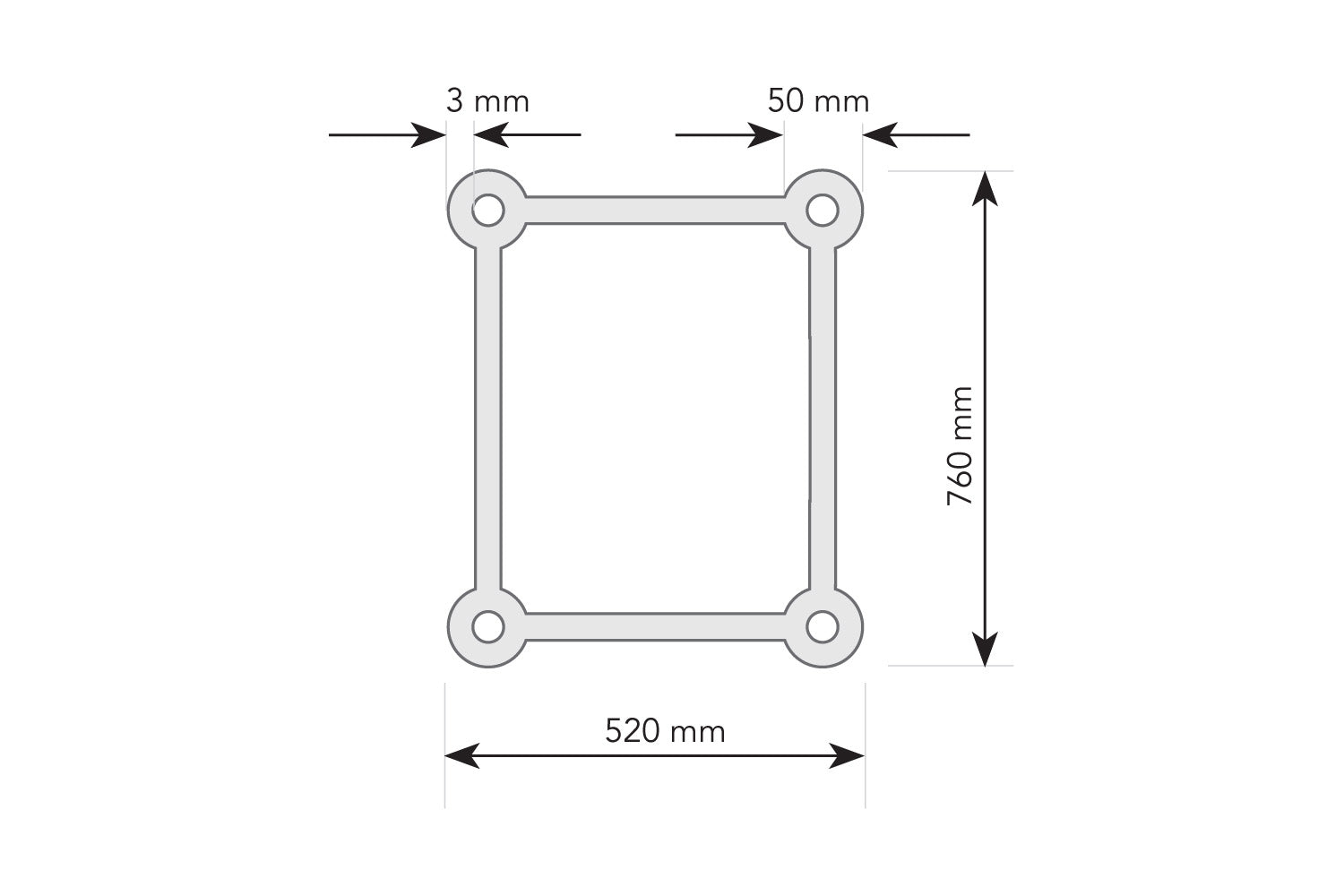

520x760mm Aluminium Lighting Spigot Rectangular Truss, 3mm wall thickness
- Main Tube: 50mm x 3mm
- Vice Brace: 50mm x 2mm
- Diagonal Brace: 25mm x 2mm
- Materials: Aluminum alloy 6061-T6
- Finishing: Black
- Rating: TUV
- Length available: 0.5 / 1 / 1.5 / 2 / 2.5 / 3 / 4 m
|
SPAN (M)
|
4m
|
5m
|
6m
|
7m
|
8m
|
9m
|
10m
|
11m
|
12m
|
13m
|
14m
|
15m
|
16m
|
17m
|
18m
|
19m
|
20m
|
21m
|
22m
|
23m
|
24m
|
25m
|
26m
|
27m
|
|
Centre Point Load (kg)
|
4000
|
3880
|
3468
|
2691
|
2396
|
2307
|
2134
|
1738
|
1356
|
1280
|
1108
|
1086
|
991
|
924
|
832
|
711
|
659
|
486
|
438
|
400
|
379
|
336
|
318
|
296
|
|
Deflection (mm)
|
12
|
13
|
16
|
18
|
25
|
32
|
40
|
48
|
54
|
62
|
70
|
84
|
96
|
103
|
112
|
122
|
130
|
141
|
153
|
165
|
176
|
194
|
202
|
220
|
|
Uniform Load (kg)
|
4000
|
3880
|
3700
|
3629
|
2827
|
2760
|
2463
|
2261
|
2036
|
1800
|
1650
|
1600
|
1550
|
1400
|
1200
|
1174
|
1050
|
980
|
950
|
900
|
800
|
750
|
700
|
680
|
|
Deflection (mm)
|
12
|
13
|
16
|
19
|
24
|
30
|
36
|
45
|
54
|
60
|
68
|
84
|
92
|
102
|
113
|
120
|
126
|
134
|
138
|
140
|
148
|
156
|
162
|
167
|
The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings
Warranty: 3 years
