T56BL - 500x600mm Spigot Rectangular Truss - Silver
T56BL - 500x600mm Spigot Rectangular Truss - Silver
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per

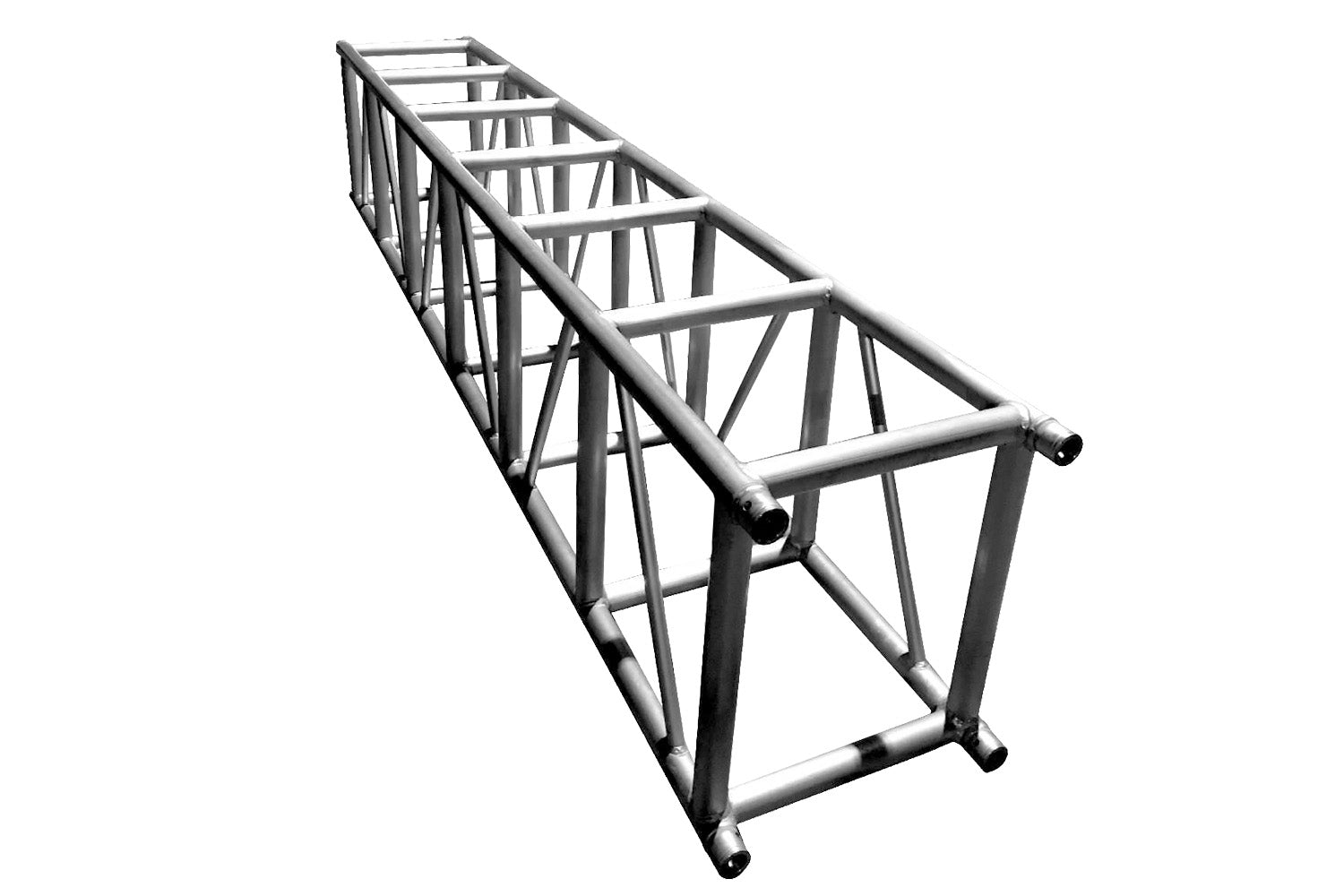

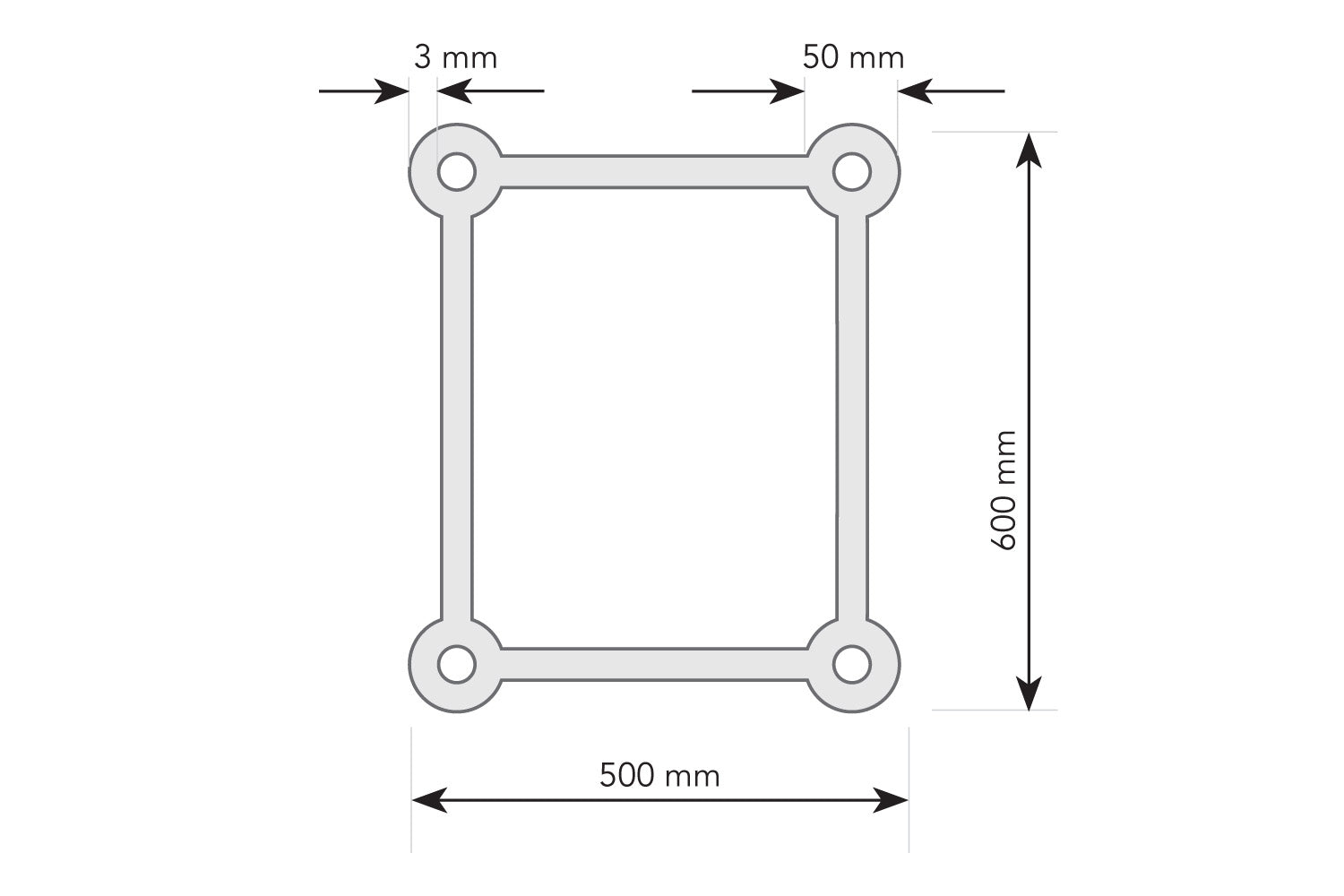

500x600mm Aluminium Lighting Spigot Rectangular Truss, 3mm wall thickness
- Main Tube: 50mm x 3mm
- Vice Brace: 50mm x 2mm
- Diagonal Brace: 25mm x 2mm
- Materials: Aluminum alloy 6061-T6
- Finishing: Washed
- Rating: TUV
- Length available: 0.5 / 1 / 1.5 / 2 / 2.5 / 3 / 4 m
|
SPAN (M)
|
2m
|
3m
|
4m
|
5m
|
6m
|
7m
|
8m
|
9m
|
10m
|
11m
|
12m
|
13m
|
14m
|
15m
|
16m
|
17m
|
18m
|
19m
|
20m
|
21m
|
|
Centre Point Load (kg)
|
3210
|
3145
|
3095
|
2495
|
2210
|
1809
|
1643
|
1424
|
1255
|
1049
|
900
|
889
|
820
|
750
|
660
|
570
|
560
|
550
|
480
|
470
|
|
Deflection (mm)
|
13
|
14
|
17
|
20
|
25
|
30
|
34
|
37
|
40
|
43
|
46
|
49
|
53
|
56
|
72
|
88
|
10
|
132
|
138
|
142
|
|
Uniform Load (kg)
|
3210
|
3140
|
3100
|
2300
|
2210
|
1910
|
1821
|
1570
|
1445
|
1400
|
1350
|
1200
|
1163
|
1125
|
1007
|
890
|
883
|
857
|
650
|
639
|
|
Deflection (mm)
|
13
|
15
|
18
|
20
|
24
|
32
|
35
|
38
|
41
|
44
|
48
|
61
|
74
|
87
|
90
|
95
|
112
|
129
|
136
|
144
|
The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings
Warranty: 3 years
