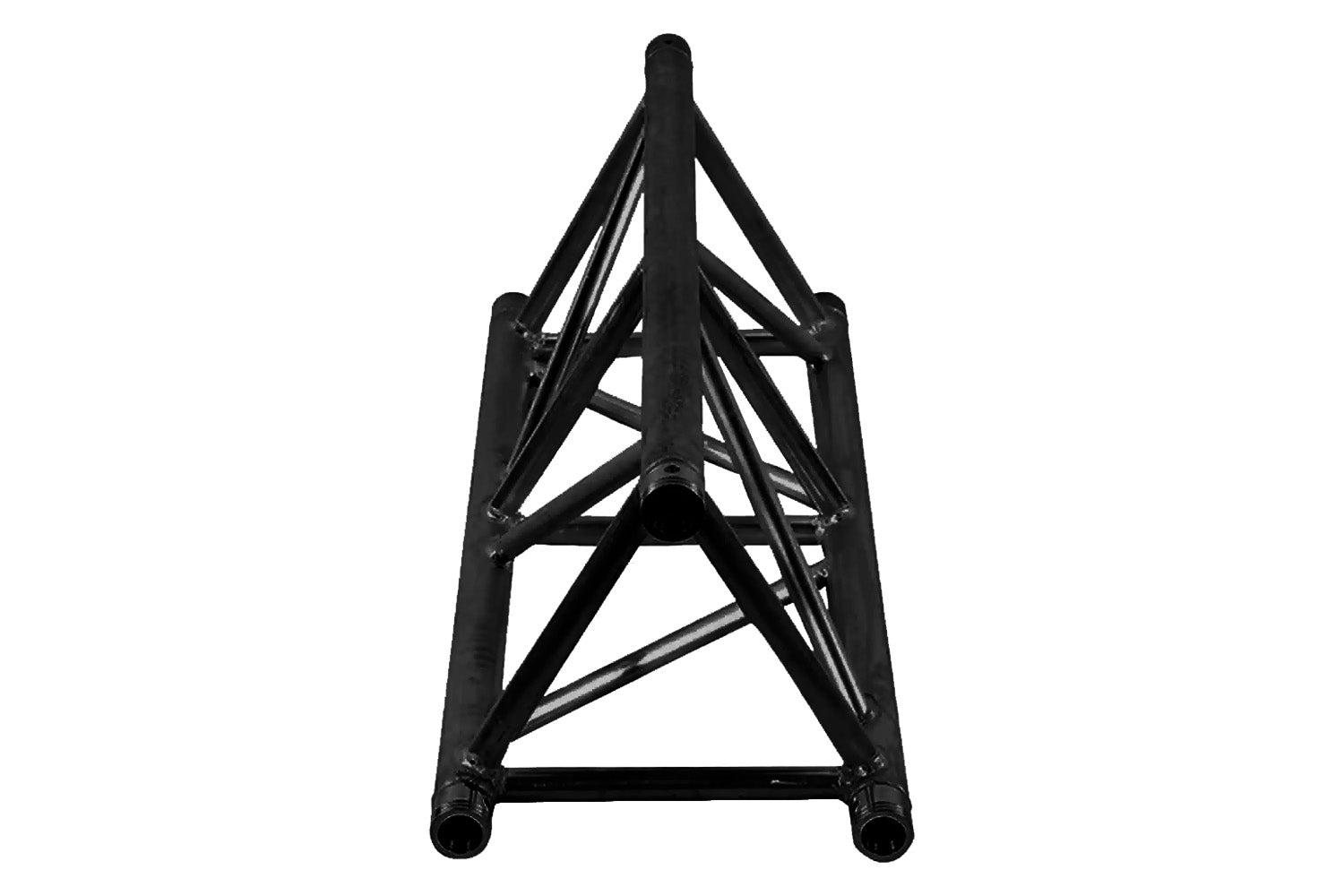

T4TDBK - 400mm Spigot Triangular Truss - Black
T4TDBK - 400mm Spigot Triangular Truss - Black
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per

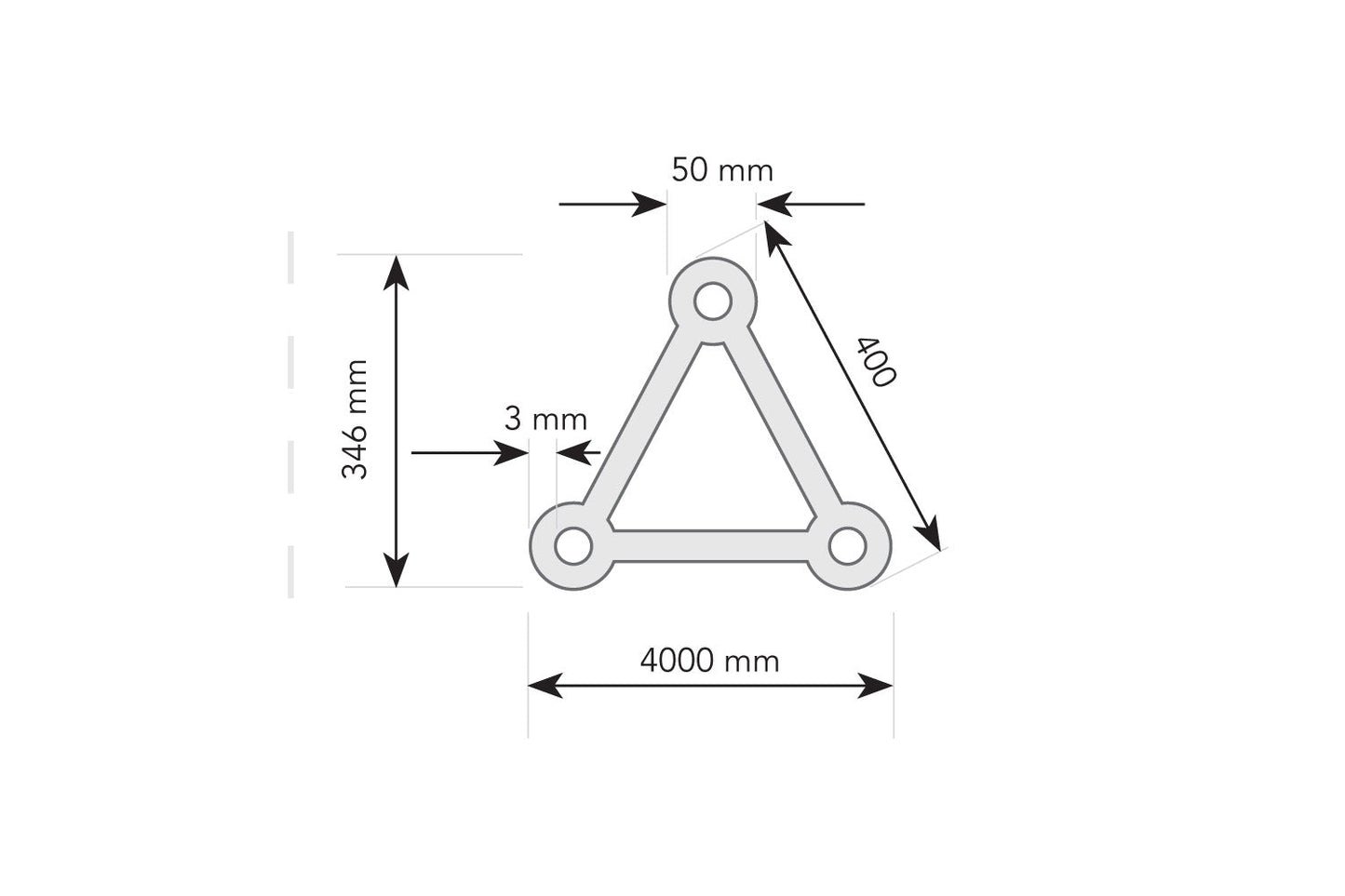

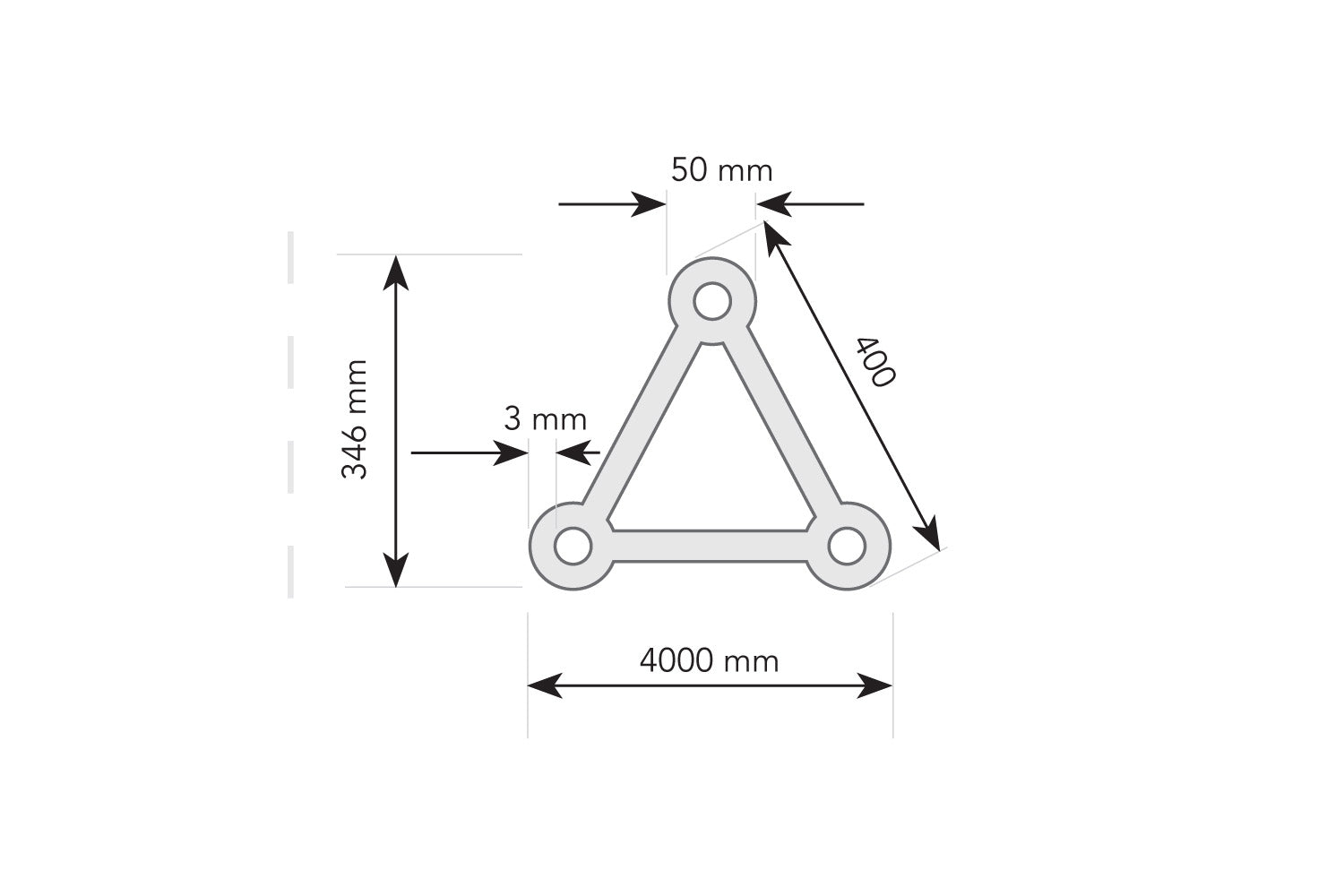

400mm Aluminium Lighting Spigot Triangular Truss, 3mm wall thickness
- Main Tube: 50mm x 3mm
- Vice Brace: 50mm x 2mm
- Diagonal Brace: 25mm x 2mm
- Materials: Aluminum alloy 6061-T6
- Finishing: Black
- Rating: TUV
- Length available:
- 0.5m: T4TD05BK
- 1m: T4TD1BK
- 1.5m: T4TD1.5BK
- 2m: T4TD2BK
- 2.5m: T4TD2.5BK
- 3m: T4TD3BK
|
SPAN (M)
|
1m
|
2m
|
3m
|
4m
|
5m
|
6m
|
7m
|
8m
|
9m
|
10m
|
11m
|
12m
|
13m
|
14m
|
15m
|
16m
|
|
Centre Point Load (kg)
|
1700
|
1350
|
1208
|
1106
|
1079
|
1000
|
901
|
885
|
801
|
789
|
798
|
740
|
709
|
483
|
632
|
620
|
|
Deflection (mm)
|
2.2
|
3.8
|
4.7
|
6.9
|
9.8
|
10
|
16
|
20
|
22
|
30
|
40
|
45
|
50
|
60
|
67
|
79
|
|
Uniform Load (kg)
|
3326
|
2645
|
2566
|
2196
|
2000
|
1956
|
1736
|
1645
|
1501
|
1456
|
1342
|
1304
|
1202
|
1176
|
1123
|
1096
|
|
Deflection (mm)
|
1.8
|
2.4
|
4
|
6
|
7.9
|
10
|
14
|
17
|
21
|
26
|
35
|
38
|
49
|
51
|
60
|
69
|
The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings
Warranty: 3 years
