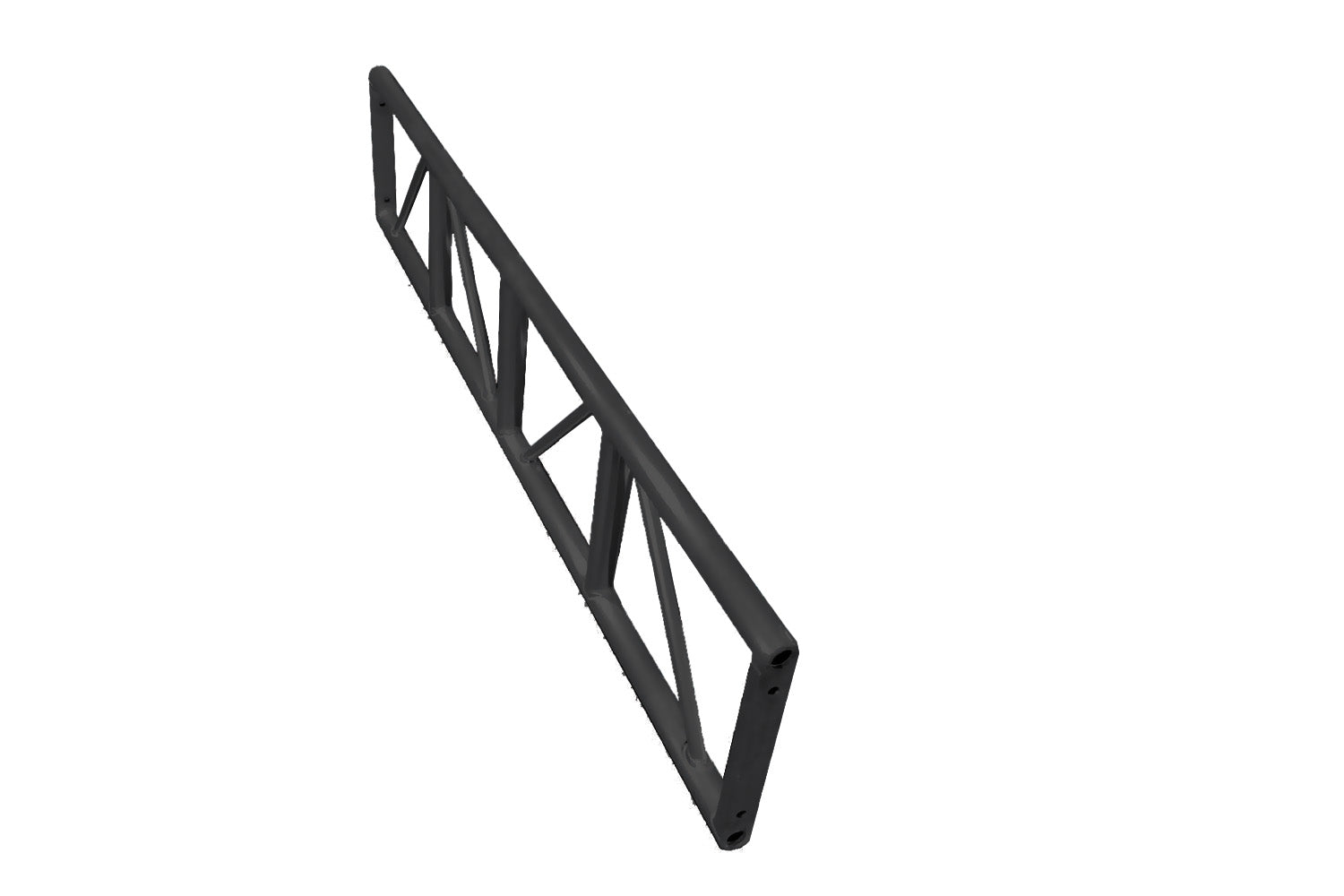

T4FBBK - 400mm Bolt Flat Truss - Black

T4FBBK - 400mm Bolt Flat Truss - Black

$0.00
$0.00
Sale Contact for Availability

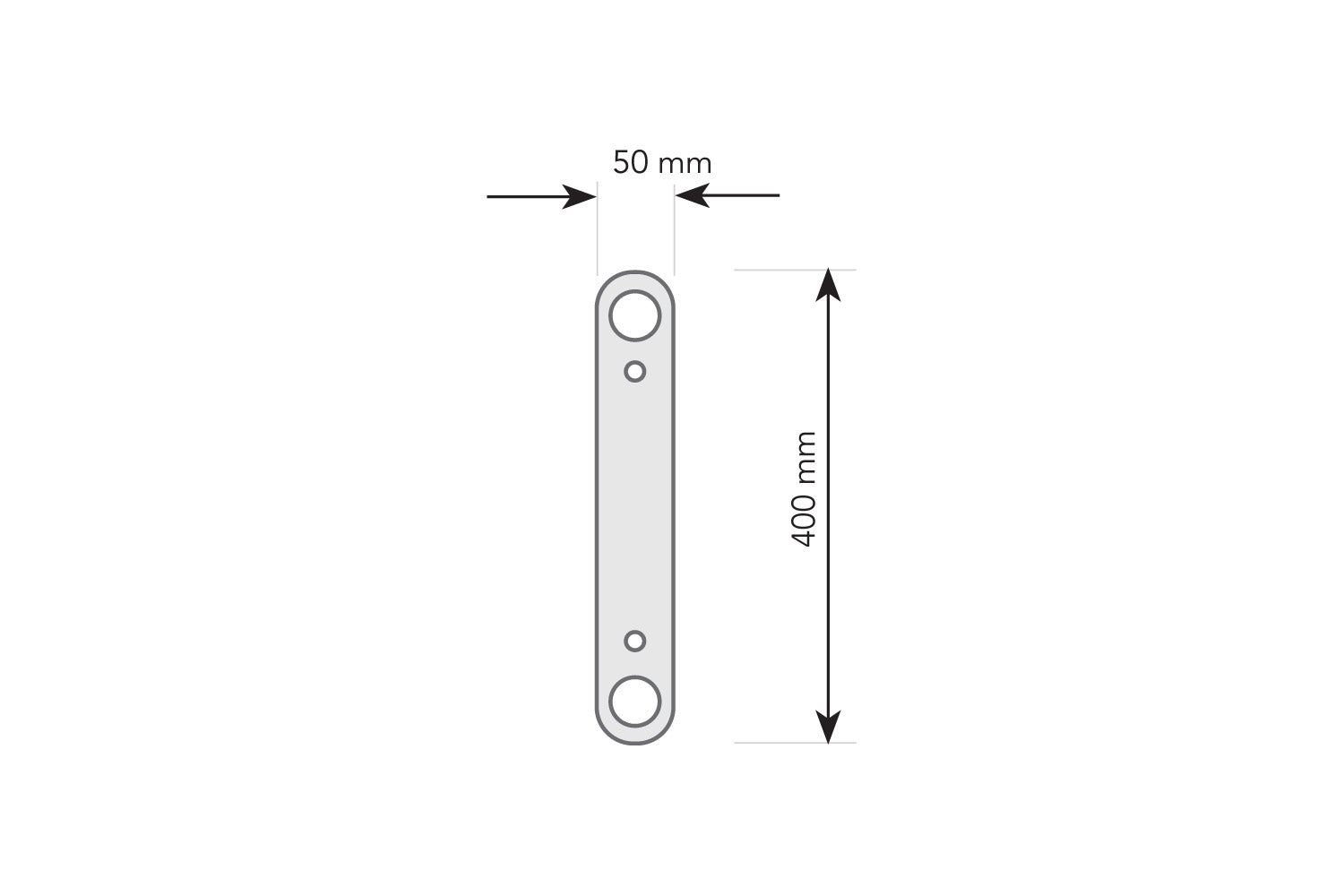

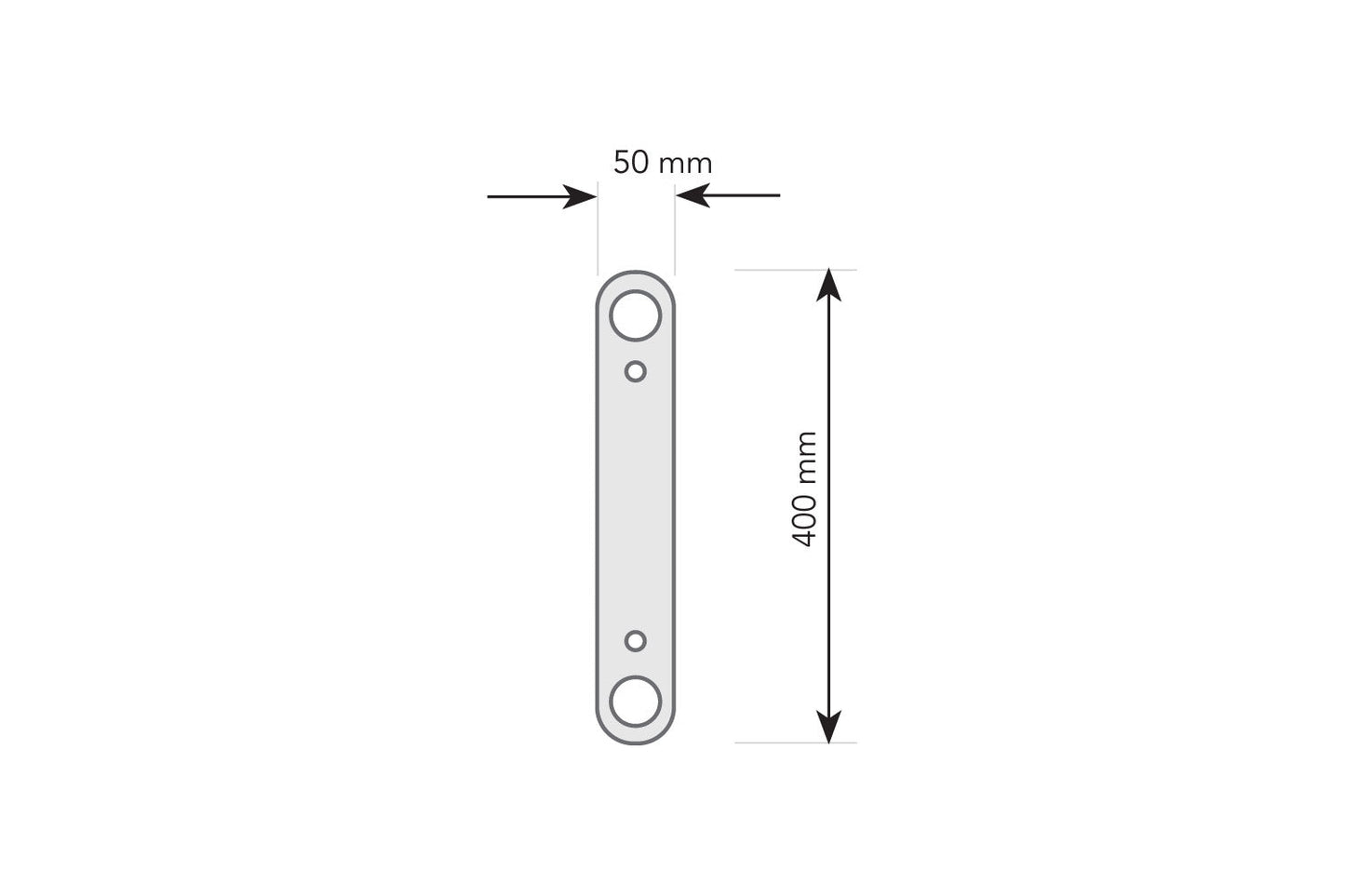

400mm Aluminium Bolt Flat Truss, 3mm wall thickness

  • Main Tube: 50mm x 3mm
  • Vice Brace: 50mm x 2mm
  • Diagonal Brace: 25mm x 2mm
  • Materials: Aluminum alloy 6061-T6
  • Finishing: Black
  • Rating: TUV
  • Length available:
    • 0.5m: T4FB05BK
    • 1m: T4FB1BK
    • 1.5m:  T4FB1.5BK
    • 2m:  T4FB2BK
    • 2.5m:  T4FB2.5BK
    • 3m:  T4FB3BK
    • 4m: T4FB4BK
    SPAN (M)
    1m
    2m
    3m
    4m
    5m
    6m
    Centre Point Load (kg)
    1276
    544
    275
    140
    78
    53
    Deflection (mm)
    0
    1
    2
    2
    2
    3
    Uniform Load (kg)
    1277
    900
    458
    230
    131
    82
    Deflection (mm)
    0
    1
    1
    1
    2
    2
    The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings


    Download user manual

    Warranty: 3 years
