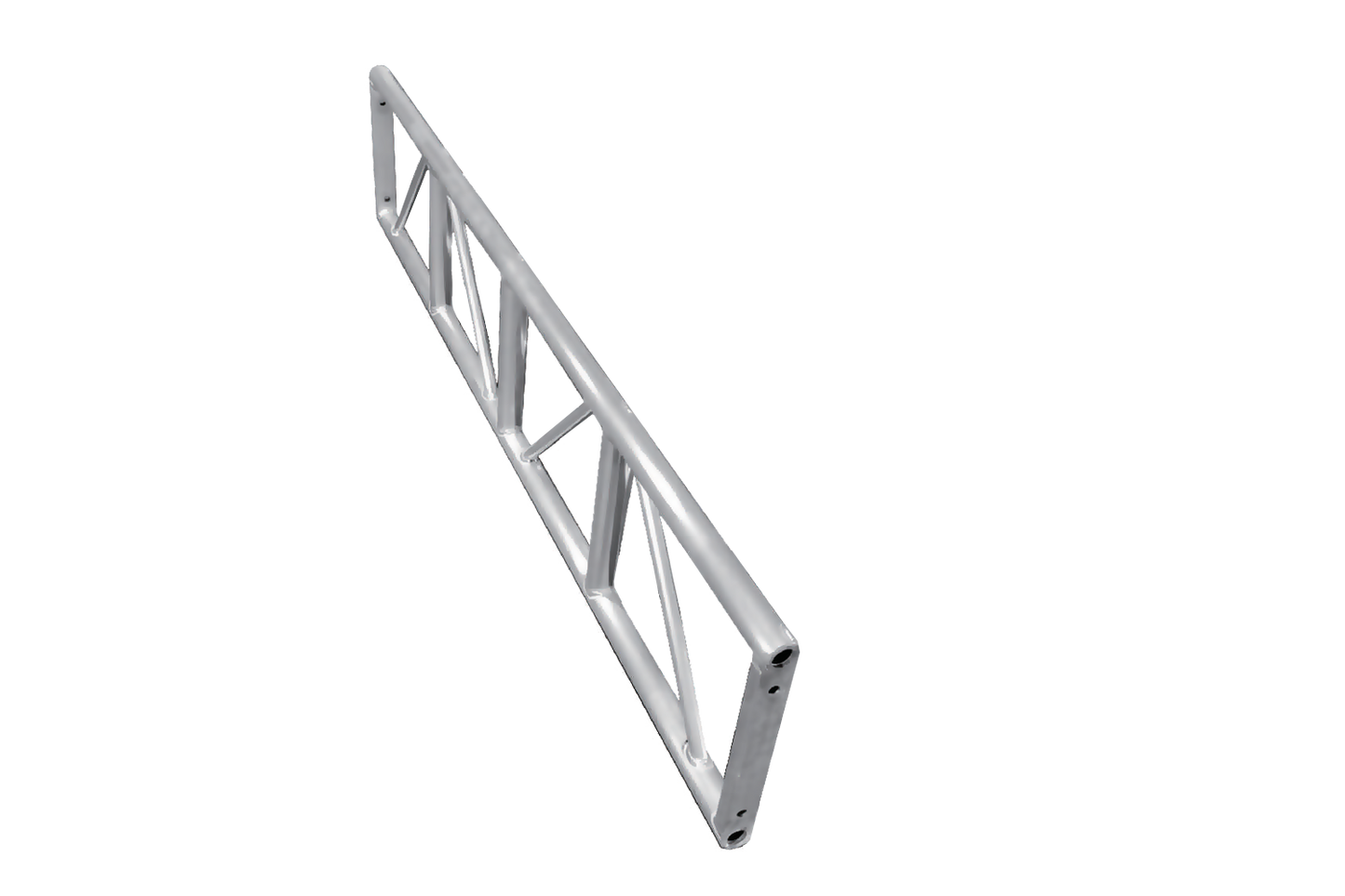

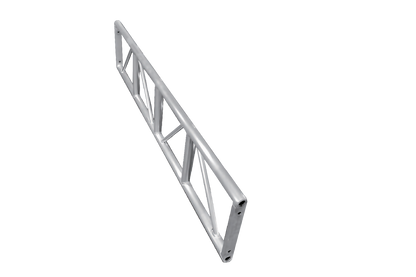

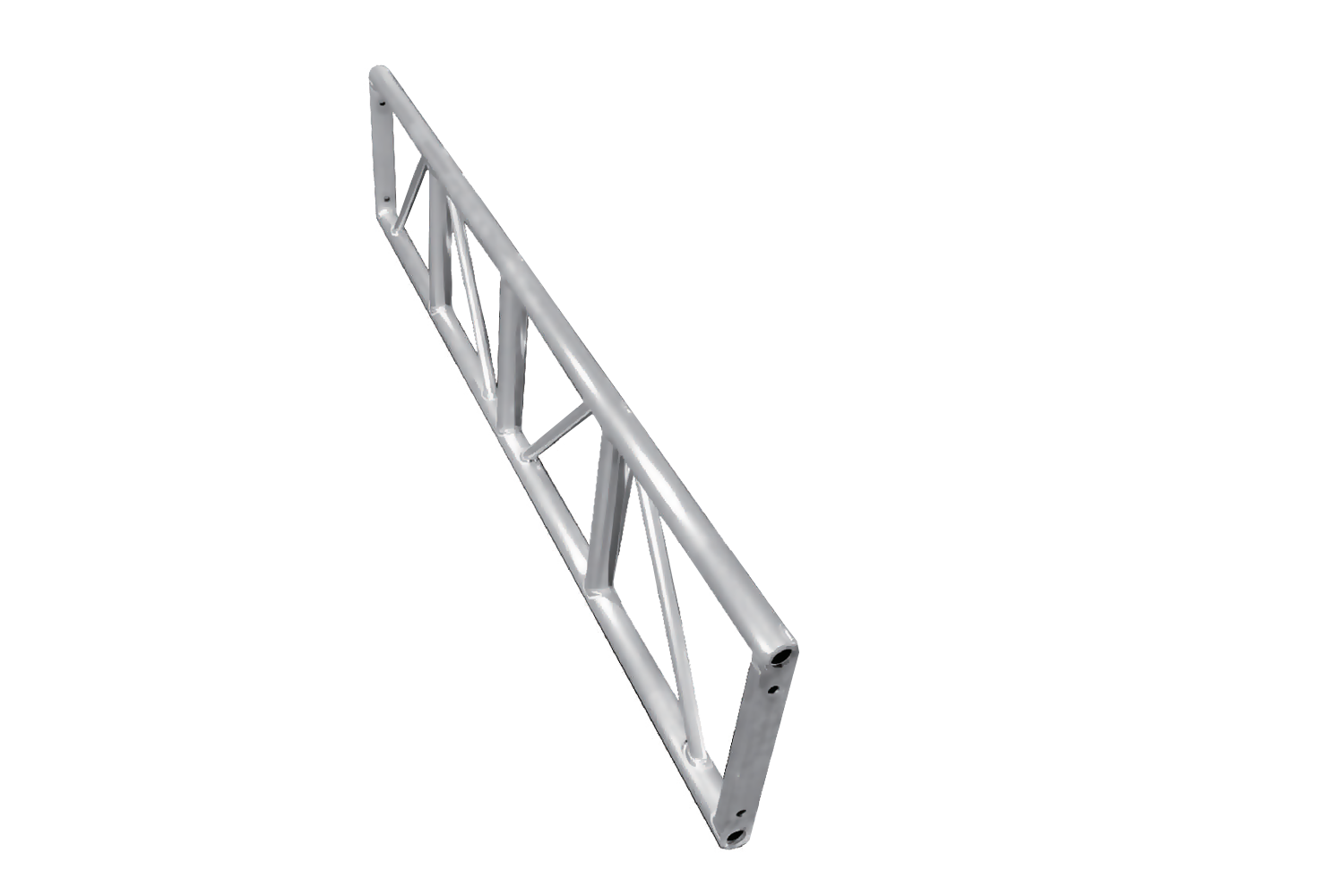

T4FB - 400mm Bolt Flat Truss - Silver
T4FB - 400mm Bolt Flat Truss - Silver
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per

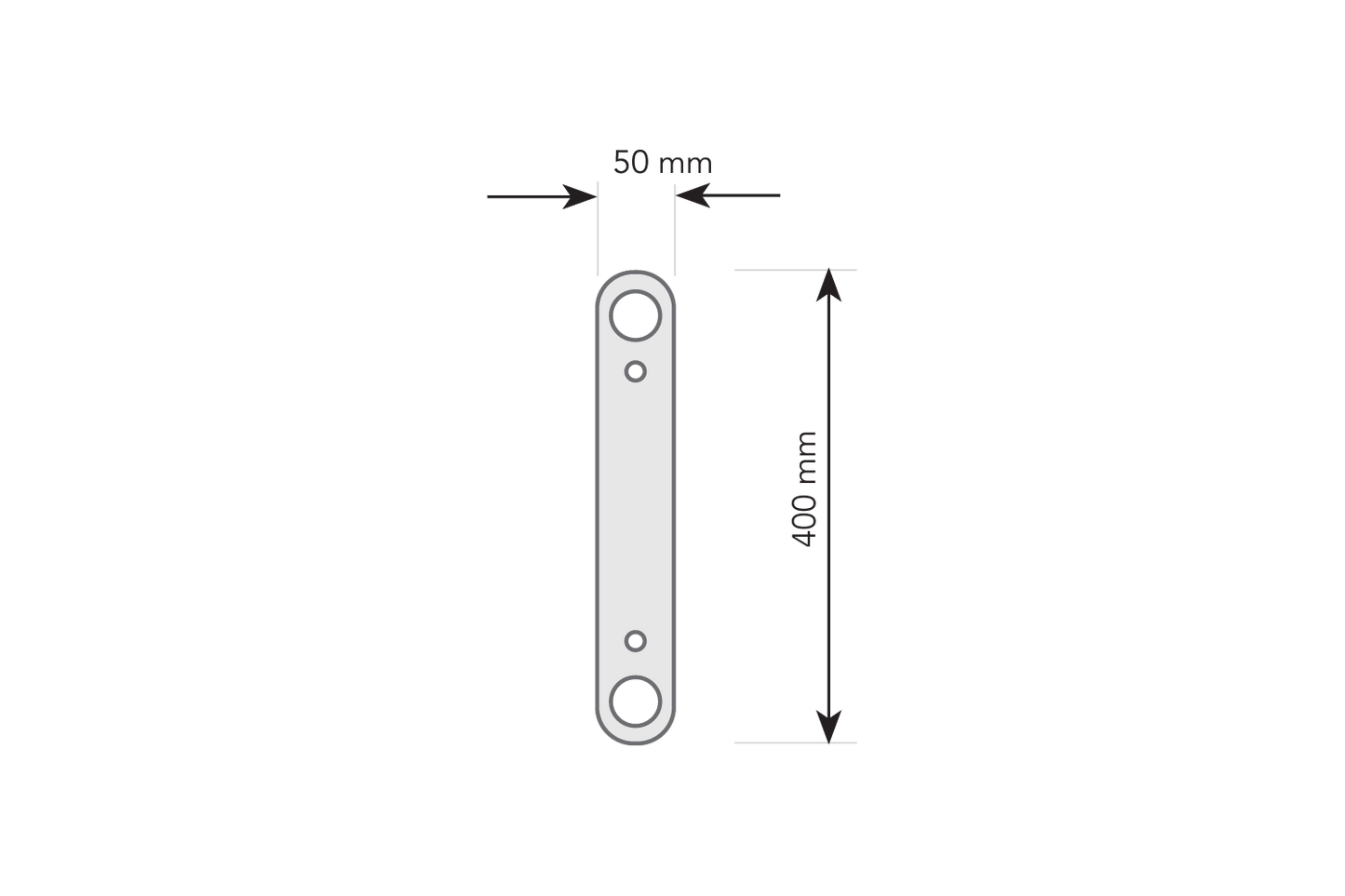

400mm Aluminium Bolt Flat Truss, 3mm wall thickness
- Main Tube: 50mm x 3mm
- Vice Brace: 50mm x 2mm
- Diagonal Brace: 25mm x 2mm
- Materials: Aluminum alloy 6061-T6
- Finishing: Washed
- Rating: TUV
- Length available:
- 0.5m: T4FB05
- 1m: T4FB1
- 1.5m: T4FB1.5
- 2m: T4FB2
- 2.5m: T4FB2.5
- 3m: T4FB3
- 4m: T4FB4
|
SPAN (M)
|
1m
|
2m
|
3m
|
4m
|
5m
|
6m
|
|
Centre Point Load (kg)
|
1276
|
544
|
275
|
140
|
78
|
53
|
|
Deflection (mm)
|
0
|
1
|
2
|
2
|
2
|
3
|
|
Uniform Load (kg)
|
1277
|
900
|
458
|
230
|
131
|
82
|
|
Deflection (mm)
|
0
|
1
|
1
|
1
|
2
|
2
|
The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings
Warranty: 3 years
