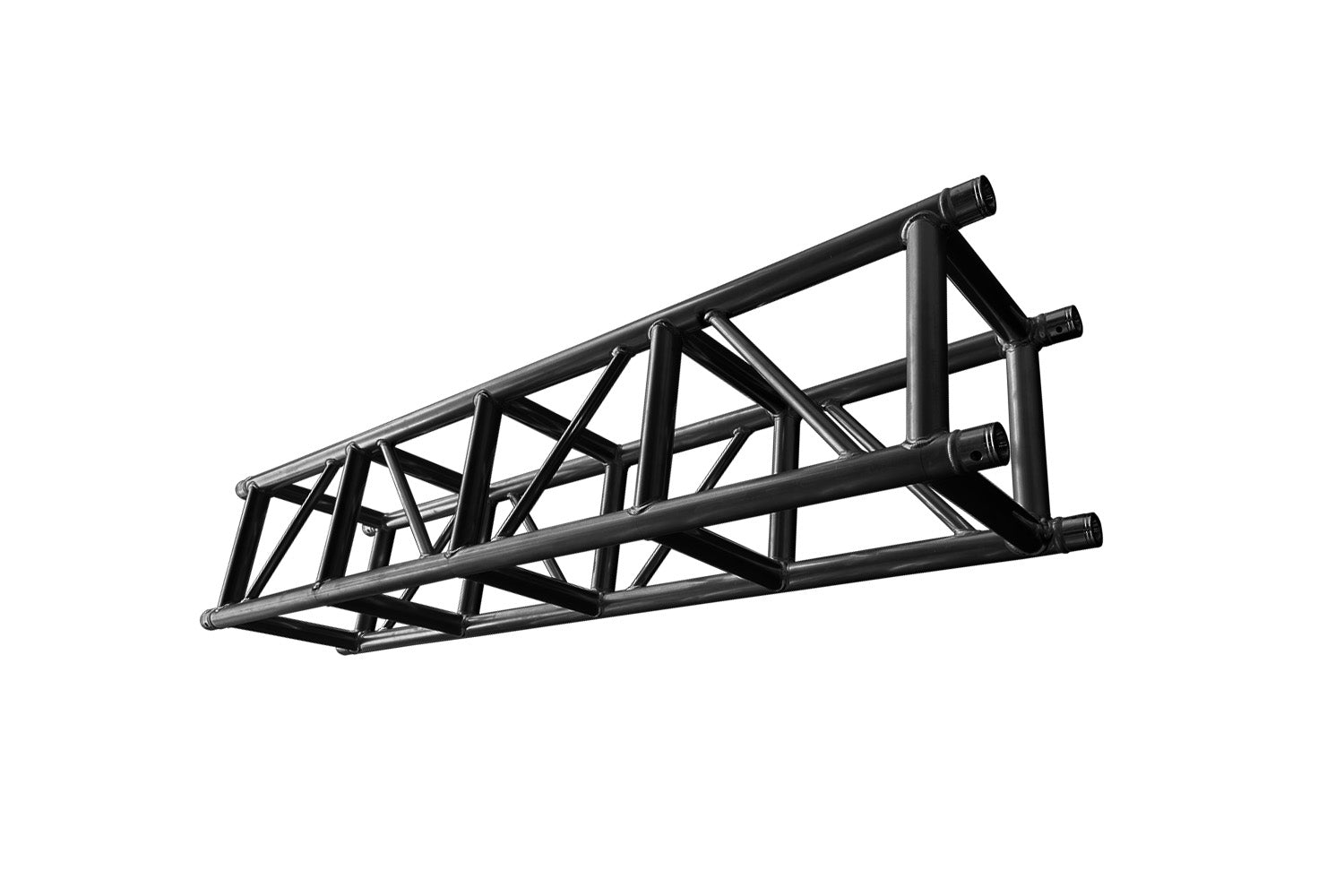

T4BLBK - 400mm Spigot Box Truss - Black
T4BLBK - 400mm Spigot Box Truss - Black
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
/
per

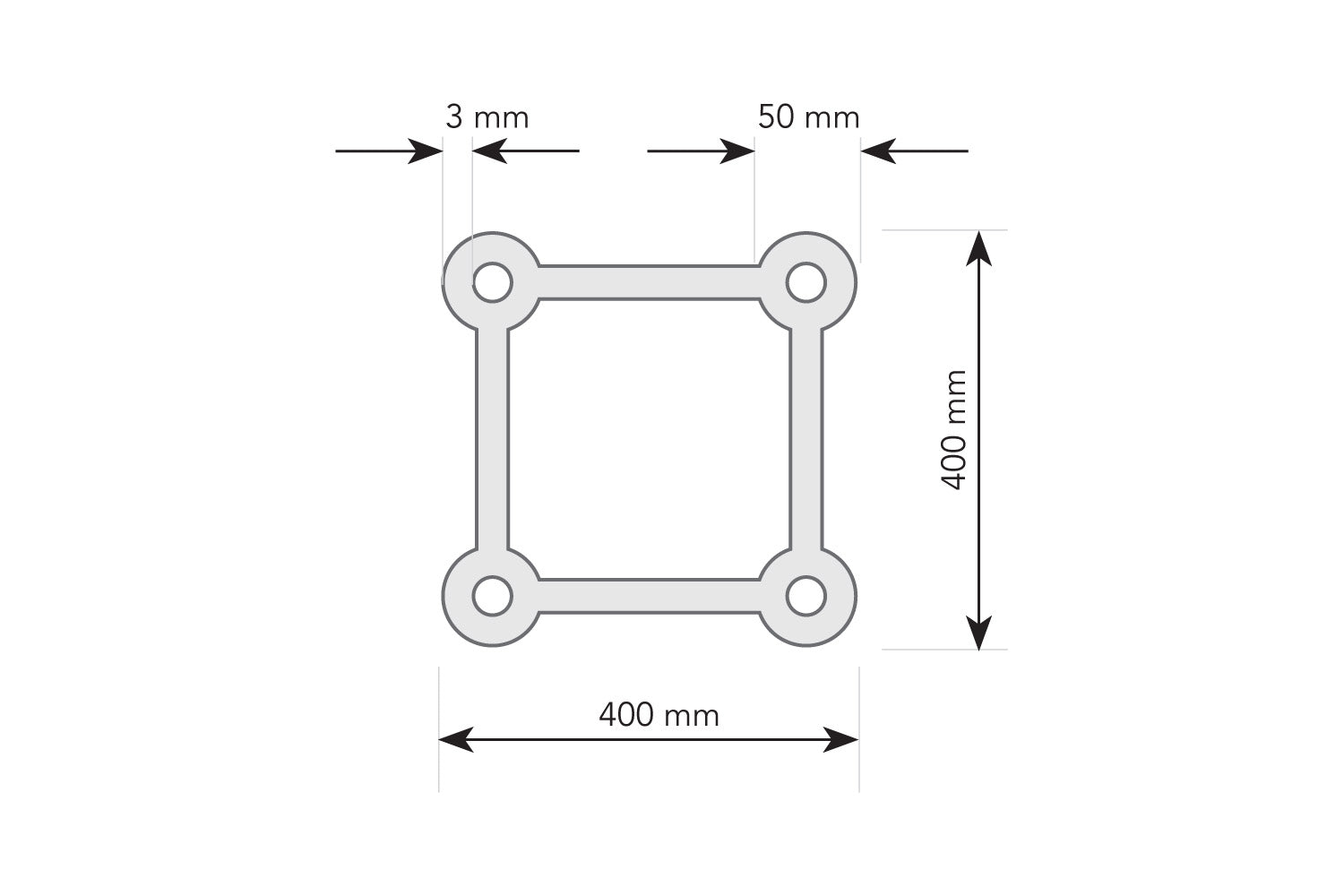

400mm Aluminium Lighting Spigot Box Truss, 3mm wall thickness
- Main Tube: 50mm x 3mm
- Vice Brace: 50mm x 2mm
- Diagonal Brace: 25mm x 2mm
- Materials: Aluminum alloy 6061-T6
- Finishing: Black
- Rating: TUV
- Length available: 0.2 / 0.5 / 1 / 1.5 / 2 / 2.5 / 3 / 4 m
|
Span
(m) |
Uniform Load (kg/m)
|
Centre Point Load (kg)
|
2 Points Load (kg)
|
3 Points Load (kg)
|
|
0.5
|
3000
|
3000
|
1500
|
1200
|
|
1
|
2000
|
2000
|
1300
|
1000
|
|
2
|
1500
|
1800
|
1200
|
900
|
|
3
|
1000
|
1700
|
1000
|
800
|
|
4
|
900
|
1600
|
900
|
700
|
|
5
|
700
|
1300
|
800
|
600
|
|
6
|
500
|
1350
|
750
|
650
|
|
7
|
400
|
1150
|
700
|
600
|
|
8
|
300
|
1050
|
650
|
550
|
|
9
|
225
|
950
|
600
|
420
|
|
10
|
200
|
850
|
550
|
350
|
|
11
|
150
|
750
|
500
|
300
|
|
12
|
130
|
700
|
450
|
250
|
|
13
|
100
|
650
|
400
|
200
|
|
14
|
80
|
600
|
350
|
180
|
|
15
|
70
|
500
|
300
|
160
|
|
16
|
60
|
450
|
250
|
150
|
|
17
|
50
|
400
|
200
|
140
|
|
18
|
40
|
350
|
150
|
130
|
The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings
Warranty: 3 years
