T4BBBK - 400mm Bolt Box Truss - Black
T4BBBK - 400mm Bolt Box Truss - Black
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per

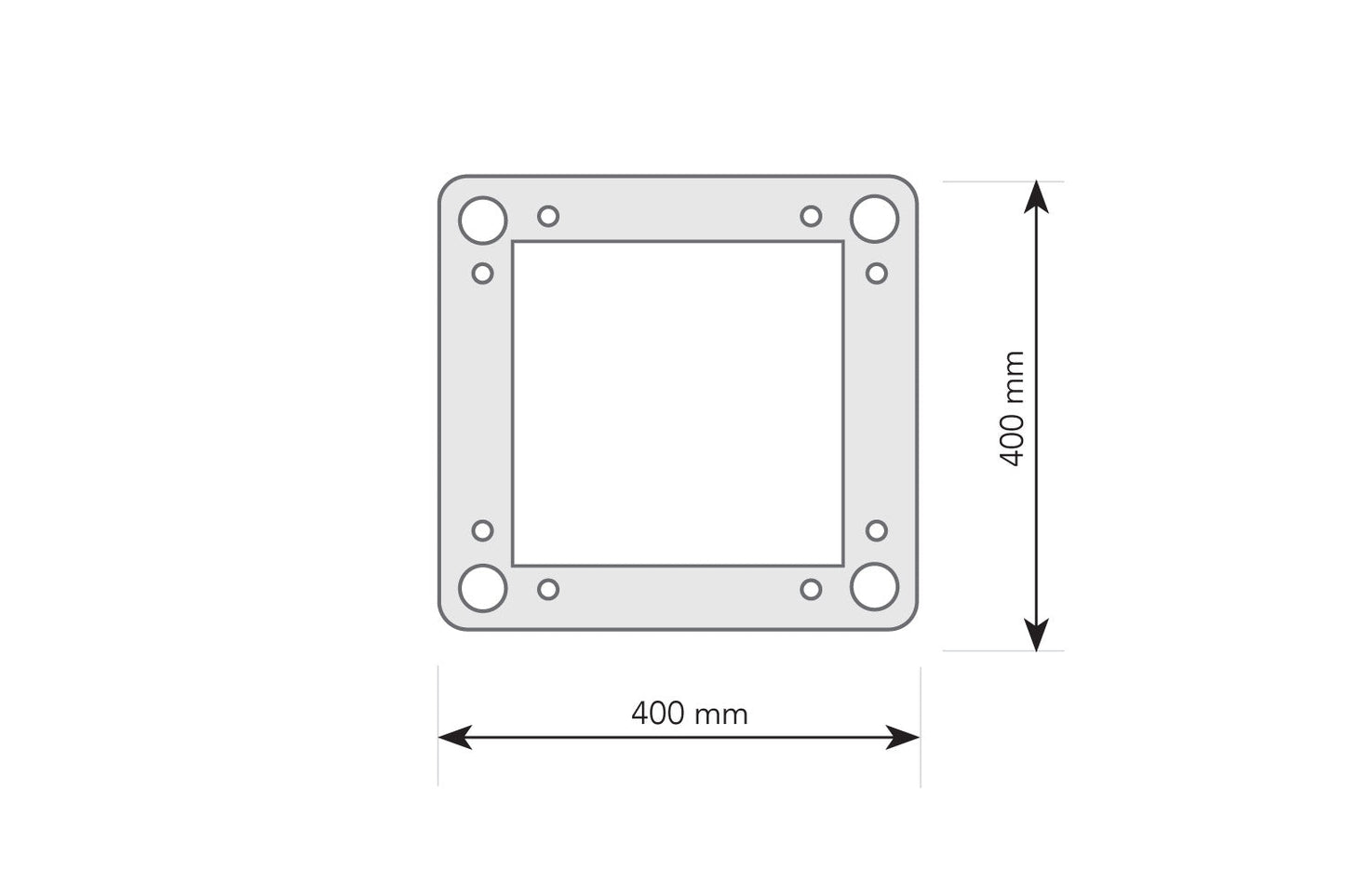

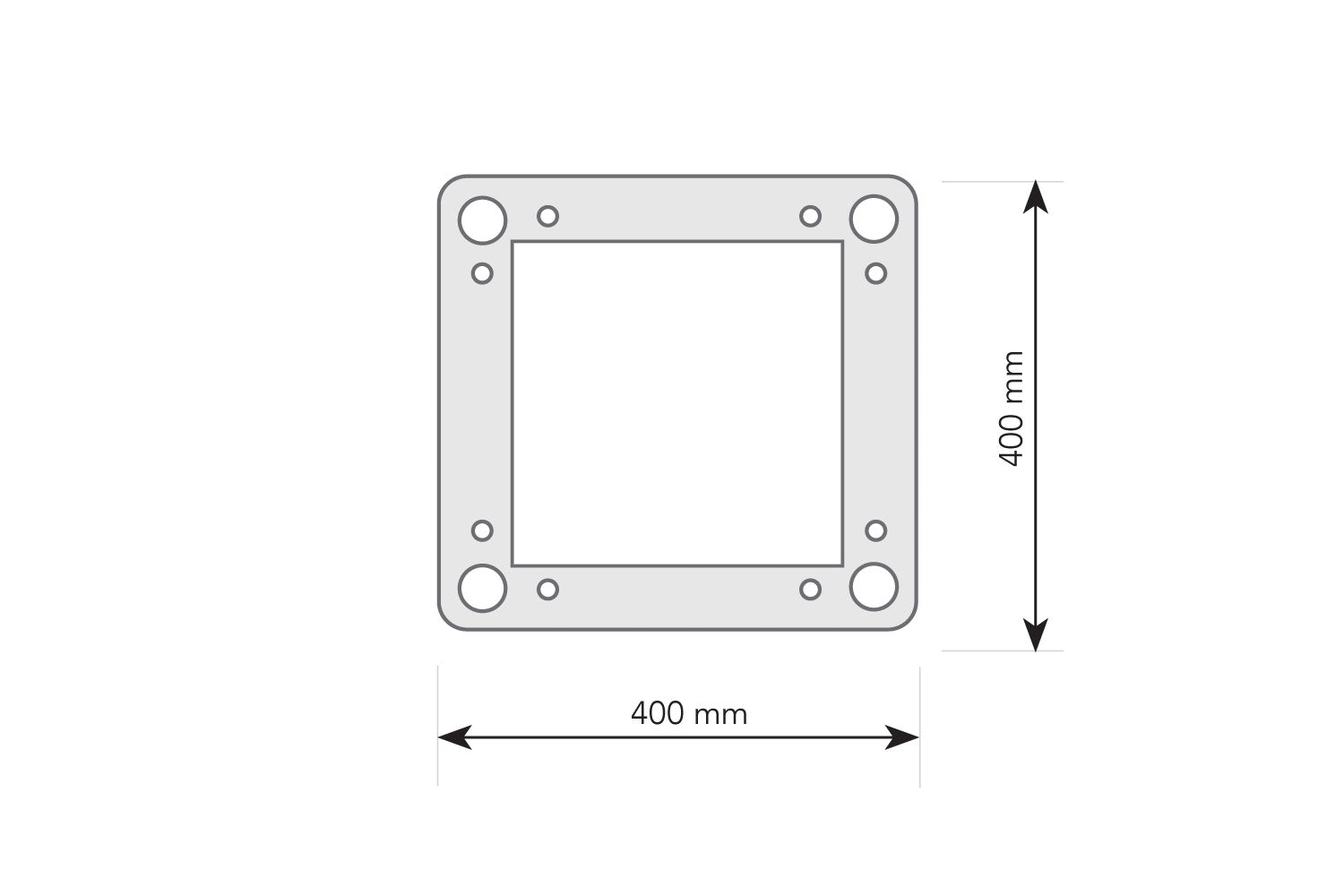

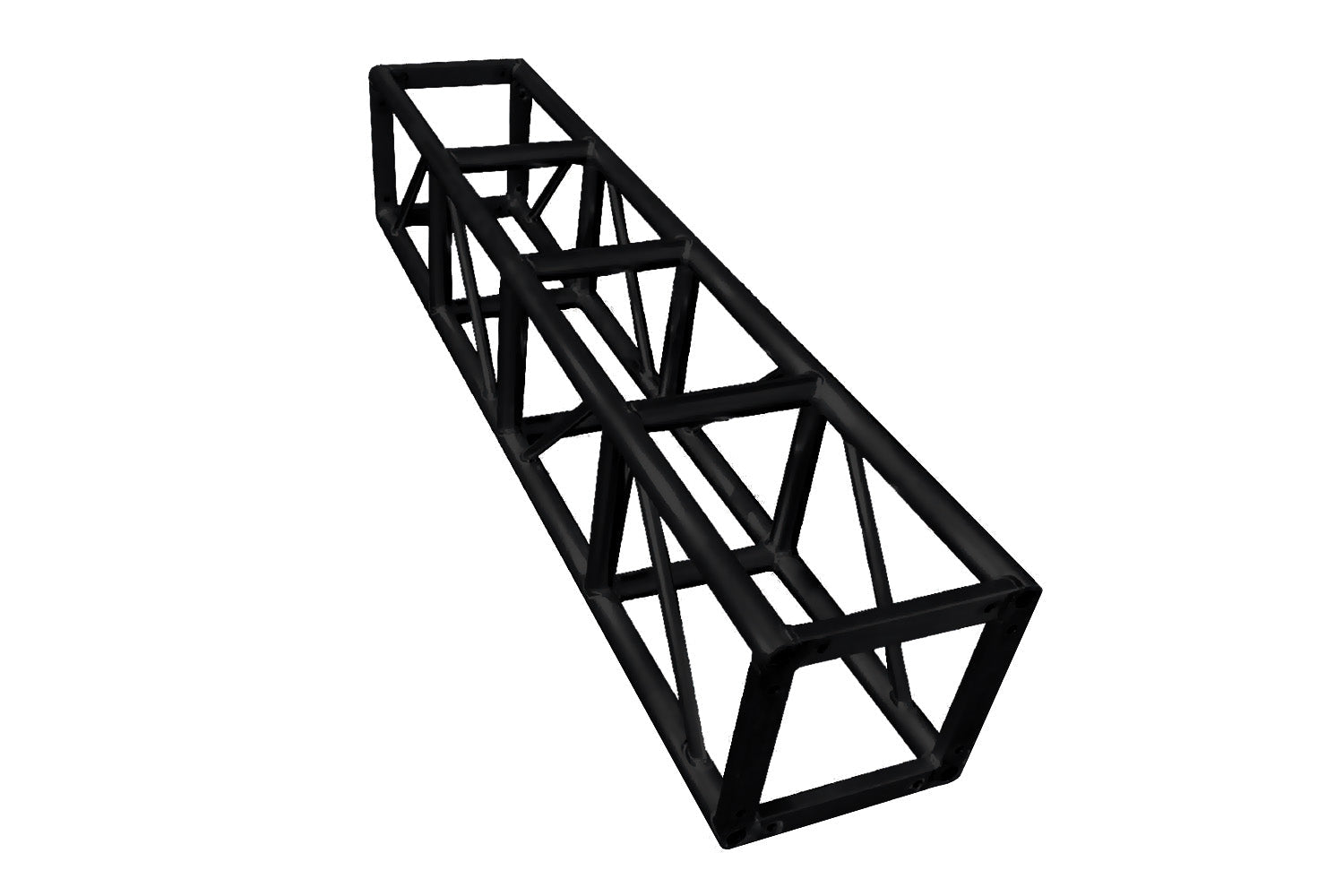

400mm Aluminium Bolt Box Truss, 3mm wall thickness
- Main Tube: 50mm x 3mm
- Vice Brace: 50mm x 2mm
- Diagonal Brace: 25mm x 2mm
- Materials: Aluminum alloy 6061-T6
- Finishing: Black
- Rating: TUV
- Length available: 0.5 / 1 / 1.5 / 2 / 2.5 / 3 / 4 m
|
SPAN (M)
|
1m
|
2m
|
3m
|
4m
|
5m
|
6m
|
7m
|
8m
|
9m
|
10m
|
11m
|
12m
|
13m
|
14m
|
15m
|
16m
|
|
Centre Point Load (kg)
|
1600
|
1480
|
1400
|
1300
|
1250
|
1150
|
1050
|
1000
|
950
|
900
|
820
|
750
|
650
|
550
|
500
|
450
|
|
Deflection (mm)
|
3
|
5
|
7
|
15
|
21
|
30
|
41
|
52
|
63
|
75
|
84
|
93
|
99
|
106
|
123
|
140
|
|
Uniform Load (kg)
|
1700
|
1600
|
1550
|
1480
|
1400
|
1320
|
1250
|
1150
|
1100
|
1050
|
1010
|
960
|
930
|
900
|
825
|
750
|
|
Deflection (mm)
|
3
|
4
|
5
|
9
|
14
|
18
|
22
|
30
|
39
|
44
|
63
|
82
|
101
|
122
|
143
|
164
|
The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings
Warranty: 3 years
