T4B5L - 400mm Spigot 5- Chord Box Truss - Silver
T4B5L - 400mm Spigot 5- Chord Box Truss - Silver
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per

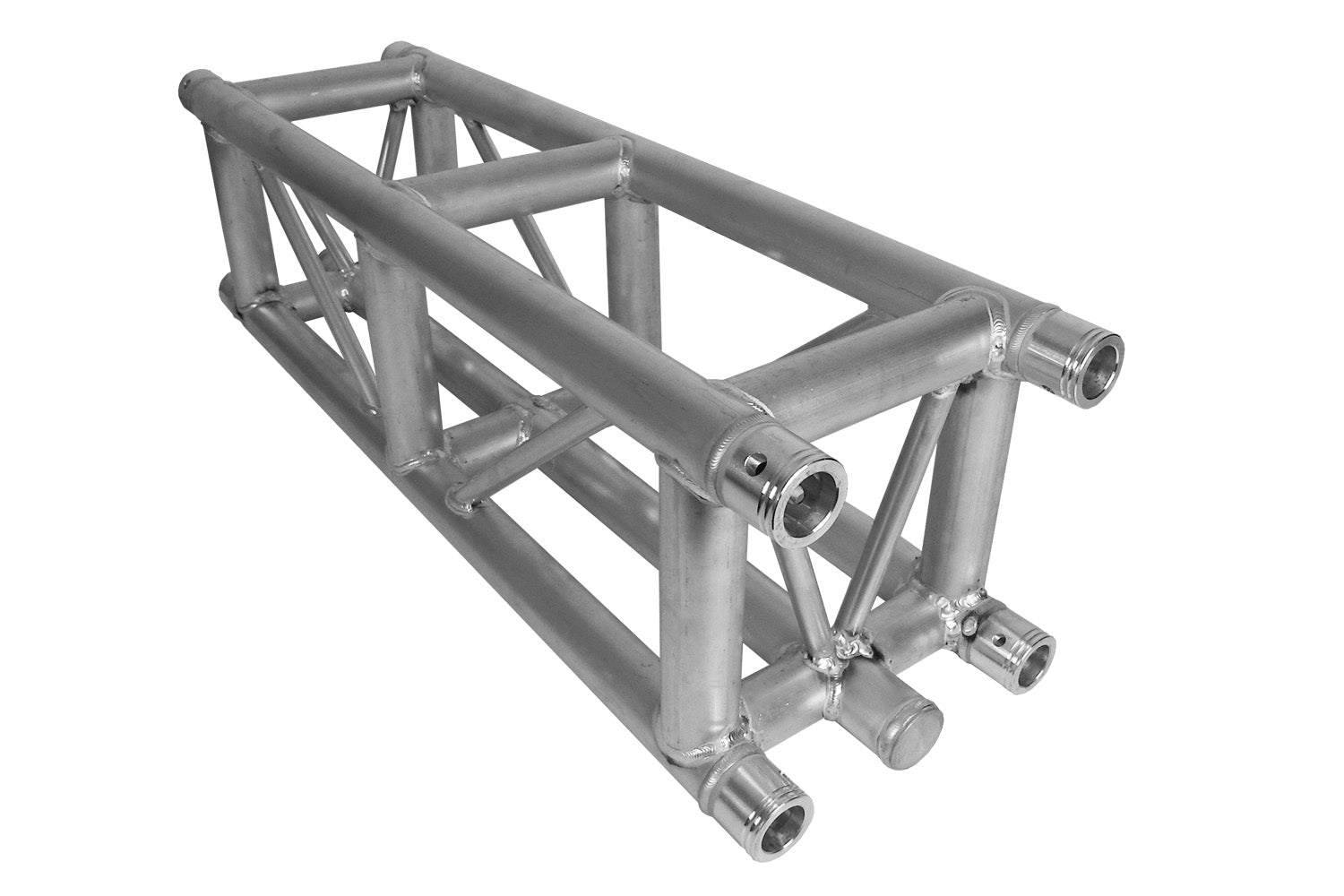

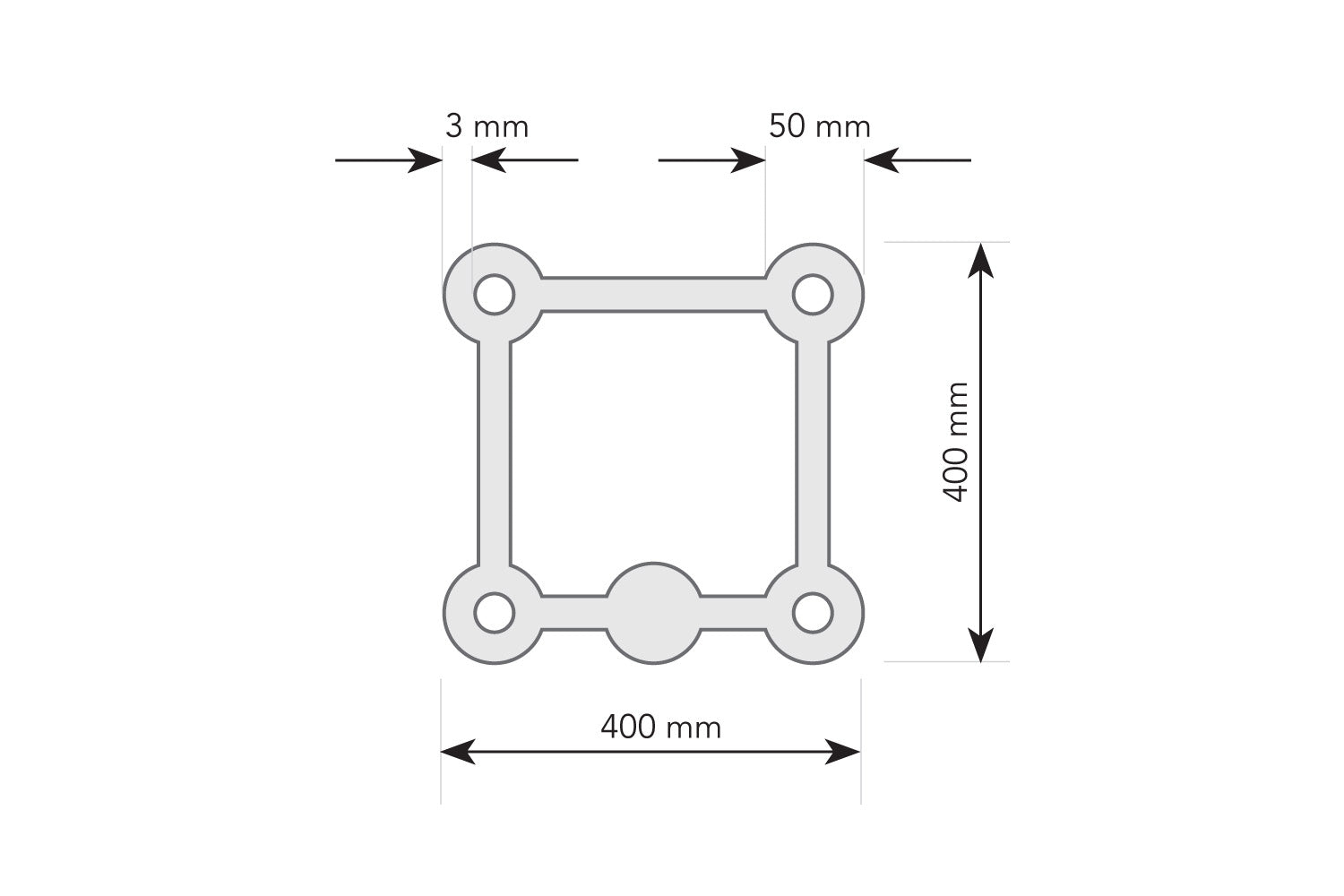

400mm Aluminium Lighting Spigot 5- Chord Box Truss, 3mm wall thickness
- Main Tube: 50mm x 3mm
- Vice Brace: 50mm x 2mm
- Diagonal Brace: 25mm x 2mm
- Materials: Aluminum alloy 6061-T6
- Finishing: Washed
- Rating: TUV
- Length available:
- 0.5m: T4B5L05
- 1m: T4B5L1
- 1.5m: T4B5L1.5
- 2m: T4B5L2
- 2.5m: T4B5L2.5
- 3m: T4B5L3
- 4m: T4B5L4
|
SPAN (M)
|
1m
|
2m
|
3m
|
4m
|
5m
|
6m
|
7m
|
8m
|
9m
|
10m
|
11m
|
12m
|
13m
|
14m
|
15m
|
16m
|
|
Centre Point Load (kg)
|
2011
|
1950
|
1859
|
1770
|
1589
|
1297
|
1100
|
980
|
910
|
835
|
755
|
697
|
600
|
520
|
479
|
443
|
|
Deflection (mm)
|
2
|
4
|
8
|
11
|
16
|
25
|
38
|
45
|
60
|
73
|
85
|
103
|
125
|
143
|
167
|
187
|
|
Uniform Load (kg)
|
2779
|
2712
|
2689
|
2605
|
2475
|
2300
|
1850
|
1650
|
1435
|
1257
|
1129
|
935
|
885
|
825
|
787
|
698
|
|
Deflection (mm)
|
2.5
|
4
|
5.8
|
10
|
14
|
20
|
27
|
36
|
49
|
60
|
70
|
87
|
101
|
115
|
132
|
147
|
The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings
Warranty: 3 years
