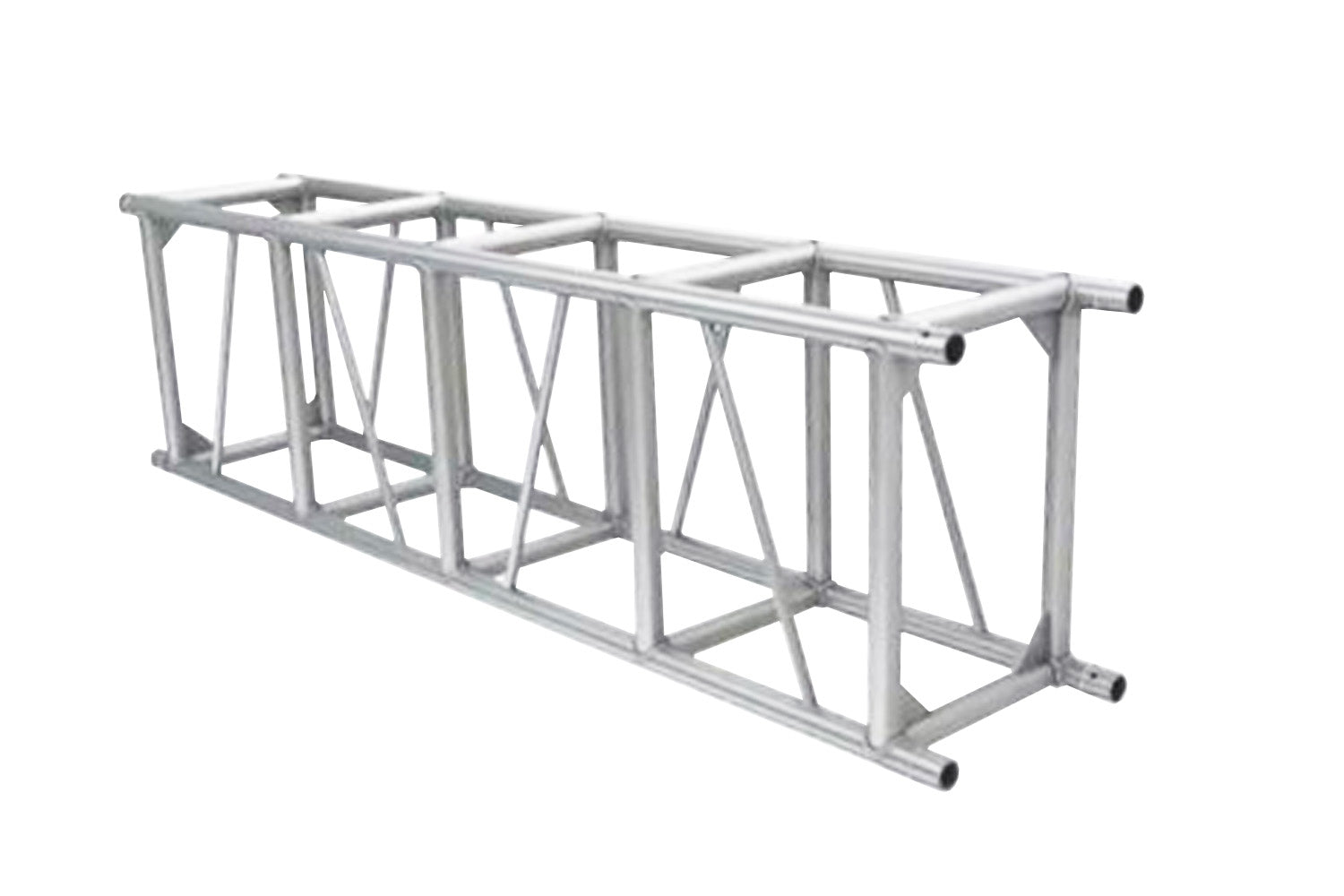

T46BL - 400x600mm Spigot Rectangular Truss - Silver
T46BL - 400x600mm Spigot Rectangular Truss - Silver
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per

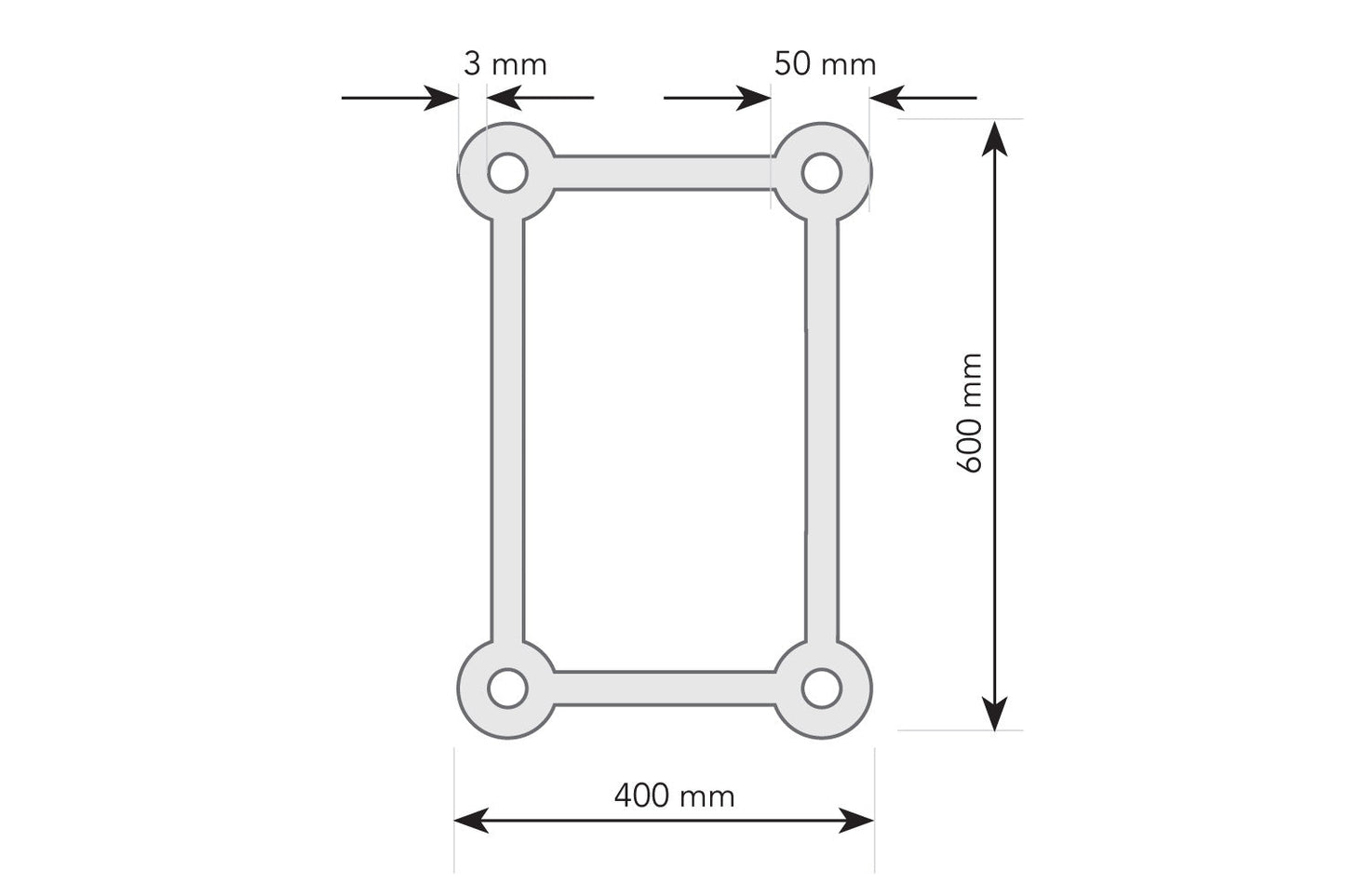

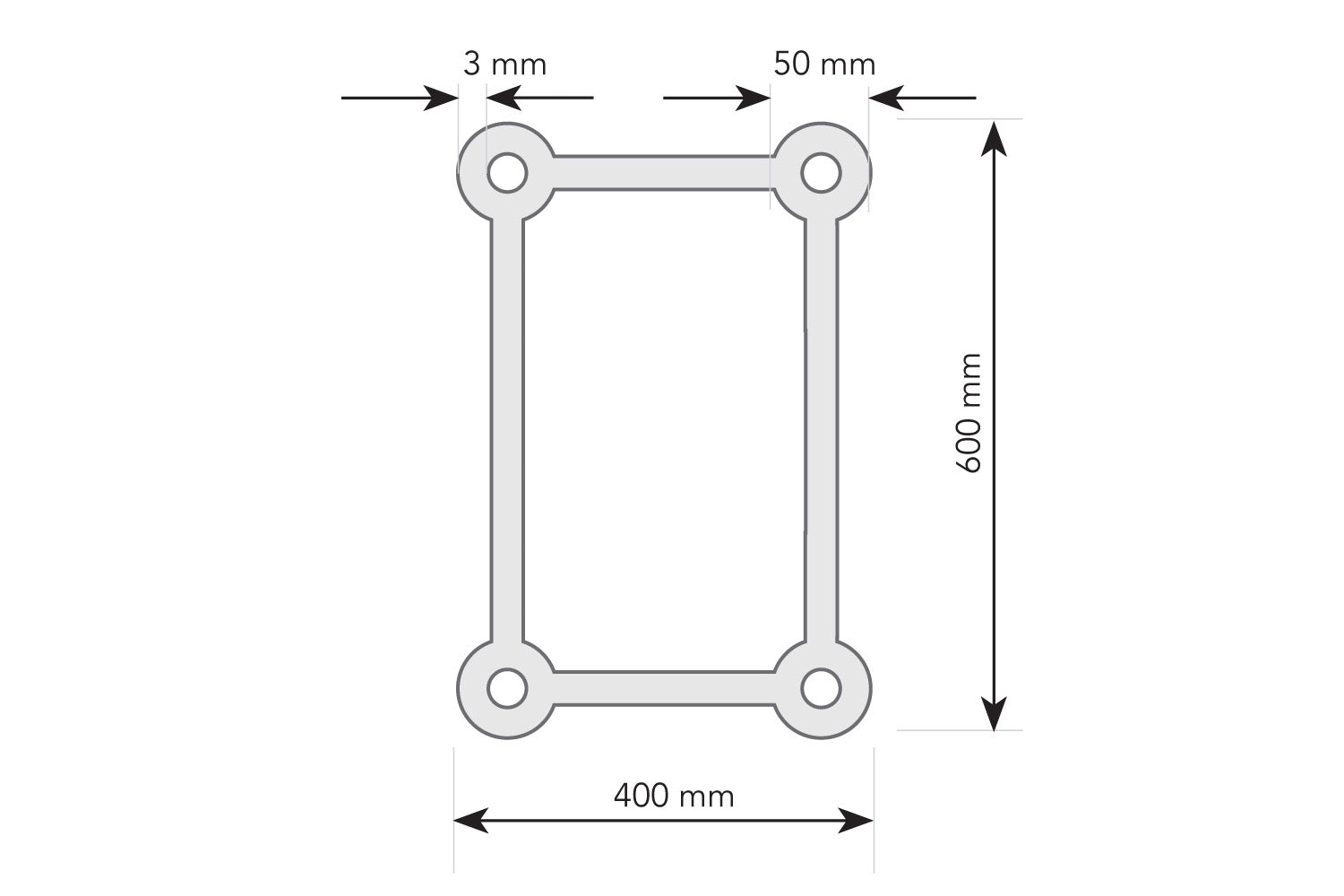

400x600mm Aluminium Lighting Spigot Rectangular Truss, 3mm wall thickness
- Main Tube: 50mm x 3mm
- Vice Brace: 50mm x 2mm
- Diagonal Brace: 25mm x 2mm
- Materials: Aluminum alloy 6061-T6
- Finishing: Washed
- Rating: TUV
- Length available:
- 0.5m: T46BL05
- 1m: T46BL1
- 1.5m: T46BL1.5
- 2m: T46BL2
- 2.5m: T46BL2.5
- 3m: T46BL3
- 4m: T46BL4
|
SPAN (M)
|
4m
|
5m
|
6m
|
7m
|
8m
|
9m
|
10m
|
11m
|
12m
|
13m
|
14m
|
15m
|
16m
|
17m
|
18m
|
19m
|
20m
|
|
Centre Point Load (kg)
|
2900
|
2300
|
2000
|
1712
|
1613
|
1394
|
1135
|
1049
|
900
|
889
|
820
|
750
|
660
|
570
|
560
|
550
|
480
|
|
Deflection (mm)
|
12
|
14
|
15
|
18
|
26
|
31
|
40
|
43
|
46
|
49
|
53
|
56
|
72
|
88
|
110
|
132
|
138
|
|
Uniform Load (kg)
|
2900
|
2300
|
2200
|
1900
|
1800
|
1550
|
1450
|
1400
|
1350
|
1200
|
1163
|
1125
|
1007
|
890
|
883
|
875
|
650
|
|
Deflection (mm)
|
12
|
13
|
18
|
20
|
24
|
32
|
40
|
44
|
48
|
61
|
74
|
87
|
90
|
95
|
112
|
129
|
136
|
The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings
Warranty: 3 years
