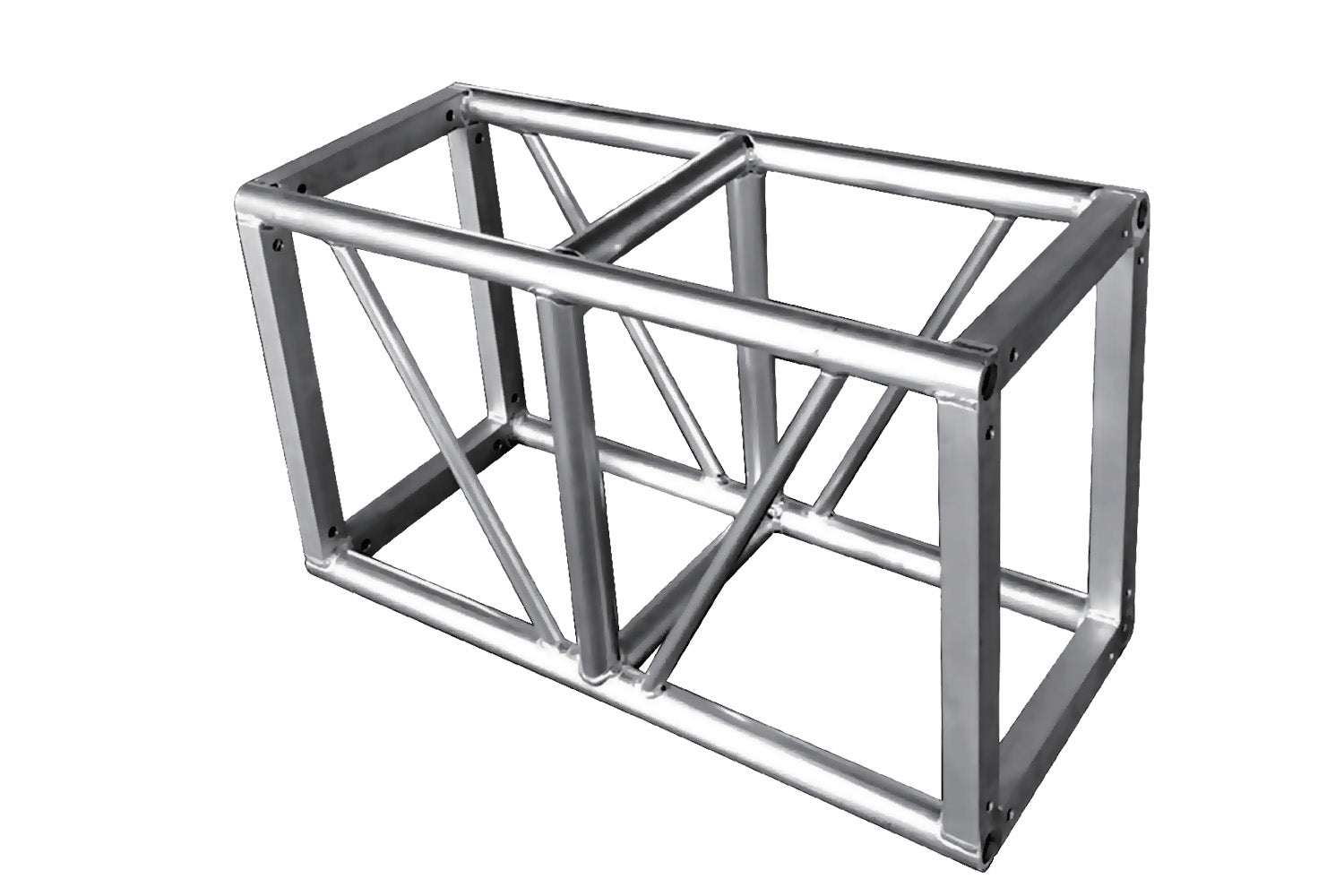

T46BB - 400x460mm Bolt Rectangular Truss - Silver
T46BB - 400x460mm Bolt Rectangular Truss - Silver
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per

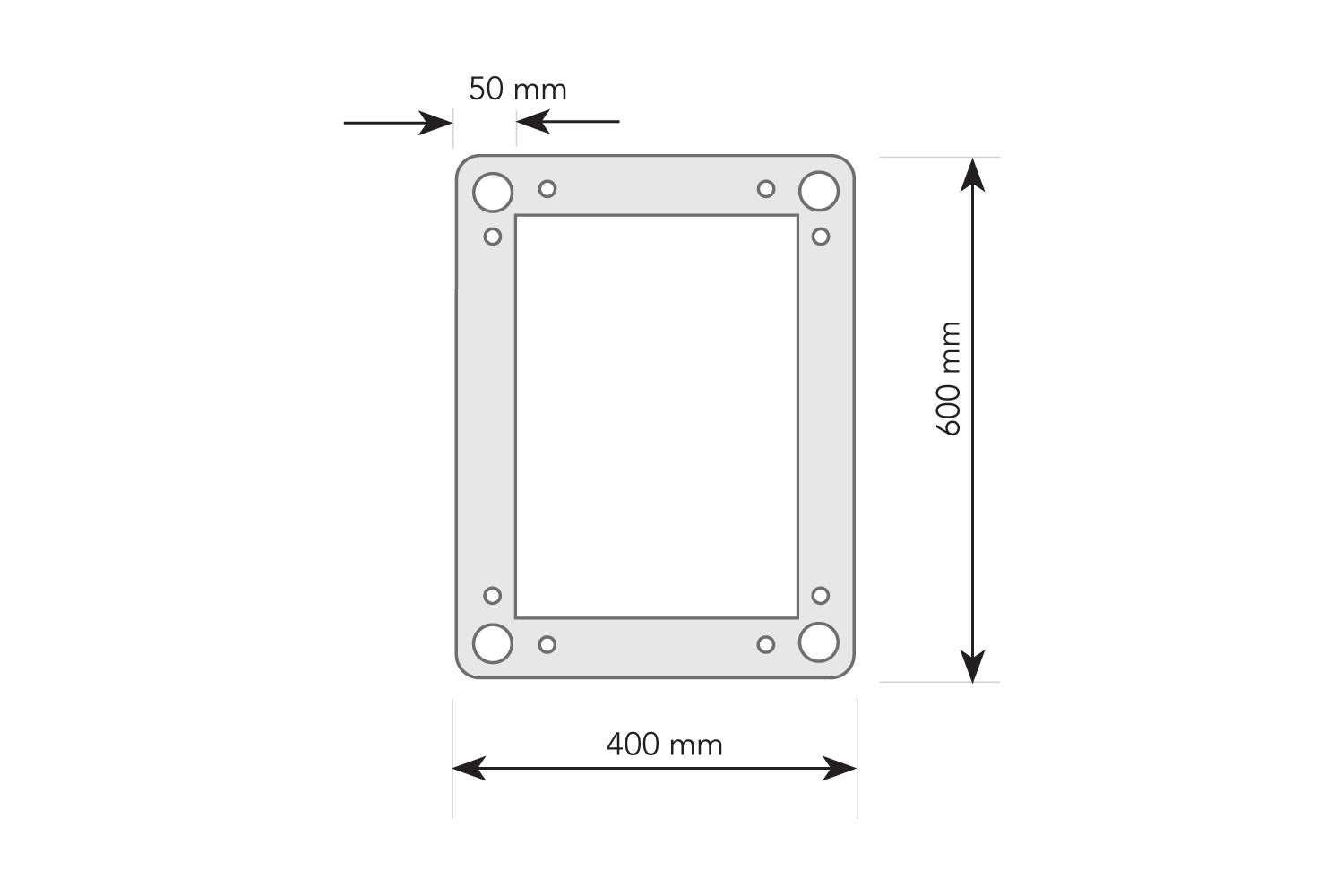

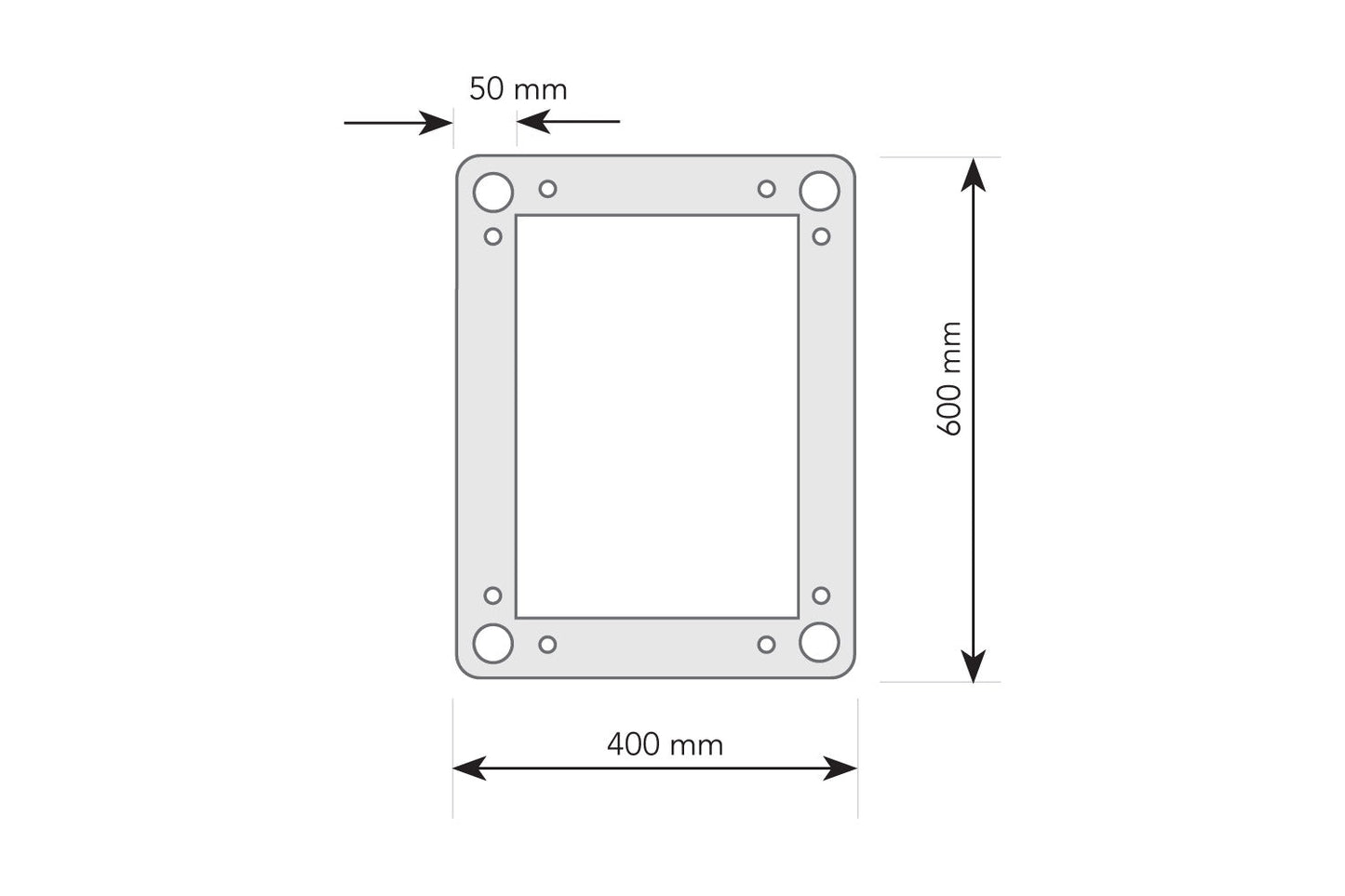

400x600mm Aluminium Bolt Rectangular Truss, 3mm wall thickness
- Main Tube: 50mm x 3mm
- Diagonal Brace: 25mm x 2mm
- Materials: Aluminum alloy 6061-T6
- Finishing: Washed
- Rating: TUV
- Length available: 0.5 / 1 / 1.5 / 2 / 2.5 / 3 m
|
SPAN (M)
|
4m
|
5m
|
6m
|
7m
|
8m
|
9m
|
10m
|
11m
|
12m
|
13m
|
14m
|
15m
|
16m
|
17m
|
18m
|
19m
|
20m
|
|
Centre Point Load (kg)
|
2900
|
2300
|
2000
|
1712
|
1613
|
1394
|
1135
|
1049
|
910
|
910
|
876
|
886
|
700
|
612
|
549
|
543
|
480
|
|
Deflection (mm)
|
12
|
14
|
15
|
18
|
26
|
31
|
40
|
46
|
59
|
66
|
78
|
91
|
102
|
110
|
113
|
126
|
135
|
|
Uniform Load (kg)
|
2900
|
2300
|
2200
|
1900
|
1800
|
1550
|
1450
|
1350
|
1250
|
1150
|
1050
|
1000
|
950
|
900
|
800
|
700
|
650
|
|
Deflection (mm)
|
12
|
13
|
18
|
20
|
24
|
32
|
40
|
51
|
60
|
67
|
75
|
87
|
90
|
100
|
109
|
120
|
126
|
The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings
Warranty: 3 years
