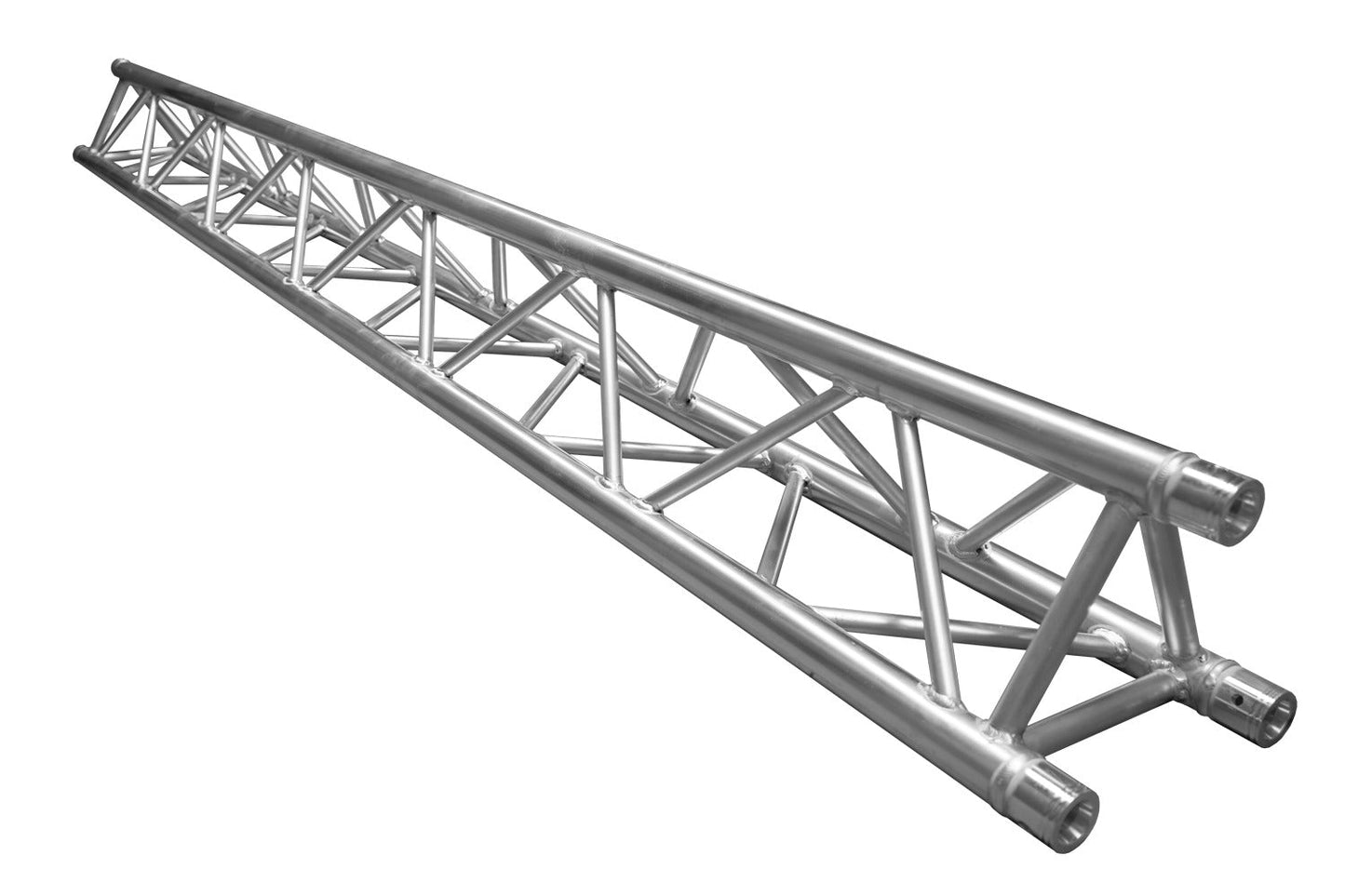

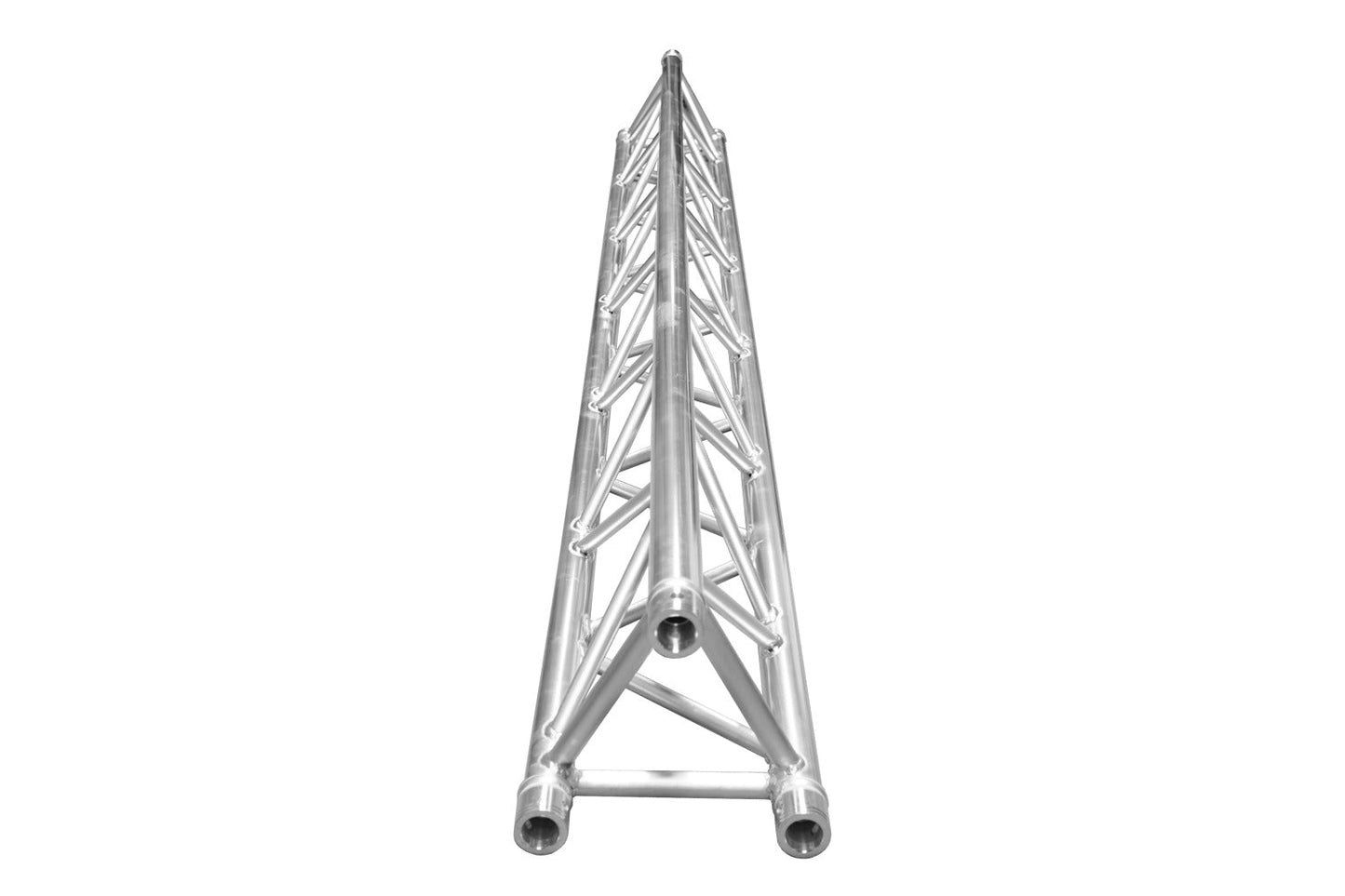

T3TD3 - 290mm Spigot Triangular Truss - Silver 3m
T3TD3 - 290mm Spigot Triangular Truss - Silver 3m
Regular price
$649.00
Regular price
Sale price
$649.00
Unit price
per

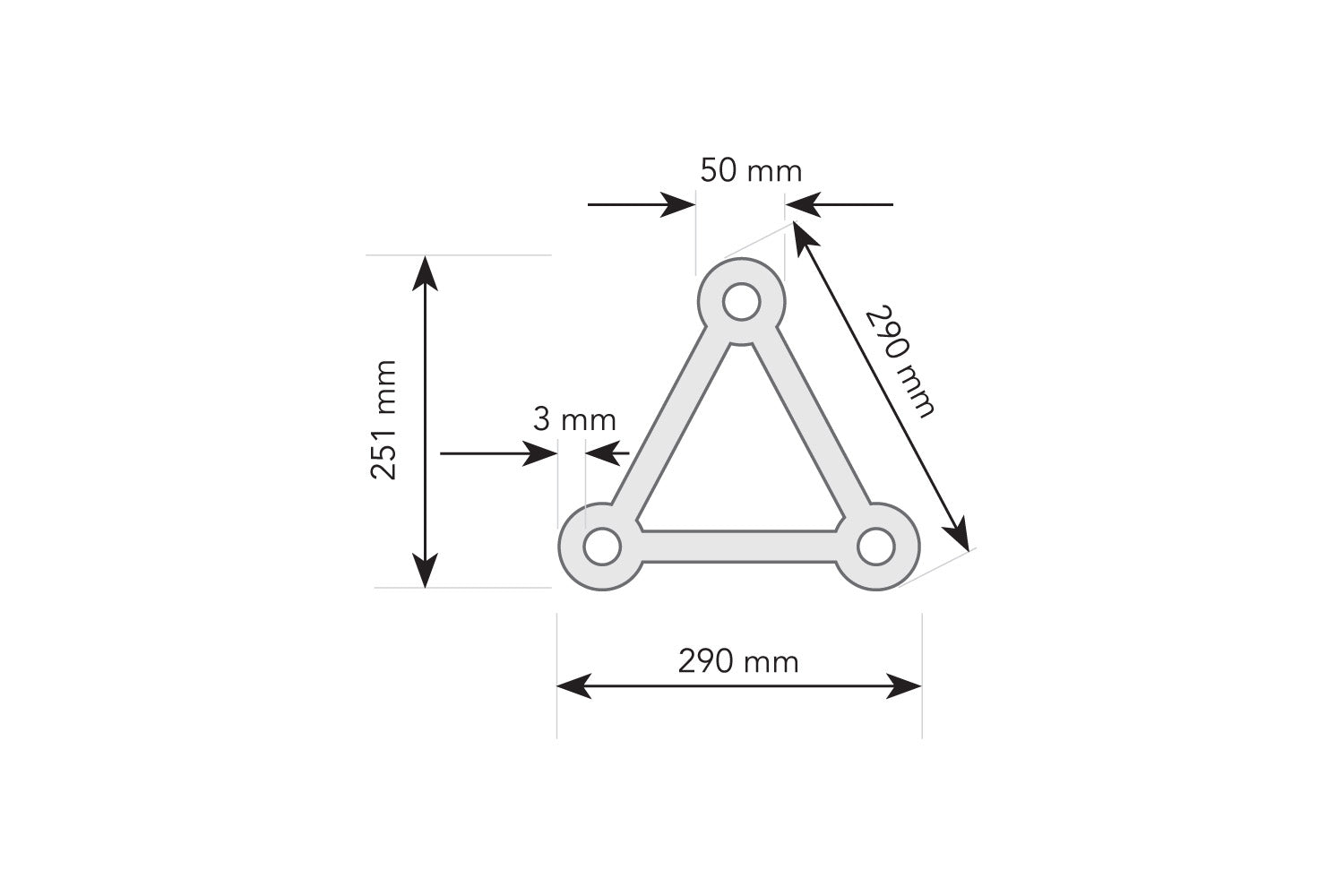

290mm Aluminium Lighting Spigot Triangular Truss, 3mm wall thickness, 3m length
- Main Tube: 50mm x 3mm
- Vice Brace: 50mm x 2mm
- Diagonal Brace: 20mm x 2mm
- Materials: Aluminum alloy 6061-T6
- Finishing: Washed
- Rating: TUV
|
SPAN (M)
|
2m
|
3m
|
4m
|
5m
|
6m
|
7m
|
8m
|
9m
|
10m
|
11m
|
12m
|
|
Centre Point Load (kg)
|
1000
|
730
|
501
|
446
|
367
|
305
|
216
|
158
|
140
|
124
|
110
|
|
Deflection (mm)
|
2.5
|
8
|
13
|
18
|
24
|
30
|
38
|
46
|
55
|
62
|
72
|
|
Uniform Load (kg)
|
1108
|
1000
|
820
|
783
|
600
|
450
|
421
|
400
|
342
|
315
|
298
|
|
Deflection (mm)
|
2
|
7
|
12
|
20
|
25
|
33
|
46
|
51
|
58
|
66
|
73
|
The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings
Warranty: 3 years
