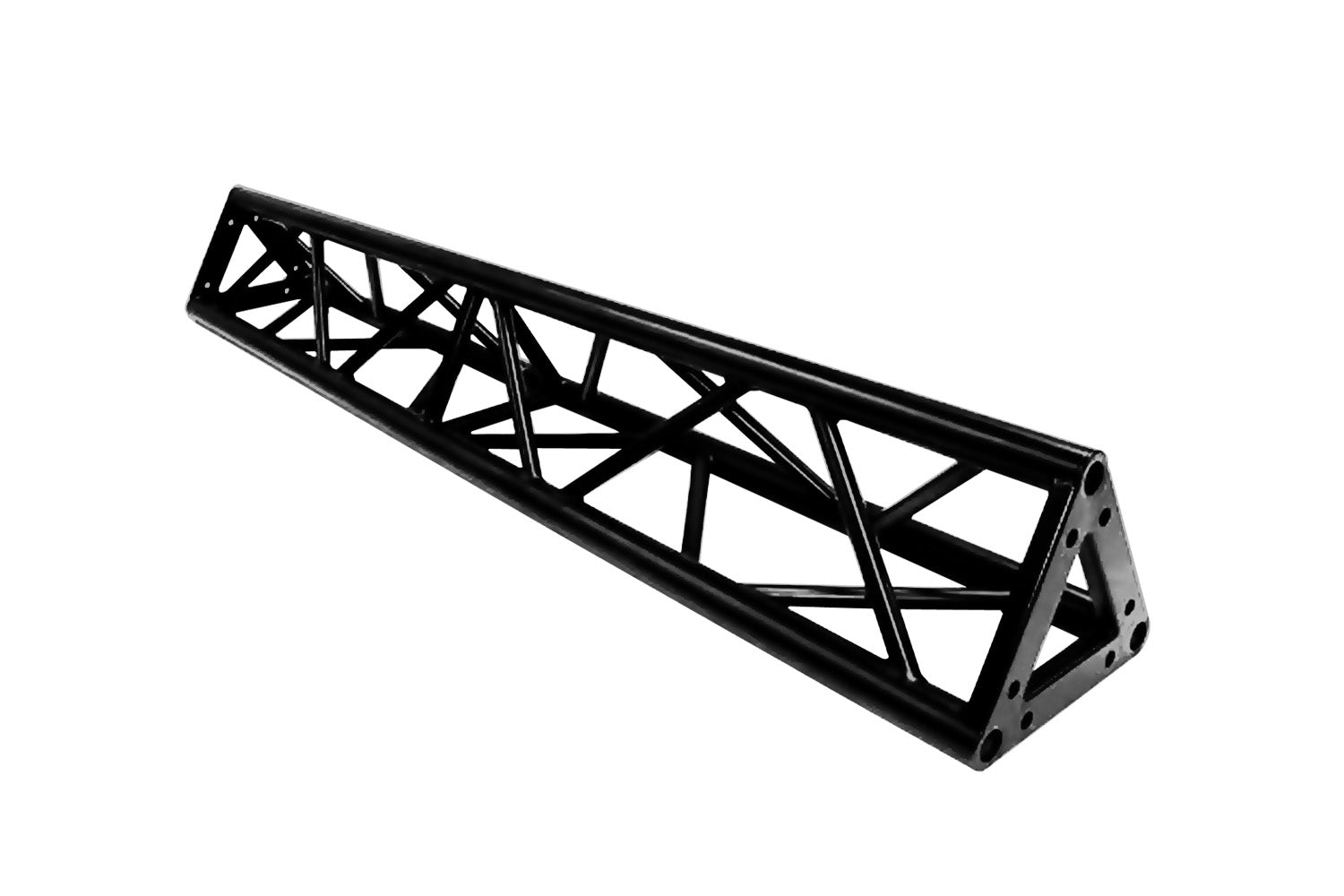

T3TBBK - 300mm Bolt Triangular Truss - Black

T3TBBK - 300mm Bolt Triangular Truss - Black

$0.00
$0.00
Sale Contact for Availability

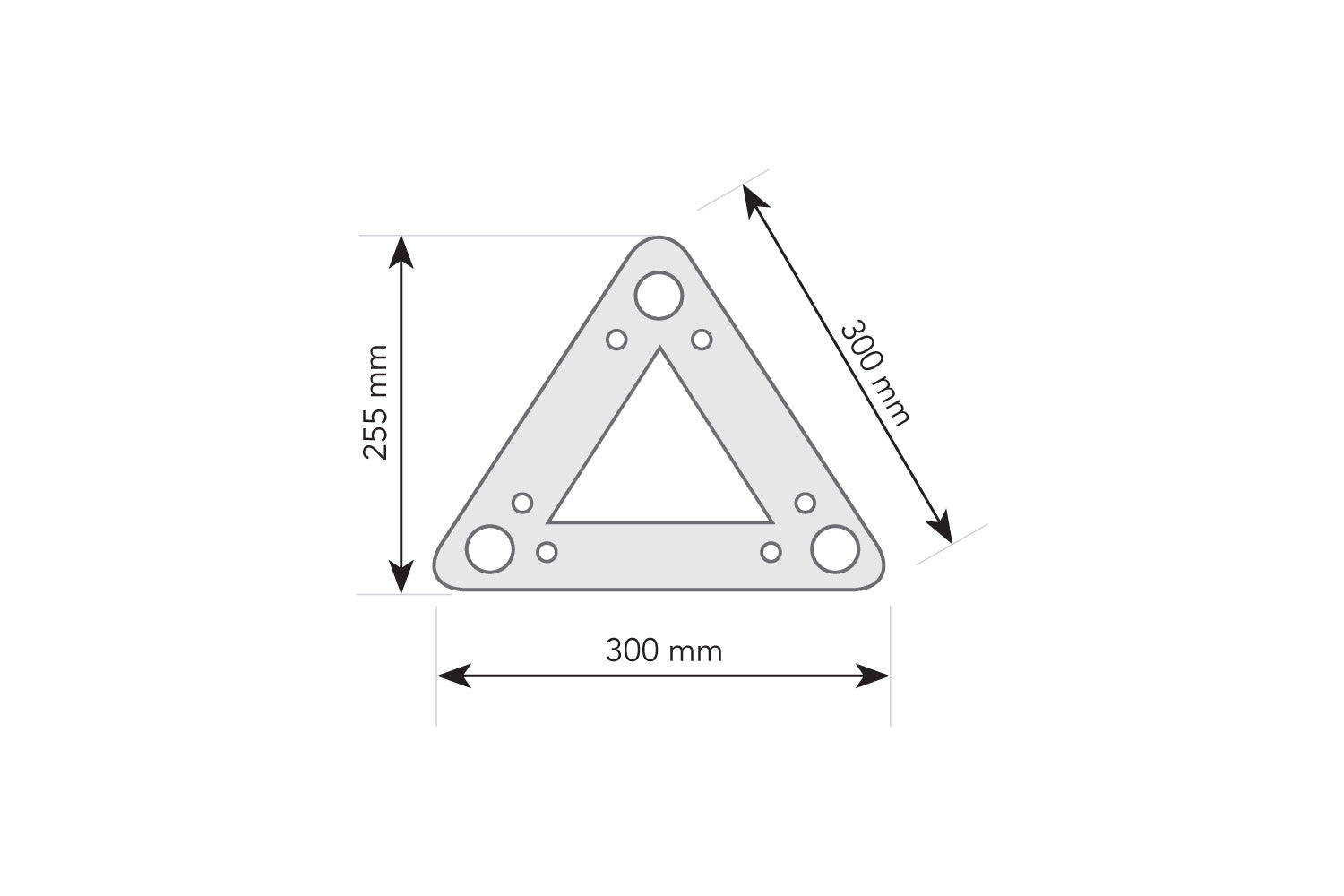

300mm Aluminium Bolt Triangular Truss, 3mm wall thickness

  • Main Tube: 50mm x 3mm
  • Diagonal Brace: 25mm x 2mm
  • Materials: Aluminum alloy 6061-T6
  • Finishing: Black
  • Rating: TUV
  • Length available:
    • 0.5m: T3TB05BK
    • 1m: T3TB1BK
    • 1.5m:  T3TB1.5BK
    • 2m:  T3TB2BK
    • 2.5m:  T3TB2.5BK
    • 3m:  T3TB3BK
    SPAN (M)
    		 2m 3m 4m 5m 6m 7m 8m 9m 10m 11m 12m
    Centre Point Load (kg)
    		 1000 730 501 446 367 305 216 158 140 124 110
    Deflection (mm)
    		 2.5 8 13 18 24 30 38 46 55 62 72
    Uniform Load (kg)
    		 1108 1000 820 783 600 450 421 400 342 315 298
    Deflection (mm)
    		 2 7 12 20 25 33 46 51 58 66 73
    The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings


    Download user manual

    Warranty: 3 years
