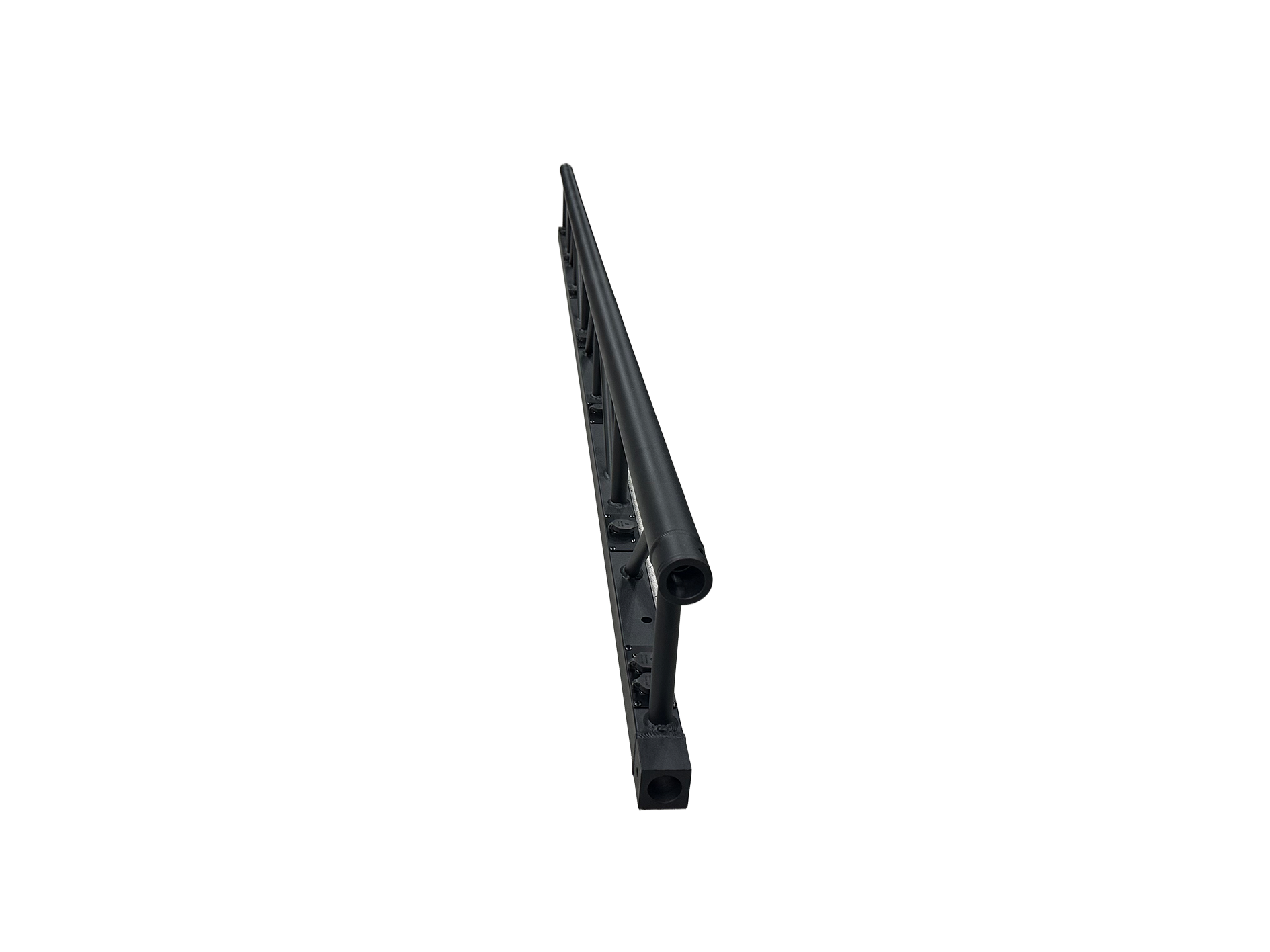

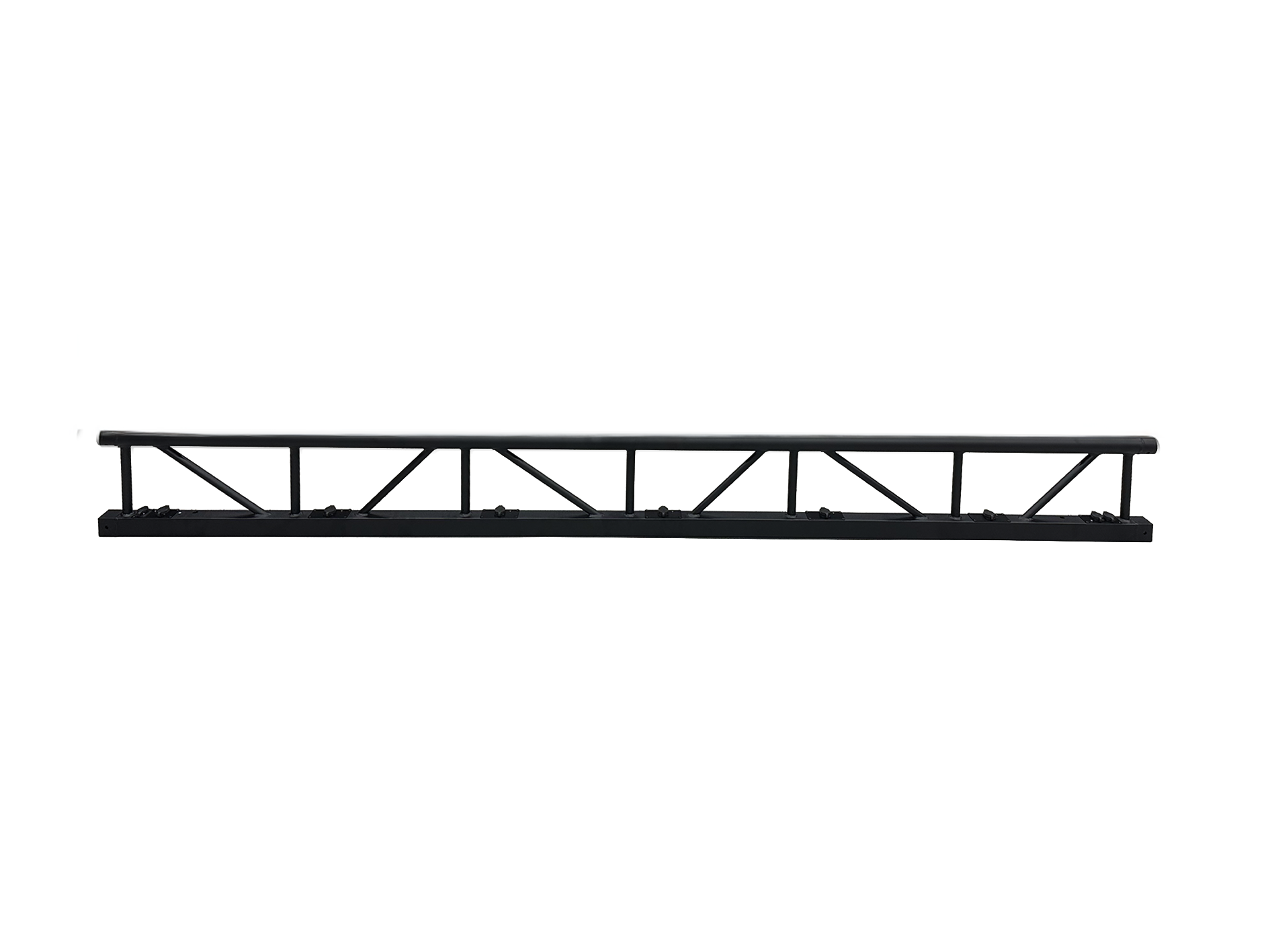

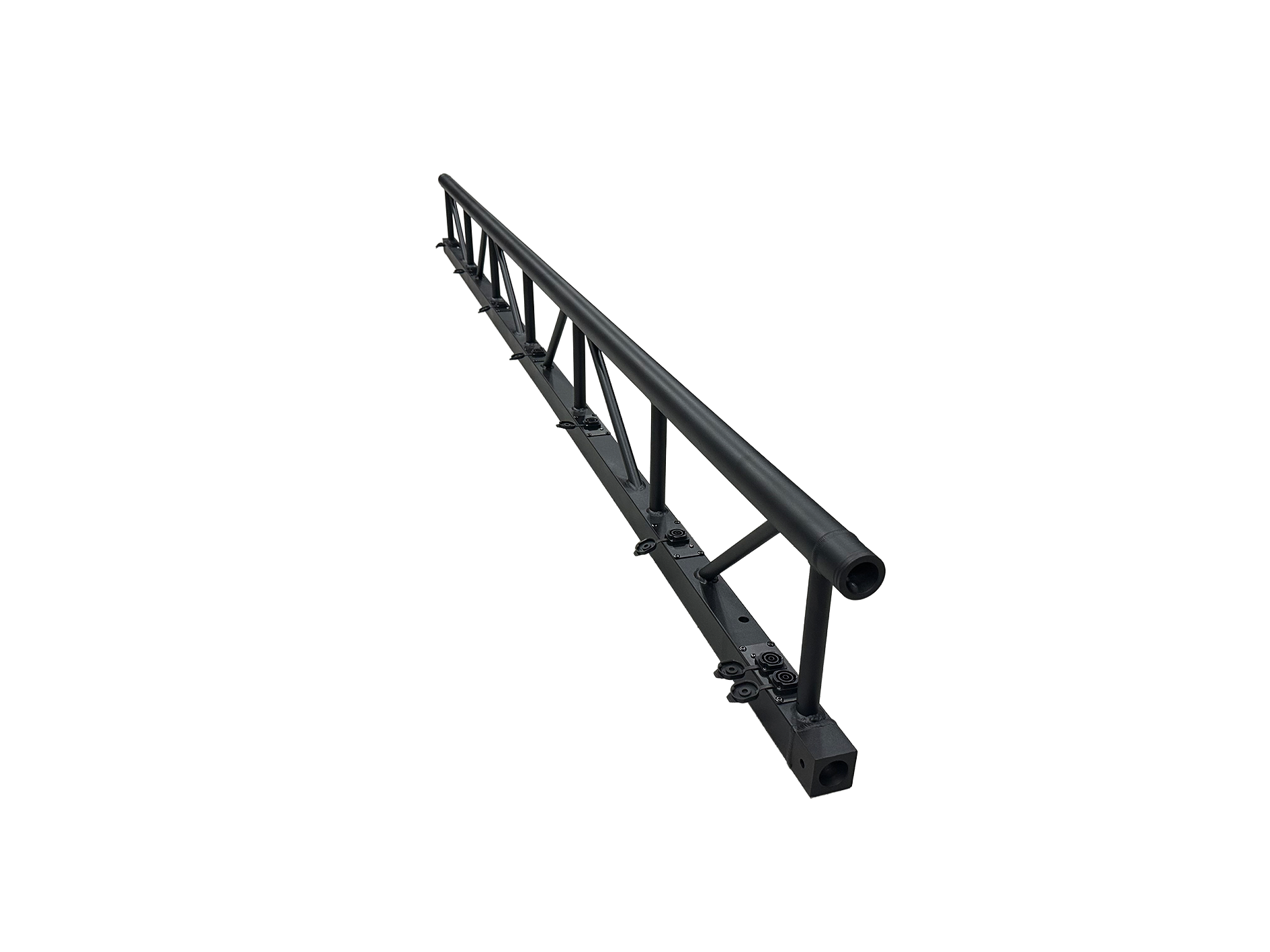

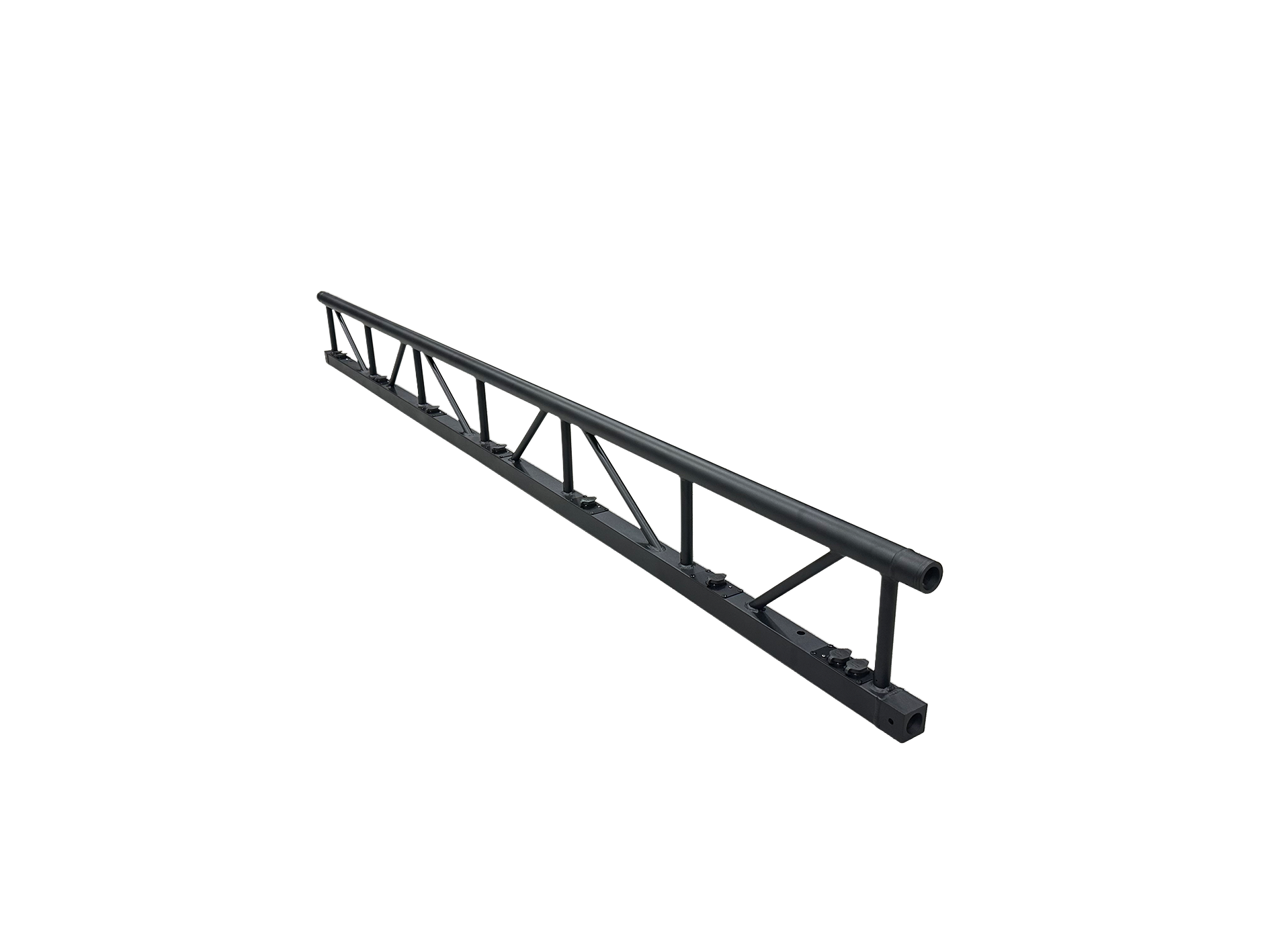

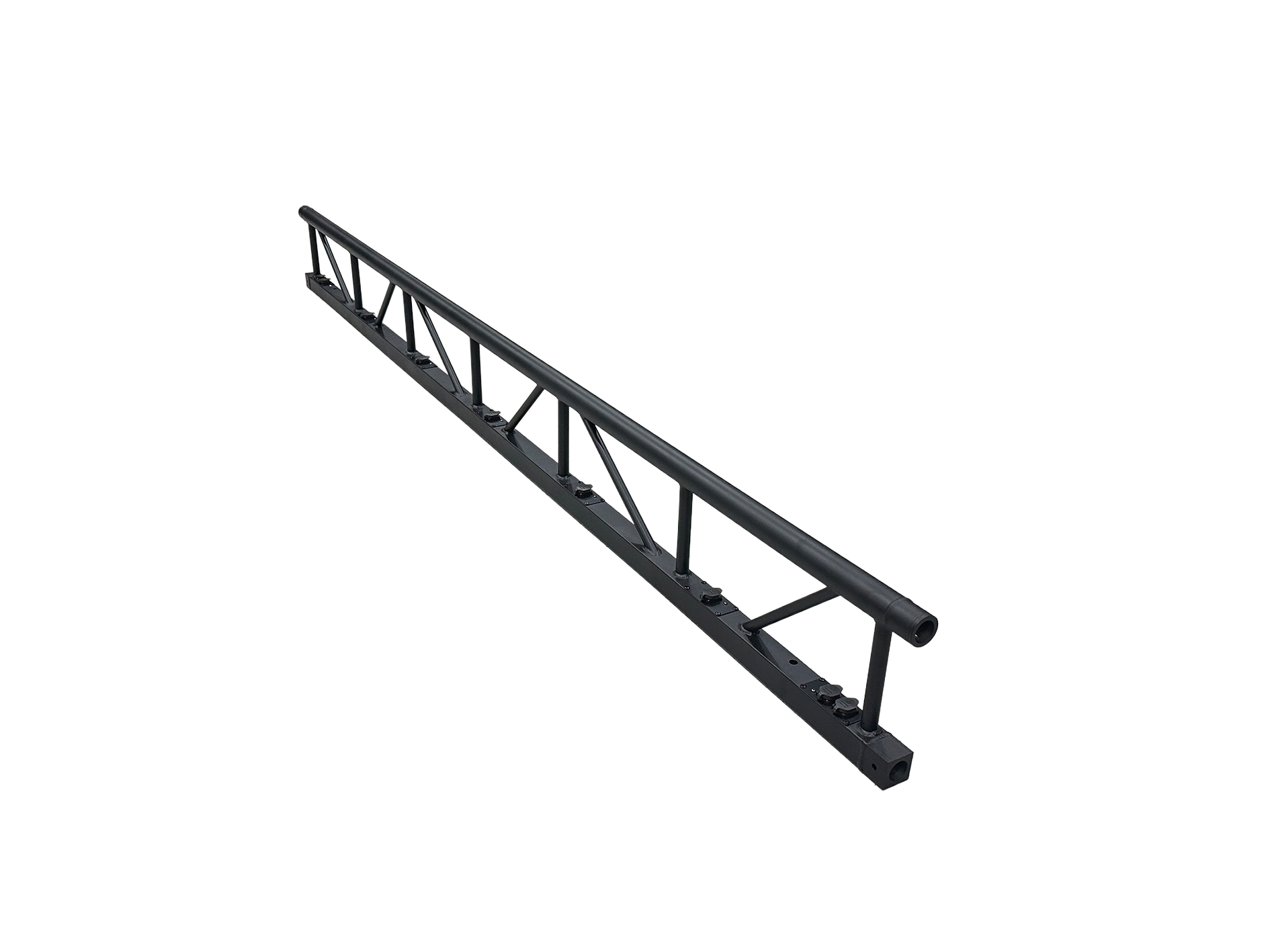

T3FP3BK - 290mm Flat Power Truss - Black 3m

T3FP3BK - 290mm Flat Power Truss - Black 3m

$579.00
$579.00
Sale Contact for Availability

Patent Pending Power Truss: 290mm Aluminium Lighting Spigot Flat Truss with in-built True1 connections, 3mm wall thickness

  • Main Tube: 50mm x 3mm
  • Connections: True1
    • 1 x Input
    • 8 x Output (Including Output Link for connecting multiple pieces)
  • Diagonal Brace: 25mm x 2mm
  • Materials: Aluminum alloy 6061-T6
  • Rigging Hole Size: M12
  • Finishing: Black
  • Rating: TUV
  • Length: 3m
Span (m)
Uniform Load (kg/m)
Centre Point Load (kg)

2
380
400
3
100
150
4
30
50
5
20
30
6
10
20
The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings


Warranty: 3 years
