T3FBBK - 300mm Bolt Flat Truss - Black

T3FBBK - 300mm Bolt Flat Truss - Black

$0.00
$0.00
Sale Contact for Availability

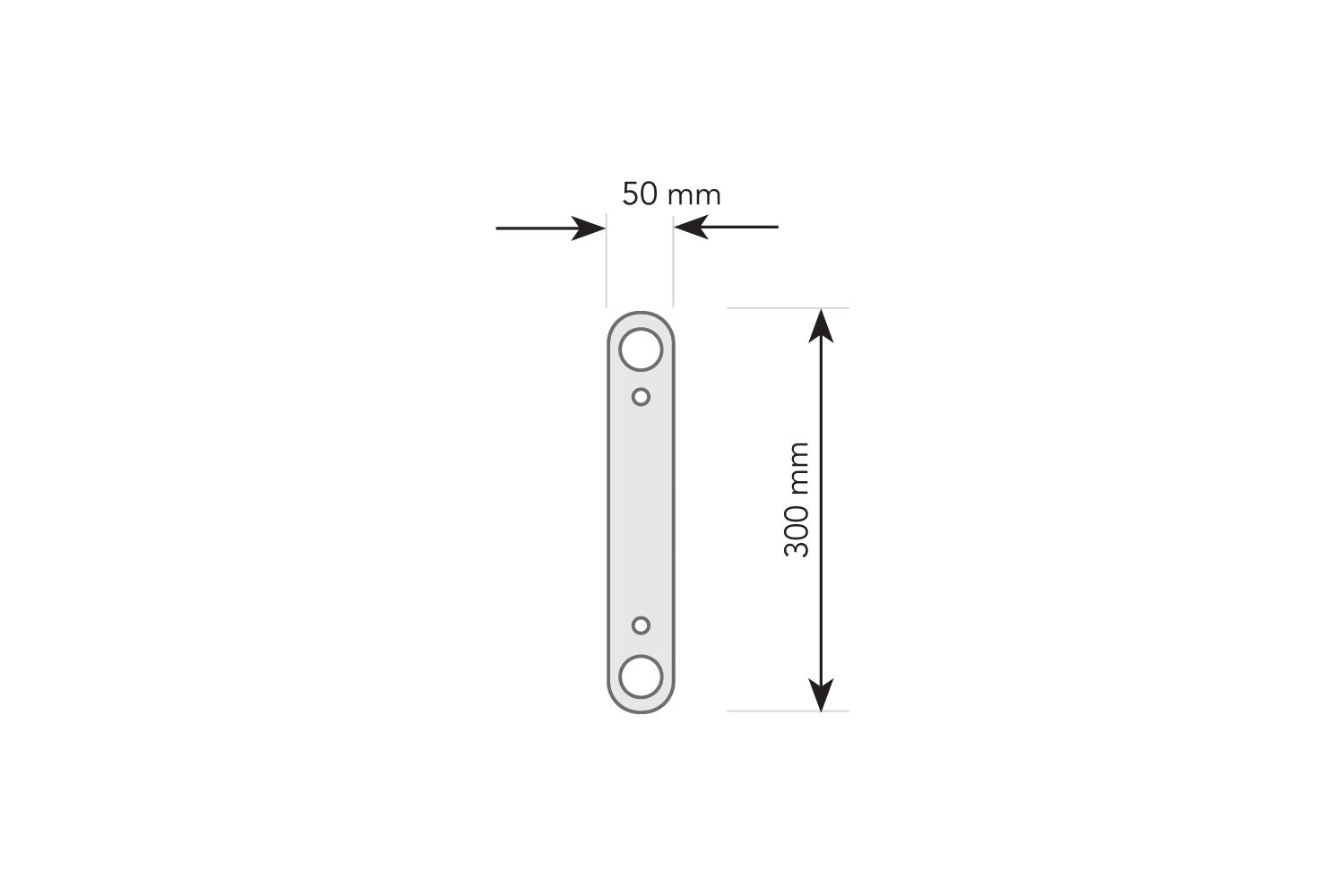

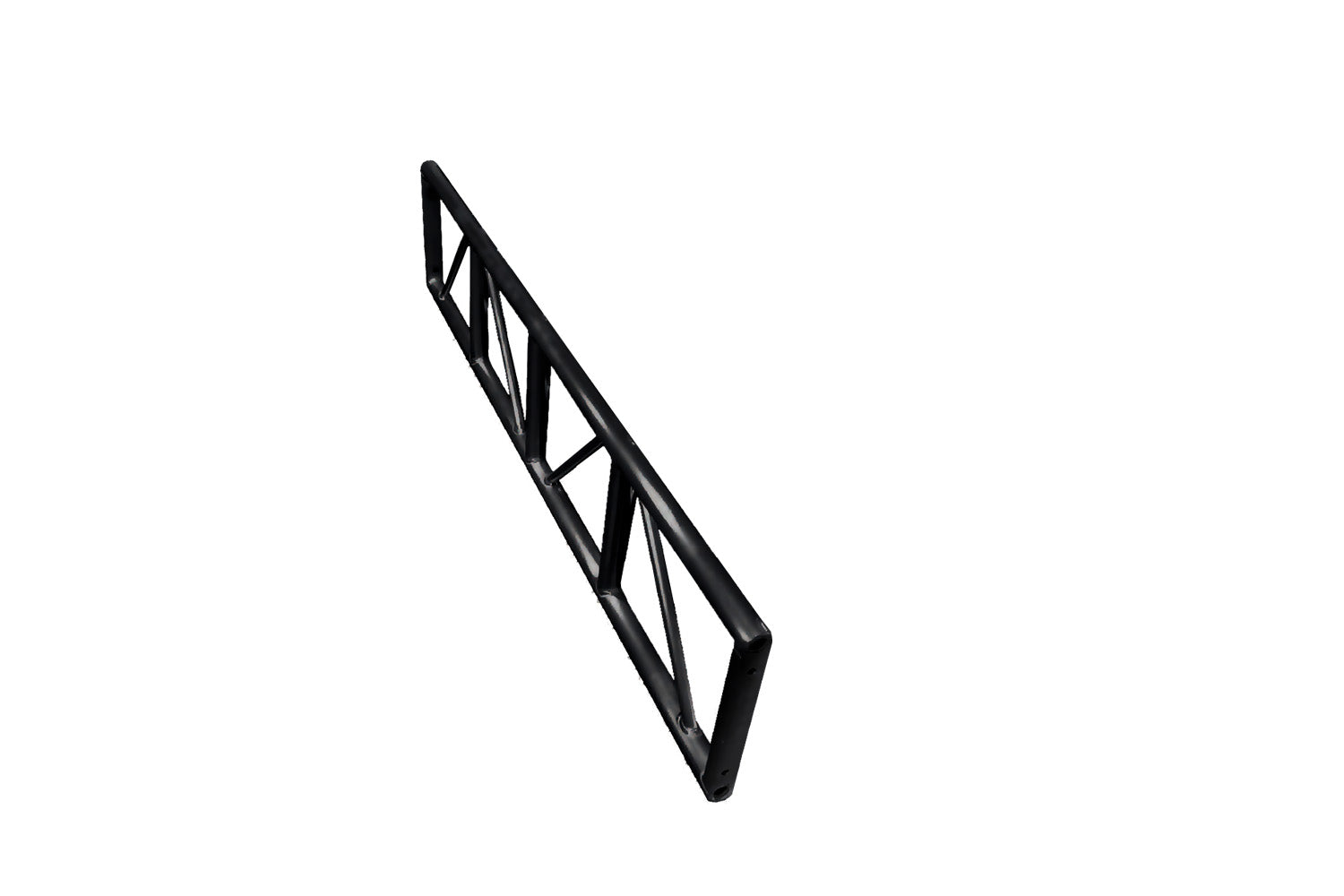

300mm Aluminium Bolt Flat Truss, 3mm wall thickness

  • Main Tube: 50mm x 3mm
  • Vice Brace: 50mm x 2mm
  • Diagonal Brace: 25mm x 2mm
  • Materials: Aluminum alloy 6061-T6
  • Finishing: Black
  • Rating: TUV
  • Length available:
    • 0.5m: T3FB05BK
    • 1m: T3FB1BK
    • 1.5m:  T3FB1.5BK
    • 2m:  T3FB2BK
    • 2.5m:  T3FB2.5BK
    • 3m:  T3FB3BK
    • 4m: T3FB4BK
    SPAN (M)
    UNIFORM LOAD (KG/M)
    CENTRE POINT LOAD (KG)

    2
    380
    400
    3
    100
    150
    4
    30
    50
    5
    20
    30
    6
    10
    20
    The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings


    Download user manual

    Warranty: 3 years
