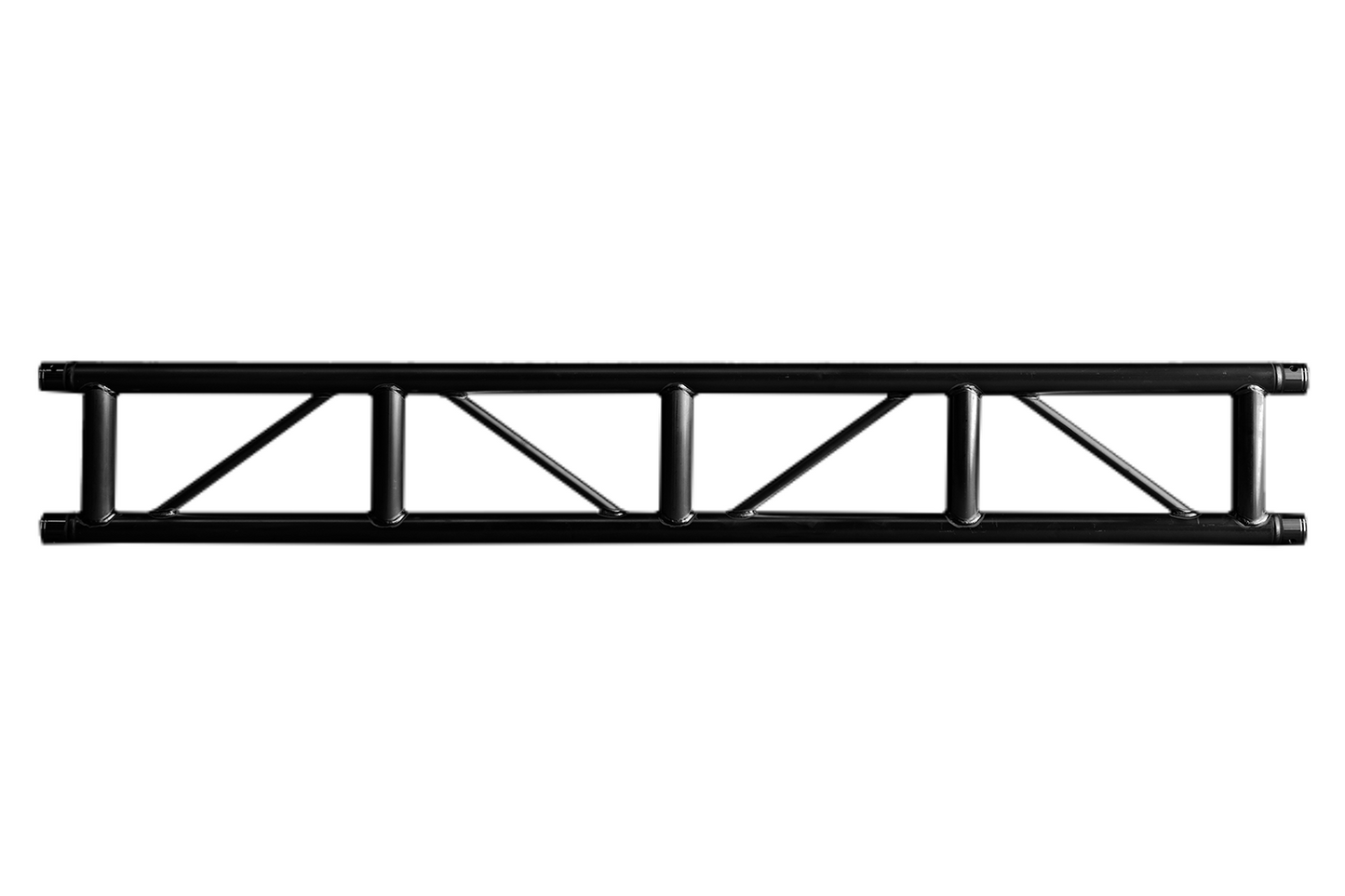

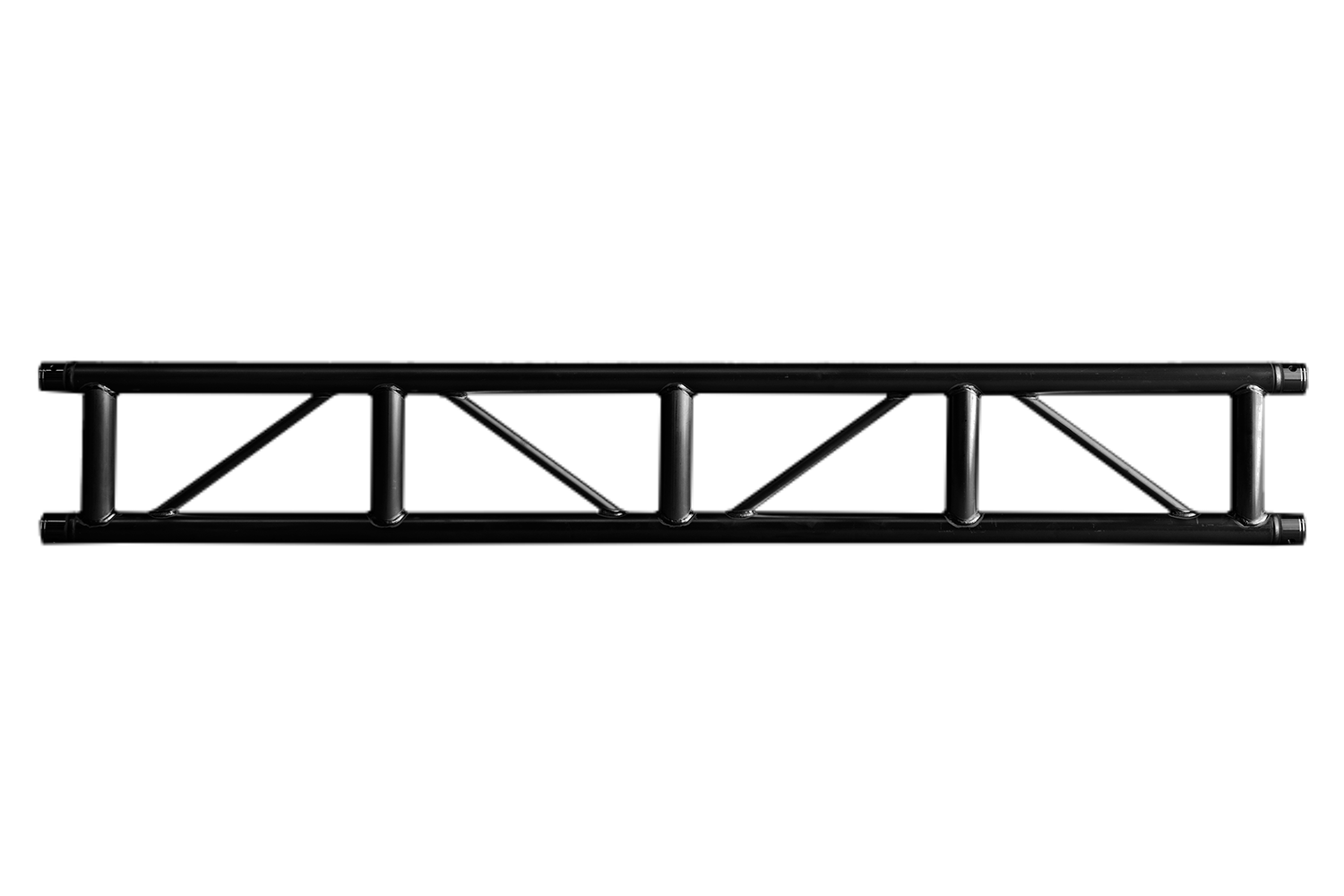

T3F2BK - 290mm Spigot Flat Truss (2m, Black)

T3F2BK - 290mm Spigot Flat Truss (2m, Black)

$259.00
$259.00
Sale Contact for Availability
290mm Aluminium Lighting Spigot Flat Truss - 2m length, 2mm wall thickness
  • Tube: 50mm x 2mm
  • Materials: Aluminum alloy 6061-T6
  • Finishing: Black, powder coated
  • Rating: TUV
  • Dimensions: 290 x 2000mm
Span (m)
Uniform Load (kg/m)
Centre Point Load (kg)

2
380
400
3
100
150
4
30
50
5
20
30
6
10
20
The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings


Download user manual

Warranty: 3 years
