T3F042BK - 290mm Flat Truss (0.42m, Black)

T3F042BK - 290mm Flat Truss (0.42m, Black)

$89.90
$89.90
Sale Contact for Availability

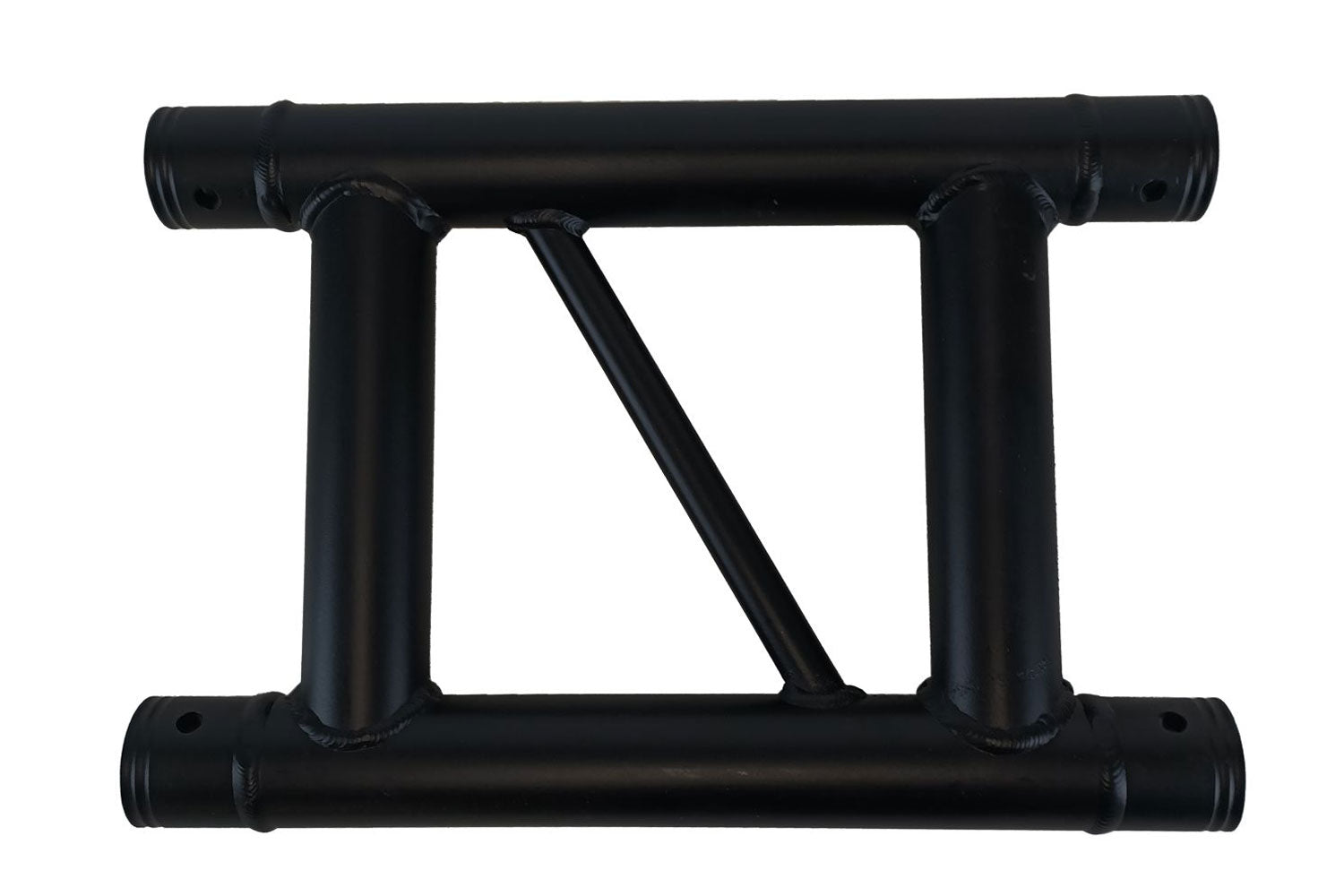

290mm Aluminium Lighting Spigot Flat Truss - 0.42m length, 3mm tube thickness

  • Tube: 42mm x 3mm
  • Materials: Aluminum alloy 6061-T6
  • Finishing: Black powder coated
  • Rating: TUV
  • Dimensions: 290 x 420mm
Span (m)
Uniform Load (kg/m)
Centre Point Load (kg)

2
380
400
3
100
150
4
30
50
5
20
30
6
10
20
The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings



Download user manual

Warranty: 3 years
