T3F - 290mm Spigot Flat Truss - Silver
T3F - 290mm Spigot Flat Truss - Silver
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per

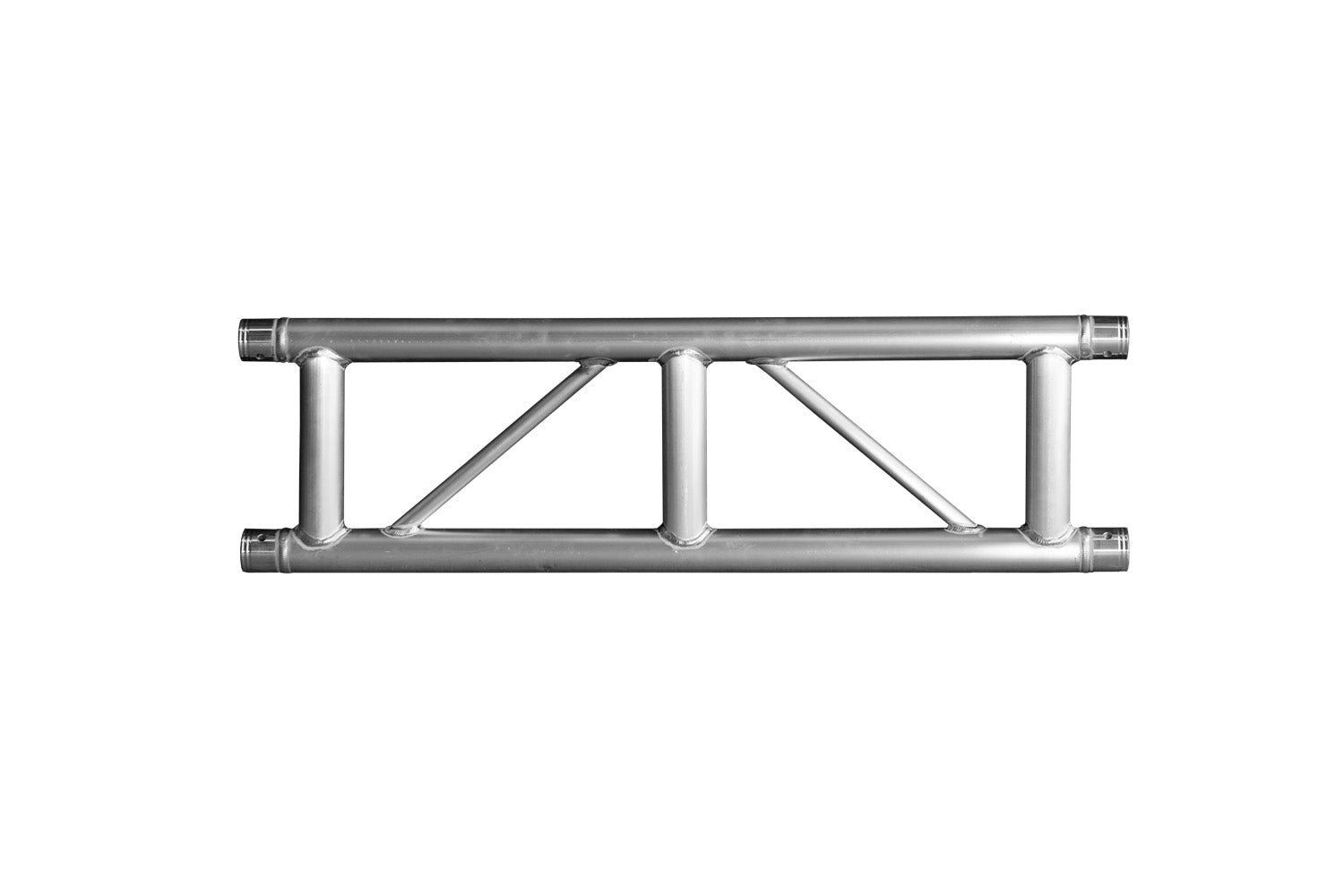

290mm Aluminium Lighting Spigot Triangular Truss, 2mm wall thickness
- Main Tube: 50mm x 2mm
- Diagonal Brace: 20mm x 2mm
- Materials: Aluminum alloy 6061-T6
- Finishing: Washed
- Rating: TUV
- Length available: 0.42 / 0.5 / 1 / 1.5 / 2 / 2.5 / 3 m
|
Span (m)
|
Uniform Load (kg/m)
|
Centre Point Load (kg)
|
|---|---|---|
|
|
 |
 |
|
2
|
380
|
400
|
|
3
|
100
|
150
|
|
4
|
30
|
50
|
|
5
|
20
|
30
|
|
6
|
10
|
20
|
The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings
Warranty: 3 years
