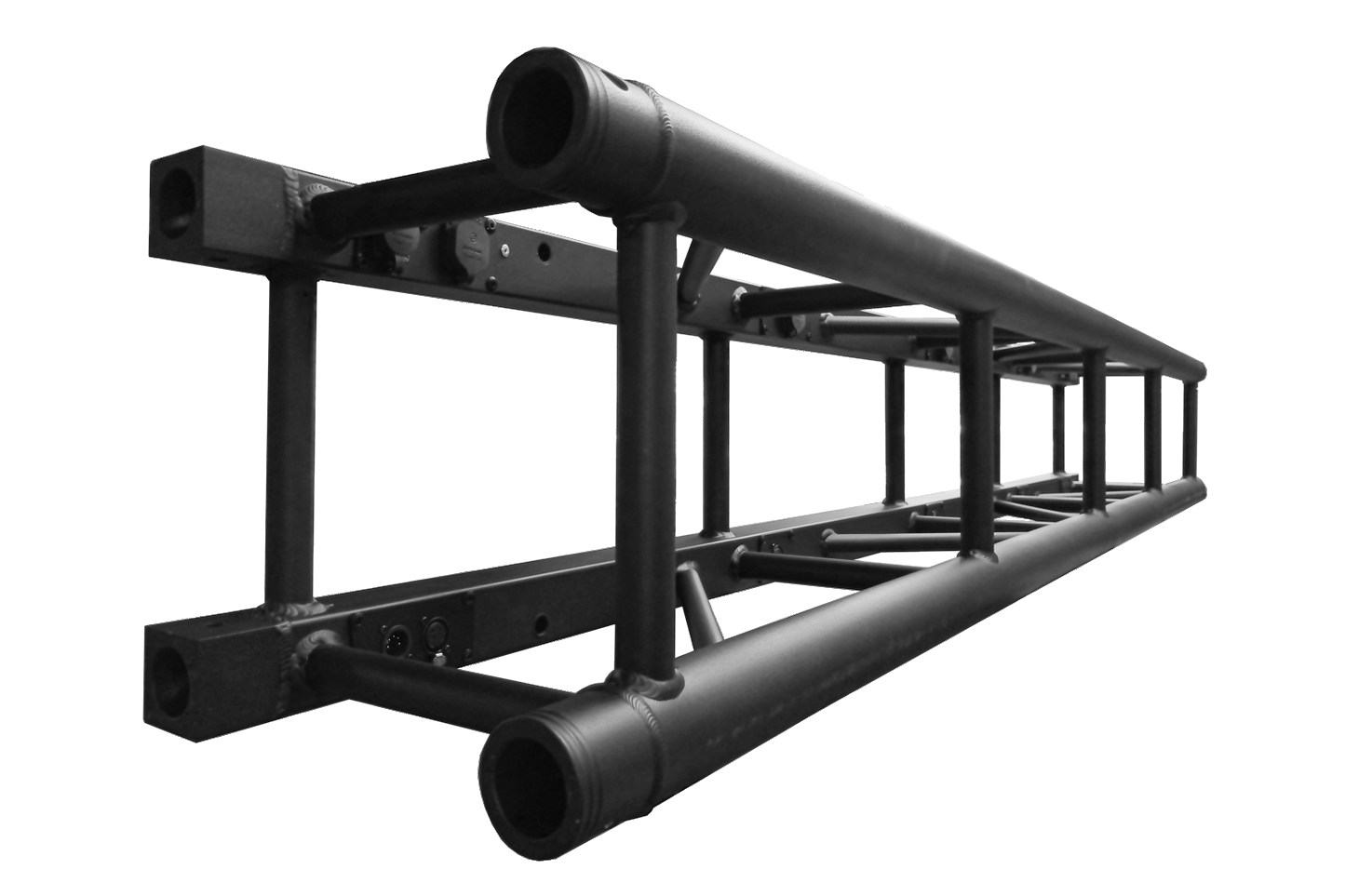

T3BLSPD1BK - 290mm Power Truss - Black 1m
T3BLSPD1BK - 290mm Power Truss - Black 1m
Regular price
$399.00
Regular price
Sale price
$399.00
Unit price
per

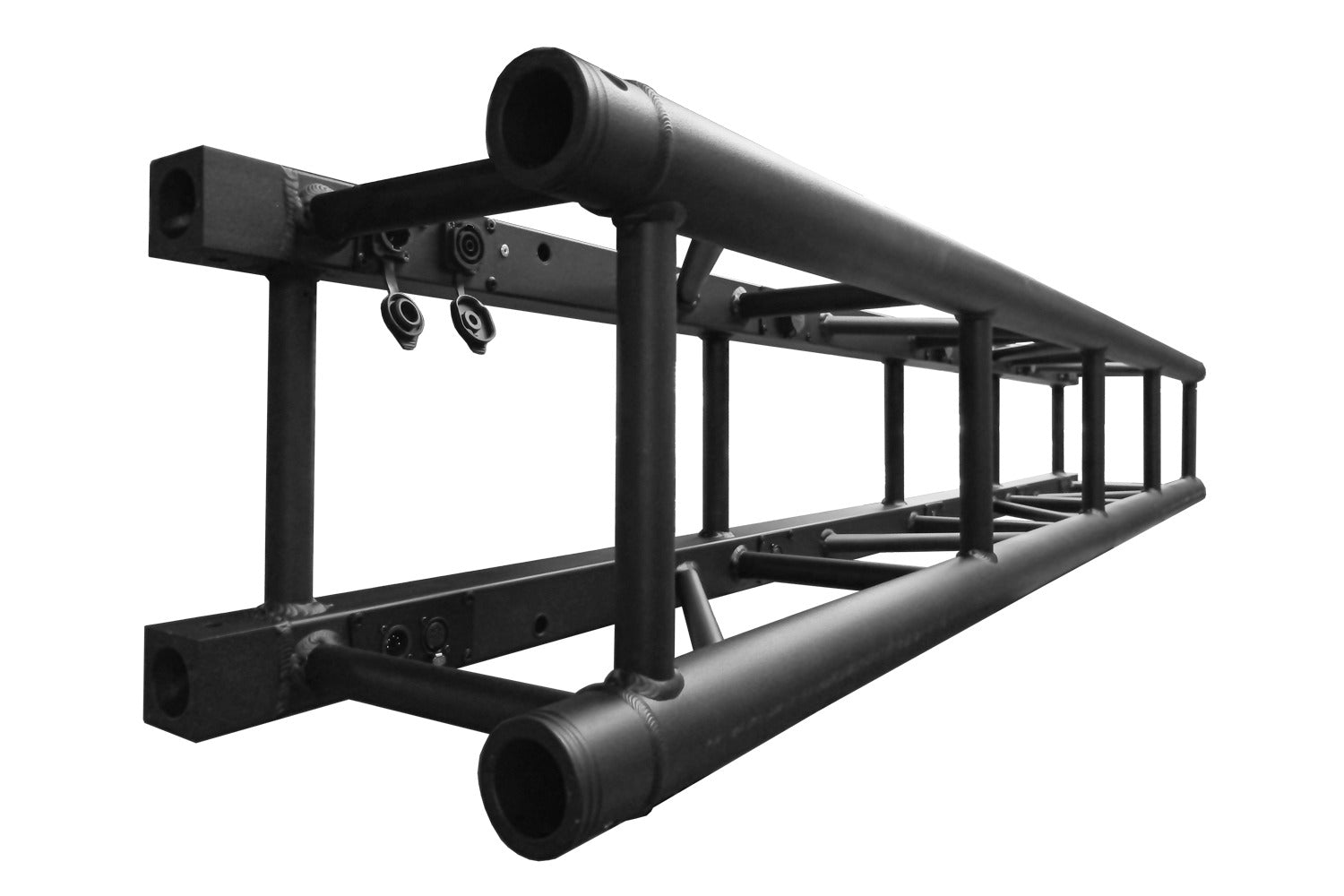

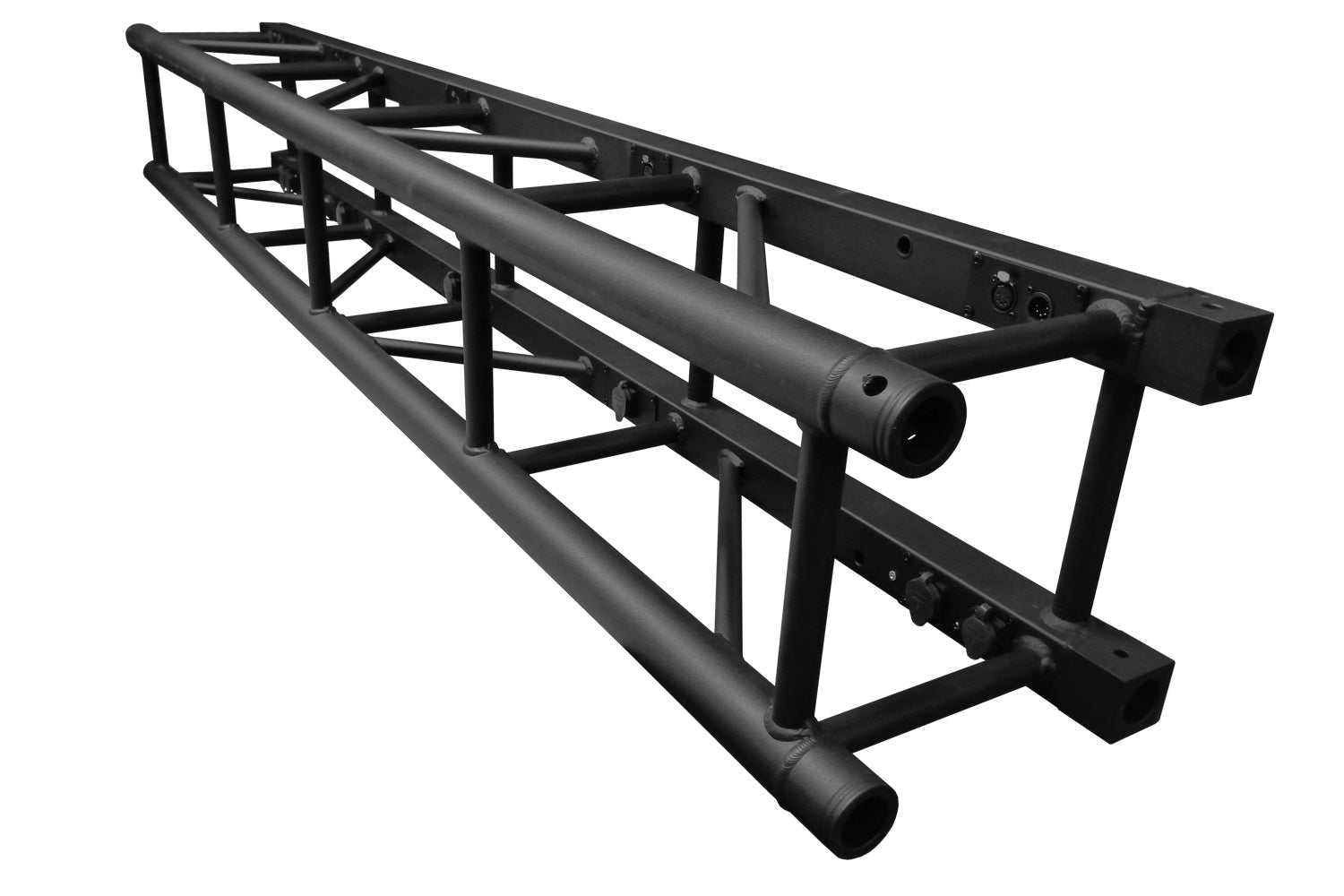

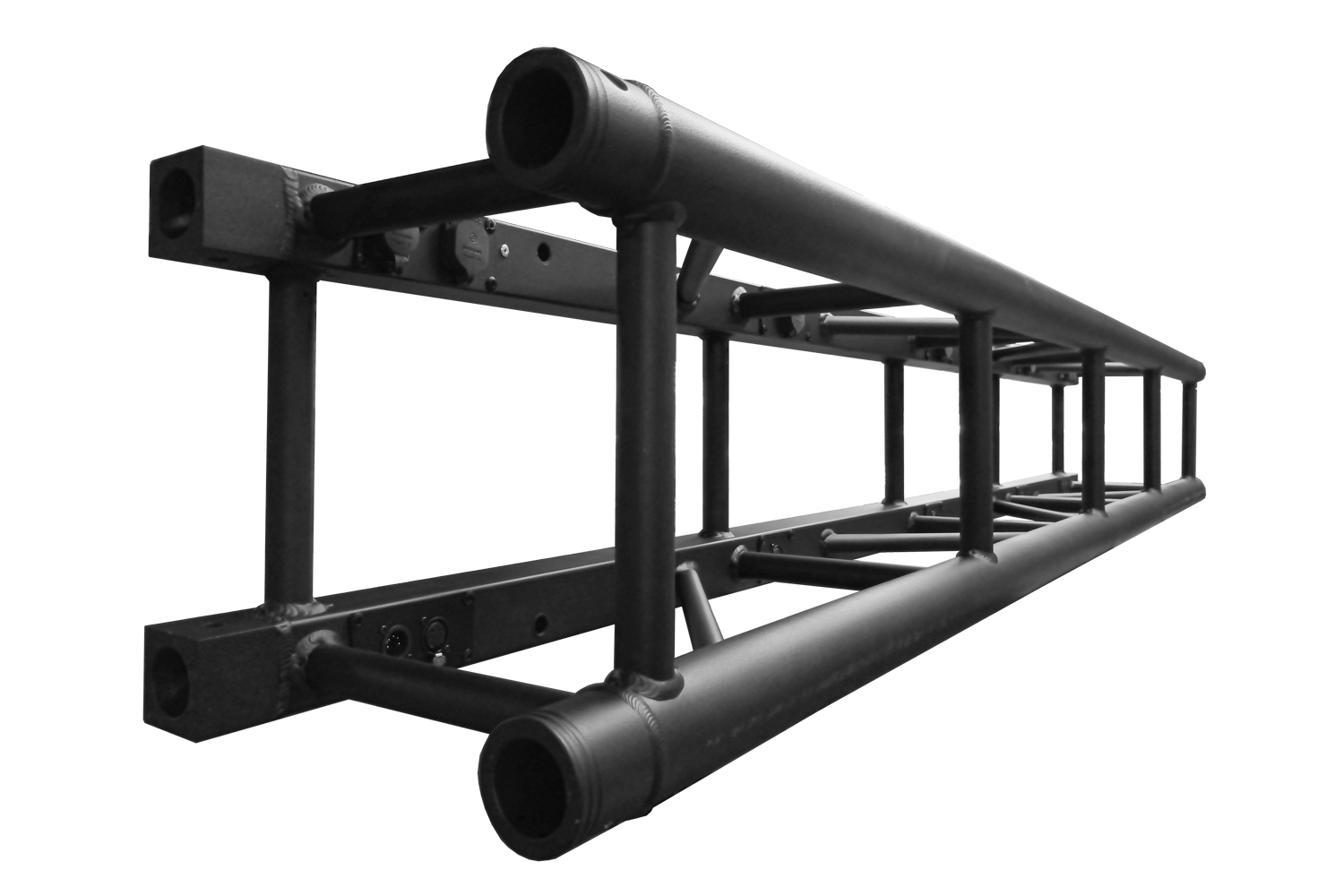

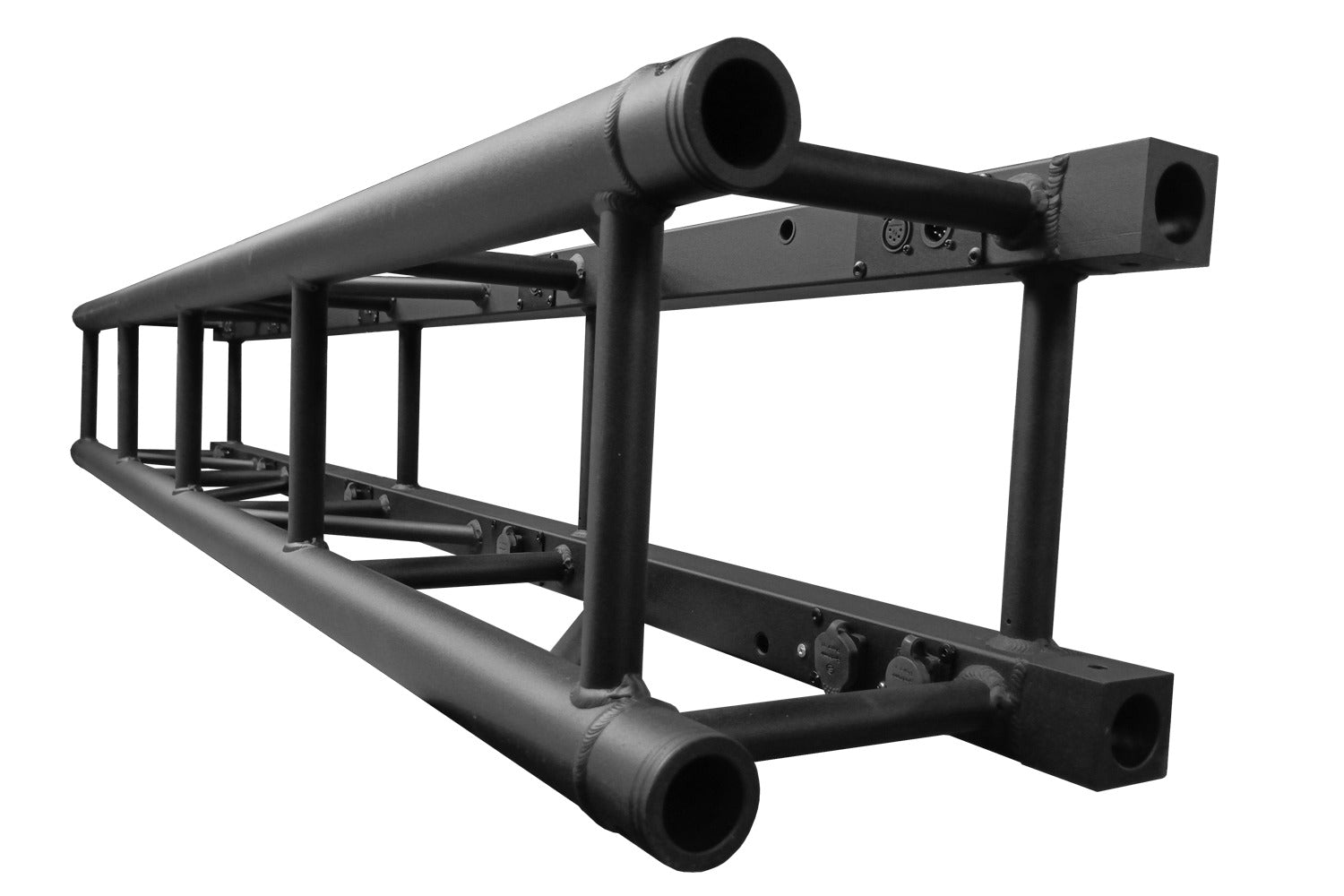

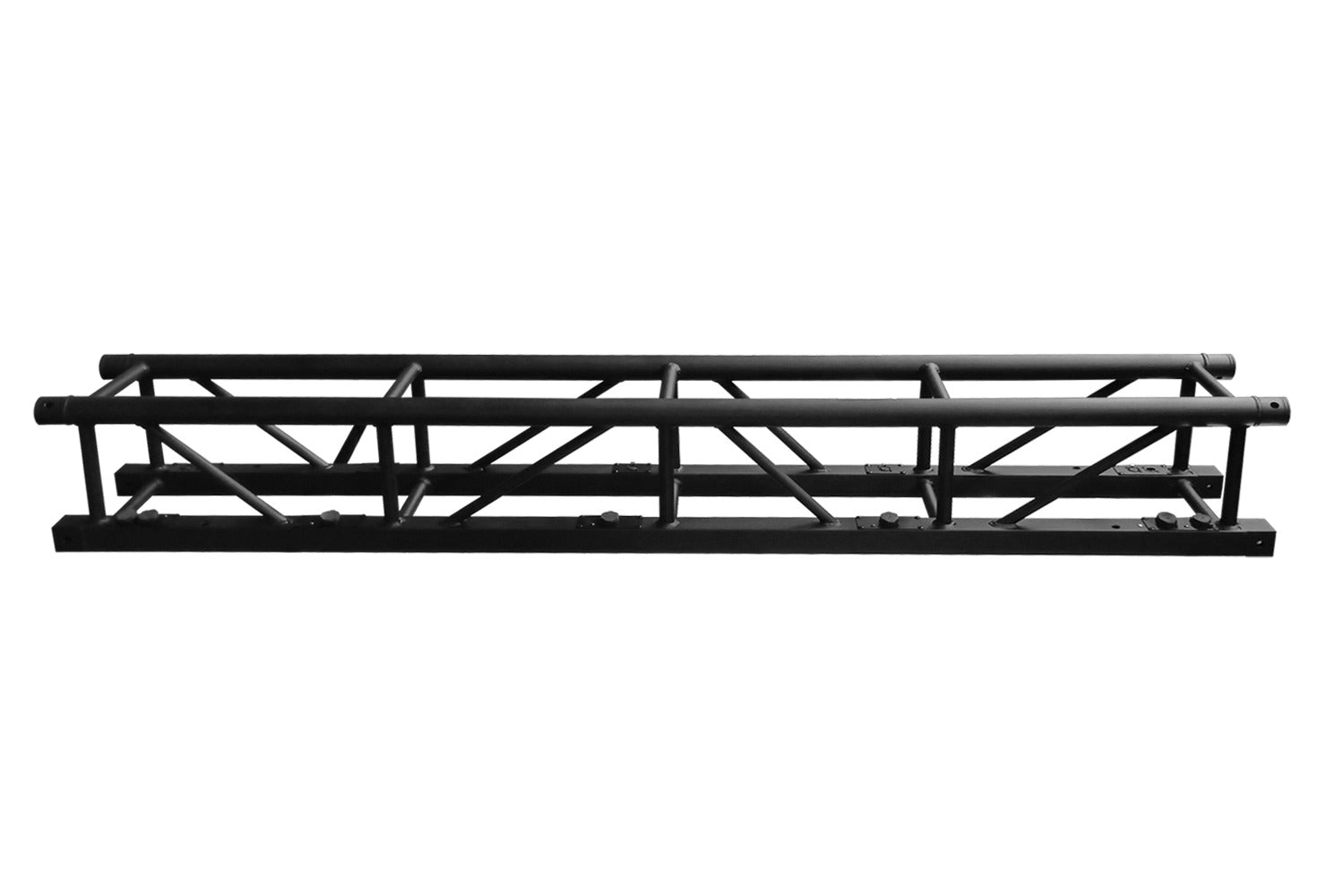

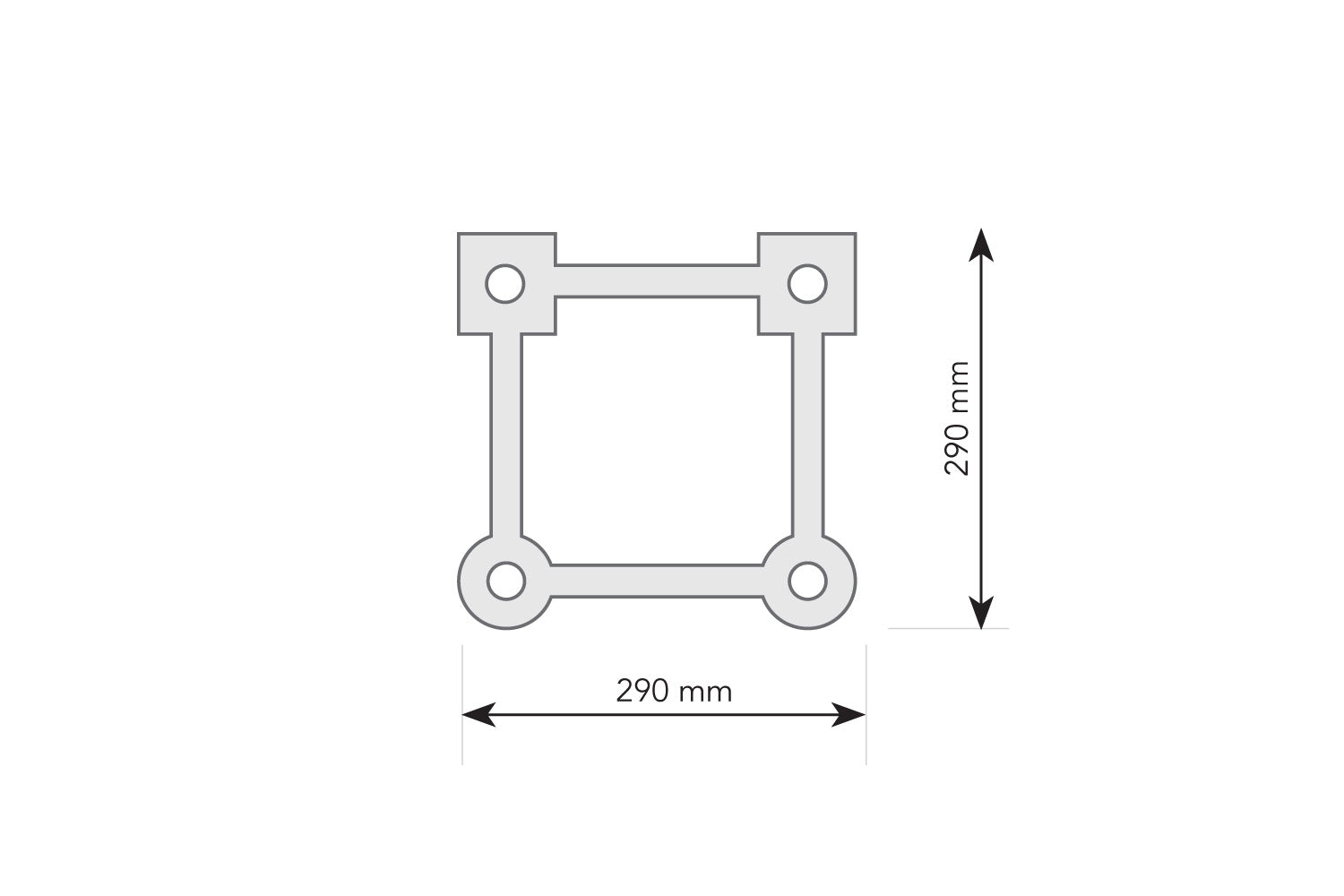

Patent Pending Power and Data Truss: 290mm Aluminium Lighting Spigot Truss with in-built True1 and 5-Pin DMX connections, 3mm wall thickness
- Main Tube: 50mm x 3mm
- Connections: True1, 5-Pin DMX
- Diagonal Brace: 25mm x 2mm
- Materials: Aluminum alloy 6061-T6
- Rigging Hole Size: M12
- Finishing: Black
- Rating: TUV
- Length: 1m
|
Span (m)
|
Uniformly Distributed Load (kg/m)
|
Centre Point Load (kg)
|
1/3 Points Load (kg)
|
1/4 Points Load (kg)
|
|
|
 |
 |
 |
 |
|
1
|
2500
|
2500
|
1250
|
850
|
|
2
|
950
|
1300
|
1000
|
700
|
|
3
|
750
|
1200
|
900
|
650
|
|
4
|
550
|
1000
|
750
|
560
|
|
5
|
400
|
800
|
630
|
440
|
|
6
|
250
|
700
|
570
|
385
|
|
7
|
200
|
600
|
500
|
330
|
|
8
|
150
|
500
|
400
|
280
|
|
9
|
120
|
400
|
370
|
245
|
|
10
|
95
|
350
|
320
|
220
|
|
11
|
80
|
320
|
270
|
190
|
|
12
|
70
|
300
|
250
|
175
|
The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings
Warranty: 3 years
