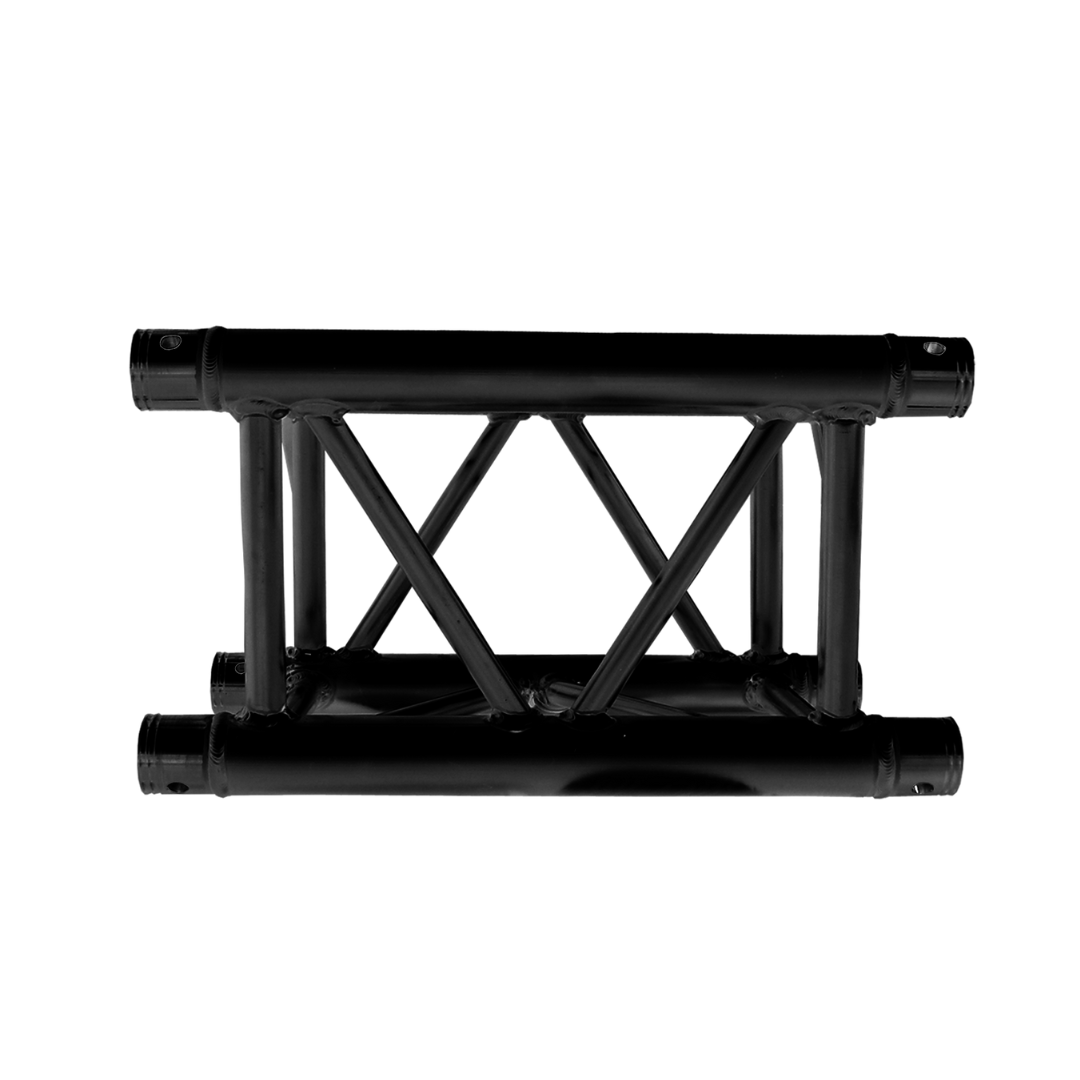

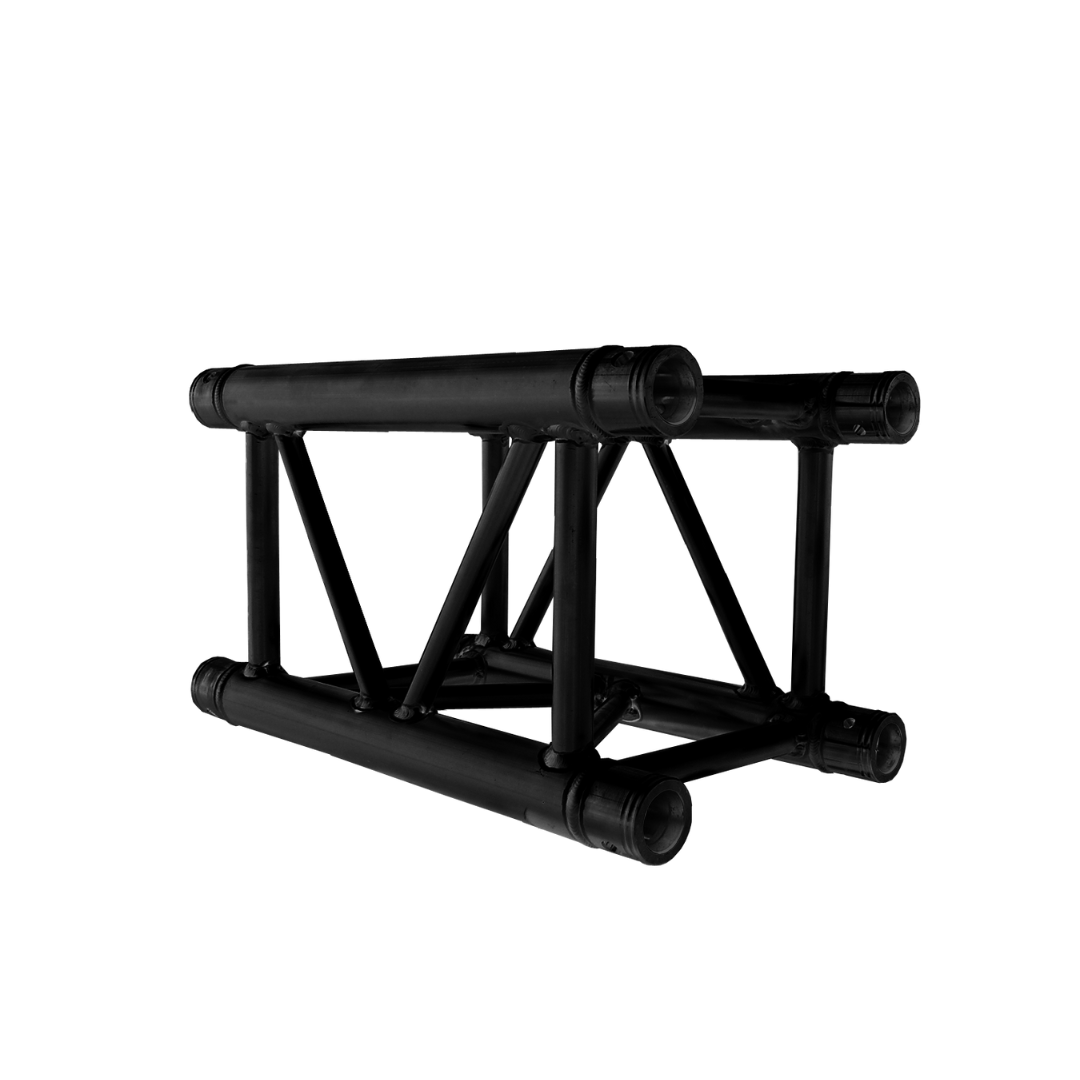

T3BD05BK - 290mm Diagonal Truss - Black 0.5m

T3BD05BK - 290mm Diagonal Truss - Black 0.5m

$179.00
$179.00
Sale Contact for Availability

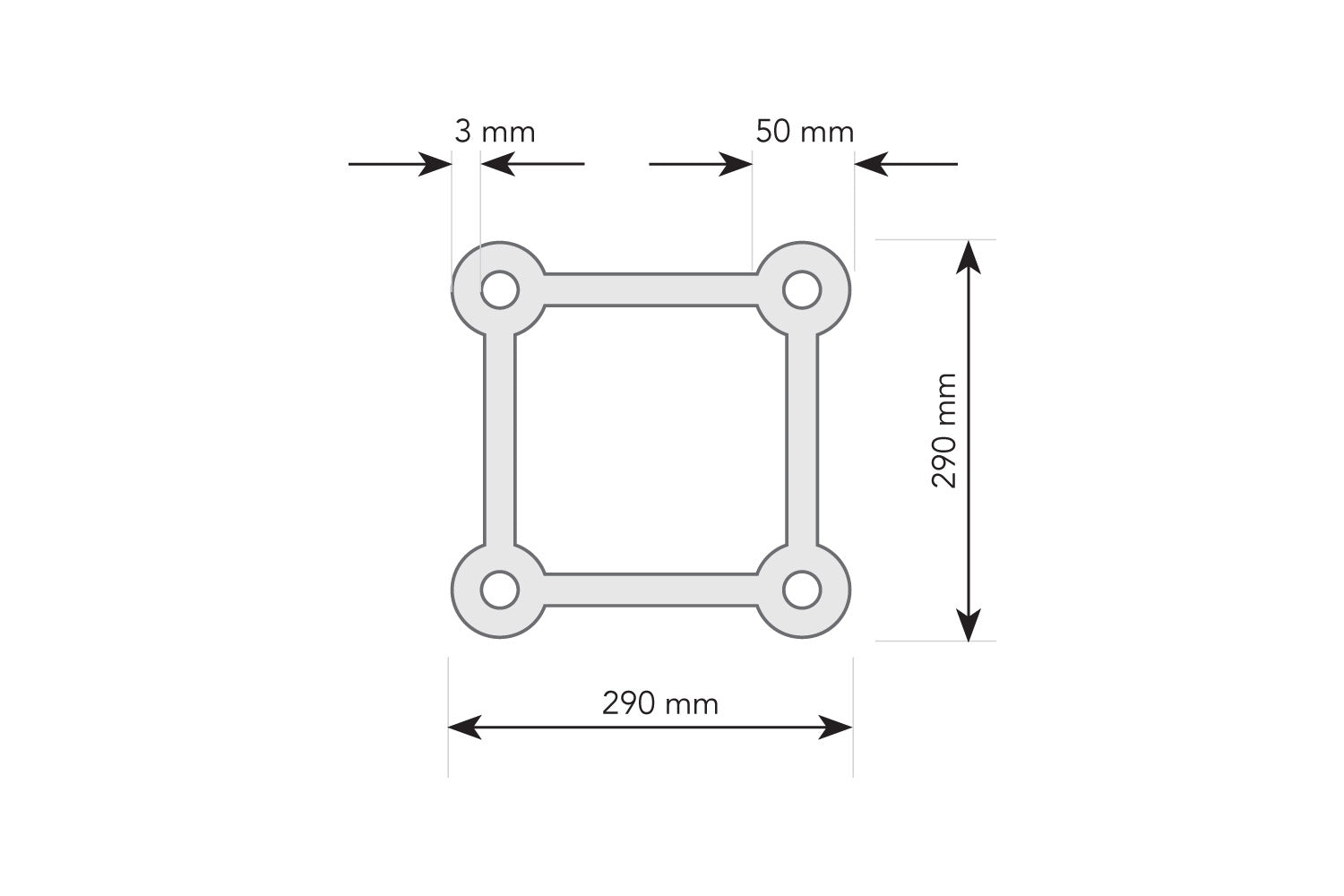

290mm Aluminium Lighting Spigot Truss, Diagonal Style, 3mm wall thickness, 0.5m Length

  • Main Tube: 50mm x 3mm
  • Vice Brace: 50mm x 2mm
  • Diagonal Brace: 20mm x 2mm
  • Materials: Aluminum alloy 6061-T6
  • Finishing: Black
  • Rating: TUV
  • Length: 0.5m
    Span (m)
    Uniform Load (kg/m)
    Centre Point Load (kg)
    1/3 Points Load (kg)
    1/4 Points Load (kg)

    1
    2500
    2500
    1250
    850
    2
    950
    1300
    1000
    700
    3
    750
    1200
    900
    650
    4
    550
    1000
    750
    560
    5
    400
    800
    630
    440
    6
    250
    700
    570
    385
    7
    200
    600
    500
    330
    8
    150
    500
    400
    280
    9
    120
    400
    370
    245
    10
    95
    350
    320
    220
    11
    80
    320
    270
    190
    12
    70
    300
    250
    175
The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings


Download Australian Engineering Certificate

Download user manual

Warranty: 3 years
