T3BB - 300mm Bolt Box Truss - Silver
T3BB - 300mm Bolt Box Truss - Silver
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per

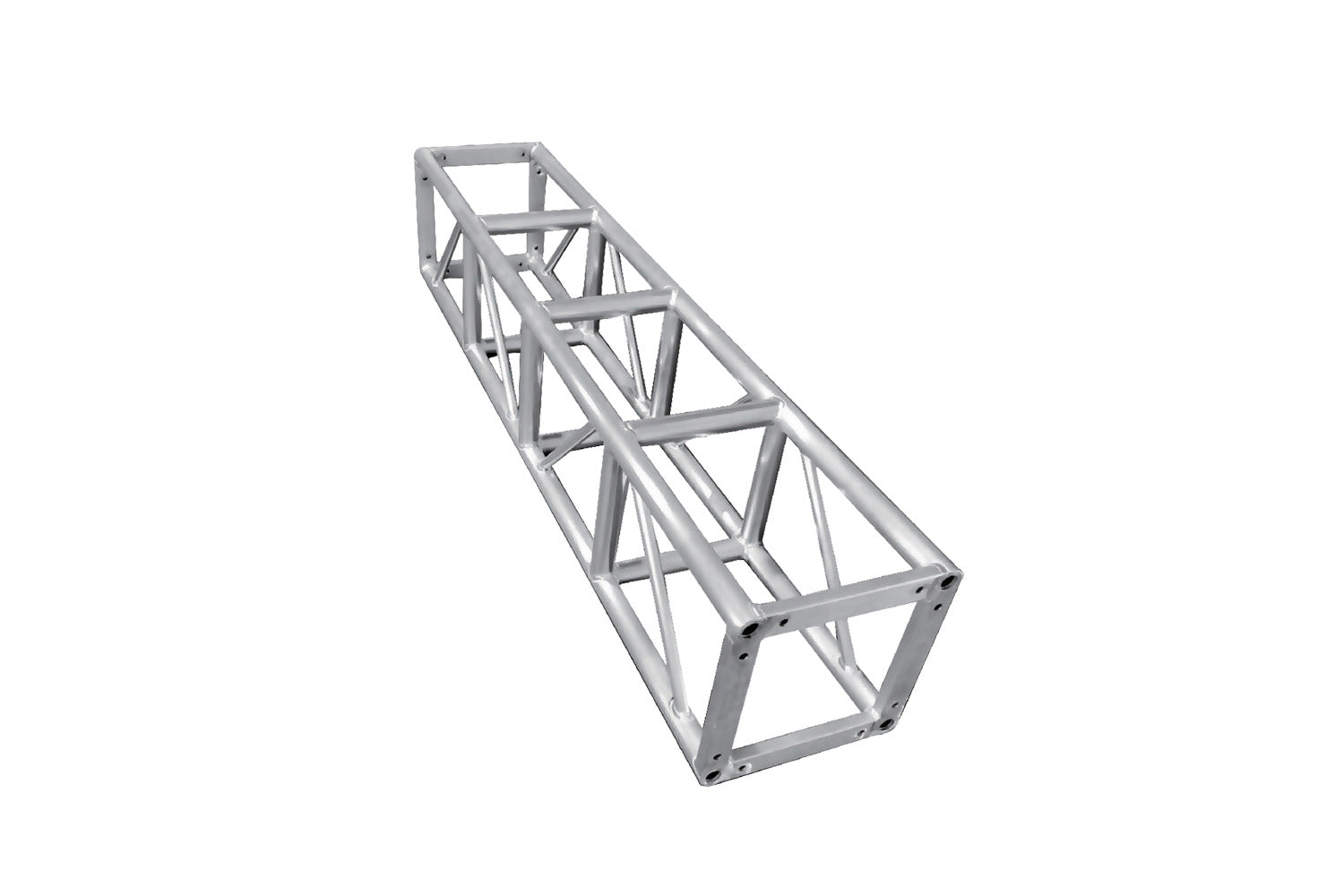

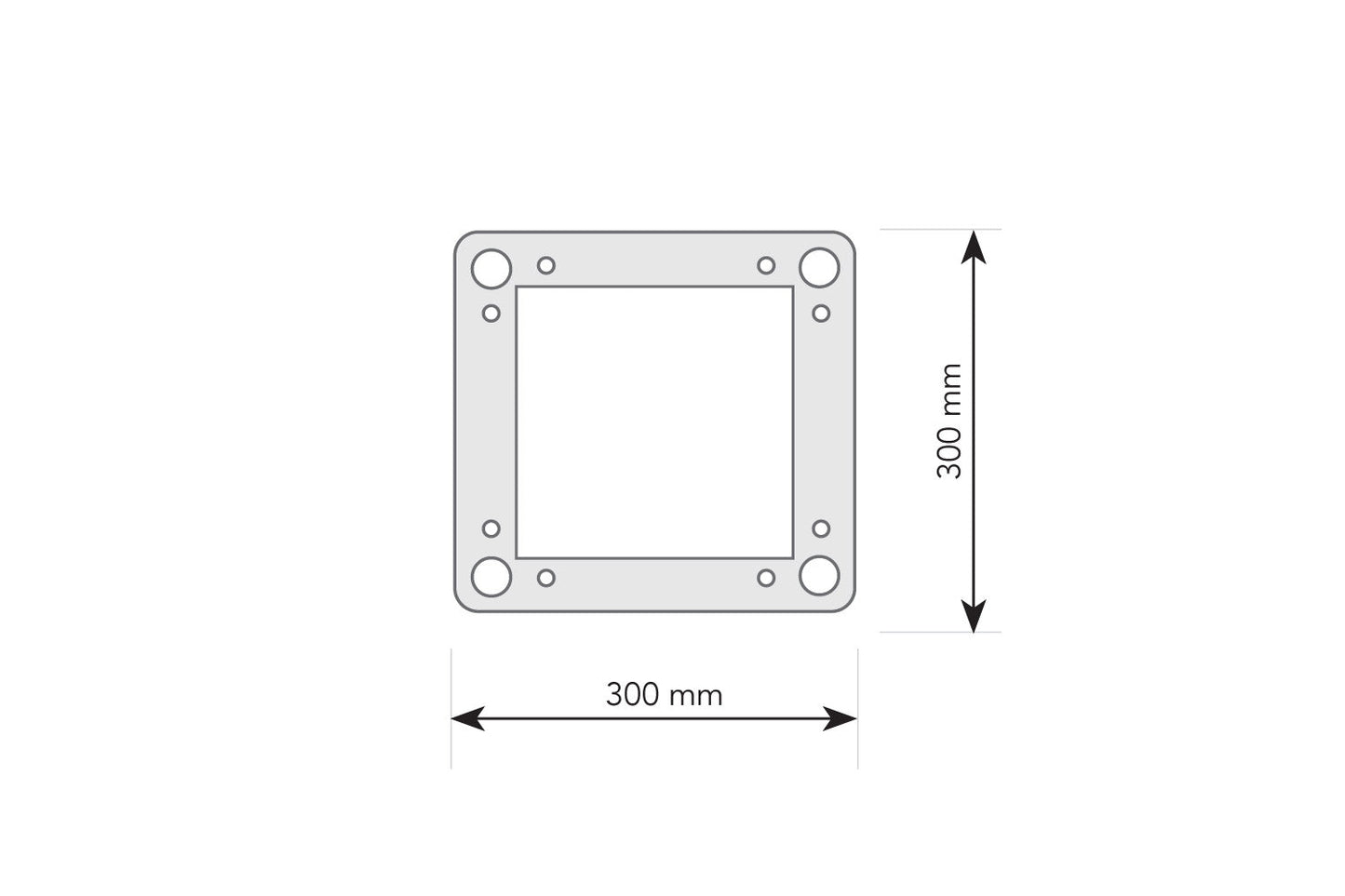

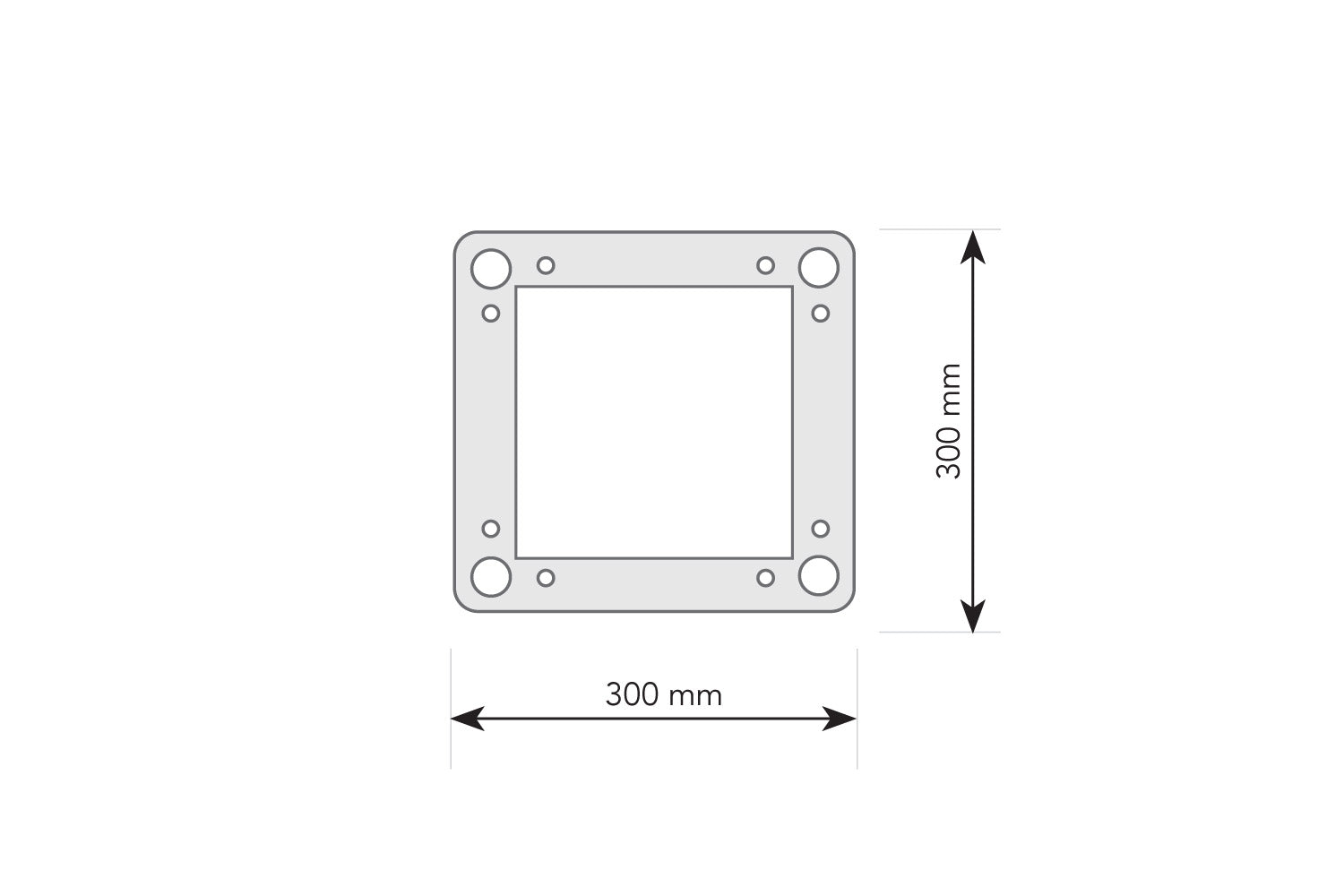

300mm Aluminium Bolt Box Truss, 3mm wall thickness
- Main Tube: 50mm x 3mm
- Vice Brace: 50mm x 2mm
- Diagonal Brace: 25mm x 2mm
- Materials: Aluminum alloy 6061-T6
- Finishing: Washed
- Rating: TUV
- Length available:
- 0.5m: T3BB05
- 1m: T3BB1
- 1.5m: T3BB1.5
- 2m: T3BB2
- 2.5m: T3BB2.5
- 3m: T3BB3
- 4m: T3BB4
|
SPAN (M)
|
2m
|
3m
|
4m
|
5m
|
6m
|
7m
|
8m
|
9m
|
10m
|
11m
|
12m
|
|
Centre Point Load (kg)
|
1701
|
1276
|
900
|
823
|
627
|
550
|
480
|
400
|
300
|
280
|
250
|
|
Deflection (mm)
|
2
|
6
|
10
|
13
|
20
|
30
|
40
|
45
|
55
|
68
|
74
|
|
Uniform Load (kg)
|
1900
|
1679
|
1410
|
1236
|
900
|
750
|
600
|
550
|
500
|
480
|
450
|
|
Deflection (mm)
|
2
|
7
|
12
|
20
|
25
|
33
|
46
|
51
|
58
|
66
|
73
|
The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings
Warranty: 3 years
