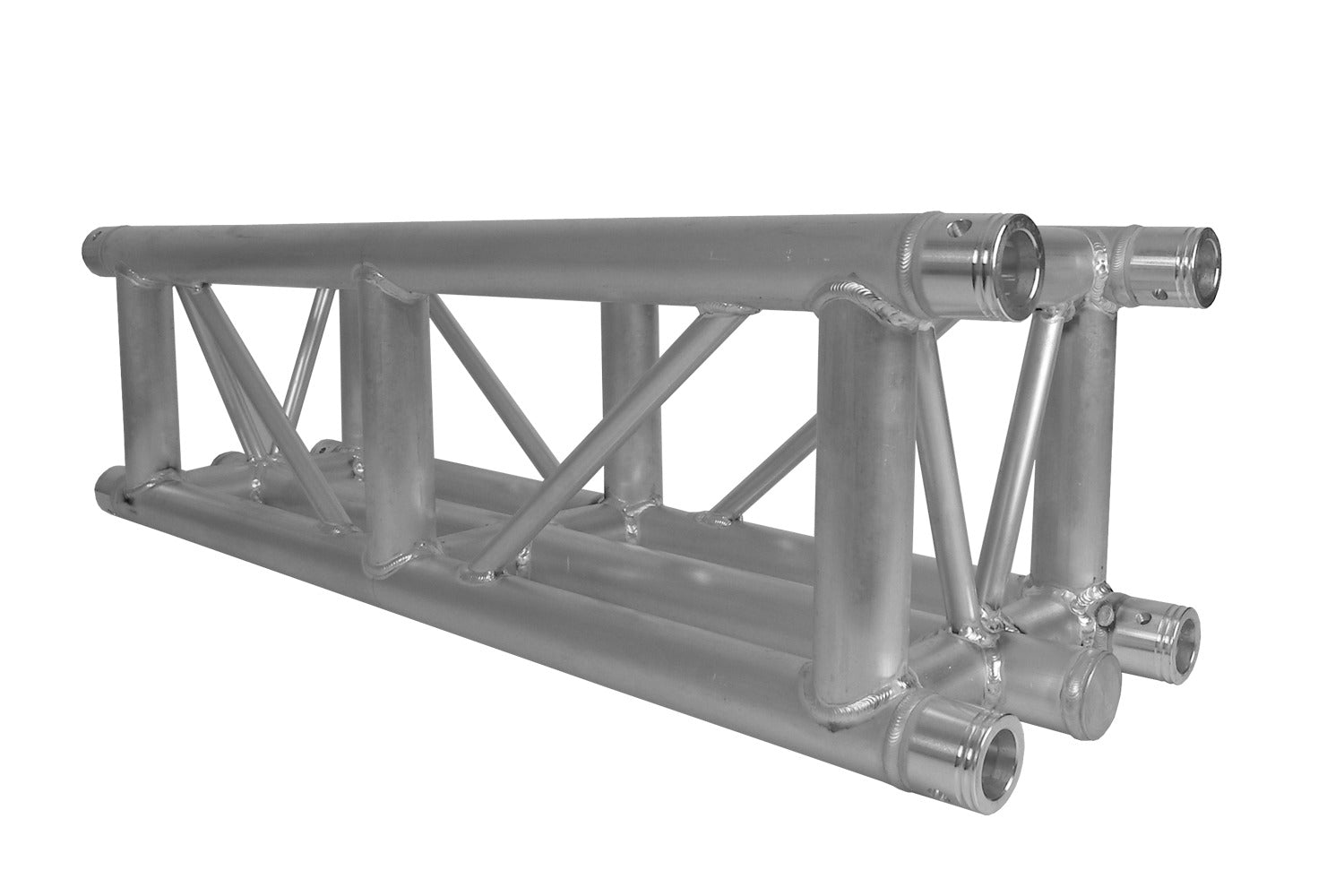

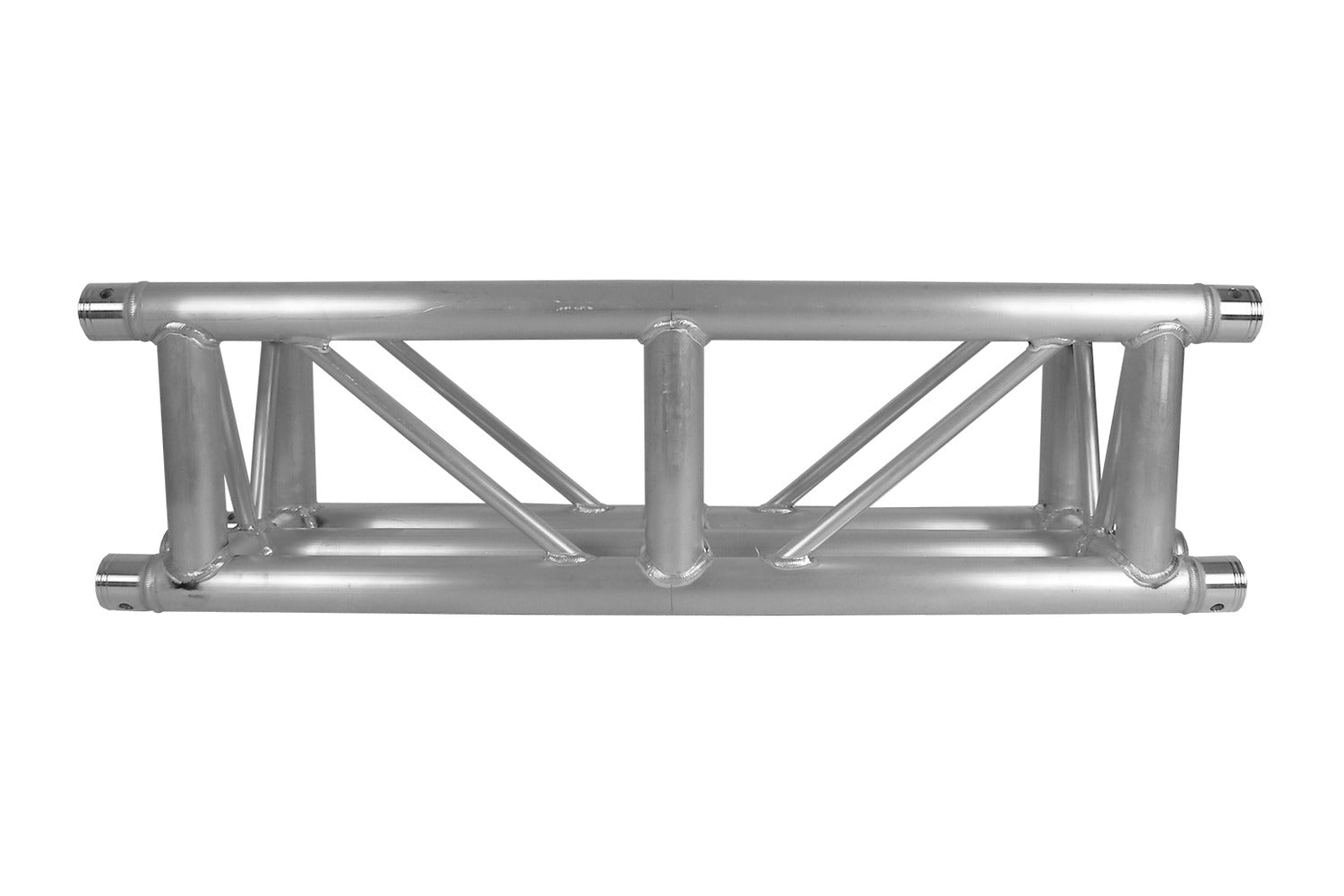

T3B5L1 - 290mm 5 chord Spigot box truss (1m)

290mm 5 chord Spigot box truss (1m)

• Main Tube: 50mm x 2mm
• Vice Brace: 50mm x 2mm
• Diagonal Brace: 20mm x 2mm
• Materials: Aluminum alloy 6061-T6
• Finishing: Washed
• Rating: TUV
• Dimensions (L x W x H): 290 x 290 x 1000mm

Span (m)	Uniform Load (kg/m)	Centre Point Load (kg)	1/3 Points Load (kg)	1/4 Points Load (kg)
2	1000	1300	1000	800
3	800	1200	950	750
4	550	1000	850	700
5	450	800	800	650
6	350	750	750	600
7	300	700	700	550
8	250	650	650	500
9	200	600	580	420
10	160	550	480	350
11	100	500	380	250
12	70	420	280	210

Download user manual

Warranty: 3 years
