T2BL2BK - 220mm Ladder Truss - Black 2m
T2BL2BK - 220mm Ladder Truss - Black 2m
Regular price
$299.00
Regular price
Sale price
$299.00
Unit price
per

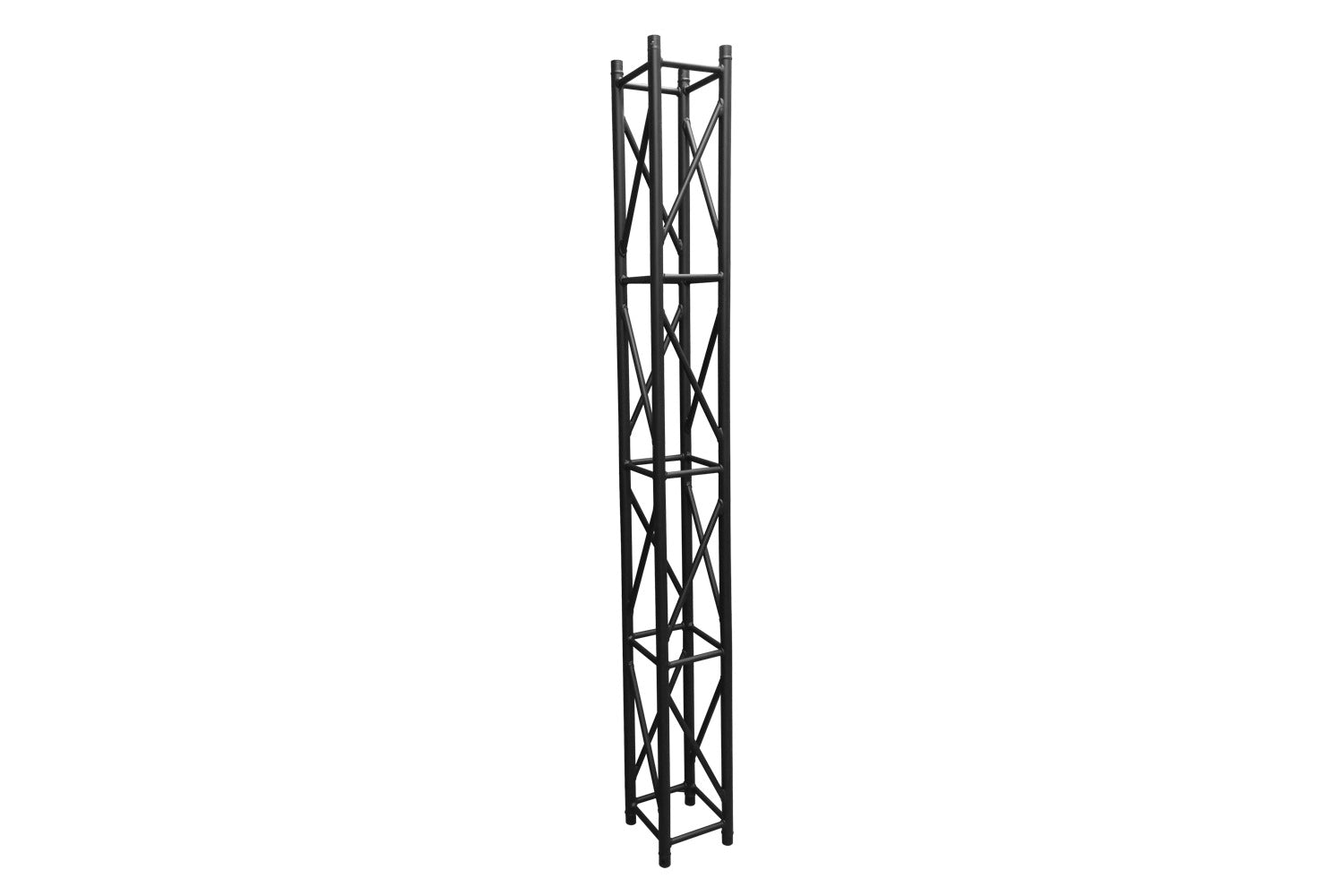

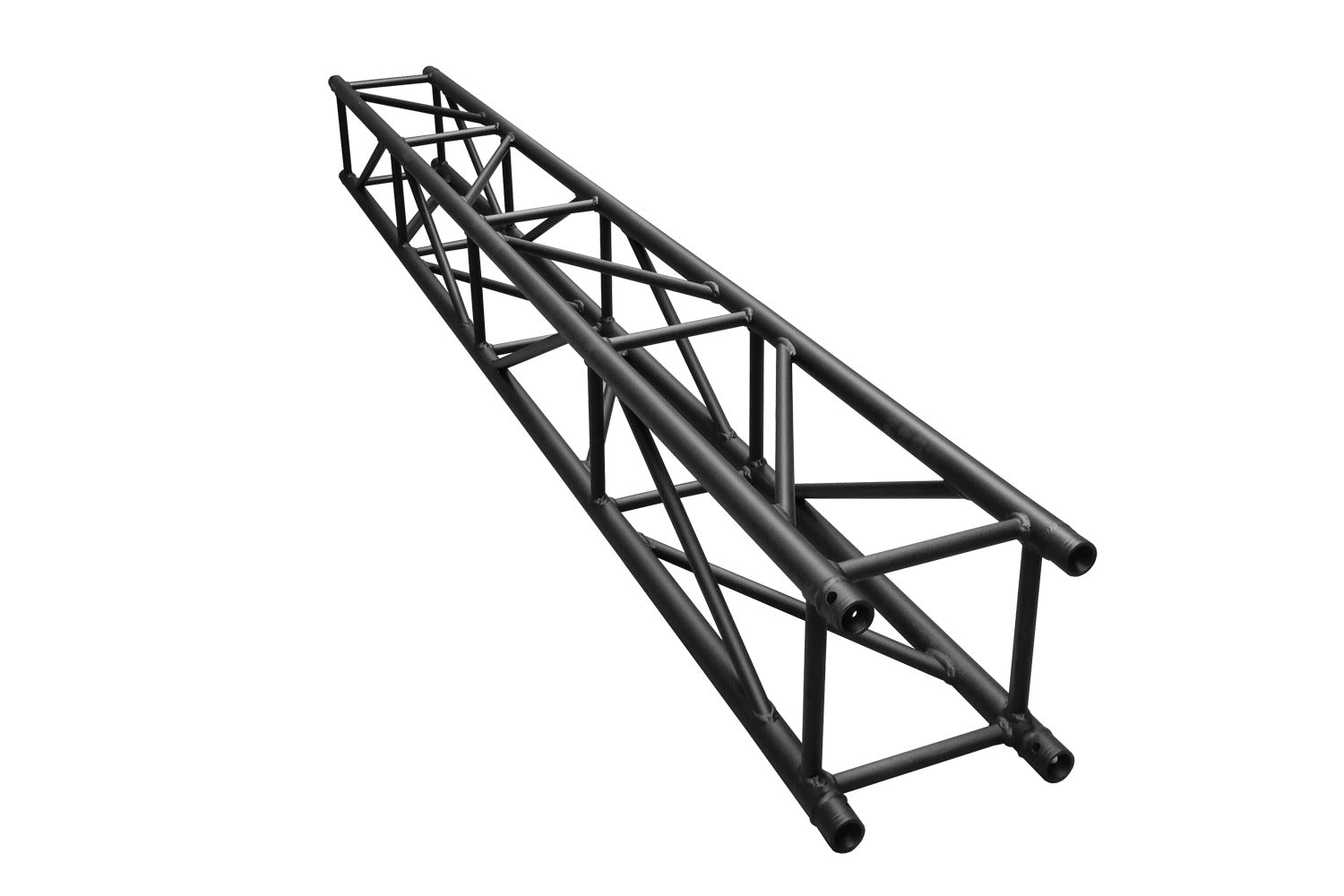

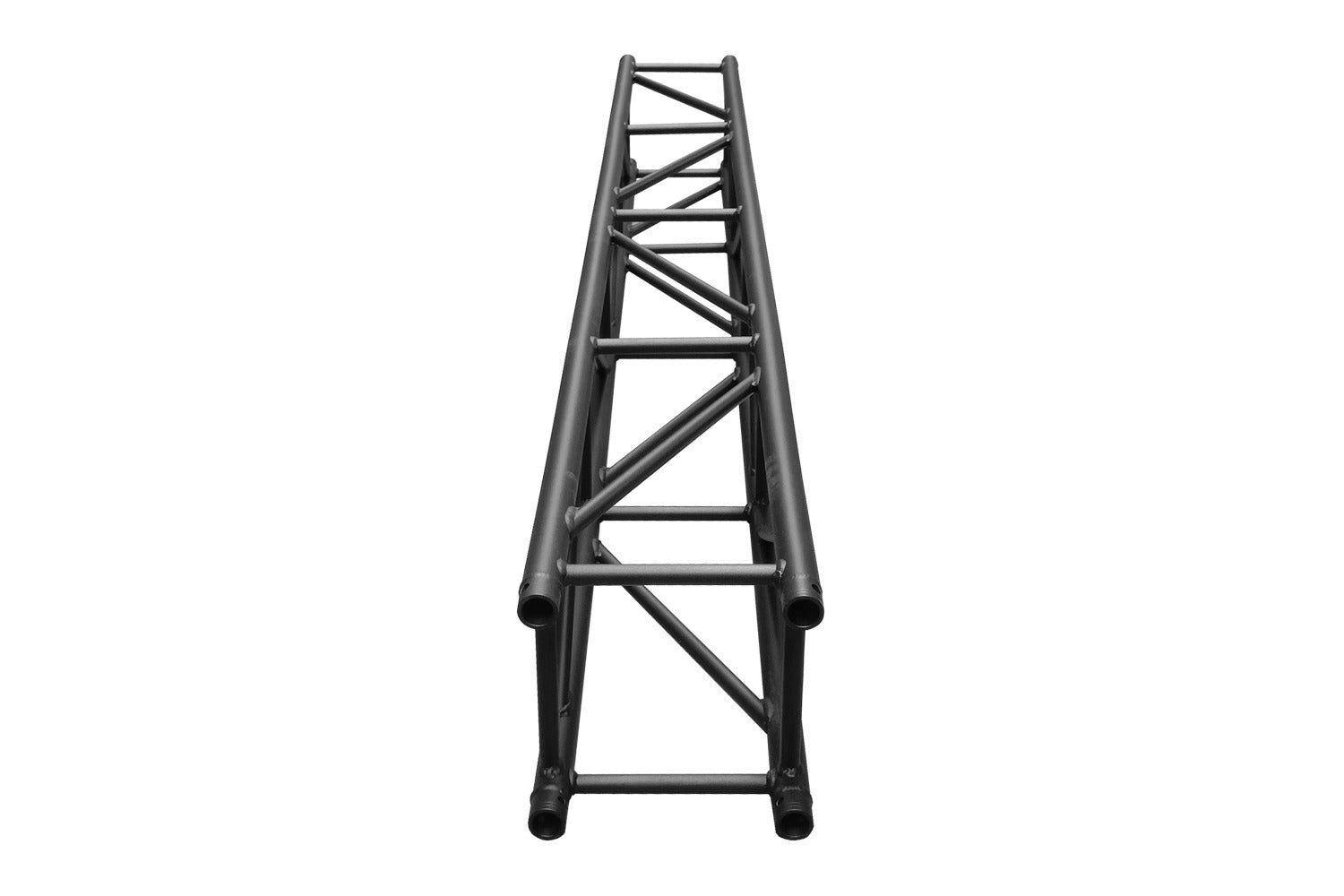

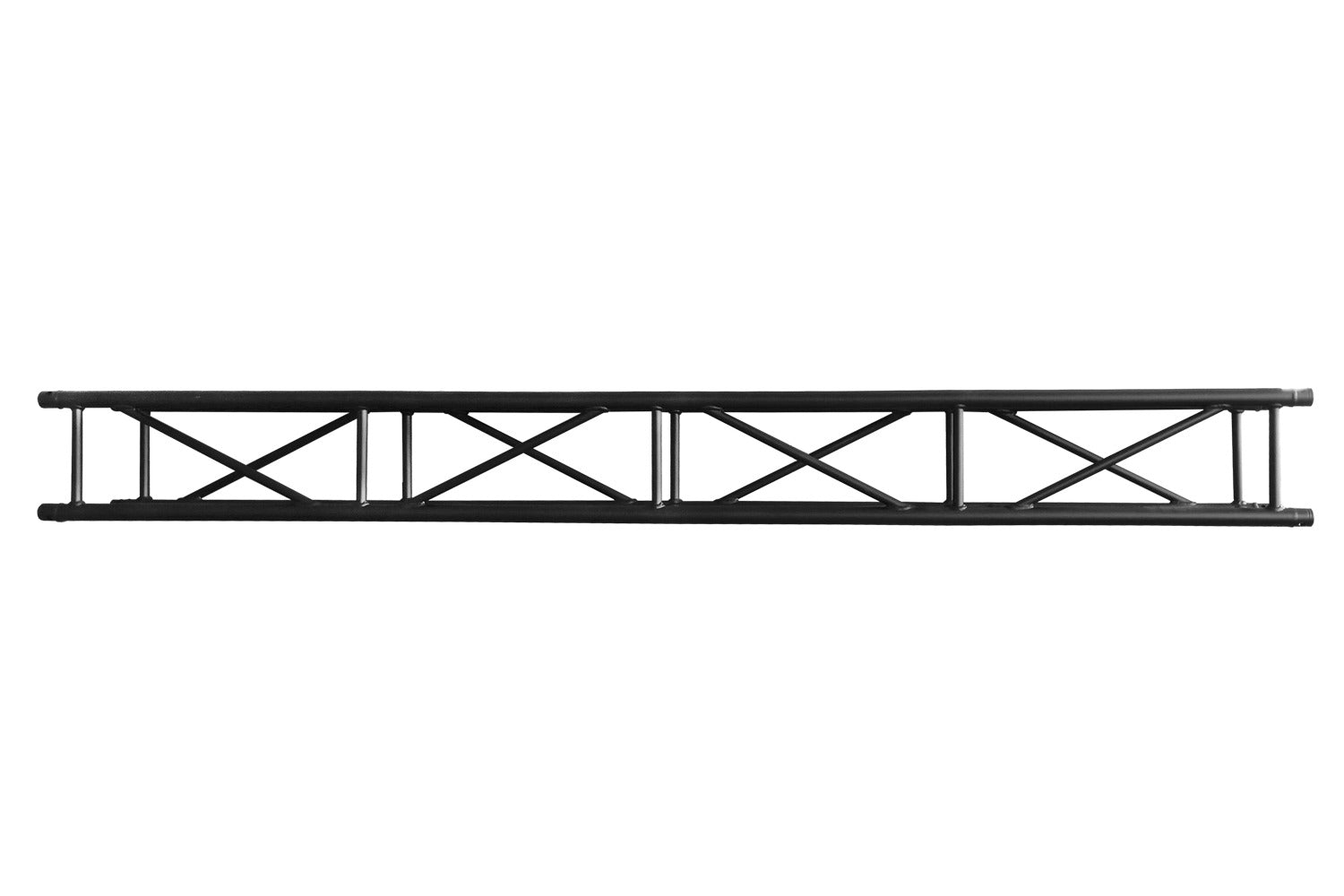

220mm Aluminium Lighting Spigot Box Truss, 2mm wall thickness, 2m Length

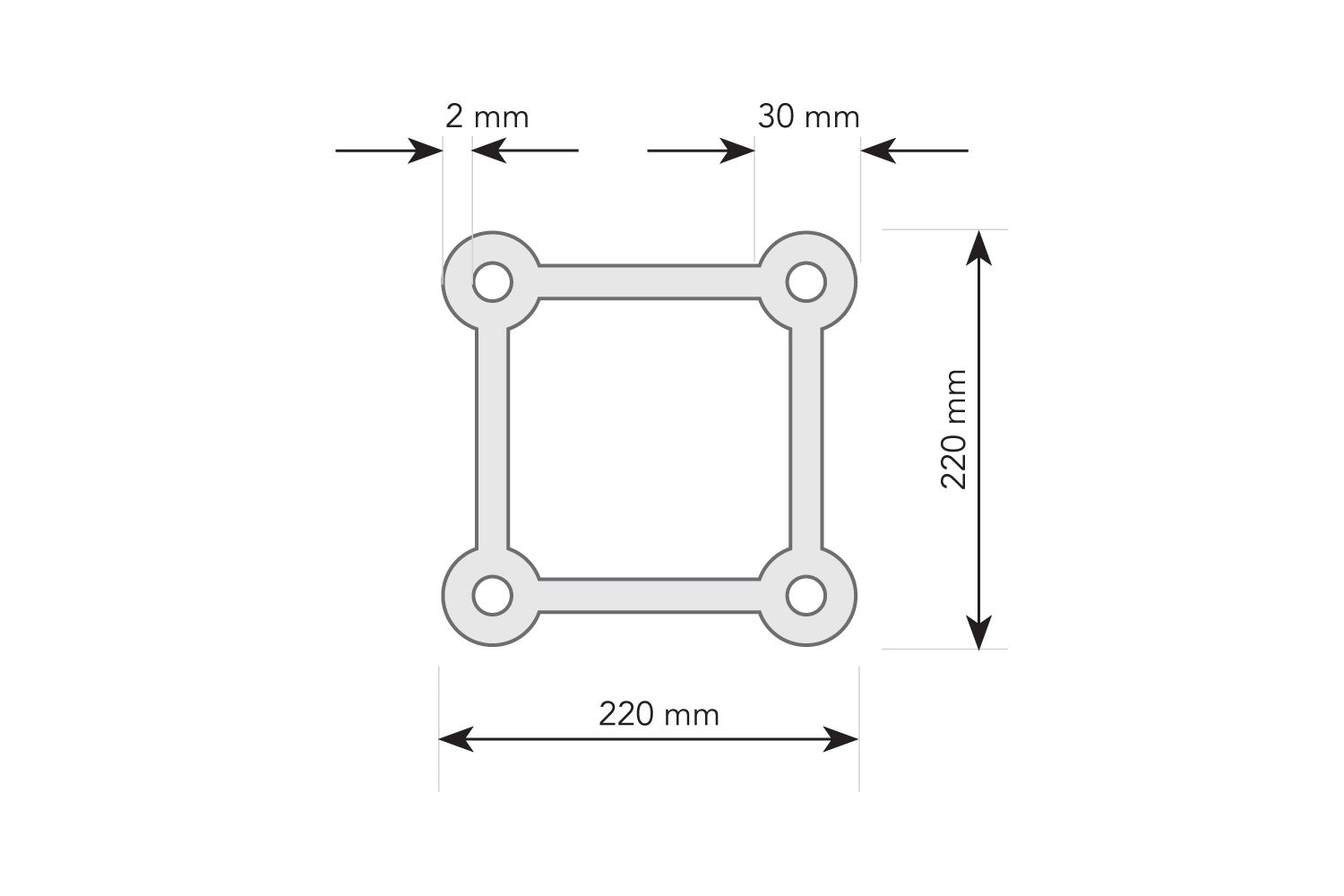

- Main Tube: 30mm x 2mm
- Vice Brace: 16mm x 2mm
- Diagonal Brace: 16mm x 2mm
- Materials: Aluminum alloy 6061-T6
- Finishing: Black
- Rating: TUV
- Length: 2m
|
SPAN (M)
|
1m
|
2m
|
3m
|
4m
|
5m
|
6m
|
7m
|
8m
|
9m
|
10m
|
|
Centre Point Load (kg)
|
382
|
378
|
345
|
260
|
205
|
169
|
142
|
123
|
105
|
95
|
|
Deflection (mm)
|
1
|
3
|
7
|
12
|
20
|
30
|
45
|
55
|
70
|
85
|
|
Uniform Load (kg)
|
382
|
378
|
377
|
376
|
339
|
280
|
235
|
205
|
177
|
155
|
|
Deflection (mm)
|
1
|
3
|
5
|
10
|
15
|
27
|
35
|
47
|
55
|
70
|
The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings
Warranty: 3 years
