T2BLBK - 220mm Spigot Box Truss - Black
T2BLBK - 220mm Spigot Box Truss - Black
Regular price
$82.90
Regular price
Sale price
$82.90
Unit price
per

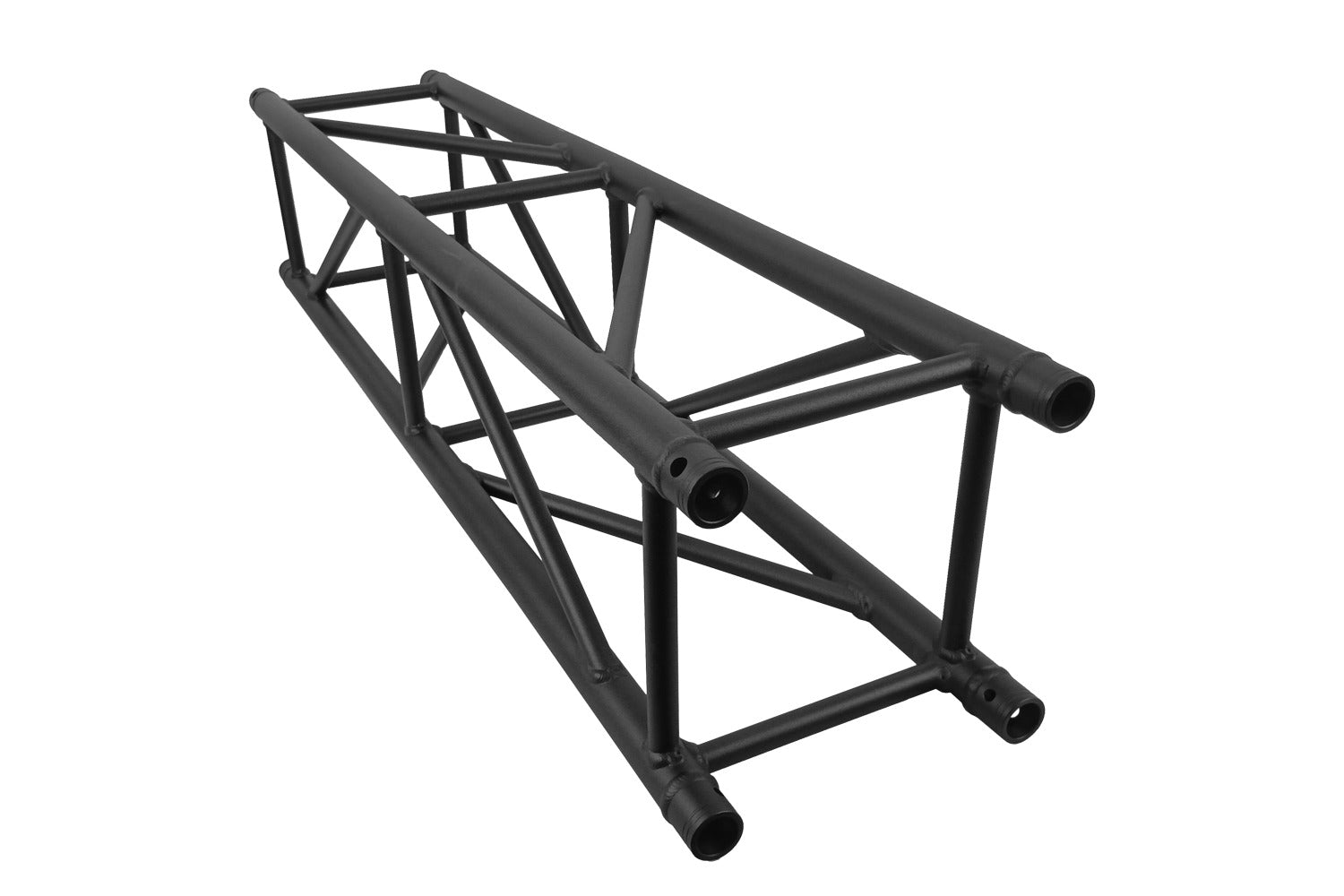

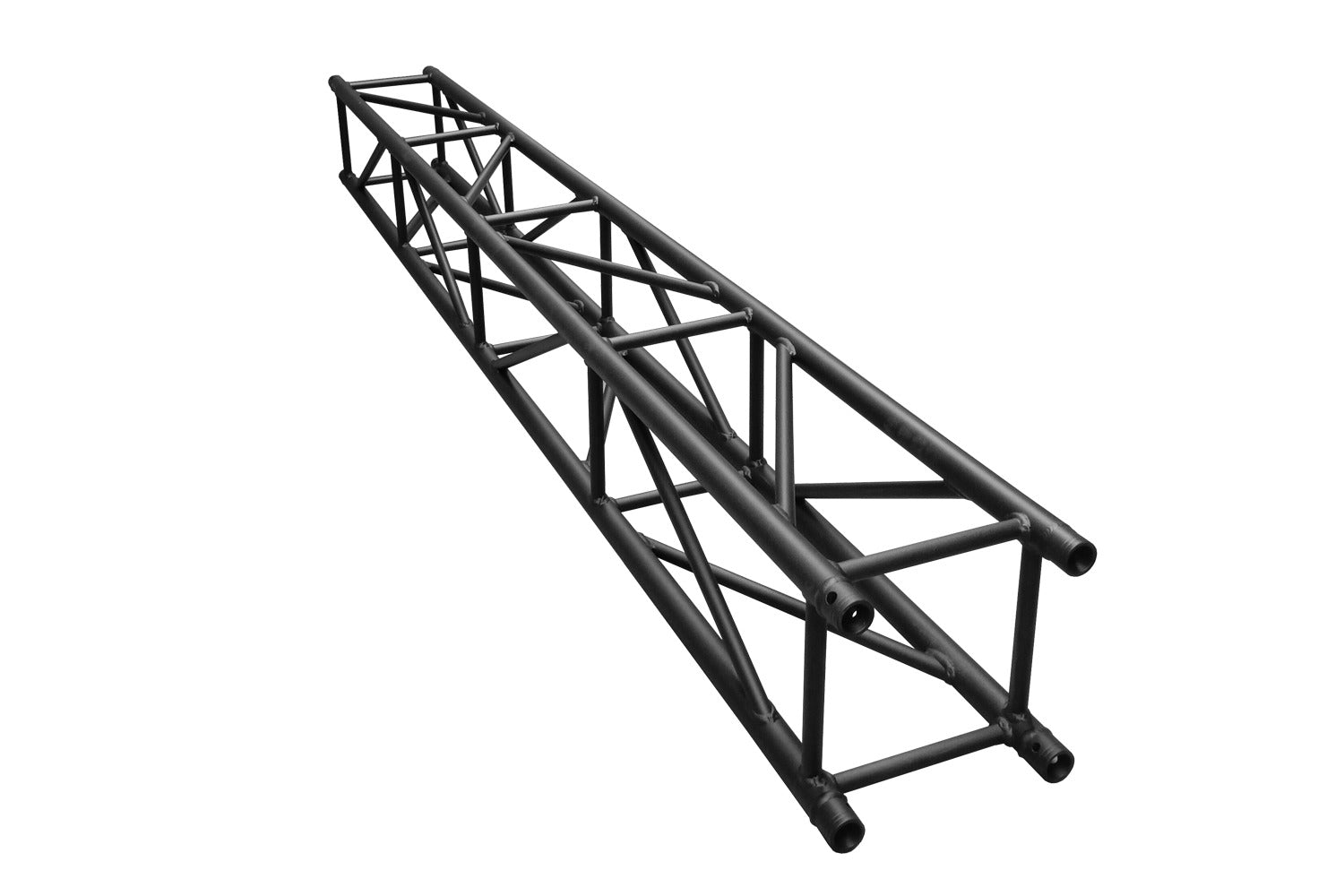

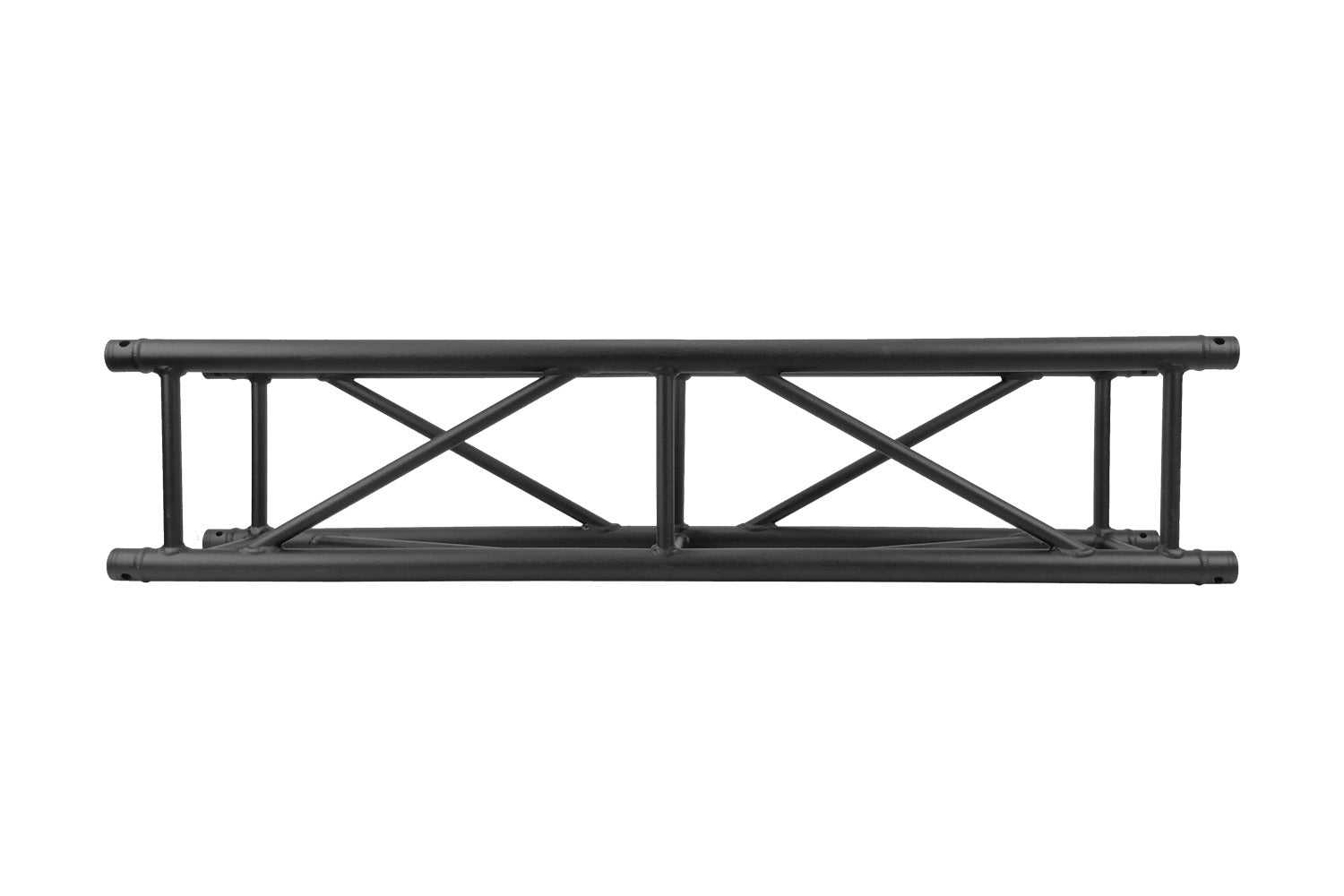

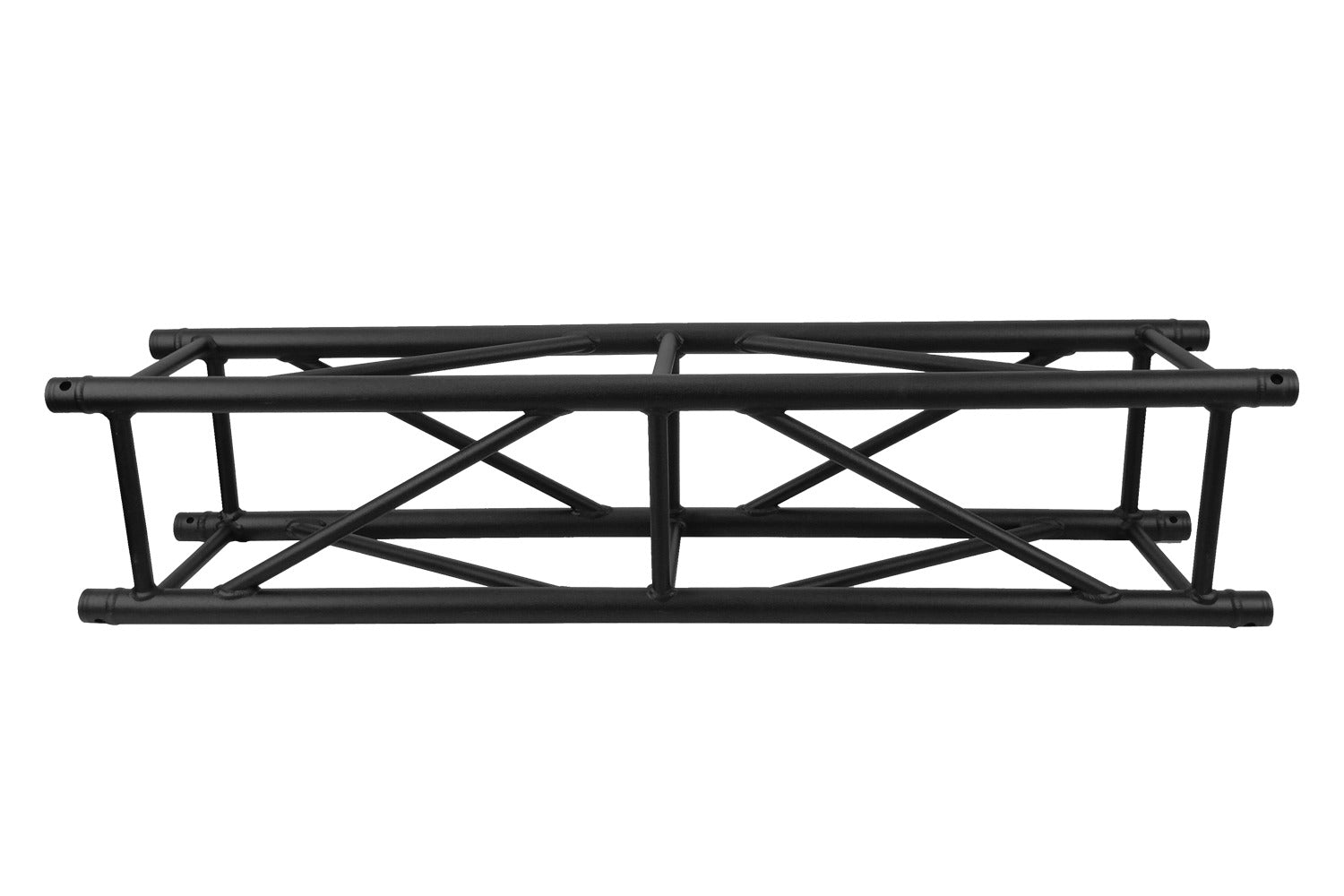

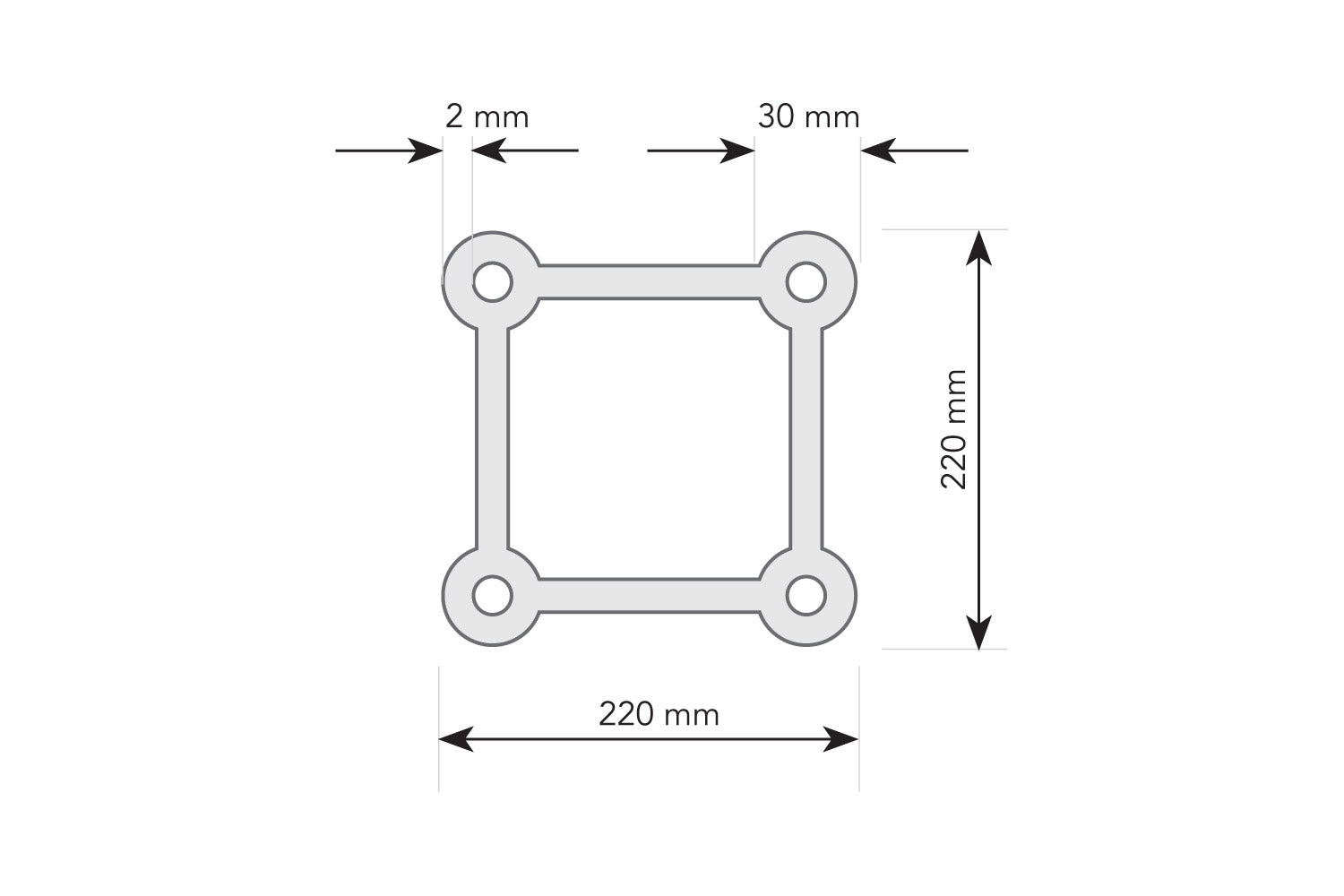

220mm Aluminium Lighting Spigot Box Truss, 2mm wall thickness
- Main Tube: 30mm x 2mm
- Vice Brace: 16mm x 2mm
- Diagonal Brace: 16mm x 2mm
- Materials: Aluminum alloy 6061-T6
- Finishing: Black
- Rating: TUV
- Length available:

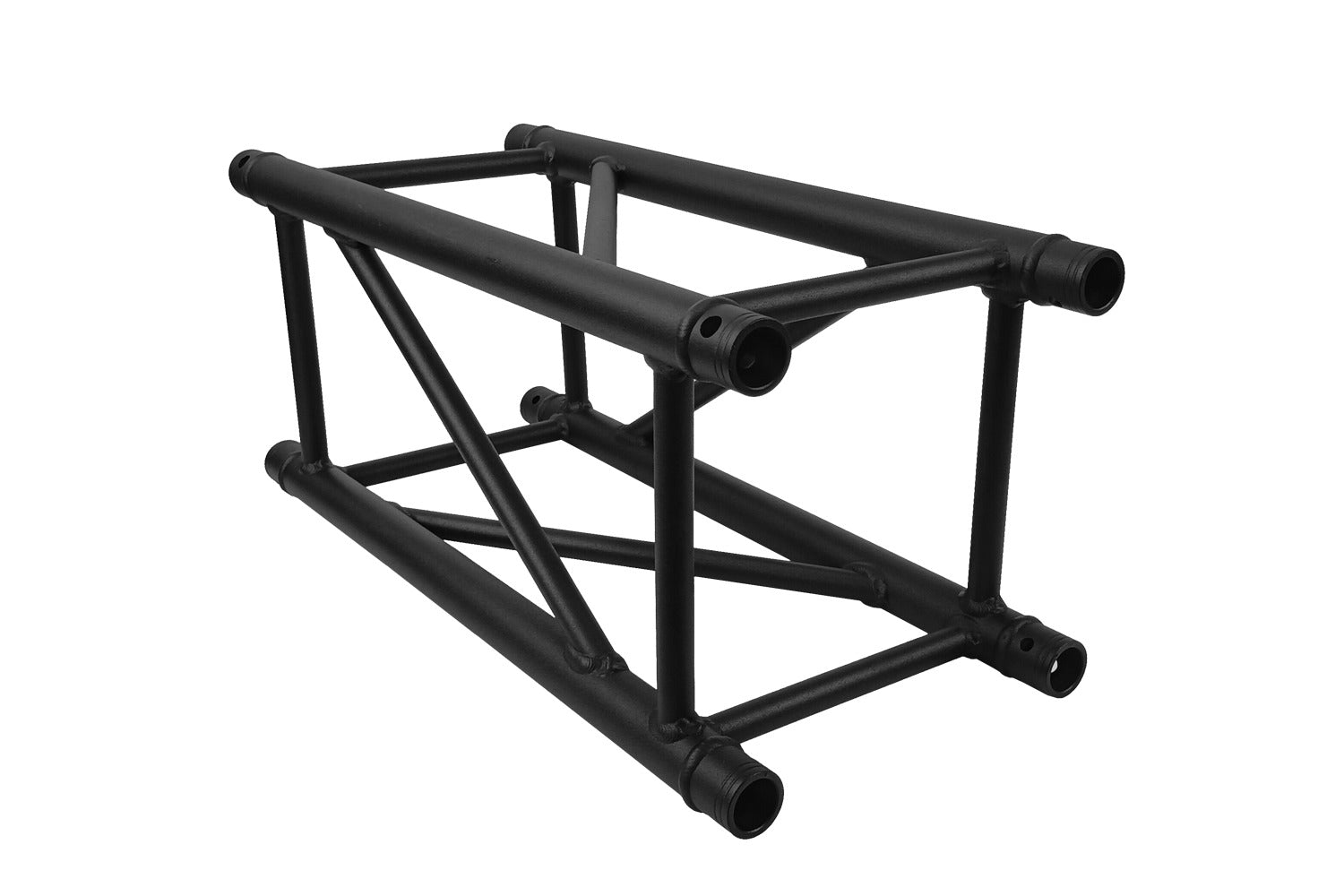

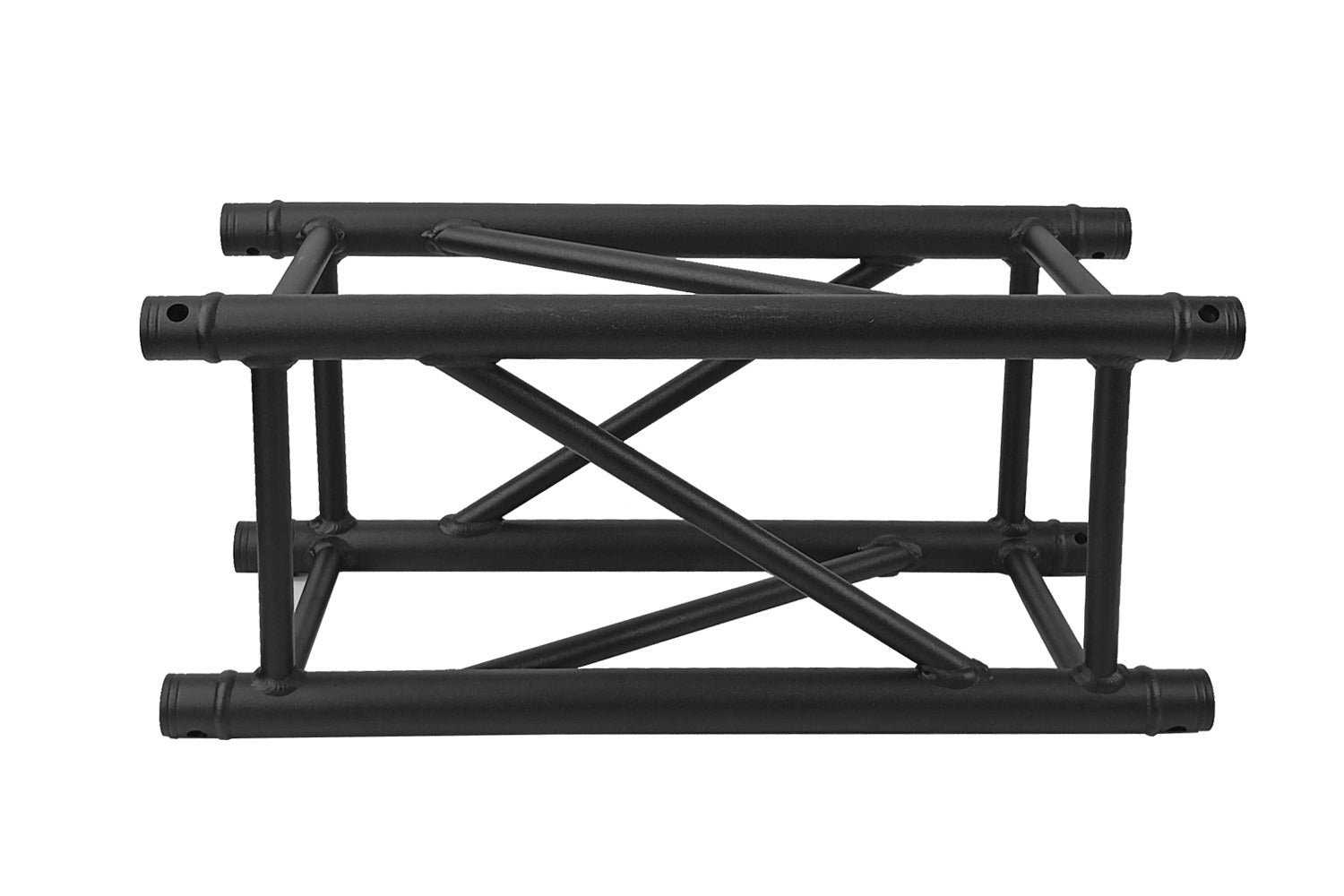

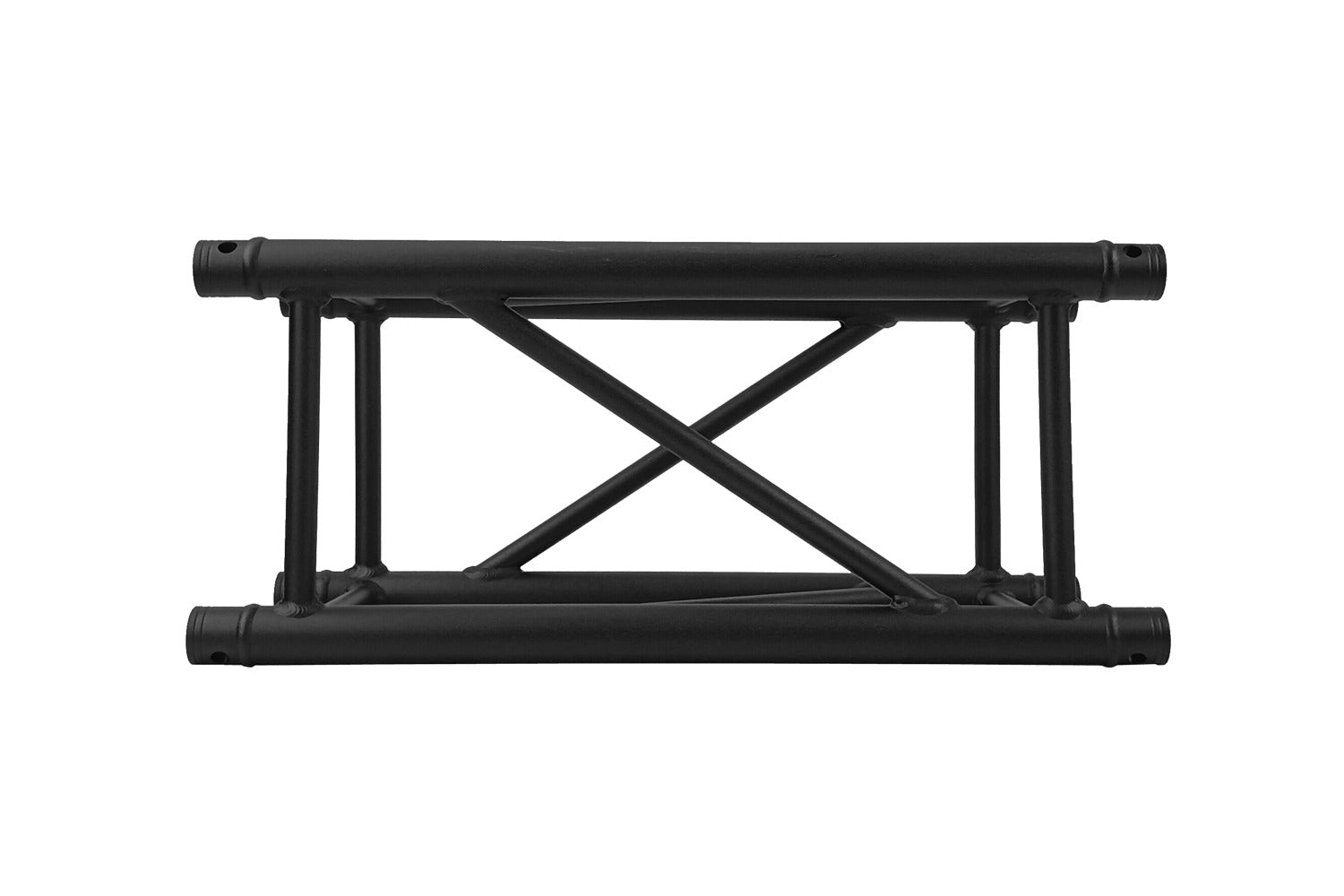

- 0.5m: T2BL05BK
- 1m: T2BL1BK
- 1.5m: T2BLB1.5BK

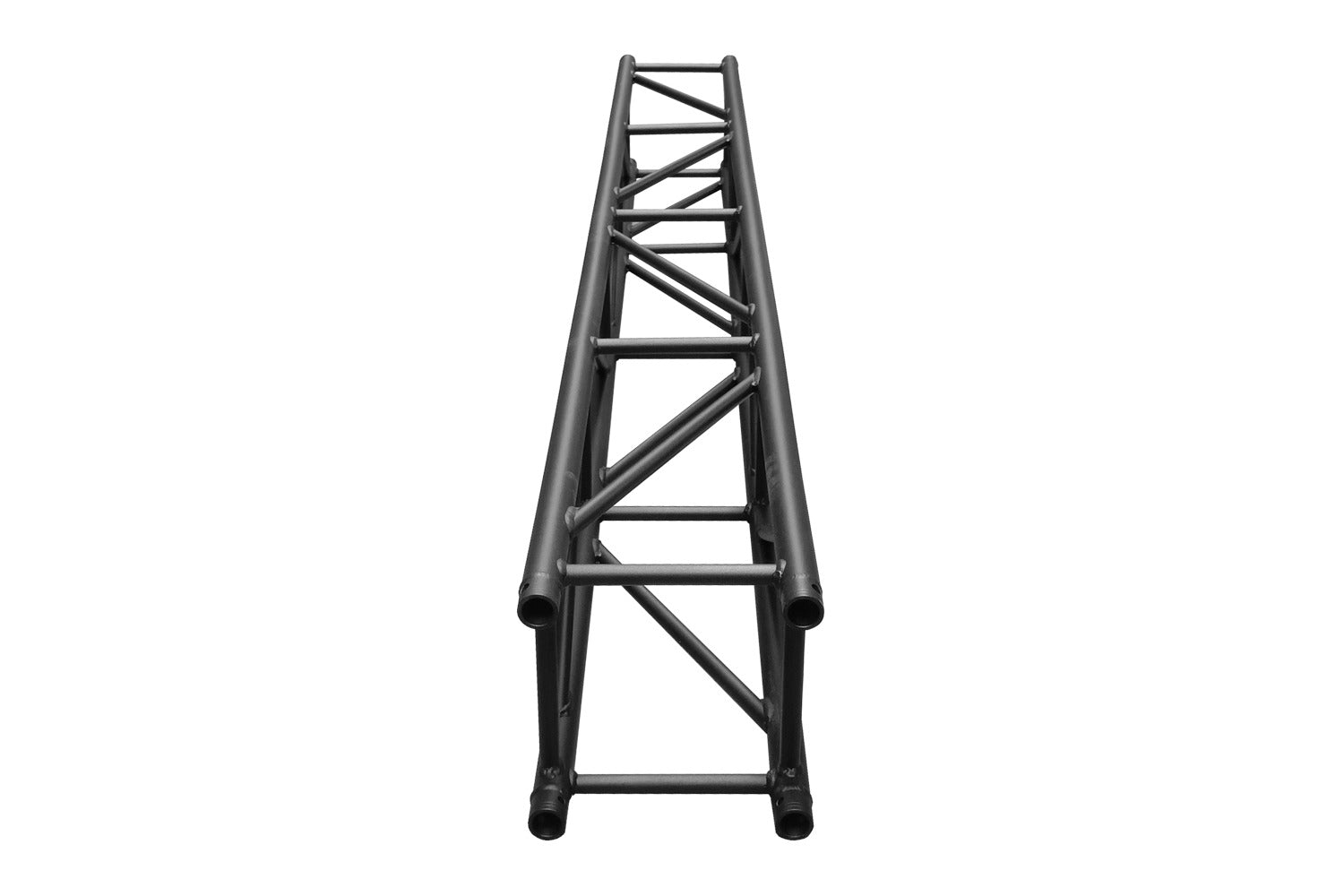

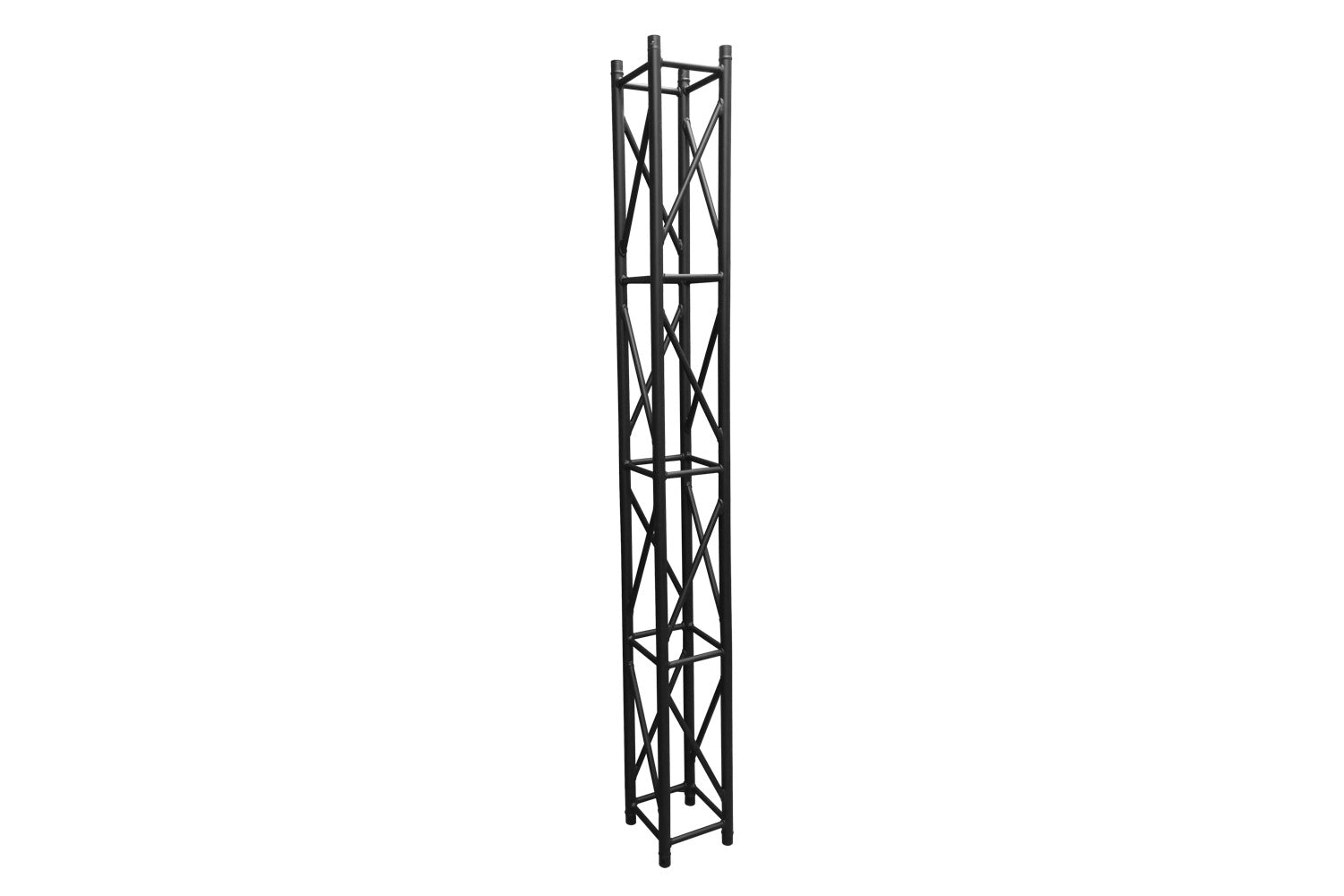

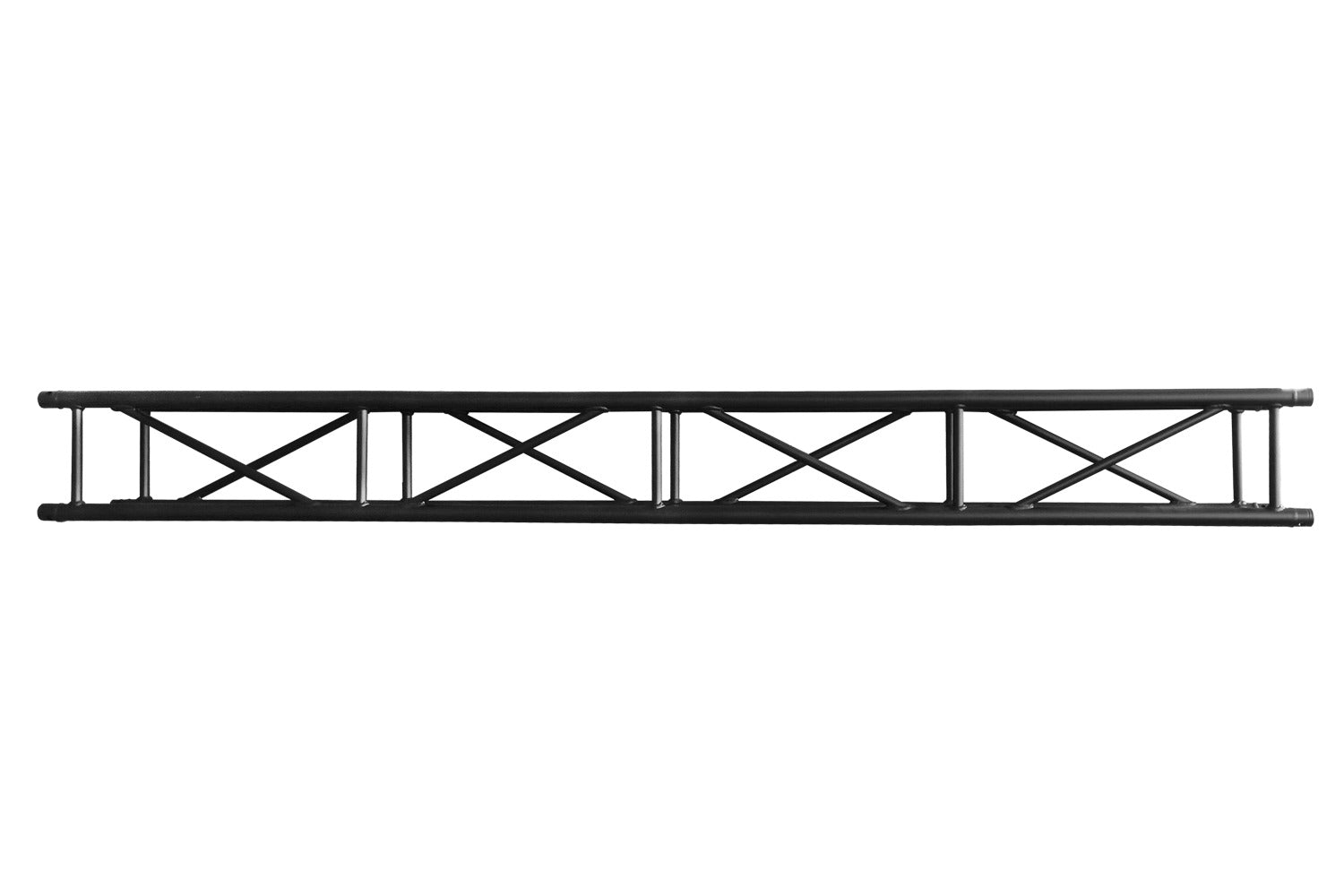

- 2m: T2BL2BK
- 2.5m: T2BL2.5BK
- 3m: T2BL3BK
|
SPAN (M)
|
1m
|
2m
|
3m
|
4m
|
5m
|
6m
|
7m
|
8m
|
9m
|
10m
|
|
Centre Point Load (kg)
|
382
|
378
|
345
|
260
|
205
|
169
|
142
|
123
|
105
|
95
|
|
Deflection (mm)
|
1
|
3
|
7
|
12
|
20
|
30
|
45
|
55
|
70
|
85
|
|
Uniform Load (kg)
|
382
|
378
|
377
|
376
|
339
|
280
|
235
|
205
|
177
|
155
|
|
Deflection (mm)
|
1
|
3
|
5
|
10
|
15
|
27
|
35
|
47
|
55
|
70
|
The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings
Warranty: 3 years
