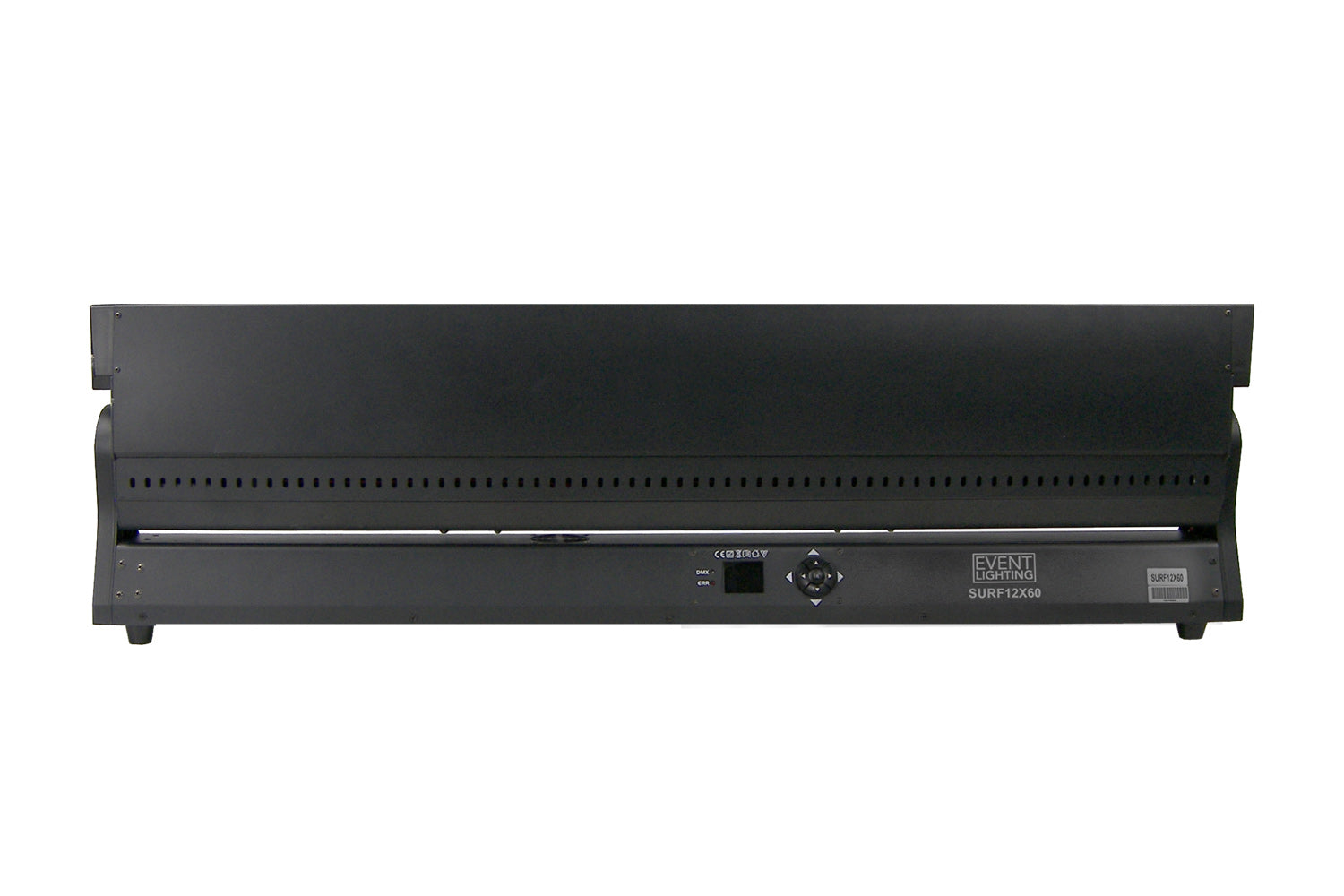

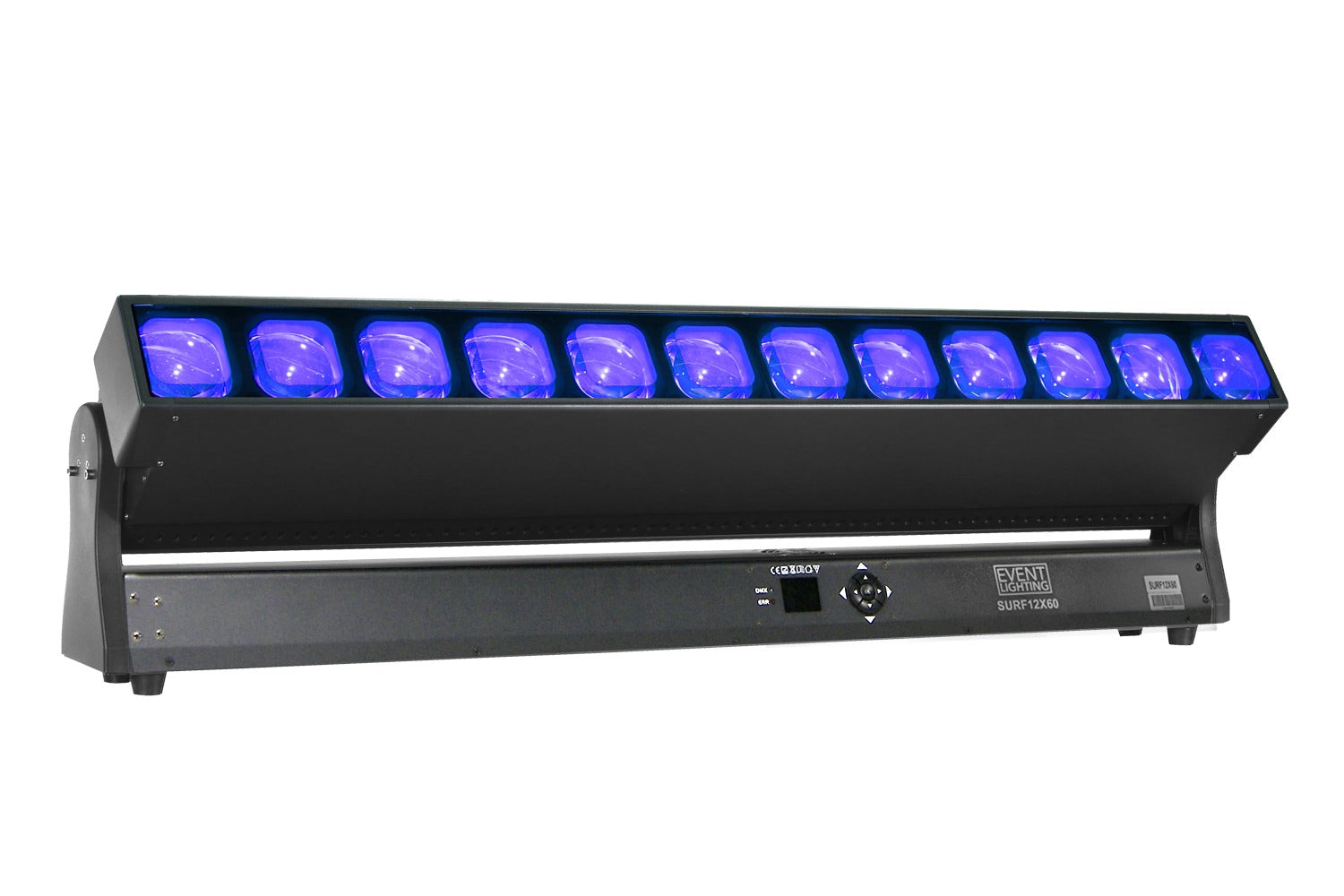

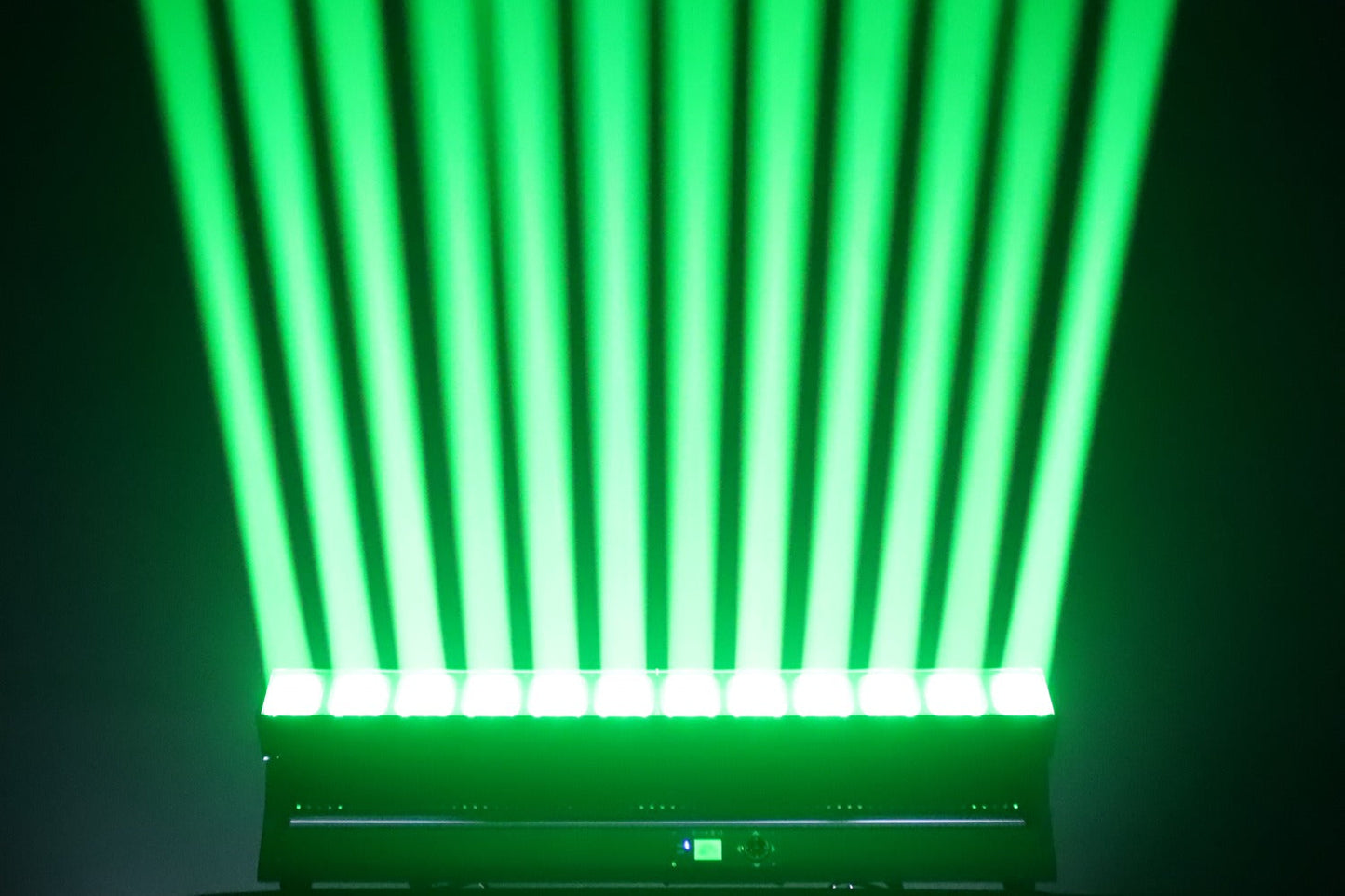

SURF12X60 - Tilt bar with zoom 12 x 60W RGBW LEDs

SURF12X60 - Tilt bar with zoom 12 x 60W RGBW LEDs

Regular price $1,649.00
Regular price Sale price $1,649.00
Sale Contact for Availability

This product has been discontinued.

View other Pixel Bars

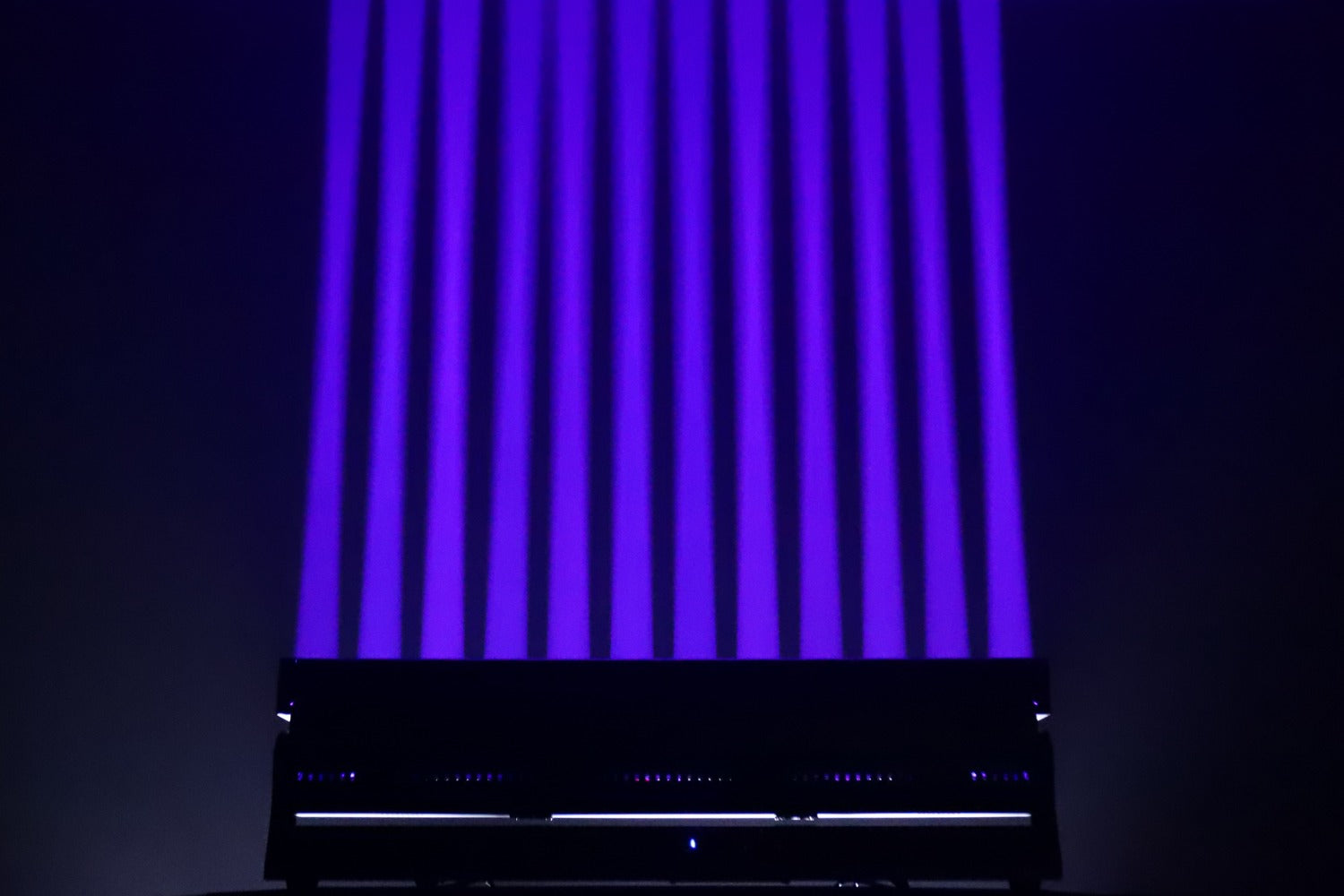

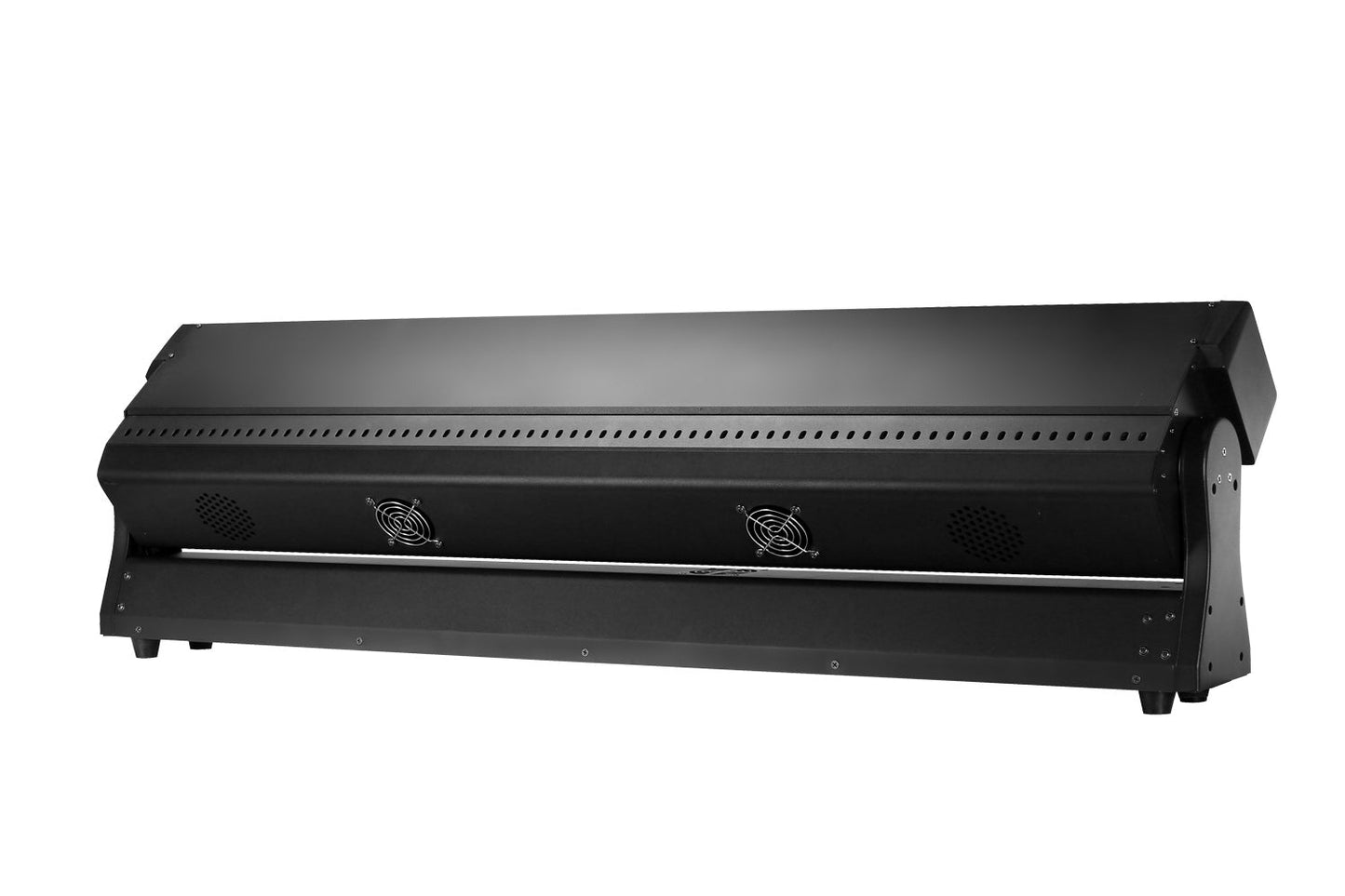

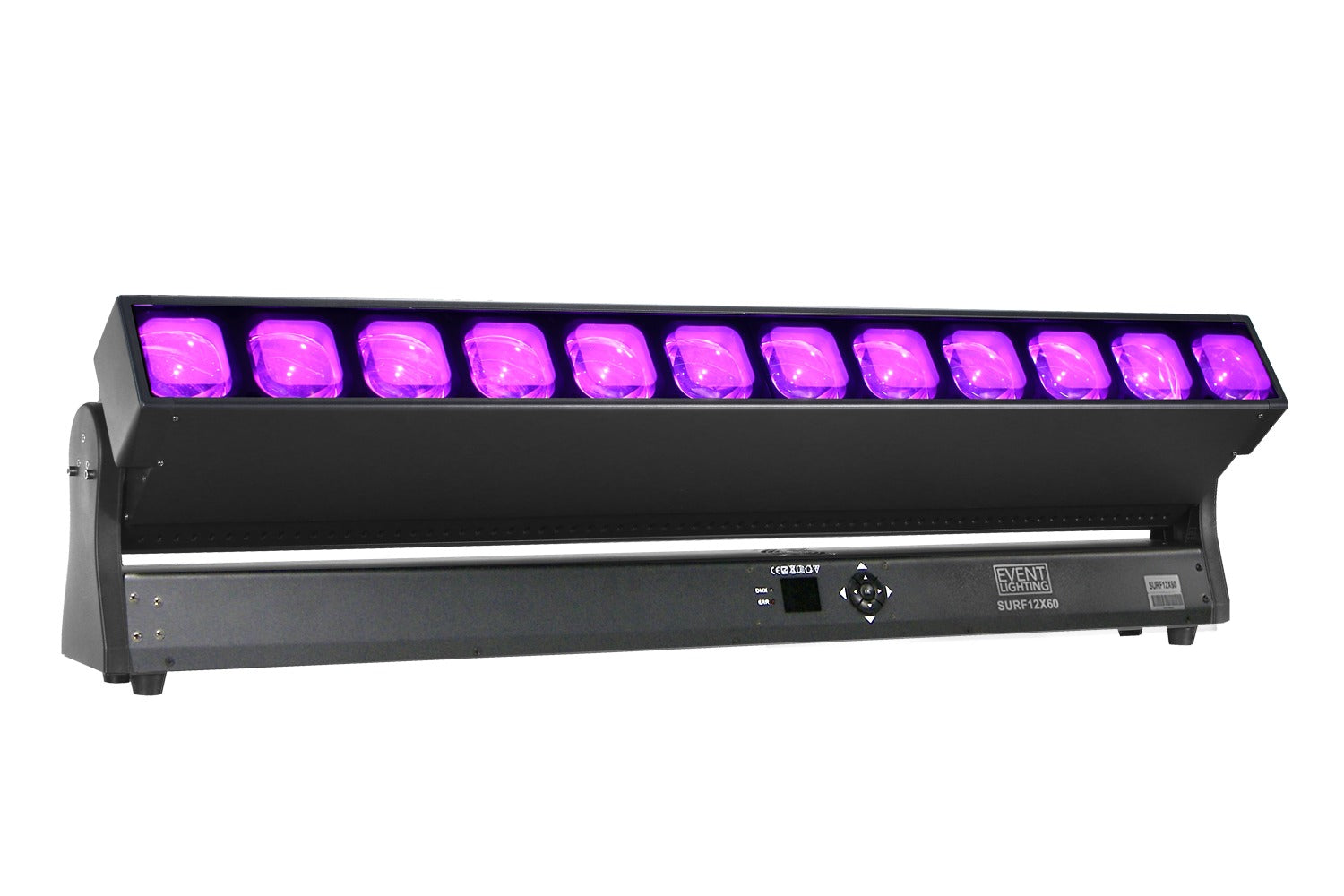

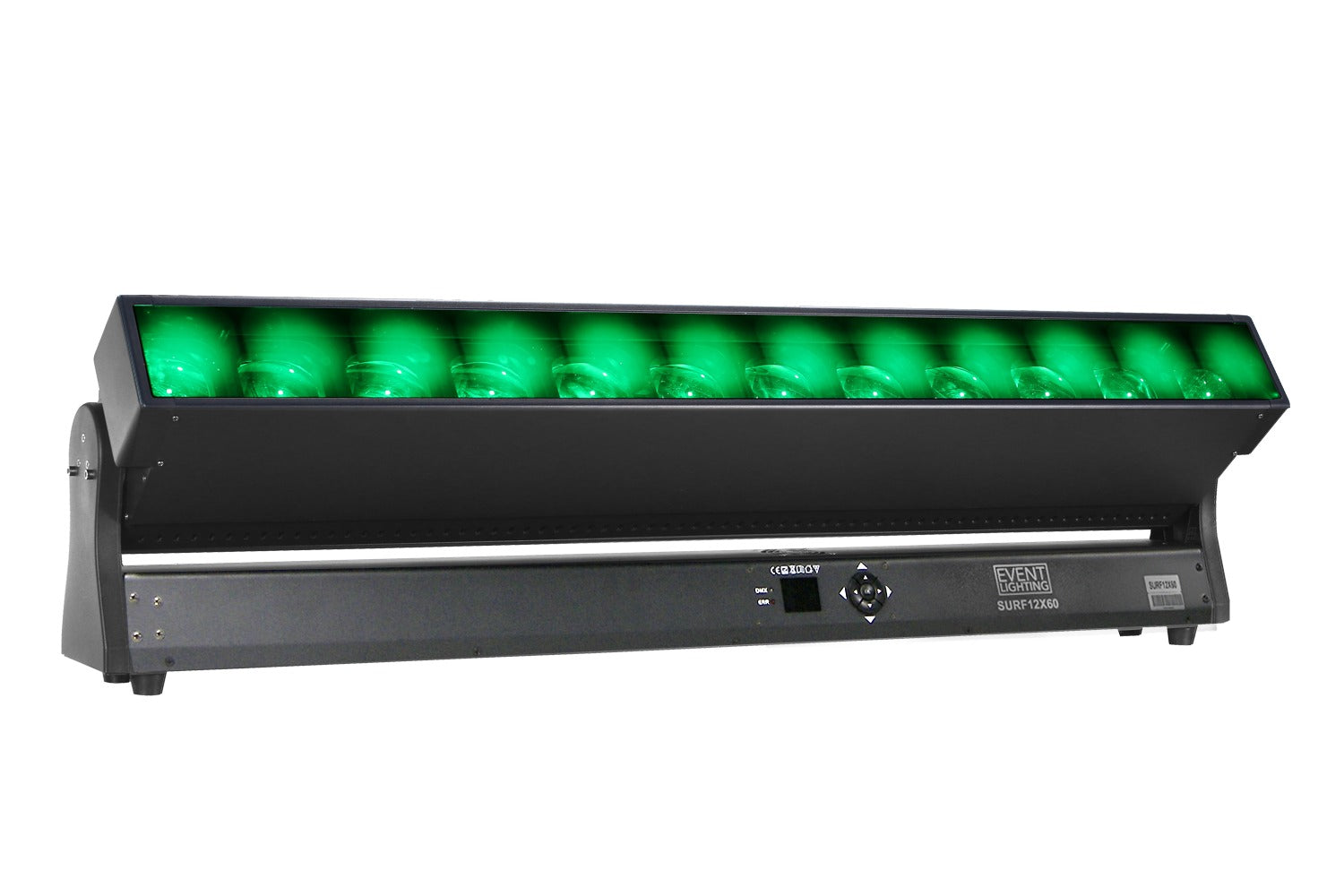

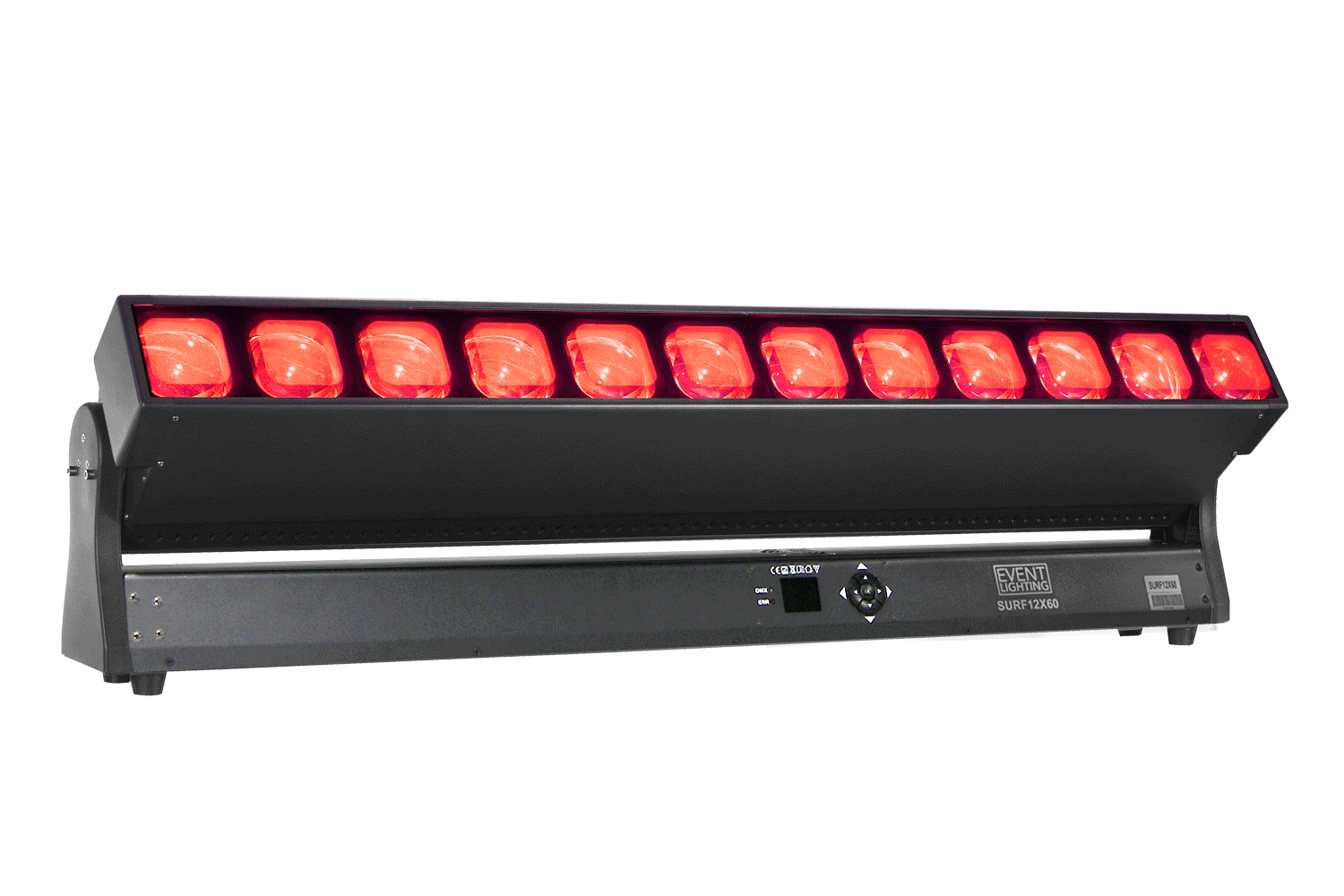

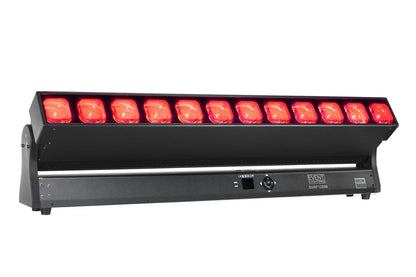

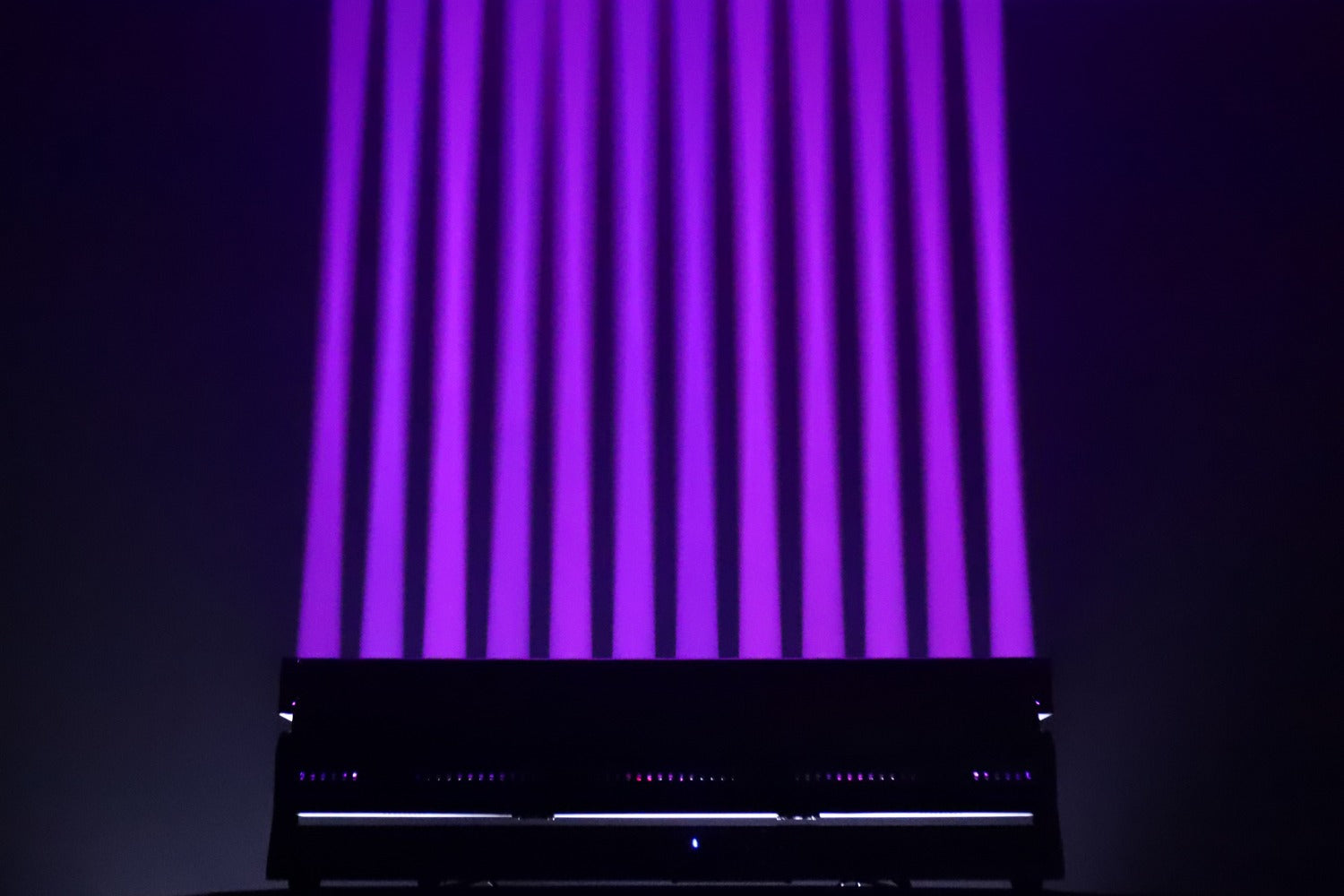

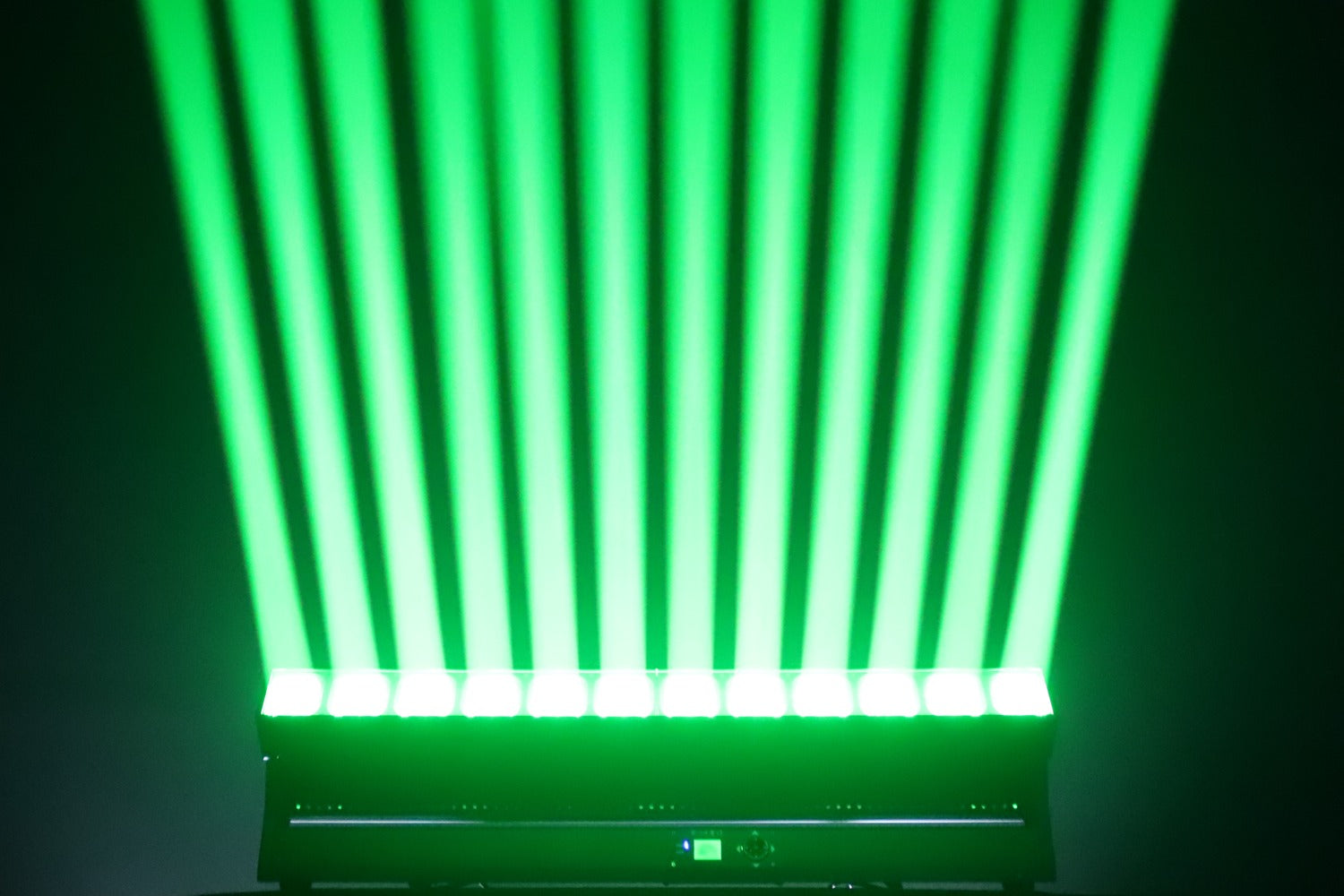

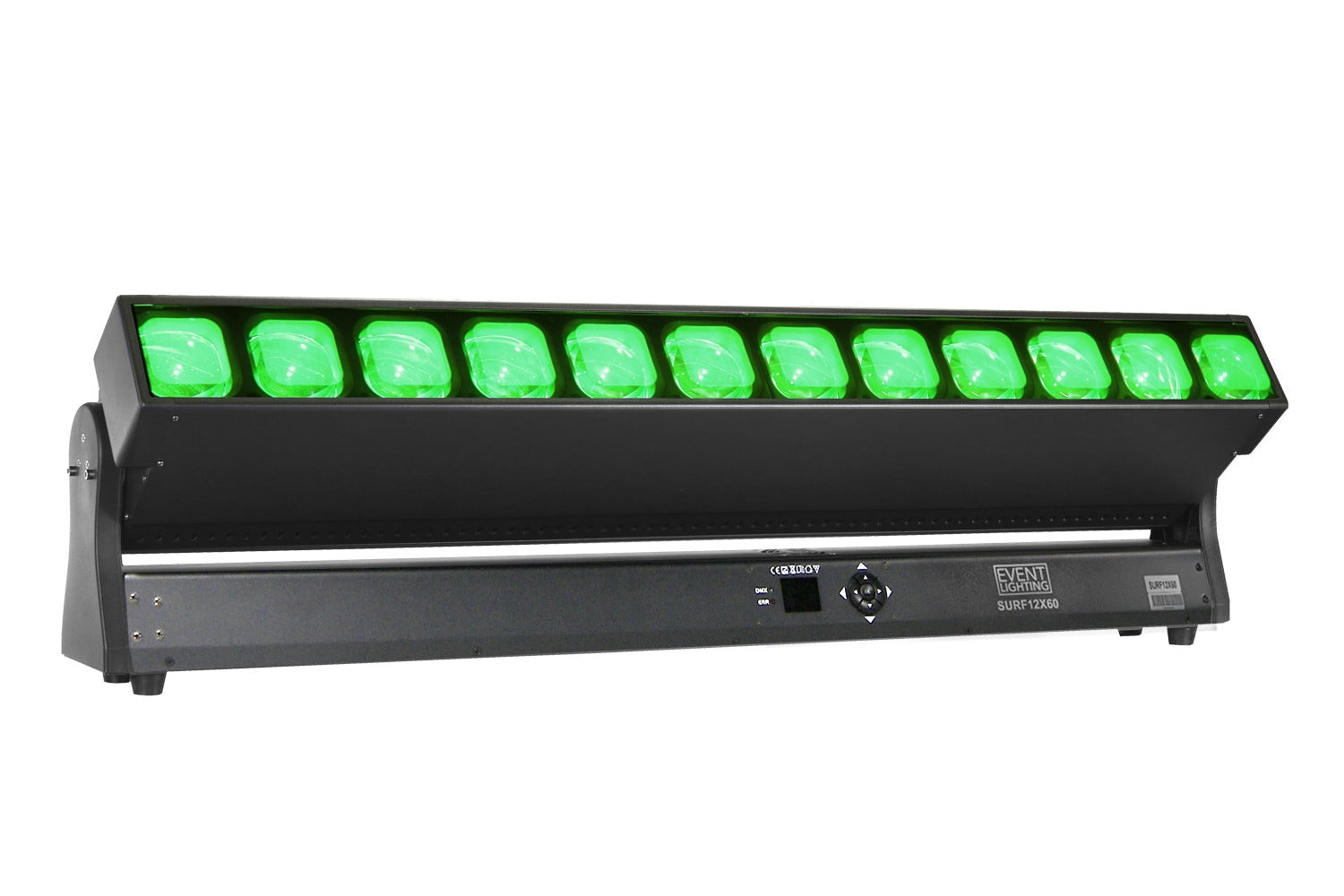

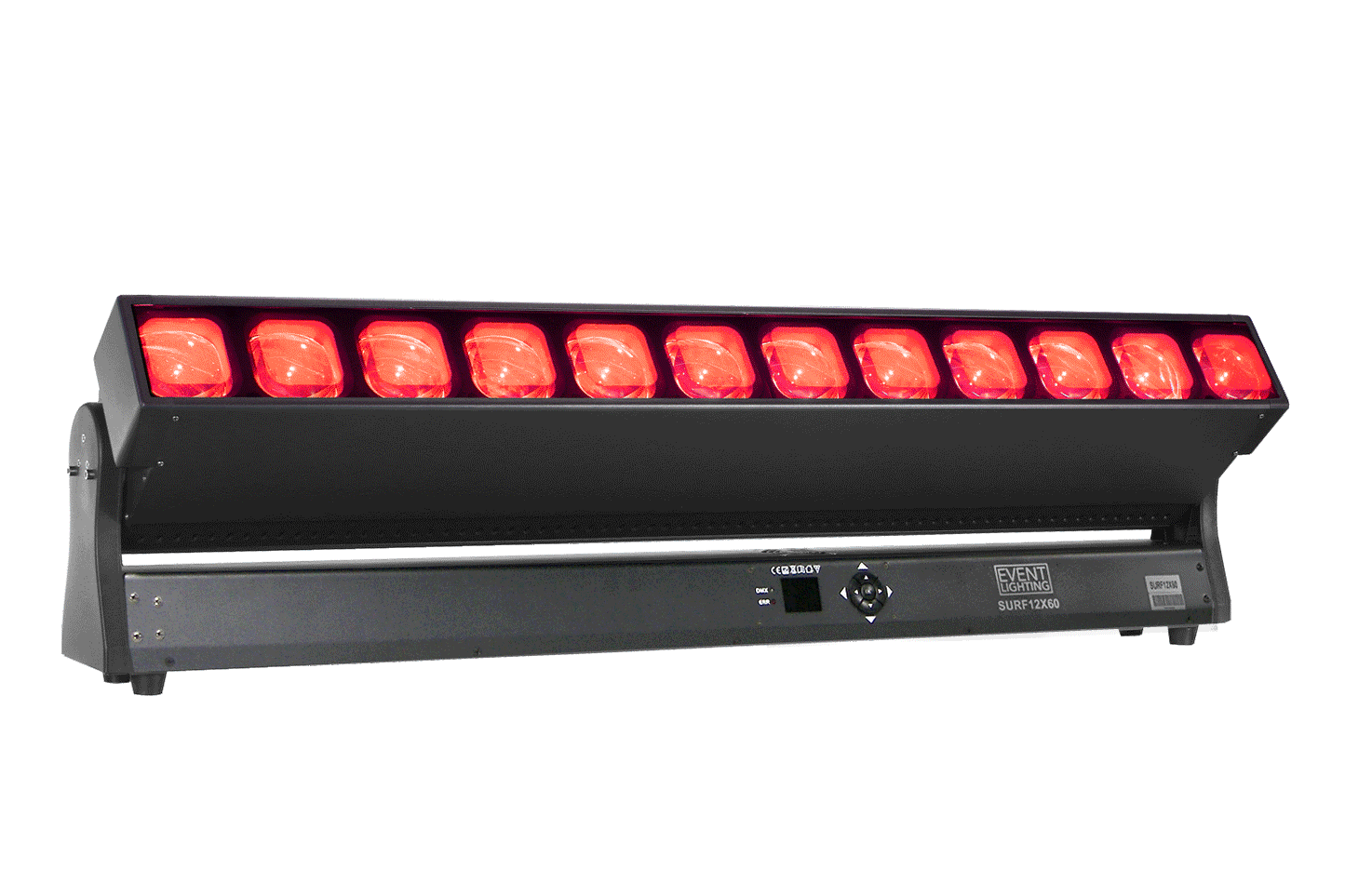

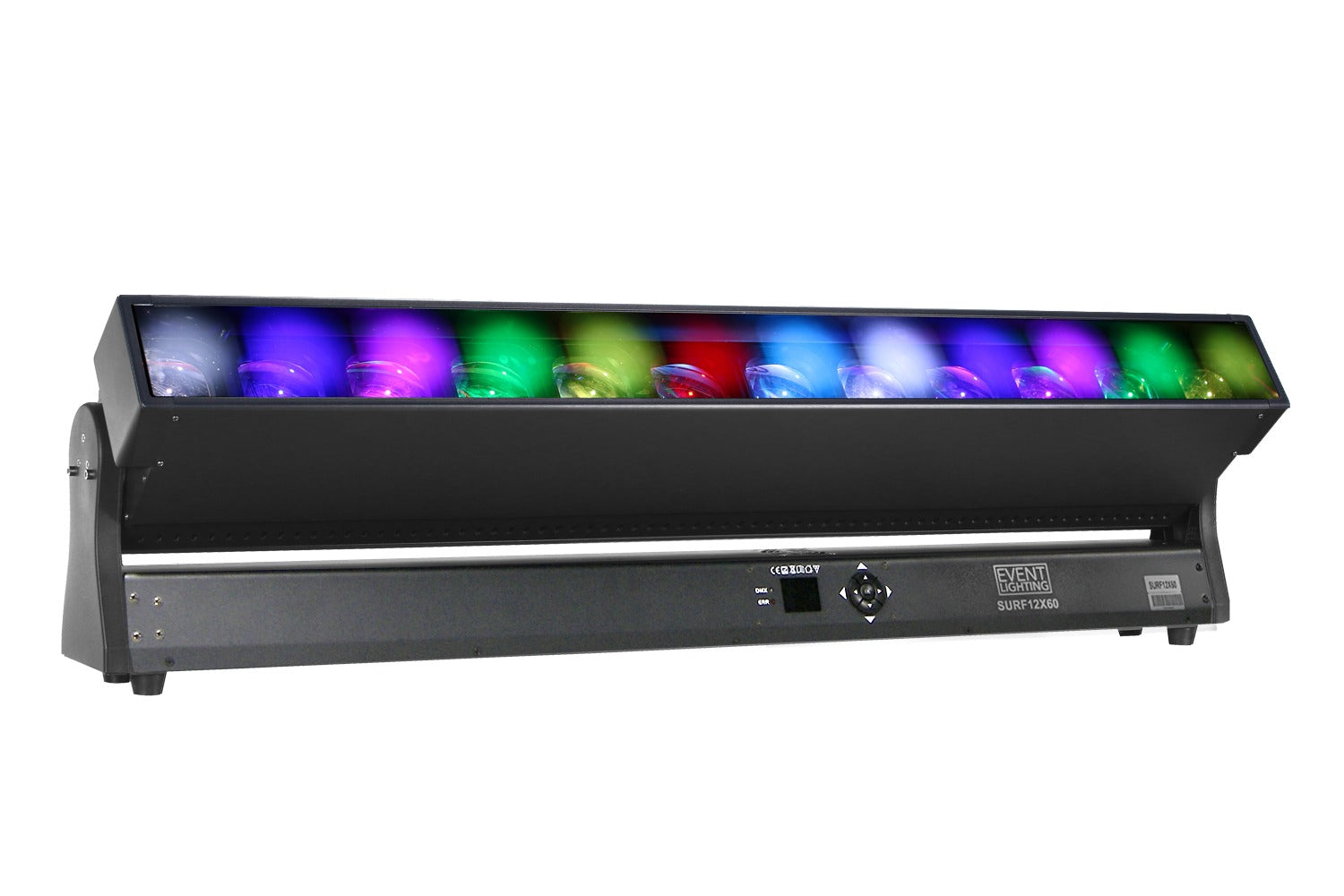

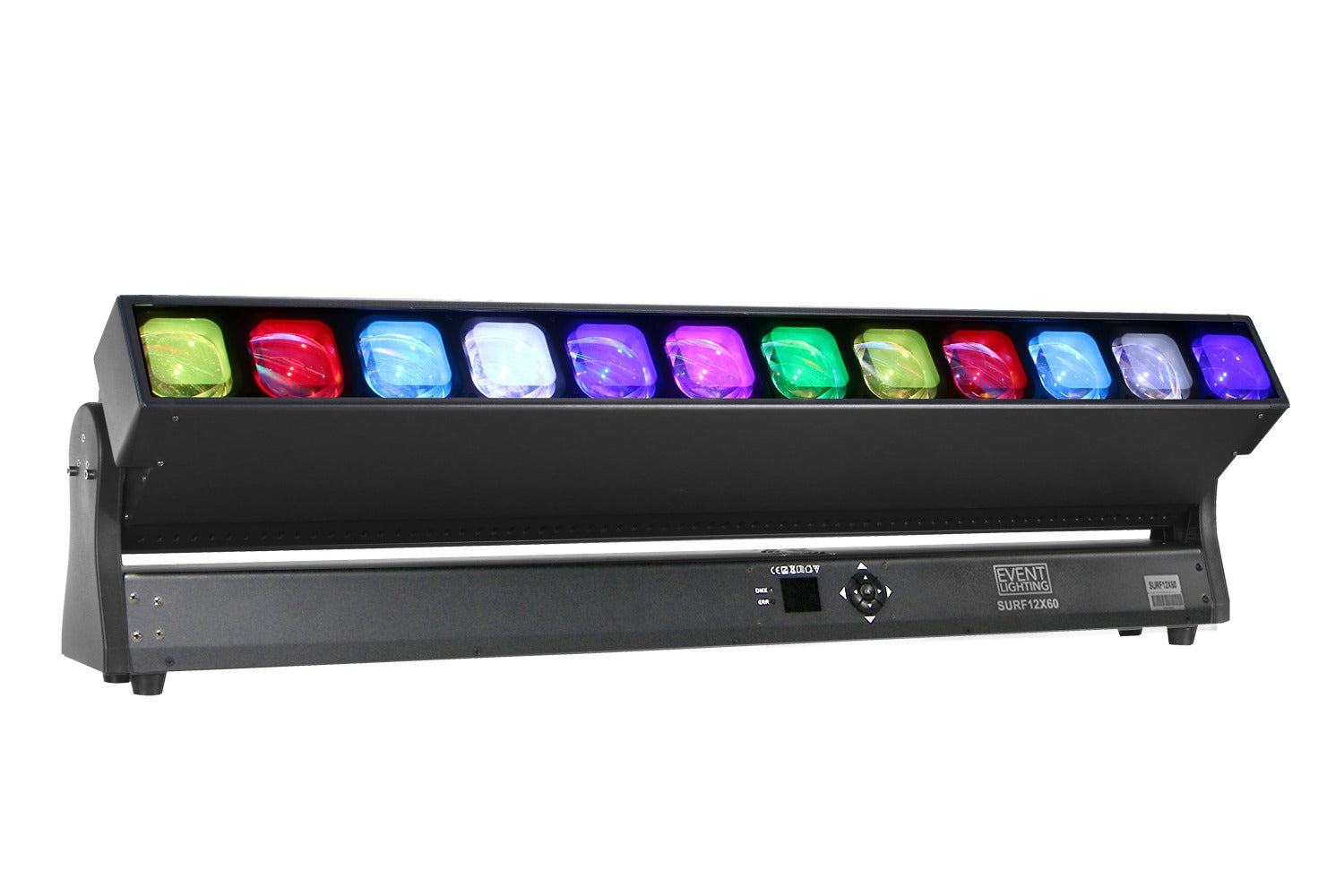

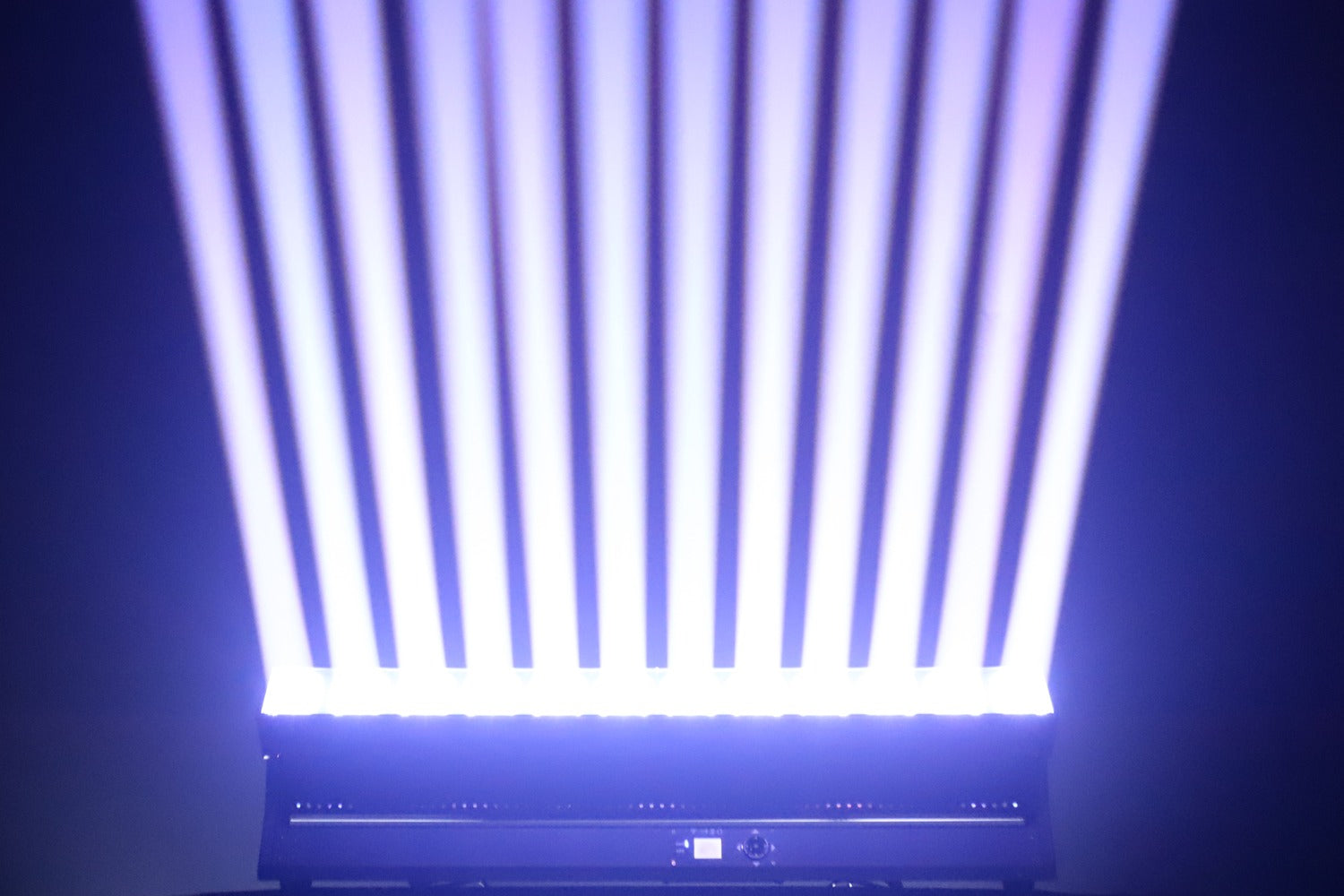

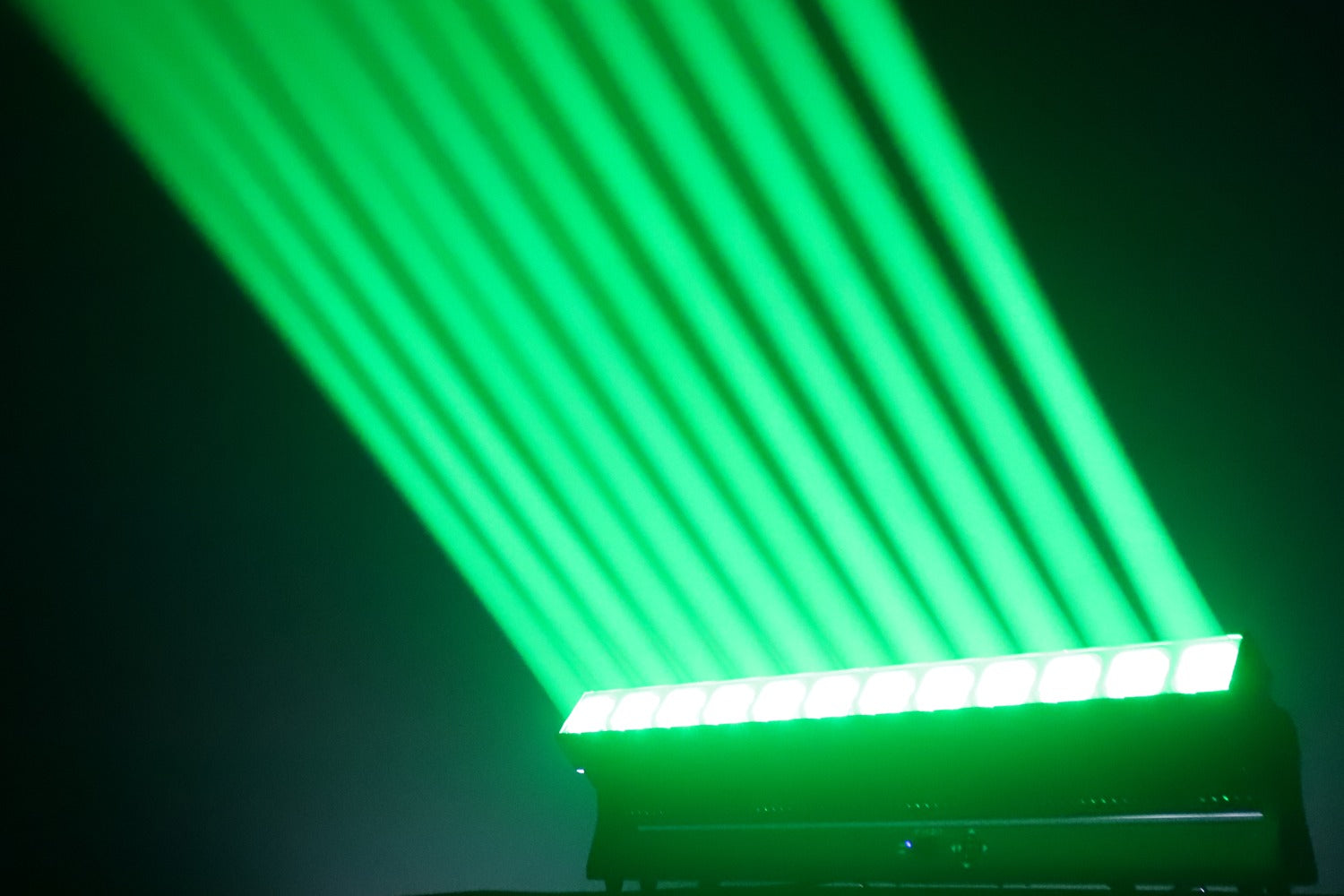

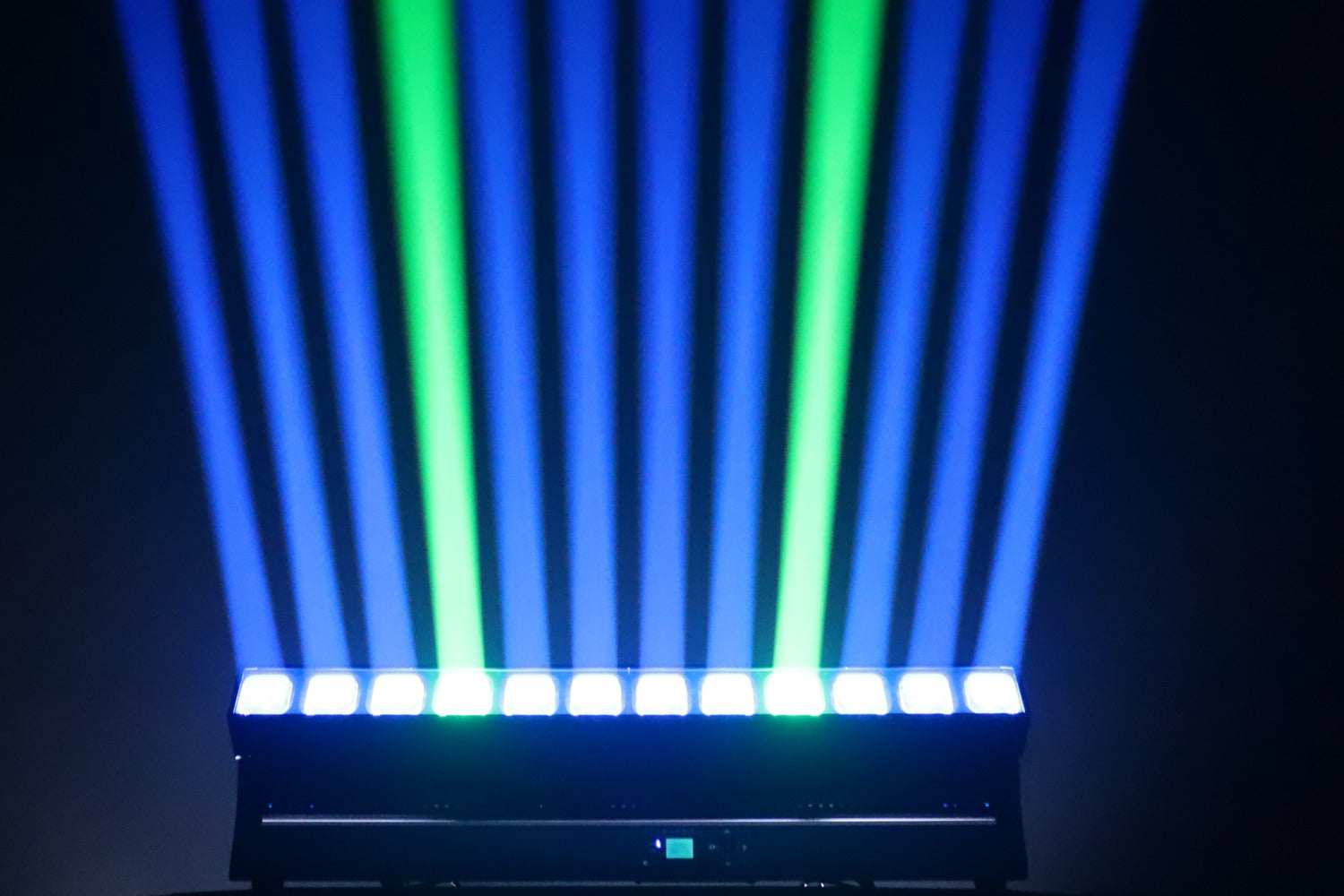

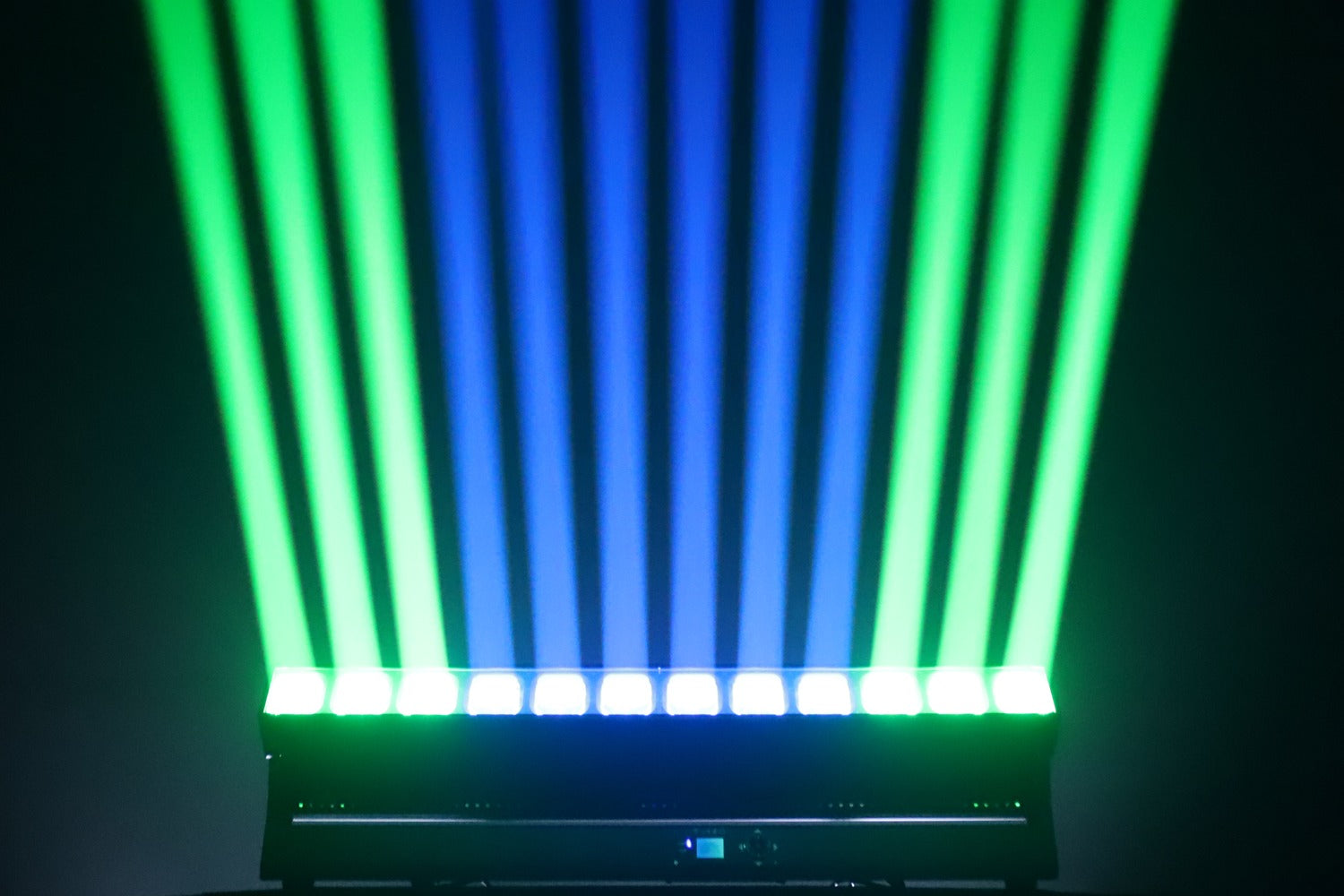

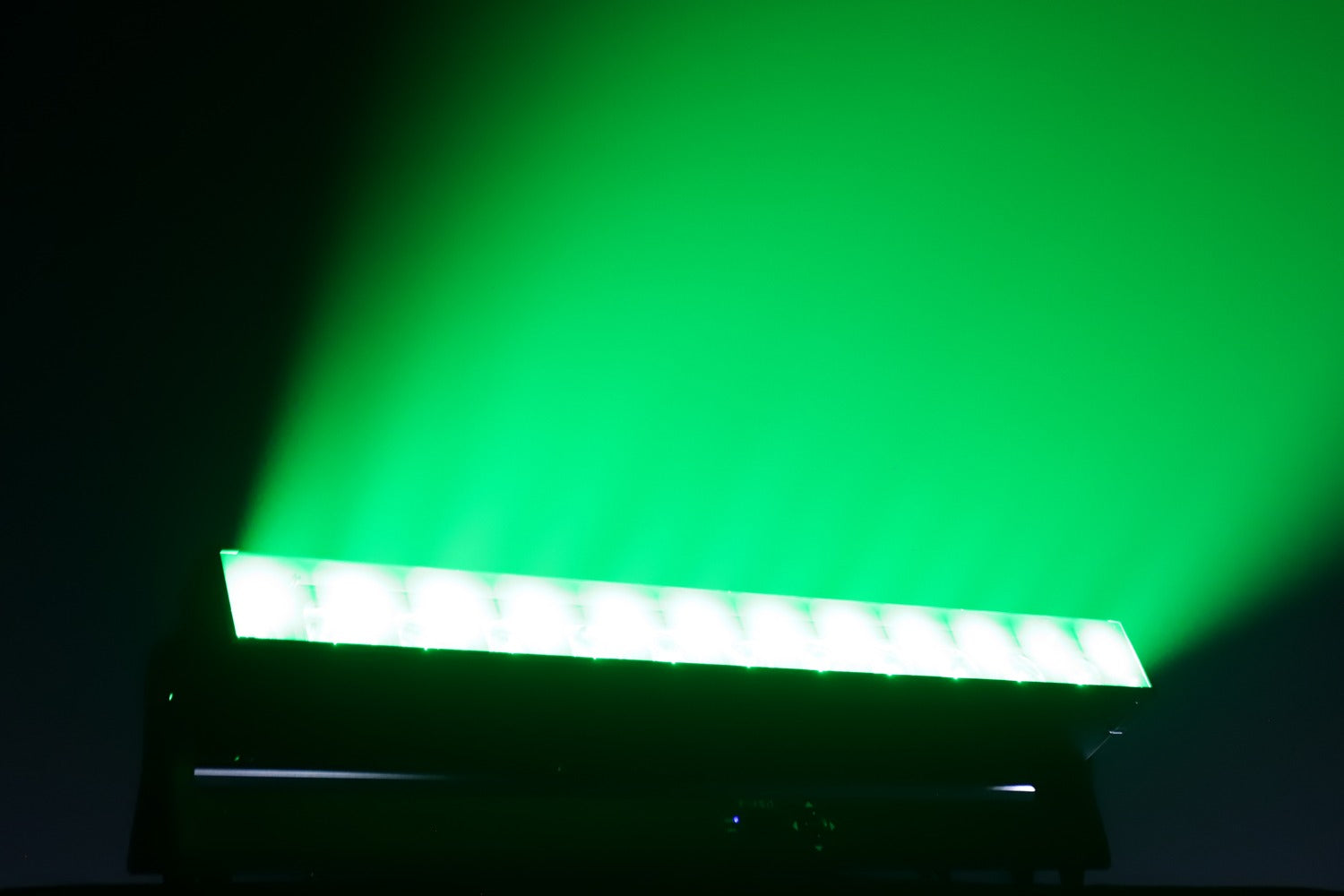

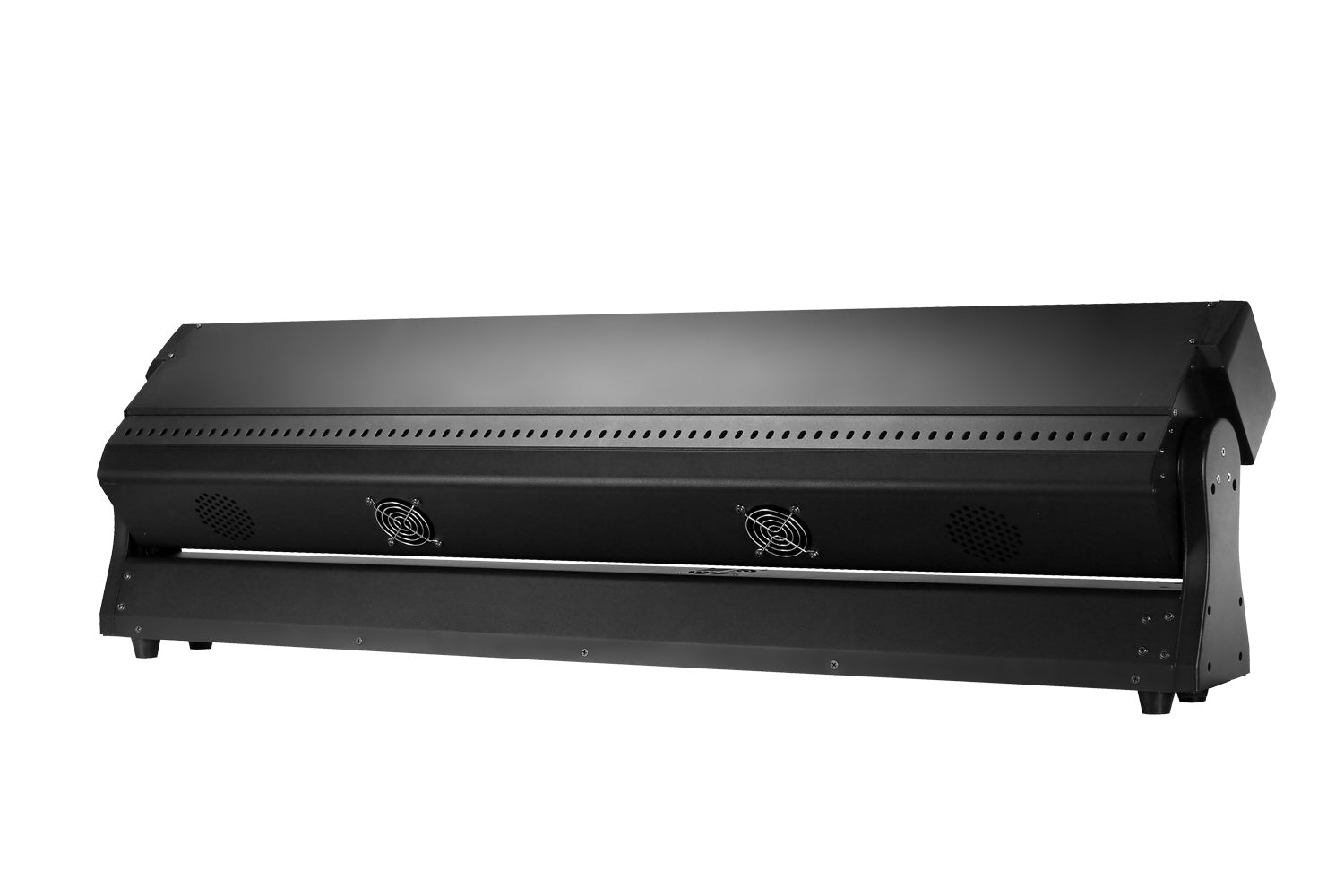

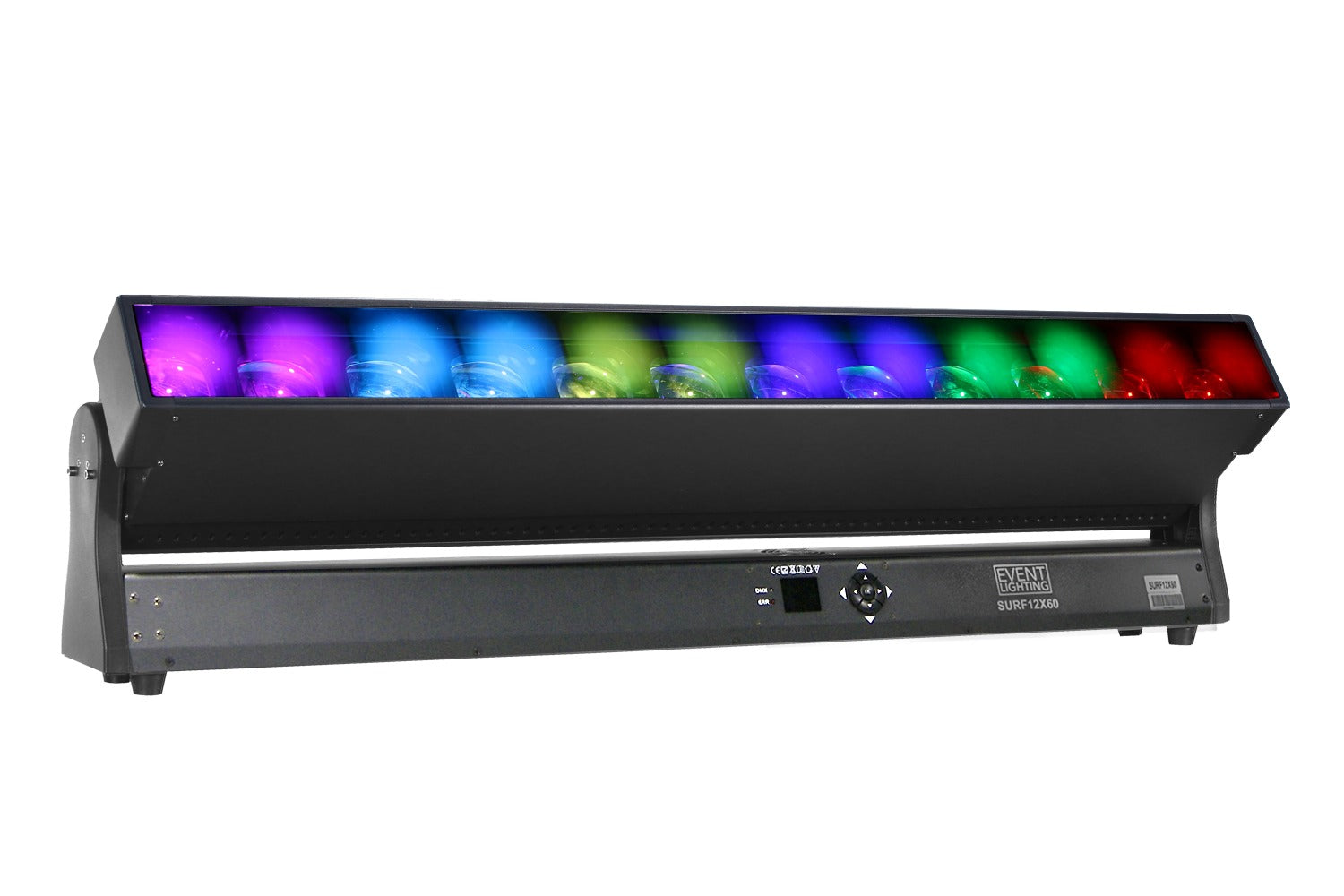

The Event Lighting SUR12X60 is a powerful tilt bar featuring 12 x 60W RGBW 4-in-1 LEDs. It offers a broad electronic zoom range from 3° to 40°, enabling versatile beam control from a tight, focused spot to a wide wash. The fixture has a 220° tilt movement and multiple control modes including DMX, auto, and sound active. With a robust aluminium housing and True1 in/out power connections and 5-Pin XLR connections, the SUR12X60 is a reliable and professional lighting solution.

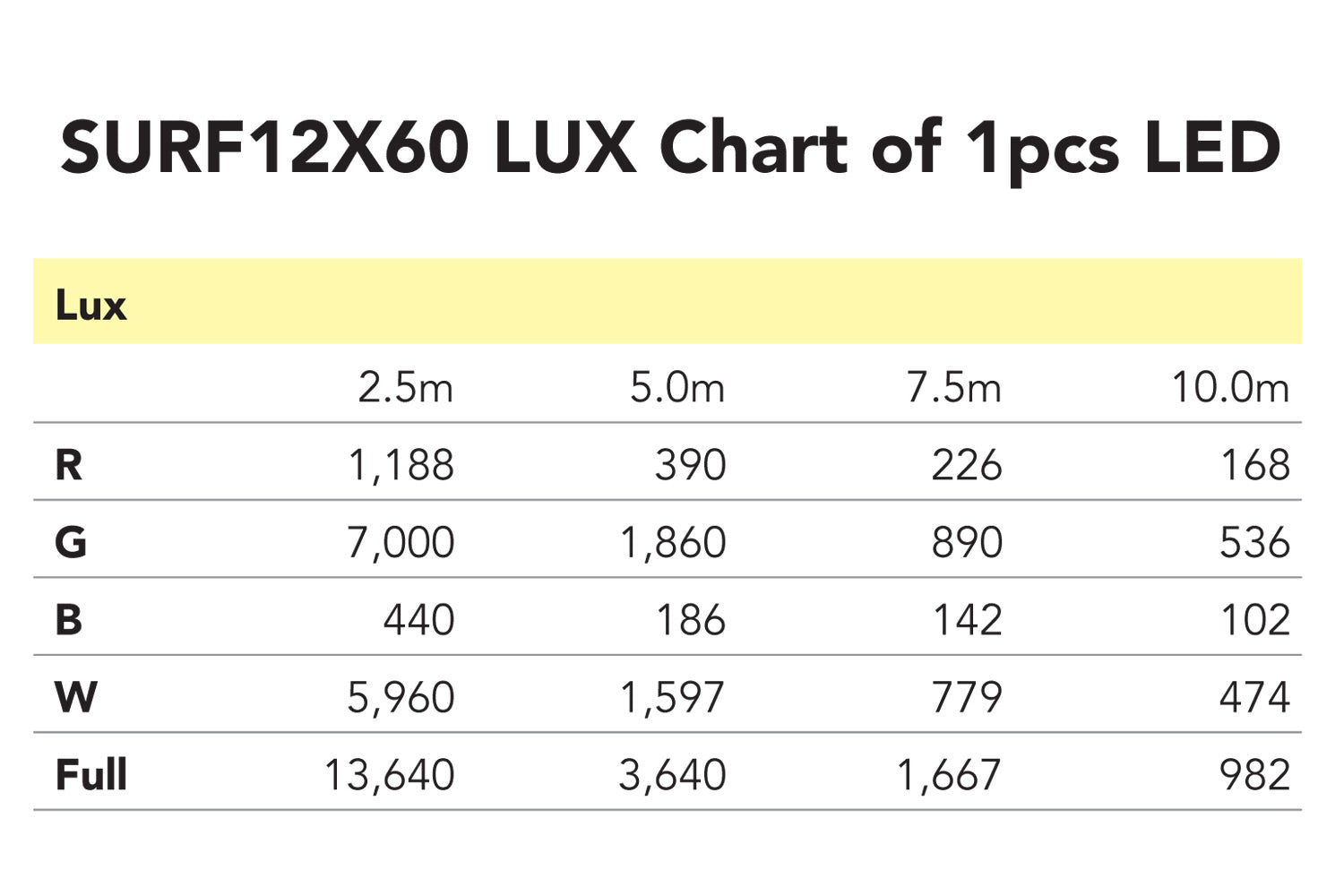

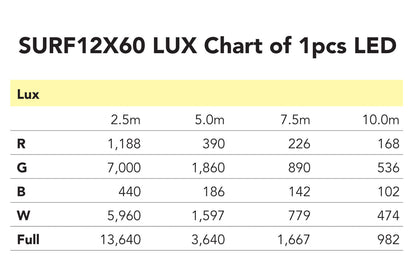

    Photometrics

    • Light Source: 12 x 60W RGBW 4 in 1 LEDs

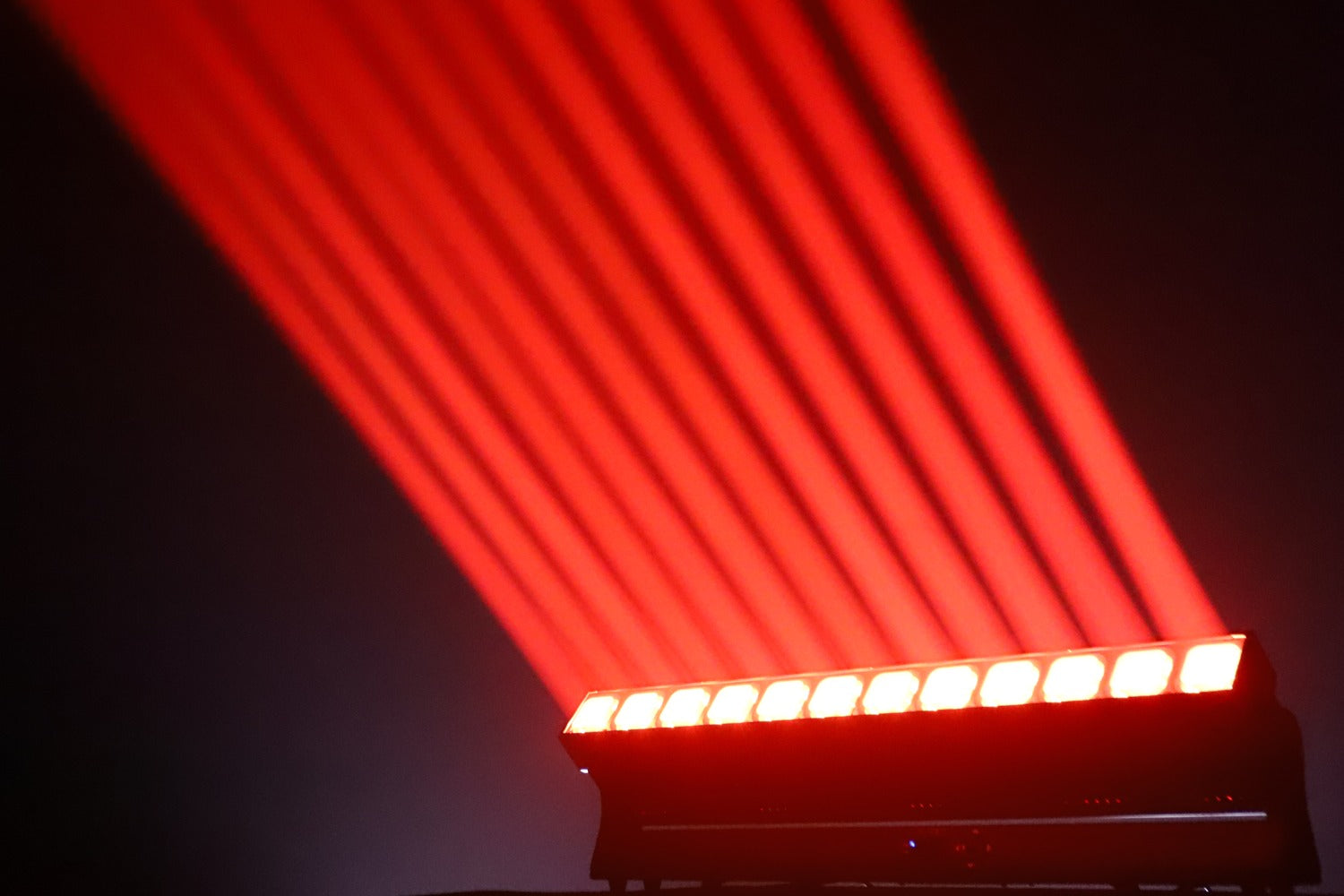

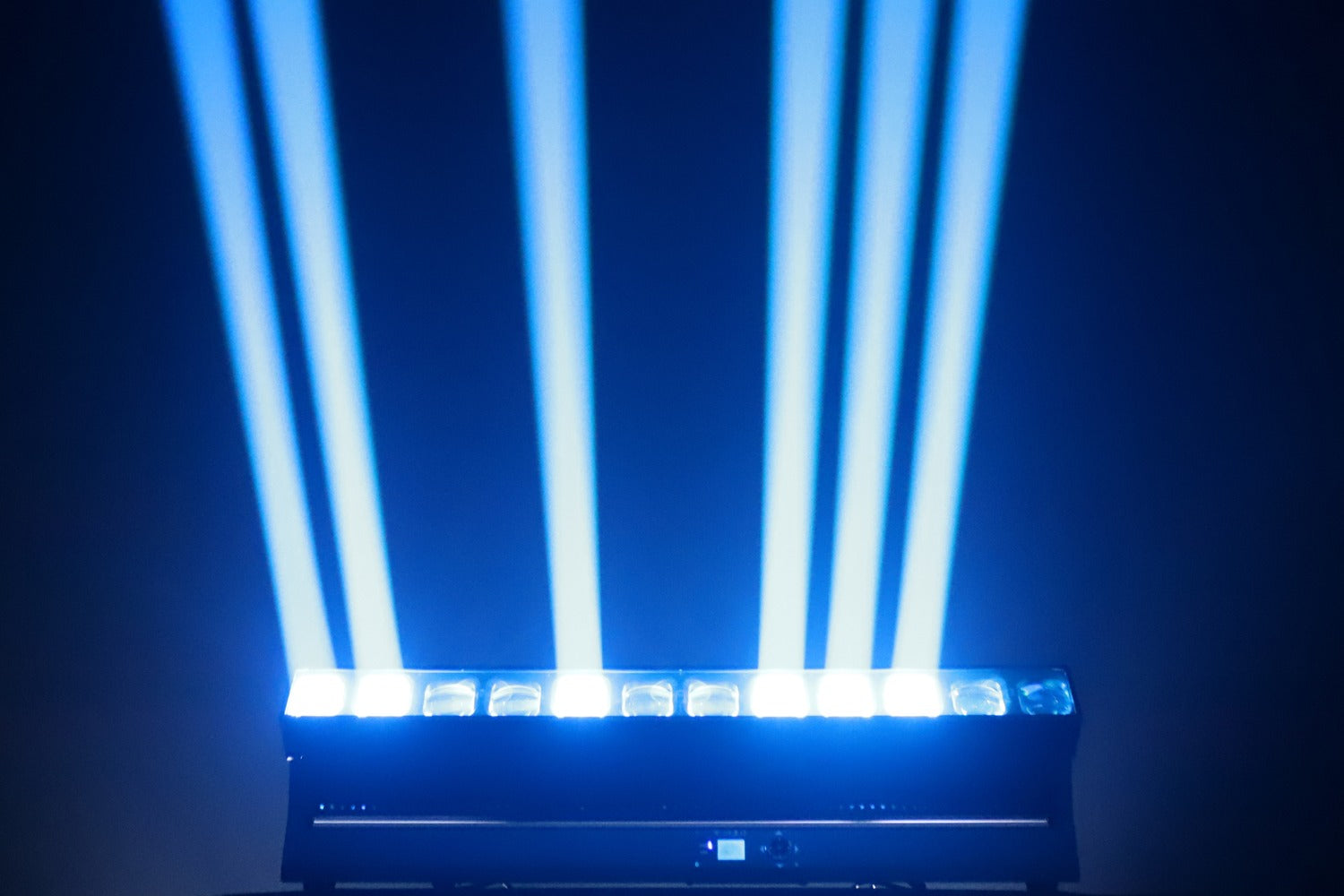

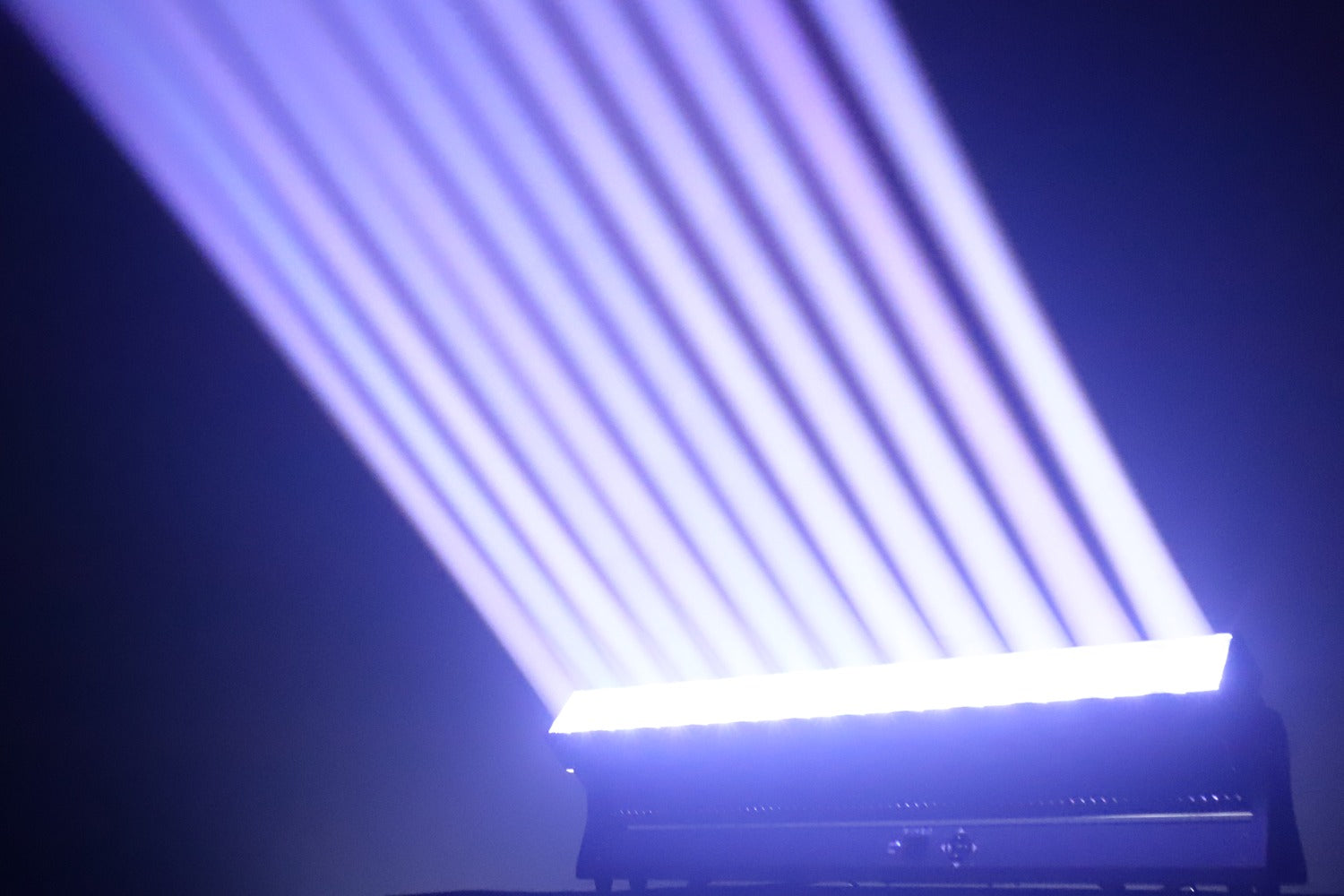

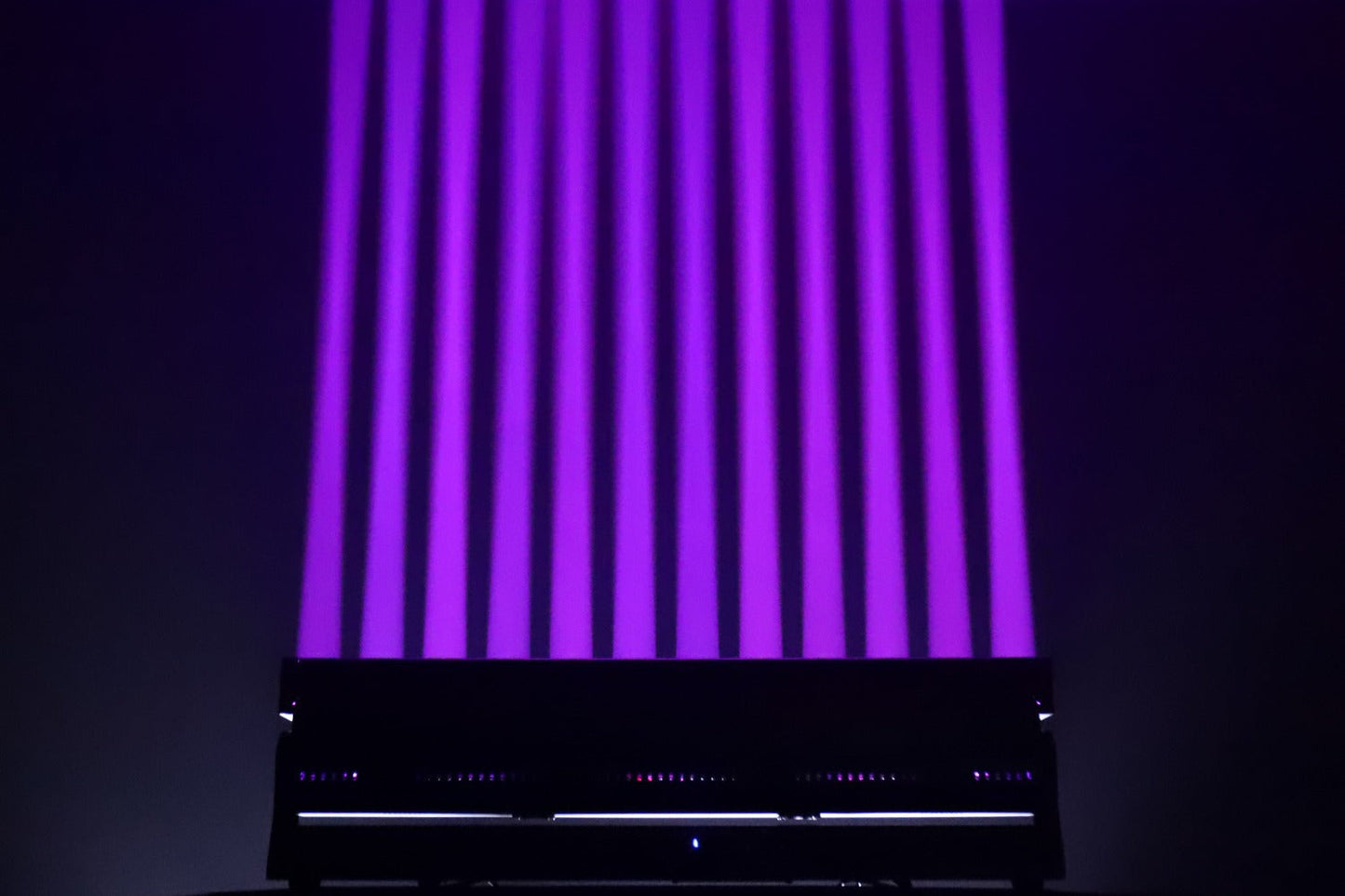

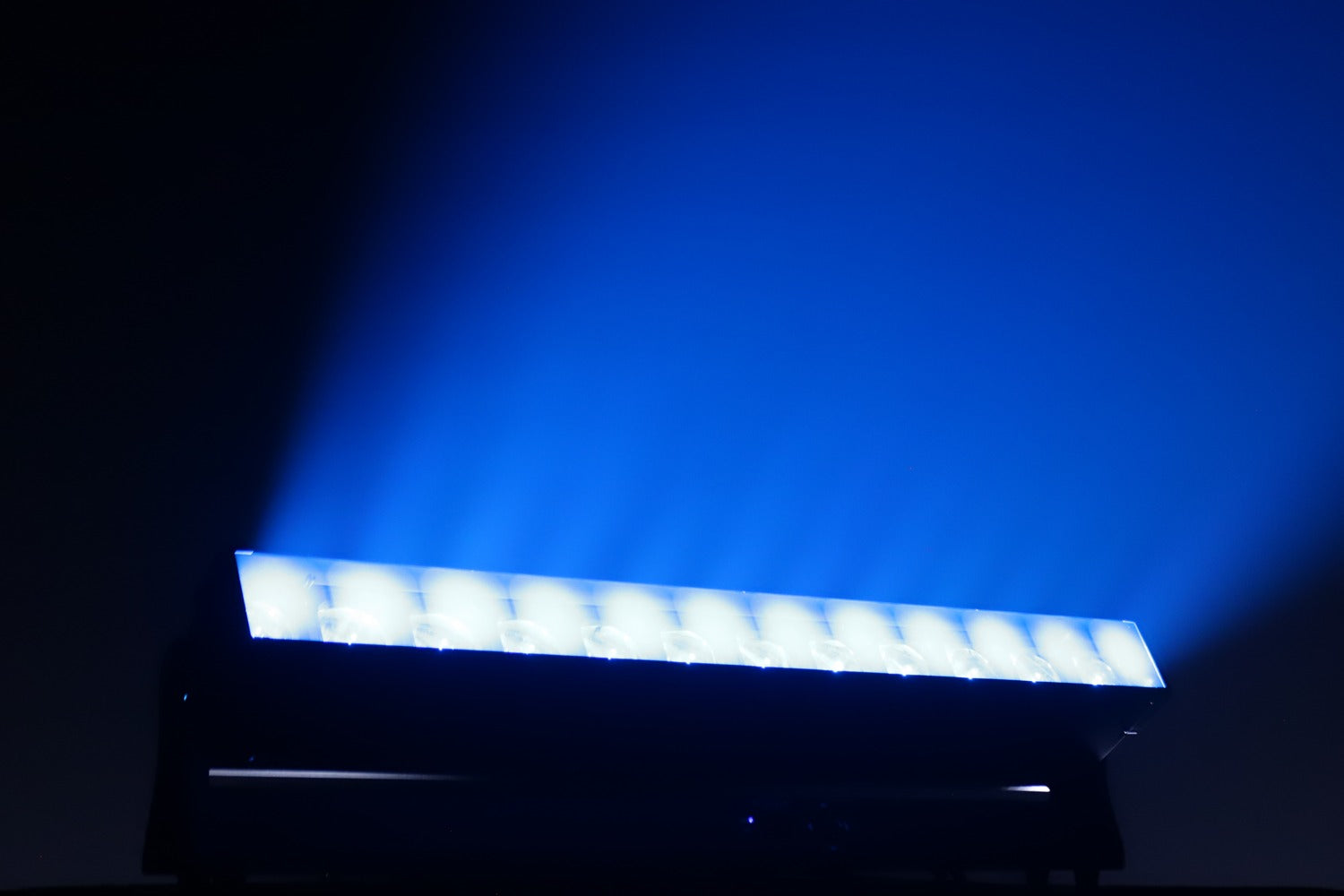

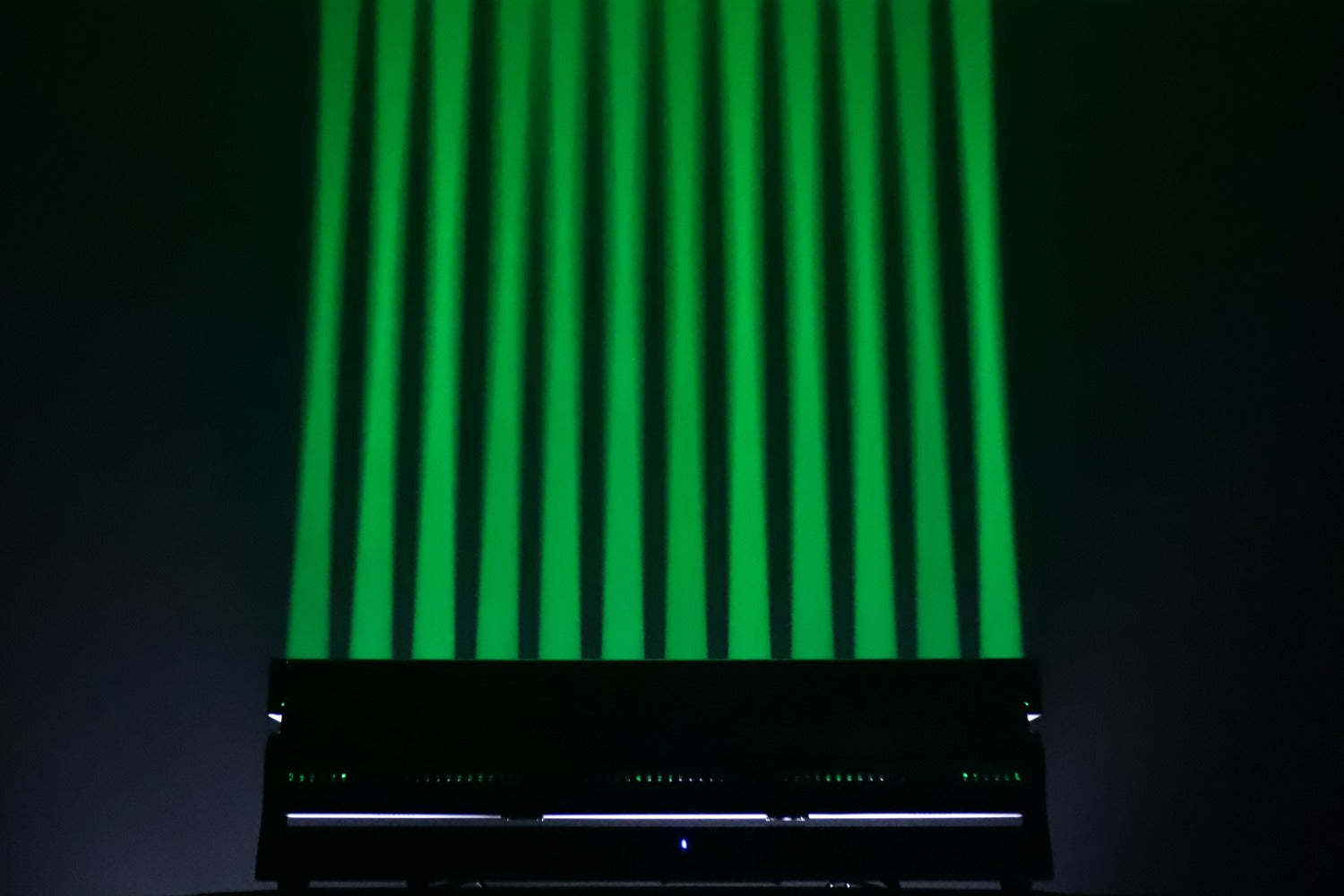

    • Beam Angle: 3° - 40°
    • LED Life: 50,000 hours

    Effects

    • Dimming: 0-100%
    • Electronic zoom:  3° - 40°

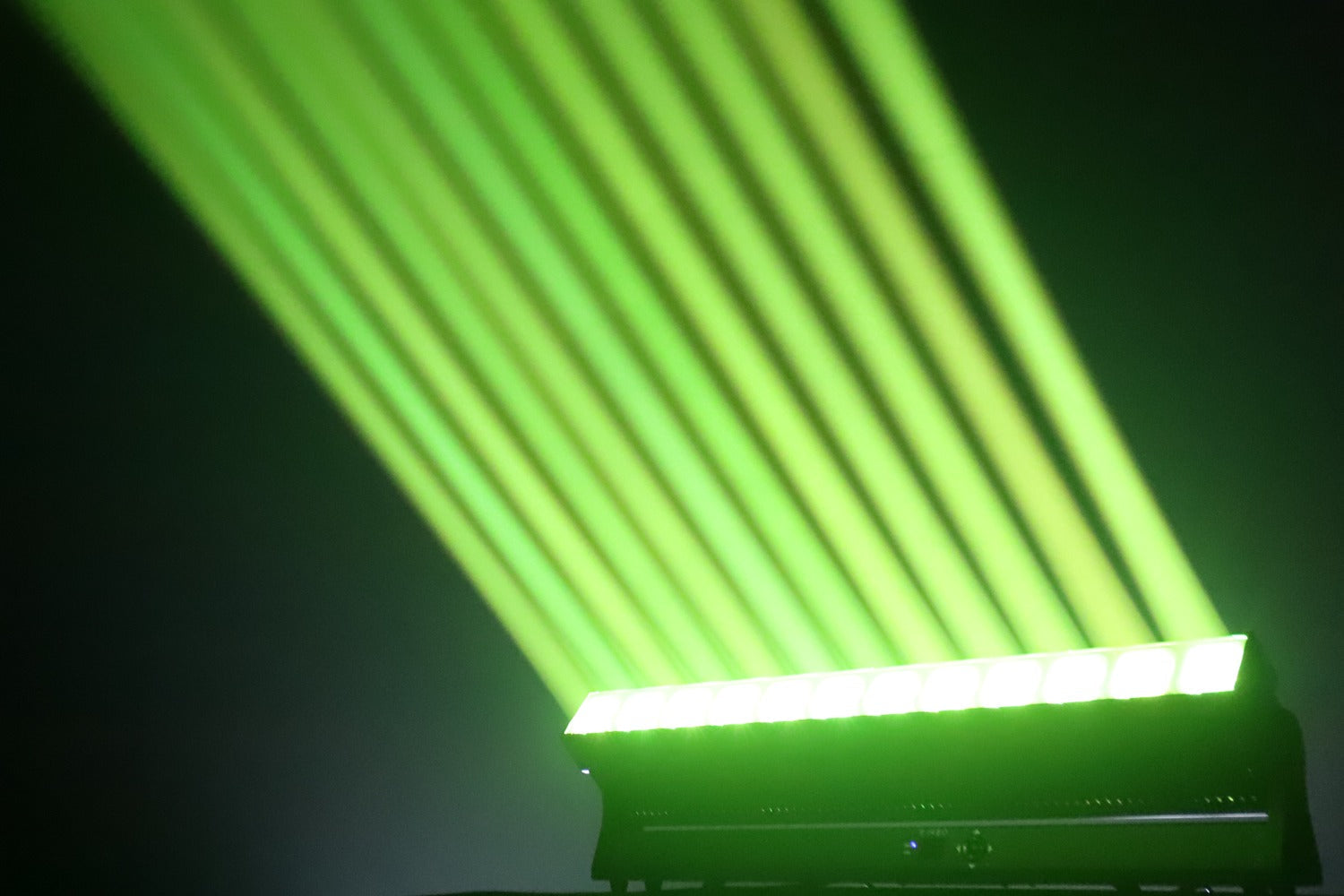

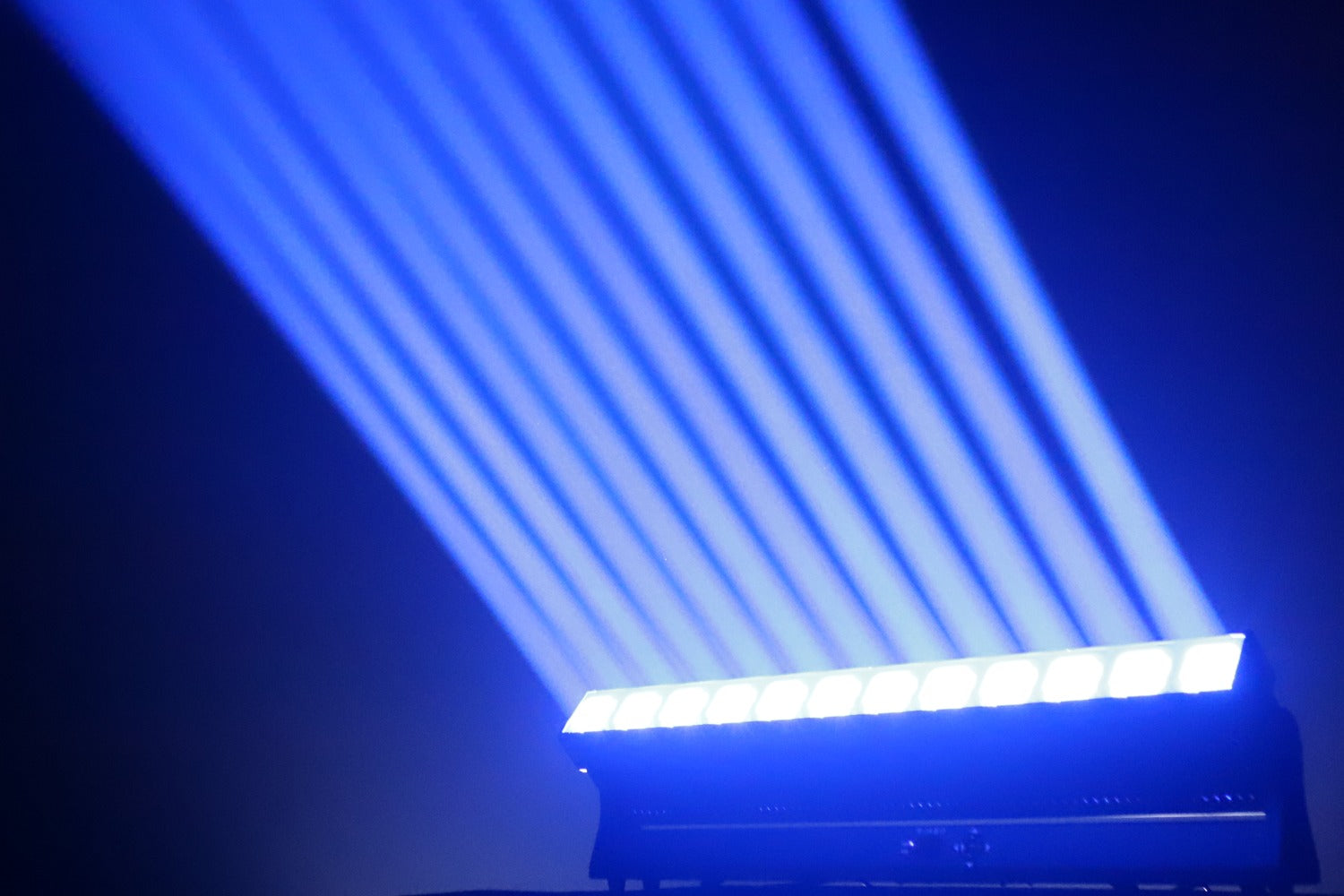

    • Tilt: 220°
    • Strobe: 0~25Hz

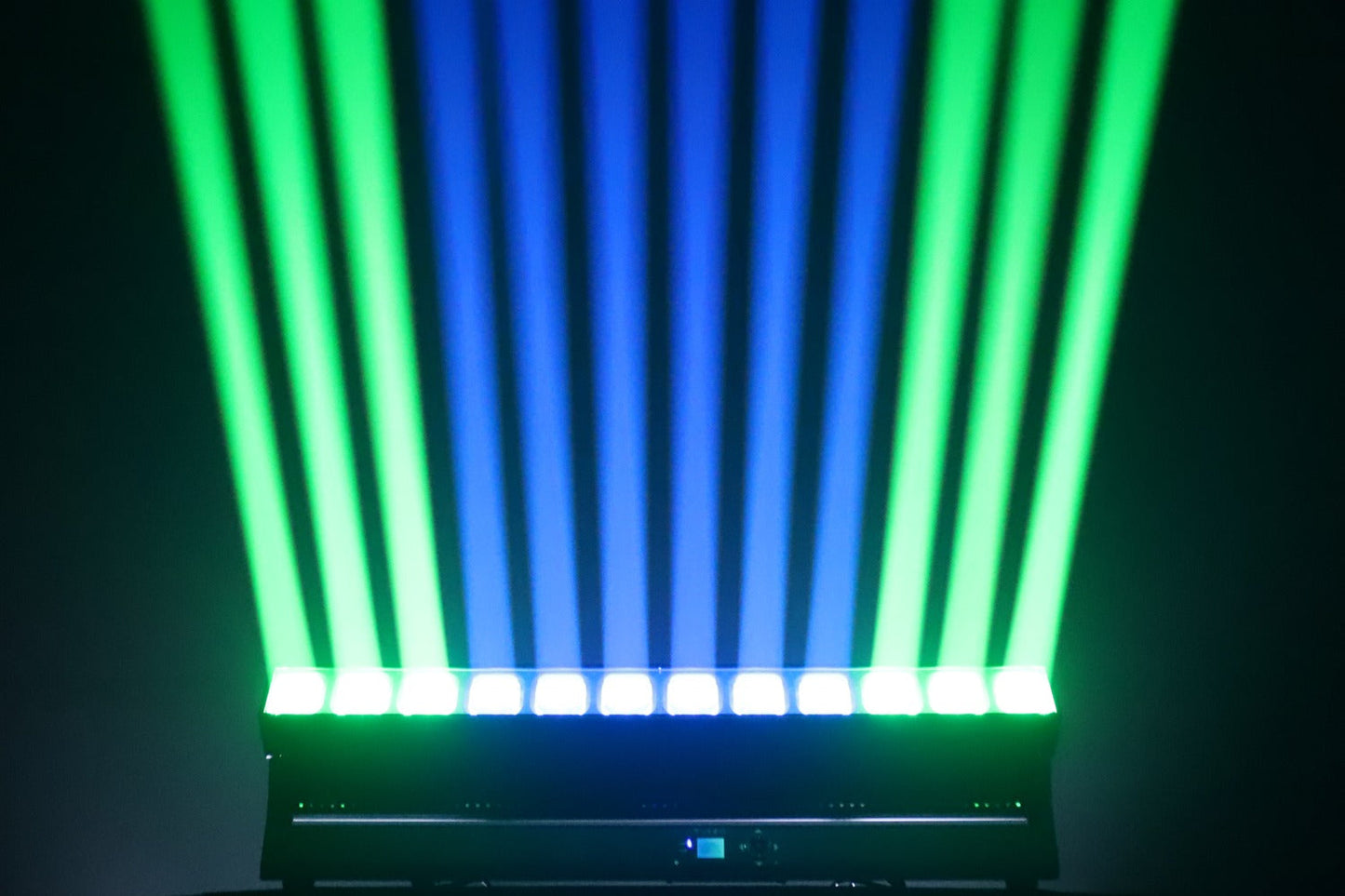

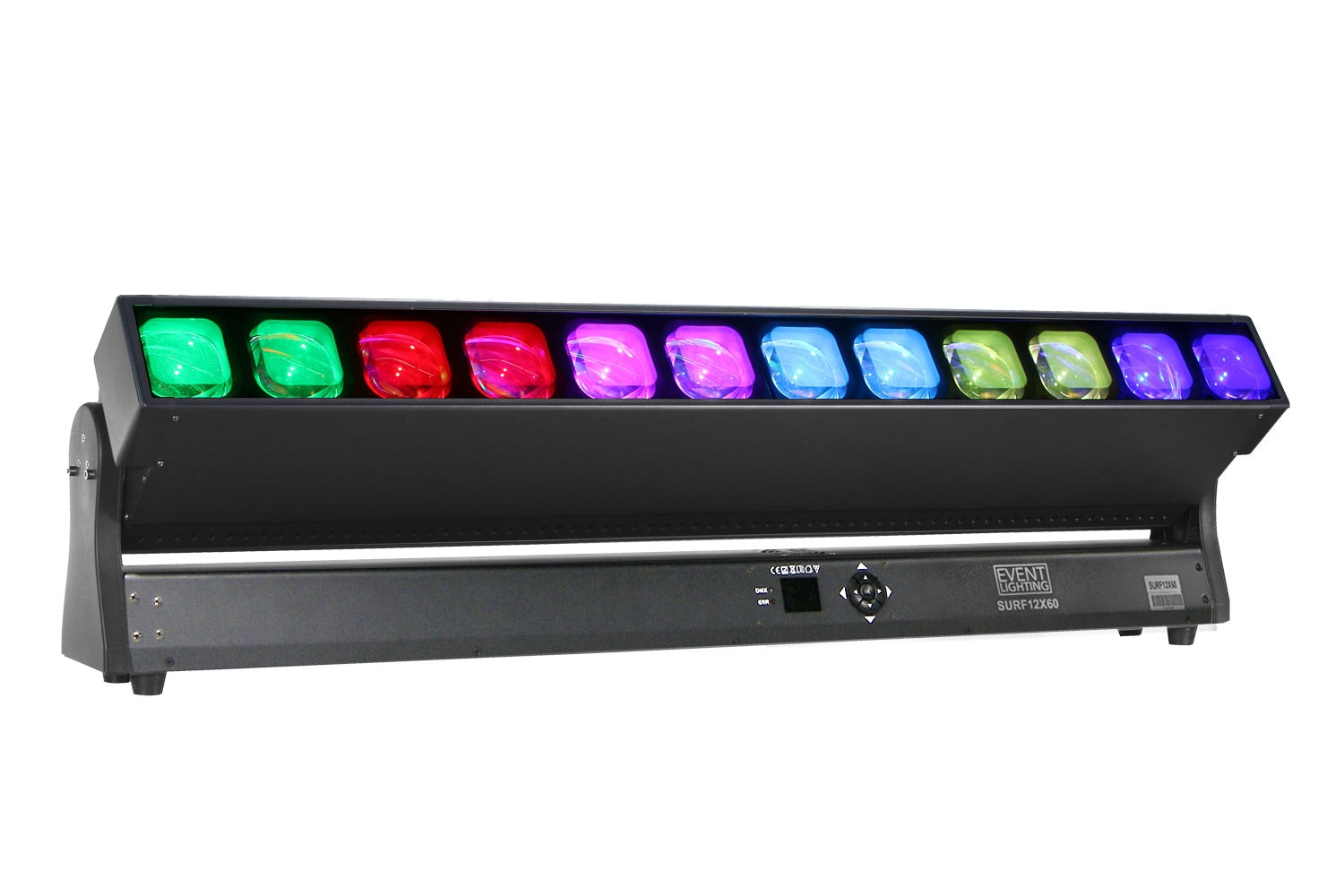

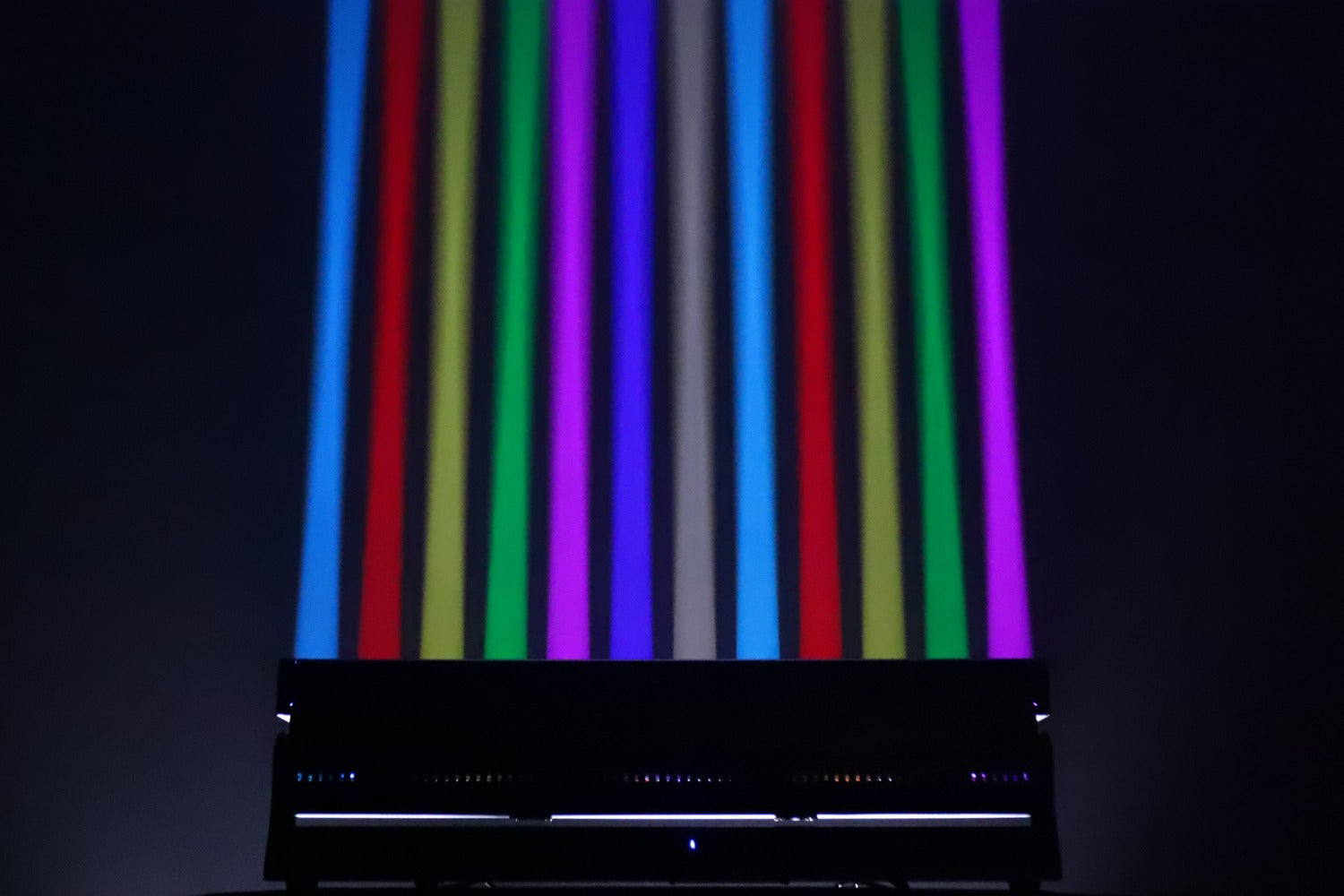

    • Colour: RGBW colour mixing

     Power

    • Input Voltages: 100~240V AC,50/60Hz
    • Power consumption: 680W
    • Fuse: 5A/250V

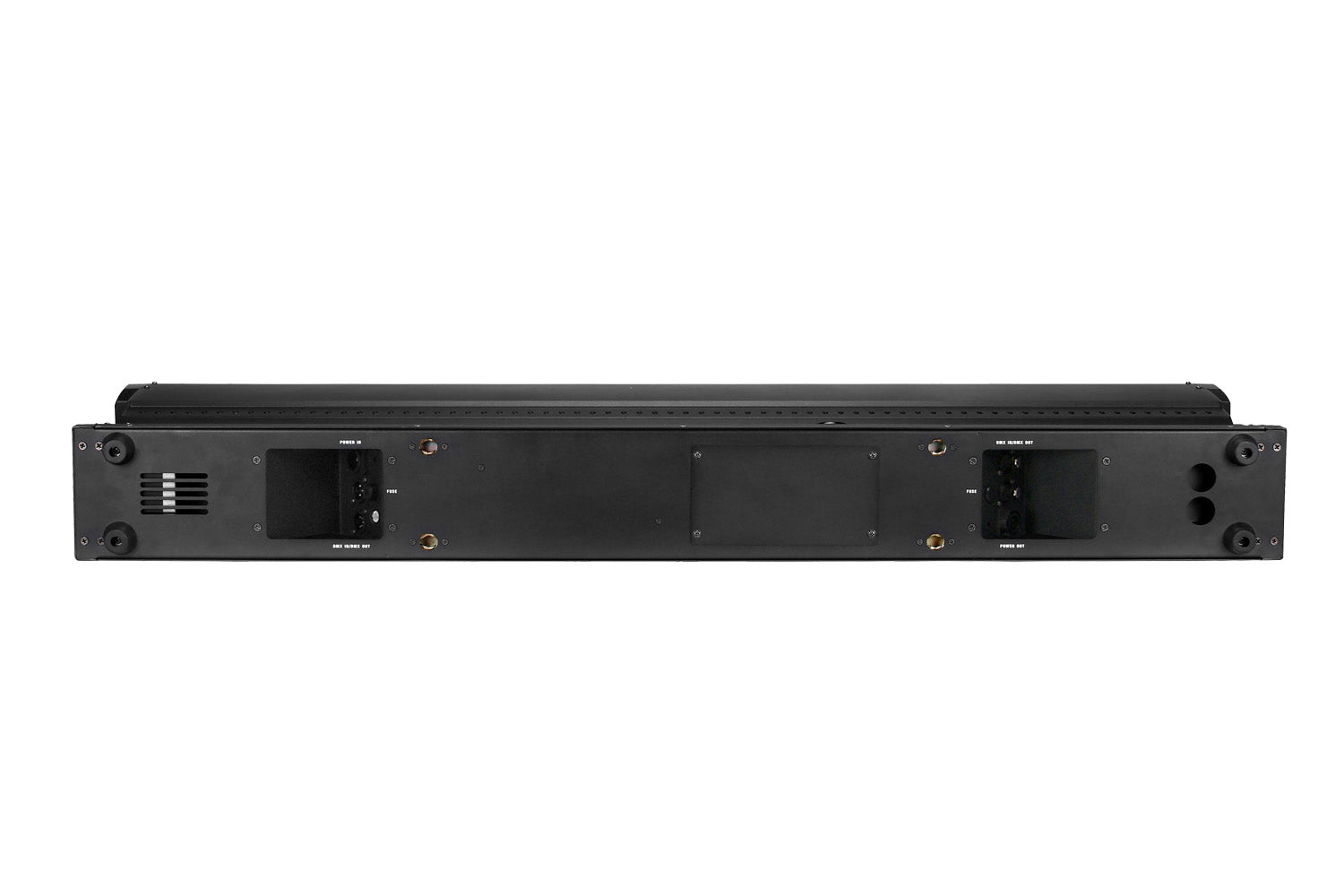

    • Power Connection: powercon in/out

    Control

    • Operation Modes: DMX, auto, sound active, master/slave
    • Display: LCD control panel
    • Control Protocol: DMX512
    • DMX Channels: 18 / 56 CH
    • Control Interface: 5-pin XLR in/out
    • Daisy chain: 3pcs

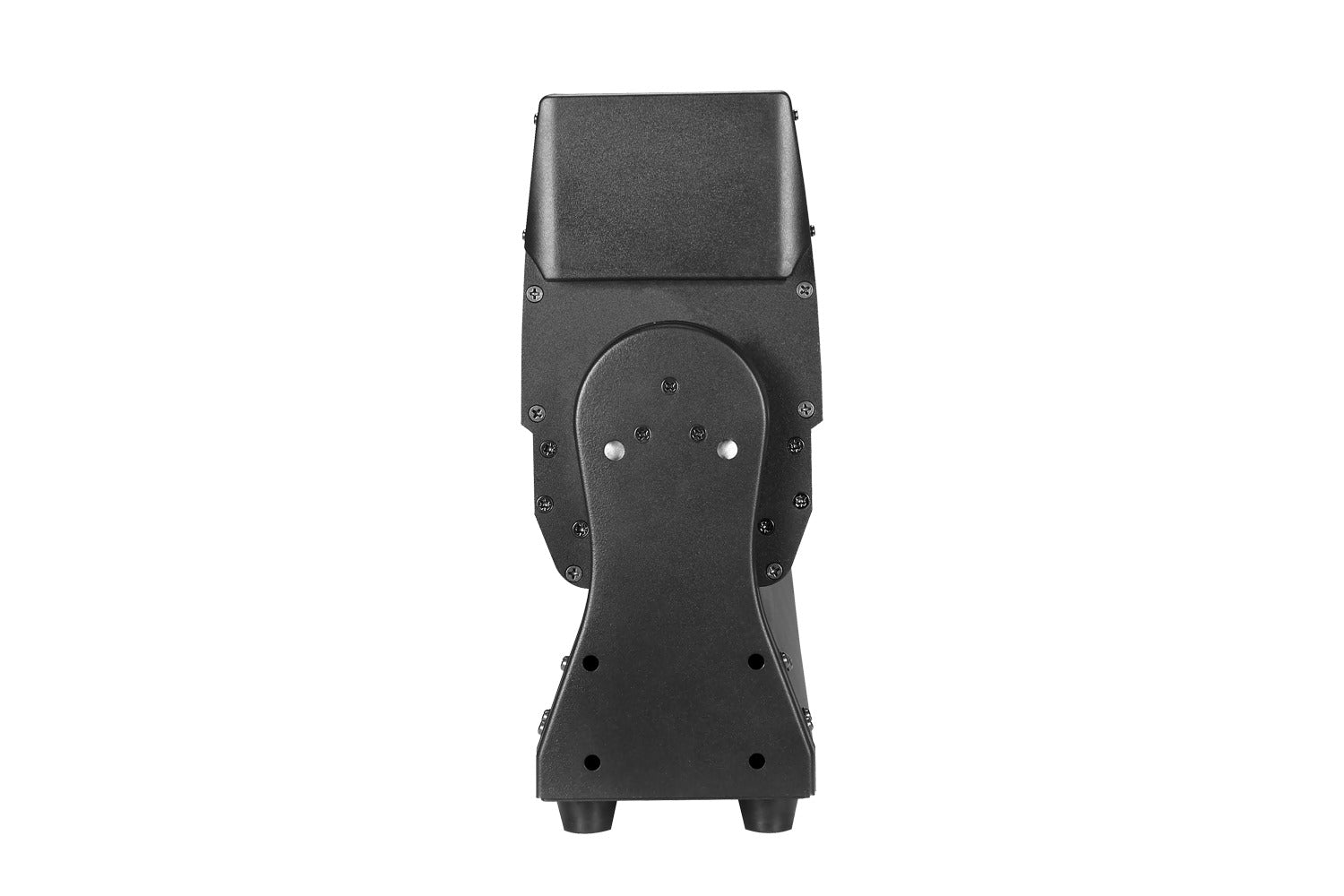

    Housing

    • Housing Materials: Aluminium, matte black finish
    • IP rate: IP20
    • Cooling: Fans with temperature control

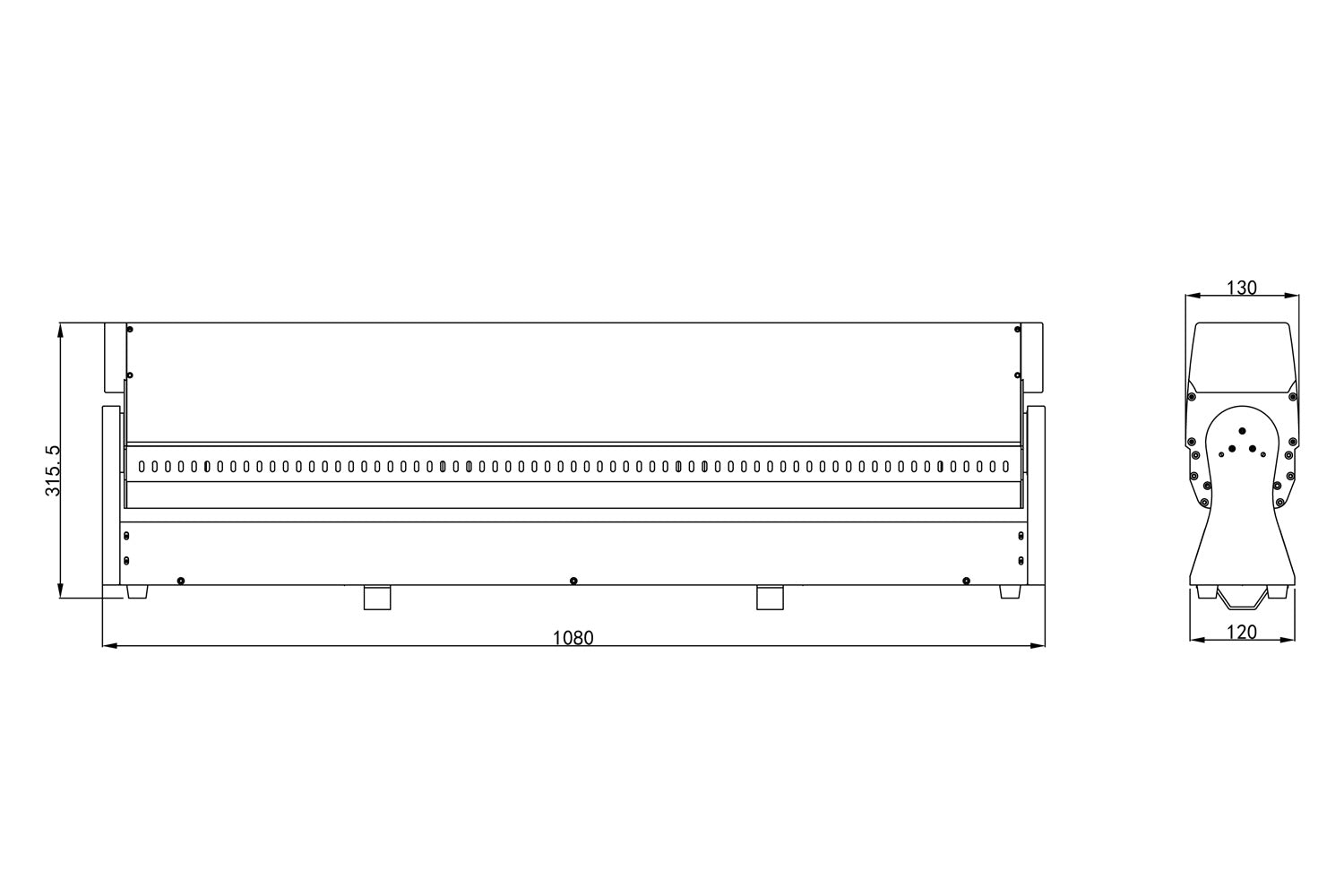

    • Dimension: 1080 x 130 x 315mm
    • Net Weight: 22kg

    Accessories

    Download product datasheet

    Download user manual

    View full details
