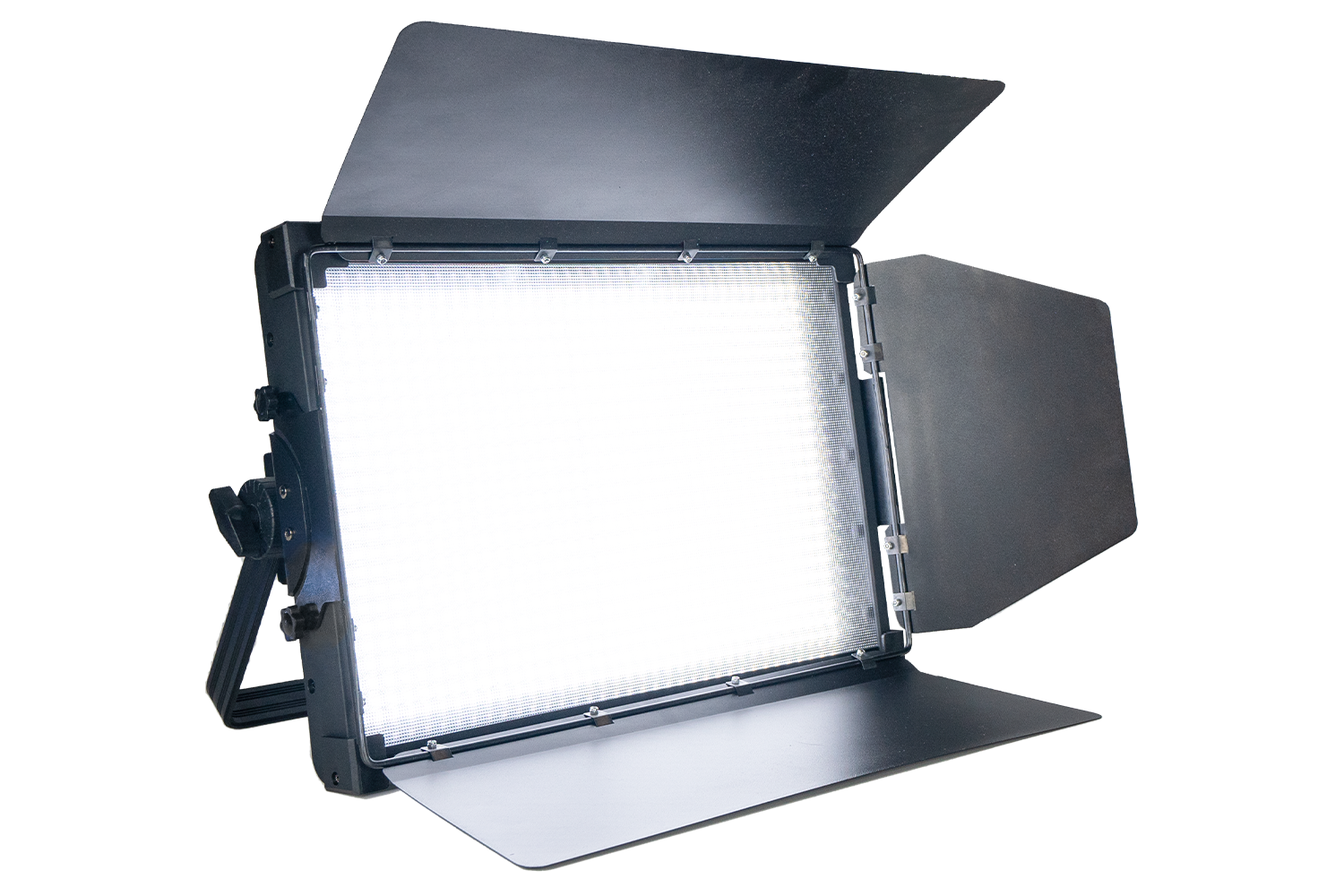

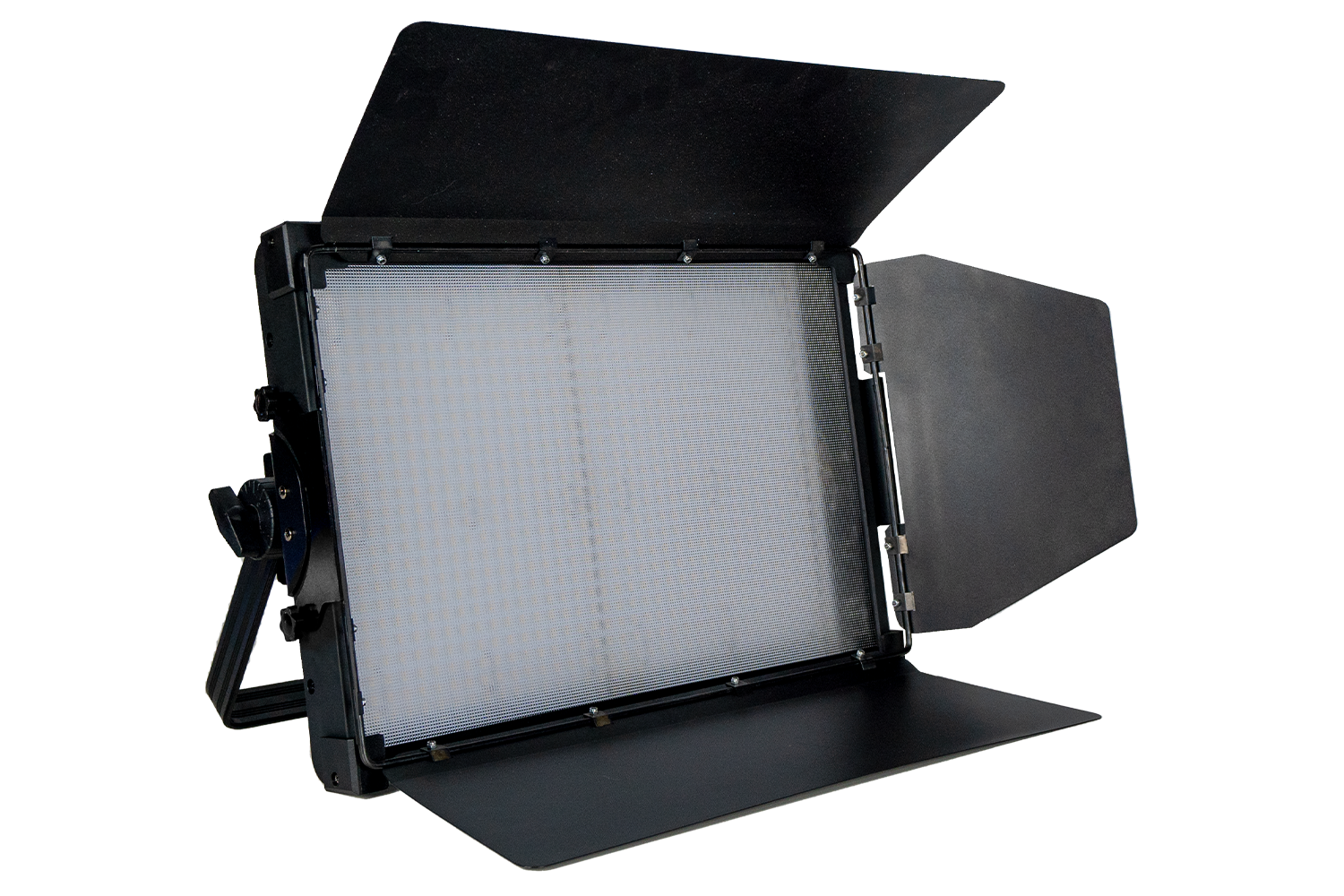

STUDIO200IW - 200W Tuneable White LED Panel with Barn Doors

Photometrics

• Light Source: 200W White SMD LEDs

• Beam Angle: 120° with barn doors
• Refresh Rate: 600-5,000Hz
• CRI: 97
• Colour Temperature: 3,200-5,600K CCT

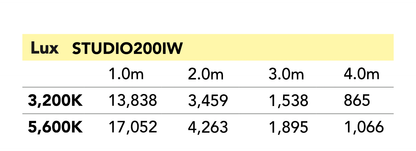

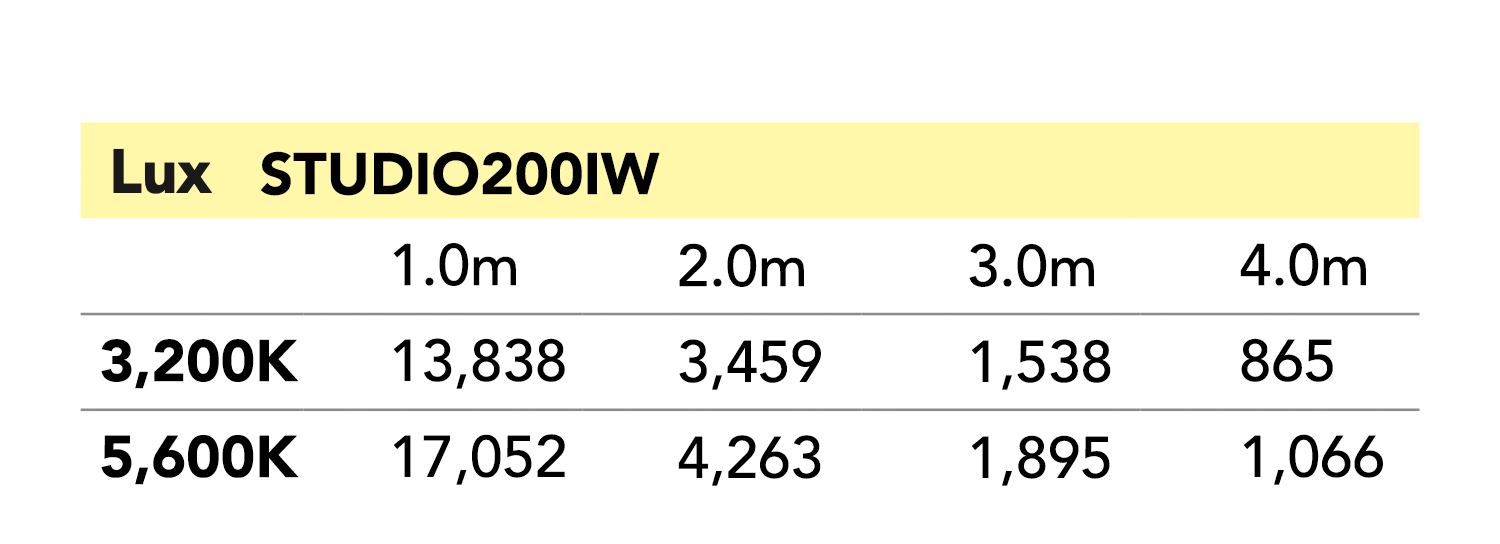

• Output:
• 3,200K: 3,459 lux @ 2m
• 5,600K: 4,263 lux @ 2m

Effects

• Dimming: 0-100%, 16-bit
• Dimming Curves: 4
• Preset Colours
• Strobe: 0-20Hz

Power

• Input Voltage: 100-240V AC, 50/60Hz, 200W
• Connection: TrueOne in/out

Control

• Operational Modes: DMX, manual
• Display: 4-button LCD Control Panel
• Control Protocol: DMX512, RDM
• DMX Channels: 2 / 3 / 5
• Control Interface: 3-pin DMX in/out

Housing

• Materials: Die-cast aluminium, matte black finish
• IP Rating: IP20
• Cooling: Fanless
• Dimensions: 485 x 350 x 160mm
• Net Weight: 8kg
• Tilt Angle: ±90°

Download Product Datasheet

Download the User Manual

Warranty: 3 years
