SPLIT228RDM - 2 Inputs 8 Outputs DMX / RDM Splitter

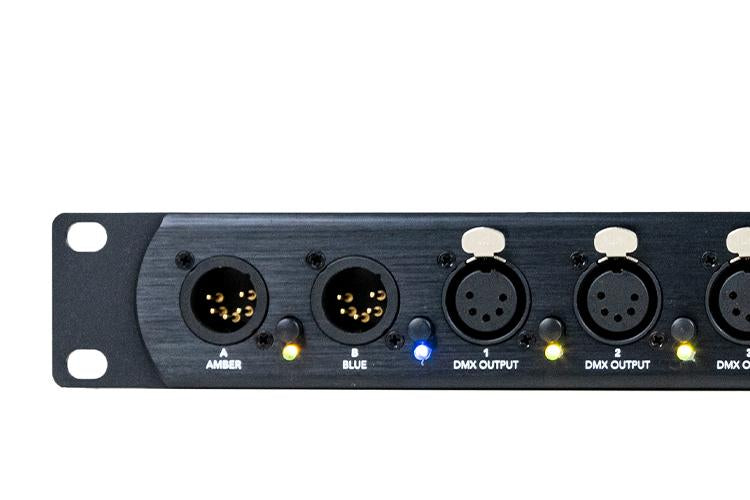

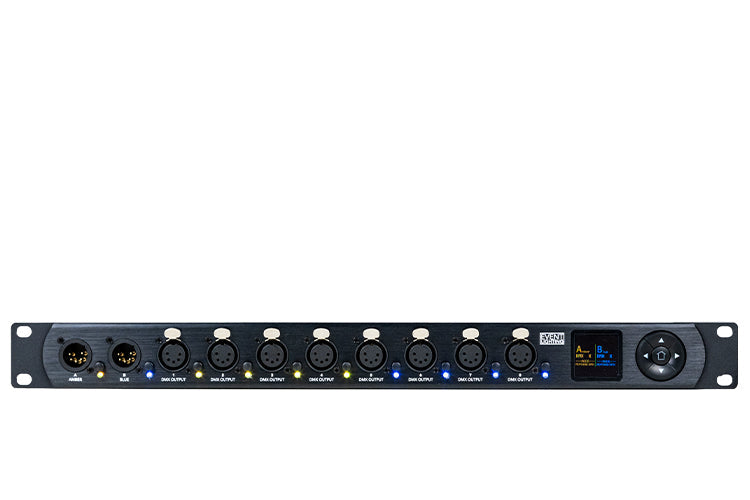

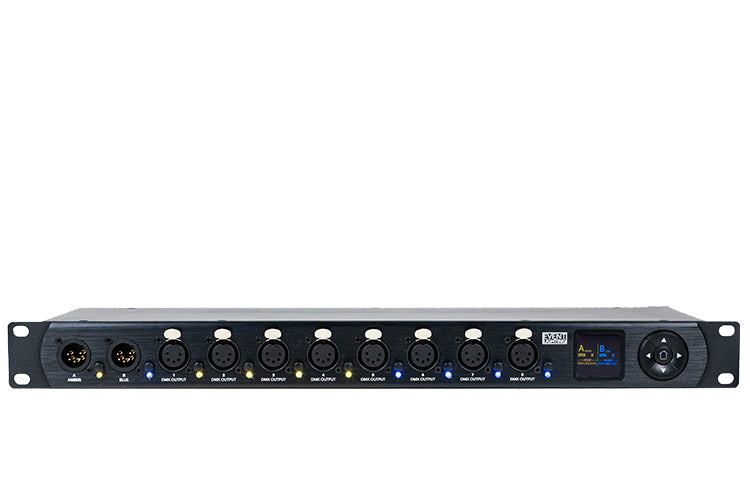

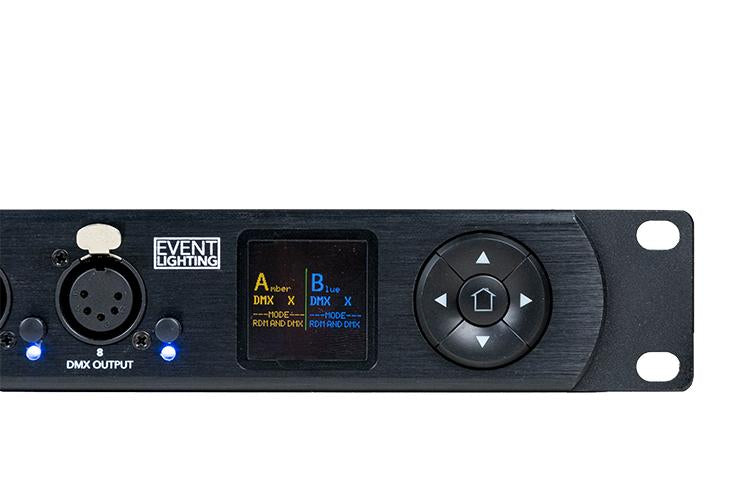

SPLIT228RDM is a rack mountable DMX and RDM splitter designed to optically insulate and distribute 2 DMX inputs into 8 outputs via 5-pin XLR connectors.

• Protocol: DMX512 and RDM
• Input Voltage: 100-240V AC 50/60Hz
• Power Consumption: 5W

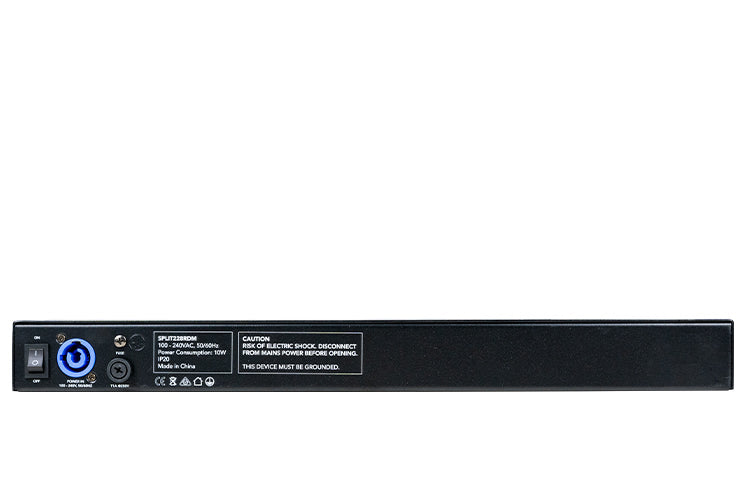

• Power Connections: Powercon input
• Connections: 2x 5-pin DMX input, 8x 5-pin DMX output
• 8x Optically Isolated Outputs
• Fuse: F1AL/250V
• Dimensions: 483x145x46 mm
• Weight: 2kg

User Manual Download

Warranty: 3 years
