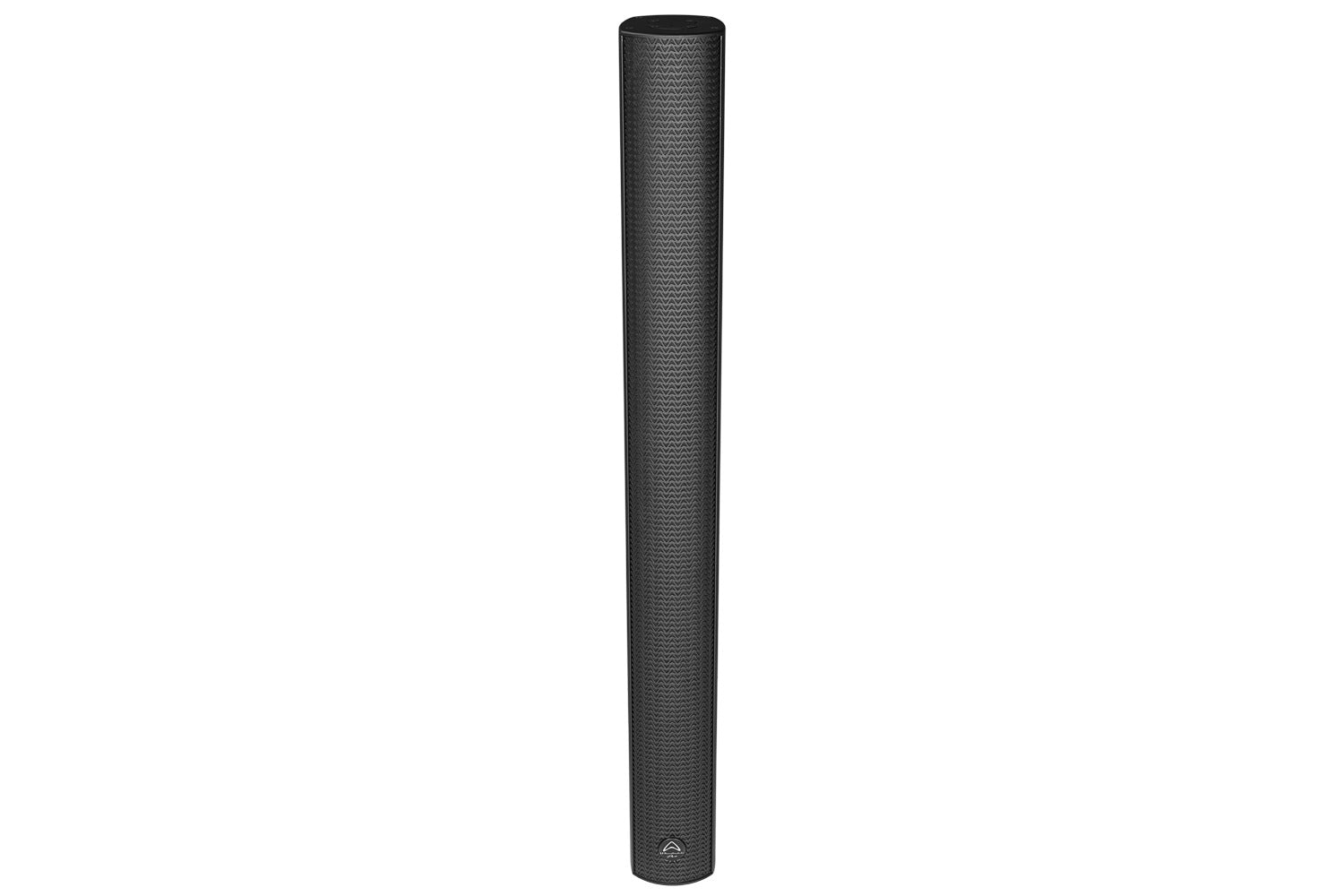

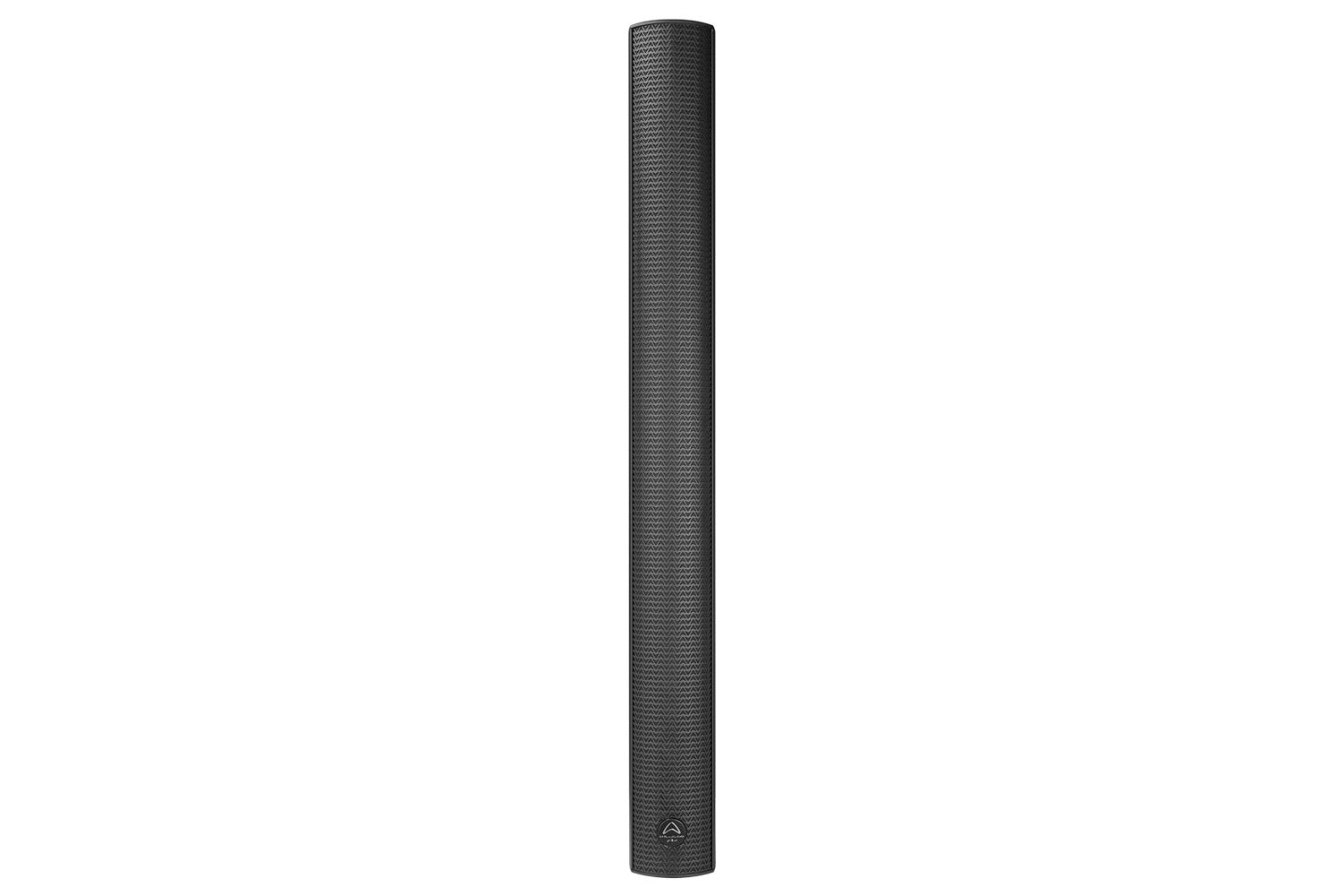

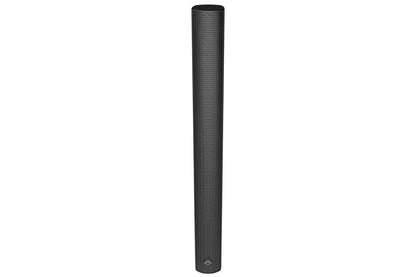

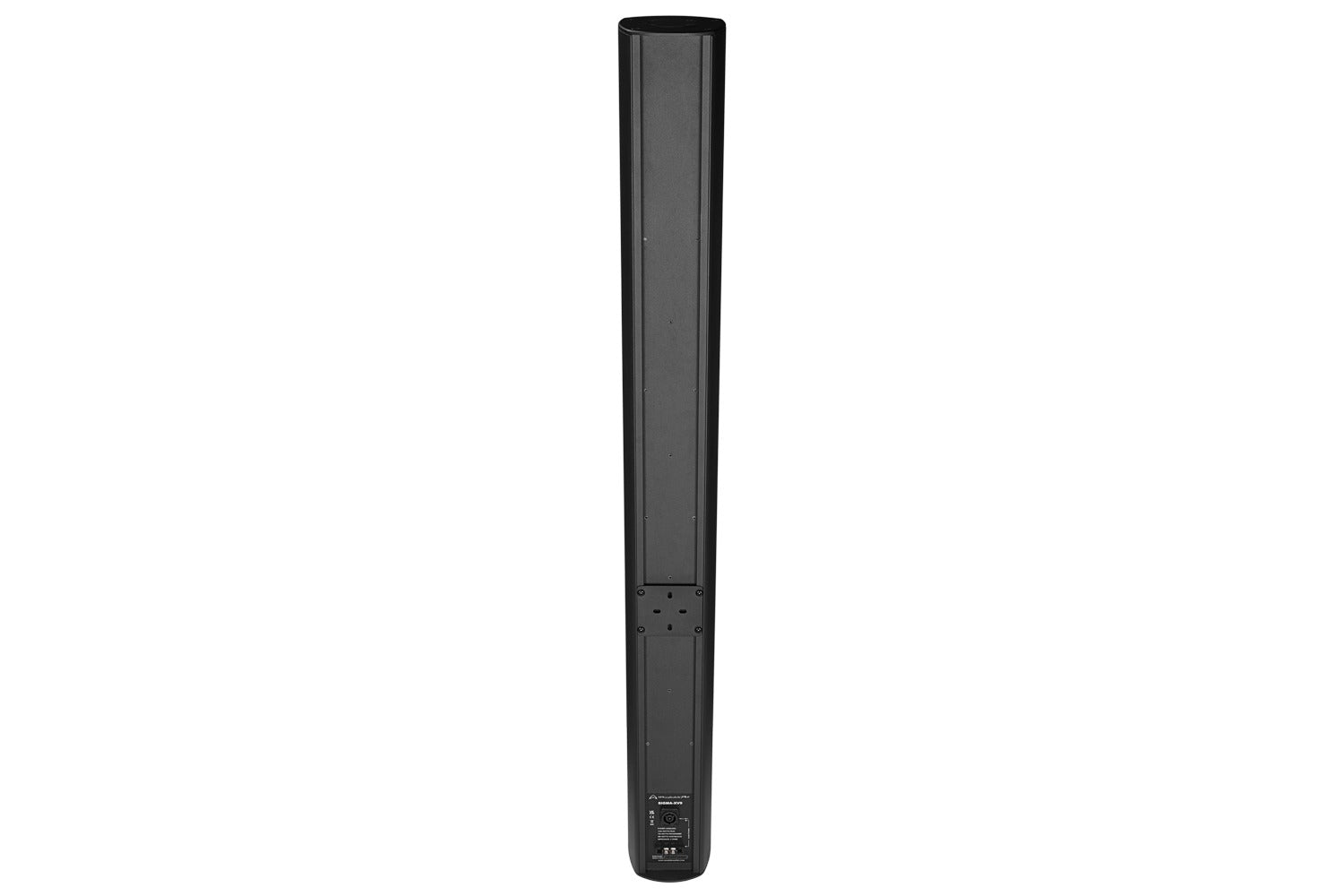

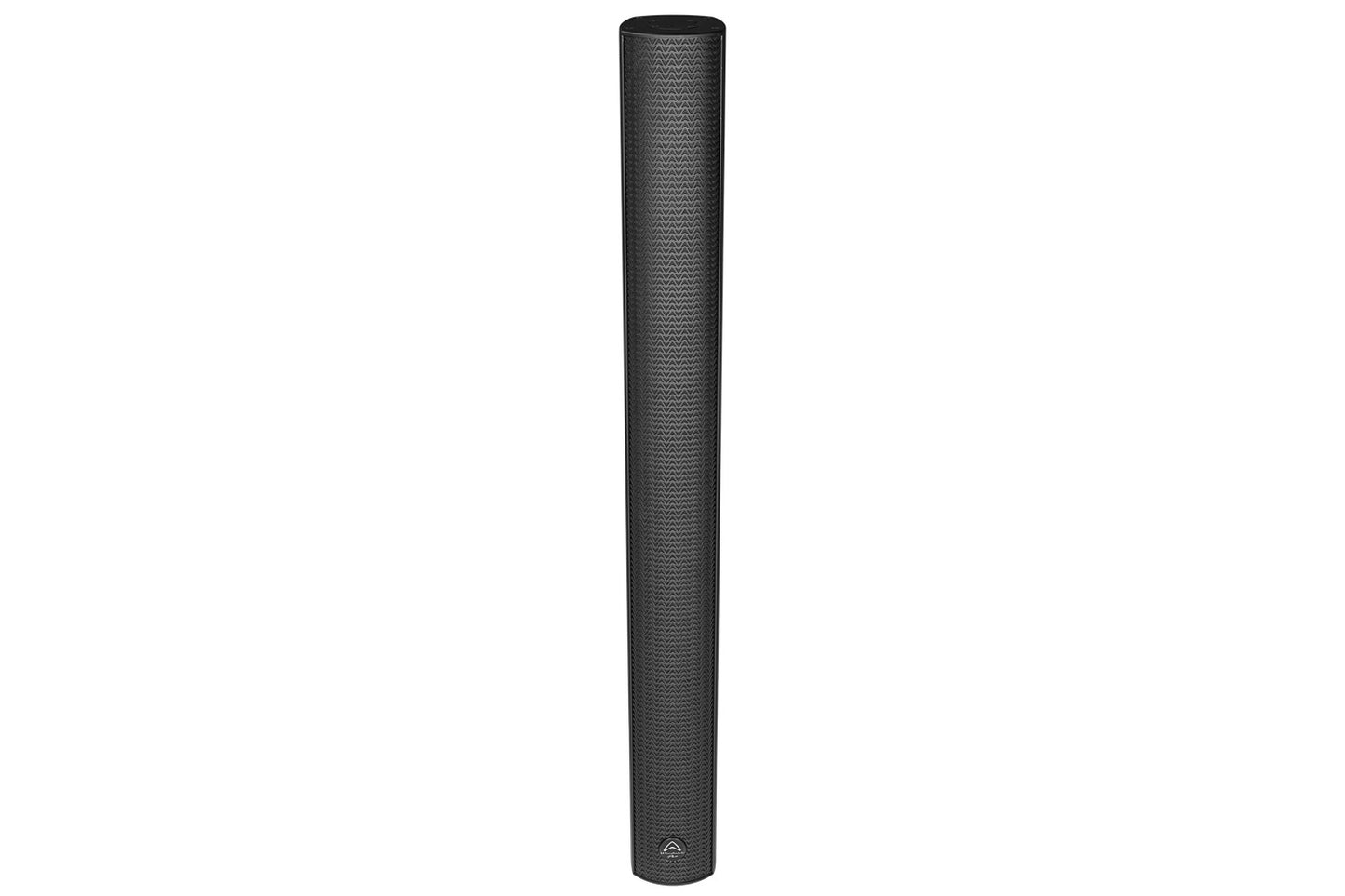

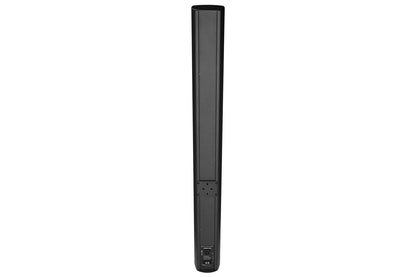

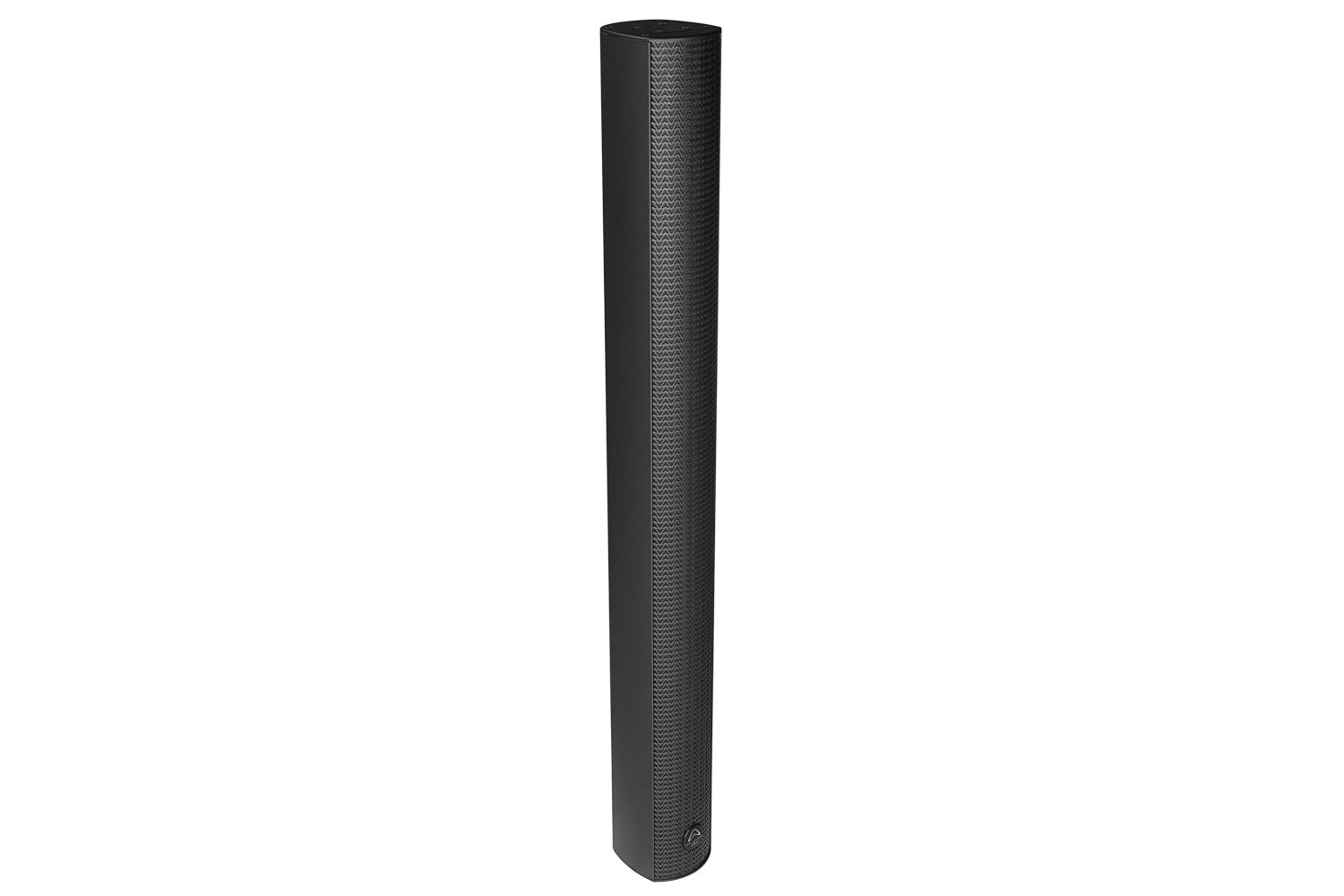

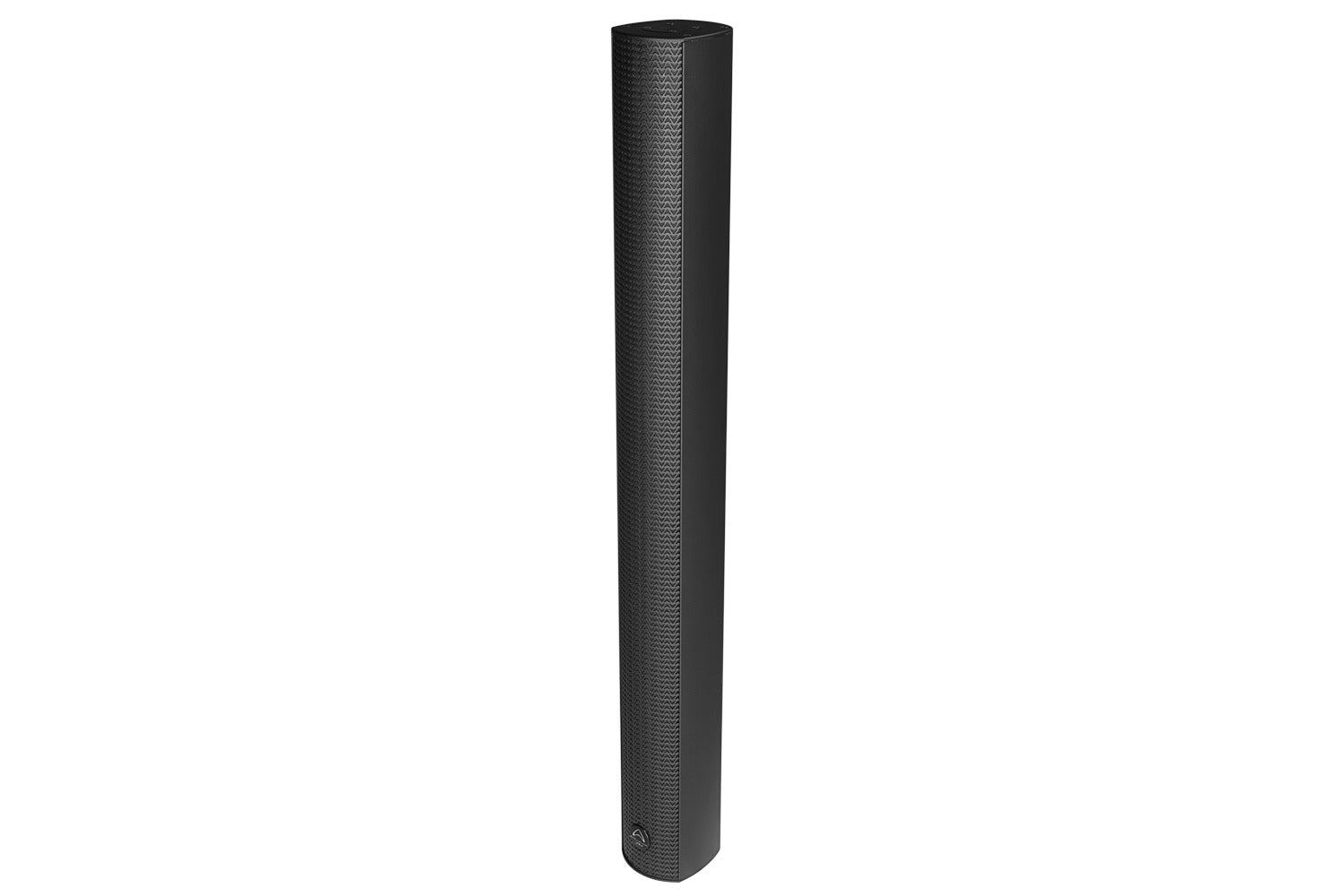

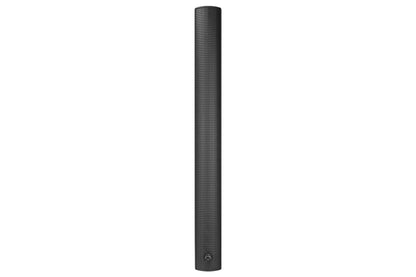

SIGMA-XV9 is a high-output passive column loudspeaker from our SIGMA-X Series, designed for installations requiring extended throw, vocal clarity and uniform coverage — such as houses of worship, theatres, auditoriums and conference venues.

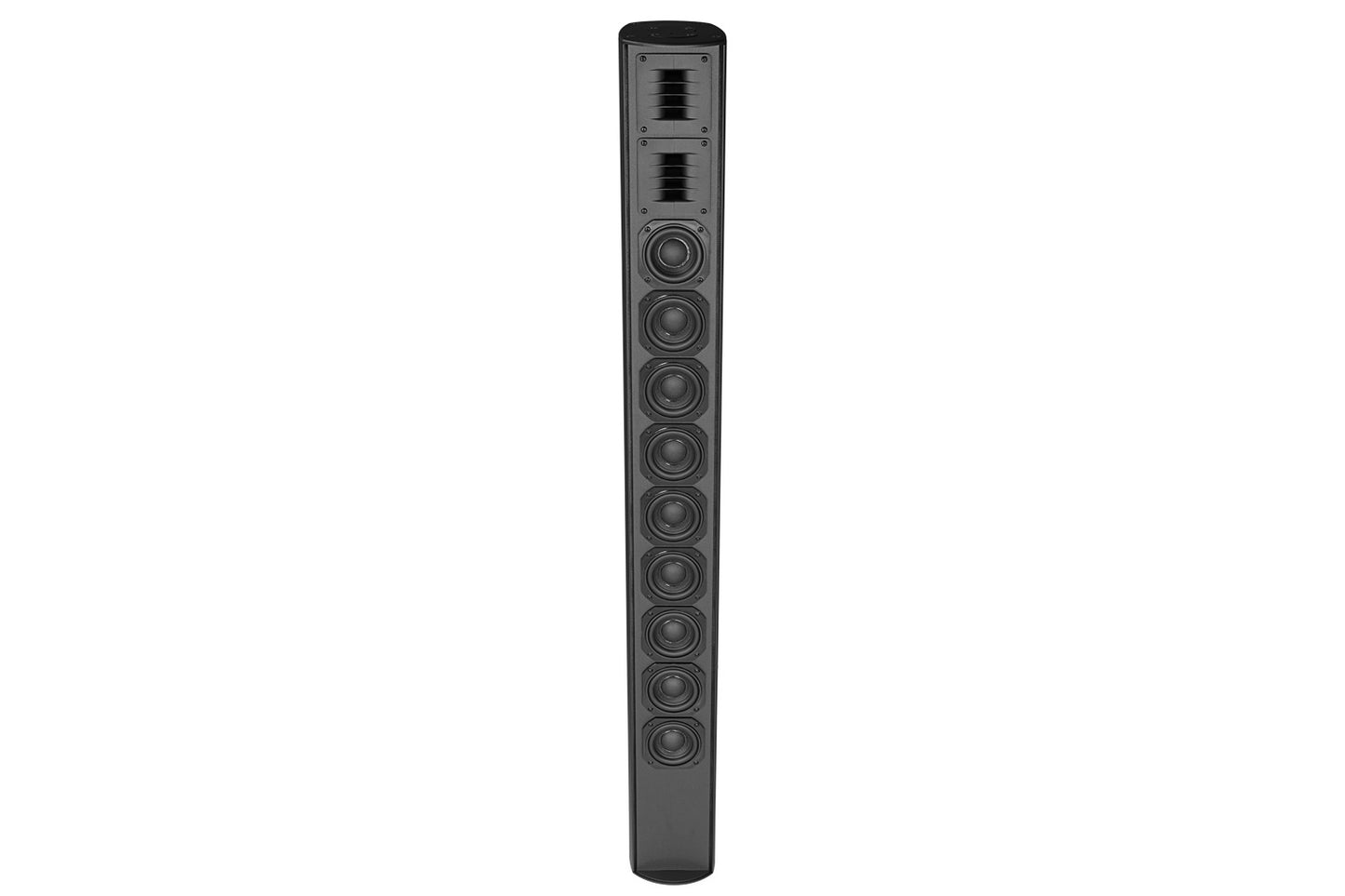

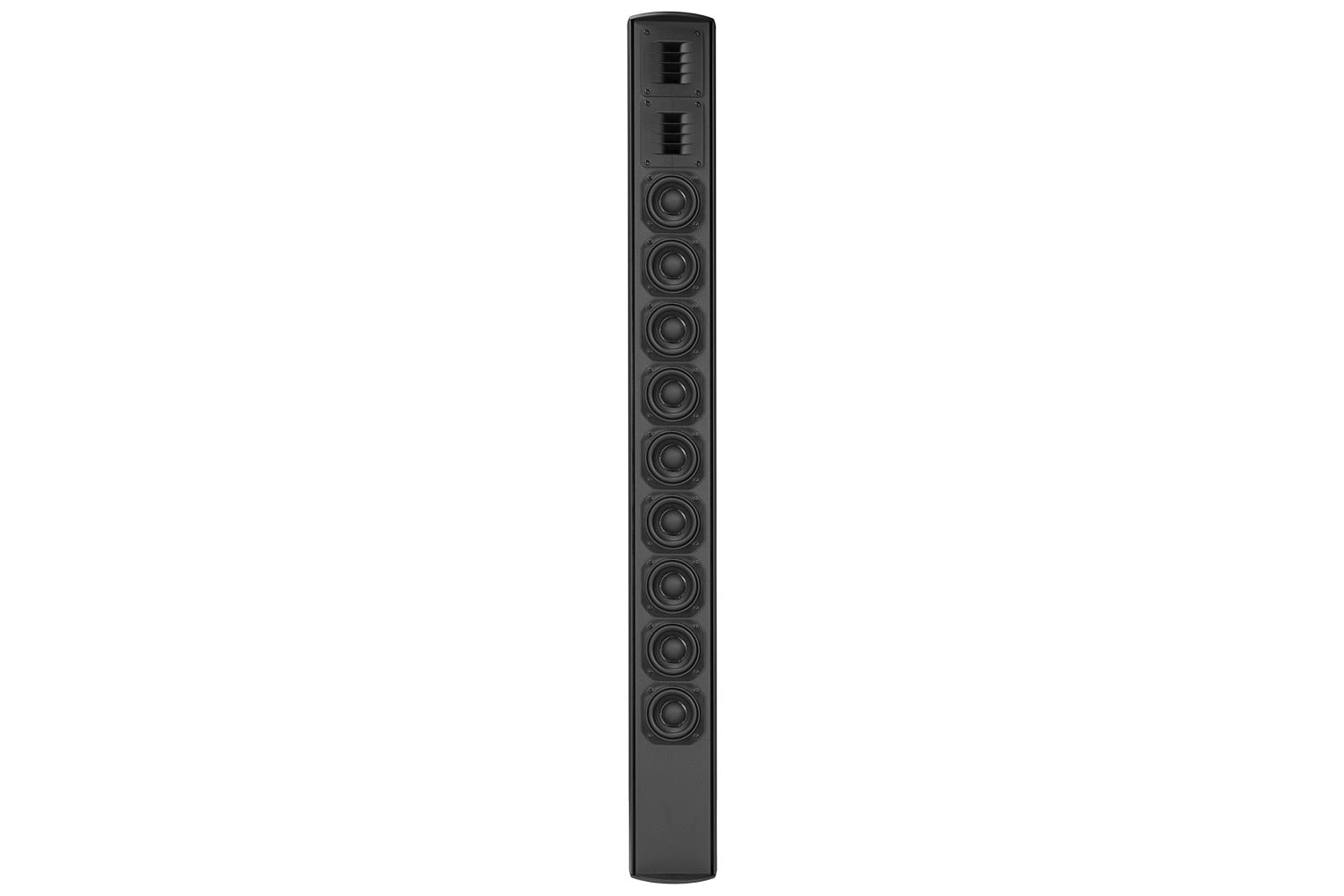

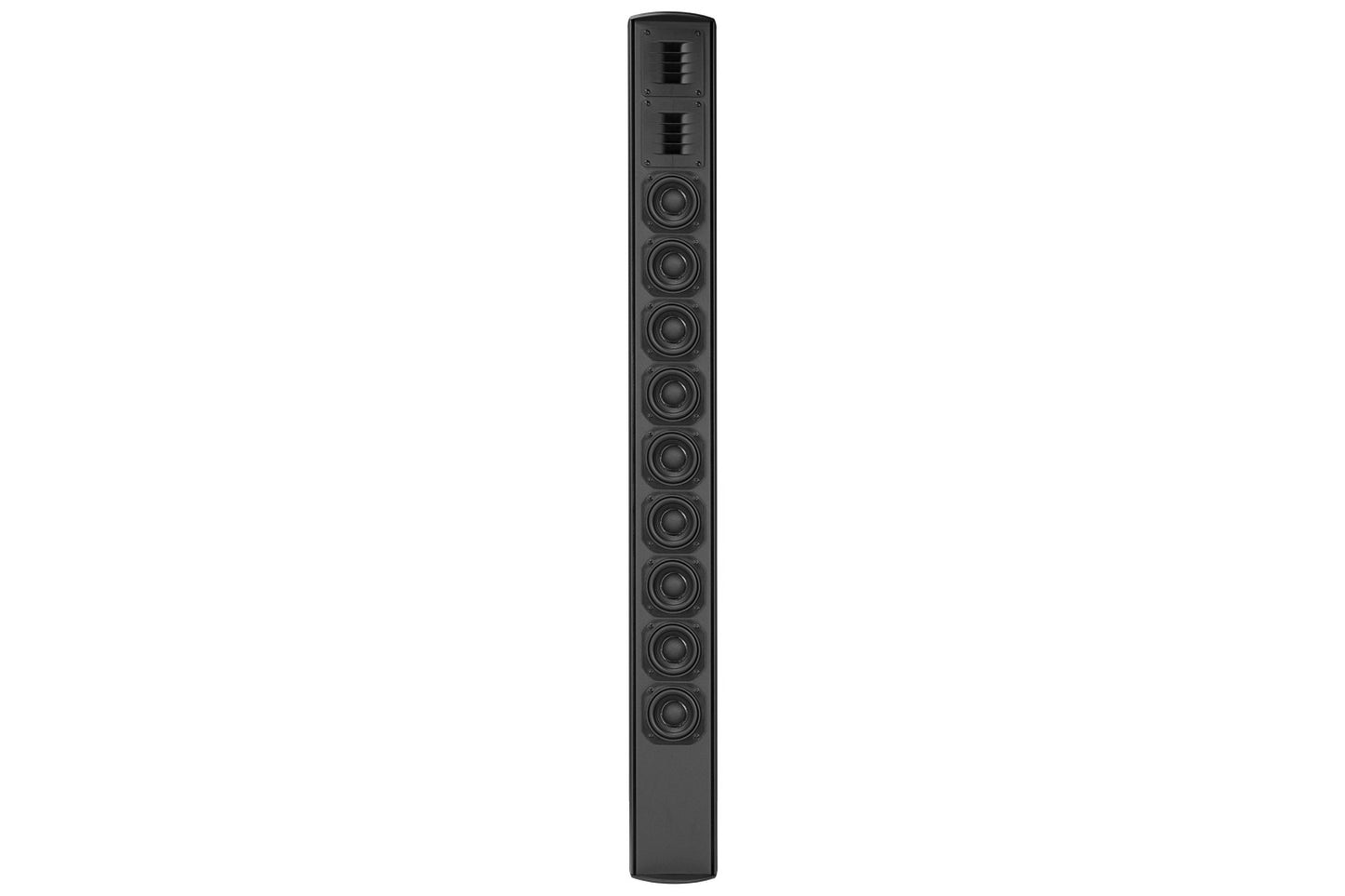

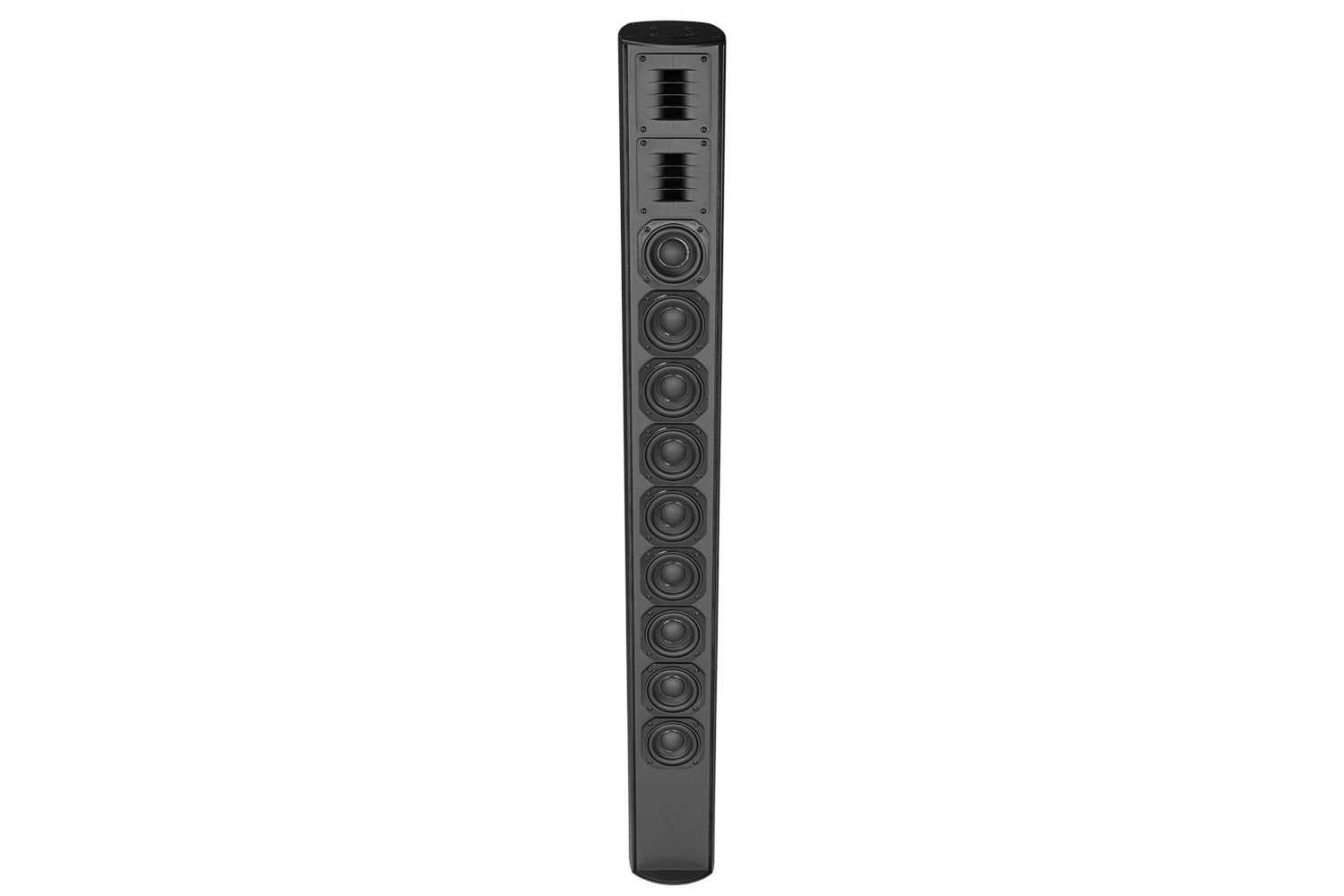

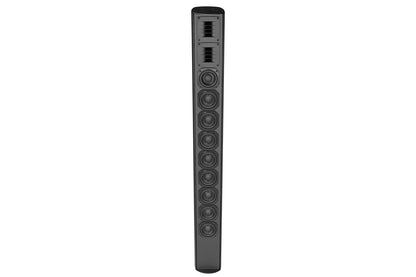

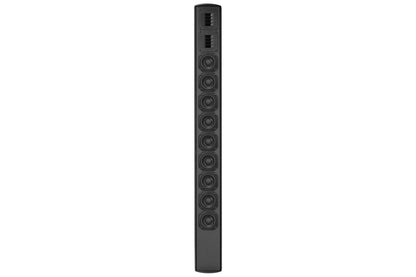

It features nine 3″ full-range drivers supported by two HF compression drivers, each paired with our mini EVO-Fold waveguide This ensures smooth, coherent dispersion on both horizontal and vertical planes, radiating from a singular acoustic source for improved intelligibility and consistency across the audience area.
Handling 360 W continuous (1440 W peak) and delivering up to 128 dB max SPL @ 1 m, SIGMA-XV9 is ideal for medium-to-large spaces requiring increased output without sacrificing clarity. A 70 V / 100 V Hi-Z version is also available for distributed installation systems.

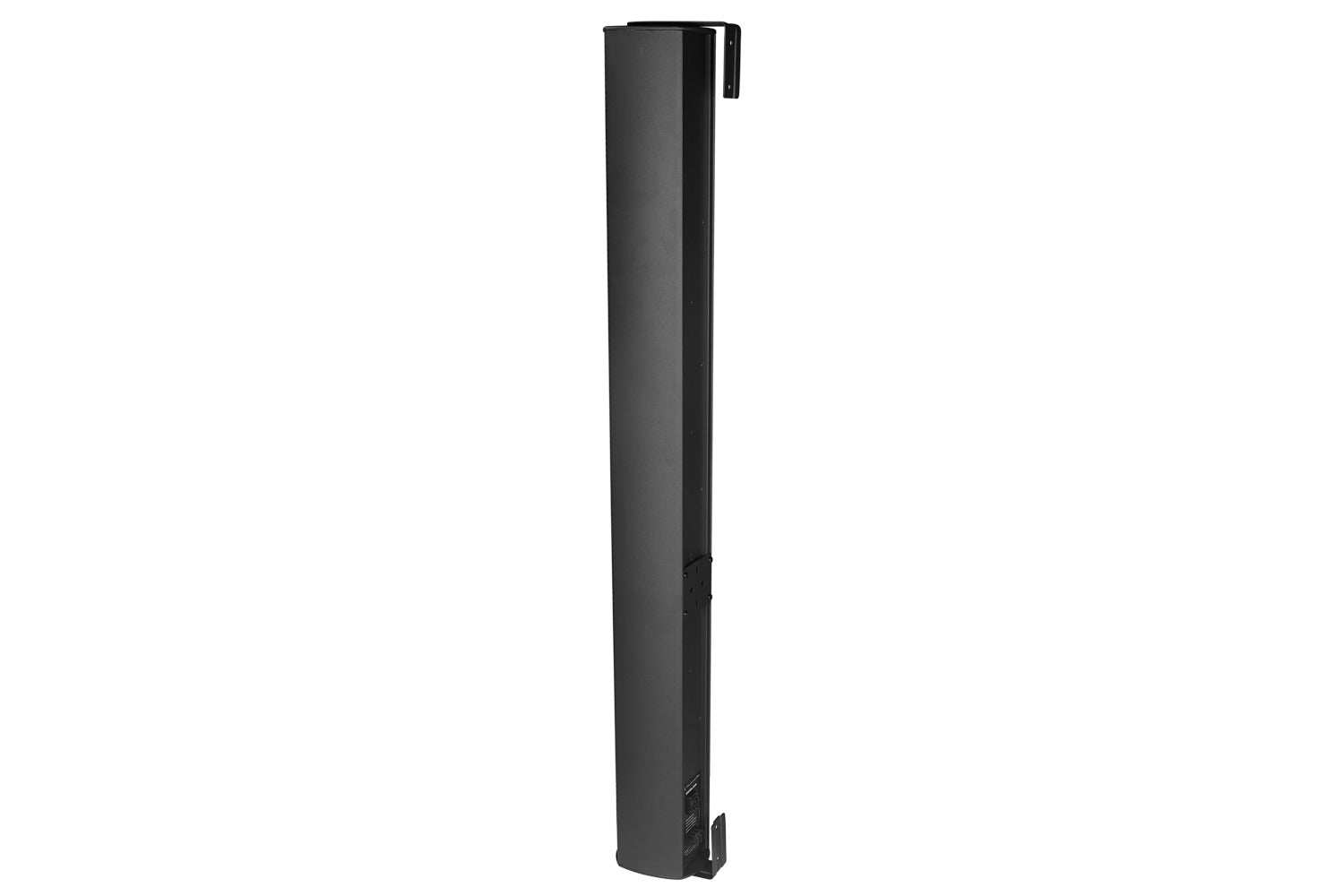

Flexible installation is supported via the included U-bracket, or the optional WPB-SV bracket offering up to 15° vertical tilt and 180° rotation.
Available in black or white finishes and fully supported with FIR presets and EASE .gll files, SIGMA-XV9 delivers precision column performance with next-generation HF control and professional installation versatility.
| Specification |
Value |
| Active or Passive |
Passive |
| System Type |
Column |
| Configuration |
2-way |
| System Continuous Power |
360 W |
| System Programme Power |
720 W |
| System Peak Power |
1440 W |
| Max SPL @ 1m |
128 dB |
| Freq Range (-10 dB) |
120 Hz - 20 kHz |
| Freq Response (+/-3 dB) |
130 Hz - 18 kHz |
| IP Certification |
None |
| Driver Brand |
Wharfedale Pro |
| LF Driver Size |
9 x 3" |
| LF Voice Coil Size |
1.3 |
| LF Rated Impedance |
4 Ω |
| LF Power (RE:AES2-2012) |
40 W |
| HF Driver Type |
2 x 1″ PEI EVO-Fold Driver |
| HF Voice Coil Size |
1" |
| HF Diaphragm Material |
PEI |
| HF Exit Size |
1" |
| HF Power (RE:AES2-2012) |
20 W |
| HF Nominal Coverage (H x V) |
120˚ x 20˚ |
| Preset |
Yes |

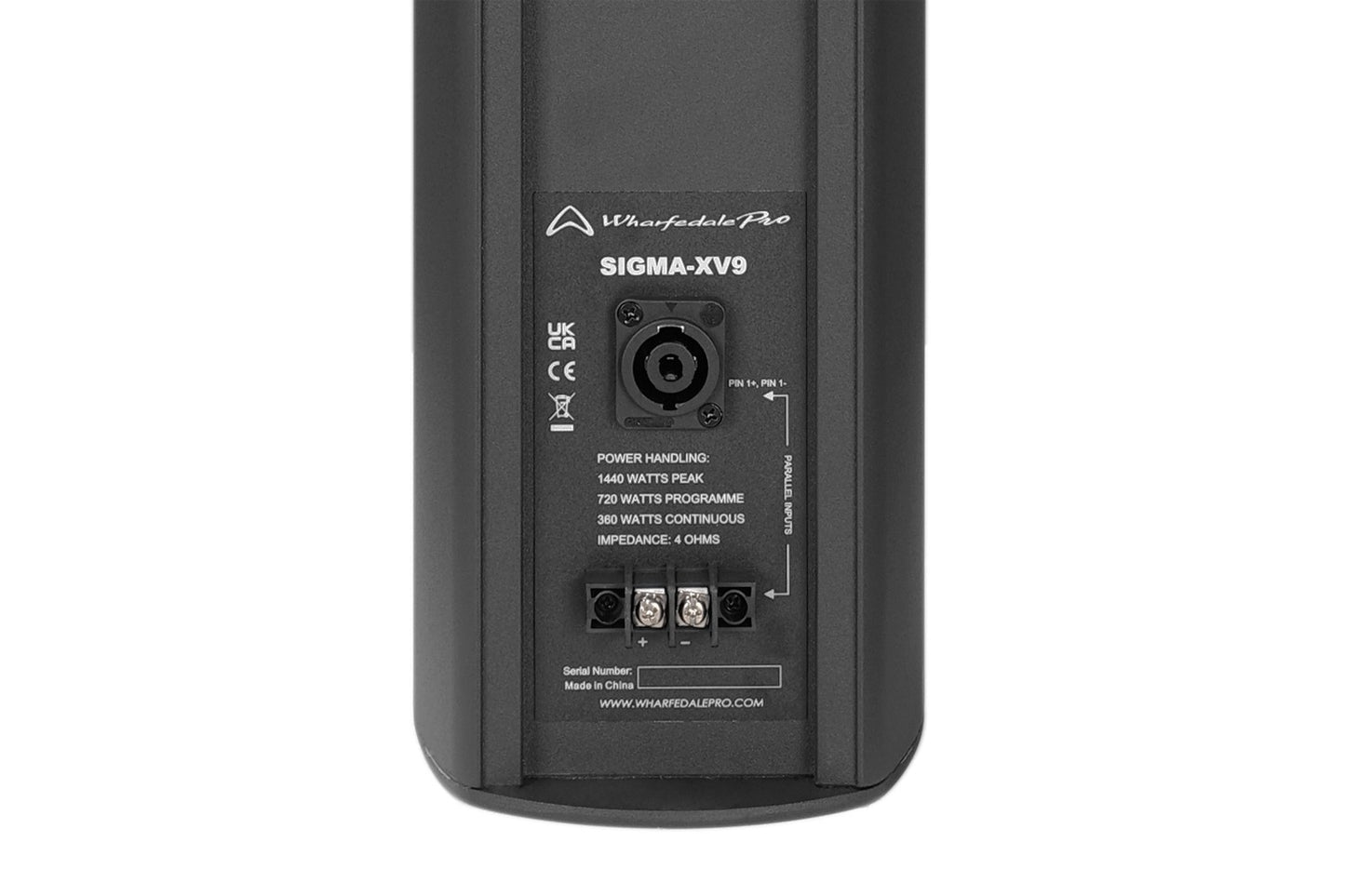

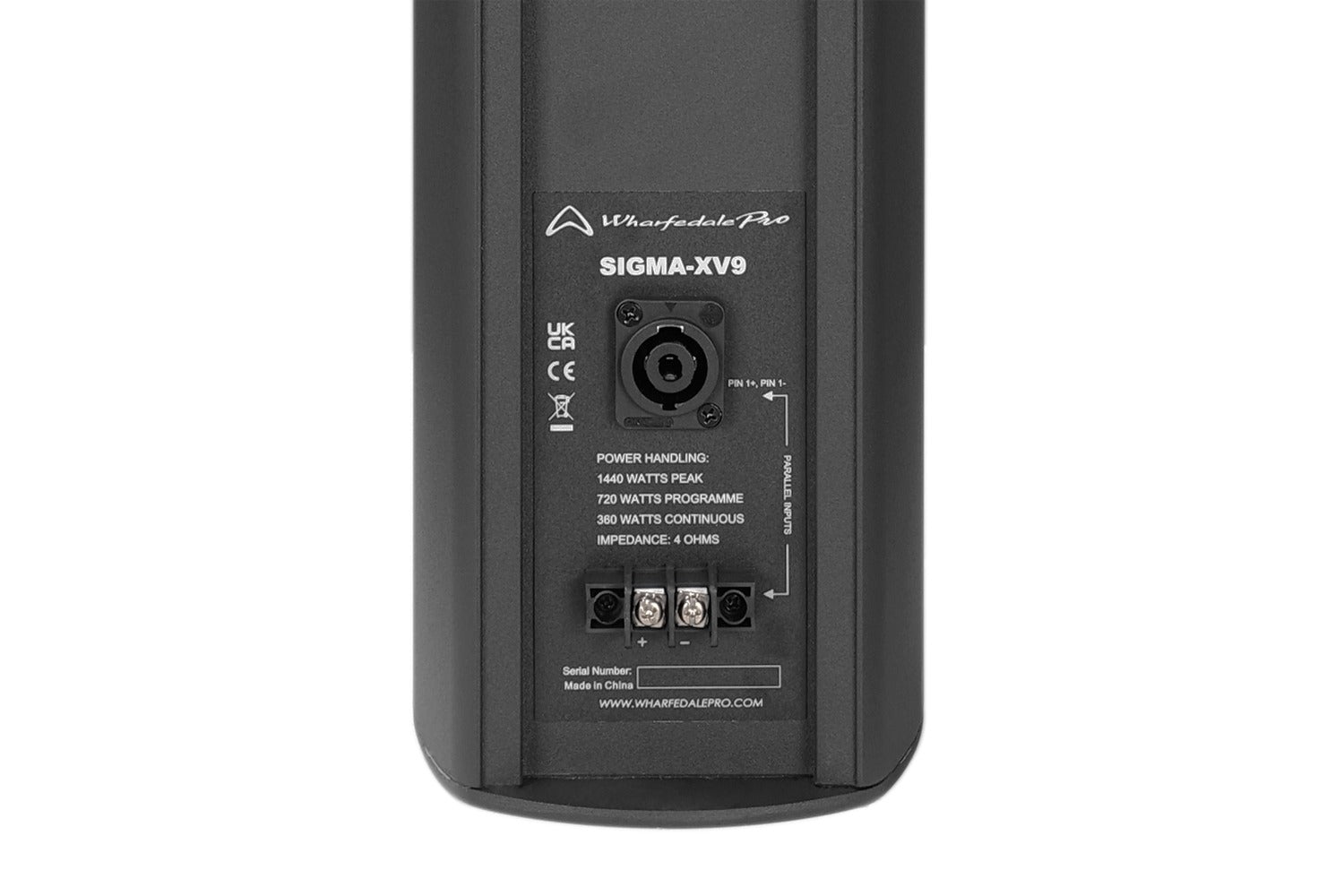

| Input Connector |
1 x 4 Pole speaker connector. 1 x barrier strip |
| Waveguide Type |
Mini EVO-Fold |
| Enclosure Material |
Aluminum |
| Grille Material and Finish |
Steel Black |
| Finish |
Black Tough-Tone paint |
| Deployment |
Wall Mount |
| Pole Mount |
None |
| Brackets Included |
Yes |
| Sensitivity 2.83v / 1m |
97 dB |
| System Rated Impedance |
8 Ω |
| Crossover Frequency |
2.5 kHz |
| Recommended HPF = BW 18 dB/OCT. |
120 Hz |
| Input Connectors (T) |
Barrier Strip |
| Included Accessory |
Quick Start Guide, 2 x Wall Brackets |
| Unpacked - Height (mm) |
1210 |
| Unpacked - Width Front (mm) |
126 |
| Unpacked - Width Rear (mm) |
92 |
| Unpacked - Depth (mm) |
145 |
| Packed - Height (mm) |
1285 |
| Packed - Width Front (mm) |
210 |
| Packed - Width Rear (mm) |
210 |
| Packed - Depth (mm) |
210 |
| Weight - Net (kg) |
10.1 |
| Weight - Gross (kg) |
11.6 |
