Wharfedale Pro SIGMA-XV5 Installation Column Array

Regular price

COLUMN ARRAYS SIGMA-XV series

  • Re-evaluated performance
  • Updated column models with HF drivers
  • Column models with mini EVO-Fold waveguides
  • 70 V / 100 V Hi-Z Column models
  • EASE gll files available for download
  • Supported with system diagrams
  • Supported with downloadable FIR presets
  • Easy fixings and brackets

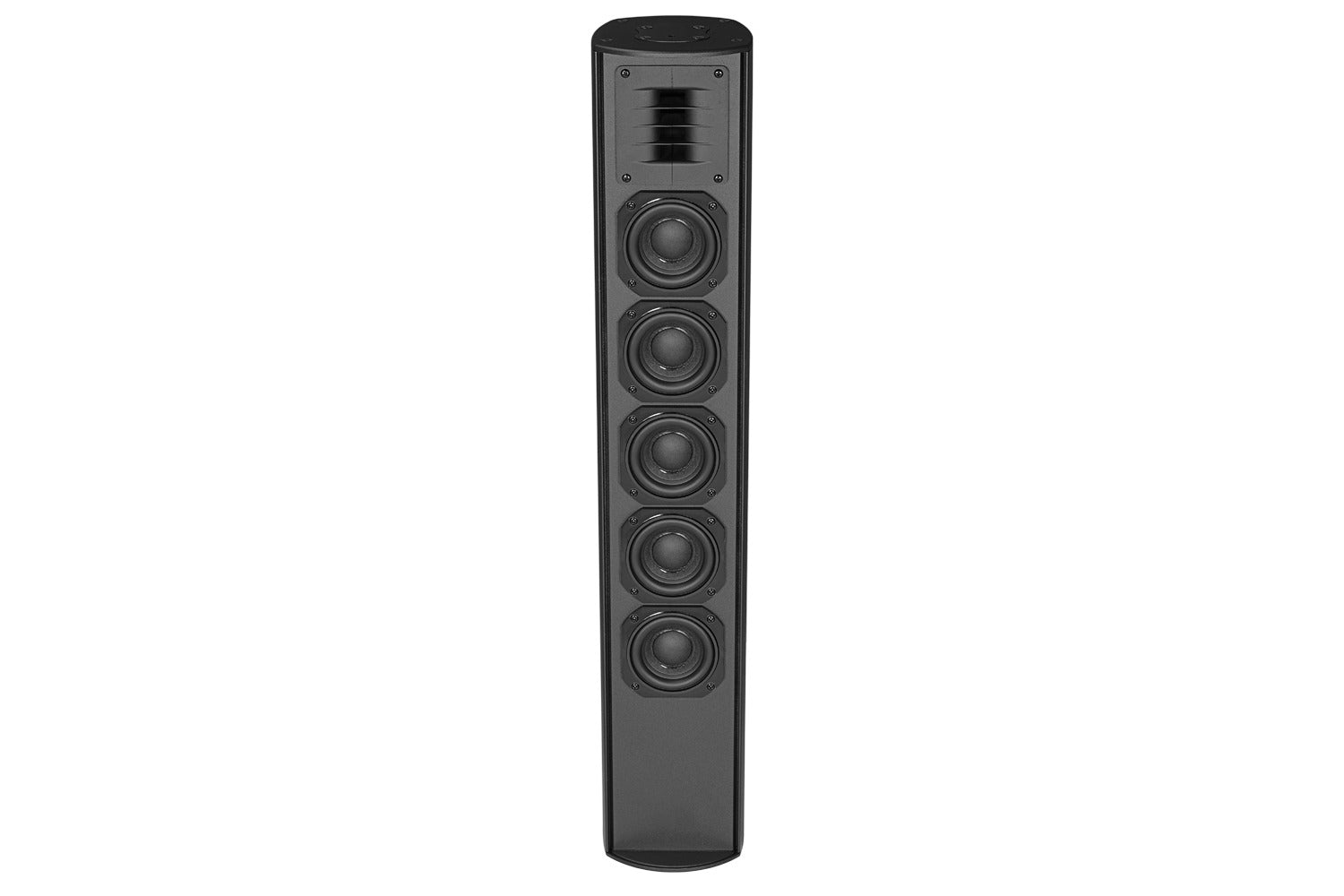

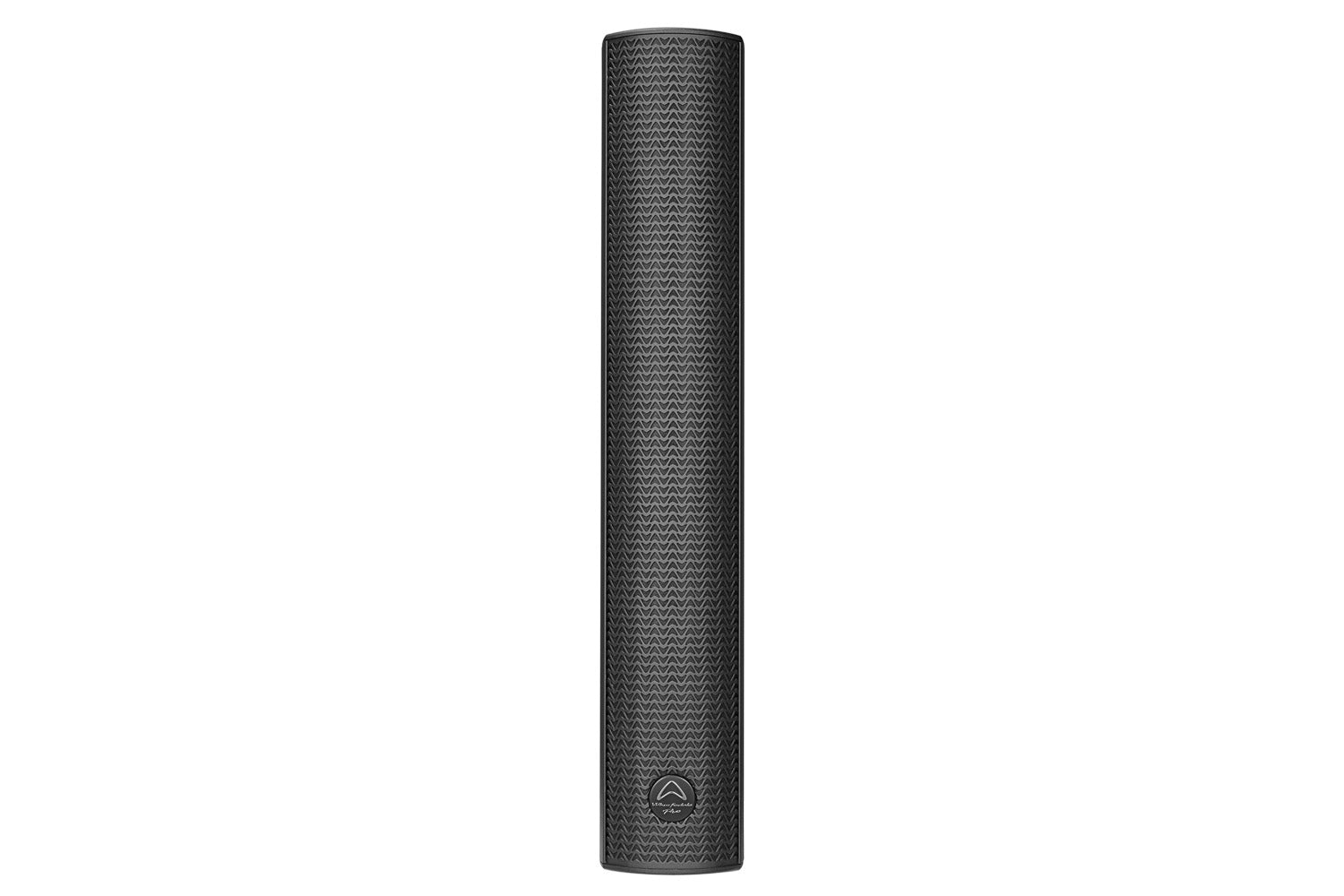

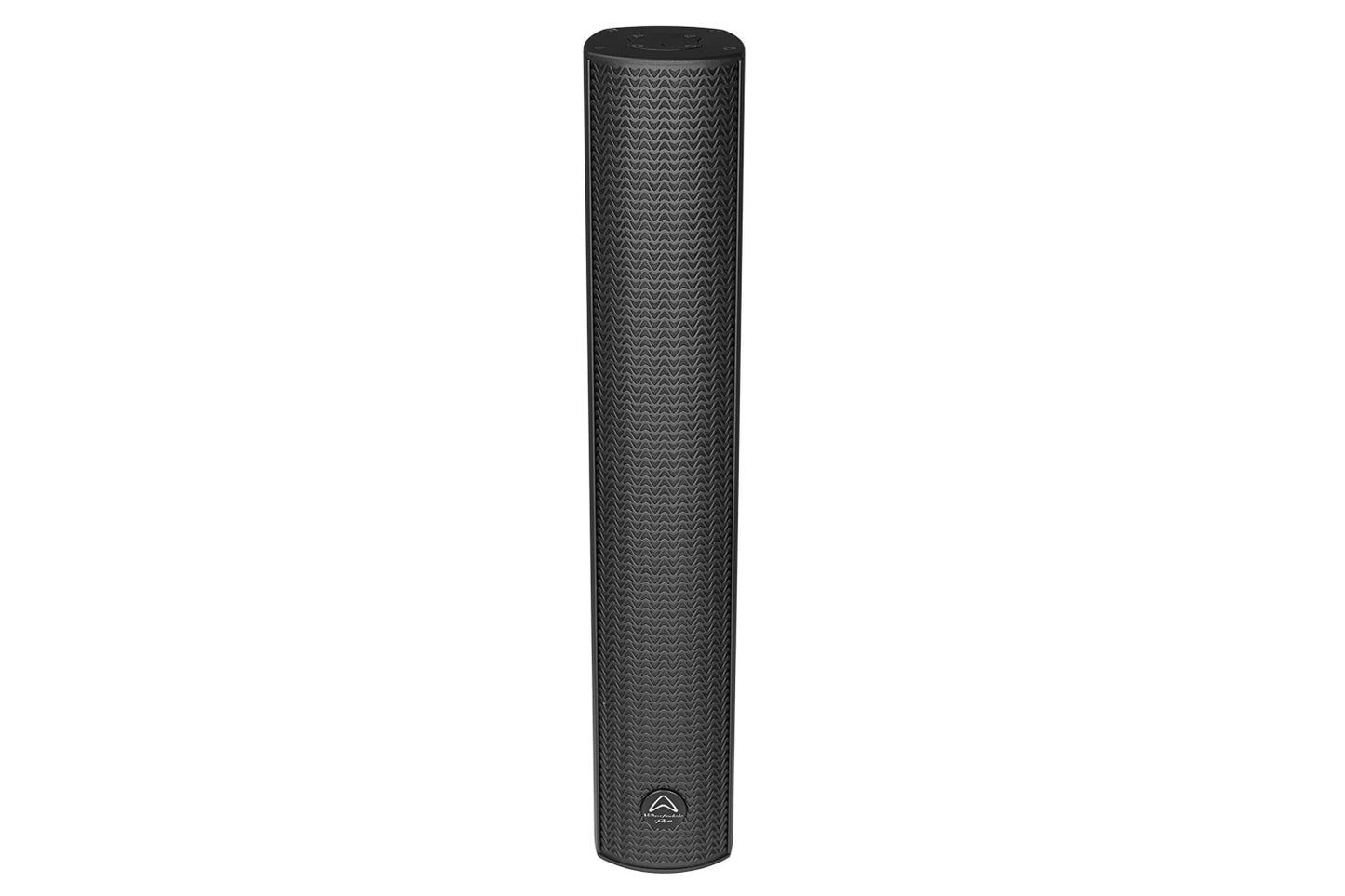

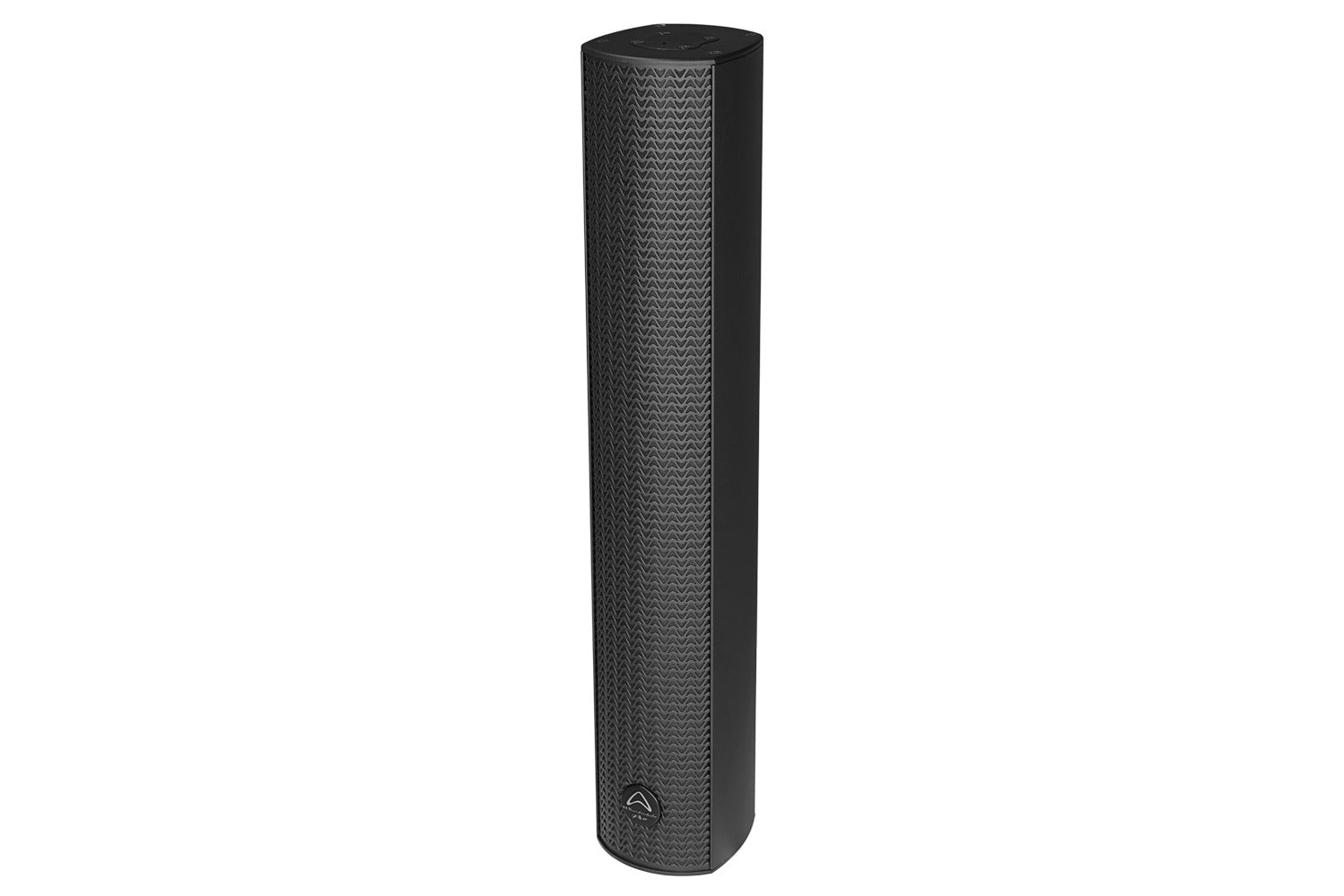

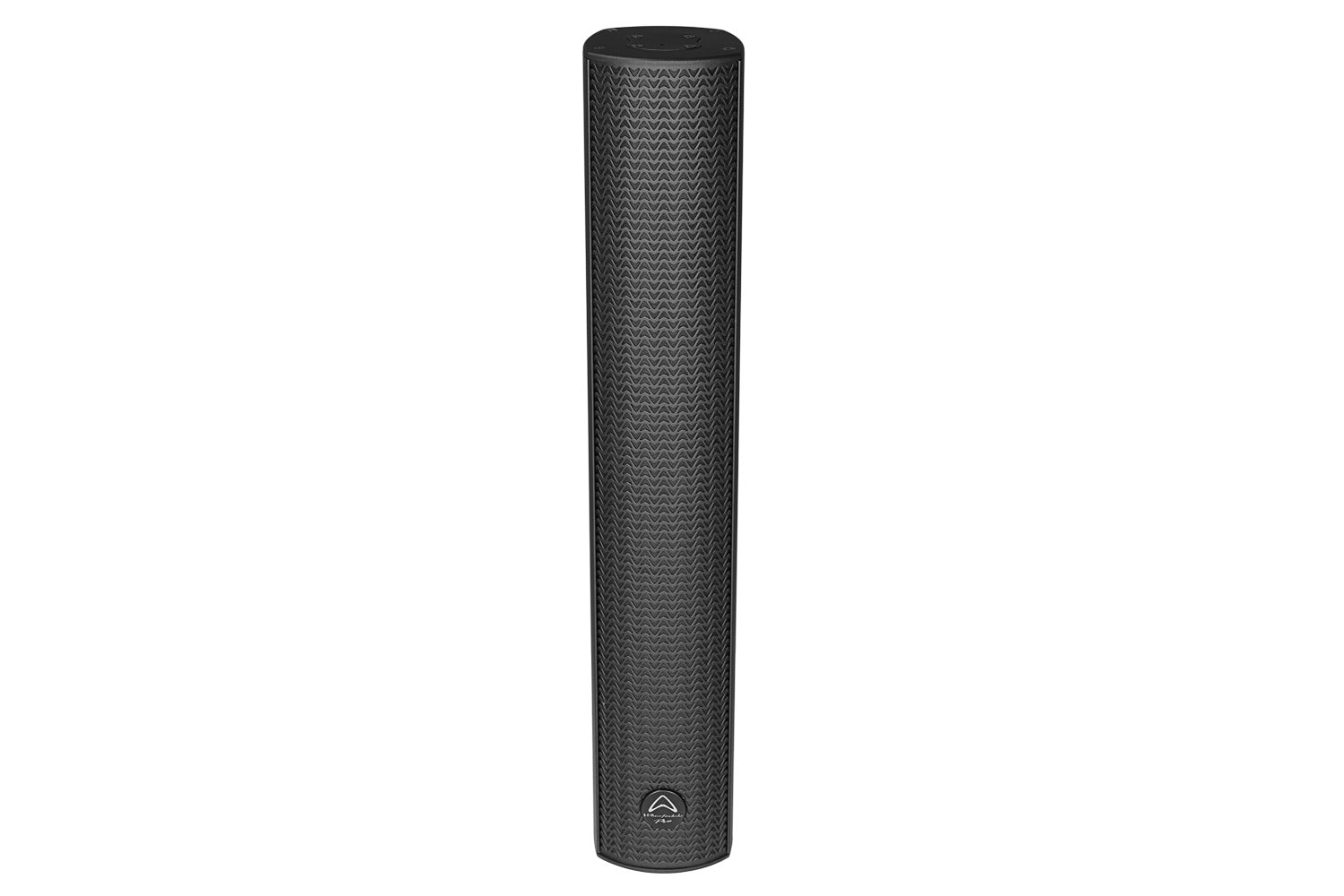

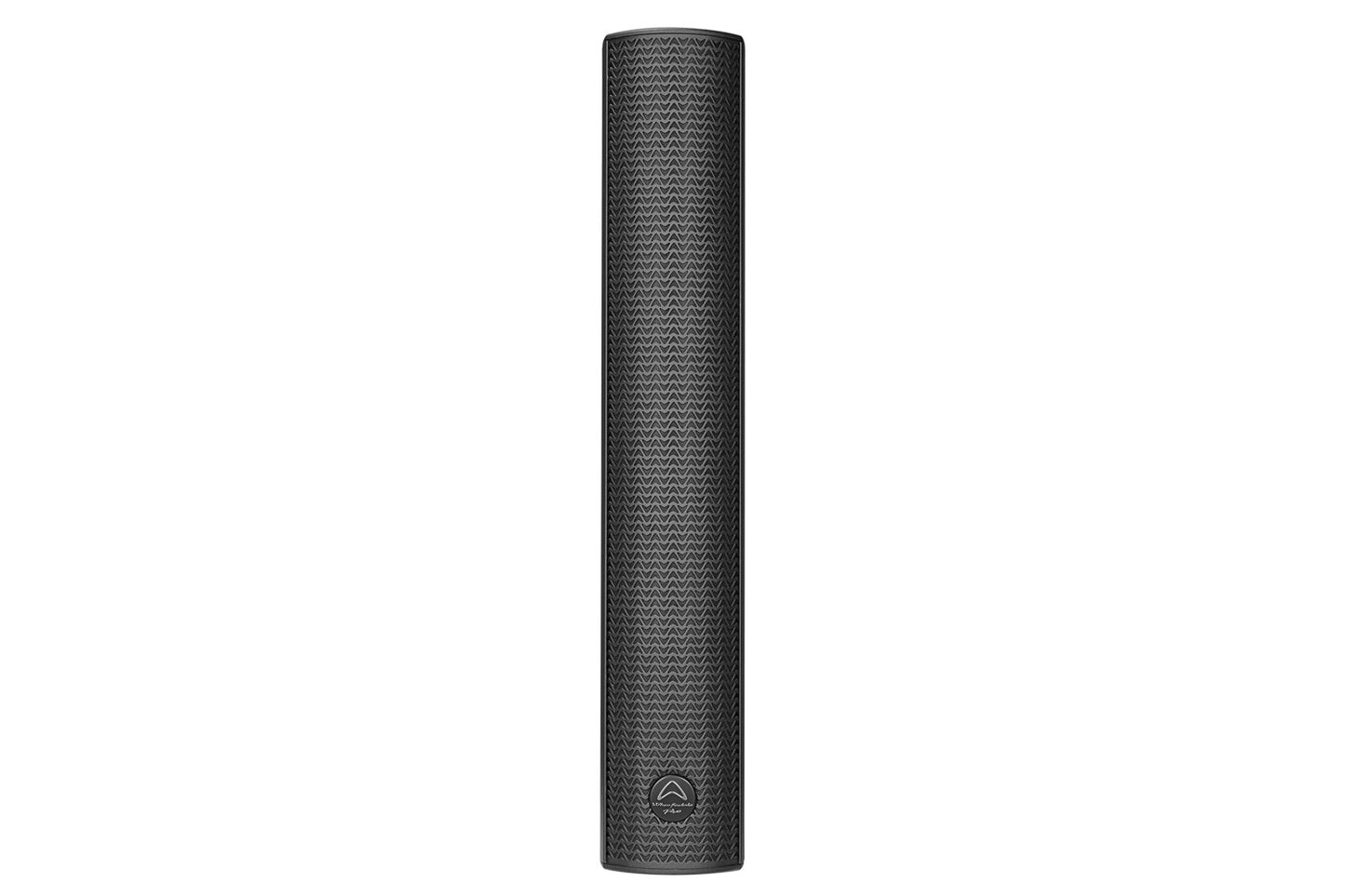

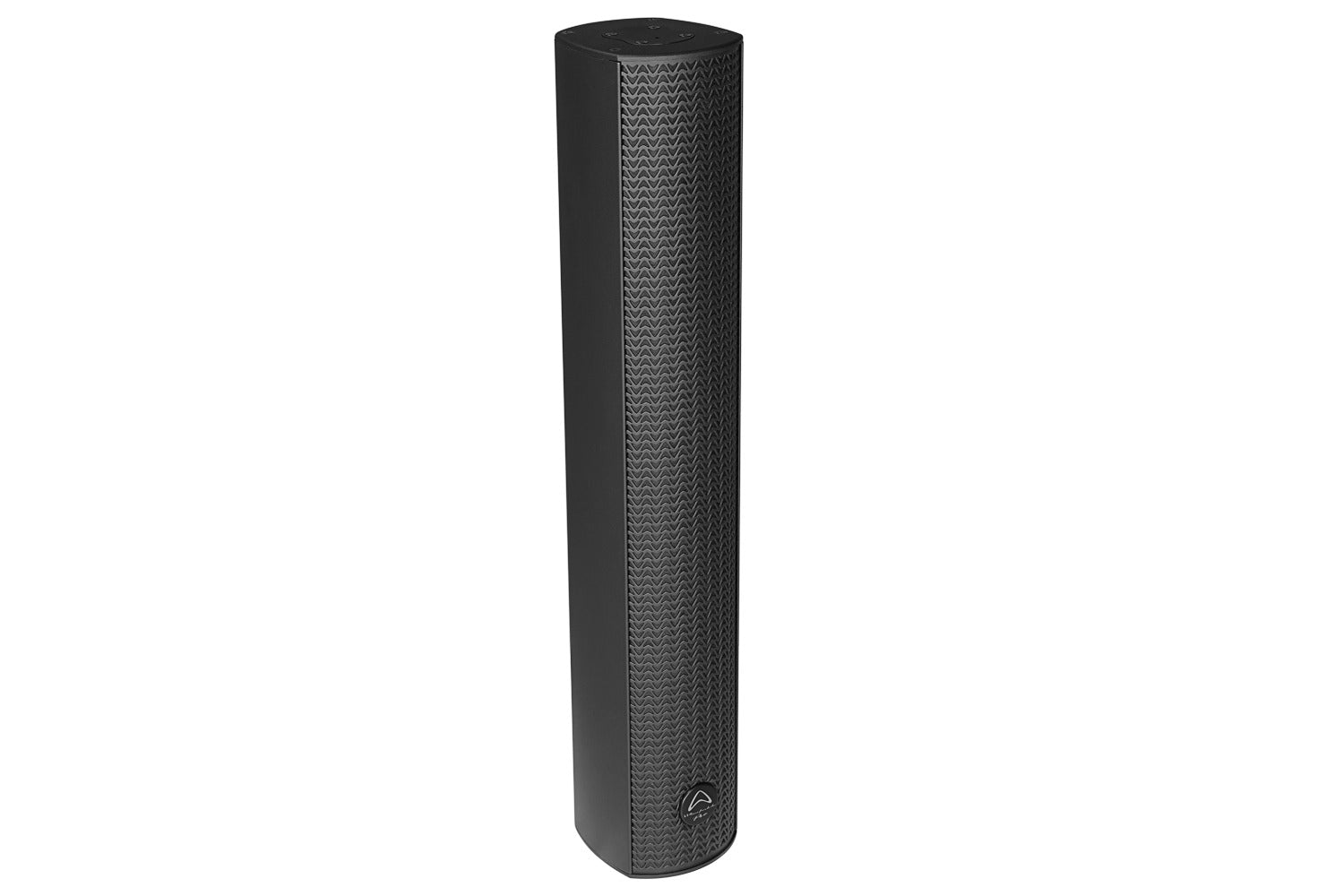

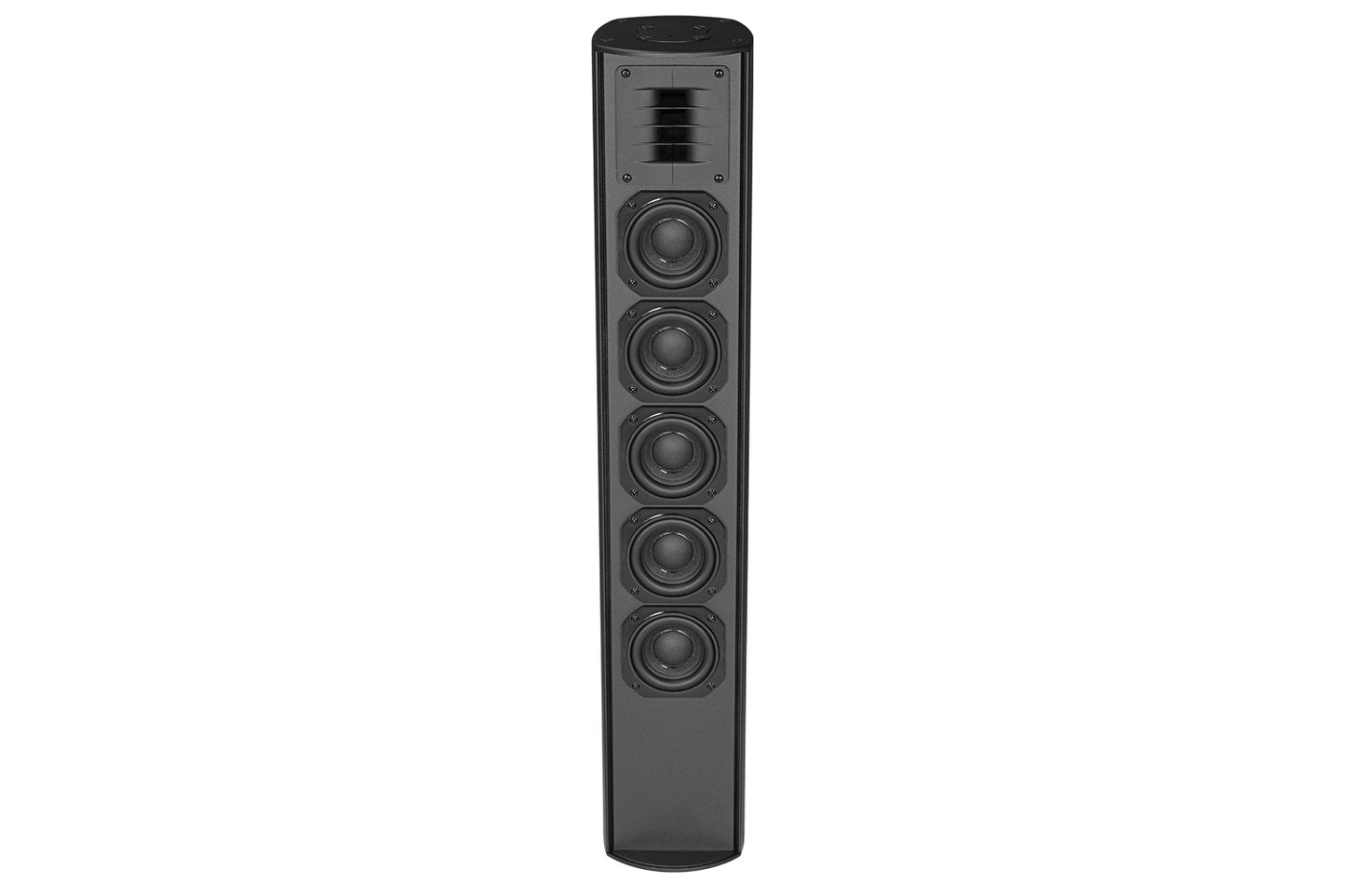

SIGMA-XV5

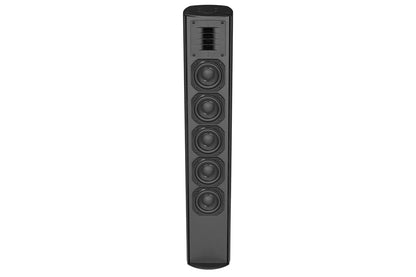

  • 5 x 3″ full range drivers
  • 1 x HF compression driver
  • 180 W AES (Continuous)
  • 360 W Programme
  • 720 W Peak
  • 123 dB Max SPL @ 1 m

COLUMNS WITH MINI EVO-FOLD

SIGMA-XV models feature the highly refined mini EVO-Fold waveguide along with HF compression drivers.  For the SIGMA-XV5 there is one, while the SIGMA-XV9 features two compression drivers, each with a mini EVO-Fold waveguide.

This mini EVO-Fold design provides consistent dispersion coverage on both the horizontal and vertical planes with the sound radiating from one, singular and coherent, source.

EASY INSTALL

Installations can be complicated enough, so we have made SIGMA-X series as easy as possible.

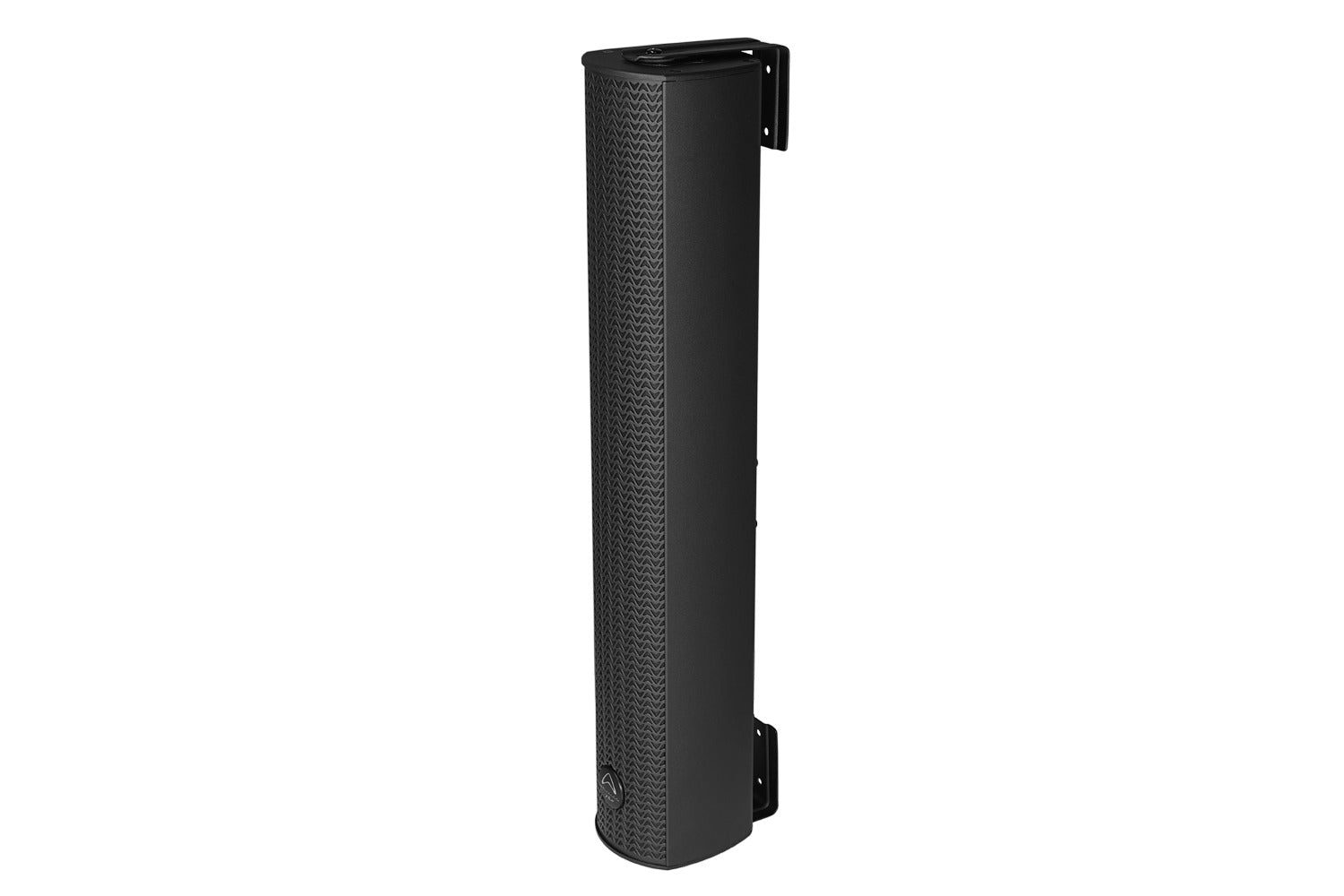

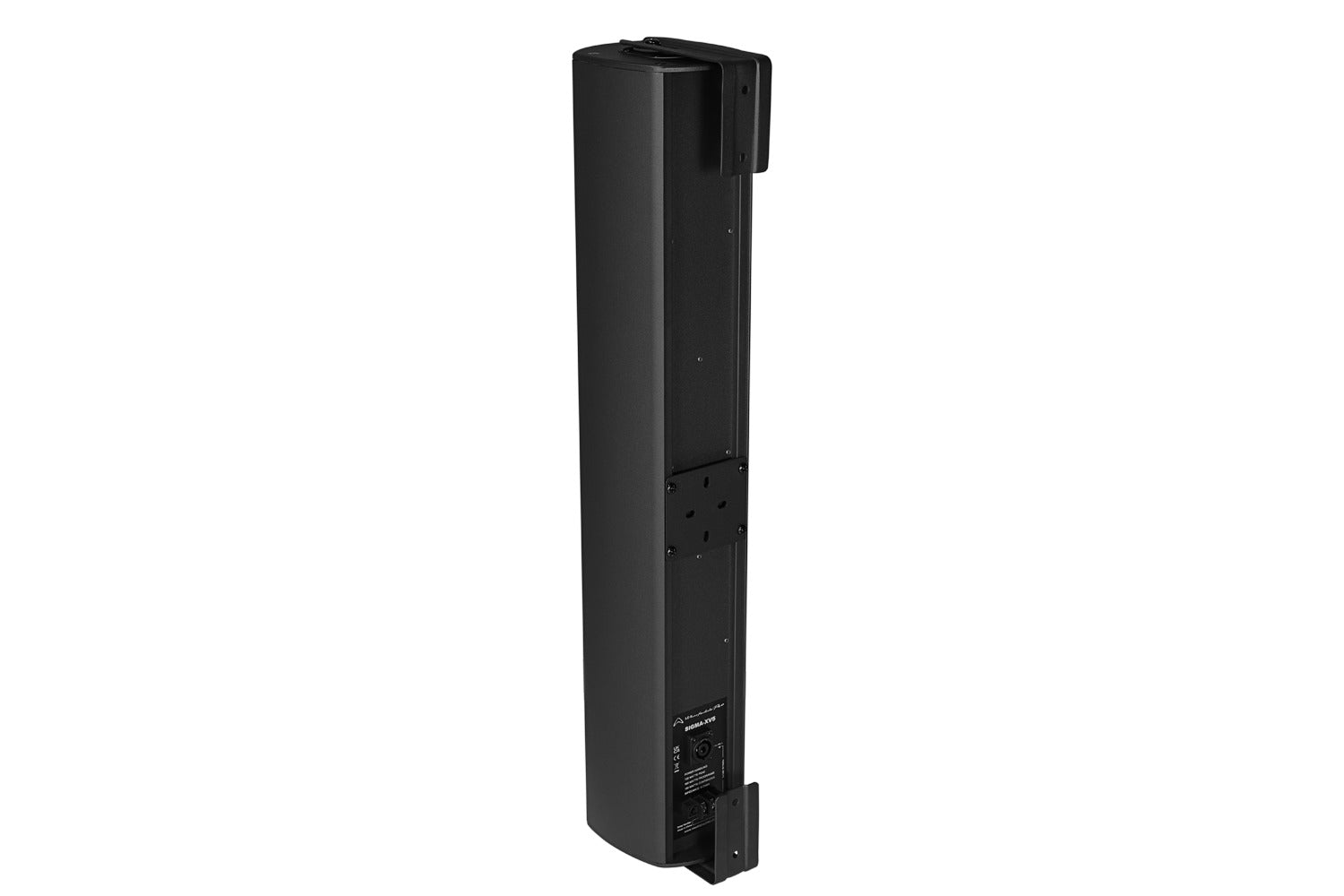

For the SIGMA-XV Column array, either use the included U bracket, or for even more adjustment, use the optional WPB-SV which gives up to 15° tilt and 180° of rotation.


SPECIFICATIONS

Model Name SIGMA-XV5
System Type Passive
Configuration Two-Way
Frequency Response (+/-3 dB) 160 Hz – 18 KHz
Frequency Range (-10 dB) 150 Hz – 20 KHz
Sensitivity 2.83 V / 1 m 95 dB
Calculated Maximum SPL @1 m 123 dB
System Rated Impedance 8 Ω
Low Frequency Transducer
Size (mm / inches) 5 x 75 mm / 3″
Voice Coil Size (mm / inches) 33 mm / 1.3″
Rated Impedance 4 Ω
LF Power re:AES2-2012 40 W
High Frequency Transducer
HF Driver Type 1 x 1″ High Frequency driver
Coil Size (mm / inches) 25.4 mm / 1″
Exit Size (mm / inches) 25.4 mm / 1″
Diaphragm Material PEI
Rated Impedance n/a
HF Power re:AES2-2012 n/a
Waveguide Type Mini EVO-Fold
Nominal Coverage (H x V) 120˚ x 30˚
LF Driver 5 x 3″
HF Driver 1 x 1″ PEI EVO-Fold Driver
Power
System Continuous Power 180 W
System Programme Power 360 W
System Peak Power 720 W
Transformer (T)
Transformer Taps (70 V)
Transformer Taps (100 V)
Crossover frequency 2.5 KHz
Recommended HPF
= BW 18 dB/oct.
160 Hz

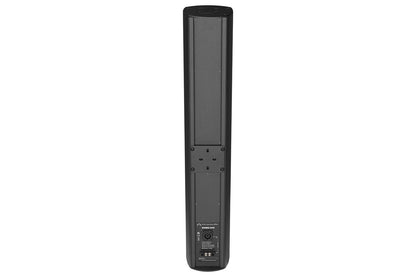

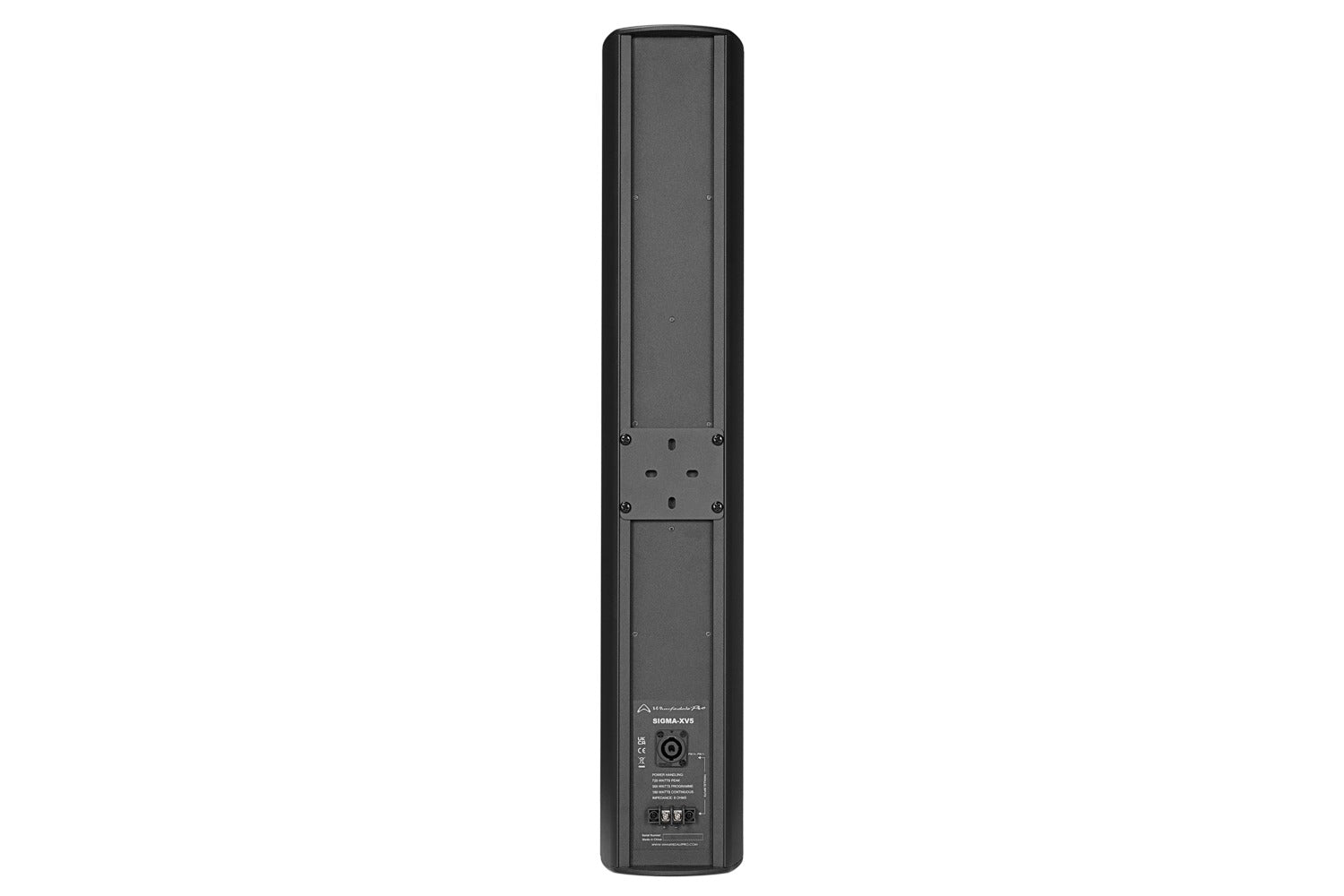

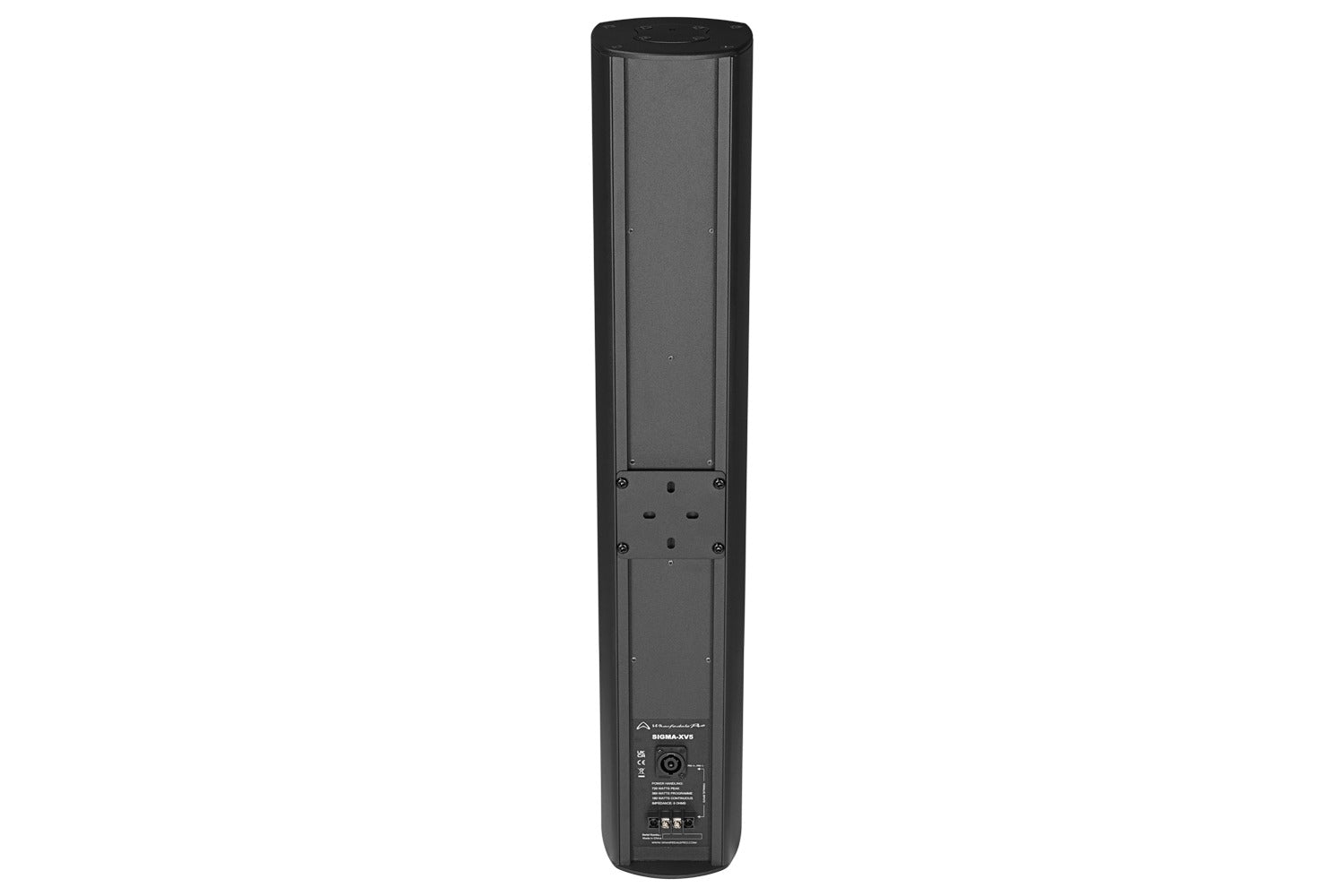

Input Connector 1 x speakON / 1x Barrier Strip
Hardware U Bracket included
Enclosure
Enclosure Material Aluminum
Finish Black Paint / White Paint
Grille Material & Finish 1.2 mm steel, painted
Dimensions – Unpacked
Height 720 mm / 28.3″
Width Front 126 mm / 4.96″
Width Rear 92 mm / 3.62″
Depth 145 mm / 5.71″
Dimensions – Packed
Height 865 mm / 30.1″
Width Front 210 mm / 8.27″
Width Rear 210 mm / 8.27″
Depth 210 mm / 8.27″
Weight
Net Weight 6.8 kg / 14.96 lbs
Gross Weight 7.6 kg / 16.72 lbs
Optional Wall-mount bracket WPB-SV



Download Quick Start Guide
