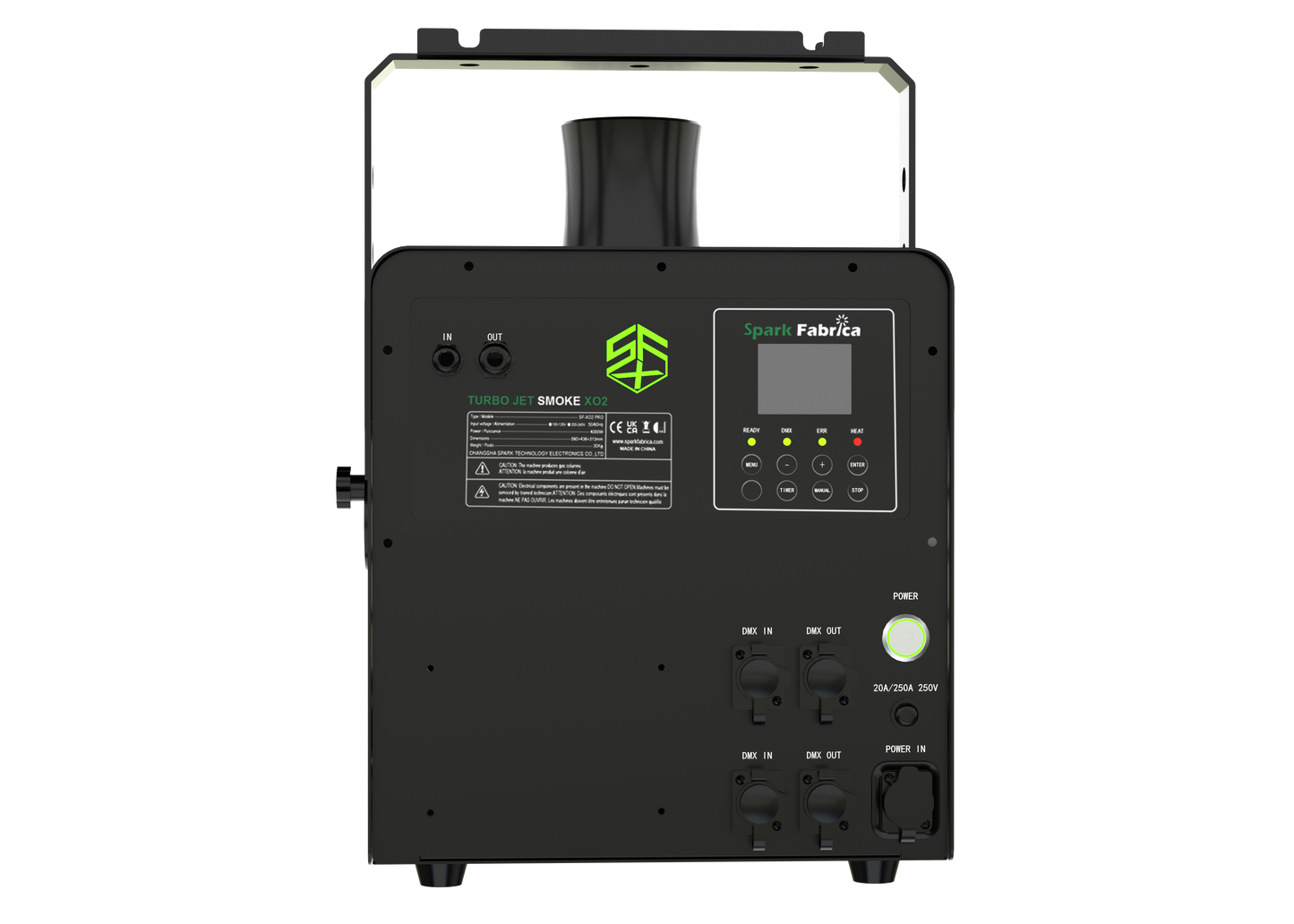

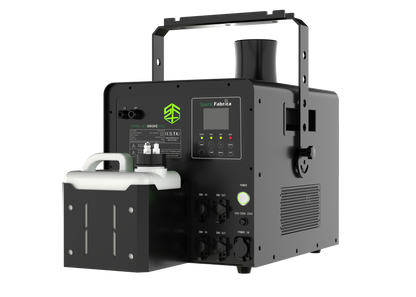

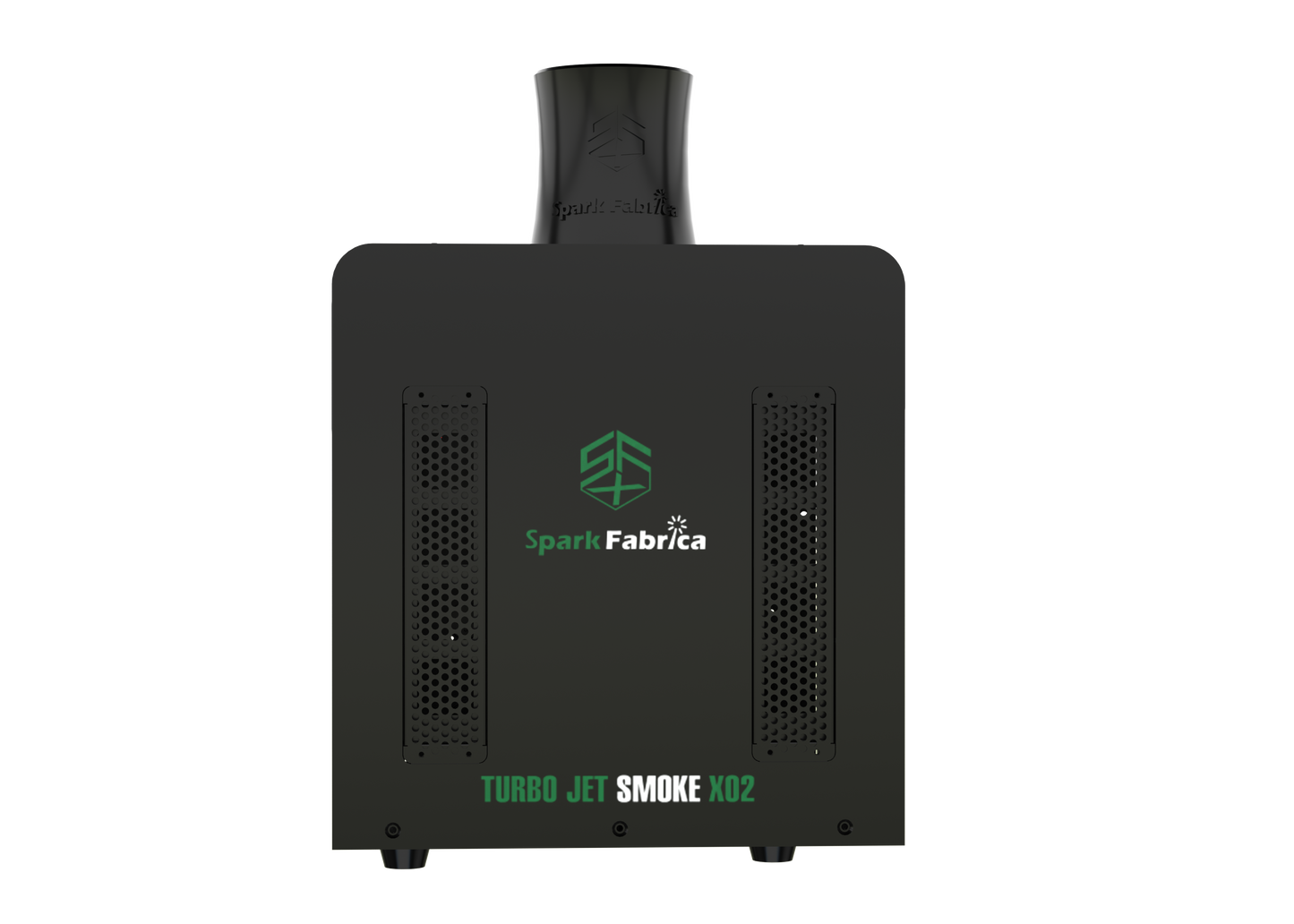

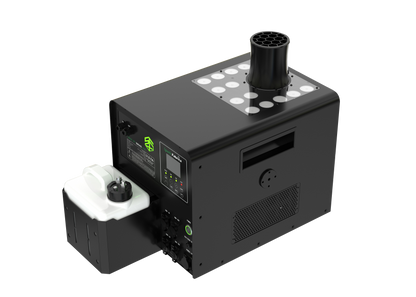

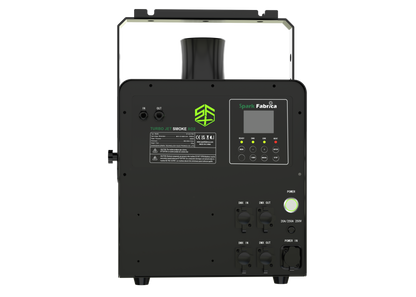

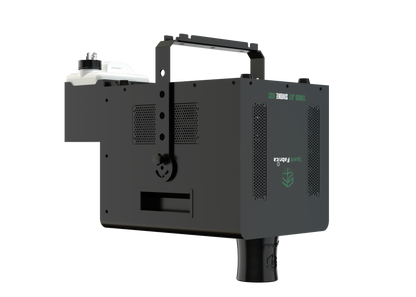

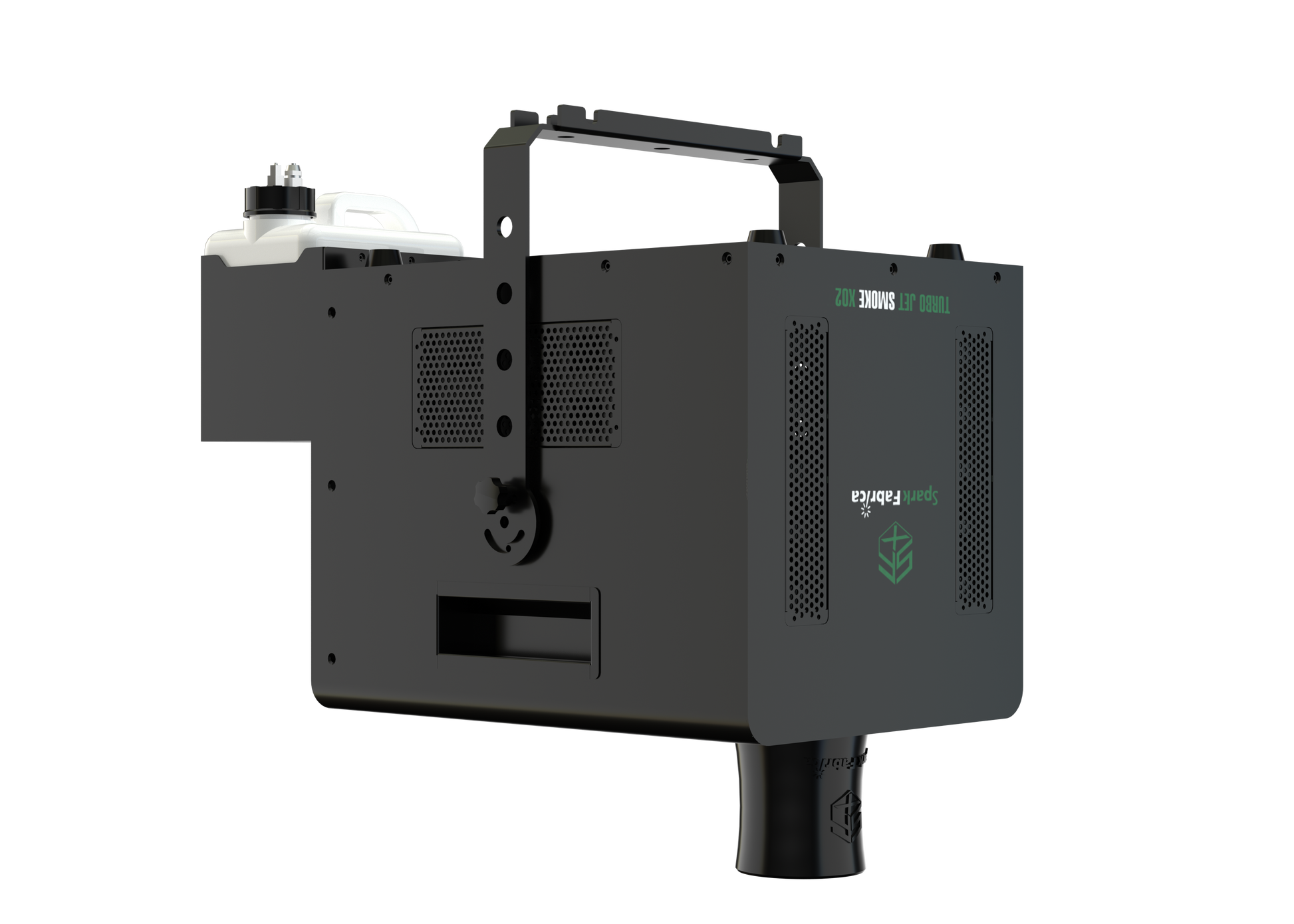

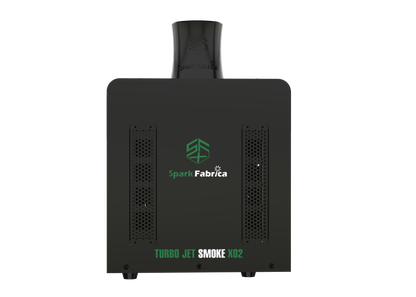

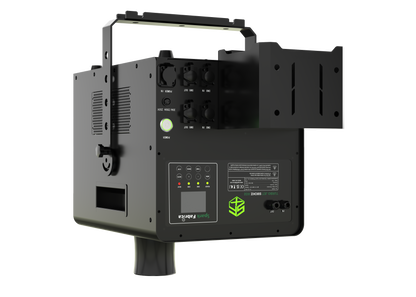

SF-XO2PRO Turbo Smoke Jet Machine

SF-XO2 PRO is Spark Fabrica's latest research and development of a heating core super-fast air jet that can replace the carbon dioxide air column machine.

Compared with traditional carbon dioxide air column machine, it is not inferior in terms of explosive power and fast dissipation, and does not require bulky carbon dioxide cylinders. For thick and fast-dispersing smoke, only one 3L bottle of SF-SH nano high-concentration air-column oil is required. Using this specially designed oil means that you can continue to use this machine without losing explosive power unlike traditional CO2 machines.

SF-XO2 PRO uses the latest wind vortex speed-increasing technology to increase its explosive power. It can produce a thick, white air column effect of up to 15M in one second. On this basis, we have also added 14 x 8W high-quality LED lights to give the smoke a variety of vibrant colours. Compared with other CO2 machines, the cost of use greatly reduces the transportation cost and consumables cost, making it a very cost-effective gas column product.

The SF-XO2 is ideal for weddings, concerts, sports events and other audio-visual event installations.

Key Features:

• Double Tube Stacking Design – Delivers massive smoke output for an electrifying effect.
• Instant Air Control – With a standing stop function, the air column fires and stop with precision

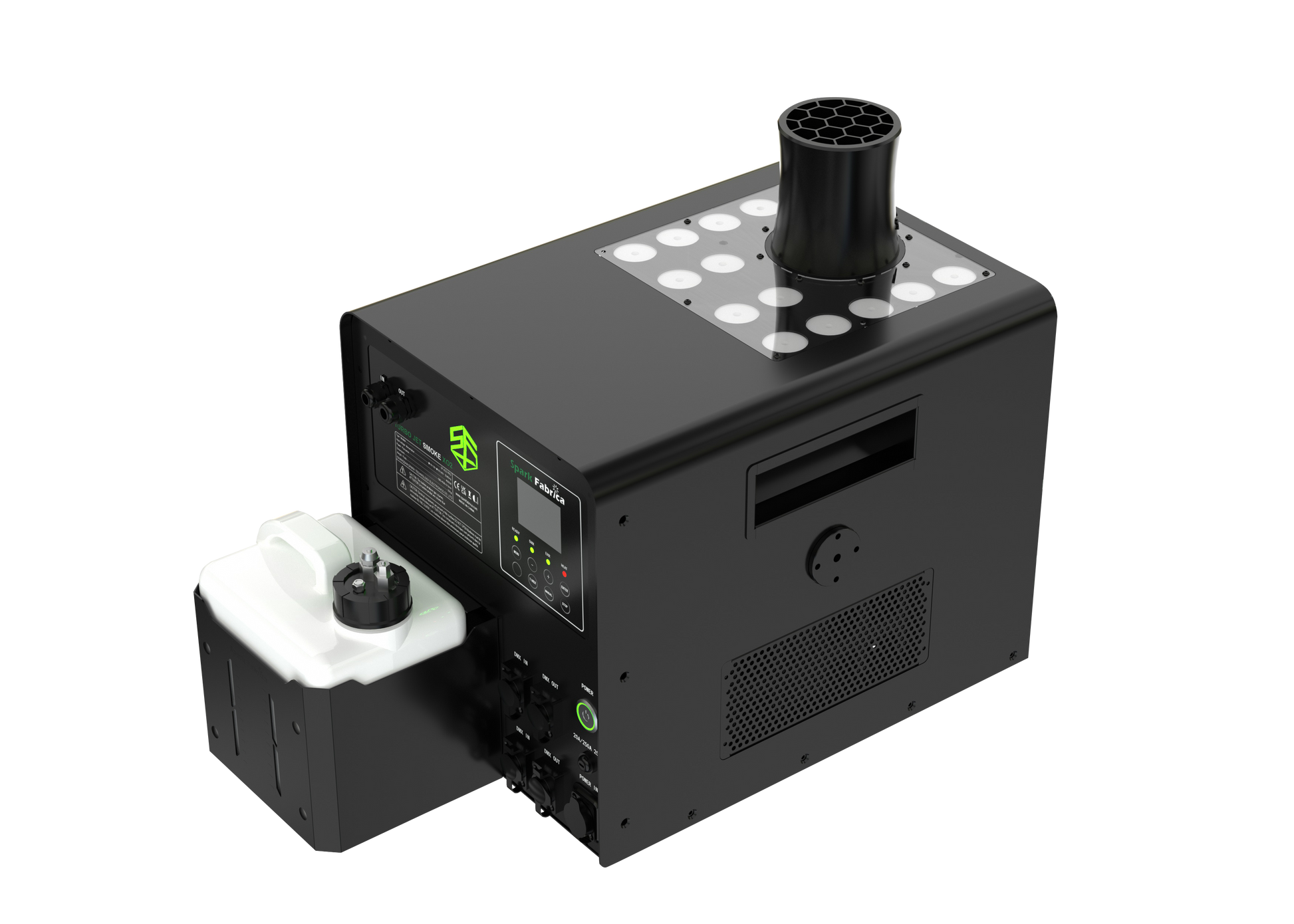

• Brilliant LED Illumination – 14 × 8W high-quality LED lights enhance every burst with vibrant colours.
• Smart Safety Monitoring – Features no-smoke oil alerts and an overheat warning for worry-free operation.
• Wind Vortex Tech – Maximises explosive power and boosts dissipation speed for dynamic performances.
• Versatile & Flexible – Supports inverted hanging and multi-angle spraying for ultimate stage impact.
• Next Level Smoke Effect – Paired with SF-S professional light gas column oil and SF-SH nano high-concentration dispersing oil for thick, fast-dissipating smoke.
• Unleash the Power–Command the Stage. Dominate the Show.

Specification

• Alternative to traditional CO2 Machine, utilising oil to create "air-column" effect.
• Thick smoke effect created instantly, shooting up to 15m in one second.

AC Power

• Input Voltage & Current: 240V, 50Hz
• Power Consumption: 2400W
• LED Power: 14 x 8W
• Power Input Connector: SEETRONIC
• Power Output Connector: SEETRONIC
• DMX Signal Interface: 3 & 5 Pin

Heating

• Heat Up Time: <9 Minutes

Hopper

• Liquid Tank Capacity: 3L

Technical Parameters

• Effect Height: 15 metres
• Smoke Output: 120,000 cuft/min (3,398 m3/min)
• Compatible Fluid: SF-S / SF-SH

Control

• Control Protocol: DMX512
• LCD Display

Accessories

• Power Plug: Included 1.6m SEETRONIC Power Cable
• Remote: Optional
• DMX Cable: Included 3m DMX Cable
• Clamp: Not Included
• Safety Wire: Not Included
• Bottom Screws: Included
• 120 Ω Fuse: Optional

Dimensions

• Machine Dimension: 560mm*313mm*436mm
• Machine Weight: 33 kg
• 1 Unit in Flight Case Dimensions: 602mm*447mm*628mm
• 1 Unit In Flight Case Weight: 50 kg

Download User Manual

Warranty: 1 Year
