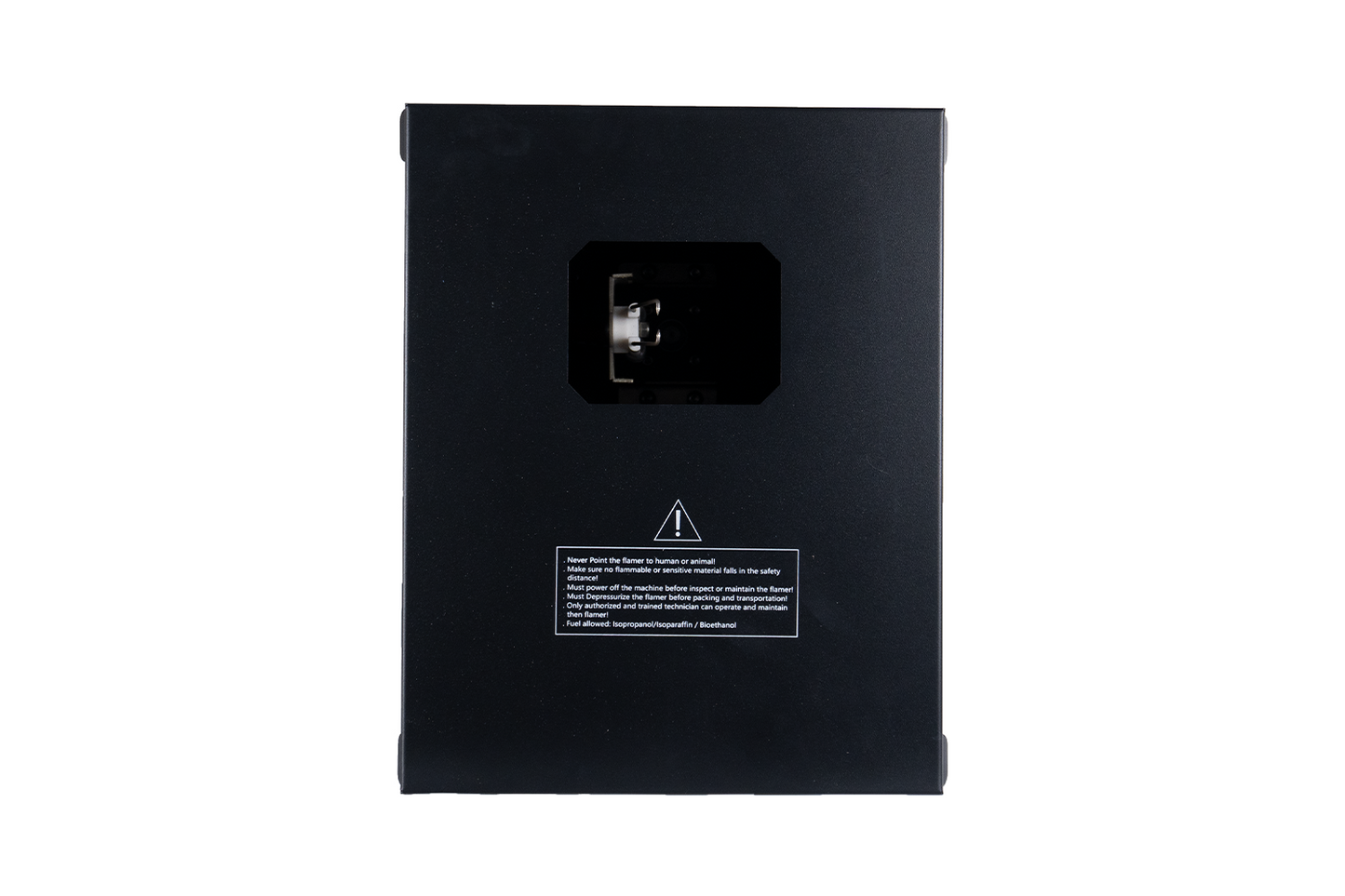

Iflamer SF-90 top view 1500 x 1000 px
Iflamer SF-90 back view 1500 x 1000 px
Spark Fabrica

I FLAMER SF-90 Flame Machine Compact

Regular price $0.00

Specification

  • IP55 (Waterproof Design)
  • Direct Shooting of Liquid Fuel up to 8-10 metres.
AC Power
  • Input Voltage & Rate: 240 V 50 HZ
  • Power Consumption: 300W
  • Power Input Connector: SEETRONIC
  • Power Output Connector: SEETRONIC
  • DMX Signal Interface: 5 PIN

Interface type

  • Signal Interface: Double DMX Interface
  • Signal Interface: 9V - 60 V fireworks ignition signal interface

Hopper

  • Fuel Bottle Capacity: 5 Litre

Control

  • Control Protocol: DMX512
  • DMX Channels: 2CH and 6CH
  • Control Mode: Standard DMX signal control
  • Effect Angles: Vertical
  • SMPTE: Touch Screen console support

Accessory

  • Power Plug: SEETRONIC (1.6 Metre)
  • Remote Controller: (Optional)
  • DMX Cable: 3M
  • Power Cable: 3M
  • Safety Loop

Oil Consumption

  • Firing Head L (Standard Configuration): 30mls
  • Firing Head M (Standard Configuration): 60mls

Ignition

  • Ignition Mode: High voltage electronic ignition

Weight

  • Net Weight ( No Fuel): 14Kg
  • Gross Weight: 22Kg
Dimensions
  • Machine Dimension: 330 x 260 x 345 mm
  • Packing Dimension: 730 x 587 x 725 mm

Fuel Oil

  • Kind: Isopropanol, Isoparaffin G, H, L, M, and Bioethanol

Manual

Roadcase: Optional

  • IFLAMERCASE - Case for IFlamer SF-90. Fits 2 Units.

Important: When using flame machines, a CO2 fire extinguisher and fire blanket must be readily available.

For more information, please visit the manufacturer's website.
