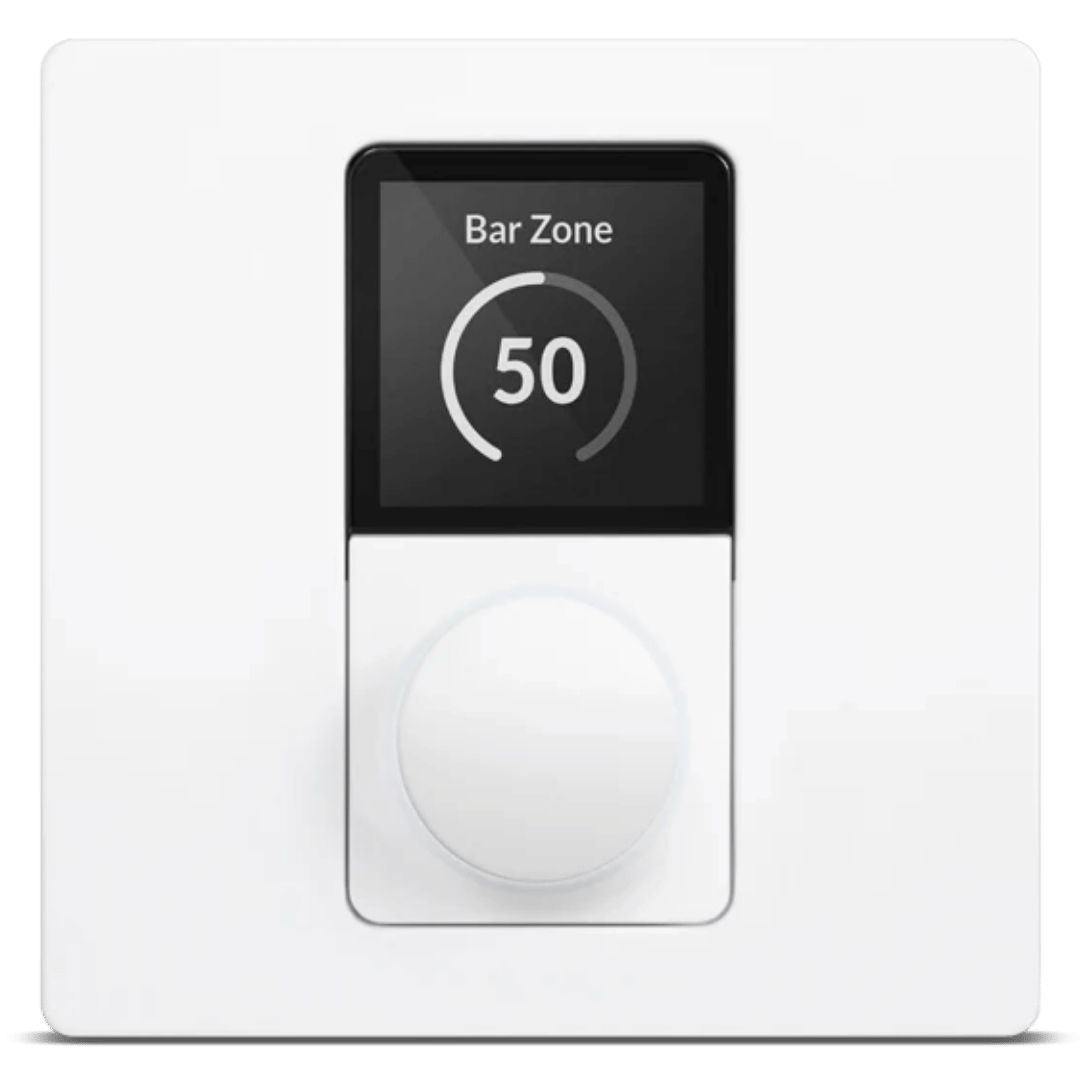

QI-ZC1 - Multi-Zone Audio Controller

Intuitive Volume & Zone Control for Quad Industrial Systems

The Quad Industrial QI-ZC1 is a programmable wall-mounted controller designed to give end-users simple, tactile command over their audio environment. Perfect for hospitality, retail, and corporate boardrooms, the ZC-1 allows staff to adjust volume levels or select audio sources instantly without needing access to the main amplifier rack.

Engineered for seamless integration with the QI-125.4 amplifier and the QI CORE software ecosystem, the ZC-1 is as smart as it is simple. It connects using standard, affordable CAT5/6 cabling via RJ45 connectors, supporting long cable runs of up to 300m (1000ft)—ideal for large-scale venues where the equipment rack is located far from the floor area.

With its sleek, minimalist white finish and "Decora" style form factor, the ZC-1 blends effortlessly into modern architectural interiors. It offers a professional, "set-and-forget" solution that empowers users while keeping the complex system settings securely under the hood.

Key Features:

• Tactile User Control: Provides a smooth rotary dial for volume adjustment and programmable button control.

• Seamless Integration: Designed specifically for use with Quad Industrial amplifiers and the QI CORE control platform.

• Simple Wiring: Uses standard CAT5 or CAT6 data cable with RJ45 connectors for power and data.

• Long-Distance Reliability: Supports stable control signals at distances up to 300 metres from the amplifier rack.

• Architectural Design: Clean white finish and standard single-gang sizing for a flush, professional wall-mount installation.

• Customisable Logic: Programmable via software to control specific zones, volume limits, or mute functions.

Technical Specifications:

• Product Model: QI-ZC1

• Type: Programmable Wall-Mounted Zone Controller

• Connectivity: 2 x RJ45 Ports (Supports Series or Parallel wiring)

• Maximum Cable Length: Up to 300m (1000ft) via CAT5/6

• Mounting: Standard Single-Gang (White)

• Control Type: Analog DC Voltage Logic

QI-ZC1 Quick Start Guide
