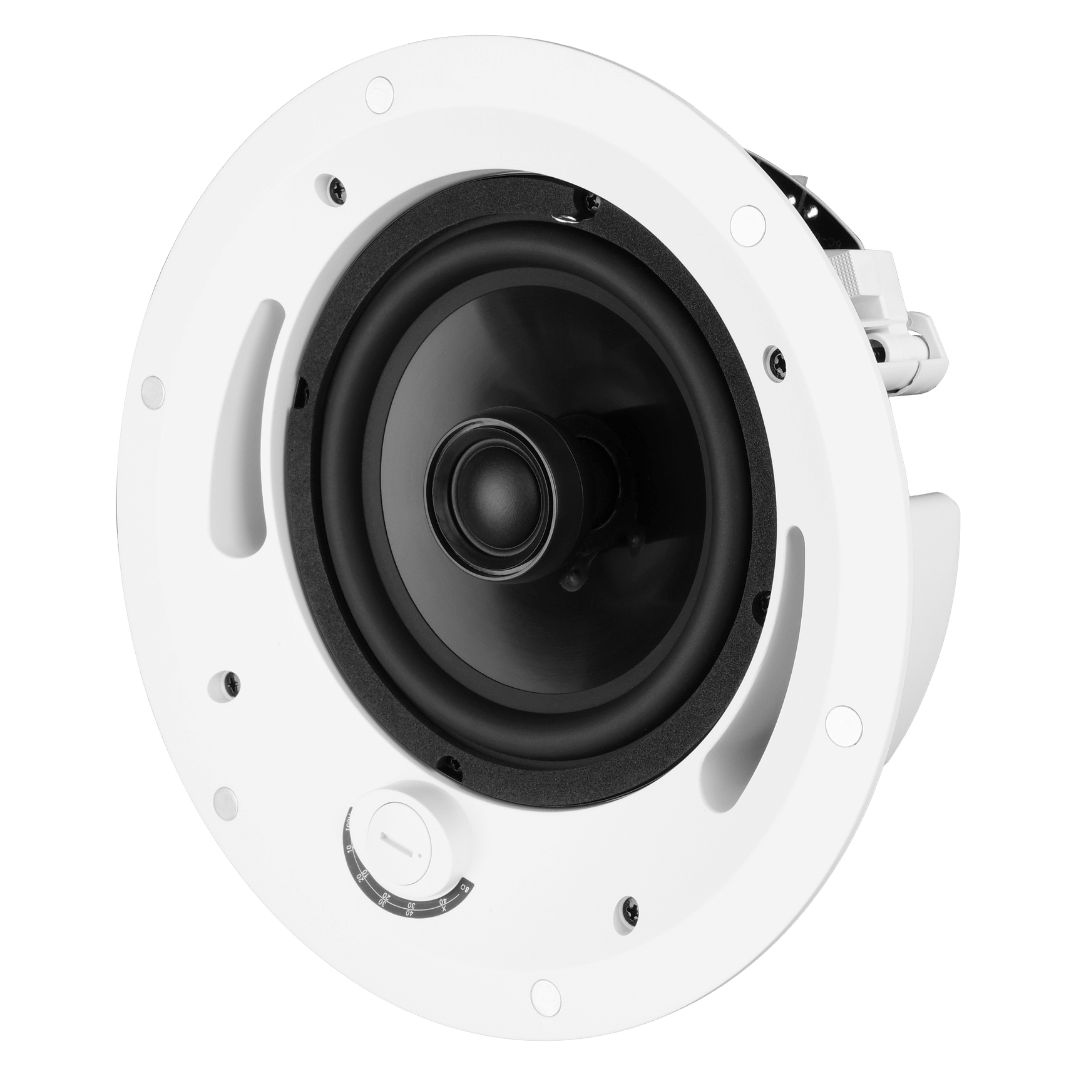

QI-CPRO6A - Ceiling Pro 6" Discreet Loudspeaker (White)

Powerful 6.5" Ultra-Slim Ceiling Speaker for High-Impact, Discreet Audio

The Quad Industrial QI-CPRO6A is a high-performance 6.5-inch coaxial ceiling loudspeaker engineered for larger commercial spaces where mounting depth is limited. As part of the "Discreet" range, the CPRO6A features an ultra-low-profile design, making it the perfect solution for shallow ceiling voids where a traditional back-can speaker cannot be installed.

Despite its slim form factor, the CPRO6A delivers impressive power and clarity. It features a 6.5-inch LF driver paired with a 1-inch Titanium swivel tweeter, providing crisp, accurate high-frequency detail. With a 110° coverage pattern and a massive 120W Programme power rating, it is designed to fill restaurants, retail flagships, and fitness centres with rich, high-fidelity sound.

The speaker is finished with a bezel-free magnetic grille for a seamless architectural look. It includes a 4-pin Euroblock connector for easy wiring and an integrated transformer for 70V/100V systems or 8Ω low-impedance use.

Key Features:

• Ultra-Low Profile Design: Specifically engineered for shallow ceiling cavities and tight installation environments.

• Premium Titanium Tweeter: 1-inch Titanium swivel tweeter provides superior high-frequency detail and can be aimed for precise coverage.

• High Output & Impact: 6.5-inch driver delivering up to 114 dB Max SPL, perfect for foreground music and clear paging.

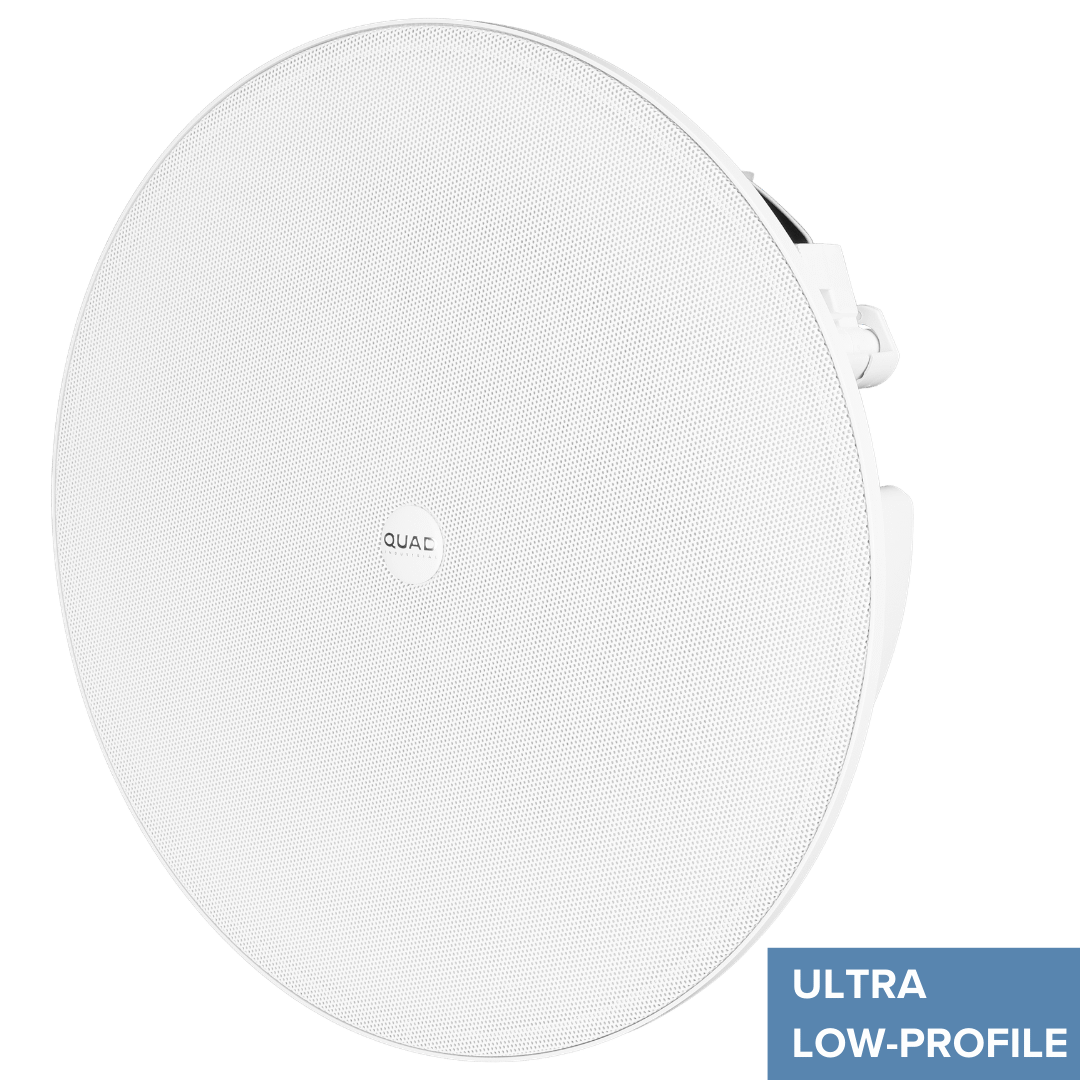

• Bezel-Free Magnetic Grille: A sleek, modern finish that sits flush against the ceiling for a truly discreet look.

• Flexible System Design: Integrated transformer with multi-tap power options (up to 40W) for 70V/100V or 8Ω operation.

• Quick Installation: Features a 4-pin Euroblock terminal and integrated mounting clamps for a fast, secure setup.

Technical Specifications:

• System Type: 6.5" Two-Way / Coaxial Passive

• Power Handling: 60W (Continuous) / 120W (Programme) / 240W (Peak)

• Sensitivity: 90 dB (2.83v / 1m)

• Frequency Range: 56 Hz - 20 kHz (-10 dB)

• Max SPL: 114 dB

• Transformer Taps: * 70V: 40W / 30W / 20W / 10W / 5W

  • 100V: 40W / 30W / 20W / 10W

• Input Connector: 4-Pin Euroblock

• Cut-out Size: 225mm

• Weight: 1.8kg (Net)

QI-CPRO6A Technical Brief
