QI-CPRO4A - Ceiling Pro 4" Discreet Loudspeaker (White)

Ultra-Slim 4" Ceiling Loudspeaker for Shallow Voids & Discreet Audio

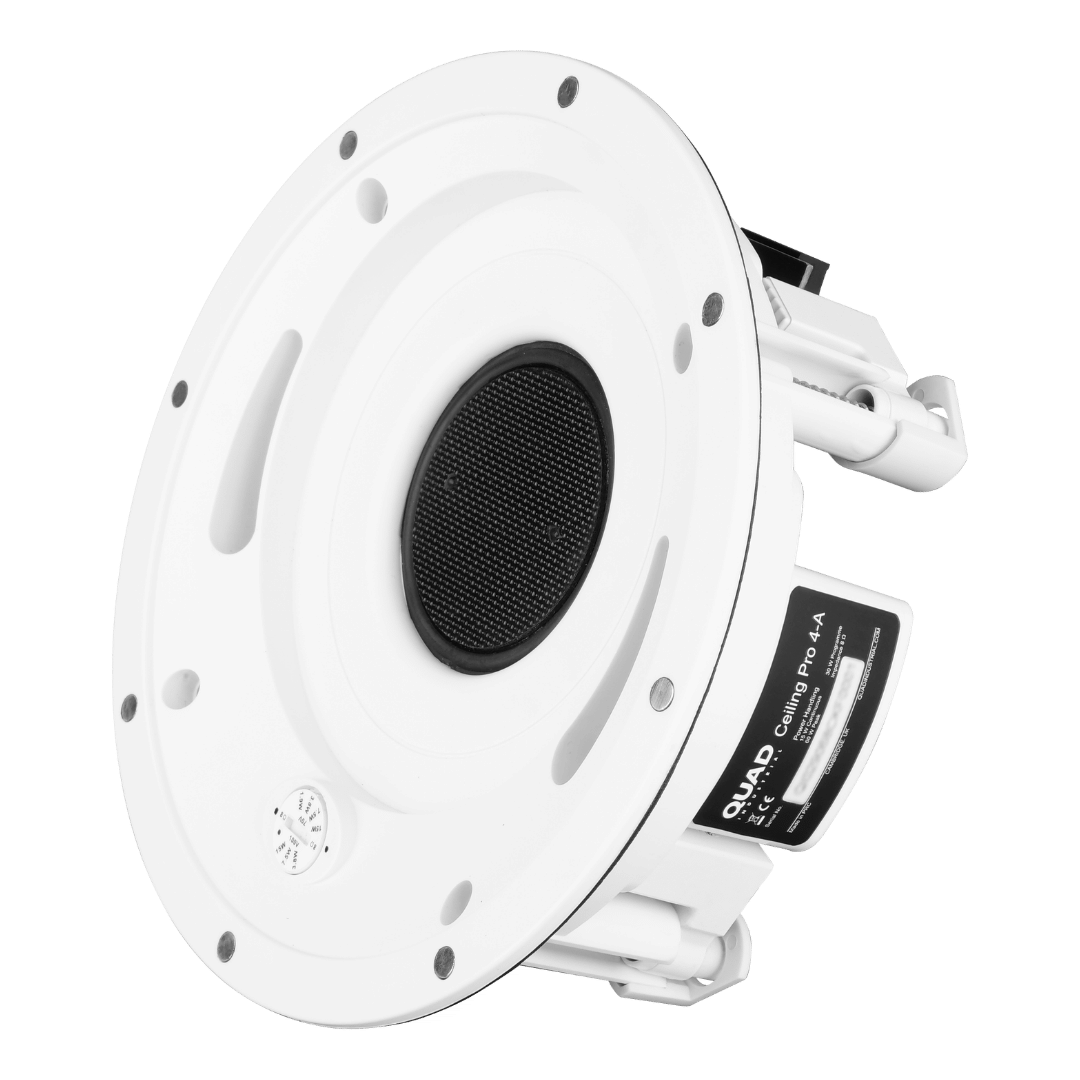

The Quad Industrial QI-CPRO4A is a premium 4-inch coaxial ceiling loudspeaker specifically designed for installations with limited mounting depth. Part of the "Discreet" series, the CPRO4A features an ultra-low-profile design that allows it to be installed in shallow ceiling voids where standard loudspeakers simply cannot fit.

Despite its compact depth, the CPRO4A delivers high-fidelity sound via a 4-inch coaxial driver and a 0.75-inch silk dome tweeter. With a wide 120° coverage pattern, it provides smooth and consistent audio distribution, making it the ideal choice for high-end retail, hospitality, and corporate environments.

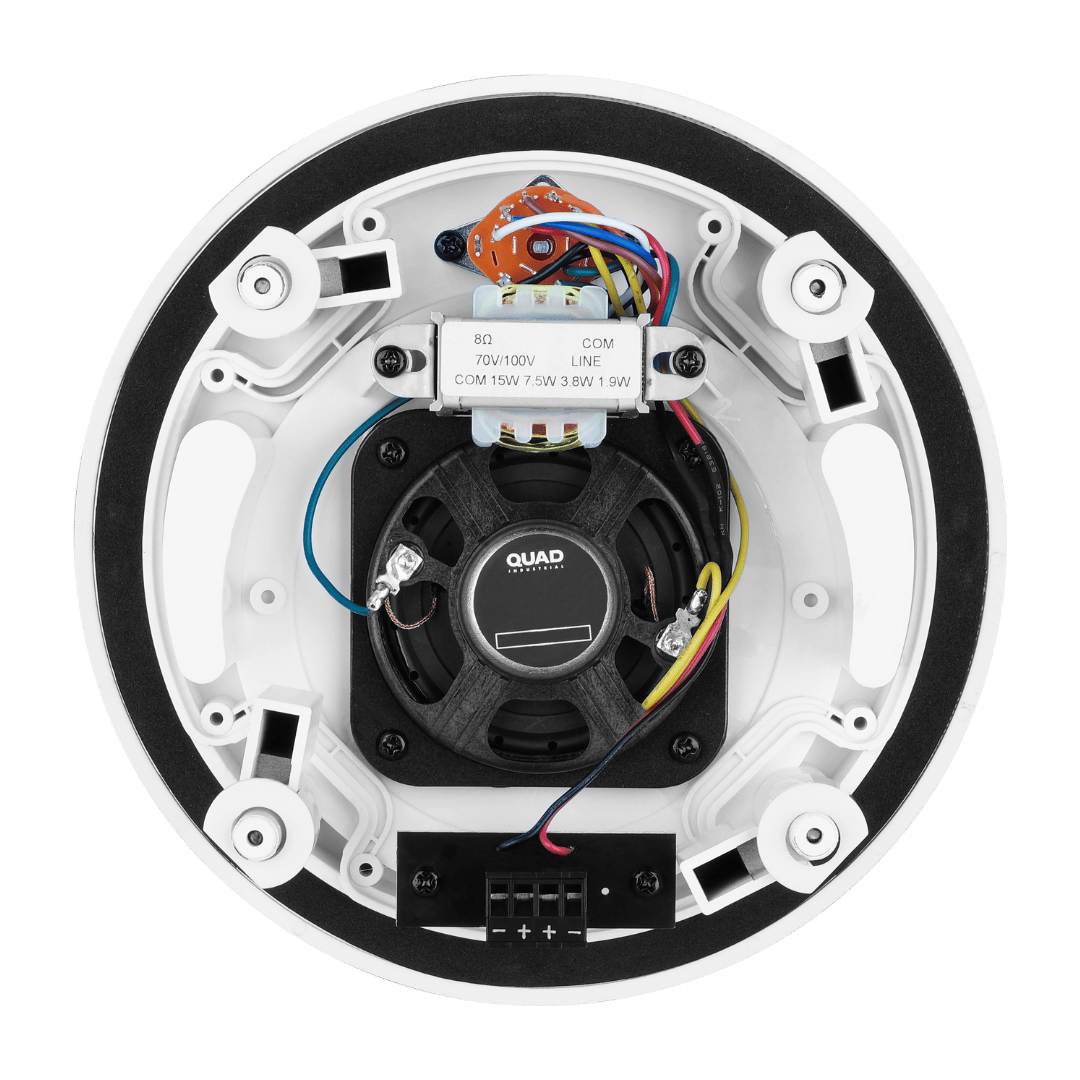

The speaker is finished with a bezel-free magnetic grille that sits flush against the ceiling for a clean, architectural look. For ease of installation, it includes a quick-fit 4-pin Euroblock connector and a multi-tap transformer for seamless integration into 70V/100V or 8Ω systems.

Key Features:

• Ultra-Low Profile: Engineered specifically for shallow ceiling voids and tight installation spaces.

• High-Fidelity Coaxial Audio: 4-inch driver paired with a silk dome tweeter for clear speech and smooth music reproduction.

• Wide Coverage: 120° x 120° nominal coverage ensures even sound distribution throughout the room.

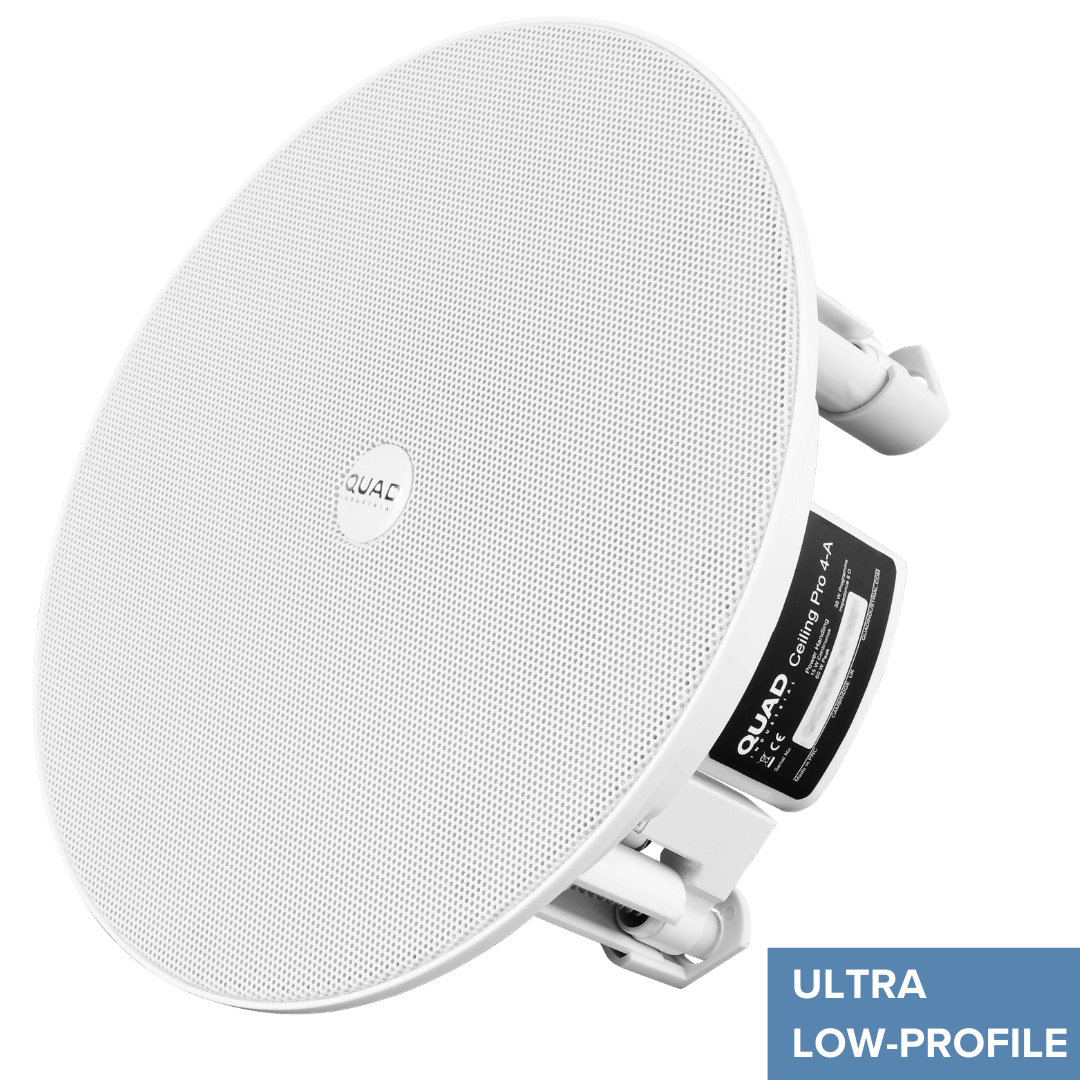

• Architectural Finish: Bezel-free magnetic grille provides a modern, discreet look that blends into any ceiling.

• Flexible Integration: Integrated transformer with multi-tap power options for 70V/100V systems or 8Ω low-impedance operation.

• Fire-Rated Security: Includes a metal back-can for enhanced audio performance and fire safety compliance.

Technical Specifications:

• System Type: 4" Two-Way / Coaxial Passive

• Power Handling: 20W (Continuous) / 40W (Programme) / 80W (Peak)

• Sensitivity: 87 dB (2.83v / 1m)

• Frequency Range: 140 Hz - 20 kHz (-10 dB)

• Max SPL: 106 dB

• Transformer Taps: * 70V: 20W / 10W / 5W / 2.5W / 1.25W

  • 100V: 20W / 10W / 5W / 2.5W

• Input Connector: 4-Pin Euroblock

• Weight: 1.7kg (Net)

QI-CPRO4A Technical Brief
